Overview

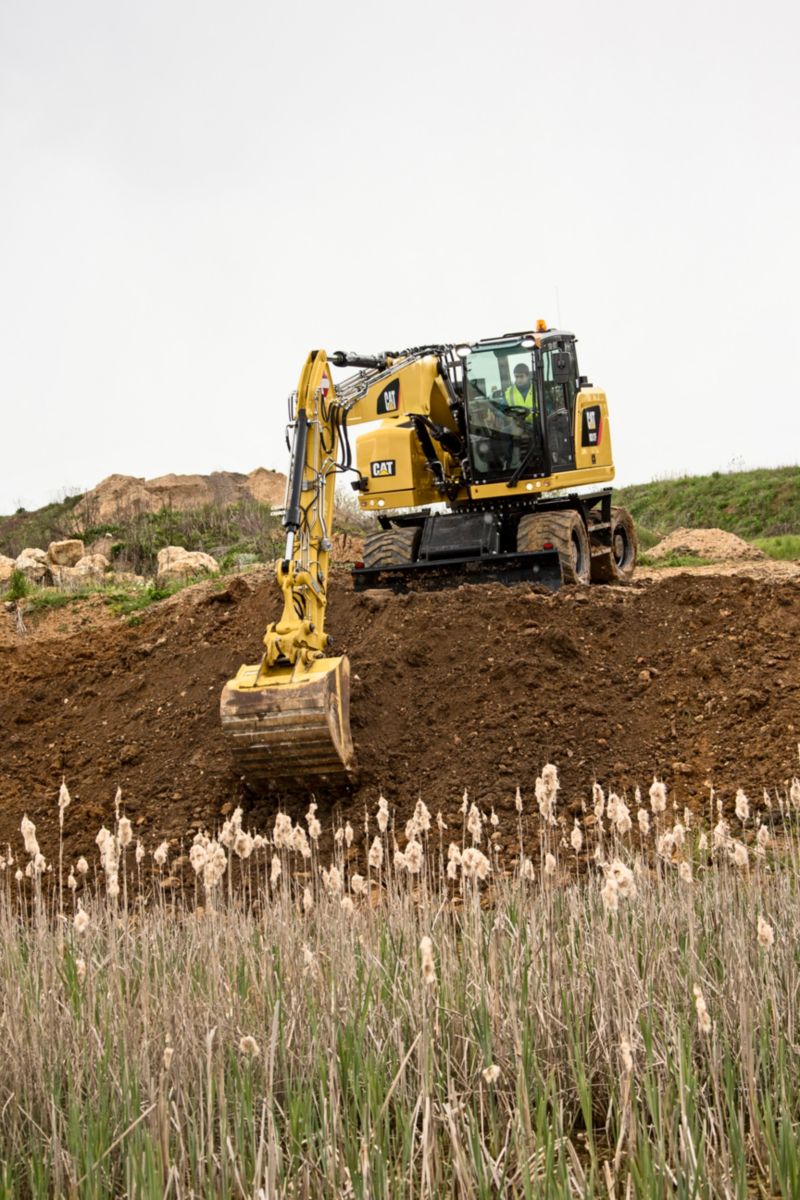

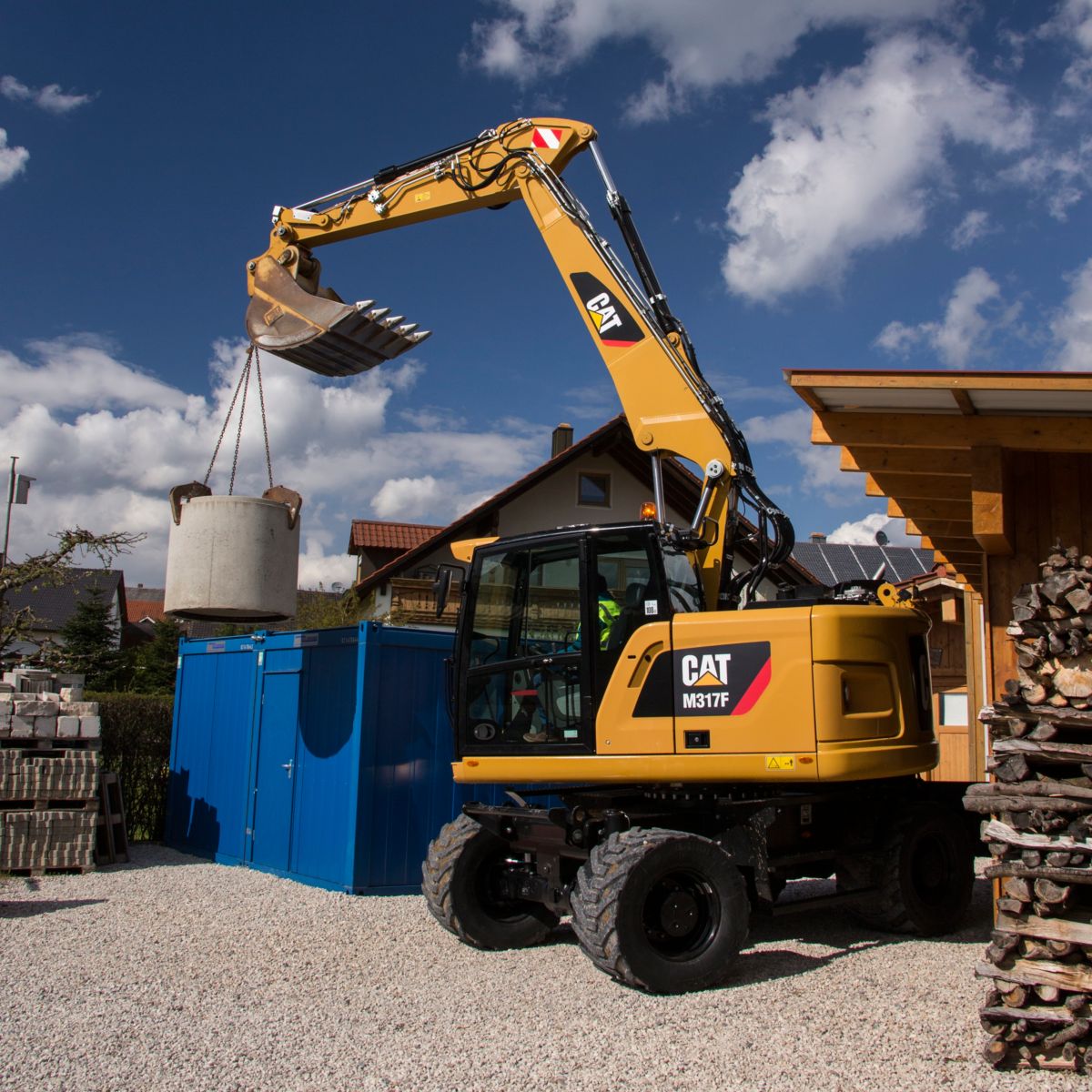

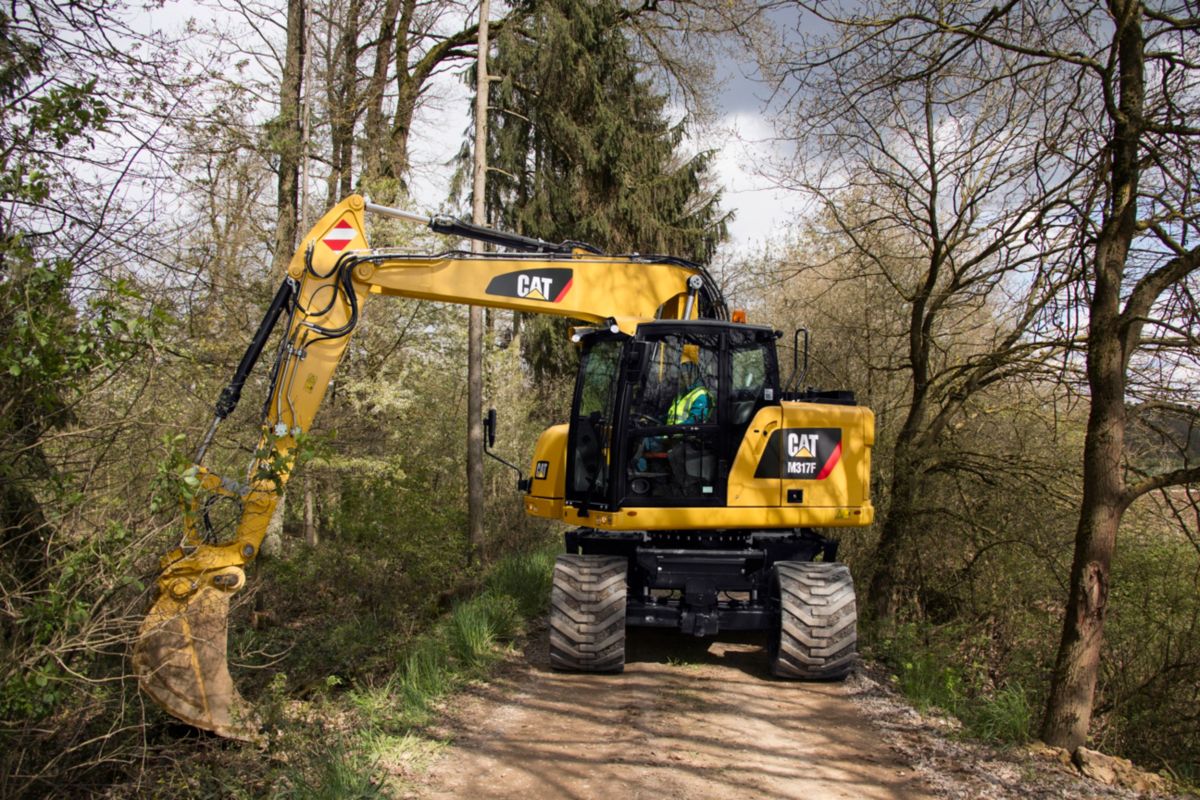

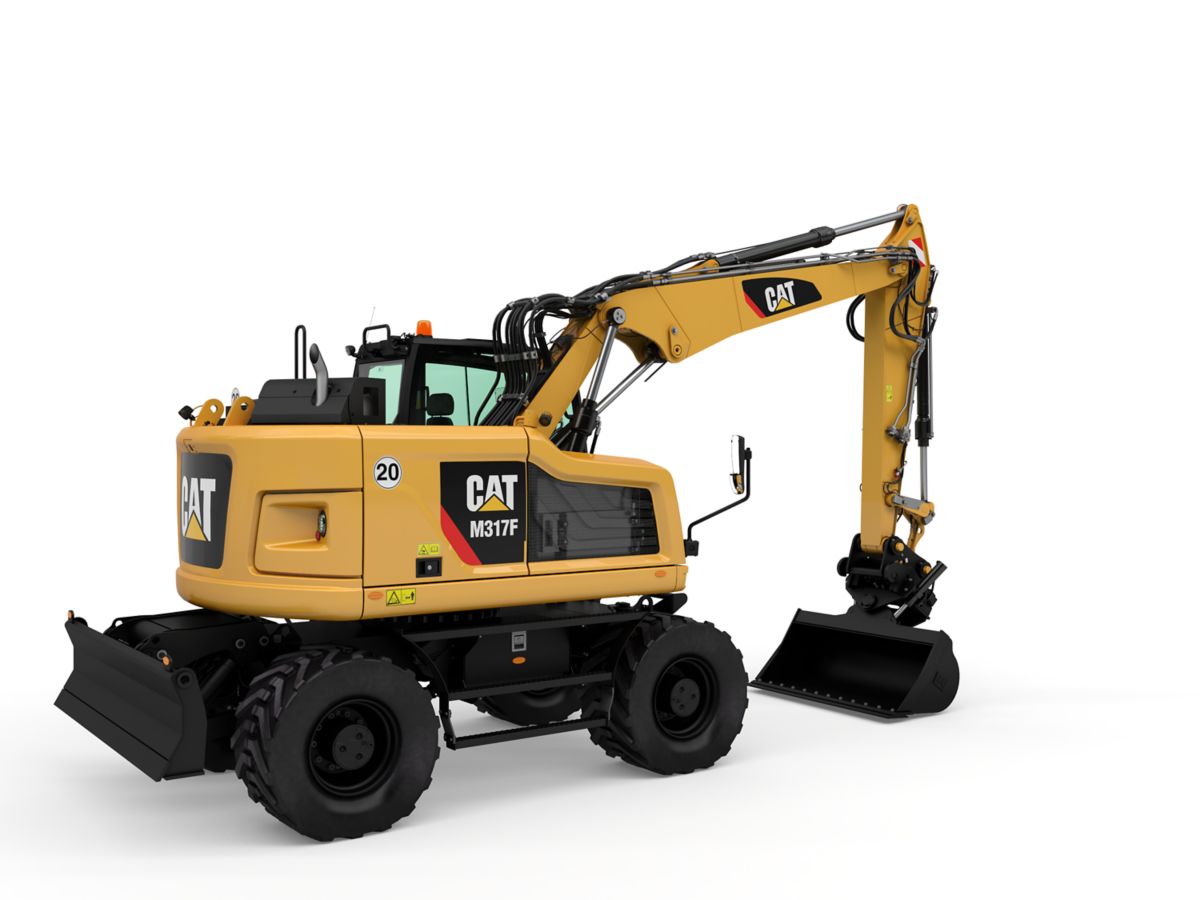

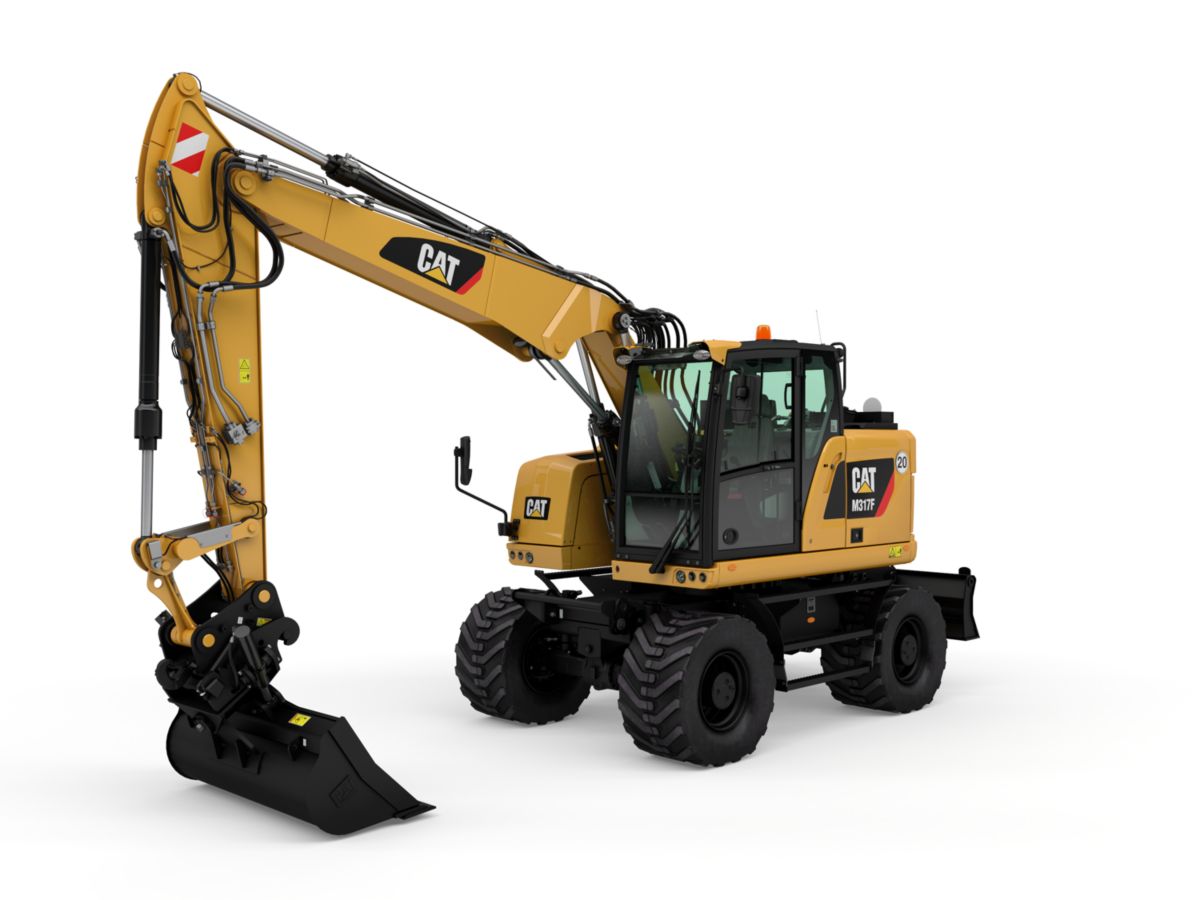

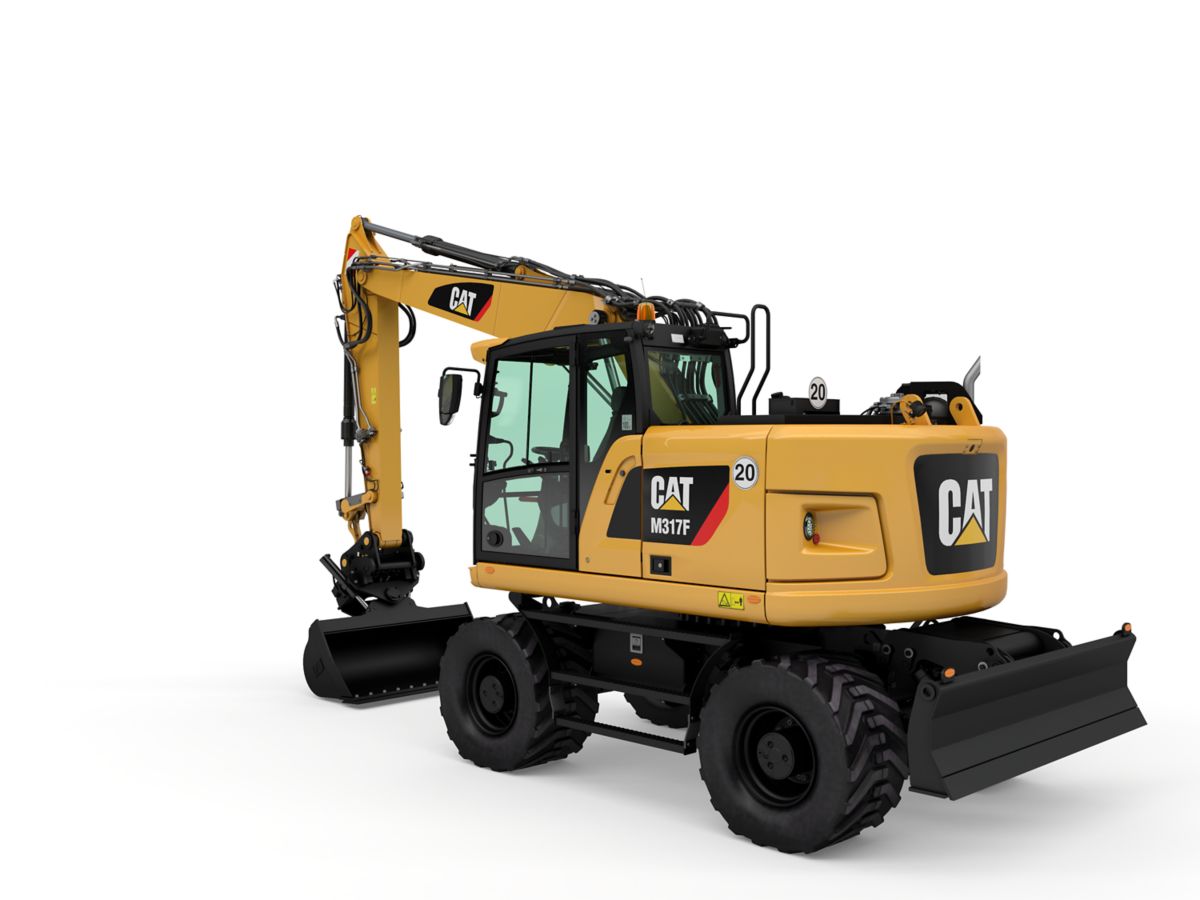

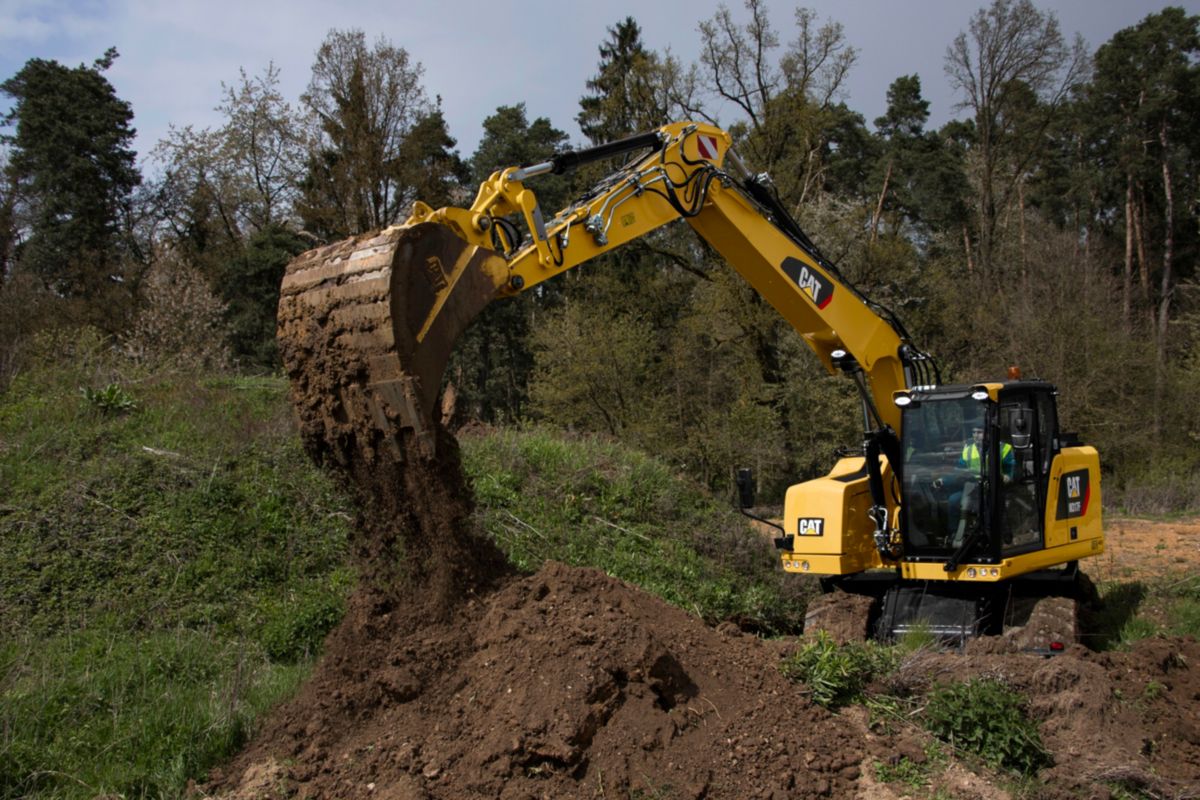

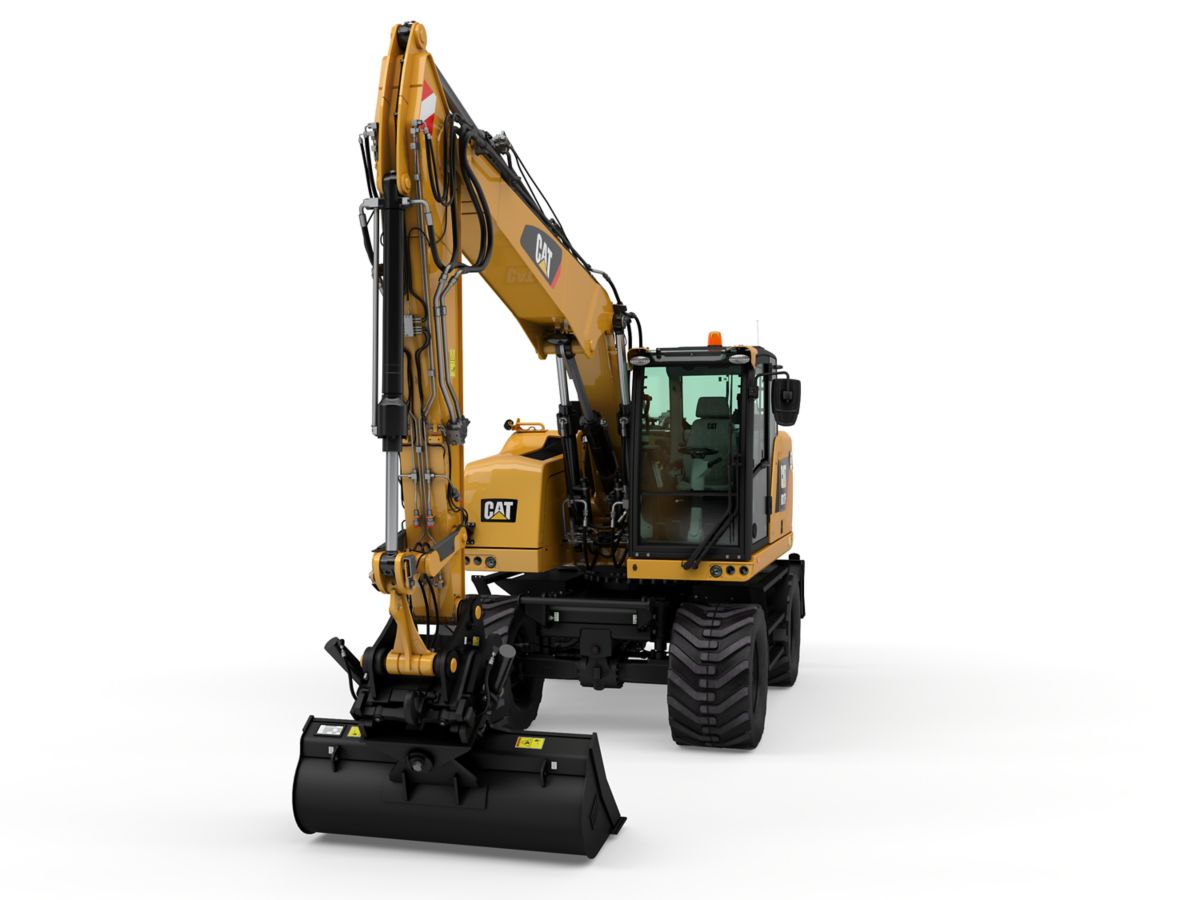

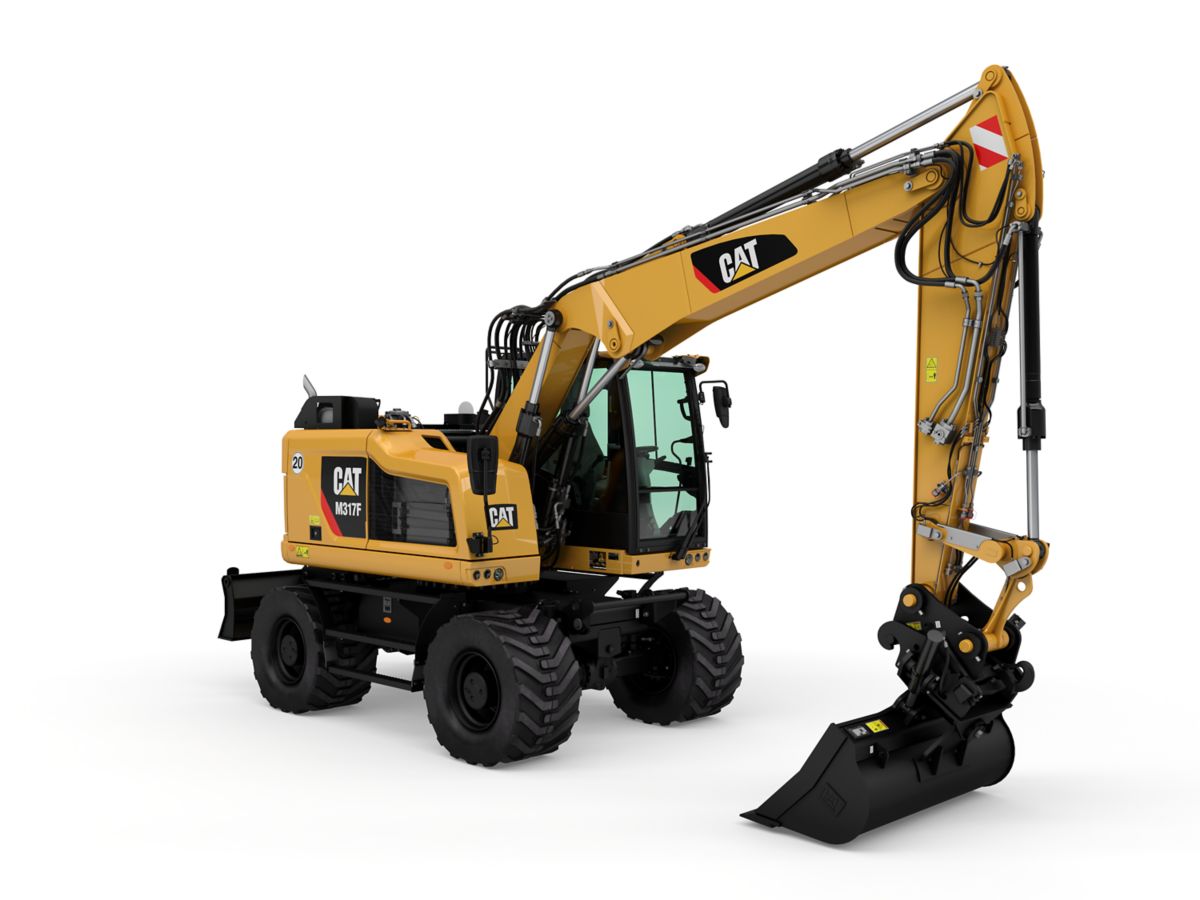

Working hard has never been easier with Cat® F Series Wheeled Excavators. The M317F compact radius increases your fleet versatility by introducing you into new possible markets like those with tight-quarter tasks and turning radius constraints such as road construction or small job sites. These machines are designed to help you take on the wide variety of challenges you face every day, and at a lower cost.

Engine

Engine Model
Cat C4.4 ACERT with Twin Turbo
Net Power
150.00 hp
112.00 kW
Emissions
Meets Tier 4 Final/Stage IV emission standards.
Ratings
1800.00 rpm
1800.00 rpm
Engine Power: Maximum Gross (ISO 14396)
117 kW (157 hp [159 hp]*)
Engine Power: Maximum Net (ISO 9249/SAE J1349)
112 kW (150 hp [152 hp]*)
Bore
4.10 in
105.00 mm
Stroke
5.00 in
127.00 mm
Displacement
268.50 in3
4.40 L
Maximum Torque at 1,400 rpm
523.00 lbf-ft
710.00 N·m
Number of Cylinders – In line
4
Note
*Metric values.

Drive

Maximum Travel Speed
19.00 mph
30.00 km/h

Transmission

Maximum Forward/Reverse – 2nd Gear
19.00 mph
30.00 km/h
Drawbar Pull
23380.00 lbf
104.00 kN
Maximum Gradeability (17 500 kg/38,580 lb)
70%

Swing Mechanism

Swing Speed
9.00 rpm
9.00 rpm
Maximum Swing Torque
27289.00 ft·lbf
37.00 kN·m

Undercarriage

Ground Clearance
14.60 in
370.00 mm

Service Refill Capacities

Fuel Tank (total capacity)
77.90 gal
295.00 L
Diesel Exhaust Fluid Tank
5.00 gal
19.00 L

Swing Radius and Key Dimensions (maximum footprint with outriggers down)

Tail Swing Radius
5.83 ft
1785.00 mm
Maximum Width (with parallel blade)
8.33 ft
2550.00 mm
Maximum Shipping Length (with long stick)
27.75 ft
8465.00 mm

Weights

Operating Weights*
16 750 to 17 750 kg (36,927 to 38,691 lb)
VA Boom: Rear Dozer Only
36927.00 lb
16750.00 kg
VA Boom: Front Dozer, Rear Outriggers
38691.00 lb
17750.00 kg
Counterweight
9480.00 lb
4300.00 kg
Note
*Includes medium stick, counterweight, full fuel tank, operator, dual pneumatic tires. Weight varies depending on configuration.

Hydraulic System

System
64.70 gal (US)
245.00 l
Maximum Pressure – Implement Circuit: Normal and Travel Circuits
5076.00 psi
35000.00 kPa
Maximum Pressure - Implement Circuit - Heavy Lift
5439.00 psi
37500.00 kPa
Maximum Pressure - Auxiliary Circuit - High Pressure
5076.00 psi
35000.00 kPa
Maximum Pressure - Auxiliary Circuit - Medium Pressure
2683.00 psi
18500.00 kPa
Swing Mechanism
4786.00 psi
33000.00 kPa
Maximum Flow - Implement/Travel Circuit
58.00 gal/min
220.00 l/min
Maximum Flow – Auxiliary Circuit: High Pressure
58.00 gal/min
220.00 L/min
Maximum Flow – Auxiliary Circuit: Medium Pressure
12.70 gal/min
48.00 L/min
Maximum Flow - Swing Mechanism
18.50 gal/min
70.00 l/min

Working Ranges

VA Boom – 2450 mm (8'0") Stick Length: Digging Height
32.50 ft
9910.00 mm
VA Boom – 2450 mm (8'0") Stick Length: Dump Height
22.33 ft
6810.00 mm
VA Boom – 2450 mm (8'0") Stick Length: Digging Depth
18.67 ft
5690.00 mm
VA Boom – 2450 mm (8'0") Stick Length: Reach at Ground Level
29.08 ft
8870.00 mm
VA Boom – 2600 mm (8'6") Stick Length: Digging Height
33.58 ft
10240.00 mm
VA Boom – 2600 mm (8'6") Stick Length: Dump Height
23.33 ft
7110.00 mm
VA Boom – 2600 mm (8'6") Stick Length: Digging Depth
19.25 ft
5870.00 mm
VA Boom – 2600 mm (8'6") Stick Length: Reach at Ground Level
29.92 ft
9110.00 mm
Note
Range values are calculated with GD bucket 1100 mm (3'7"), 0.80 m3 (1.05 yd3) with tips K080 and quick coupler with a tip radius of 1574 mm (5'2").

Engine

Engine Model
Cat C4.4 with Twin Turbo
Net Power
150.00 HP
112.00 kW
Bore
4.10 in
105.00 mm
Stroke
5.00 in
127.00 mm
Displacement
268.50 in³
4.40 l
Maximum Torque - 1,400 rpm
523.00 ft·lbf
710.00 N·m
Emissions
Meets Tier 4 Final/Stage IV emission standards.
Engine Power - Maximum Gross - ISO 14396
117 kW (157 hp [159 hp]*)
Engine Power - Maximum Net - ISO 9249/SAE J1349
112 kW (150 hp [152 hp]*)
Note
*Metric values.
Number of Cylinders - In Line
4
Ratings
1800.00 r/min
1800.00 r/min

Weights

Counterweight
9480.00 lb
4300.00 kg

Swing Radius and Key Dimensions - Maximum Footprint with Outriggers Down

Maximum Shipping Length - With Long Stick
27.75 ft
8465.00 mm
Maximum Width - With Parallel Blade
8.33 ft
2550.00 mm
Tail Swing Radius
5.83 ft
1785.00 mm

Weights

Operating Weight*
16 750 to 17 750 kg (36,927 to 38,691 lb)
VA Boom - Front Dozer, Rear Outriggers
38691.00 lb
17750.00 kg
VA Boom - Rear Dozer Only
36927.00 lb
16750.00 kg

Swing Mechanism

Swing Speed
9.00 r/min
9.00 r/min

Hydraulic System

Maximum Flow - Auxiliary Circuit - High Pressure
58.00 gal/min
220.00 l/min
Maximum Flow - Auxiliary Circuit - Medium Pressure
12.70 gal/min
48.00 l/min
Maximum Pressure - Implement Circuit - Normal and Travel Circuit
5076.00 psi
35000.00 kPa
Swing Mechanism
4786.00 psi
33000.00 kPa

Drive

Maximum Travel Speed
19.00 mile/h
30.00 km/h

Transmission

Maximum Forward/Reverse - 2nd Gear
19.00 mile/h
30.00 km/h

Service Refill Capacities

Diesel Exhaust Fluid Tank
5.00 gal (US)
19.00 l
Fuel Tank - Total Capacity
77.90 gal (US)
295.00 l

Undercarriage

Ground Clearance
14.60 in
370.00 mm

Working Ranges

VA Boom - 2450 mm (8'0") Stick Length: Digging Height
32.50 ft
9910.00 mm
VA Boom - 2450 mm (8'0") Stick Length: Dump Height
22.33 ft
6810.00 mm

Weights

Note
*Includes medium stick, counterweight, full fuel tank, operator, dual pneumatic tires. Weight varies depending on configuration.

Working Ranges

VA Boom - 2450 mm (8'0") Stick Length: Digging Depth
18.67 ft
5690.00 mm
VA Boom - 2450 mm (8'0") Stick Length: Reach at Ground Level
29.08 ft
8870.00 mm
VA Boom - 2600 mm (8'6") Stick Length: Digging Depth
19.25 ft
5870.00 mm
VA Boom - 2600 mm (8'6") Stick Length: Digging Height
33.58 ft
10240.00 mm
VA Boom - 2600 mm (8'6") Stick Length: Dump Height
23.33 ft
7110.00 mm
VA Boom - 2600 mm (8'6") Stick Length: Reach at Ground Level
29.92 ft
9110.00 mm
Features

PERFORMANCE AND PRODUCTIVITY

  • Cat C4.4 engine meets U.S. EPA Tier 4 Final/EU Stage IV emission standards. Emissions technology is transparent – no action required from the operator and no stopping for regeneration.
  • Dedicated swing pump, allowing faster, smoother combined movements.
  • Built-in fuel savers, eliminating waste with features like Auto Engine Speed Control, Engine Idle Shutdown and efficient Eco Mode.
  • “On-Demand” Strategies, to consume just the right amount of fuel.
  • Similar working ranges, stability and lift capacities as the M316F.
  • Highly mobile, the M317F can travel up to 30 km/h (19 mph).

EXPAND YOUR CAPABILITIES

  • Compact design allows an operator to swing with confidence in tight quarters.
  • Flexible configurations to meet all your needs with various booms/sticks, tires and undercarriages.
  • “Plug and Play” design, with complete integration of the whole portfolio of Cat attachments. – Auxiliary hydraulics, including high pressure, and quick coupler lines/circuits. – Readiness for all couplers, either Pin Grabber, Dedicated or hydraulic Auto Connect coupler. – The monitor can allow ten hydraulic pump flow and pressure settings at the same time. – Tiltrotator option including all required changes to accommodate the Cat Tiltrotator.
  • Joystick buttons/sliders can be set up per tool as desired by the operator.
  • Utility and finishing work are fast and flawless with a Cat compactor, finishing bucket or tilt bucket.
  • Dealing with debris and waste is easy with a Cat hammer and grapple.
  • Couplers let you swap between attachments in seconds without leaving the cab.

EASY TO OPERATE

  • A complete package of smart technologies with features like Cruise Control or automatic brake and axle lock. Optional boosters like Ride Control, SmartBoom™, joystick steering are available.
  • Everything can be adjusted in the cab from the steering column height to the electrically adjustable mirrors.
  • Ergonomic cab with controls kept to a minimum and conveniently located.
  • Split-screen monitor to allow quick view of both cameras on the same display.

SAFELY HOME EVERY DAY

  • Integrated devices to help enforce safe behavior, like seat belt indicator, or the speed limit setting when roading in reverse with the upper frame rotated.
  • Visibility: large glass areas, rear/side cameras. LED lamps for all working lights and cameras.
  • For added protection, the optional impact resistant windshield meets the EN356 P5A standard.
  • Integrated pin code adds anti-theft security to your equipment.

TECHNOLOGY THAT PUSHES PROFITS

  • Product Link™ connects owners to their equipment, providing access to machine data such as location, hours, fuel consumption, idle time, events, and diagnostic codes.Fit for life Diesel Particulate Filter.
