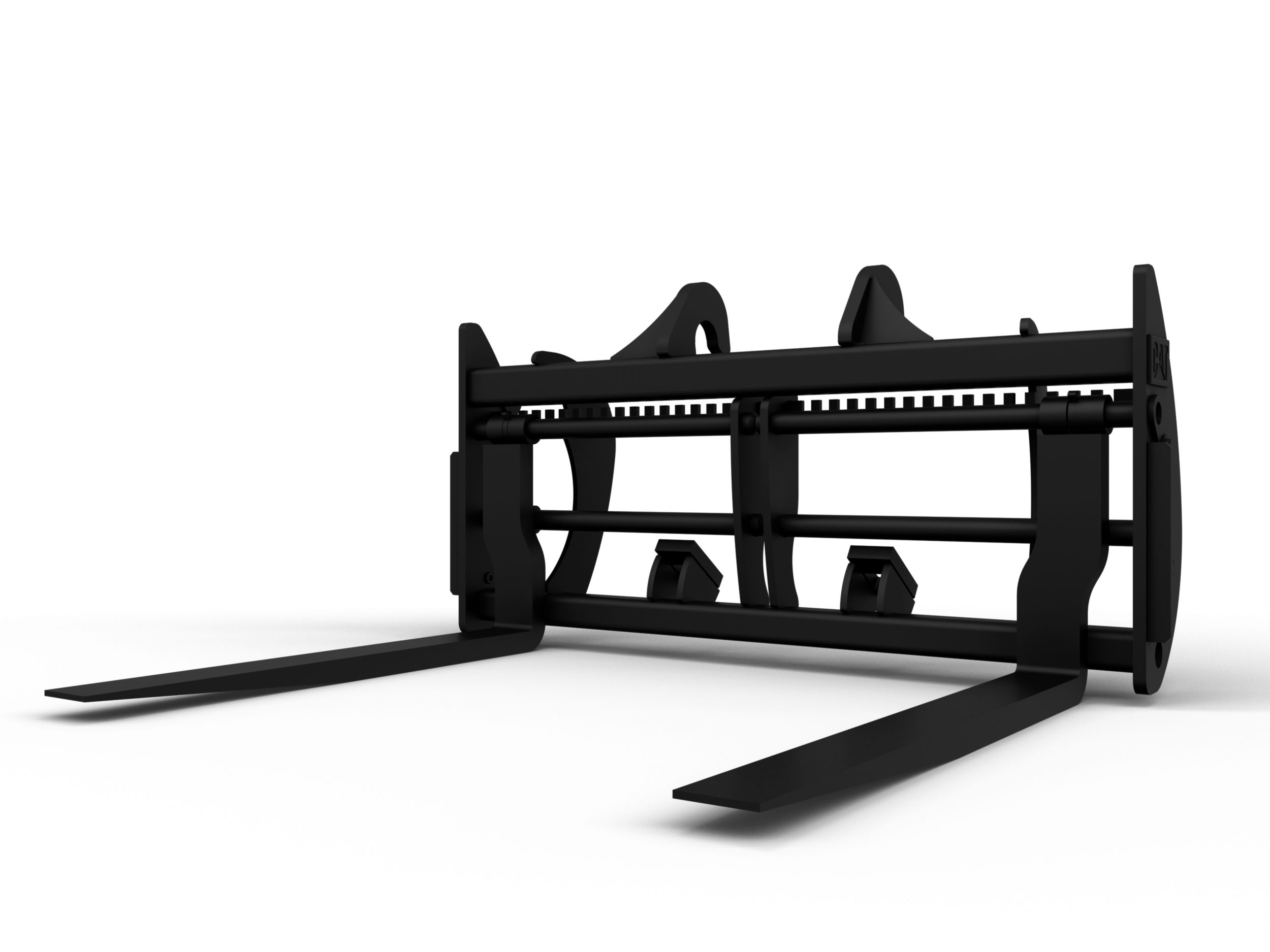

2134mm (84 in) on 2438mm (96 in) Carriage Construction Forks

Request A Quote

Units

Metric

Overview

Move heavy loads on the job site. A heavy-duty fork for heavy-duty work.

Carriage Height

44.50 in

1130.00 mm

Carriage Width

99.50 in

2528.00 mm

Fork Tine Length

84.00 in

2134.00 mm

Fork Tine Width

7.00 in

178.00 mm

Fork Tine Thickness

3.50 in

89.00 mm

Combined Weight

3192.00 lb

1448.00 kg

Interface Type

Fusion™ Coupler
