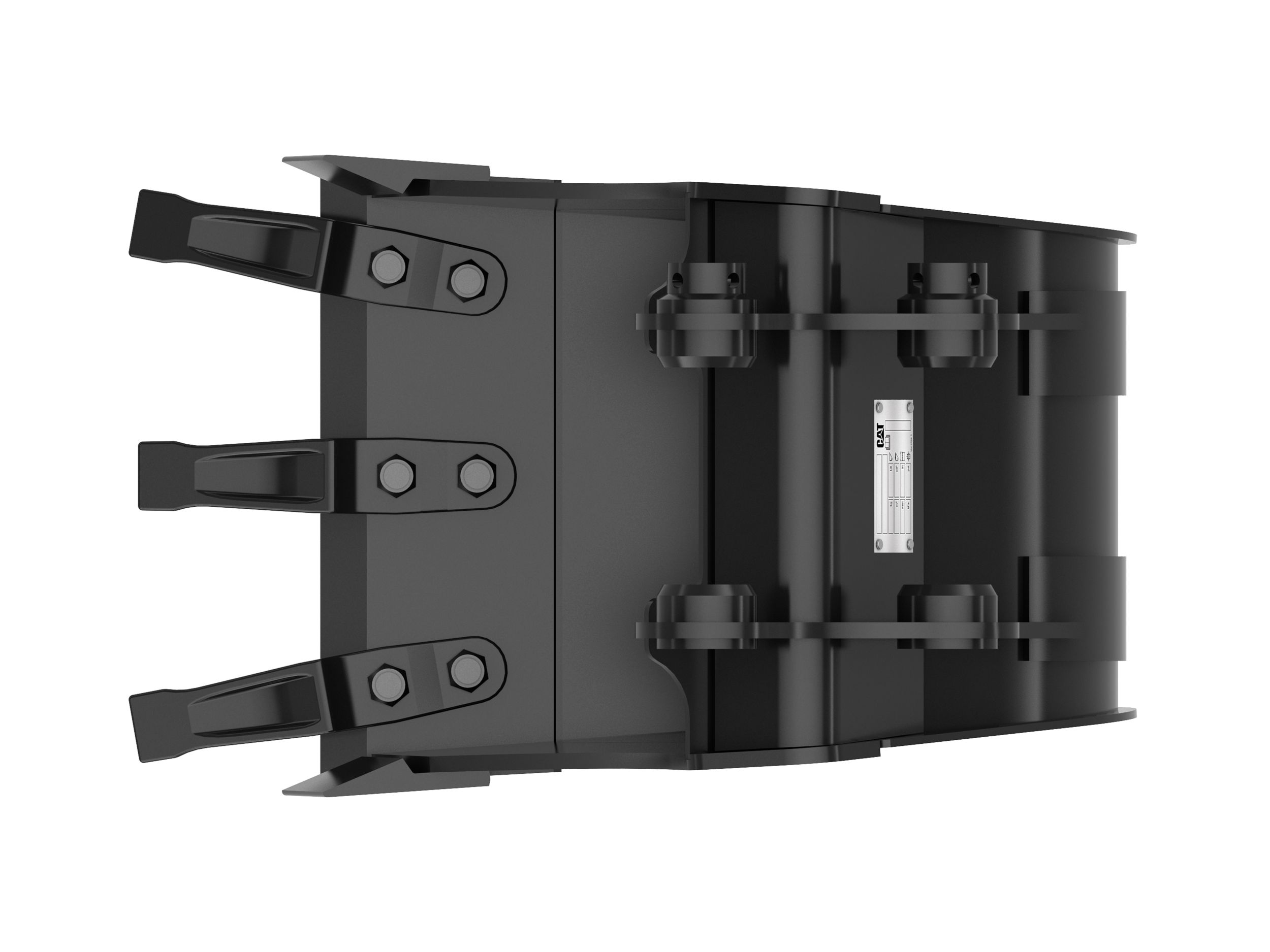

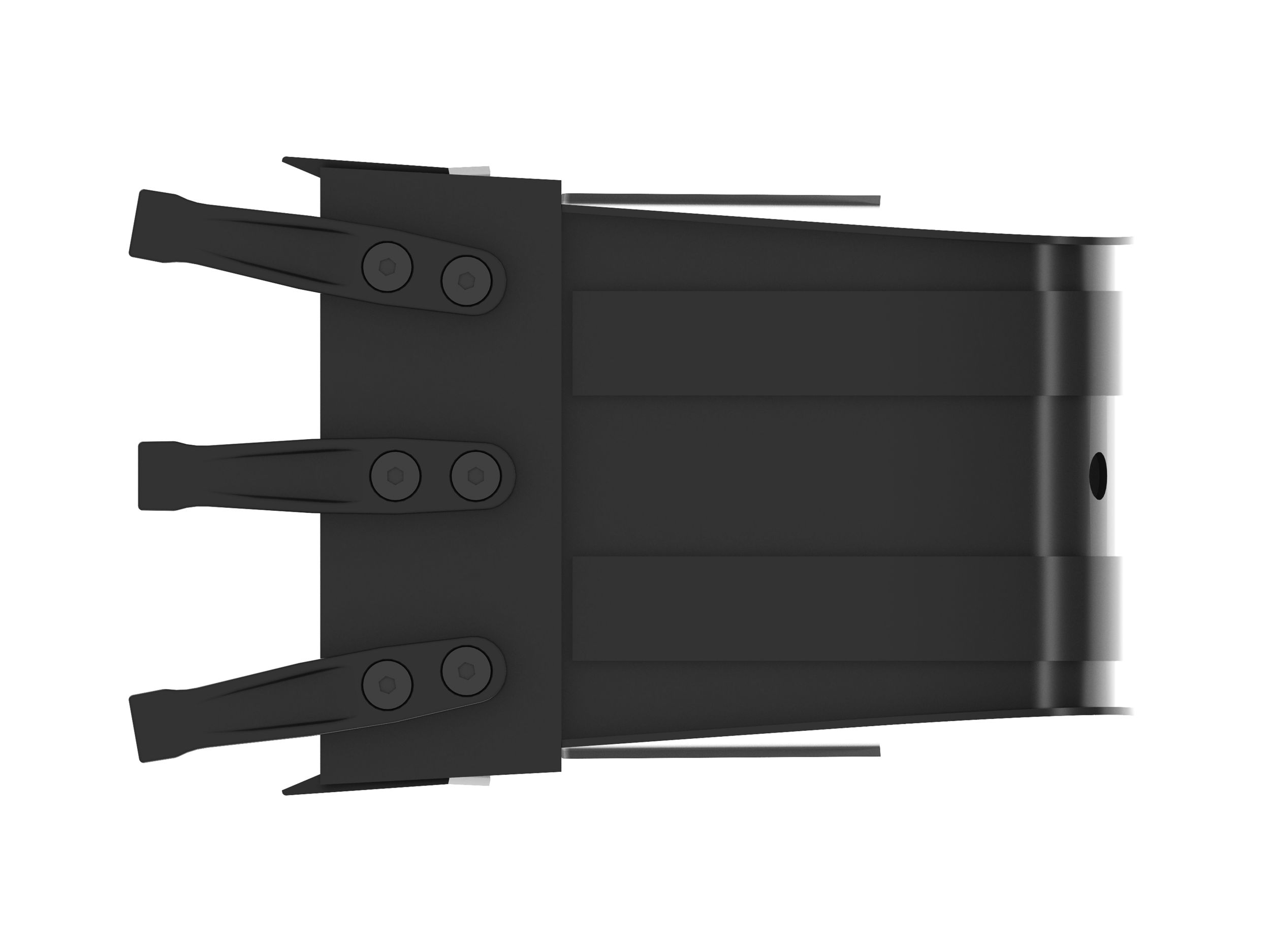

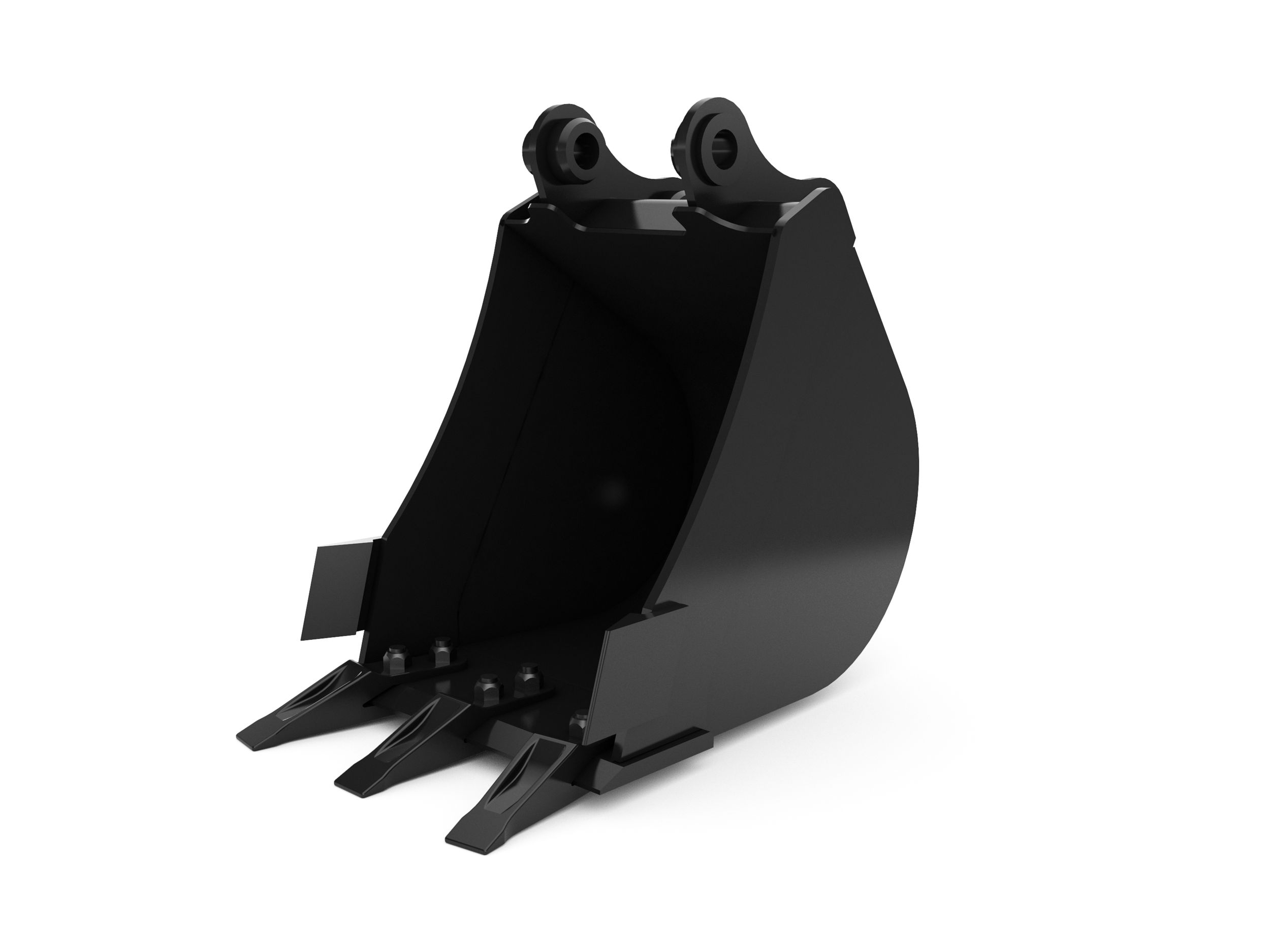

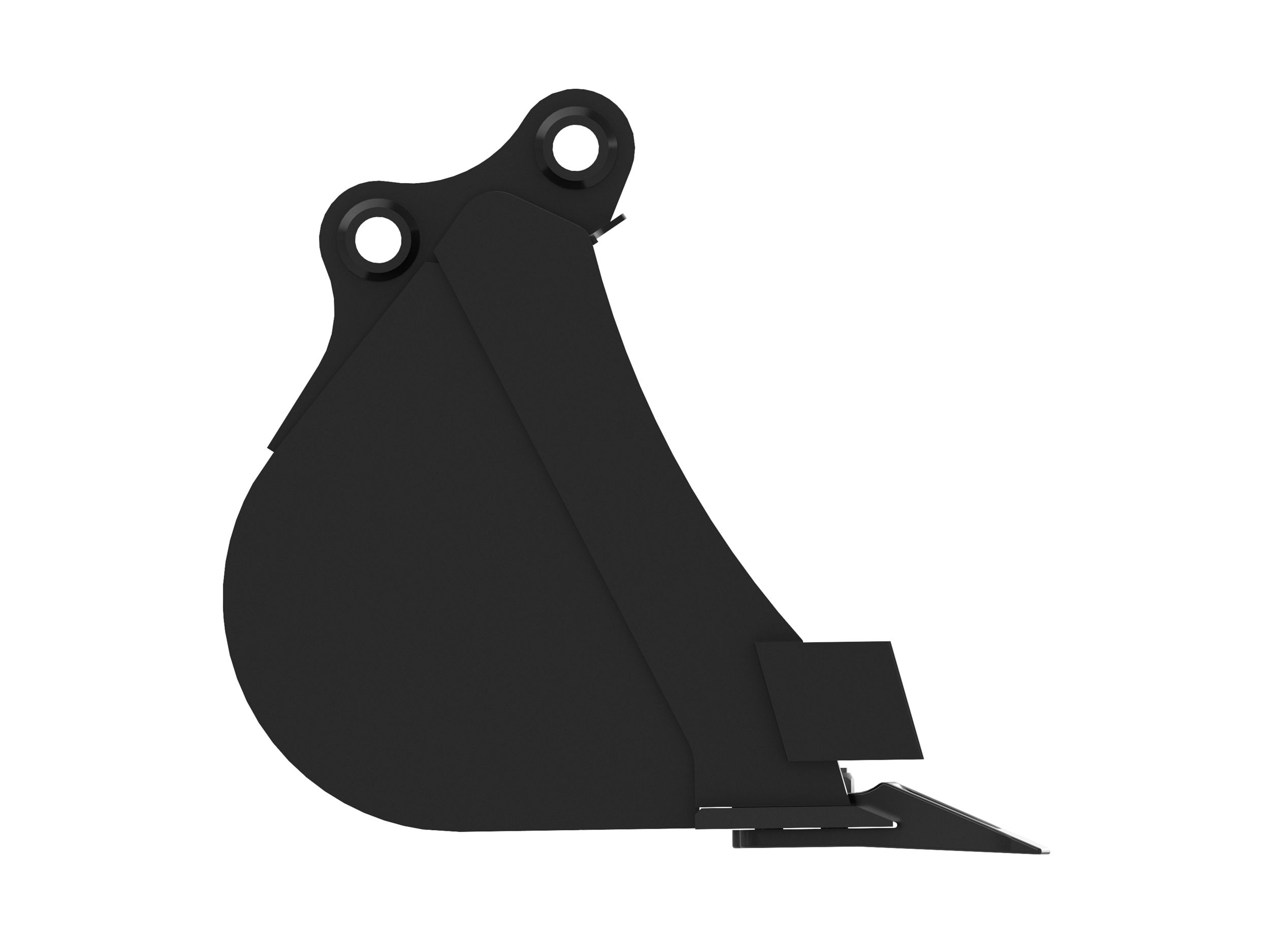

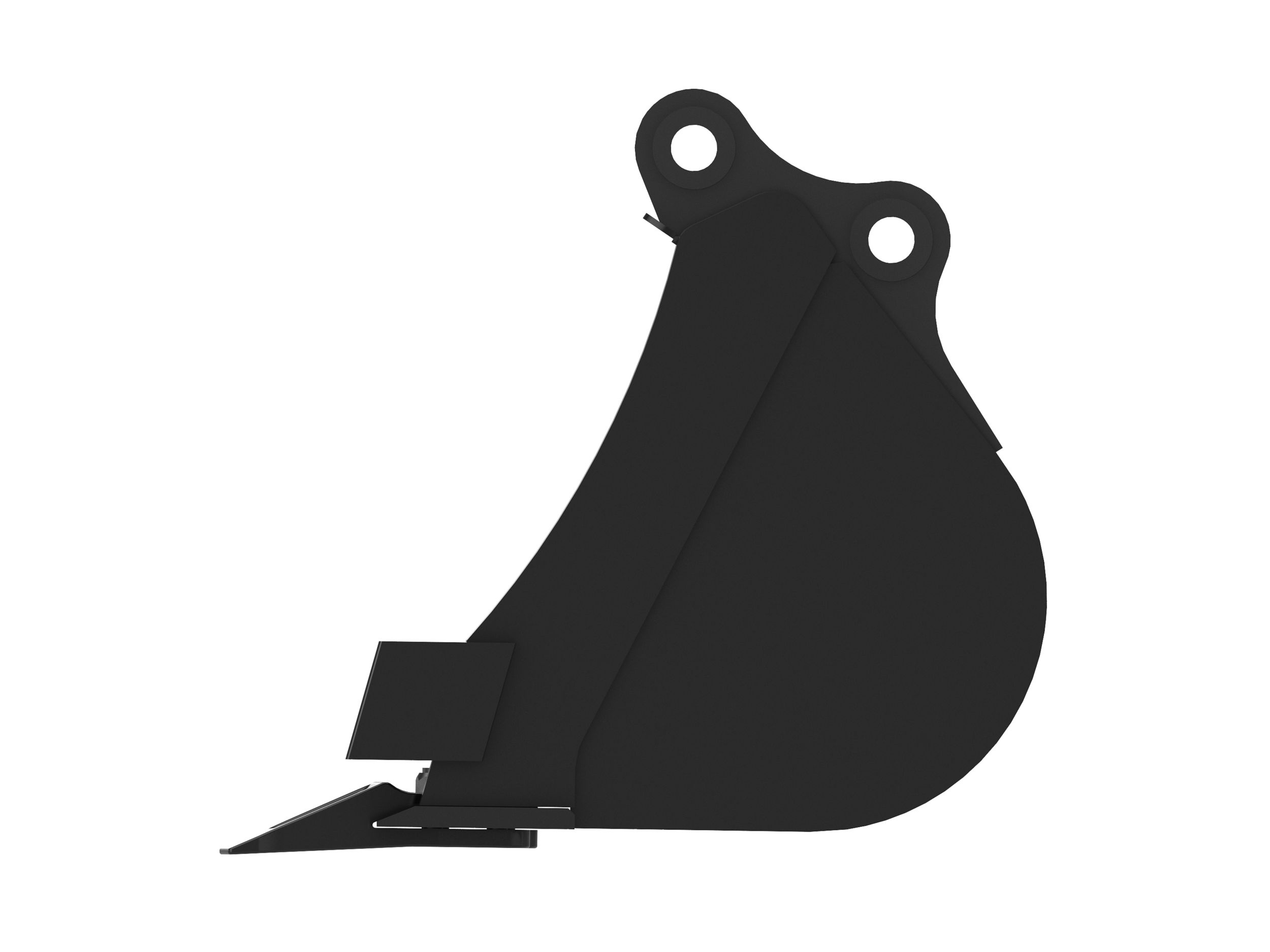

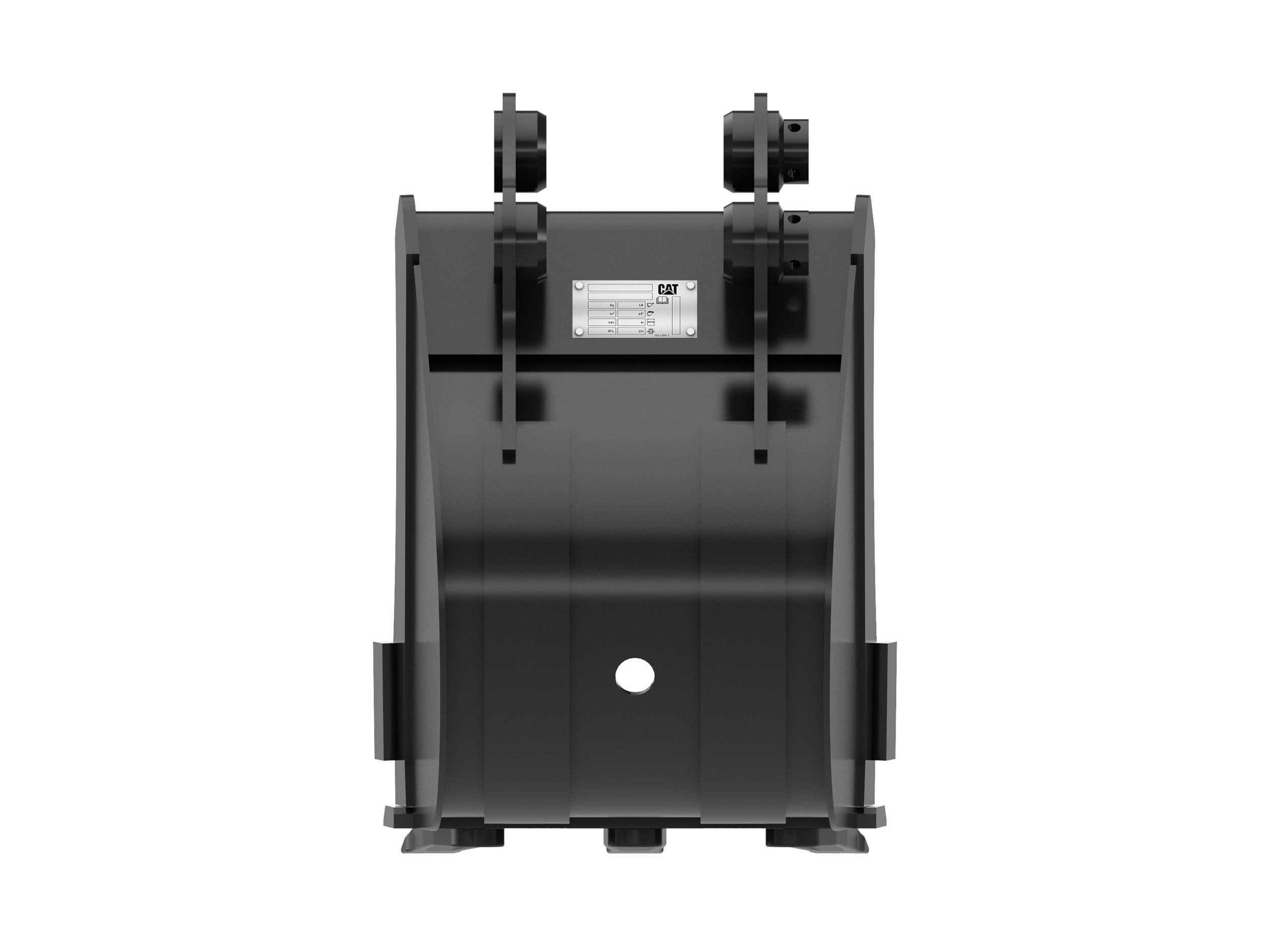

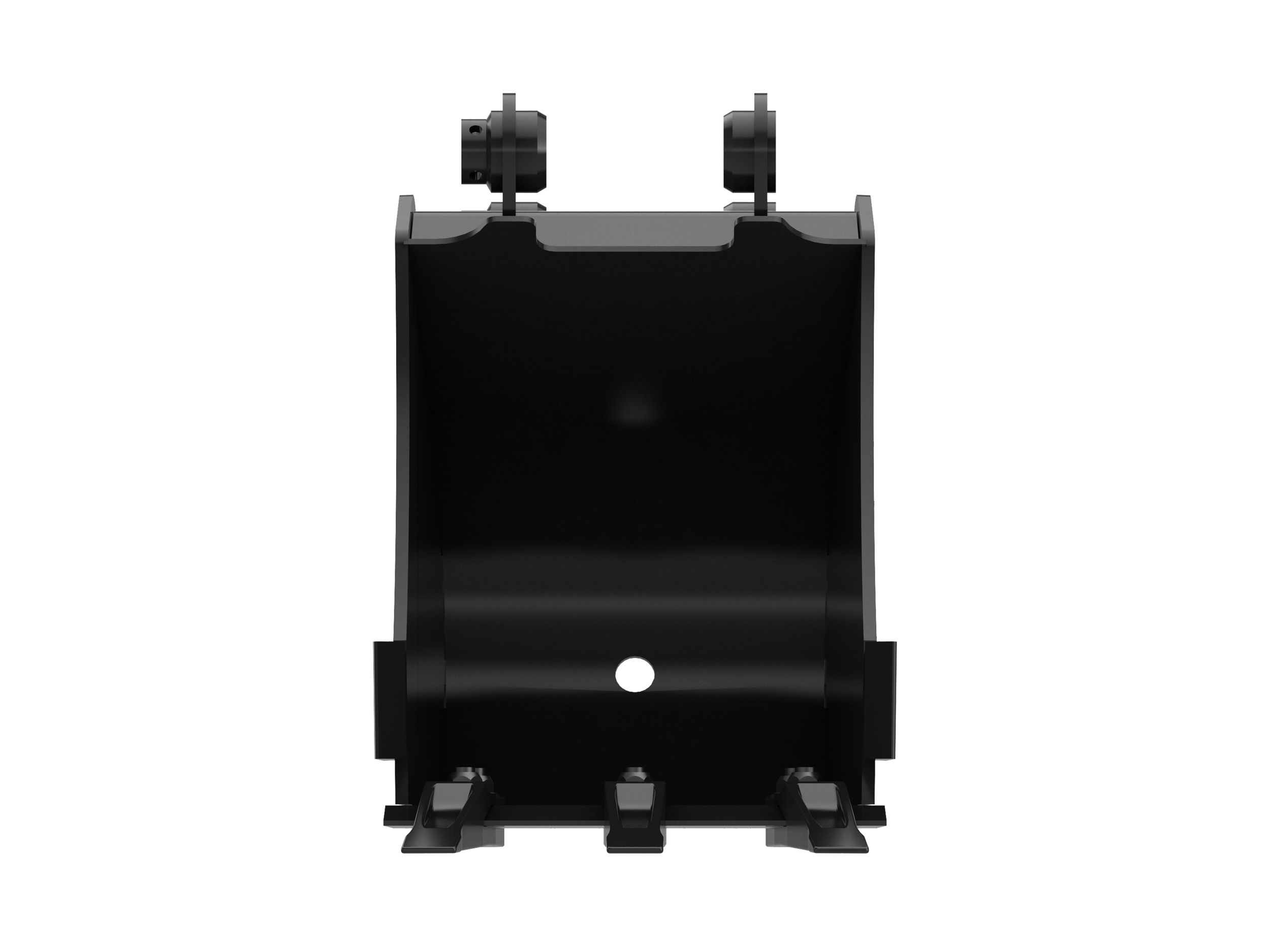

400 mm (16 in) Digging Bucket

US
Metric

Overview

Digging Buckets for Cat® Mini Excavators are ideal for utility trenching, general excavating and back-filling in soft to moderate ground.
Width
15.70 in
400.00 mm
Rated Capacity
1.20 ft3
34.00 L
Weight
77.90 lbs
35.40 kg
Base Edge Thickness
0.40 in
10.00 mm
Tip Radius
20.00 in
508.50 mm
Width
15.70 in
400.00 mm
Rated Capacity
1.20 ft³
34.00 l
Weight
77.90 lb
35.40 kg
Base Edge Thickness
0.40 in
10.00 mm
Tip Radius
20.00 in
508.50 mm

Specifications

Capacity
1.20 ft³
34.00 l

Interface Type
Pin On
Capacity
1.20 ft³
34.00 l
Features

Application

Designed for a wide variety of applications and materials.

Bucket Design

Formed back wrapper design enhances bucket loadability and production.

Superior Bucket Fill

Optimum wrapper angle and no sharp corners promote superior bucket fill and reduce material packing.

Bucket Shape

Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.
