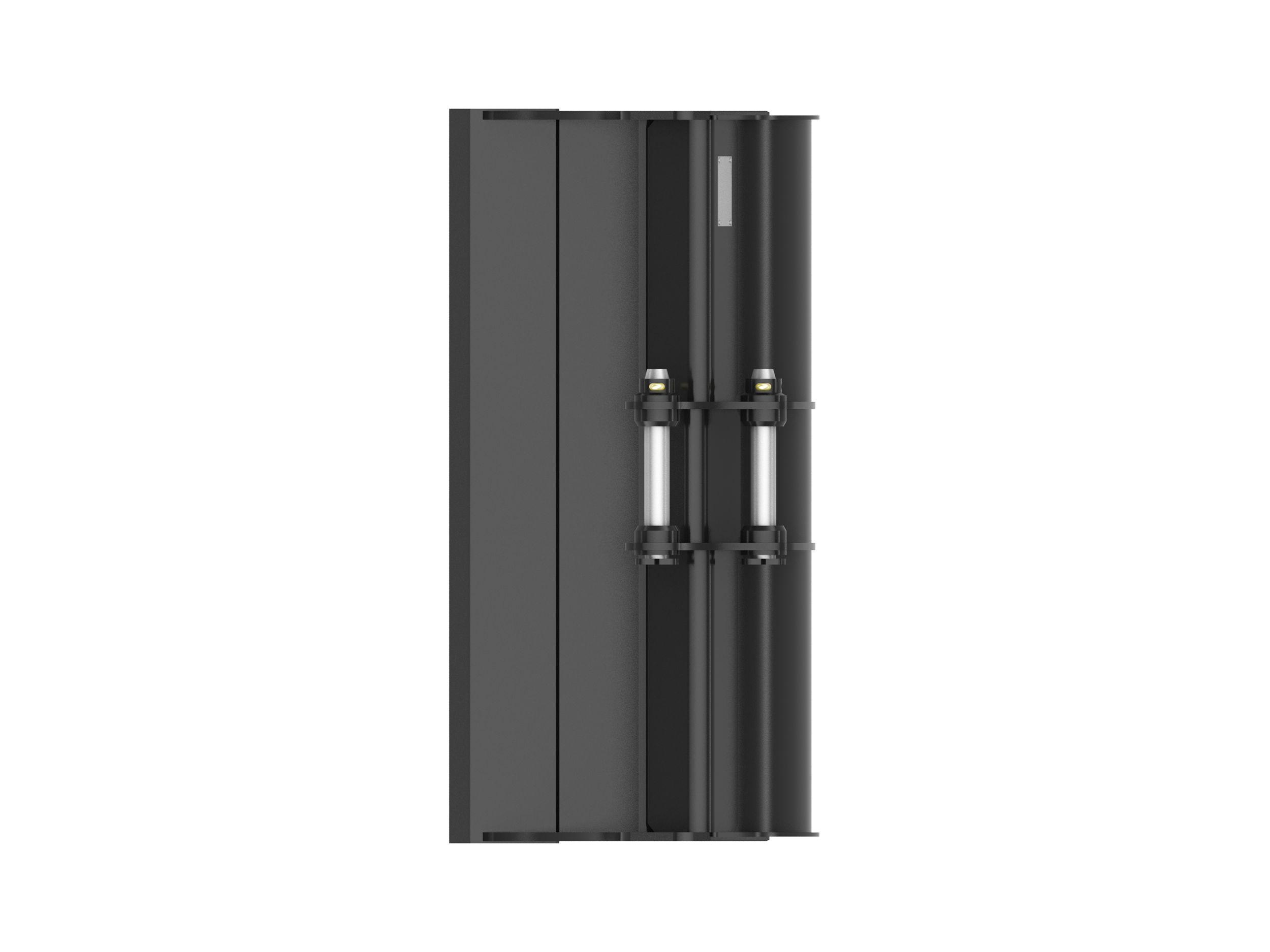

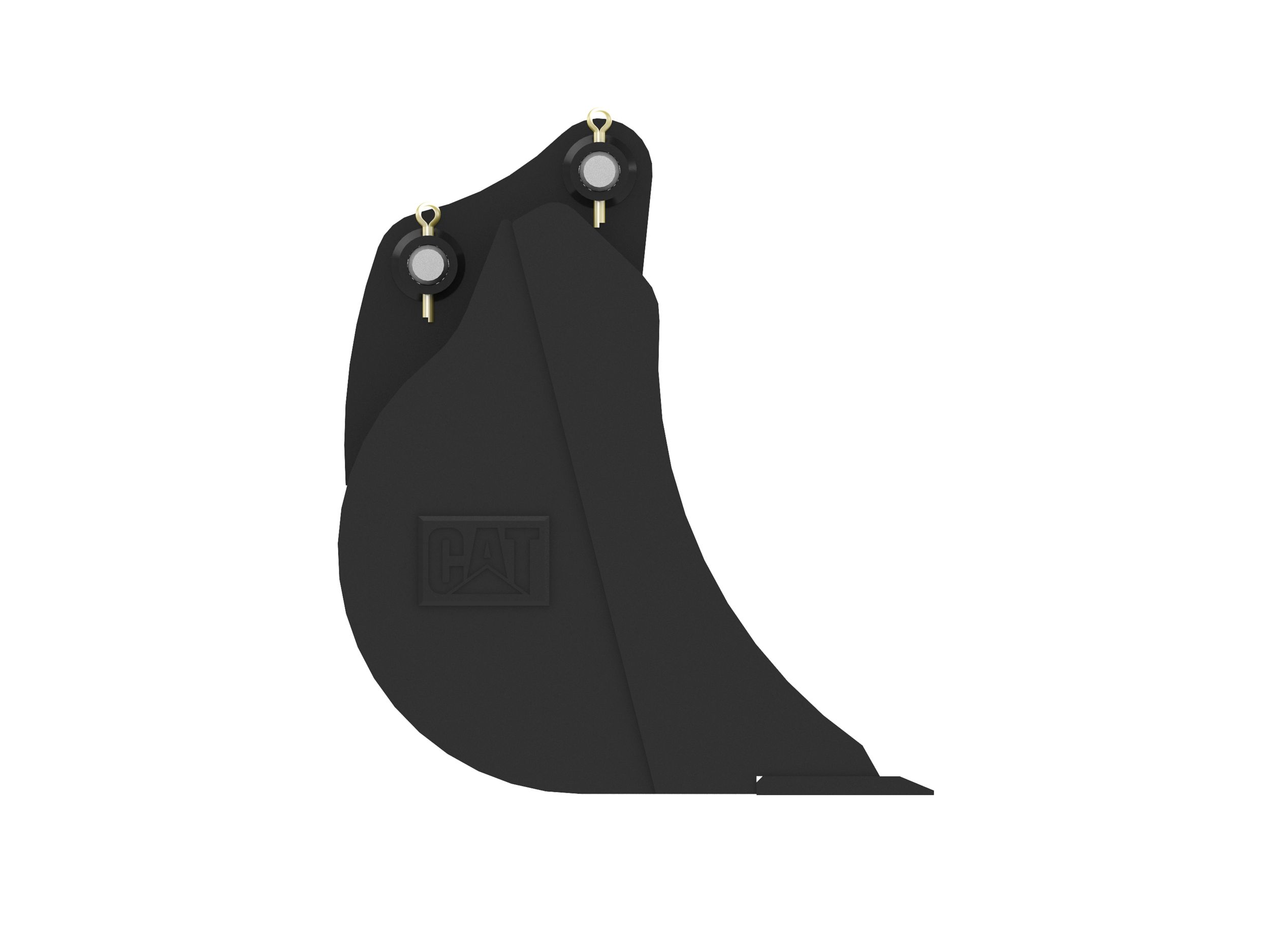

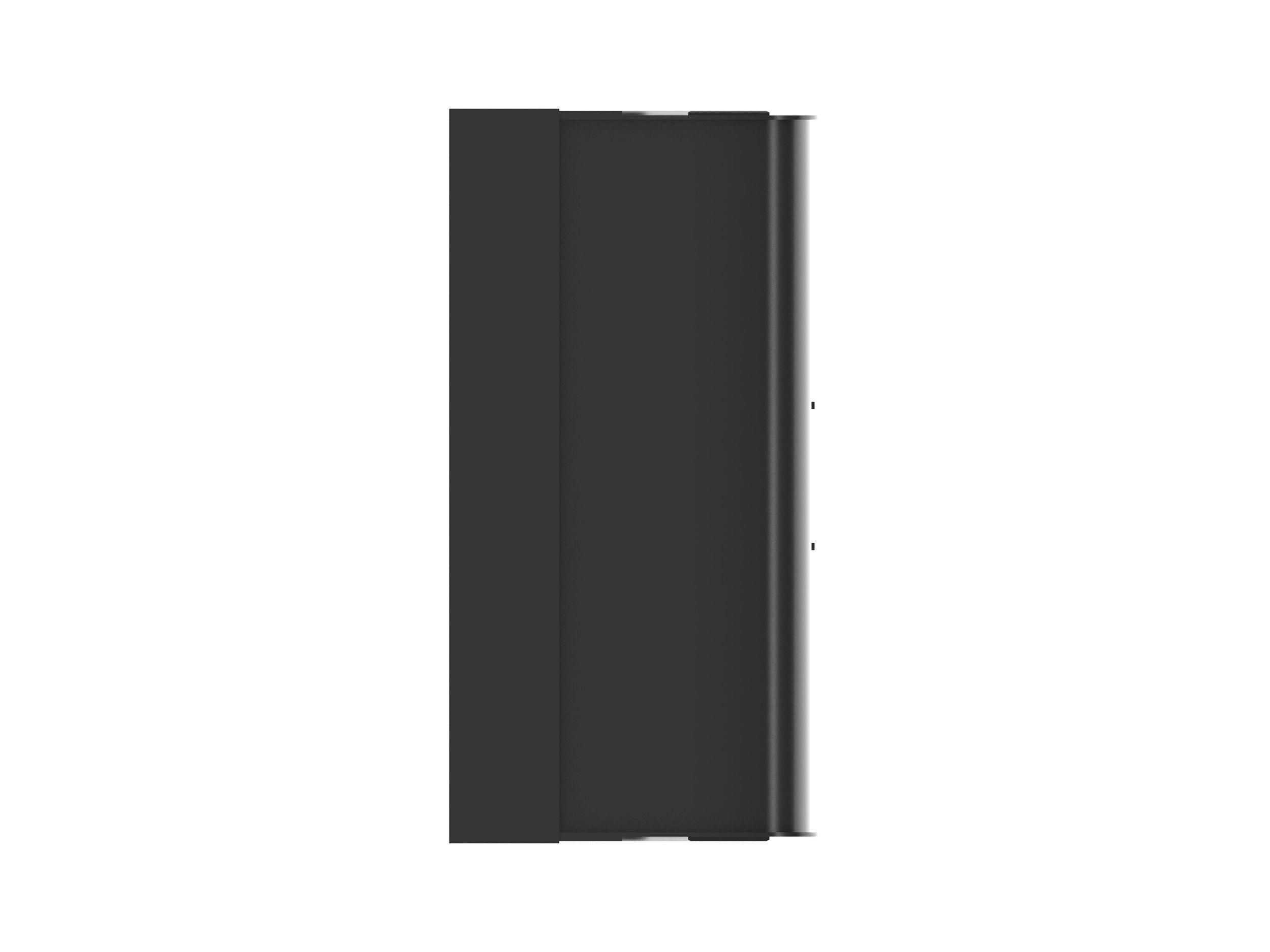

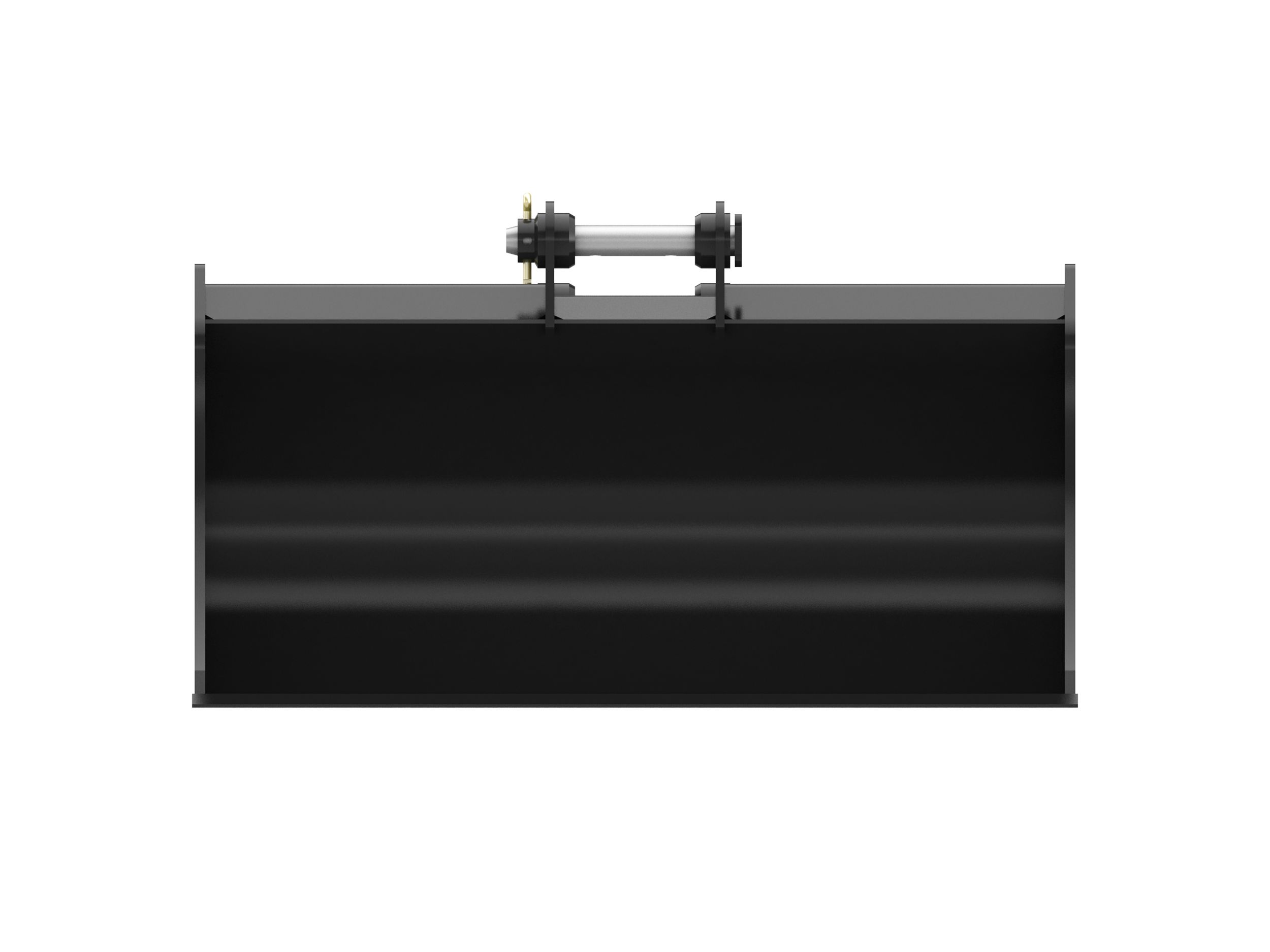

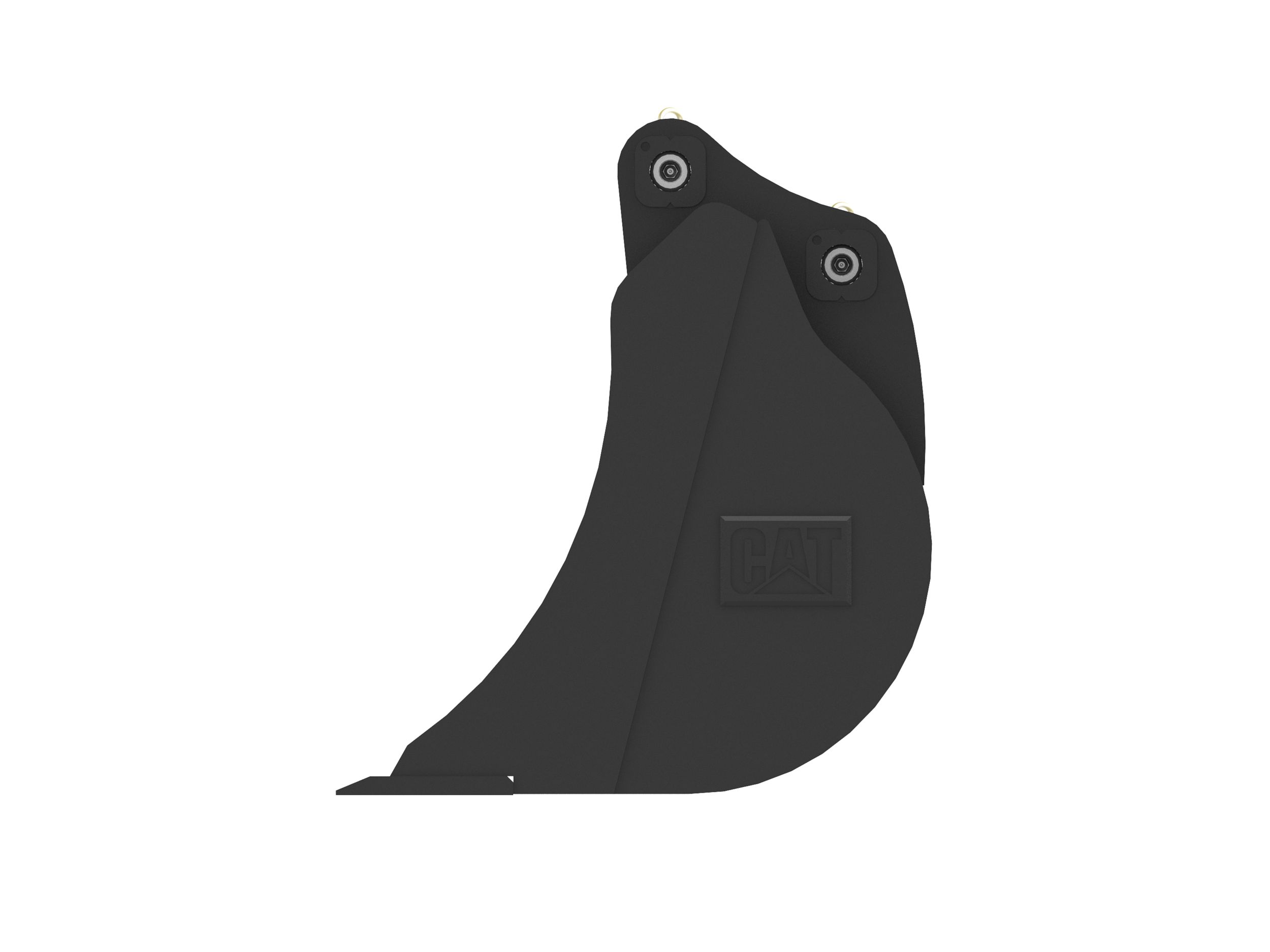

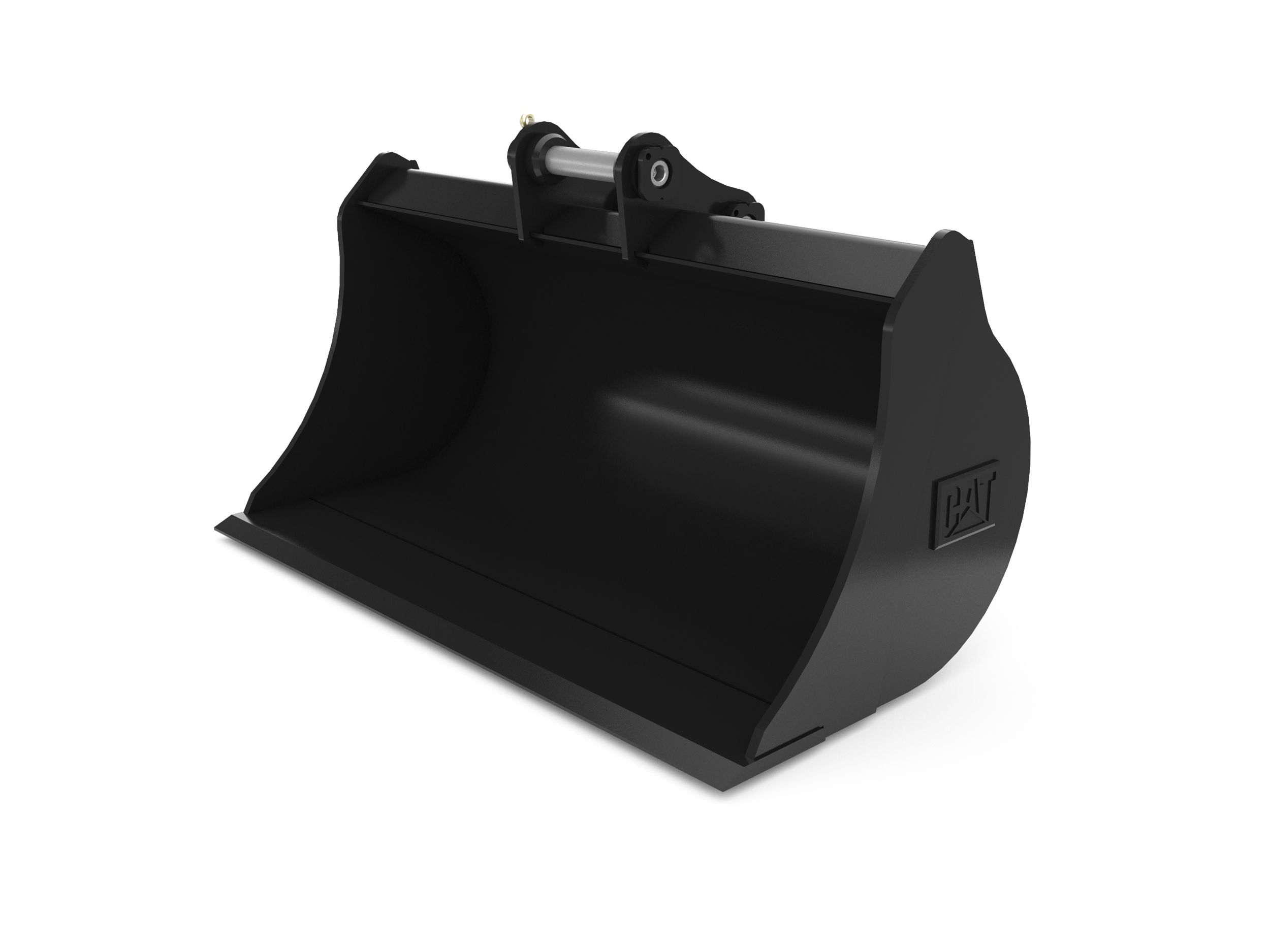

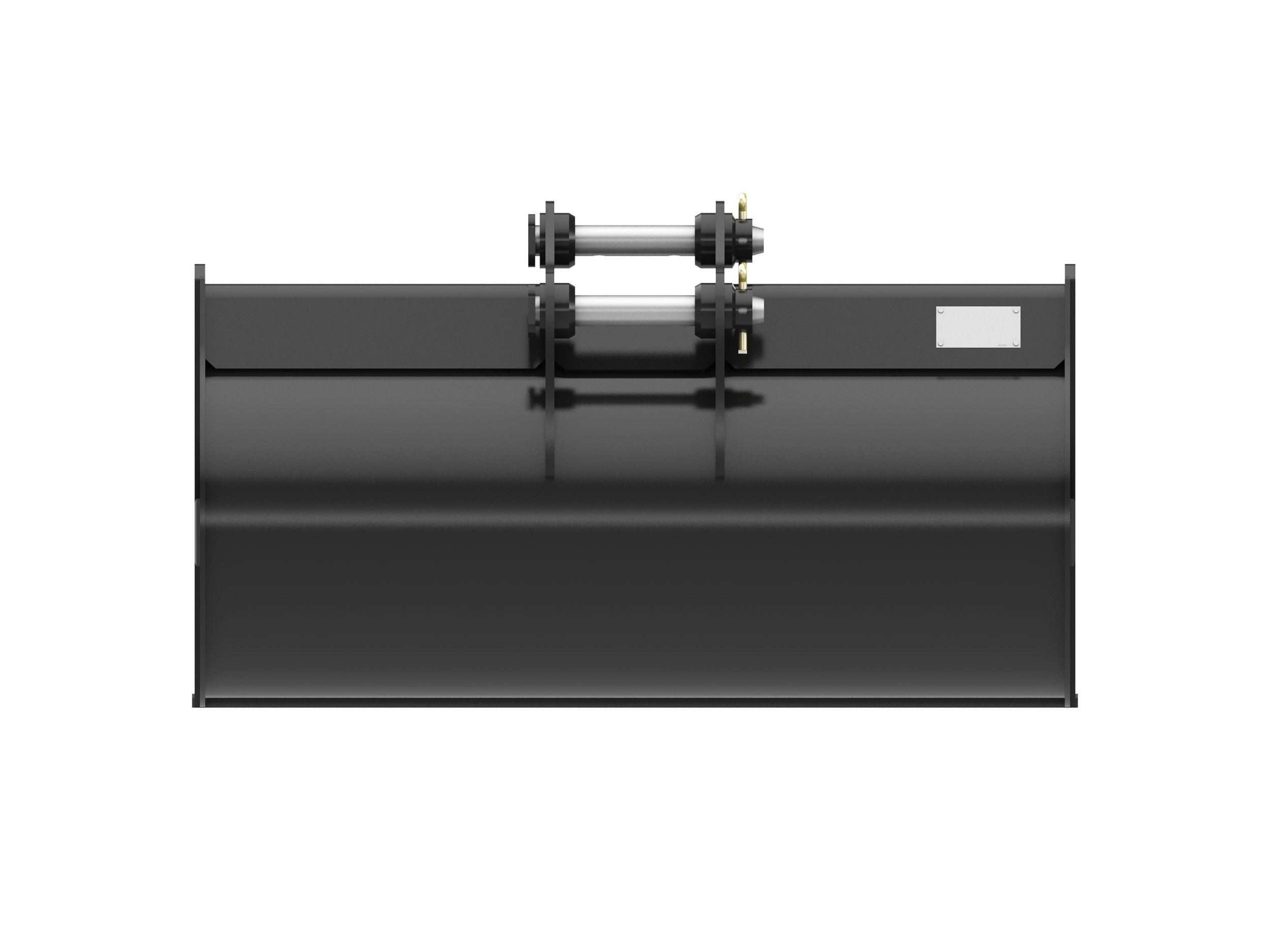

1000 mm (39 in) Grading Bucket

US
Metric

Overview

Grading Buckets for Cat® Mini Excavators are designed to provide optimum grading, trenching, slope-cutting and finishing work in addition to nesting additional buckets for ease of transportation.
Width
39.40 in
1000.00 mm
Rated Capacity
3.11 ft3
88.10 L
Weight
128.30 lb
58.20 kg
Base Edge Thickness
0.60 in
16.00 mm
Tip Radius
17.70 in
449.70 mm
Width
39.40 in
1000.00 mm
Rated Capacity
3.11 yd³
88.10 m³
Weight
128.30 lb
58.20 kg
Base Edge Thickness
0.60 in
16.00 mm
Tip Radius
17.70 in
449.70 mm
Capacity
3.11 ft³
88.10 l
Interface Type
Pin On
Features

Application

Designed for cleaning ditches, sloping, grading and other finishing work.

Bucket Nesting

Transport all buckets needed for a job within the Grading Bucket.

Bolt-on Cutting Edge

Allows for smooth finish in grading applications.

Lack of Drainage Holes

Retains material and water for waste removal and light material applications.

Included Pins

Pins come pre-installed with bucket.
