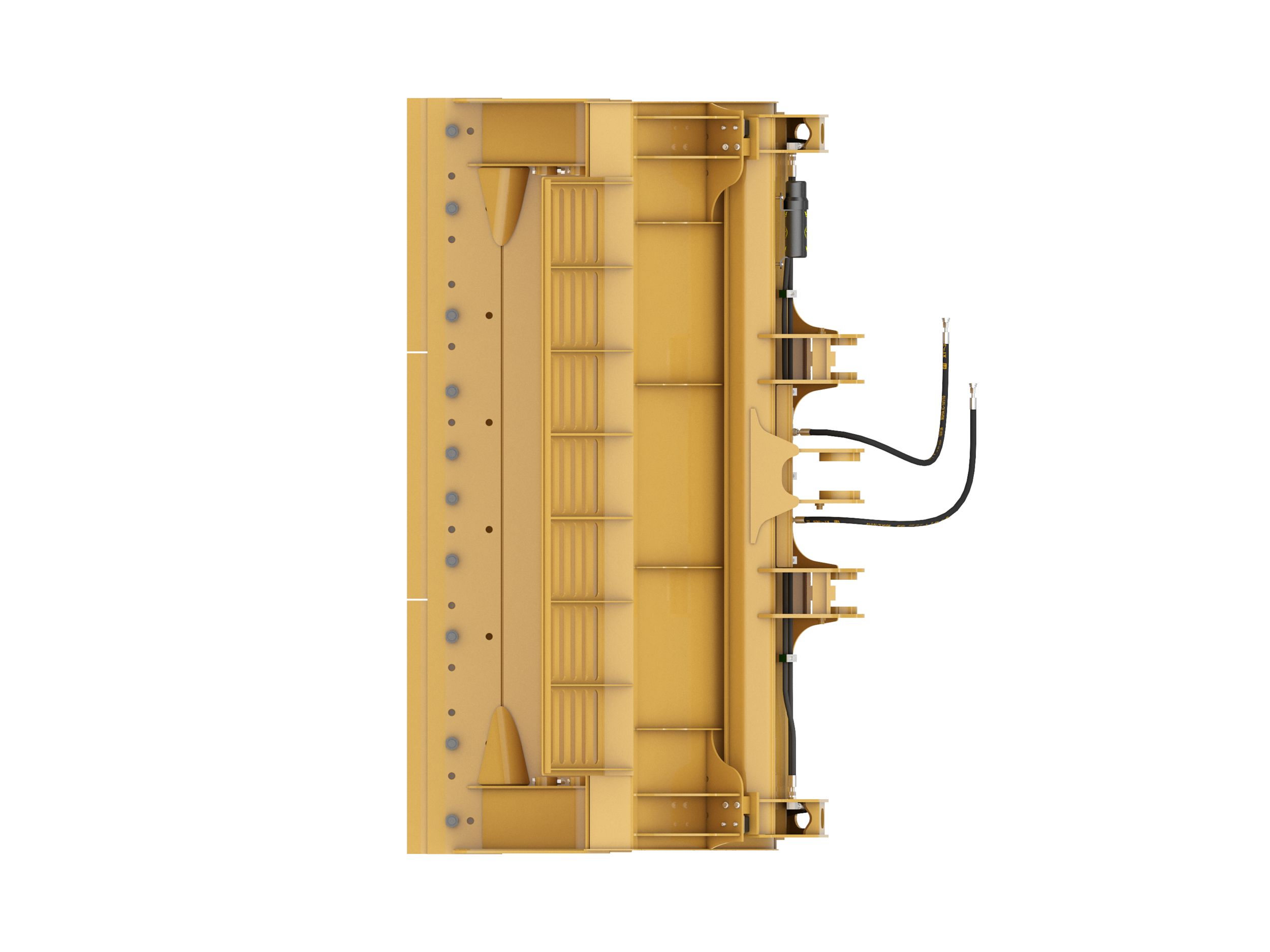

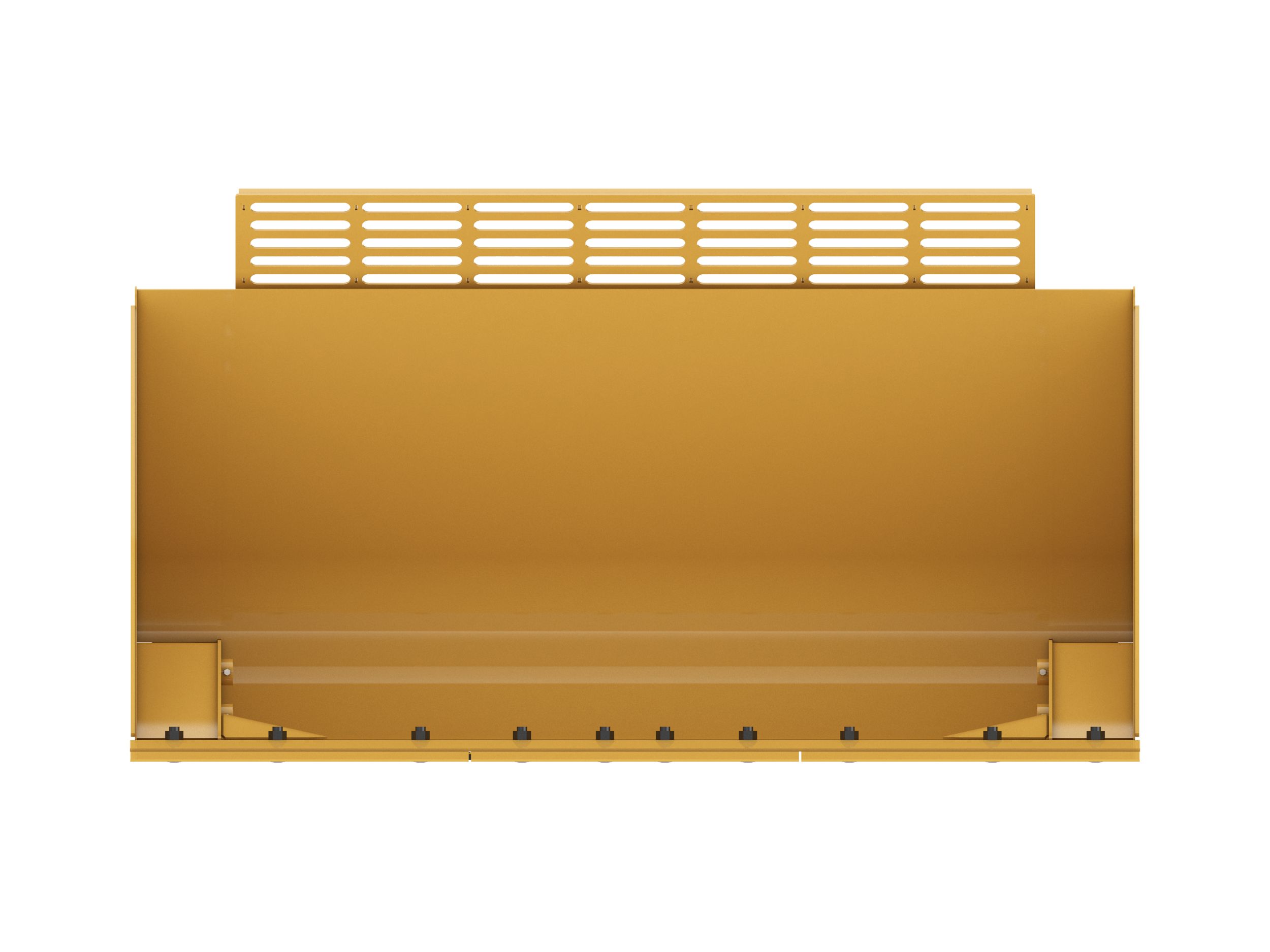

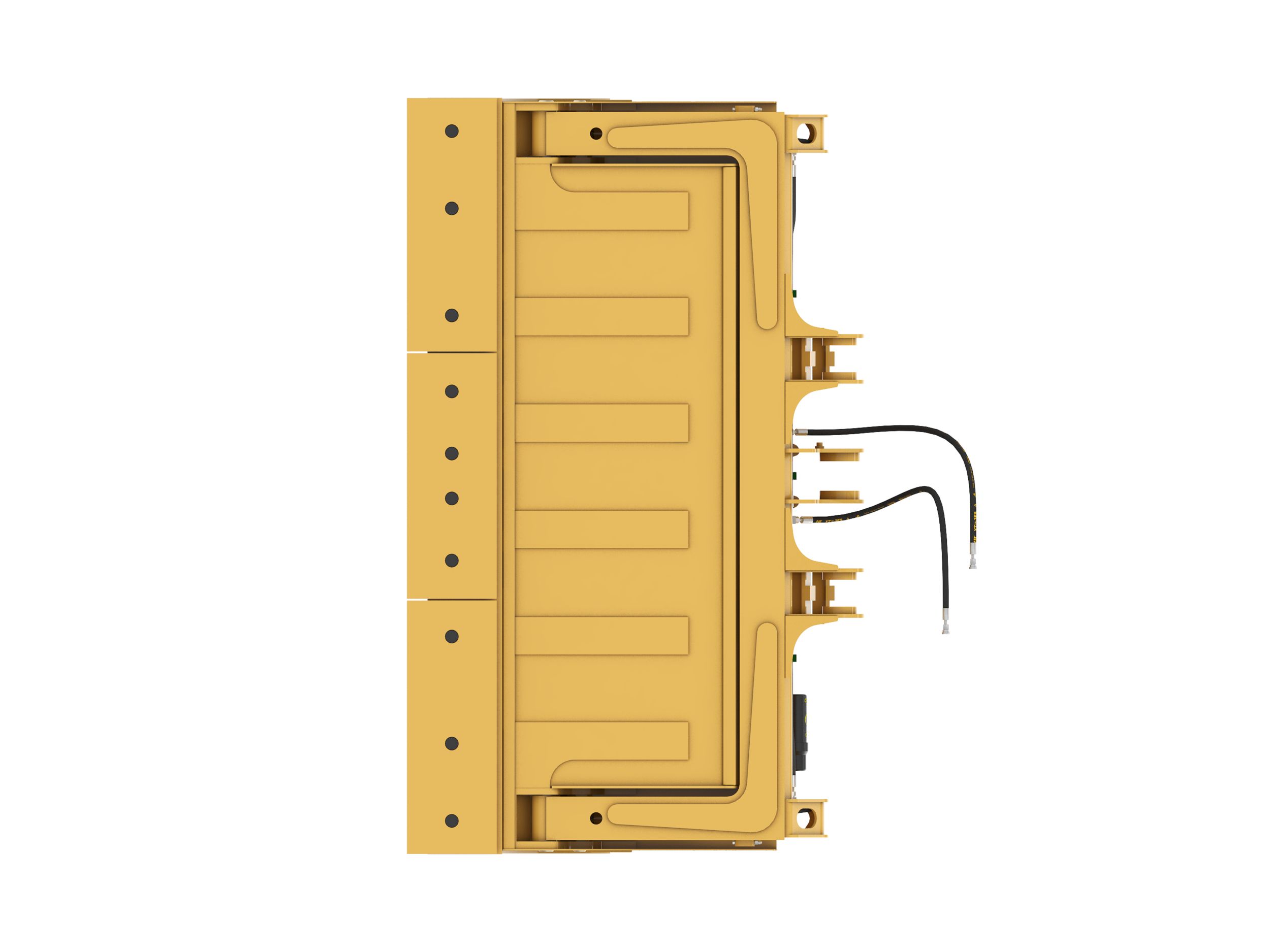

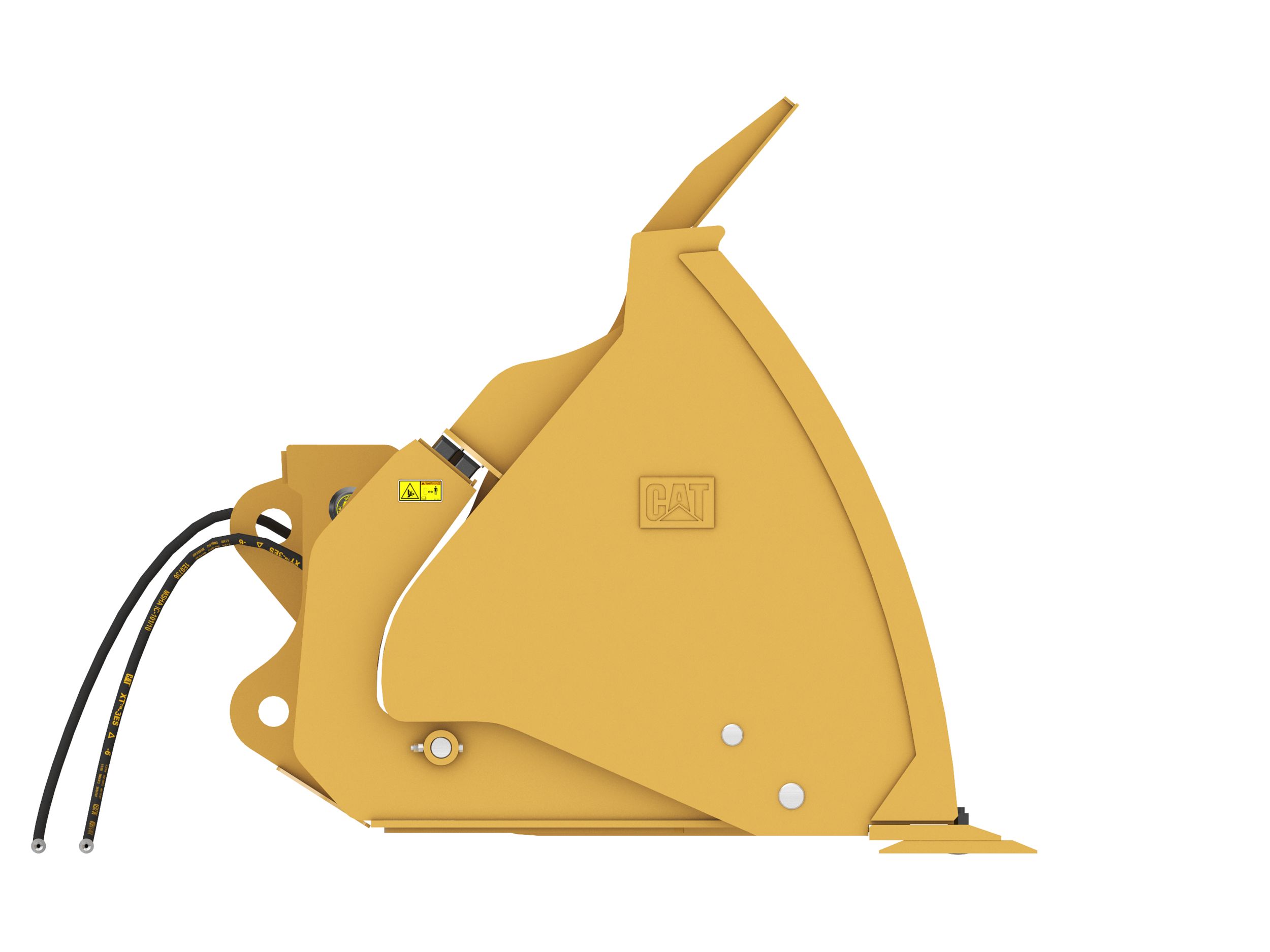

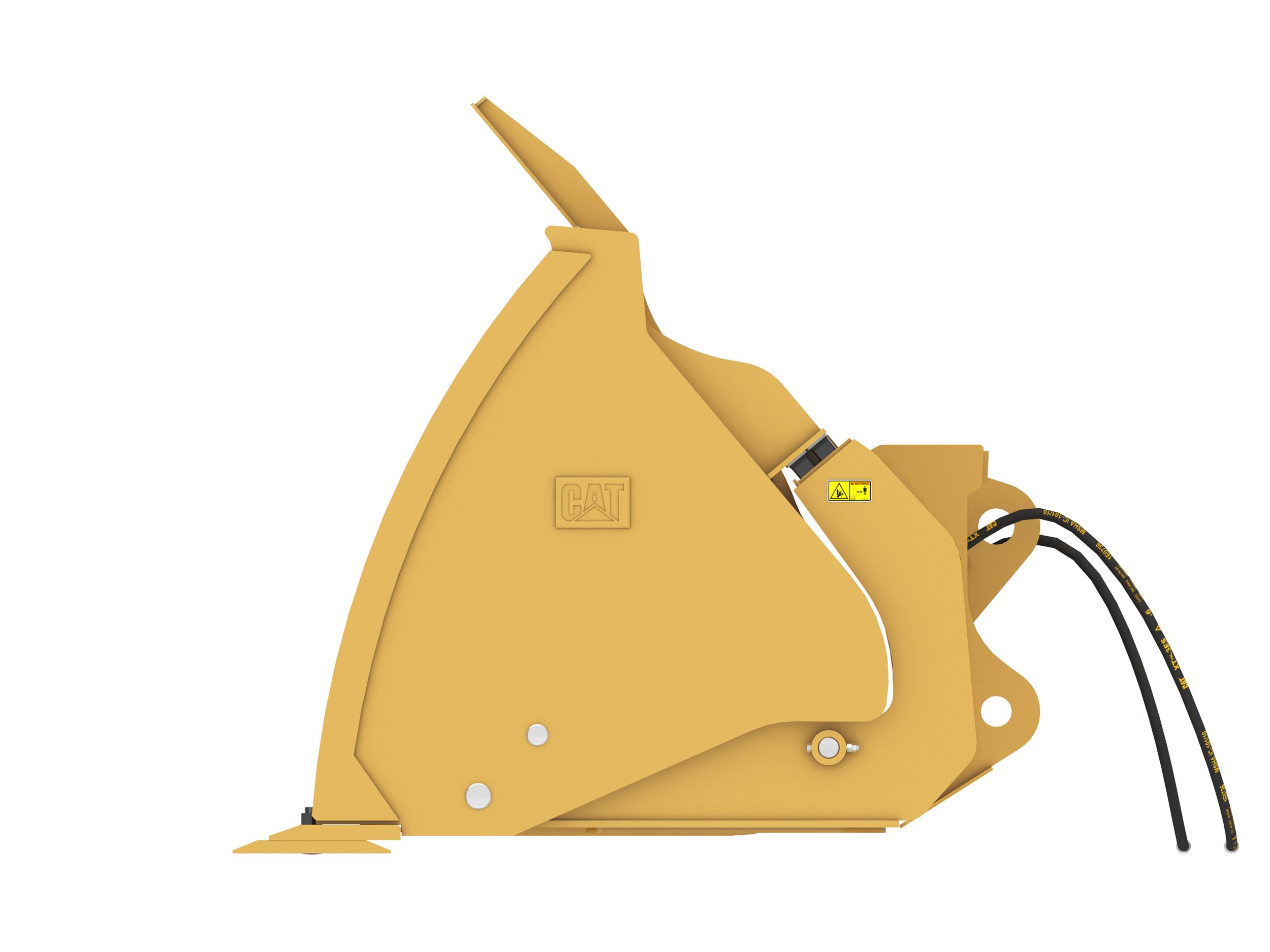

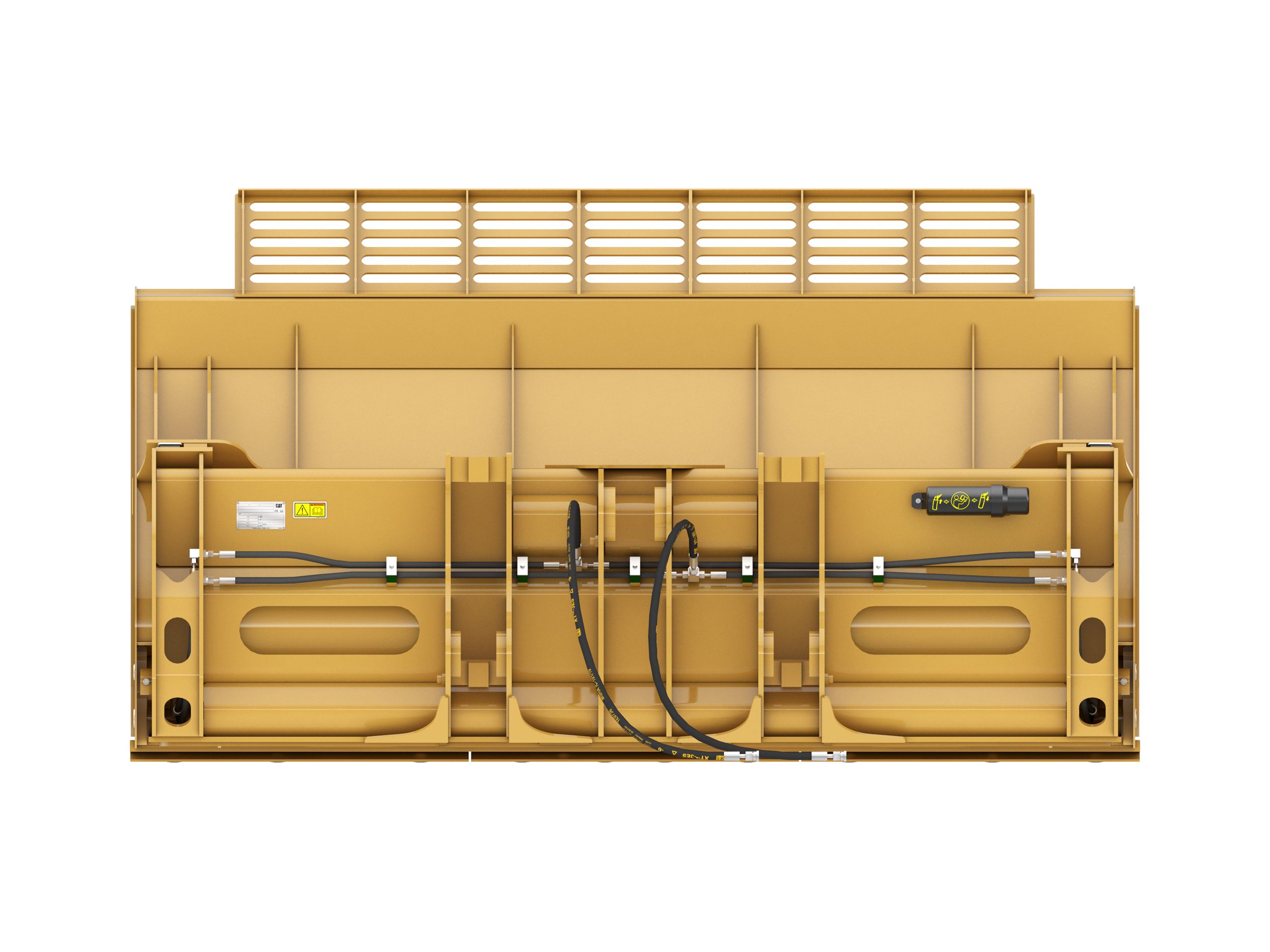

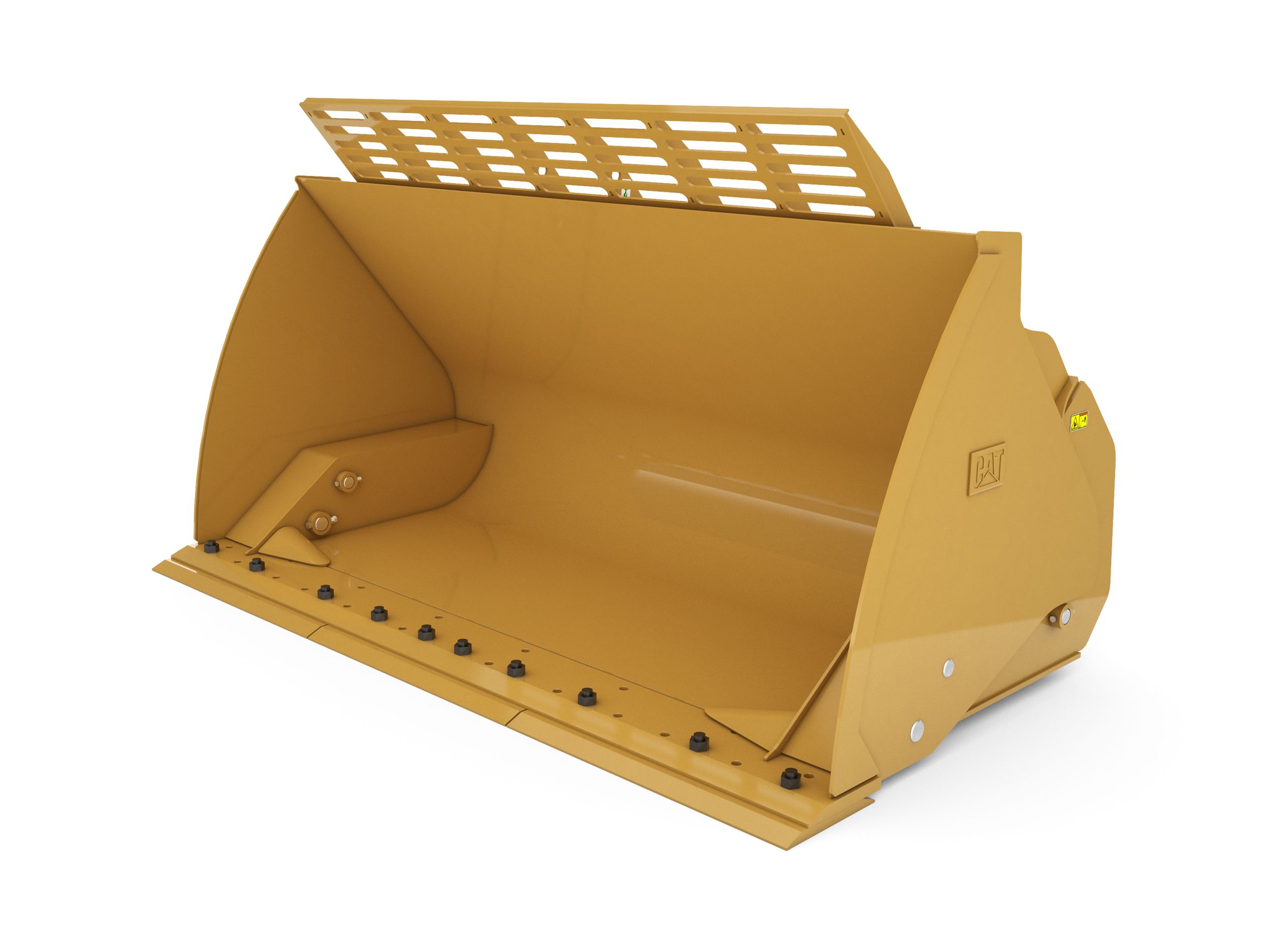

4.1 m3 (5.4 yd3) Pin On High Dump Bucket With Bolt-On Cutting Edge

US
Metric

Overview

Cat® Loader High Dump Buckets feature greatly increased dump height over standard material-handling buckets. Whether loading trucks, feeding compactors or just working in the pile, high dump buckets offer the performance you need.
Width
119.40 in
3032.00 mm
Height
67.80 in
1721.00 mm
Weight
4759.80 lb
2159.00 kg
Length
72.20 in
1835.00 mm
Capacity
5.40 yd³
4.10 m³
Base Edge Thickness
1.40 in
35.00 mm
Cutting Edge Thickness
1.20 in
30.00 mm
Interface Type
Pin On
Required Hydraulics
3rd Function
Features

Application

Designed with an increased dump height for better truck loading.

High Performance in Light Material

High Dump buckets are designed for putting light materials right where you want them. Handle coal, fertilizer, grain or woodchips; wherever a little extra clearance is needed.
