930M Ag Handler Small Wheel Loader

Request A Quote 930M Ag Handler Attachments New and Used Inventory

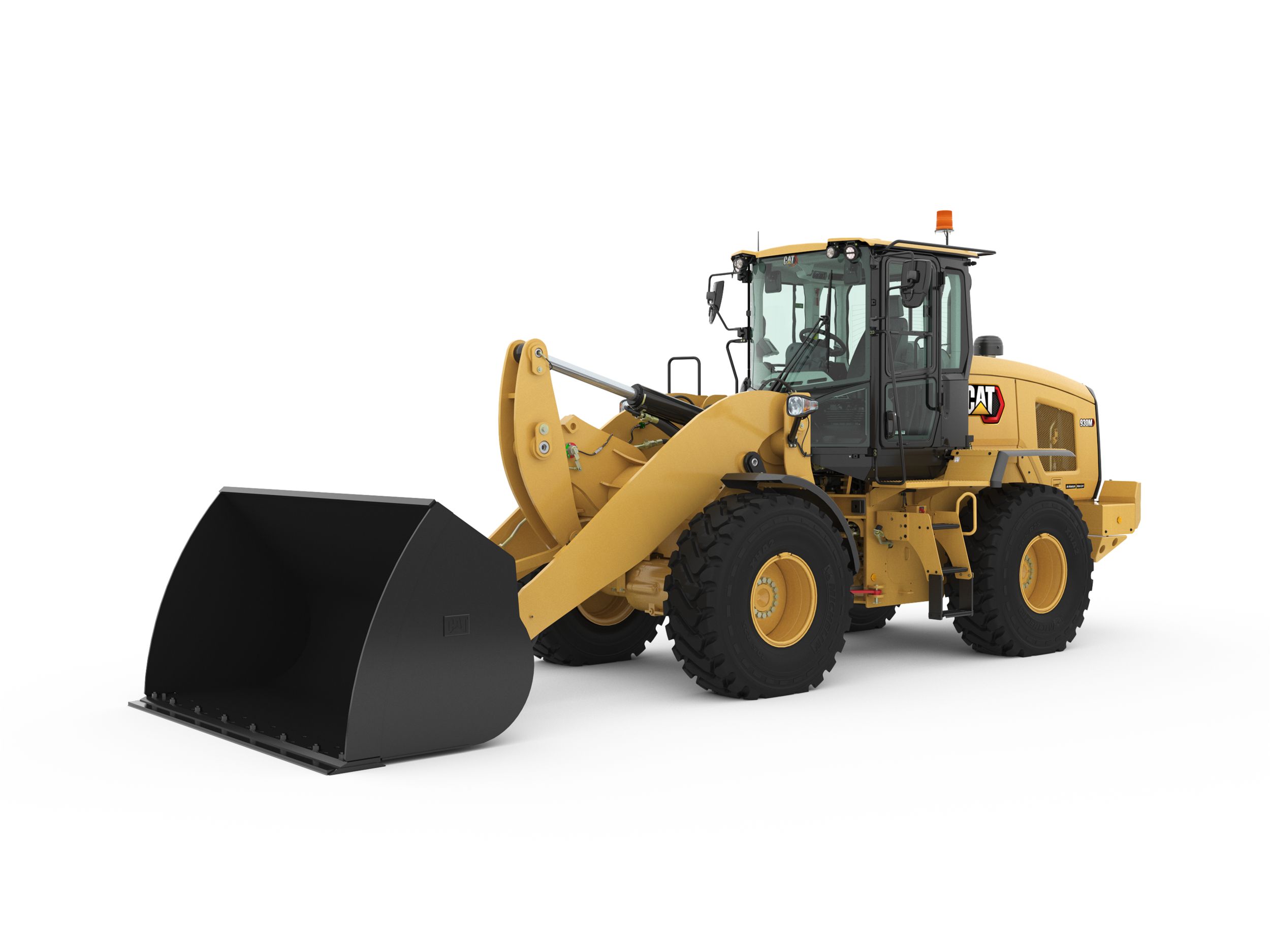

Studio Shot

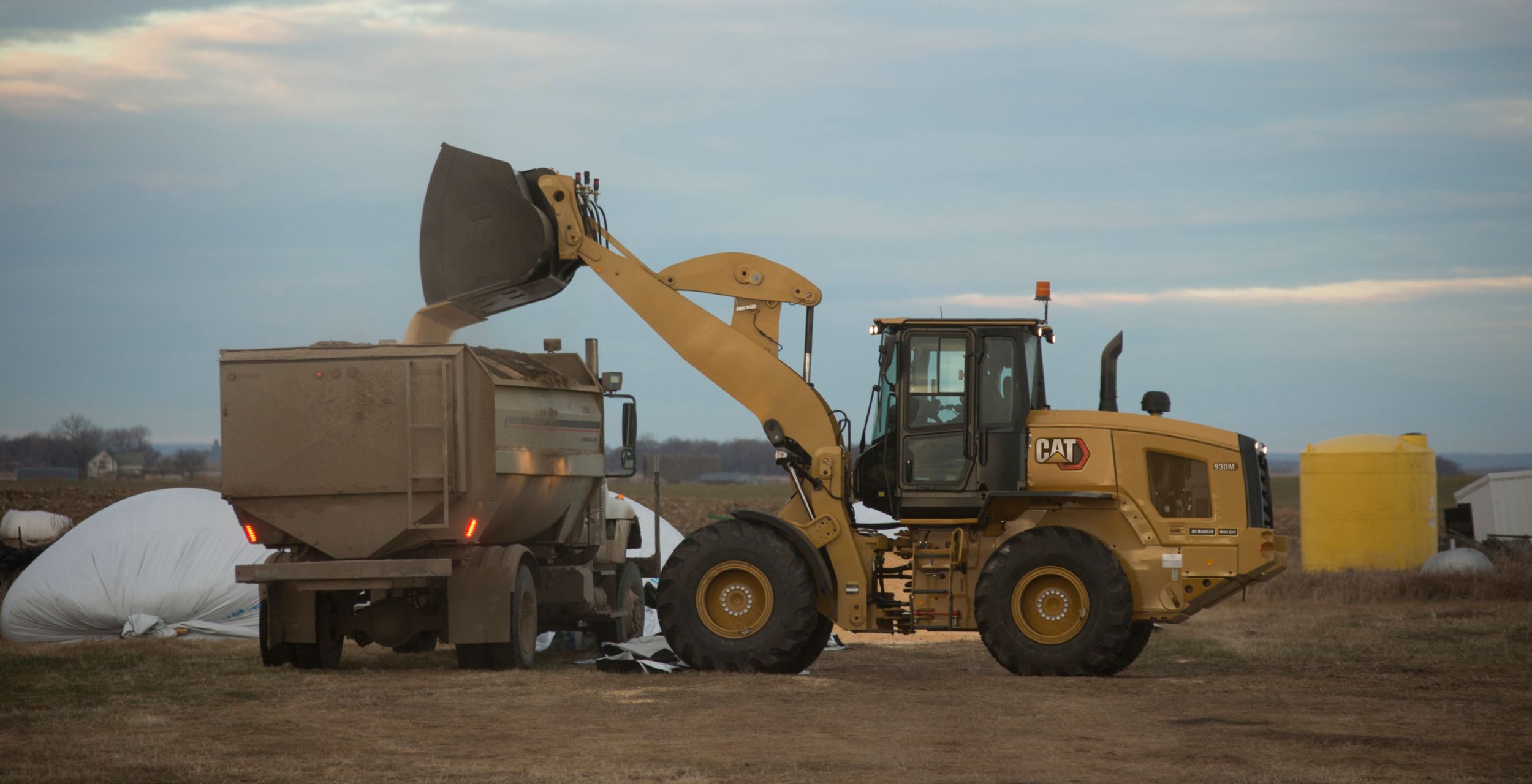

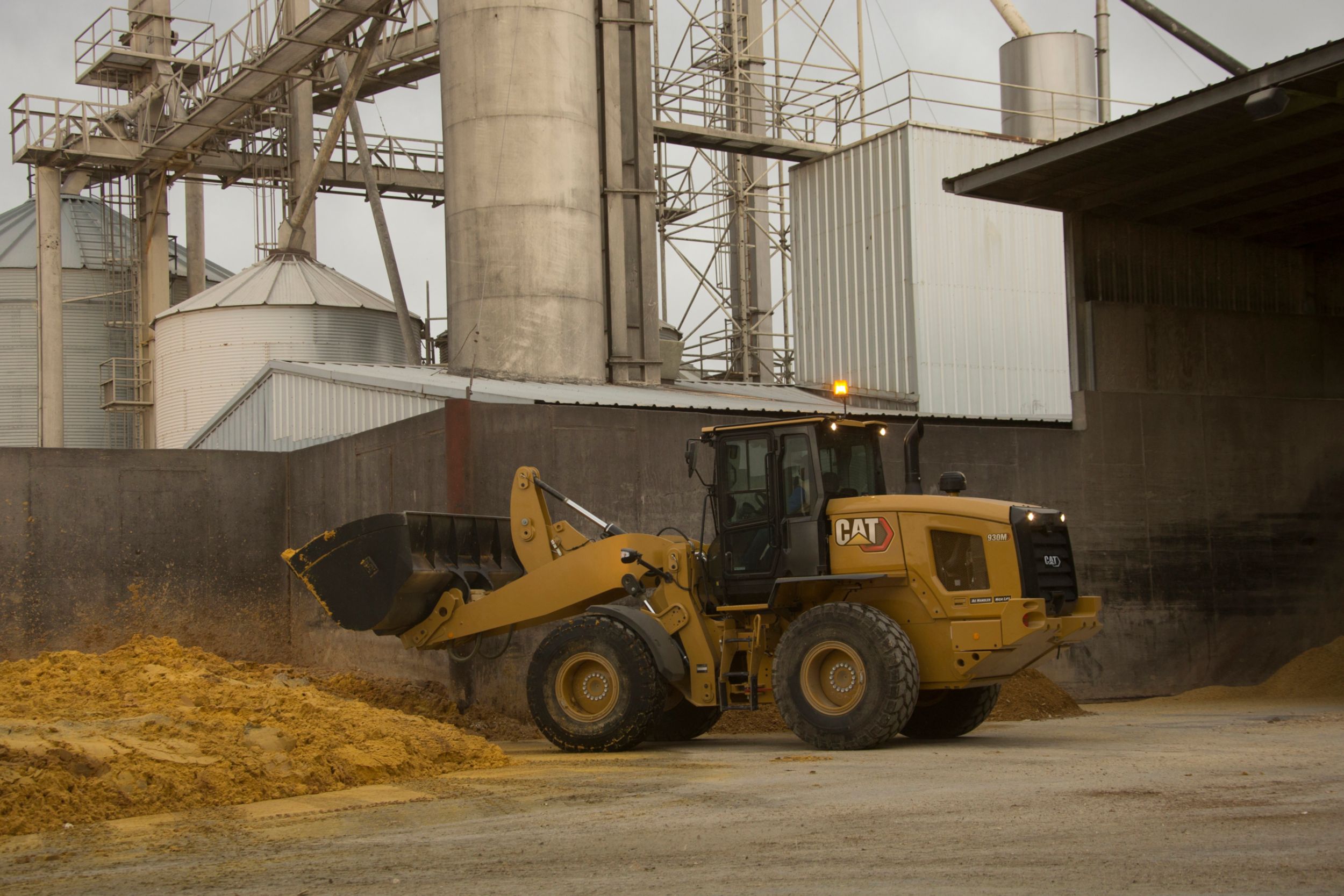

930M Ag Handler

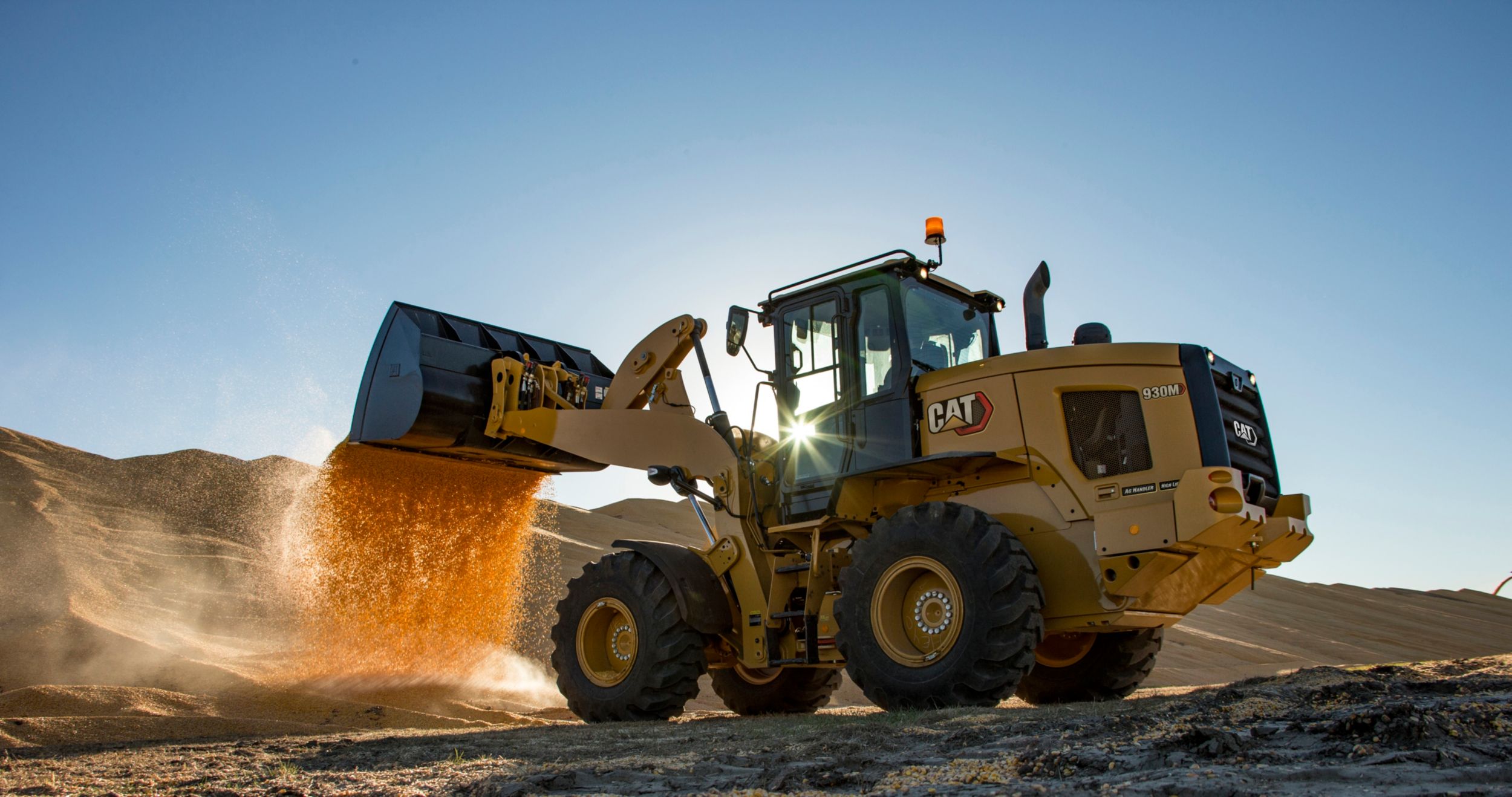

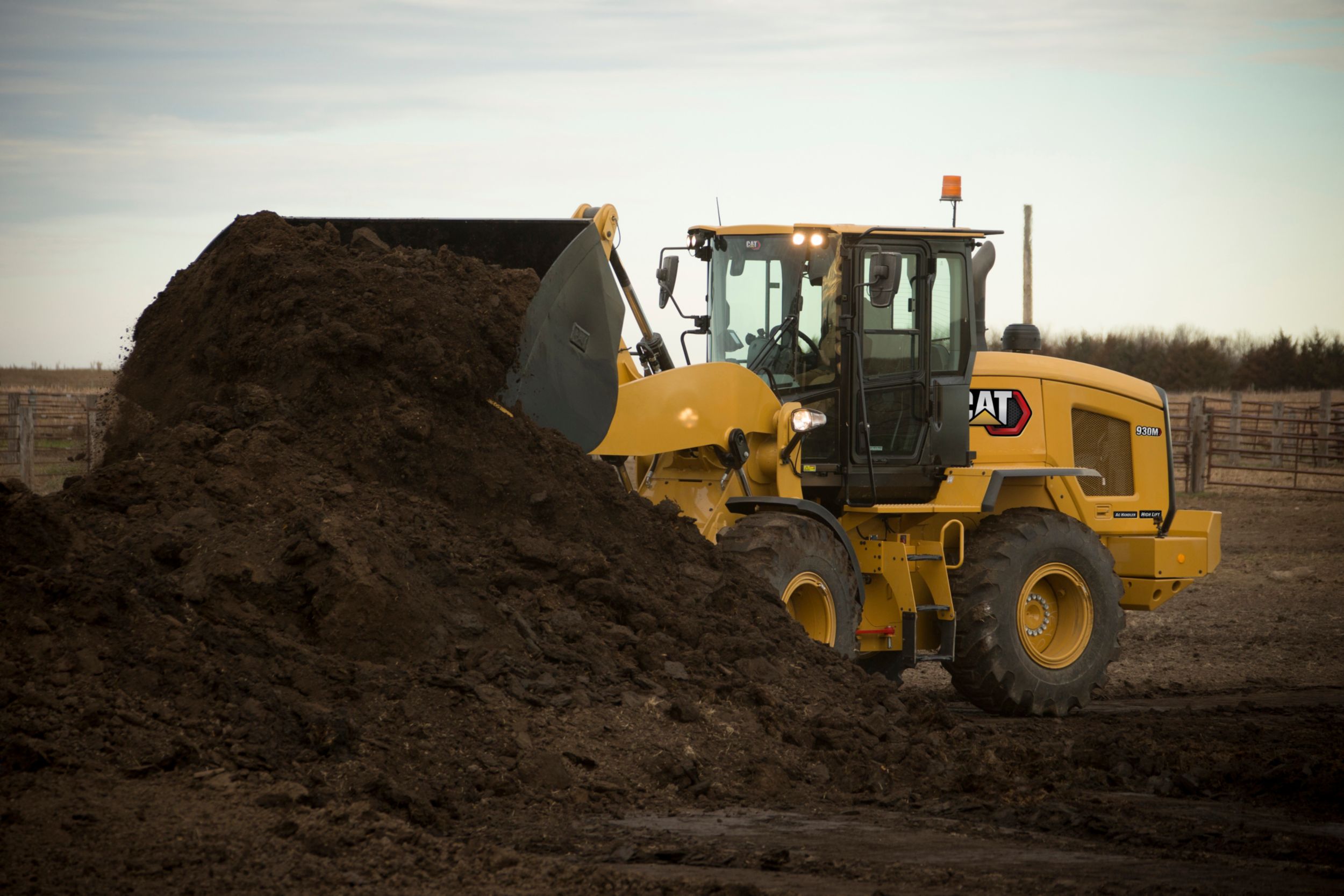

930M Ag Handler

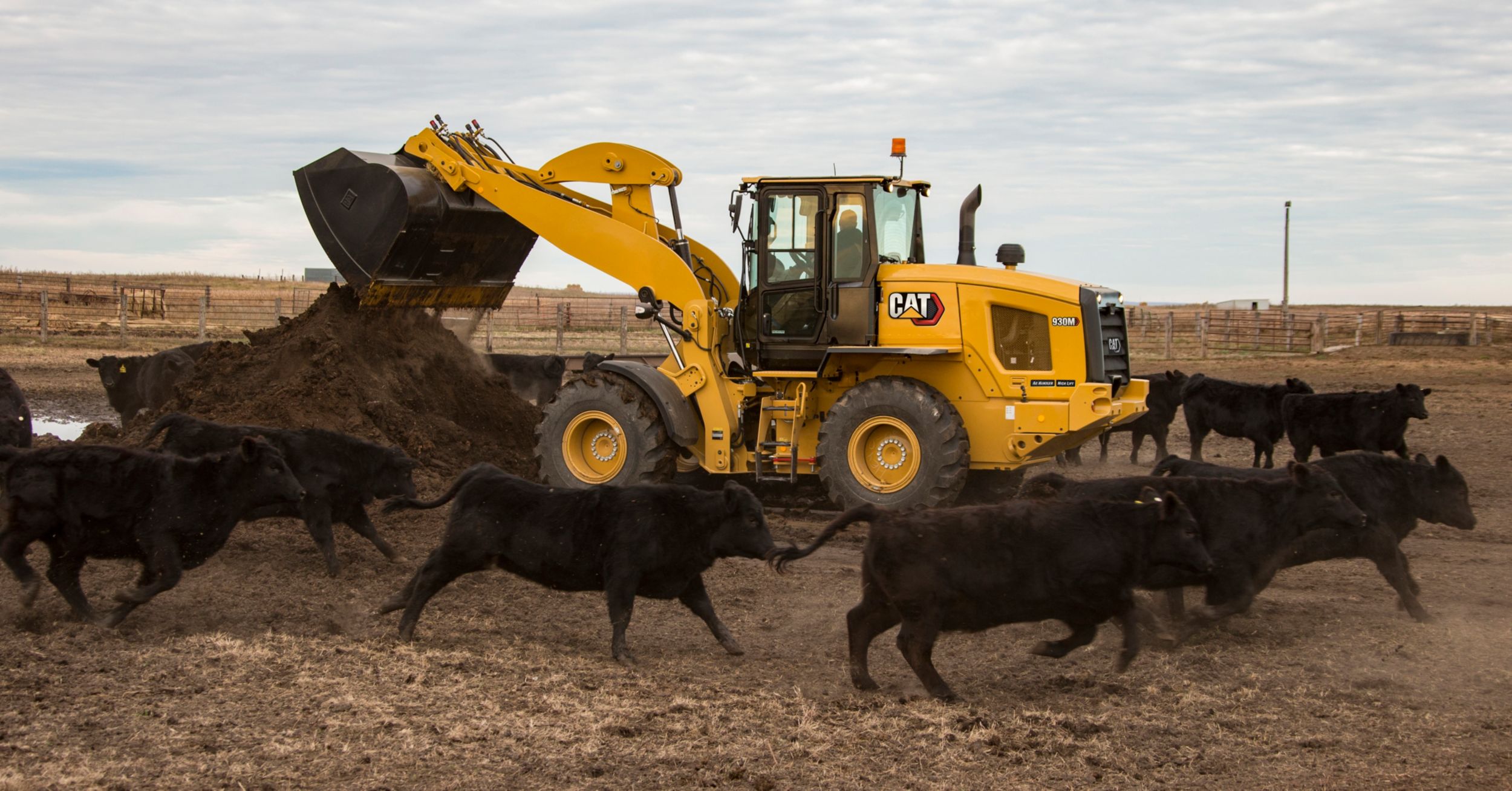

930M Ag Handler

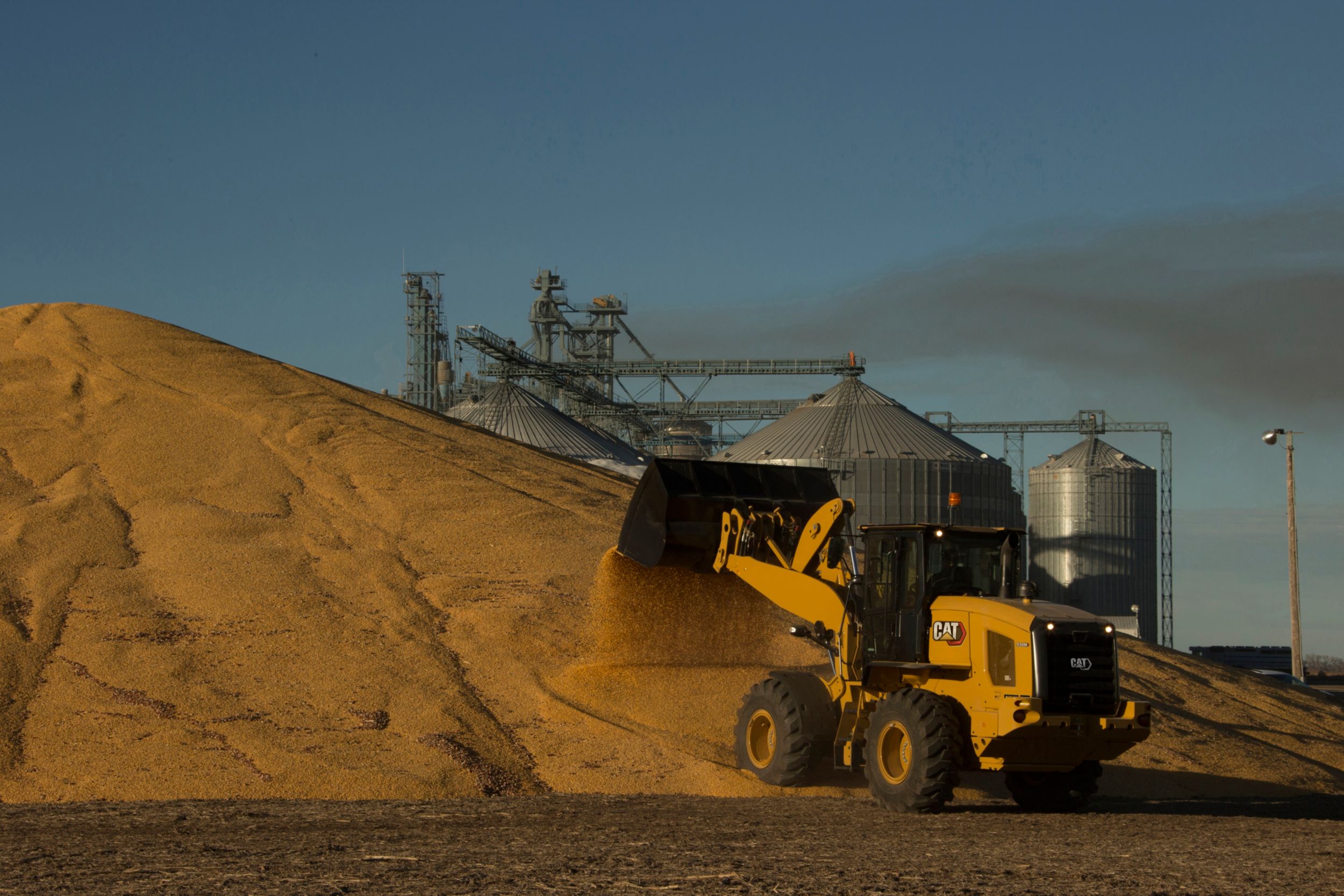

930M Ag Handler

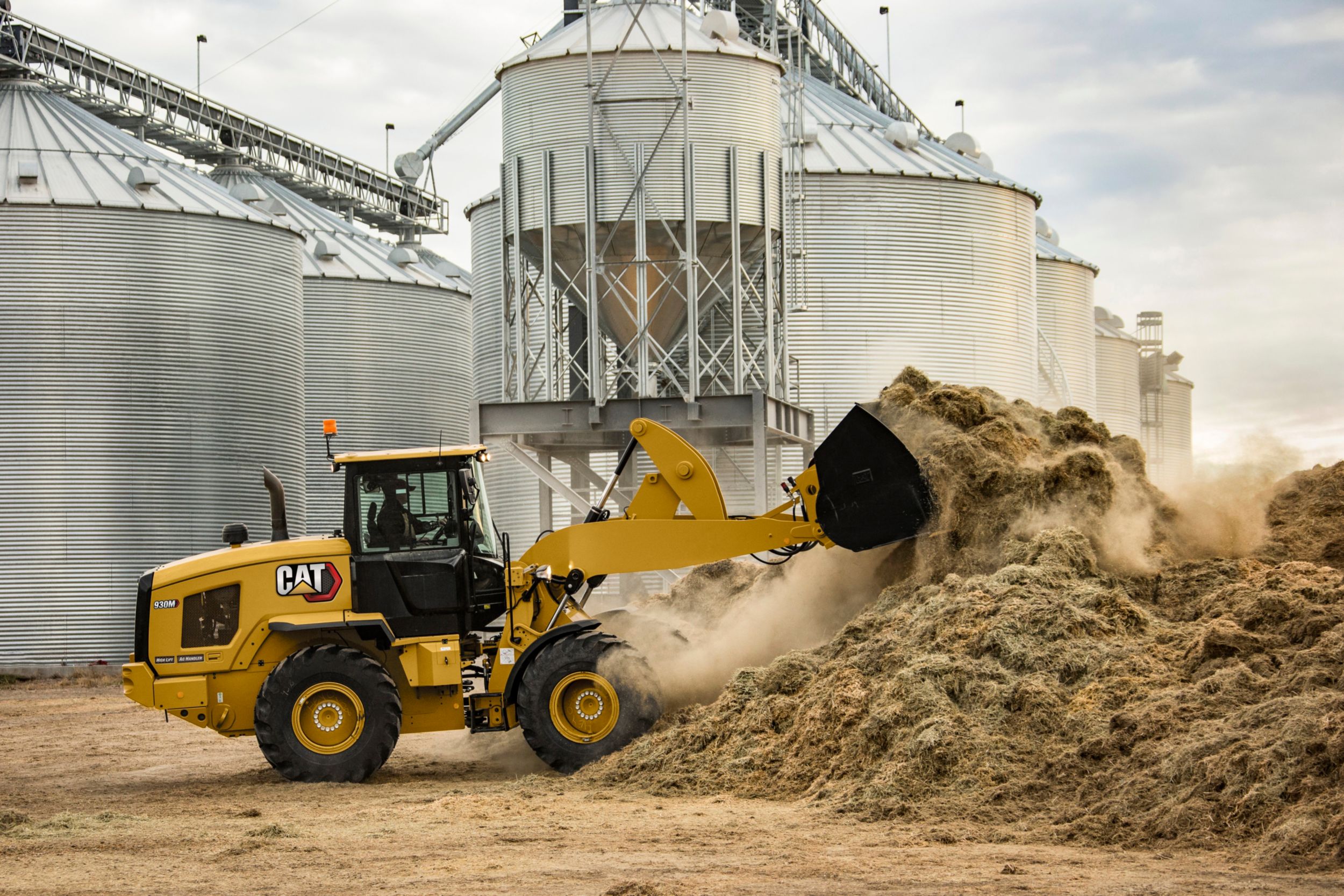

930M Ag Handler

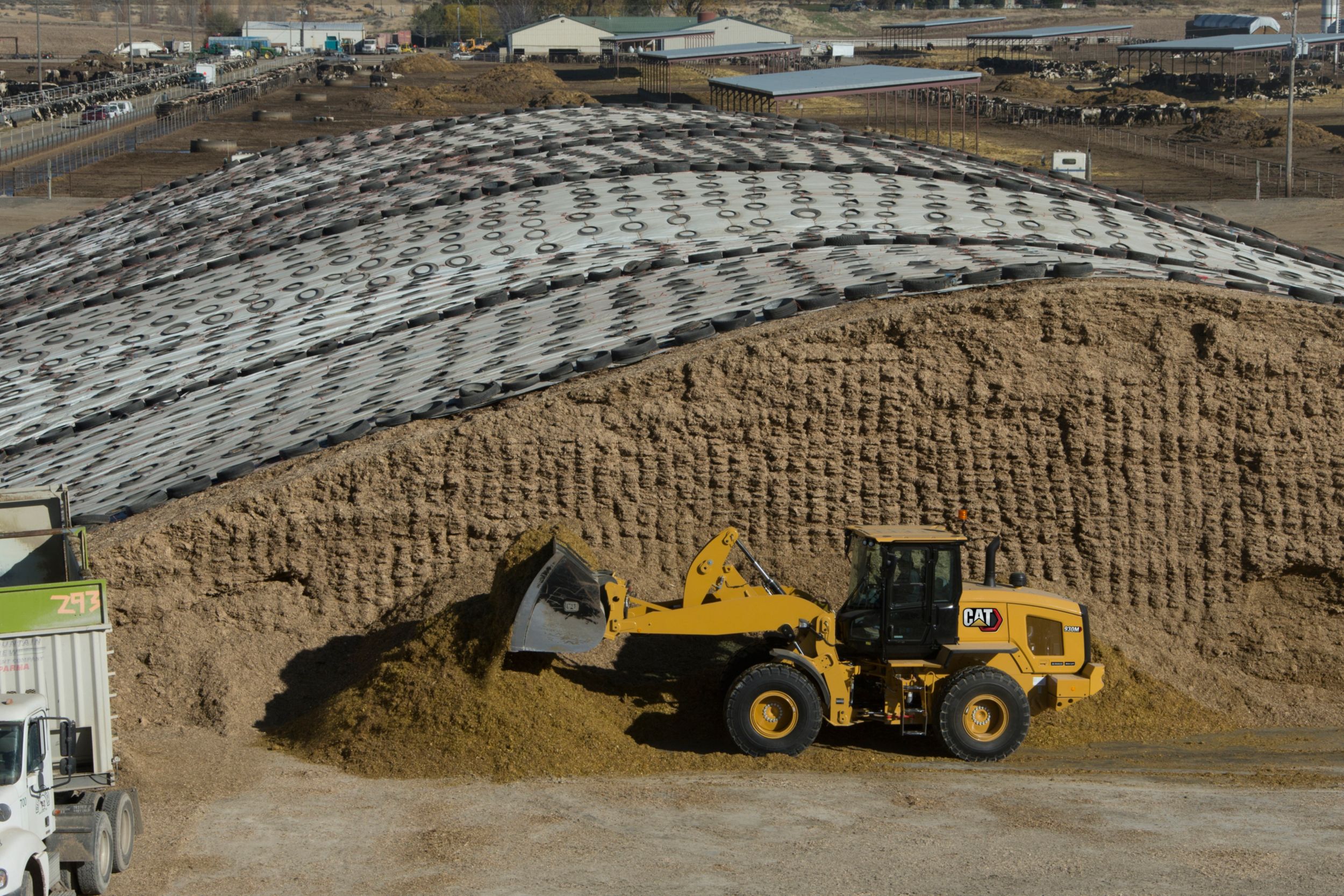

930M Ag Handler

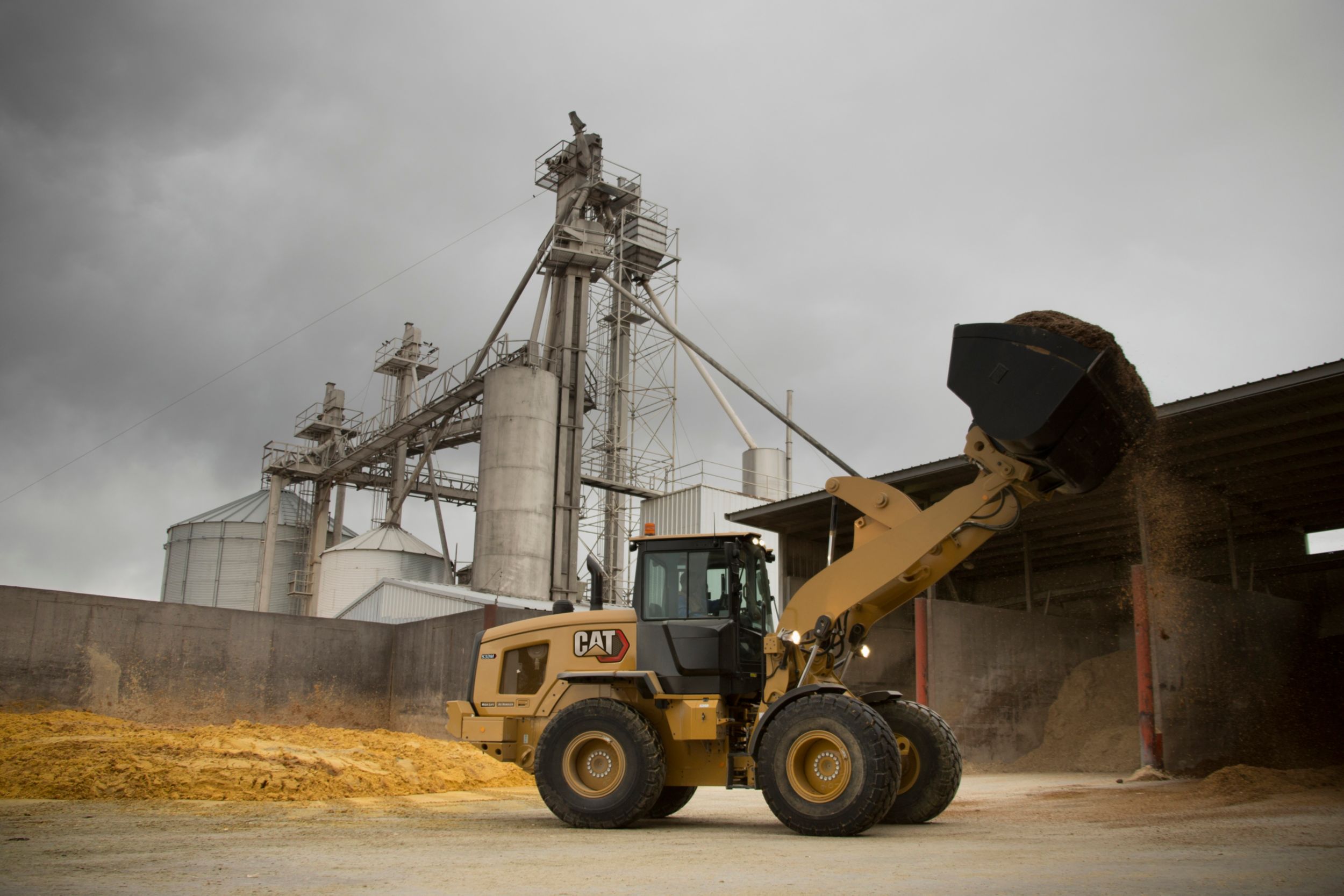

930M Ag Handler
930M Ag Handler
930M Ag Handler
930M Ag Handler

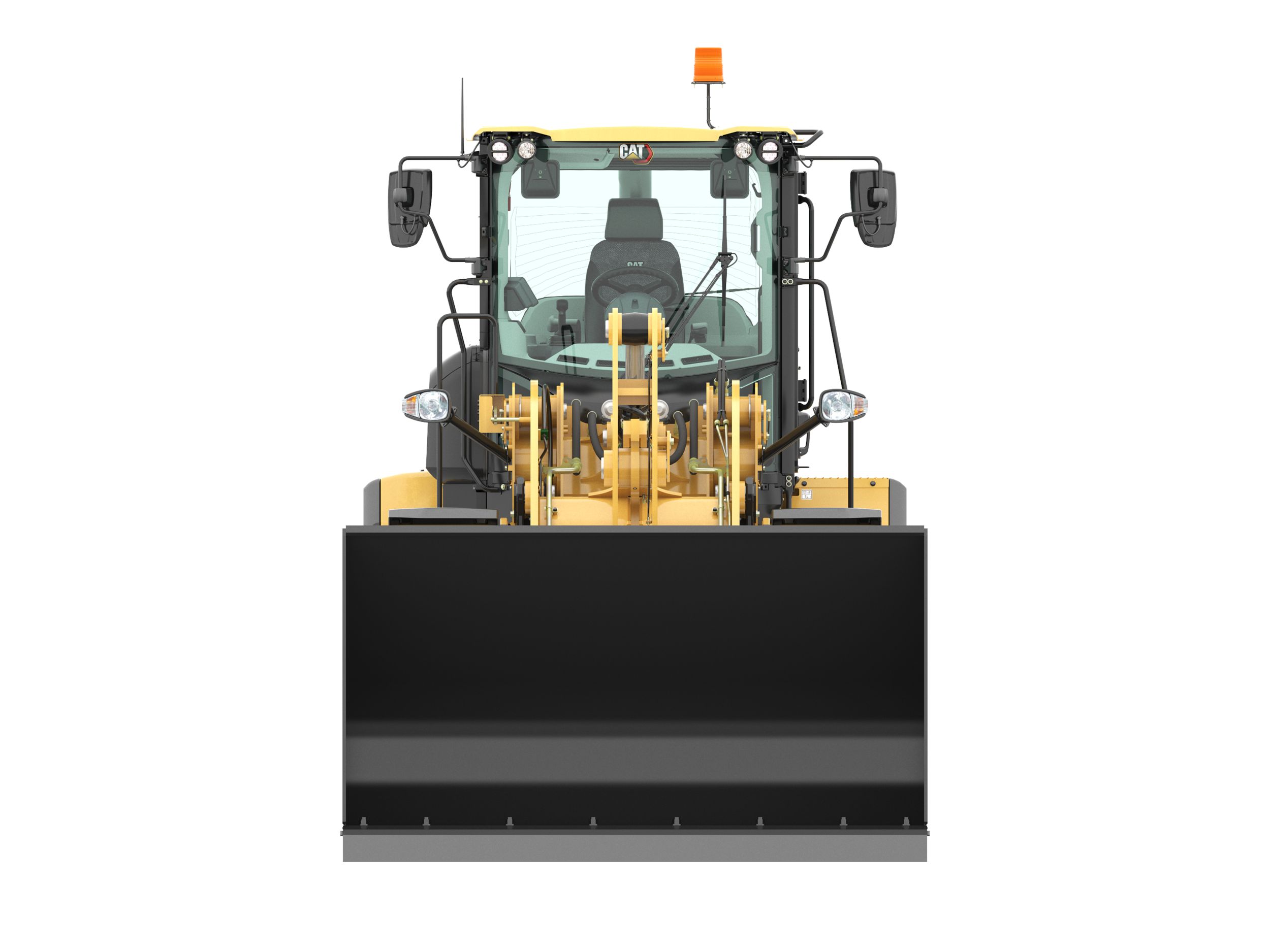

Front View

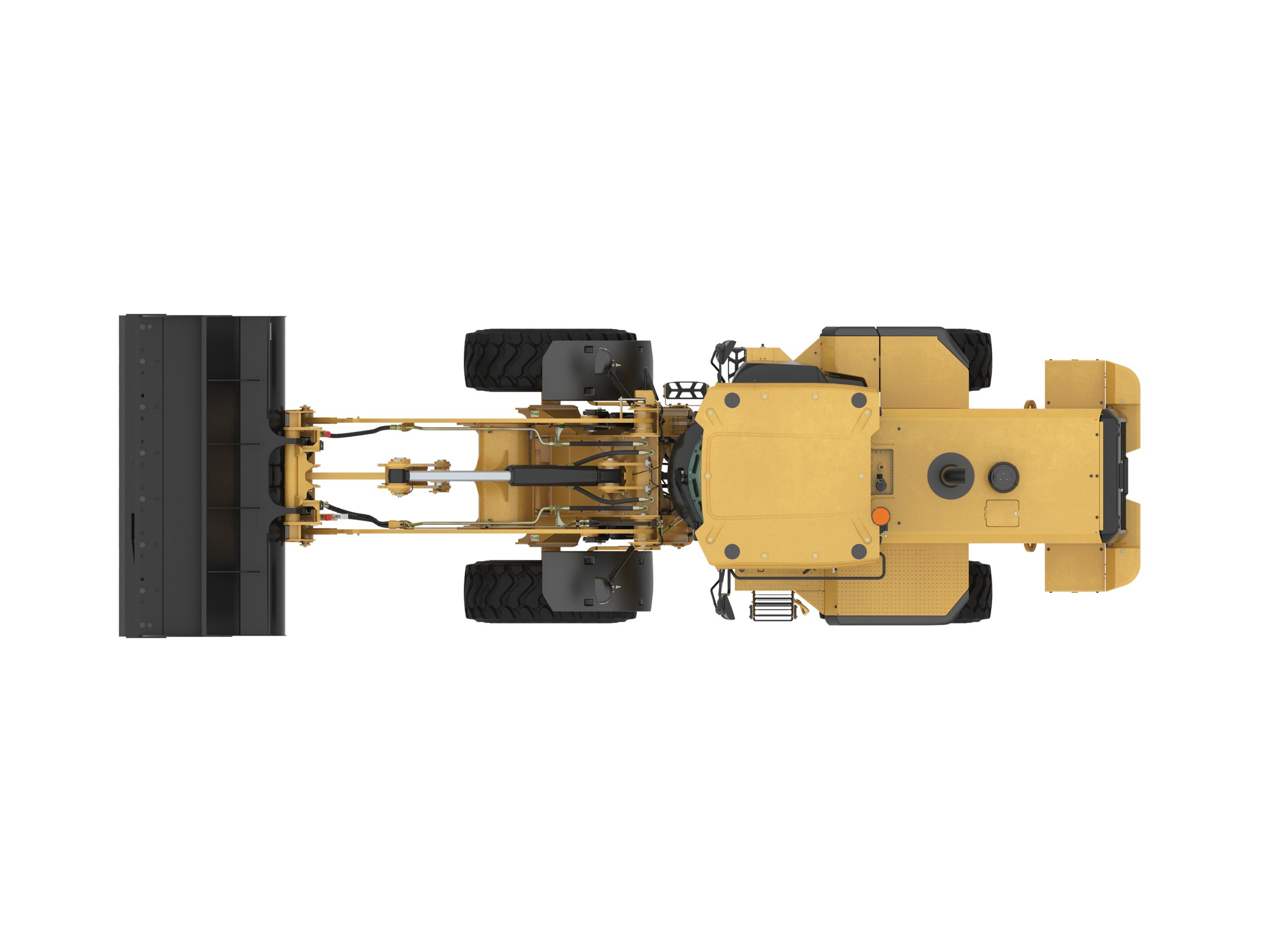

Top View

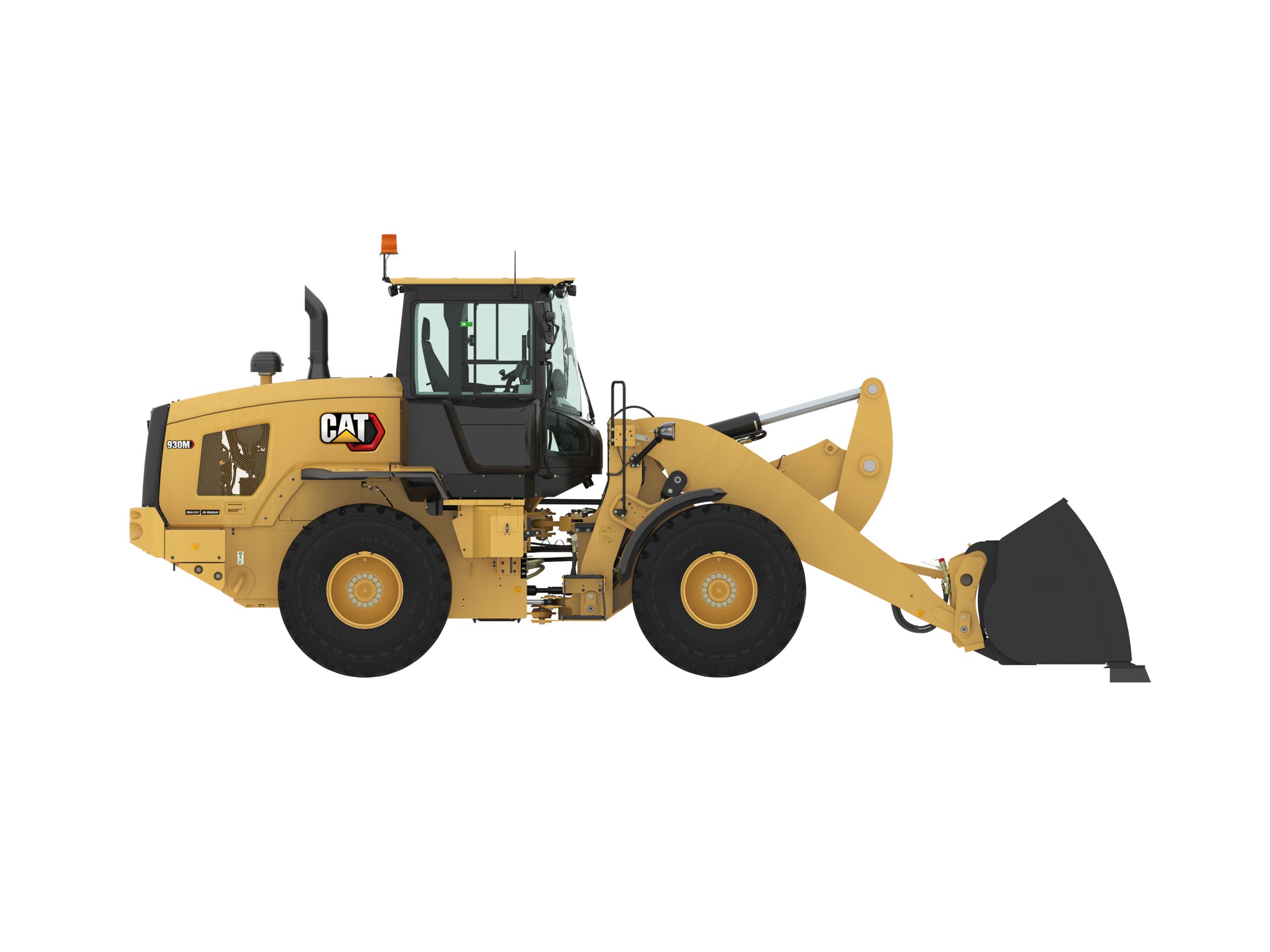

Left View

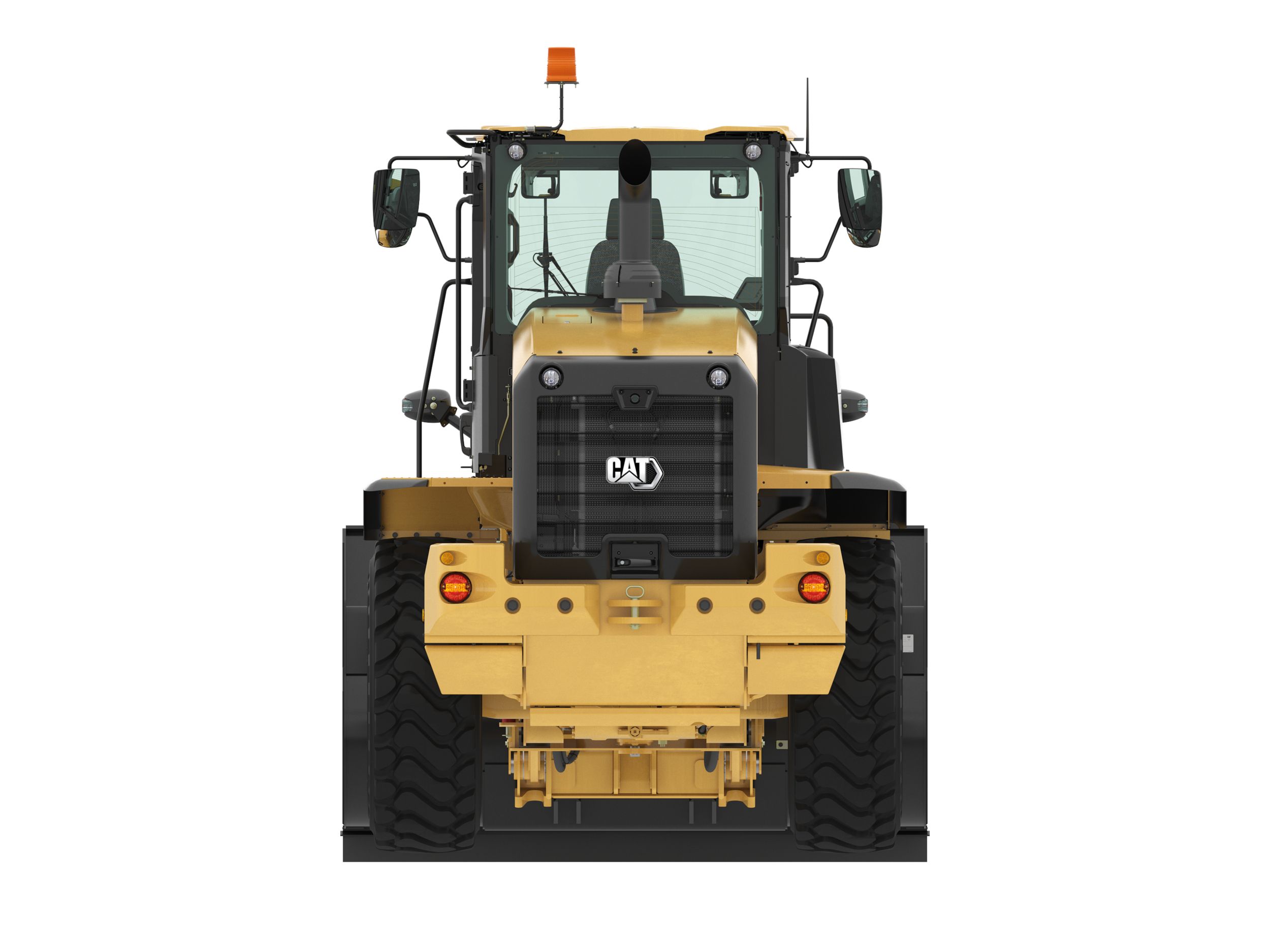

Rear View

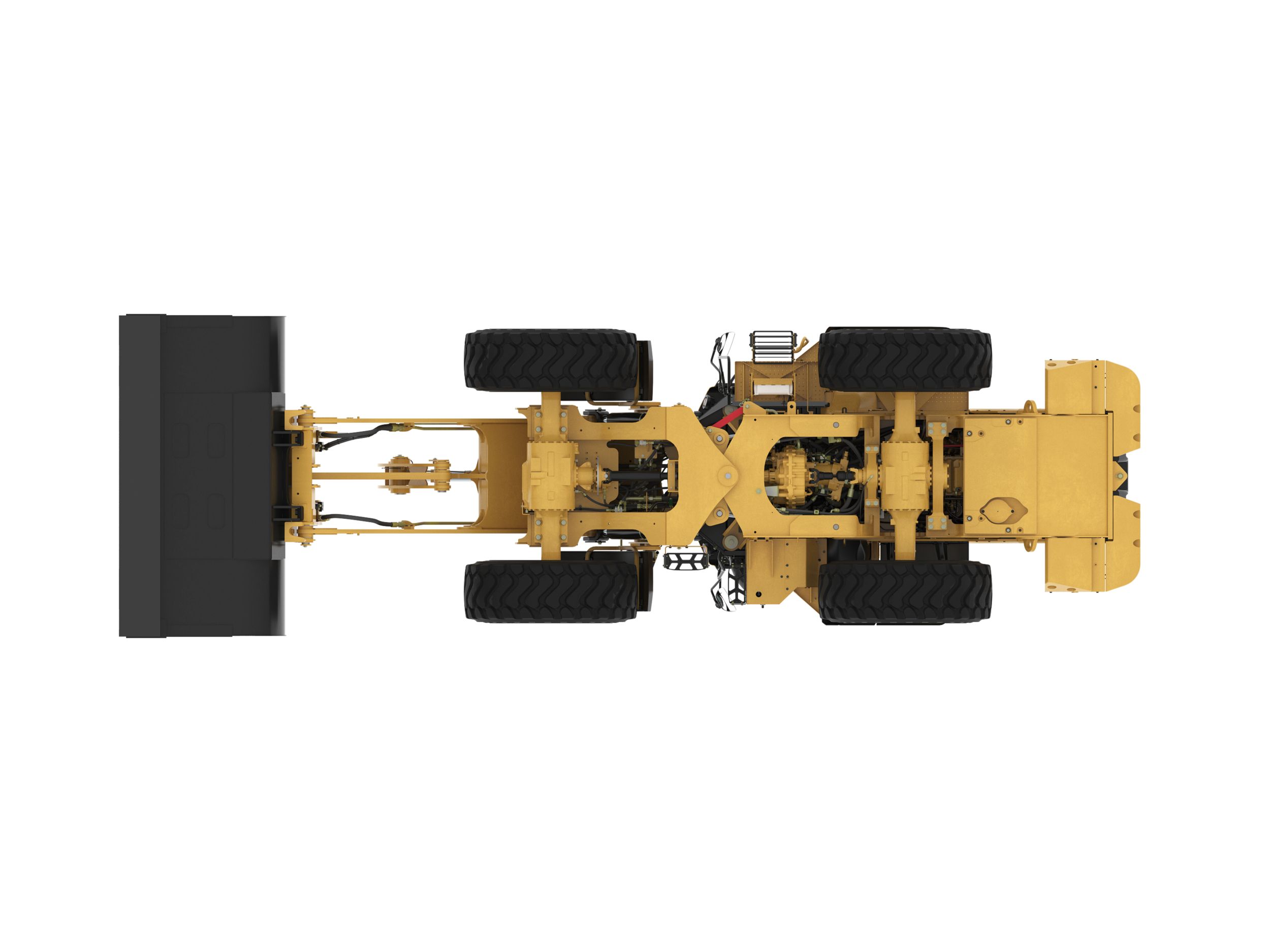

Bottom View

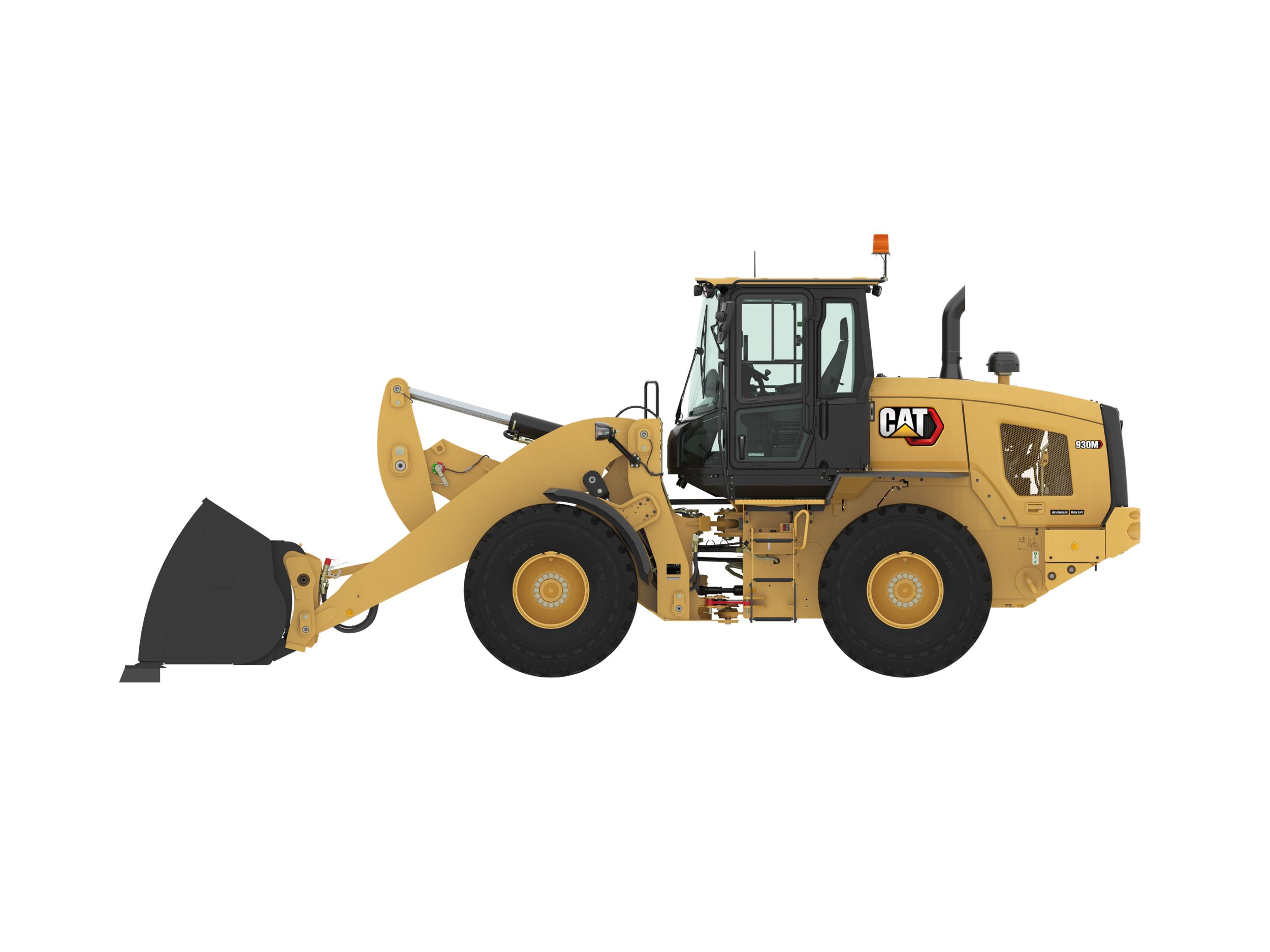

Right View
US
Metric

Overview

The Cat® 930M Ag Handler sets a new standard for productivity, fuel efficiency and comfort. A high torque, low speed C7.1 engine works in concert with an intelligent hystat power train to deliver fuel efficiency as standard. A power boost in Range 1 for silage work maximizes productivity, while a boost in Range 4 gets you to the farm or field faster. Extremely low sound levels, large spacious cab and intuitive controls keep you working comfortably all day and even all night! Experience this industry benchmark.

Engine

Engine Model
Cat C7.1 ACERT
Maximum Rated Gross Power - ISO 14396
168.00 HP
125.00 kW
Maximum Gross Power – ISO 14396 (Standard Power Mode; Speed Range 1-3*)
160.00 hp
119.00 kW
Maximum Gross Power – ISO 14396 (DIN) (Standard Power Mode; Speed Range 1-3*)
162.00 hp
119.00 kW
Rated Net Power at 1,600 rpm – SAE J1349 (Standard Power Mode; Speed Range 1-3*)
154.00 hp
115.00 kW
Rated Net Power at 1,600 rpm – SAE J1349 at Maximum Fan Speed (Standard Power Mode; Speed Range 1-3*)
141.00 hp
105.00 kW
Rated Net Power at 1,600 rpm – ISO 9249 (DIN) (Standard Power Mode; Speed Range 1-3*)
158.00 hp
116.00 kW
Rated Net Power - 1,600 rpm - ISO 9249 (DIN) (Standard Power Mode: Speed Range 1-3*)
158.00 HP
116.00 kW
Maximum Net Torque - SAE J1349 (Standard Power Mode; Speed Range 1-3*)
566.00 ft·lbf
768.00 N·m
Maximum Net Torque - ISO 9249 (1977)/EEC 80/1269 (Standard Power Mode; Speed Range 1-3*)
572.00 ft·lbf
776.00 N·m
Displacement (Standard Power Mode; Speed Range 1-3*)
427.00 in3
7.01 L
Maximum Gross Power - Maximum Engine Speed (Performance Power Mode: Range 1-4)
1800.00 r/min
1800.00 r/min
Maximum Gross Power – ISO 14396 (Performance Power Mode; Speed Range 1-4)
164.00 hp
122.00 kW
Maximum Gross Power – ISO 14396 (DIN) (Performance Power Mode; Speed Range 1-4)
166.00 hp
122.00 kW
Rated Net Power at 1,800 rpm – SAE J1349 (Performance Power Mode; Speed Range 1-4)
157.00 hp
117.00 kW
Rated Net Power - 1,800 rpm - SAE J1349 (Performance Power Mode: Speed Range 1-4)
157.00 HP
117.00 kW
Rated Net Power - 1,800 rpm - ISO 9249 (DIN) (Performance Power Mode: Speed Range 1-4)
162.00 HP
119.00 kW
Maximum Gross Torque – ISO 14396 (Performance Power Mode; Speed Range 1-4)
592.00 lbf-ft
804.00 N·m
Maximum Net Torque - SAE J1349 (Performance Power Mode; Speed Range 1-4)
566.00 ft·lbf
768.00 N·m
Maximum Net Torque - ISO 9249 (1977)/EEC 80/1269 (Performance Power Mode; Speed Range 1-4)
572.00 ft·lbf
776.00 N·m
Displacement (Performance Power Mode; Speed Range 1-4)
427.00 in3
7.01 L

Weights

Operating Weight
31876.00 lb
14459.00 kg

Buckets

Bucket Capacities
3.1-5.0 m3 (4.0-6.5 yd3)

Steering

Steering Articulation Angle (each direction)
40°
Steering Cycle Times (full left to full right): At 1,800 rpm: 90 rpm steering wheel speed
2.40 seconds
2.40 seconds
Number of Steering Wheel Turns – full left to full right or full right to full left
3.50 turns
3.50 turns
Maximum Flow – Steering Pump
34.00 gal/min
130.00 L/min
Maximum Working Pressure – Steering Pump
3500.00 psi
24130.00 kPa
Maximum Steering Torque: 0 degrees (straight machine)
37155.00 lbf-ft
50375.00 N·m
Maximum Steering Torque: 40 degrees (full turn)
27747.00 lbf-ft
37620.00 N·m

Loader Hydraulic System

Maximum Flow – Implement Pump
50.00 gal/min
190.00 L/min
Maximum Flow – Implement Pump: 3rd Function Maximum Flow*
50.00 gal/min
190.00 L/min
Maximum Flow – Implement Pump: 4th Function Maximum Flow*
42.00 gal/min
160.00 L/min
Maximum Working Pressure – Implement Pump
4061.00 psi
28000.00 kPa
Relief Pressure – Tilt Cylinder
4351.00 psi
30000.00 kPa
Relief Pressure – Tilt Cylinder: 3rd Function Maximum Working Pressure
4061.00 psi
28000.00 kPa
Relief Pressure – Tilt Cylinder: 4th Function Maximum Working Pressure
4061.00 psi
28000.00 kPa
Hydraulic Cycle Times: Standard Mode At 1,600 rpm – Raise (ground level to maximum lift)
4.80 seconds
4.80 seconds
Hydraulic Cycle Times: Standard Mode At 1,600 rpm – Dump (at maximum lift height)
1.60 seconds
1.60 seconds
Hydraulic Cycle Times: Standard Mode At 1,600 rpm – Float Down (maximum lift to ground level)
1.80 seconds
1.80 seconds
Hydraulic Cycle Times: Standard Mode At 1,600 rpm – Total Cycle Time
8.20 seconds
8.20 seconds
Hydraulic Cycle Times: Performance Mode At 1,800 rpm – Raise (ground level to maximum lift)
4.30 seconds
4.30 seconds
Hydraulic Cycle Times: Performance Mode At 1,800 rpm – Dump (at maximum lift height)
1.40 seconds
1.40 seconds
Hydraulic Cycle Times: Performance Mode At 1,800 rpm – Float Down (maximum lift to ground level)
1.80 seconds
1.80 seconds
Hydraulic Cycle Times: Performance Mode At 1,800 rpm – Total Cycle Time
7.50 seconds
7.50 seconds

Service Refill Capacities

Fuel Tank
51.50 gal
195.00 L
Cooling System
7.90 gal
30.00 L
Engine Crankcase
5.30 gal
20.00 L
Transmission (gearbox)
2.20 gal
8.50 L
Axles: Front
6.90 gal
26.00 L
Axles: Rear
6.60 gal
25.00 L
Hydraulic System (including tank)
43.60 gal
165.00 L
Hydraulic Tank
23.80 gal
90.00 L
Diesel Exhaust Fluid (DEF) Tank
5.00 gal
19.00 L

Transmission

Forward and Reverse: Range 1*
1-13 km/h (0.6-8 mph)
Forward and Reverse: Range 2
8.00 mph
13.00 km/h
Forward and Reverse: Range 3
17.00 mph
27.00 km/h
Forward and Reverse: Range 4
25.00 mph
40.00 km/h

Cab

ROPS
ISO 3471:2008
FOPS
ISO 3449:2005 Level II

Engine

Emissions
Engine meets Tier 4 Final emission standards.
Note
Net power shown is the power available at the flywheel when the engine is equipped with alternator, air cleaner and diesel exhaust filter.

Loader Hydraulic System

Note
*Adjustable from 20% to 100% of maximum flow through the secondary display, when equipped.

Transmission

Note
*Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display, when equipped. Factory default is 7 km/h (4.4 mph).

Engine

Maximum Gross Power
164.00 hp
122.00 kW
Note
Spark arrester performance as standard – Meets the performance requirements of EN 1834-1.2000 (section 6.4.2 Visual Test) and U.S. Forestry Service SAE J350.
Note
*Range 4 power is boosted to be the same as Performance Mode.

Cab

Note
The declared dynamic operator sound pressure levels per ISO 6396:2008*, when properly installed and maintained, are: – Standard cab: 68 ±3 dB(A) – Deluxe cab: 66 ±2 dB(A)
Note
*The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.

Buckets

Bucket Capacities – Light Material
3.1-5.0 m3 (4.0-6.5 yd3)

Service Refill Capacities

Note
DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1.

Tires

Standard Size
20.5 R25, radial (L-3)
Other Choices Include:
20.5 R25, radial (L-2); 20.5-25 12PR (L-2); 20.5-25 12PR (L-3)
Note
Other tire choices are available. Contact your Cat dealer for details.
Note
In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities.
Note
Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.

Axles

Front
Fixed; Locking differential (standard)
Rear
Oscillating ±11 degrees; Open differential (standard); Limited slip differential (optional)

Dimensions and Operating Specifications (Approximate) - 3.1 m³ (4.1 yd³) Bucket

Height - Ground to Cab**
10.92 ft
3340.00 mm
Height - Ground to Beacon**
12.08 ft
3707.00 mm
Height - Ground Axle Center**
2.17 ft
685.00 mm
Height - Ground Clearance**
1.25 ft
397.00 mm
Length - Overall*
27.25 ft
8323.00 mm
Length - Rear Axle to Bumper
6.50 ft
1993.00 mm
Length - Hitch to Front Axle
4.92 ft
1500.00 mm
Length - Wheel Base
9.83 ft
3000.00 mm
Clearance - Bucket at 45° *
10.42 ft
3177.00 mm
Clearance - Loadover Height**
11.58 ft
3550.00 mm
Clearance - Level Bucket**
13.33 ft
4073.00 mm
Height - Bucket Pin**
14.42 ft
4400.00 mm
Height - Overall**
18.67 ft
5697.00 mm
Reach - Bucket at 45°*
4.42 ft
1350.00 mm
Carry Height - Bucket Pin
2.00 ft
613.00 mm
Dig Depth**
5.30 in
135.00 mm
Width - Bucket
9.00 ft
2750.00 mm
Width - Tread Center
6.25 ft
1930.00 mm
Turning Radius - Over Bucket
20.92 ft
6392.00 mm
Width - Over Tires
8.33 ft
2540.00 mm
Turning Radius - Outside of Tires
17.67 ft
5402.00 mm
Turning Radius - Inside of Tires
9.33 ft
2851.00 mm
Rack Angle at Full Lift
51 degrees
Dump Angle at Full Lift
44 degrees
Rack Angle at Carry
48 degrees
Departure Angle
33 degrees
Articulation Angle
40 degrees
Tipping Load - Straight - ISO 14397-1*
16430.00 lb
7453.00 kg
Tipping Load - Full Turn - ISO 14397-1*
13934.00 lb
6320.00 kg
Breakout*
18808.00 lb
8532.00 kg
Operating Weight*
31876.00 lb
14459.00 kg
Note (1)
*Vary with bucket.
Note (2)
**Vary with tire.
Note (3)
Dimensions listed are for a 930M Ag Handler High Lift configured with Fusion™ light material bucket, bolt-on cutting edge, logger/aggregate counterweights, additional guarding, 80 kg (176 lb) operator and Michelin 20.5 R25 (L-3) XHA2 tires.

Dimensions and Operating Specifications (Approximate) - 3.5 m³ (4.6 yd³) Bucket

Height - Ground to Cab**
10.92 ft
3340.00 mm
Height - Ground to Beacon**
12.08 ft
3707.00 mm
Height - Ground Axle Center**
2.17 ft
685.00 mm
Height - Ground Clearance**
1.25 ft
397.00 mm
Length - Overall*
27.58 ft
8425.00 mm
Length - Rear Axle to Bumper
6.50 ft
1993.00 mm
Length - Hitch to Front Axle
4.92 ft
1500.00 mm
Length - Wheel Base
9.83 ft
3000.00 mm
Clearance - Bucket at 45° *
10.17 ft
3107.00 mm
Clearance - Loadover Height**
11.58 ft
3550.00 mm
Clearance - Level Bucket**
13.33 ft
4073.00 mm
Height - Bucket Pin**
14.42 ft
4400.00 mm
Height - Overall**
19.00 ft
5802.00 mm
Reach - Bucket at 45°*
4.67 ft
1424.00 mm
Carry Height - Bucket Pin
2.00 ft
613.00 mm
Dig Depth**
5.30 in
135.00 mm
Width - Bucket
9.00 ft
2750.00 mm
Width - Tread Center
6.25 ft
1930.00 mm
Turning Radius - Over Bucket
21.92 ft
6427.00 mm
Width - Over Tires
8.33 ft
2540.00 mm
Turning Radius - Outside of Tires
17.67 ft
5402.00 mm
Turning Radius - Inside of Tires
9.33 ft
2851.00 mm
Rack Angle at Full Lift
51 degrees
Dump Angle at Full Lift
44 degrees
Rack Angle at Carry
48 degrees
Departure Angle
33 degrees
Articulation Angle
40 degrees
Tipping Load - Straight - ISO 14397-1*
16070.00 lb
7290.00 kg
Tipping Load - Full Turn - ISO 14397-1*
13592.00 lb
6166.00 kg
Breakout*
17246.00 lb
7823.00 kg
Operating Weight*
32136.00 lb
14577.00 kg
Note (1)
*Vary with bucket.
Note (2)
**Vary with tire.
Note (3)
Dimensions listed are for a 930M Ag Handler High Lift configured with Fusion™ light material bucket, bolt-on cutting edge, logger/aggregate counterweights, additional guarding, 80 kg (176 lb) operator and Michelin 20.5 R25 (L-3) XHA2 tires.

Engine

Engine Model
Cat® C7.1
Maximum Gross Power - ISO 14396 (DIN) (Standard Power Mode: Range 1-3*)
162.00 HP
121.00 kW
Maximum Gross Power - ISO 14396 (Standard Power Mode: Range 1-3*)
160.00 HP
119.00 kW
Maximum Gross Power - Maximum Engine Speed (Standard Power Mode: Range 1-3*)
1600.00 r/min
1600.00 r/min
Rated Net Power - 1,600 rpm - SAE J1349 (Standard Power Mode: Speed Range 1-3*)
154.00 HP
115.00 kW
Rated Net Power - 1,600 rpm - SAE J1349 at Maximum Fan Speed (Standard Power Mode; Speed Range 1-3*)
141.00 HP
105.00 kW

Buckets

Bucket Capacities
2.1-5.0 m³ (2.7-6.5 yd³)

Weights

Operating Weight
31382.00 lb
14235.00 kg

Engine

Maximum Gross Power
168.00 HP
125.00 kW

Cab

ROPS
ISO 3471:2008
FOPS
ISO 3449:2005 Level II

Axles

Front
Fixed; Locking differential (standard)
Rear
Oscillating ±11 degrees; Open differential (standard); Limited slip differential (optional)

Buckets

Bucket Capacities - Light Material
3.1-5.0 m³ (4.0-6.5 yd³)

Cab

Note (1)
*The measurements were conducted at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. The cab was properly installed and maintained. The measurements were conducted with the cab doors and the cab windows closed.
Note (2)
*The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.

Engine

Displacement (Performance Power Mode: Speed Range 1-4)
428.00 in³
7.01 l
Displacement (Standard Power Mode: Speed Range 1-3*)
427.00 in³
7.01 l
Emissions
Engine meets U.S. EPA Tier 4 Final emission standards.
Maximum Gross Power - ISO 14396 (DIN) (Performance Power Mode: Range 1-4)
170.00 HP
127.00 kW
Maximum Gross Power - ISO 14396 (Performance Power Mode: Range 1-4)
168.00 HP
125.00 kW
Maximum Gross Torque - ISO 14396 (Performance Power Mode: Range 1-4)
601.00 ft·lbf
815.00 N·m
Maximum Gross Torque - ISO 14396 (Standard Power Mode: Range 1-3*)
592.00 ft·lbf
804.00 N·m
Note (1)
*The Cat C7.1 engine meets U.S. EPA Tier 4 Final/EU Stage V emission standards.
Note (2)
**Range 4 power and torque is equal to Performance Mode with Caterpillar Power by Range technology.
Note (3)
Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when the engine is equipped with alternator, air cleaner, emission components and fan at specified speed.
Rated Net Power - 1,800 rpm - SAE J1349 at Maximum Fan Speed (Performance Power Mode; Speed Range 1-4)
143.00 HP
107.00 kW

Loader Hydraulic System

Hydraulic Cycle Time - Performance Mode at 1,800 rpm - Dump, at Maximum Lift Height
1.40 s
1.40 s
Hydraulic Cycle Time - Performance Mode at 1,800 rpm - Float Down, Maximum Lift to Ground Level
1.80 s
1.80 s
Hydraulic Cycle Time - Performance Mode at 1,800 rpm - Raise, Ground Level to Maximum Lift
4.30 s
4.30 s
Hydraulic Cycle Time - Performance Mode at 1,800 rpm - Total Cycle Time
7.50 s
7.50 s
Hydraulic Cycle Time - Standard Mode at 1,600 rpm - Dump, at Maximum Lift Height
1.60 s
1.60 s
Hydraulic Cycle Time - Standard Mode at 1,600 rpm - Float Down, Maximum Lift to Ground Level
1.80 s
1.80 s
Hydraulic Cycle Time - Standard Mode at 1,600 rpm - Raise, Ground Level to Maximum Lift
4.80 s
4.80 s
Hydraulic Cycle Time - Standard Mode at 1,600 rpm - Total Cycle Time
8.20 s
8.20 s
Maximum Flow - Implement Pump
50.00 gal/min
190.00 l/min
Maximum Flow - Implement Pump - 3rd Function*
50.00 gal/min
190.00 l/min
Maximum Flow - Implement Pump - 4th Function Maximum Flow*
42.00 gal/min
160.00 l/min
Maximum Working Pressure - Implement Pump
4061.00 psi
28000.00 kPa
Note
*3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display.
Relief Pressure - Tilt Cylinder
4351.00 psi
30000.00 kPa
Relief Pressure - Tilt Cylinder - 3rd Function Maximum Working Pressure
4061.00 psi
28000.00 kPa
Relief Pressure - Tilt Cylinder - 4th Function Maximum Working Pressure
4061.00 psi
28000.00 kPa

Service Refill Capacities

Axles - Front
6.90 gal (US)
26.00 l
Axles - Rear
6.60 gal (US)
25.00 l
Cooling System
7.90 gal (US)
30.00 l
Diesel Exhaust Fluid (DEF) Tank
5.00 gal (US)
19.00 l
Engine Crankcase
5.30 gal (US)
20.00 l
Fuel Tank
51.50 gal (US)
195.00 l
Hydraulic System - Including Tank
43.60 gal (US)
165.00 l
Hydraulic Tank
23.80 gal (US)
90.00 l
Note
DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1.
Transmission - Gear Box
2.20 gal (US)
8.50 l

Steering

Maximum Flow - Steering Pump
34.00 gal/min
130.00 l/min
Maximum Steering Torque - 0° (Straight Machine)
37155.00 ft·lbf
50375.00 N·m
Maximum Steering Torque - 40° (Full Turn)
27747.00 ft·lbf
37620.00 N·m
Maximum Working Pressure - Steering Pump
3500.00 psi
24130.00 kPa
Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left
3.50 turns
3.50 turns
Steering Articulation Angle - Each Direction
40°
Steering Cycle Times - Full Left to Full Right - At 1,800 rpm: 90 rpm Steering Wheel Speed
2.40 s
2.40 s

Tires

Note (1)
Other tire choices are available. Contact your Cat dealer for details.
Note (2)
Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.
Note (3)
Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.
Other Choices Include
20.5 R25, Radial (L-2); 620/75 R26 MegaX, 750/65 R26 MegaX
Standard Size
20.5 R25, radial (L-3)

Transmission

Forward and Reverse - Range 1*
1-13 km/h (0.6-8 mph)
Forward and Reverse - Range 2
8.00 mile/h
13.00 km/h
Forward and Reverse - Range 3
17.00 mile/h
27.00 km/h
Forward and Reverse - Range 4
25.00 mile/h
40.00 km/h
Note
Creeper control allows maximum speed range adjustability in the forward direction from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display when equipped. Factory default is 7 km/h (4.4 mph). Maximum reverse speed will be maintained at 13 km/h (8 mph) in Range 1 for a quick reverse.

Steering

Note (2)
Flow values listed are for a machine running in Performance Power Mode (1,800 rpm).

Engine

Stroke - Performance Power Mode: Range 1-4
5.30 in
135.00 mm

Loader Hydraulic System

Cycle Times - 1,600 rpm - Standard: Total Cycle Time
10.10 s
10.10 s

Cab

Declared Sound Levels - Exterior Sound Power Level (ISO 6395:2008)*
101.00 dB(A)
101.00 dB(A)

Power Train

Note
*Differential front locking axle can be engaged on the go at full torque to 10 km/h (6.2 mph).

Loader Hydraulic System

Note (2)
Flow values listed are for a machine running in Performance Power Mode (1,800 rpm).

Transmission

Forward - Range 2
8.00 mile/h
13.00 km/h
Forward - Range 1*
1-13 km/h (0.6-8 mph)

Loader Hydraulic System

Cycle Times - 1,800 rpm - Performance (HP+): Dump (at Maximum Lift Height)
1.50 s
1.50 s

Power Train

Rear Axle
Oscillating

Loader Hydraulic System

Cycle Times - 1,800 rpm - Performance (HP+): Total Cycle Time
9.30 s
9.30 s

Steering

Steering Cylinder, Double Acting - Bore Diameter
2.80 in
70.00 mm
Steering Cylinder, Double Acting - Stroke
17.20 in
438.00 mm

Power Train

Note (2)
Power train is governed by the Caterpillar exclusive Intelligent Power Management system to deliver peak performance and efficiency.

Engine

Maximum Net Torque - SAE J1349 (Performance [HP+] Power Mode: Range 1-4)
797.00 N·m
588.00 ft·lbf

Transmission

Reverse - Range 4
25.00 mile/h
40.00 km/h

Air Conditioning System

Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg of refrigerant which has a CO2 equivalent of 2.717 metric tonnes.

Loader Hydraulic System

Cycle Times - 1,600 rpm - Standard: Float Down (Maximum Lift to Ground Level)
2.70 s
2.70 s

Cab

Declared Sound Levels - Operator Sound Pressure Level (ISO 6396:2008)*
68.00 dB(A)
68.00 dB(A)

Loader Hydraulic System

Cycle Times - 1,800 rpm - Performance (HP+): Raise (Ground Level to Maximum Lift)
5.10 s
5.10 s

Steering

Note (1)
Steering system uses a dedicated load sensing variable displacement pump with dual double acting cylinders.

Loader Hydraulic System

Cycle Times - 1,800 rpm - Performance (HP+): Float Down (Maximum Lift to Ground Level)
2.70 s
2.70 s
Relief Pressure - Tilt Cylinder - 3rd and 4th Function Maximum Working Pressure
4061.00 psi
28000.00 kPa

Power Train

Front Axle
Fixed

Transmission

Reverse - Range 2
8.00 mile/h
13.00 km/h

Loader Hydraulic System

Cycle Times - 1,600 rpm - Standard: Dump (at Maximum Lift Height)
1.70 s
1.70 s

Transmission

Forward - Range 3
17.00 mile/h
27.00 km/h

Engine

Note (4)
No derating required up to 3000 m (10,000 ft) altitude. Auto derate protects hydraulic and transmission systems.

Steering

Steering Cycle Times - Full Left to Full Right - Minimum RPM: Pump Flow Limited
2.80 s
2.80 s

Transmission

Forward - Range 4
25.00 mile/h
40.00 km/h

Steering

Steering Cycle Times - Full Left to Full Right - Maximum RPM: 90 rpm Steering Wheel Speed
2.40 s
2.40 s

Transmission

Reverse - Range 3
17.00 mile/h
27.00 km/h

Power Train

Front Axle - Traction Aid*
Locking differential standard

Steering

Steering Cylinder, Double Acting - Rod Diameter
1.60 in
40.00 mm

Loader Hydraulic System

Relief Pressure - Tilt Cylinder - 3rd and 4th Function Relief Pressure
4351.00 psi
30000.00 kPa

Power Train

Rear Axle - Oscillation Angle by Tire Size - 20.5 R25
± 10.5 degrees

Transmission

Reverse - Range 1*
8.00 mile/h
13.00 km/h

Loader Hydraulic System

Note (1)
Implement system uses a dedicated load sensing variable displacement pump with dual double acting lift cylinders and a single double acting tilt cylinder.

Engine

Bore (Standard Power Mode: Range 1-4)
4.10 in
105.00 mm

Power Train

Brakes - Service
Inboard wet disc
Rear Axle - Traction Aid
Limited slip differential optional
Brakes - Parking
Spring applied hydraulically released

Loader Hydraulic System

Cycle Times - 1,600 rpm - Standard: Raise (Ground Level to Maximum Lift)
5.70 s
5.70 s
Maximum Flow - Implement Pump - 3rd Function Maximum Flow*
50.00 gal/min
190.00 l/min

Engine

Net Power - ISO 9249 at Minimum Fan Speed (Standard Power Mode: Range 1-3**)
156.00 HP
116.00 kW
Stroke (Standard Power Mode: Range 1-3**)
5.30 in
135.00 mm
Net Power - SAE J1349 at Minimum Fan Speed (Standard Power Mode: Range 1-3**)
156.00 HP
116.00 kW
Maximum Gross Power - Maximum Engine Speed (Standard Power Mode: Range 1-3**)
1600.00 r/min
1600.00 r/min

Loader Hydraulic System

Lift Cylinder: Standard Lift Linkage - Bore Diameter
4.30 in
110.00 mm

Engine

Net Power - ISO 9249 (metric) at Minimum Fan Speed (Performance Power Mode: Range 1-4)
166.00 HP
166.00 HP
Net Power - ISO 9249 at Minimum Fan Speed (Performance Power Mode: Range 1-4)
164.00 HP
122.00 kW
Net Power - ISO 9249 (metric) at Minimum Fan Speed (Standard Power Mode: Range 1-3**)
158.00 HP
158.00 HP

Loader Hydraulic System

Tilt Cylinder: Standard Lift Linkage - Stroke
21.90 in
555.00 mm

Engine

Bore (Standard Power Mode: Range 1-3**)
4.10 in
105.00 mm
Maximum Net Torque - ISO 9249 (Performance Power Mode: Range 1-4)
587.00 ft·lbf
796.00 N·m
Maximum Gross Torque - ISO 14396 (Standard Power Mode: Range 1-3**)
795.00 N·m
586.00 ft·lbf
Maximum Net Torque - ISO 9249 (Standard Power Mode: Range 1-3**)
776.00 N·m
572.00 ft·lbf
Net Power - SAE J1349 at Minimum Fan Speed (Performance Power Mode: Range 1-4)
163.00 HP
122.00 kW

Loader Hydraulic System

Tilt Cylinder: Standard Lift Linkage - Rod Diameter
2.80 in
70.00 mm
Lift Cylinder: Standard Lift Linkage - Rod Diameter
2.40 in
60.00 mm

Engine

Displacement (Standard Power Mode: Range 1-3**)
428.00 in³
7.01 l

Loader Hydraulic System

Tilt Cylinder: Standard Lift Linkage - Bore Diameter
5.10 in
130.00 mm

Engine

Maximum Gross Power - ISO 14396 (Standard Power Mode: Range 1-3**)
160.00 HP
119.00 kW

Loader Hydraulic System

Lift Cylinder: Standard Lift Linkage - Stroke
28.70 in
728.00 mm

Engine

Maximum Gross Power - ISO 14396 (metric) (Standard Power Mode: Range 1-3**)
162.00 HP
162.00 HP
Maximum Net Torque - SAE J1349 (Standard Power Mode: Range 1-3**)
573.00 ft·lbf
777.00 N·m

Power Train

Rear Axle - Oscillation Angle by Tire Size - 750/65, 620/65
± 7 degrees

Dimensions with Bucket - Standard Lift

Height - Ground Clearance**
1.30 ft
397.00 mm

Dimensions with Bucket - High Lift

Length - Rear Axle to Bumper
6.50 ft
1993.00 mm

Dimensions with Bucket - Standard Lift

Rack Angle at Carry
43.00 °
43.00 °

Dimensions with Bucket - High Lift

Departure Angle
33.00 °
33.00 °
Height - Overall**
18.70 ft
5698.00 mm

Dimensions with Bucket - Standard Lift

Departure Angle
33.00 °
33.00 °

Dimensions with Bucket - High Lift

Reach - Bucket at 45°*
4.40 ft
1339.00 mm

Dimensions with Bucket - Standard Lift

Length - Wheel Base
9.80 ft
3000.00 mm
Length - Rear Axle to Bumper
6.50 ft
1993.00 mm
Turning Radius - Over Bucket
19.50 ft
5952.00 mm
Carry Height - Bucket Pin
1.30 ft
390.00 mm
Width - Over Tires
8.30 ft
2540.00 mm

Dimensions with Bucket - High Lift

Dump Angle at Full Lift
48.00 °
48.00 °

Dimensions with Bucket - Standard Lift

Note (2)
**Vary with tire.

Dimensions with Bucket - High Lift

Width - Bucket
8.40 ft
2550.00 mm

Dimensions with Bucket - Standard Lift

Dig Depth**
3.90 in
100.00 mm
Turning Radius - Outside of Tires
17.70 ft
5402.00 mm
Clearance - Level Bucket**
11.75 ft
3580.00 mm
Clearance - Bucket at 45°*
9.10 ft
2779.00 mm
Rack Angle at Full Lift
54.00 °
54.00 °
Height - Overall**
17.10 ft
5205.00 mm

Dimensions with Bucket - High Lift

Length - Wheel Base
9.80 ft
3000.00 mm

Dimensions with Bucket - Standard Lift

Width - Bucket
8.40 ft
2550.00 mm
Height - Ground to Axle Center**
2.25 ft
685.00 mm

Dimensions with Bucket - High Lift

Width - Tread Center
6.30 ft
1930.00 mm

Dimensions with Bucket - Standard Lift

Height - Bucket Pin**
12.80 ft
3907.00 mm

Dimensions with Bucket - High Lift

Length - Hitch to Front Axle
4.90 ft
1500.00 mm

Dimensions with Bucket - Standard Lift

Operating Weight
31125.00 lb
14118.00 kg

Dimensions with Bucket - High Lift

Height - Ground to Axle Center**
2.25 ft
685.00 mm
Note (1)
*Vary with bucket.

Dimensions with Bucket - Standard Lift

Width - Tread Center
6.30 ft
1930.00 mm
Turning Radius - Inside of Tires
9.40 ft
2851.00 mm
Reach - Bucket at 45°*
3.60 ft
1102.00 mm

Dimensions with Bucket - High Lift

Clearance - Bucket at 45°*
10.70 ft
3272.00 mm
Height - Bucket Pin**
14.40 ft
4400.00 mm

Dimensions with Bucket - Standard Lift

Length - Overall*
24.90 ft
7593.00 mm

Dimensions with Bucket - High Lift

Height - Ground to Beacon**
12.20 ft
3707.00 mm
Carry Height - Bucket Pin
1.90 ft
582.00 mm
Clearance - Load over Height**
11.60 ft
3550.00 mm
Turning Radius - Outside of Tires
17.70 ft
5402.00 mm

Dimensions with Bucket - Standard Lift

Clearance - Load over Height**
10.90 ft
3331.00 mm

Dimensions with Bucket - High Lift

Turning Radius - Over Bucket
20.60 ft
6272.00 mm
Rack Angle at Full Lift
51.00 °
51.00 °
Rack Angle at Carry
47.00 °
47.00 °
Length - Overall*
27.00 ft
8235.00 mm
Note (2)
**Vary with tire.
Height - Ground to Cab**
10.90 ft
3340.00 mm

Dimensions with Bucket - Standard Lift

Length - Hitch to Front Axle
4.90 ft
1500.00 mm

Dimensions with Bucket - High Lift

Turning Radius - Inside of Tires
9.40 ft
2851.00 mm
Clearance - Level Bucket**
13.40 ft
4073.00 mm
Width - Over Tires
8.30 ft
2540.00 mm
Note (3)
Dimensions listed are for a 930M Ag Handler configured with General Purpose 2.3 m³ (3.0 yd³) Fusion bucket, bolt-on cutting edges, heavy counterweights, 80 kg (176 lb) operator, and Michelin 20.5 R25 XHA2 tires.

Dimensions with Bucket - Standard Lift

Height - Ground to Beacon**
12.20 ft
3707.00 mm
Articulation Angle
40.00 °
40.00 °

Dimensions with Bucket - High Lift

Dig Depth**
5.30 in
135.00 mm
Articulation Angle
40.00 °
40.00 °
Operating Weight
31441.00 lb
14262.00 kg

Dimensions with Bucket - Standard Lift

Height - Ground to Cab**
10.90 ft
3340.00 mm

Dimensions with Bucket - High Lift

Height - Ground Clearance**
1.30 ft
397.00 mm

Dimensions with Bucket - Standard Lift

Note (3)
Dimensions listed are for a 930M Ag Handler configured with General Purpose 2.3 m³ (3.0 yd³) Fusion bucket, bolt-on cutting edges, heavy counterweights, 80 kg (176 lb) operator, and Michelin 20.5 R25 XHA2 tires.
Note (1)
*Vary with bucket.
Dump Angle at Full Lift
48.00 °
48.00 °

Engine

Maximum Rated Gross Power - ISO 14396 (metric)
170.00 mhp
170.00 mhp

Operating Specifications

Full Turn Tip Load
19424.00 lb
8811.00 kg

Sustainability

Recyclability
94%
Features

Efficiently Powerful

Experience hybrid-like fuel efficiency with an intelligent hydrostatic power train and industry leading fuel savings through a lower maximum engine speed of just 1,600 rpm in Standard Mode. Power when you need it with Caterpillar's exclusive Power‑by-Range technology that increases power in Range 4 for improved speed on grade. For your toughest and most demanding farm applications a new Performance Mode will allow you to boost the power and hydraulic speed in all Ranges to get the job done even quicker. Meets U.S. EPA Tier 4 Final emission standards with a Cat® C7.1 engine that is designed to manage itself so you can concentrate on your work.

Work Made Easy

Move more with Caterpillar's patented quick loading Performance Series buckets and High Lift optimized Z-bar linkage that combines the digging efficiency of a traditional Z-bar with tool carrier capabilities. The parallel lift and high tilt forces throughout the working range allow you to safely and confidently handle loads from bales to silage with precise control. Multi-function work has never been easier with dedicated pumps for each system and a flow sharing implement valve governed by an intelligent power management system. Simultaneously lift, steer and drive without compromise. A 20% boost in hydraulic speeds on the Ag Handler helps you finish the day on time.

Enjoy All Day Comfort

Have a seat in the 930M Ag Handler and enjoy automatic temperature control, class leading sound levels, excellent all around visibility and low-effort joystick controls that move with you on a fully adjustable seat suspension. A large spacious operator environment combined with Caterpillar's exclusive hydraulic cylinder damping and smooth predictable controls make this the most comfortable seat on the farm.

Customize Your Experience

Fine tune machine performance with adjustments at your fingertips through the soft touch buttons and optional secondary touch screen display. Quickly set auxiliary flow to optimize grapple or silage defacer speed, enable auto reversing fan to breathe clean in dusty environments, toggle over to fine mode for improved control when bale stacking, program linkage kick-out positions for easy feed wagon loading, adjust wheel torque to match underfoot conditions when cleaning corrals and customize ride control activation speed for a smooth loaded carry run. The 930M Ag Handler is ready for the challenge on your farm!

Sustainability

  • The Cat® C7.1 engine meets U.S. EPA Tier 4 Final, EU Stage V and Korea Tier 5 emission standards.
  • Engine Idle Management System (EIMS) helps maximize fuel efficiency and reduce greenhouse gas emissions while maintaining machine performance.
  • Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
  • Performance Series Buckets have rounded side boards, a longer floor and open angle to carry more and load quicker so each pass is the most efficient.
  • Rimpull Control is a quick way to adjust the torque to the tires for less slipping and tire wear.
  • Cat® Production Measurement provides real-time payload weighing which help you maximize productivity, reduce fuel burn and greenhouse gas emissions, all while improving job site efficiency and lowering costs.
  • Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
  • Power on Demand, transparent to the operator, provides full-time efficiency and power when you need it.
  • Tire Pressure Monitoring provides real-time tire pressure information to the operator to help increase tire wear and achieve better fuel efficiency and reduced greenhouse gas emissions.
  • Intelligent Hystat Transmission helps improves control and reduces fuel consumption and greenhouse gas emissions in load and carry applications.
  • Variable Displacement Pumps match power to load as application requirements change.
Standard Equipment
  • POWER TRAIN
    • Auto idle shut down feature
    • Cat C7.1 engine
      • Power modes (Standard and Performance)
      • Power by range (High Power in Range 4)
      • Turbocharged and aftercooled
      • Diesel particulate filter (Fit for Life)
    • Coded start (requires secondary display)
    • Differential lock in front axle
    • Enclosed wet disc full hydraulic brakes
    • Oil sampling ports
    • Hydraulically driven demand cooling fan
    • Hydrostatic transmission with electronic control
      • Operator modes (Default, TC, Hystat™, and Ice)
      • Directional Shift Aggressiveness (fast, medium, slow)
      • Rimpull control, adjust wheel torque
      • Creeper control, adjust ground speed
    • Axle Duo-Cone™ seal guards
    • Parking brake, electric
    • Single plane cooling package wide six fins per inch density
    • Throttle lock and max speed limiter
  • HYDRAULICS
    • Automatic lift lower and tilt kickouts, adjustable in-cab
    • Bucket and fork modes, adjustable in-cab
    • Cylinder damping at kickout and mechanical end stops
    • Fine mode control (fast, medium, slow)
    • Hydraulic response setting (fast, medium, slow)
    • Load sensing hydraulics and steering
    • Load sensing hydraulics and steering
  • ELECTRICAL
    • Alternator, 115 amp, heavy duty
    • Batteries, 1,000 CCA (2) 24V system, disconnect switch
    • Back-up alarm
    • Halogen work and roading lights, LED rear tail lights
    • Product Link™ PRO with three year subscription
    • Remote jump start post
    • Resettable main and critical function breakers
  • OPERATOR ENVIRONMENT
    • Cab, pressurized
    • 75 mm (3 in) retractable seat belt, with audible alarm and indicator
    • Automatic temperature control
    • External heated mirrors with lower parabolic
    • Hydraulic control lockout
    • Ground level cab door release
    • Suspension seat, fabric
    • Lunch box storage
    • Radio ready speakers
    • Rear window defrost, electric
    • Mirror, single
    • Column mounted multi function control – lights, wipers, turn signal
    • Tilt and telescopic steering wheel
    • Tinted front glass
    • Wet arm wiper/washer, 2-speed and intermittent, front, lights, wipers, turn signal
    • Camera, rear view
  • OTHER STANDARD EQUIPMENT
    • Cat optimized Z-bar linkage with parallel lift
    • Large-access enclosure doors with adjustable close/open force
    • Recovery hitch, with pin
    • Remote mounted lubrication points
    • Lockable compartments and enclosures
Optional Equipment
  • OPTIONAL EQUIPMENT
    • Auto lube, integrated in secondary display
    • Auxiliary flow, third and fourth function
    • Beacon light, strobe
    • Cab, deluxe (standard in Europe)
      • Camera, rear view integrated into advanced display
      • Electrically adjustable external heated mirrors (2)
      • Secondary display to enable features and adjust parameters
      • LED interior lighting
      • Sunscreen, front and rear
      • Touchscreen secondary display
      • Ride control adjustable speed activation
      • Preventative maintenance reminders
      • Integrated help function (26 languages)
    • Camera, roof mounted, front view with separate display
    • Cat Production Measurement weigh scale system integrated into secondary display
    • Cold start package
      • Ether starting aid, block heater and additional batteries, 1,000 CCA (4 total)
    • Coupler, (Fusion and ISO 23727)
    • Fenders (extended cover and full coverage)
    • Differential, limited slip, rear
    • Guarding packages
    • Lights, auxiliary, halogen or LED with engine and DEF compartment lights
    • Linkage, high lift
    • Payload Technology
      • Cat Production Measurement (CPM)
      • CPM Printer
    • Product Link ELITE with capabilities for software push, data logging, histogram and trend mapping
    • Radio packages
    • Ride Control System, adjustable through secondary display
    • Seats
      • Deluxe seat – fully adjustable fabric air suspension seat with mid seat backrest
      • Premium seat – fully adjustable leather and fabric air suspension with high backrest and air lumbar support. Seat is heated and ventilated on bottom cushion and backrest.
    • Steering
      • Dual mode and secondary
    • Tire Pressure Monitoring (TPM)
    • Counterweight, additional options
    • Debris packages (low, medium, high)
    • Rear Object Detection
