Overview

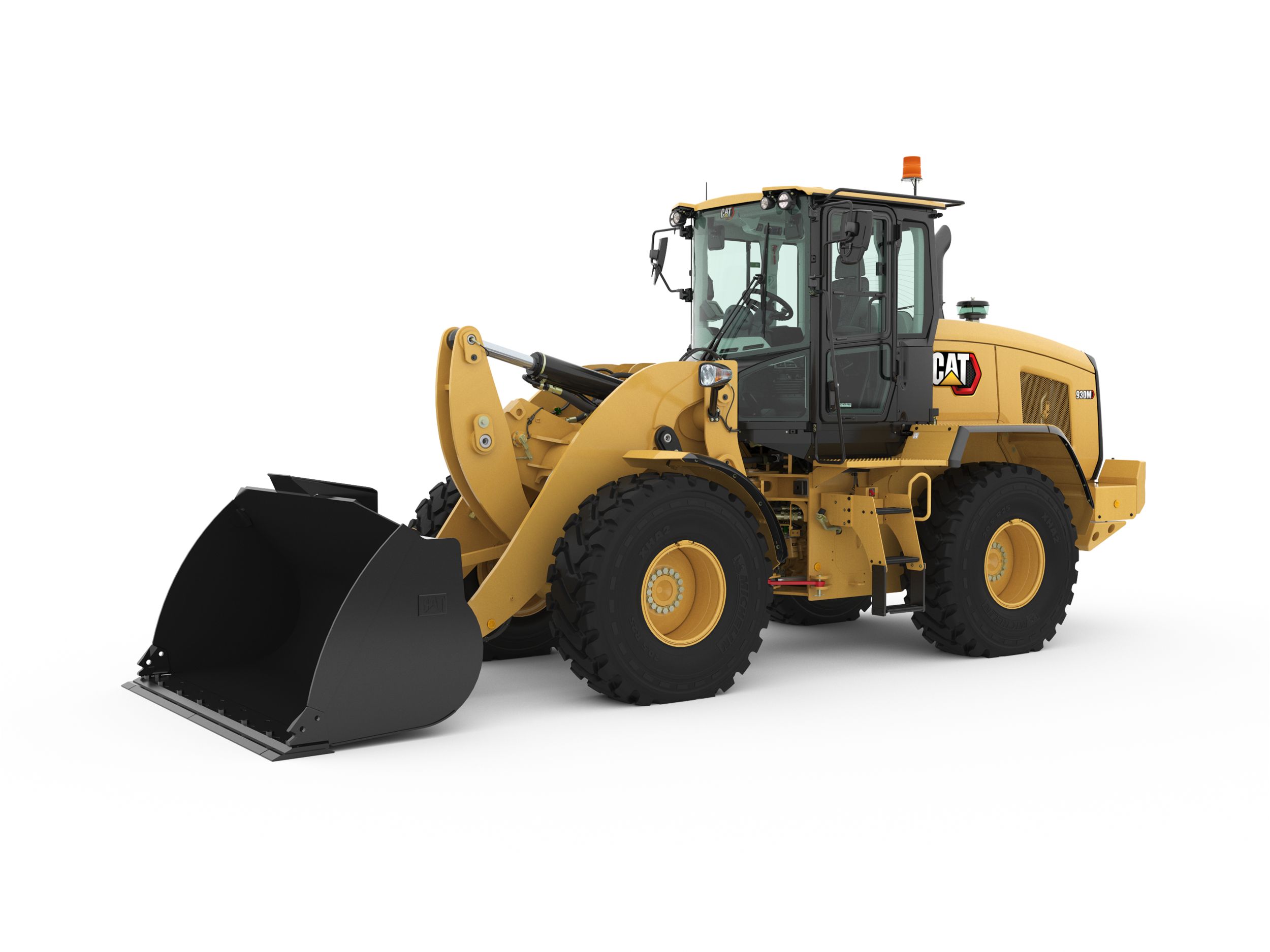

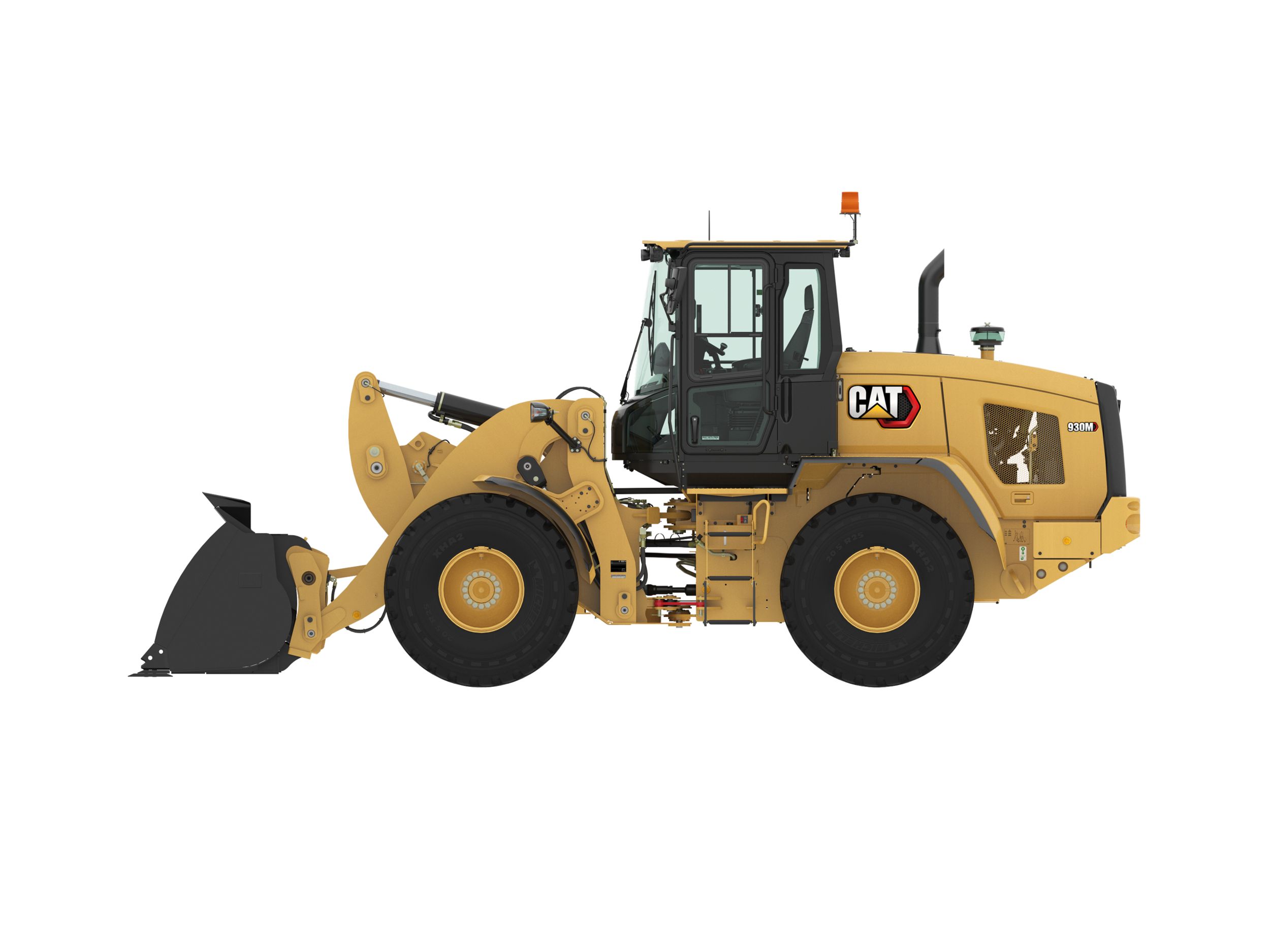

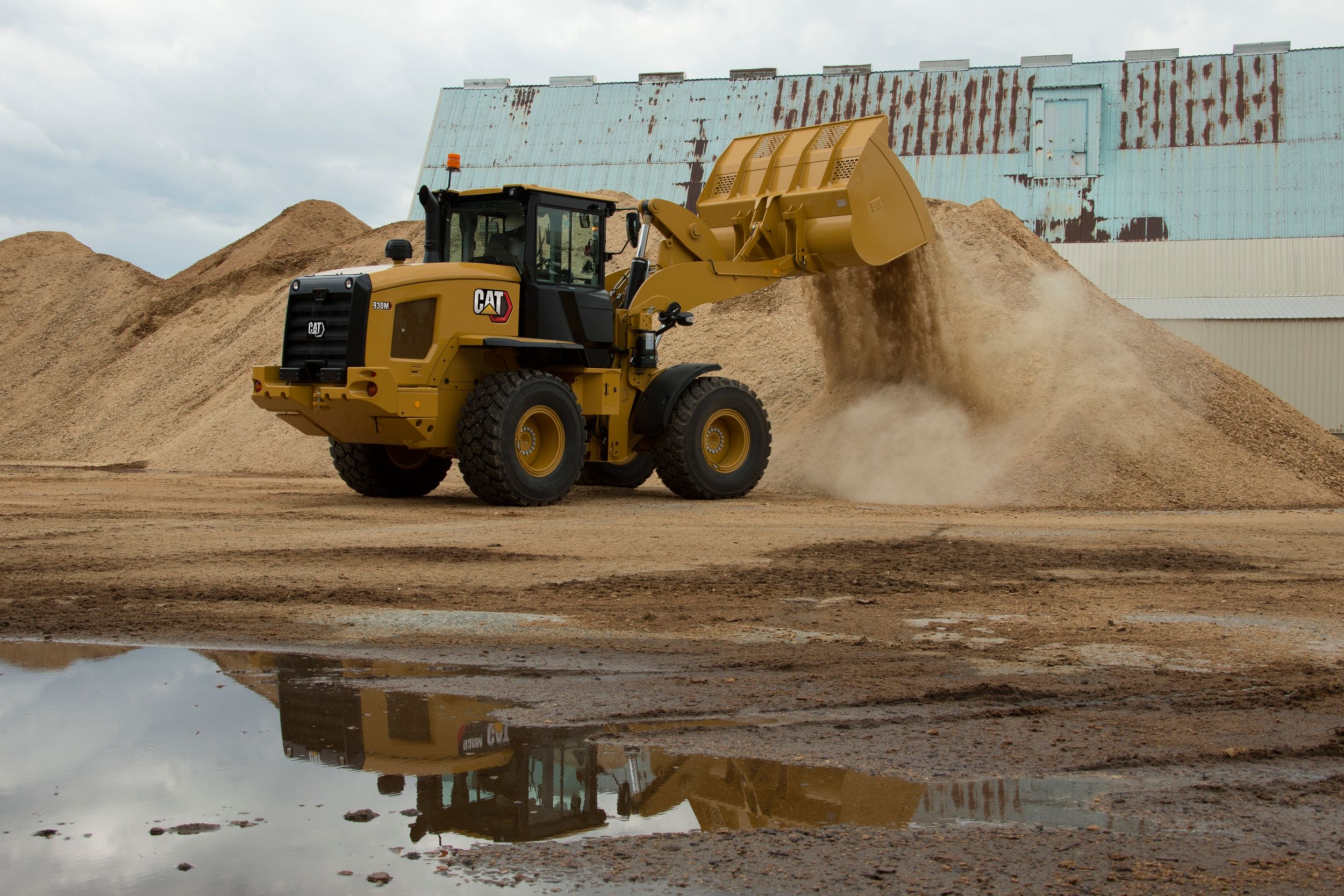

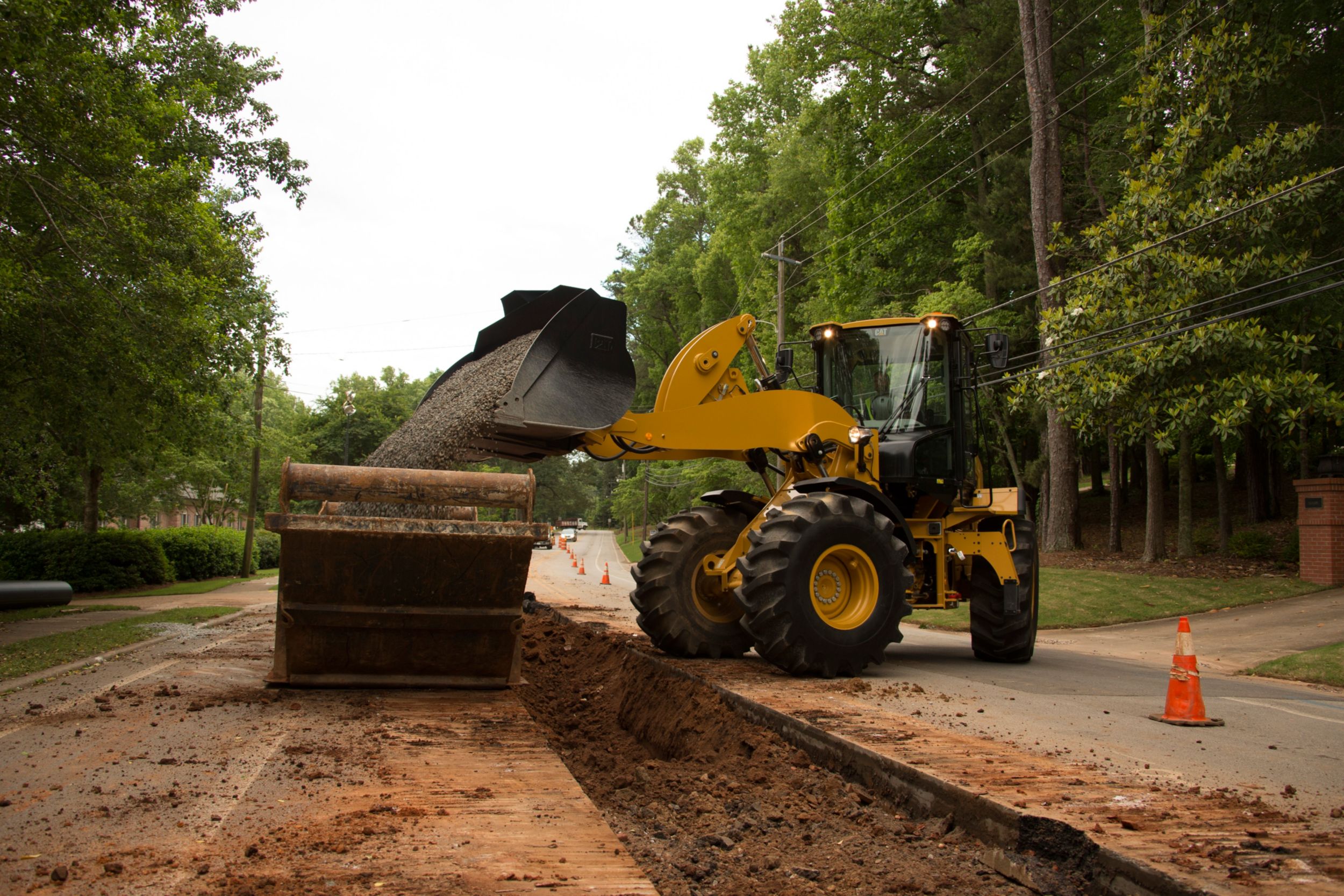

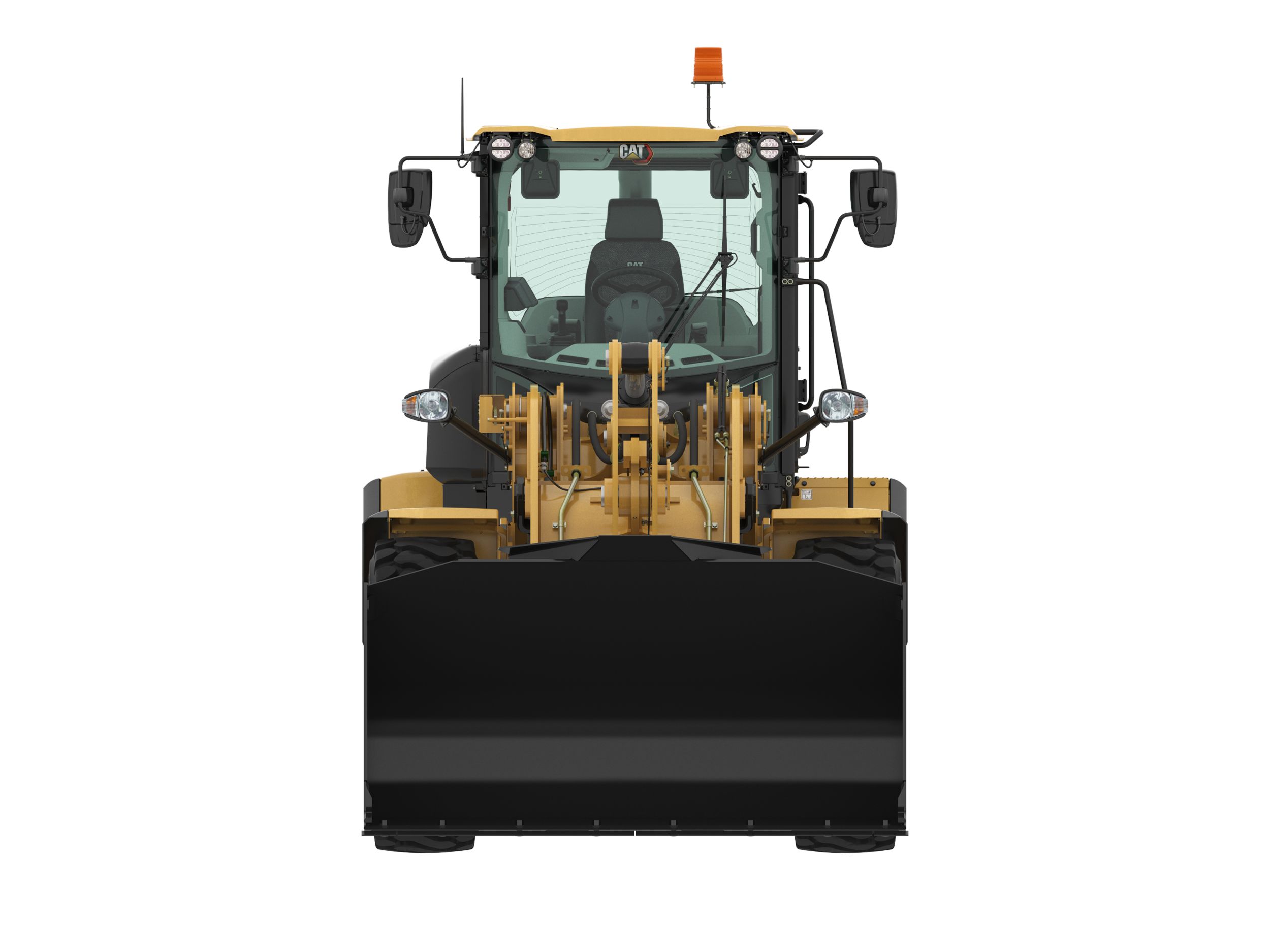

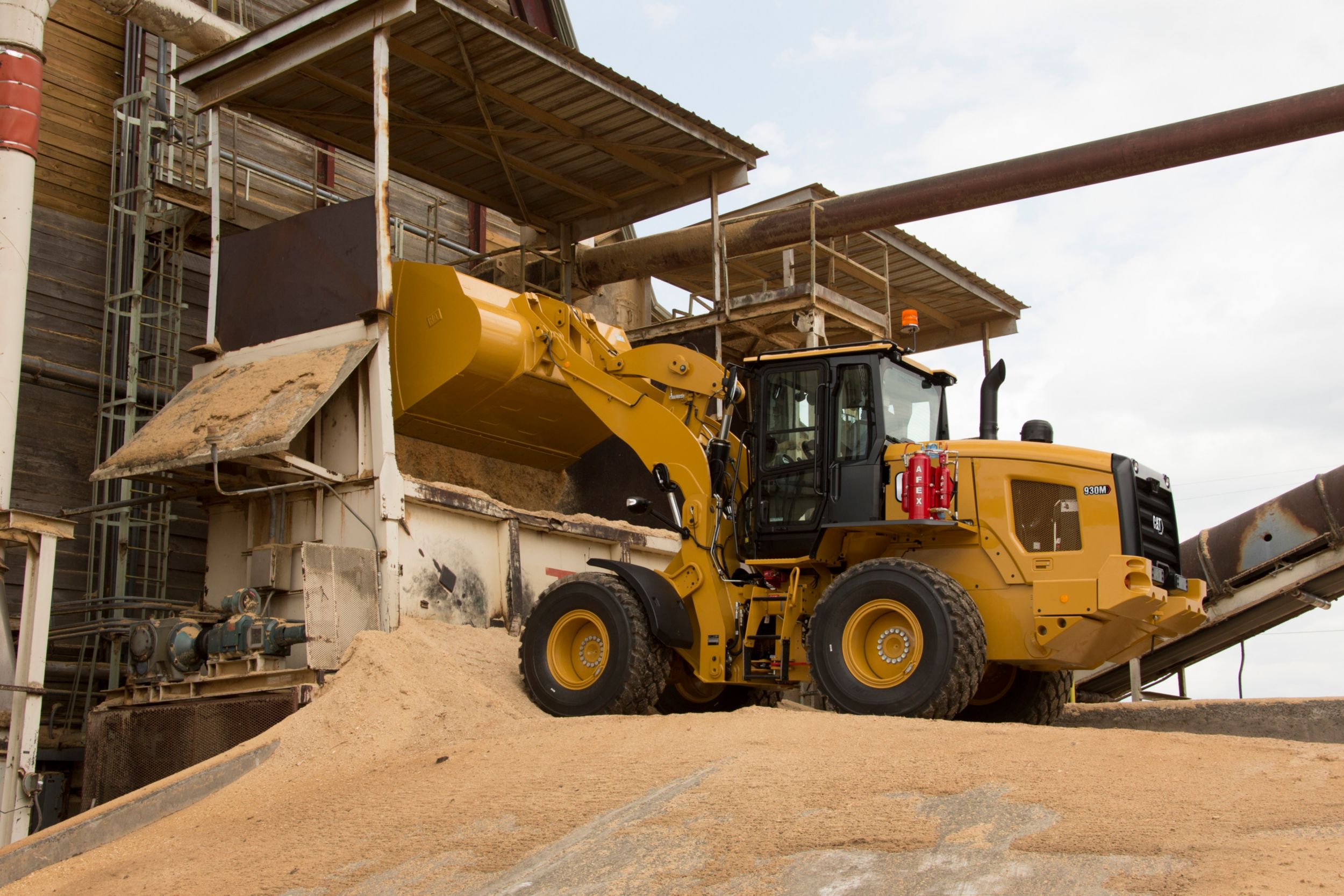

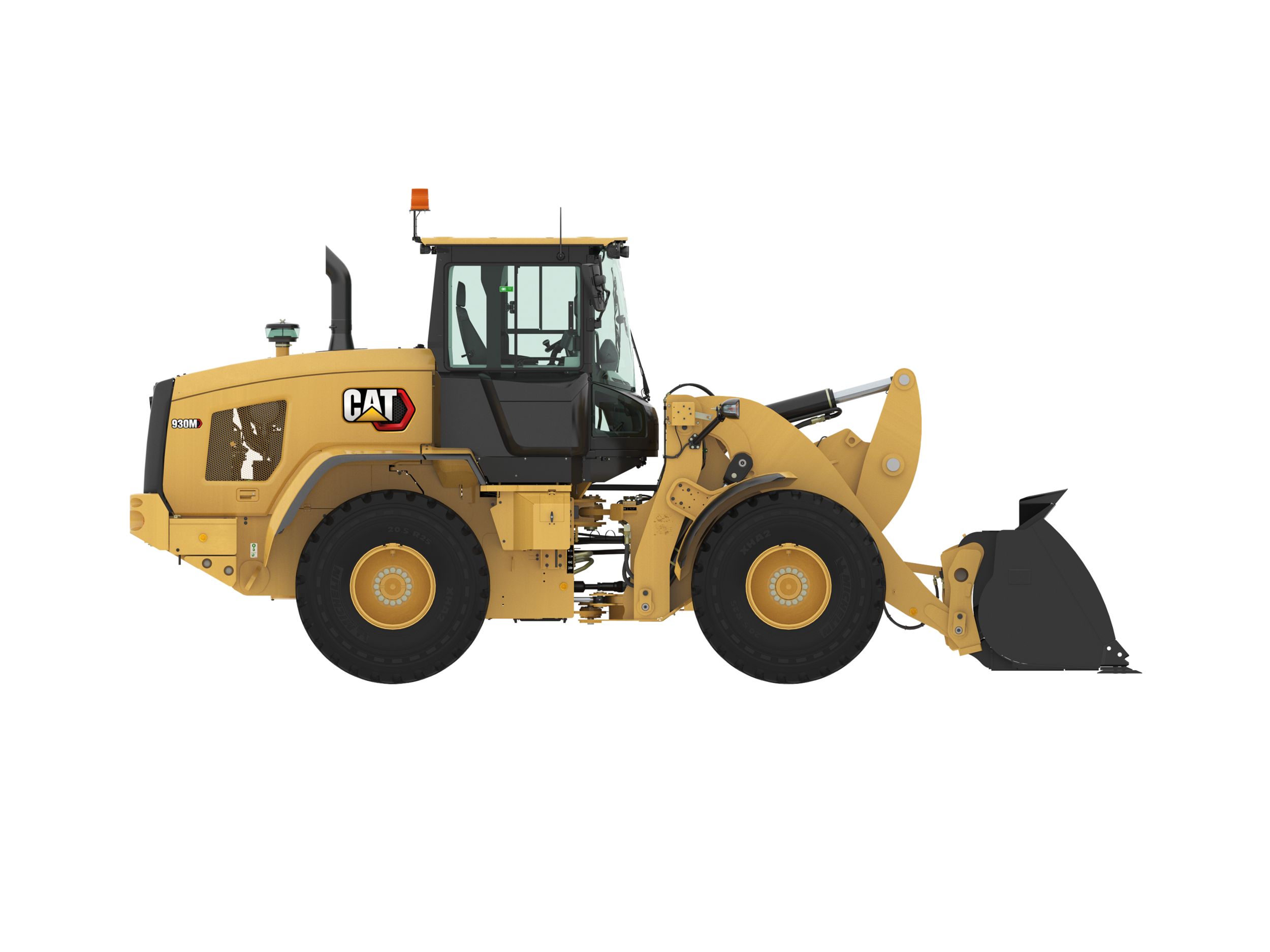

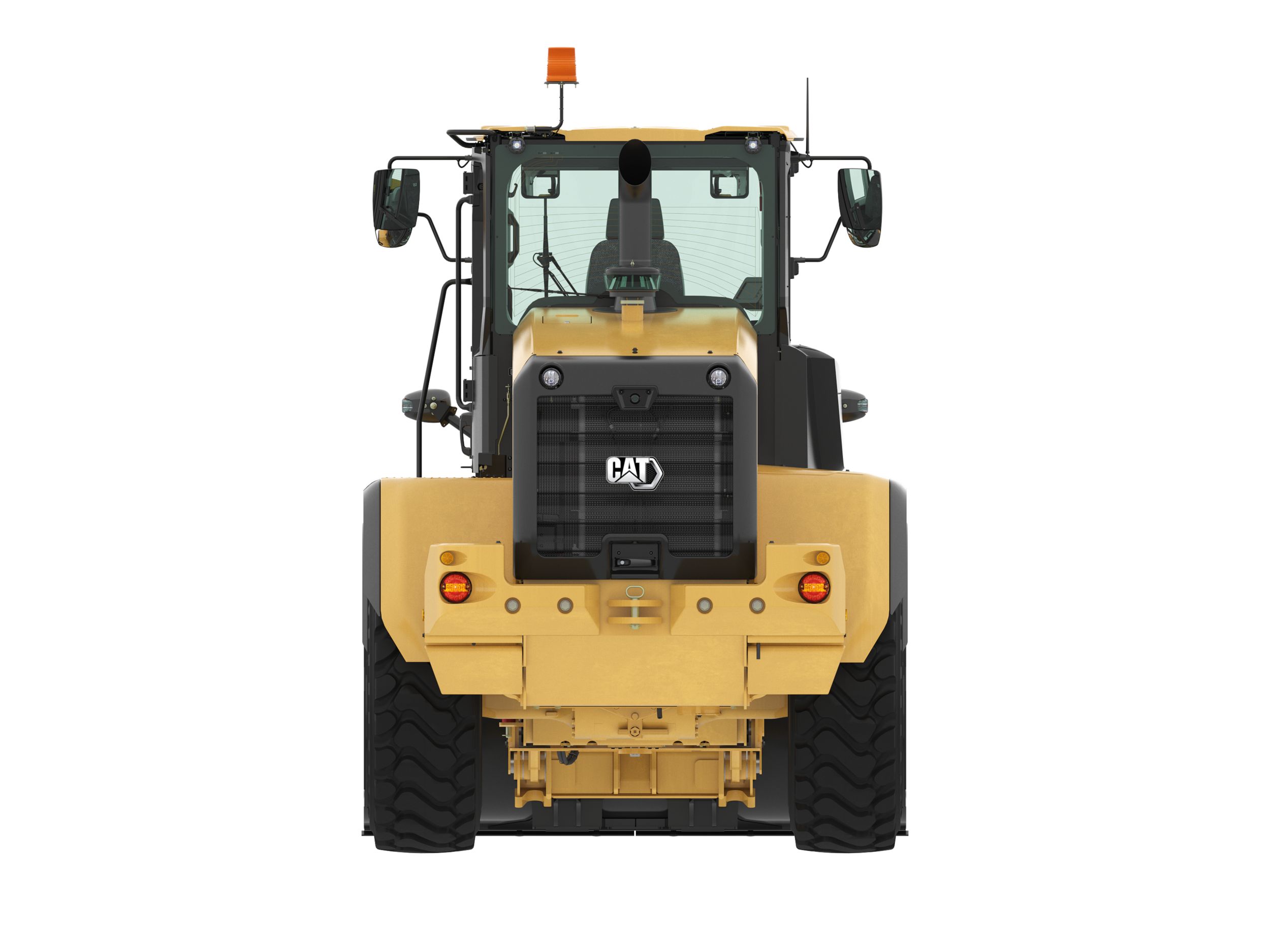

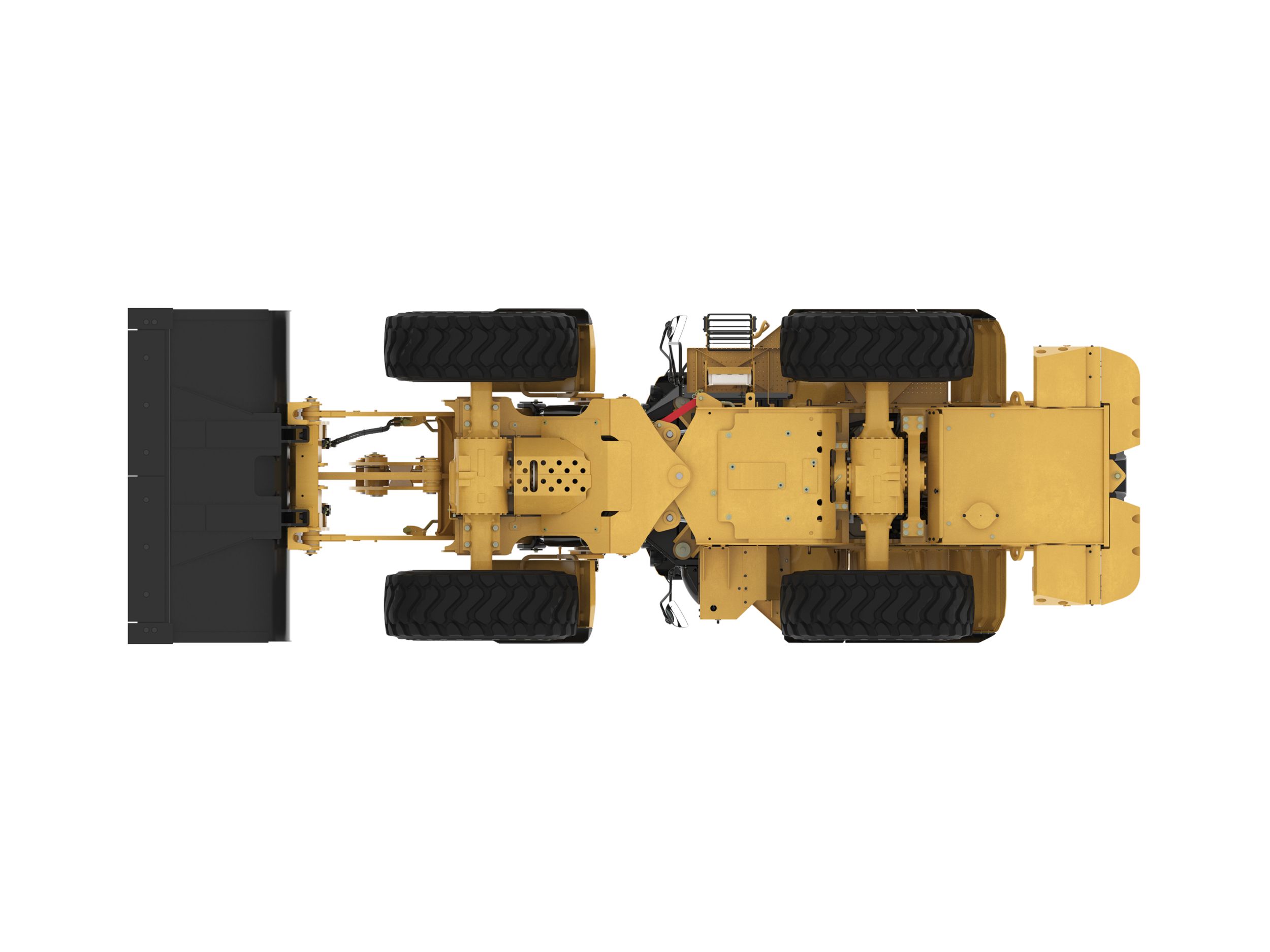

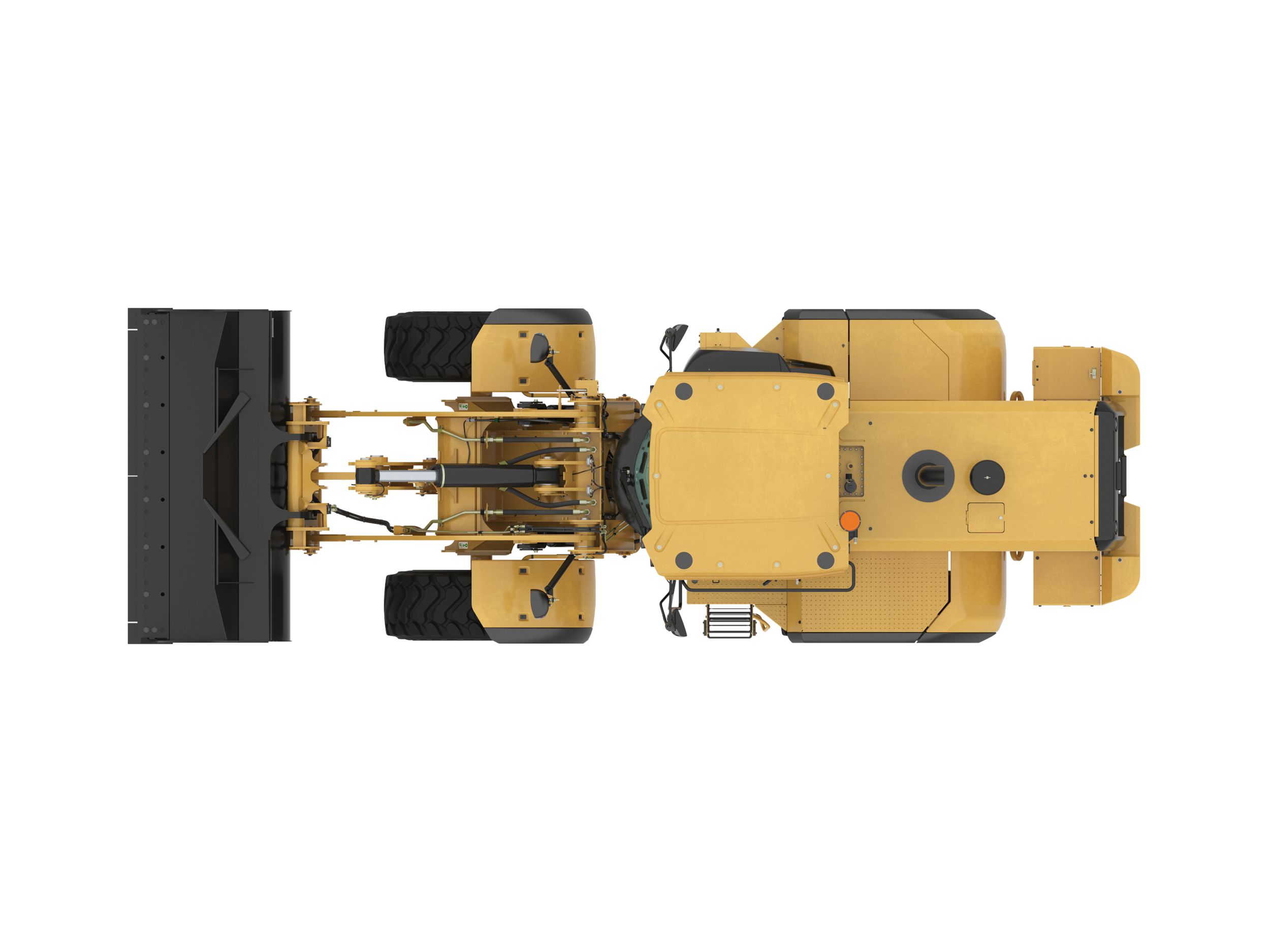

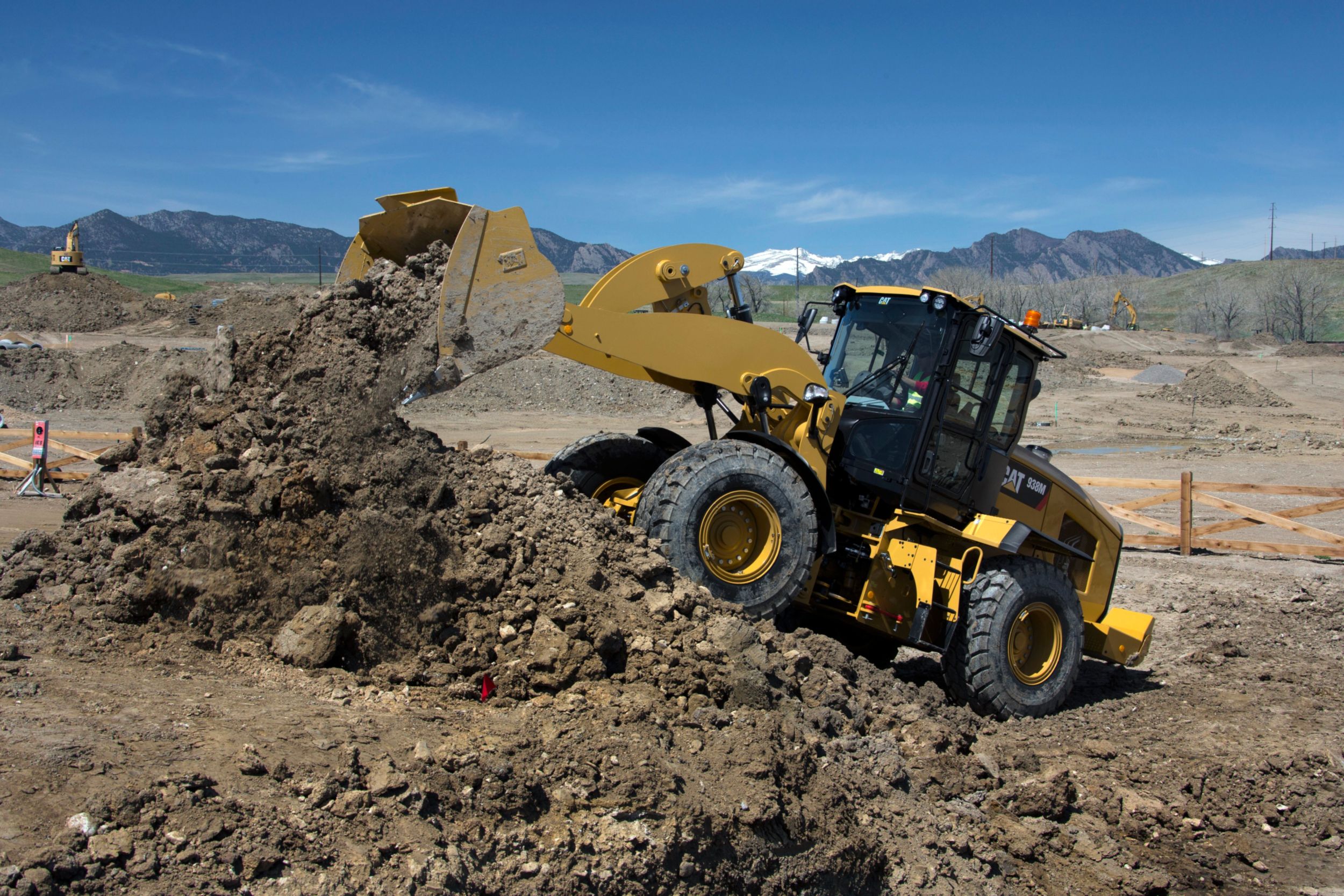

The Cat 930M Small Wheel Loader sets the standard for productivity, fuel efficiency and operator comfort. The improved optimized Z-bar loader linkage delivers the quick loading performance of a traditional Z-bar with the parallelism and load handling capability of a tool carrier. A high torque, low speed C7.1 ACERT engine works in concert with an intelligent hystat power train to deliver fuel efficiency as standard. Meets Tier 4 Final/Stage V emission standards with an environmentally friendly, Clean Emission Module designed to manage itself so you can concentrate on your work. Experience the new industry benchmark.

Engine

Rated Net Power
157.00 HP
117.00 kW
Engine Model
Cat® C7.1 ACERT™
Maximum Rated Gross Power - ISO 14396
164.00 HP
122.00 kW
Maximum Rated Gross Power - ISO 14396 (DIN)
166.00 HP
122.00 kW
Maximum Rated Gross Power - Maximum Engine Speed (Performance Power Mode: Range 1-4)
1800.00 r/min
1800.00 r/min
Maximum Rated Gross Power - ISO 14396 (Performance Power Mode: Range 1-4)
164.00 HP
122.00 kW
Maximum Rated Gross Power - ISO 14396 (DIN) (Performance Power Mode: Range 1-4)
166.00 HP
122.00 kW
Rated Net Power - 1,800 rpm - SAE J1349 at Minimum Fan Speed (Performance Power Mode: Range 1-4)
163.00 HP
122.00 kW
Rated Net Power - 1,800 rpm - ISO 9249 (1977)/EEC 80/1269 at Minimum Fan Speed (Performance Power Mode: Range 1-4)
160.00 HP
119.00 kW
Rated Net Power at 1,800 rpm – ISO 9249 (DIN) at Minimum Fan Speed (Performance Power Mode: Range 1-4)
162.00 hp
119.00 kW
Maximum Gross Torque – ISO 14396 (Performance Power Mode: Range 1-4)
592.00 lbf-ft
804.00 N·m
Maximum Net Torque – SAE J1349 (Performance Power Mode: Range 1-4)
566.00 lbf-ft
768.00 N·m
Maximum Net Torque – ISO 9249 (1977)/EEC 80/1269 (Performance Power Mode: Range 1-4)
572.00 lbf-ft
776.00 N·m
Maximum Rated Gross Power – Maximum Engine Speed (Standard Power Mode: Range 1-3*)
1600.00 rpm
1600.00 rpm
Maximum Rated Gross Power – ISO 14396 (Standard Power Mode: Range 1-3*)
160.00 hp
119.00 kW
Maximum Gross Power - 1,800 rpm - ISO 14396 (Performance Power Mode: Range 1-4)
168.00 HP
125.00 kW
Maximum Gross Power - 1,800 rpm - ISO 14396 (DIN) (Performance Power Mode: Range 1-4)
170.00 mhp
170.00 mhp
Rated Net Power at 1,600 rpm – ISO 9249 (1977)/EEC 80/1269 at Minimum Fan Speed (Standard Power Mode: Range 1-3*)
156.00 hp
116.00 kW
Rated Net Power at 1,600 rpm – ISO 9249 (DIN) at Minimum Fan Speed (Standard Power Mode: Range 1-3*)
158.00 hp
116.00 kW
Maximum Gross Torque – ISO 14396 (Standard Power Mode: Range 1-3*)
592.00 lbf-ft
804.00 N·m
Maximum Net Torque – SAE J1349 (Standard Power Mode: Range 1-3*)
566.00 lbf-ft
768.00 N·m
Maximum Net Torque – ISO 9249 (1977)/EEC 80/1269 (Standard Power Mode: Range 1-3*)
572.00 lbf-ft
776.00 N·m
Displacement
427.00 in3
7.01 L
Bore
4.00 in
105.00 mm

Weights

Operating Weight
30879.00 lb
14007.00 kg

Buckets

Bucket Capacities
2.1-5.0 m3 (2.7-6.5 yd3)

Steering

Steering Cylinder: Double Acting – Bore Diameter
2.80 in
70.00 mm
Steering Cylinder: Double Acting – Rod Diameter
1.60 in
40.00 mm
Steering Cylinder: Double Acting – Stroke
17.20 in
438.00 mm
Maximum Flow – Steering Pump
34.00 gal/min
130.00 L/min
Maximum Working Pressure – Steering Pump
3500.00 psi
24130.00 kPa
Maximum Steering Torque – 0° (Straight Machine)
37155.00 lbf-ft
50375.00 N·m
Maximum Steering Torque – 40° (Full Turn)
27747.00 lbf-ft
37620.00 N·m

Loader Hydraulic System

Maximum Flow – Implement Pump
50.00 gal/min
190.00 L/min
Maximum Flow – Implement Pump: 3rd Function Maximum Flow*
50.00 gal/min
190.00 L/min
Maximum Flow – Implement Pump: 4th Function Maximum Flow*
42.00 gal/min
160.00 L/min
Maximum Working Pressure – Implement Pump
3626.00 psi
25000.00 kPa
Relief Pressure – Tilt Cylinder
4061.00 psi
28000.00 kPa
Relief Pressure – Tilt Cylinder: 3rd and 4th Function Maximum Working Pressure
3626.00 psi
25000.00 kPa
Relief Pressure – Tilt Cylinder: 3rd and 4th Function Relief Pressure
4061.00 psi
28000.00 kPa
Lift Cylinder: Double Acting – Bore Diameter
4.70 in
120.00 mm
Lift Cylinder: Double Acting – Rod Diameter
2.60 in
65.00 mm
Lift Cylinder: Double Acting – Stroke
28.70 in
728.00 mm
Tilt Cylinder: Double Acting – Bore Diameter
5.90 in
150.00 mm
Tilt Cylinder: Double Acting – Rod Diameter
3.50 in
90.00 mm
Tilt Cylinder: Double Acting – Stroke
21.90 in
555.00 mm
Cycle Times: Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm – Raise (Ground Level to Maximum Lift)
5.1/5.7 seconds
Cycle Times: Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm – Dump (at Maximum Lift Height)
1.5/1.7 seconds

Service Refill Capacities

Fuel Tank
51.50 gal
195.00 L
Cooling System
7.90 gal
30.00 L
Engine Crankcase
5.30 gal
20.00 L
Transmission (Gear Box)
2.20 gal
8.50 L
Front Axles
6.90 gal
26.00 L
Rear Axles
6.60 gal
25.00 L
Hydraulic System (Including Tank)
43.60 gal
165.00 L
Hydraulic Tank
23.80 gal
90.00 L
Diesel Exhaust Fluid (DEF) Tank
5.00 gal
19.00 L

Transmission

Forward and Reverse: Range 1*
1-13 km/h (0.6-8 mph)
Forward and Reverse: Range 2
8.00 mph
13.00 km/h
Forward and Reverse: Range 3
17.00 mph
27.00 km/h
Forward and Reverse: Range 4
25.00 mph
40.00 km/h

Cab

ROPS
ISO 3471: 2008
FOPS
ISO 3449: 2005 LEVEL II

Engine

Emissions
Engine meets U.S. EPA Tier 4 Final/EU Stage IV emission standards.

Operating Specifications

Full Turn Tip Load
18670.00 lb
8469.00 kg

Engine

Stroke
5.00 in
135.00 mm
Note
* Range 4 power and torque is equal to Performance Mode with Caterpillar Power by Range technology.

Loader Hydraulic System

Cycle Times: Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm – Float Down (Maximum Lift to Ground Level)
2.7/2.7 seconds
Cycle Times: Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm – Total Cycle Time
9.3/10.1 seconds
Note
* 3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display when equipped.

Steering

Steering Cycle Times (Full Left to Full Right) – Minimum RPM: Pump Flow Limited
2.80 seconds
2.80 seconds
Steering Cycle Times (Full Left to Full Right) – Maximum RPM: 90 rpm Steering Wheel Speed
2.40 seconds
2.40 seconds

Transmission

Note
* Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display when equipped. Factory default is 7 km/h (4.4 mph).

Power Train

Front Axle
Fixed
Front Axle: Traction Aid (standard)
Locking differential
Rear Axle
Oscillating
Rear Axle: Oscillation Angle by Tire Size – 20.5 R25, 550/65, 600/65, 650/65
± 10.5 degrees
Rear Axle: Oscillation Angle by Tire Size – Solid Tires, 750/65, 620/65, Skidder
± 7 degrees
Rear Axle: Traction Aid (optional)
Limited slip differential
Brakes: Service
Inboard wet disc
Brakes: Park
Spring applied hydraulically released

Engine

Maximum Gross Power
164.00 hp
122.00 kW
Note
Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when the engine is equipped with alternator, air cleaner, emission components and fan at specified speed.
Note
No derating required up to 3000 m (10,000 ft) altitude. Auto derate protects hydraulic and transmission systems.
Note
Spark arrestor performance as standard – Meets performance requirements of EN 1834-1.2000 (section 6.4.2 Visual Test).

Cab

Note
Declared sound levels per ISO 6396:2008* while in Performance Power Mode: – Standard cab: 68 ±3 dB(A) and Deluxe cab
Note
* Measurements were conducted with cab doors and windows closed and at 70% of maximum engine cooling fan speed. Sound level may vary at different engine cooling fan speeds.

Loader Hydraulic System

Note
Implement system uses a dedicated load sensing variable displacement pump with dual double acting lift cylinders and a single double acting tilt cylinder.
Note
Flow values listed are for a machine running in Performance Power Mode (1,800 rpm).

Steering

Note
Steering system uses a dedicated load sensing variable displacement pump with dual double acting cylinders.
Note
Flow values listed are for a machine running in Performance Power Mode (1,800 rpm).

Power Train

Note
Power train is governed by the Caterpillar exclusive Intelligent Power Management system to deliver peak performance and efficiency.
Note
Differential front locking axle can be engaged on the go at full torque to 10 km/h (6.2 mph) on the 930M.

Air Conditioning System

Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential – 1430). The system contains 1.9 kg of refrigerant which has a CO2 equivalent of 2.717 metric tonnes.

Engine

Engine Model
Cat C7.1**

Buckets

Bucket Capacities
2.1-5.0 m3 (2.7-6.5 yd3)

Weights

Operating Weight
31382.00 lb
14235.00 kg

Engine

Maximum Gross Power
168.00 HP
125.00 kW
Bore
4.00 in
105.00 mm
Stroke
5.00 in
135.00 mm
Displacement
427.00 in³
7.01 l

Cab

ROPS
ISO 3471:2008
FOPS
ISO 3449:2005 Level II

Air Conditioning System

Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg of refrigerant which has a CO2 equivalent of 2.717 metric tonnes.

Cab

Note (1)
Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Note (2)
The declared dynamic operator sound pressure levels per ISO 6396:2008*, when properly installed and maintained, are:
– Standard cab: 68 ±3 dB(A)
– Deluxe cab: 66 ±2 dB(A)

Engine

Emissions
Engine meets U.S. EPA Tier 4 Final/EU Stage IV emission standards.
Maximum Gross Torque - ISO 14396 (Performance Power Mode: Range 1-4)
601.00 ft·lbf
815.00 N·m
Maximum Gross Torque - ISO 14396 (Standard Power Mode: Range 1-3*)
586.00 ft·lbf
795.00 N·m
Maximum Net Torque - ISO 9249 (1977)/EEC 80/1269 (Performance Power Mode: Range 1-4)
572.00 lb/ft
776.00 N·m
Maximum Net Torque - ISO 9249 (1977)/EEC 80/1269 (Standard Power Mode: Range 1-3*)
572.00 lb/ft
776.00 N·m
Maximum Net Torque - SAE J1349 (Performance Power Mode: Range 1-4)
588.00 ft·lbf
797.00 N·m
Maximum Net Torque - SAE J1349 (Standard Power Mode: Range 1-3*)
573.00 ft·lbf
777.00 N·m
Maximum Rated Gross Power - ISO 14396 (DIN) (Standard Power Mode: Range 1-3*)
162.00 HP
119.00 kW
Maximum Rated Gross Power - ISO 14396 (Standard Power Mode: Range 1-3*)
160.00 HP
119.00 kW
Maximum Rated Gross Power - Maximum Engine Speed (Standard Power Mode: Range 1-3*)
1600.00 r/min
1600.00 r/min
Note (1)
Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when the engine is equipped with alternator, air cleaner, emission components and fan at specified speed.
Note (2)
*Range 4 power and torque is equal to Performance Mode with Caterpillar Power by Range technology.
Note (3)
**The Cat C7.1 engine meets Tier 4 Final/Stage V off-highway emission standards.
Note (4)
Spark arrestor performance as standard – Meets performance requirements of EN 1834-1.2000 (section 6.4.2 Visual Test).
Rated Net Power - 1,600 rpm - ISO 9249 (1977)/EEC 80/1269 at Minimum Fan Speed (Standard Power Mode: Range 1-3*)
156.00 HP
116.00 kW
Rated Net Power - 1,600 rpm - ISO 9249 (DIN) at Minimum Fan Speed (Standard Power Mode: Range 1-3*)
158.00 mhp
158.00 mhp
Rated Net Power - 1,600 rpm - SAE J1349 at Minimum Fan Speed (Standard Power Mode: Range 1-3*)
156.00 HP
116.00 kW
Rated Net Power - 1,800 rpm - ISO 9249 (DIN) at Minimum Fan Speed (Performance Power Mode: Range 1-4)
166.00 mhp
166.00 mhp

Loader Hydraulic System

Cycle Times - Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm - Dump (at Maximum Lift Height)
1.5/1.7 seconds
Cycle Times - Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm - Float Down (Maximum Lift to Ground Level)
2.7/2.7 seconds
Cycle Times - Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm - Raise (Ground Level to Maximum Lift)
5.1/5.7 seconds
Cycle Times - Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm - Total Cycle Time
9.3/10.1 seconds
Lift Cylinder, Double Acting - Bore Diameter
4.70 in
120.00 mm
Lift Cylinder, Double Acting - Rod Diameter
2.60 in
65.00 mm
Lift Cylinder, Double Acting - Stroke
28.70 in
728.00 mm
Maximum Flow - Implement Pump
50.00 gal/min
190.00 l/min
Maximum Flow - Implement Pump - 3rd Function*
50.00 gal/min
190.00 l/min
Maximum Flow - Implement Pump - 4th Function Maximum Flow*
42.00 gal/min
160.00 l/min
Maximum Working Pressure - Implement Pump
3771.00 psi
26000.00 kPa
Note (1)
*3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display, when equipped.
Note (2)
Implement system uses a dedicated load sensing variable displacement pump with dual double acting lift cylinders and a single double acting tilt cylinder.
Note (3)
Flow values listed are for a machine running in Performance Power Mode (1,800 rpm).
Relief Pressure - Tilt Cylinder
4061.00 psi
28000.00 kPa
Relief Pressure - Tilt Cylinder - 3rd and 4th Function Maximum Working Pressure
3771.00 psi
26000.00 kPa
Relief Pressure - Tilt Cylinder - 3rd and 4th Function Relief Pressure
4061.00 psi
28000.00 kPa
Tilt Cylinder, Double Acting - Bore Diameter
5.90 in
150.00 mm
Tilt Cylinder, Double Acting - Rod Diameter
3.50 in
90.00 mm
Tilt Cylinder, Double Acting - Stroke
21.90 in
555.00 mm

Operating Specifications

Full Turn Tip Load
18670.00 lb
8469.00 kg

Power Train

Brakes - Parking
Spring applied hydraulically released
Brakes - Service
Inboard wet disc
Front Axle
Fixed
Front Axle - Traction Aid - Standard
Locking differential
Note (1)
Power train is governed by the Caterpillar exclusive Intelligent Power Management system to deliver peak performance and efficiency.
Note (2)
Differential front locking axle can be engaged on the go at full torque to 10 km/h (6.2 mph) on the 930M.
Rear Axle
Oscillating
Rear Axle - Oscillation Angle by Tire Size - 20.5 R25, 550/65, 600/65, 650/65
± 10.5 degrees
Rear Axle - Oscillation Angle by Tire Size - Solid Tires, 750/65, 620/65, Skidder
± 7 degrees
Rear Axle - Traction Aid - Optional
Limited slip differential

Service Refill Capacities

Cooling System
7.90 gal (US)
30.00 l
Diesel Exhaust Fluid (DEF) Tank
5.00 gal (US)
19.00 l
Engine Crankcase
5.30 gal (US)
20.00 l
Front Axles
6.90 gal (US)
26.00 l
Fuel Tank
51.50 gal (US)
195.00 l
Hydraulic System - Including Tank
43.60 gal (US)
165.00 l
Hydraulic Tank
23.80 gal (US)
90.00 l
Rear Axles
6.60 gal (US)
25.00 l
Transmission - Gear Box
2.20 gal (US)
8.50 l

Steering

Maximum Flow - Steering Pump
34.00 gal/min
130.00 l/min
Maximum Steering Torque - 0° (Straight Machine)
37155.00 ft·lbf
50375.00 N·m
Maximum Steering Torque - 40° (Full Turn)
27747.00 ft·lbf
37620.00 N·m
Maximum Working Pressure - Steering Pump
3500.00 psi
24130.00 kPa
Note (1)
Steering system uses a dedicated load sensing variable displacement pump with dual double acting cylinders.
Note (2)
Flow values listed are for a machine running in Performance Power Mode (1,800 rpm).
Steering Cycle Times - Full Left to Full Right - Maximum RPM: 90 rpm Steering Wheel Speed
2.40 s
2.40 s
Steering Cycle Times - Full Left to Full Right - Minimum RPM: Pump Flow Limited
2.80 s
2.80 s
Steering Cylinder, Double Acting - Bore Diameter
2.80 in
70.00 mm
Steering Cylinder, Double Acting - Rod Diameter
1.60 in
40.00 mm
Steering Cylinder, Double Acting - Stroke
17.20 in
438.00 mm

Transmission

Forward and Reverse - Range 1*
1-13 km/h (0.6-8 mph)
Forward and Reverse - Range 2
8.00 mile/h
13.00 km/h
Forward and Reverse - Range 3
17.00 mile/h
27.00 km/h
Forward and Reverse - Range 4
25.00 mile/h
40.00 km/h
Note
*Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display, when equipped. Factory default is 7 km/h (4.4 mph).

Engine

Displacement (Performance Power Mode: Speed Range 1-4)
427.00 in³
7.01 l
Maximum Gross Power - 1,600 rpm - ISO 14396 (Standard Power Mode: Range 1-3*)
160.00 HP
119.00 kW
Displacement (Standard Power Mode: Speed Range 1-3*)
427.00 in³
7.01 l
Maximum Gross Power - 1,600 rpm - ISO 14396 (DIN) (Standard Power Mode: Range 1-3*)
162.00 mhp
162.00 mhp
Maximum Net Torque - ISO 9249:2007 (Performance Power Mode: Range 1-4)
587.00 ft·lbf
796.00 N·m
Rated Net Power - 1,800 rpm - ISO 9249 at Minimum Fan Speed (Performance Power Mode: Range 1-4)
164.00 HP
122.00 kW
Maximum Net Torque - ISO 9249:2007 (Standard Power Mode: Range 1-3*)
572.00 ft·lbf
776.00 N·m
Rated Net Power - 1,600 rpm - ISO 9249 at Minimum Fan Speed (Standard Power Mode: Range 1-3*)
156.00 HP
116.00 kW

Buckets

Bucket Capacities - Light Material
3.1-5.0 m³ (4.0-6.5 yd³)
Bucket Capacities - General Purpose
2.1-2.7 m³ (2.7-3.5 yd³)

Steering

Steering Cycle Times - Full Left to Full Right - At 1,800 rpm: 90 rpm Steering Wheel Speed
2.40 s
2.40 s

Loader Hydraulic System

Hydraulic Cycle Time - Standard Mode at 1,600 rpm - Float Down, Maximum Lift to Ground Level
2.70 s
2.70 s

Sound

Note (1)
European Union Directive “2000/14/EC”

Loader Hydraulic System

Hydraulic Cycle Time - Standard Mode at 1,600 rpm - Raise, Ground Level to Maximum Lift
5.70 s
5.70 s

Axles

Rear
Oscillating ±11 degrees; Open differential (standard); Limited slip differential (optional)

Tires

Note (3)
Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.
Note (1)
Other tire choices are available. Contact your Cat dealer for details.

Steering

Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left
3.50 turns
3.50 turns

Axles

Front
Fixed; Locking differential (standard)

Service Refill Capacities

Note
DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1.

Tires

Note (2)
In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities.

Loader Hydraulic System

Hydraulic Cycle Time - Performance Mode at 1,800 rpm - Dump, at Maximum Lift Height
1.50 s
1.50 s
Hydraulic Cycle Time - Performance Mode at 1,800 rpm - Raise, Ground Level to Maximum Lift
5.10 s
5.10 s
Hydraulic Cycle Time - Performance Mode at 1,800 rpm - Float Down, Maximum Lift to Ground Level
2.70 s
2.70 s

Steering

Steering Articulation Angle - Each Direction
40°

Loader Hydraulic System

Hydraulic Cycle Time - Standard Mode at 1,600 rpm - Total Cycle Time
10.10 s
10.10 s

Tires

Other Choices Include
20.5 R25, radial (L-2); 20.5 R25, radial (L-5); 20.5-25 12PR (L-2); 20.5-25 12PR (L-3); 20.5-25 16PR (L-5); 600/65 R25 radial (L-3); Skidder/Agriculture; Solid Tires

Loader Hydraulic System

Hydraulic Cycle Time - Standard Mode at 1,600 rpm - Dump, at Maximum Lift Height
1.70 s
1.70 s
Hydraulic Cycle Time - Performance Mode at 1,800 rpm - Total Cycle Time
9.30 s
9.30 s

Cab

Note (3)
*The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.

Tires

Standard Size
20.5 R25, radial (L-3)

Sound

Operator Sound Pressure (ISO 6396:2008)
72.00 dB(A)
72.00 dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)
101.00 dB(A)
101.00 dB(A)

Loader Hydraulic System

Maximum Flow - Implement Pump - 3rd Function Maximum Flow*
50.00 gal/min
190.00 l/min

Sustainability

Recyclability
94%
Features

Efficiently Powerful

The Cat® C7.1 engine provides cleaner, quieter operation while delivering superior performance and durability through a high torque, low speed design. Caterpillar's exclusive Intelligent Power Management system monitors operator input and power availability to keep the machine working at peak efficiency and provide the operator with greater customization to suit their application.

A choice of Power Modes allows you to choose between maximum fuel efficiency or boosted power along with hydraulic speed.

STANDARD POWER MODE

  • Saves fuel and reduces cab sound levels
  • Biggest gains are seen during load and carry, snow removal and roading applications

PERFORMANCE POWER MODE
  • Enabled at the push of a button (HP+), boosts engine power by up to 10% and engine speed by over 12%
  • Increases hydraulic cycle times and productivity

Lock up and go with fully locking front differential axle that can be engaged on the move at full torque. Maximize your traction with optional Limited Slip Differential on the rear axle to keep you climbing.

Work Made Easy

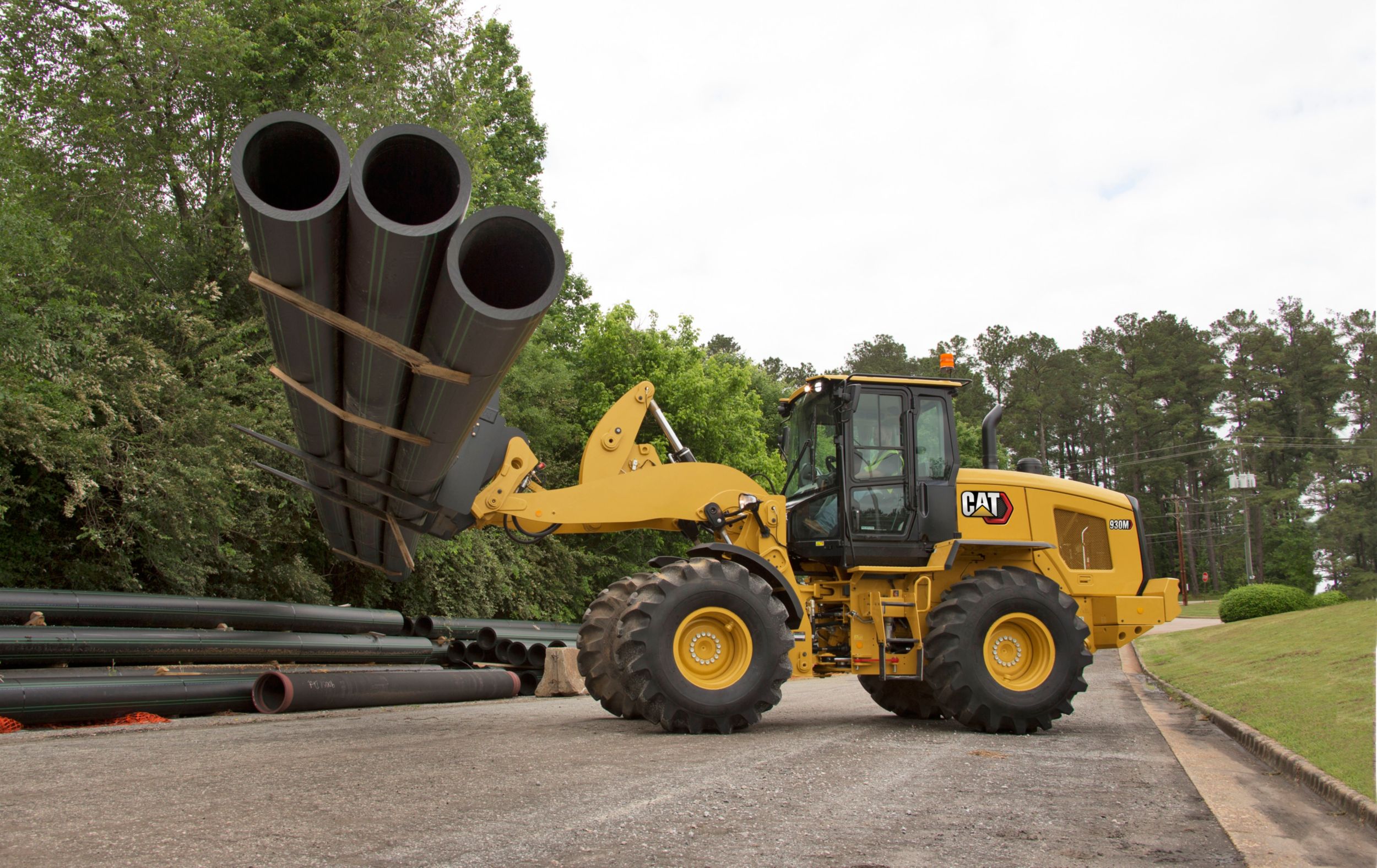

OPTIMIZED Z-BAR LINKAGE

The optimized Z-bar linkage combines the digging efficiency of a traditional Z-bar with integrated tool carrier capabilities for great performance and versatility. Visibility to bucket corners and fork tips at ground level remain excellent while sight lines at maximum lift are improved with a Generation III lift arm design. Lift higher and reach further with optional High Lift linkage available on all three models.

QUICK LOADING PERFORMANCE SERIES BUCKETS

Performance Series Buckets deliver up to 10% higher fill factors compared to previous models, better material retention for significant productivity and fuel efficiency improvements. The buckets feature a longer floor to take a bigger bite of the pile, an open throat to heap higher and curved side bars to help with material retention.

Enjoy All Day Comfort

A spacious, quiet and comfortable operator environment helps keep you relaxed and productive throughout the day. Experience superior all around visibility with single piece front windshield, redesigned linkage and clean hydraulic lines routing. Seat-mounted controls featuring low effort joystick for lift and tilt functions along with integrated Forward/Neutral/Reverse switch, differential lock trigger and optional third and fourth auxiliary functions.

  • Automatic climate control with heated rear glass and external mirrors
  • Information at a glance with large primary LCD display
  • Heated and cooled seat option
  • Optional Ride Control
  • Exclusive electro-hydraulic cylinder snubbing
  • An extra eye on the job site with optional integrated rear object detection and optional* rearview camera

*Standard in Europe.

Customize Your Experience

The M Series Wheel Loaders will remember you and your personal settings with unique operator codes to make this machine truly yours and keep it secure.

Work as one with your machine by customizing your controls.

  • Select your Power Train Mode
  • Reduce tire wear using Rimpull
  • Fine tune ground speed with Creeper Control
  • Adjustable Electo-Hydraulic Controls
  • Set Directional Shift Response based on job application

Service

Get up and running quickly with ground level, daily service access and optional engine compartment lighting. Three large service doors can be opened and closed in any order to give full access to filters and service points. Extended service intervals on hydraulic and power train filters reduce service time and maximize uptime. Additional service features include:

  • Product Link™ PRO standard with optional subscription to VisionLink®.
  • Maintenance reminders through secondary display at scheduled intervals.
  • Fit for Life Diesel Particulate Filter that is designed to exceed the engine overhaul life.
  • Quick fuel filter service with Caterpillar's exclusive electric fuel priming pump.
  • Jump start studs as standard equipment.
  • Extended cleanouts with single plane cooling system and wide spaced 6 fans per inch coolers as standard.
  • Integrated Autolube (optional) with adjustable greasing frequency.

Customer Support

With renowned Cat dealer support, rely on your Cat dealer to help you every step of the way with new or used machine sales, rental or rebuild options to meet your business needs.

Maximize your machine uptime with unsurpassed worldwide parts availability, trained technicians and customer support agreements.

Let us earn your business. Experience an M Series Small Wheel Loader and join the Caterpillar family.

Sustainability

  • The Cat® C7.1 engine meets U.S. EPA Tier 4 Final, EU Stage V and Korea Tier 5 emission standards.
  • Engine Idle Management System (EIMS) helps maximize fuel efficiency and reduce greenhouse gas emissions while maintaining machine performance.
  • Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
  • Performance Series Buckets have rounded side boards, a longer floor and open angle to carry more and load quicker so each pass is the most efficient.
  • Rimpull Control is a quick way to adjust the torque to the tires for less slipping and tire wear.
  • Cat® Production Measurement provides real-time payload weighing which help you maximize productivity, reduce fuel burn and greenhouse gas emissions, all while improving job site efficiency and lowering costs.
  • Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
  • Power on Demand, transparent to the operator, provides full-time efficiency and power when you need it.
  • Tire Pressure Monitoring provides real-time tire pressure information to the operator to help increase tire wear and achieve better fuel efficiency and reduced greenhouse gas emissions.
  • Intelligent Hystat Transmission helps improves control and reduces fuel consumption and greenhouse gas emissions in load and carry applications.
  • Variable Displacement Pumps match power to load as application requirements change.
Sales Features

Efficiently Powerful

Experience hybrid-like fuel efficiency with more power when you need it.

Work Made Easy

Getting the job done.

Enjoy All Day Comfort

Best seat on your job site.

Customize Your Experience

Make it yours.

Configured for Success

Ready to work for you.

Service

Schedule your downtime to maximize your up time.

Customer Support

Unmatched service makes the difference.
Standard Equipment
  • POWER TRAIN
    • Axle Duo-Cone™ seal guards
    • Auto idle shut down feature
    • Cat C7.1 engine
      – Power modes (Standard and Performance)
      – Power by range (High Power in Range 4)
      – Turbocharged and aftercooled
      – Diesel particulate filter (Fit for Life)
    • Coded start (requires secondary display)
    • Differential lock in front axle
    • Enclosed wet disc full hydraulic brakes
    • Hydraulically driven demand cooling fan
    • Hydrostatic transmission with electronic control
      – Operator modes (Default, TC, Hystat, and Ice)
      – Directional Shift Aggressiveness (fast, medium, slow)
      – Rimpull control, adjust wheel torque
      – Creeper control, adjust ground speed
    • Parking brake, electric
    • Single plane cooling package wide six fins per inch density
    • Oil sampling ports
    • Throttle lock and max speed limiter
  • HYDRAULICS
    • Automatic lift lower and tilt kickouts, adjustable in-cab
    • Bucket and fork modes, adjustable in-cab
    • Cylinder damping at kickout and mechanical end stops
    • Fine mode control (fast, medium, slow)
    • Hydraulic response setting (fast, medium, slow)
    • Load sensing hydraulics and steering
    • Seat-mounted hydraulic joystick controls
  • ELECTRICAL
    • Alternator, 115 amp, heavy duty
    • Batteries, 1,000 CCA (2) 24V system, disconnect switch
    • Back-up alarm
    • Emergency shutdown switch
    • Halogen work and roading lights, LED rear tail lights
    • Product Link™ PRO with three year subscription
    • Remote jump start post
    • Resettable main and critical function breakers
  • OPERATOR ENVIRONMENT
    • 75 mm (3 in) High-Vis retractable seat belt, with audible alarm and indicator
    • Automatic temperature control
    • Cab, pressurized
    • Camera, rearview, with dedicated display
    • External heated mirrors with lower parabolic
    • Ground level cab door release
    • Hydraulic control lockout
    • Mirror, single
    • Lunch box storage
    • Radio ready speakers
    • Rear window defrost, electric
    • Column mounted multi function control – lights, wipers, turn signal
    • Tilt and telescopic steering wheel
    • Tinted front glass
    • Wet arm wiper/washer, 2-speed and intermittent, front, lights, wipers, turn signal
    • Suspension seat, fabric
  • OTHER STANDARD EQUIPMENT
    • Large-access enclosure doors with adjustable close/open force
    • Cat optimized Z-bar linkage with parallel lift
    • Recovery hitch, with pin
    • Remote mounted lubrication points
    • Lockable compartments and enclosures
Optional Equipment
  • OPTIONAL EQUIPMENT
    • Autolube, integrated in secondary display
    • Auxiliary flow, third and fourth function
    • Differential, limited slip, rear
    • Beacon light, strobe
    • Cab, deluxe (standard in Europe)
      – Camera, rearview integrated into advanced display
      – Electrically adjustable external heated mirrors (2)
      – Secondary display to enable features and adjust parameters
      – LED interior lighting
      – Sunscreen, front and rear
      – Touchscreen secondary display
      – Ride control adjustable speed activation
      – Preventative maintenance reminders
      – Integrated help function (26 languages)
    • Camera, roof mounted, front view with separate display
    • Cold start package
      – Ether starting aid, block heater and additional batteries, 1,000 CCA (4 total)
    • Counterweight, additional options
    • Coupler (Fusion and ISO 23727)
    • Debris packages (low, medium, high)
    • Fenders (extended cover and full coverage)

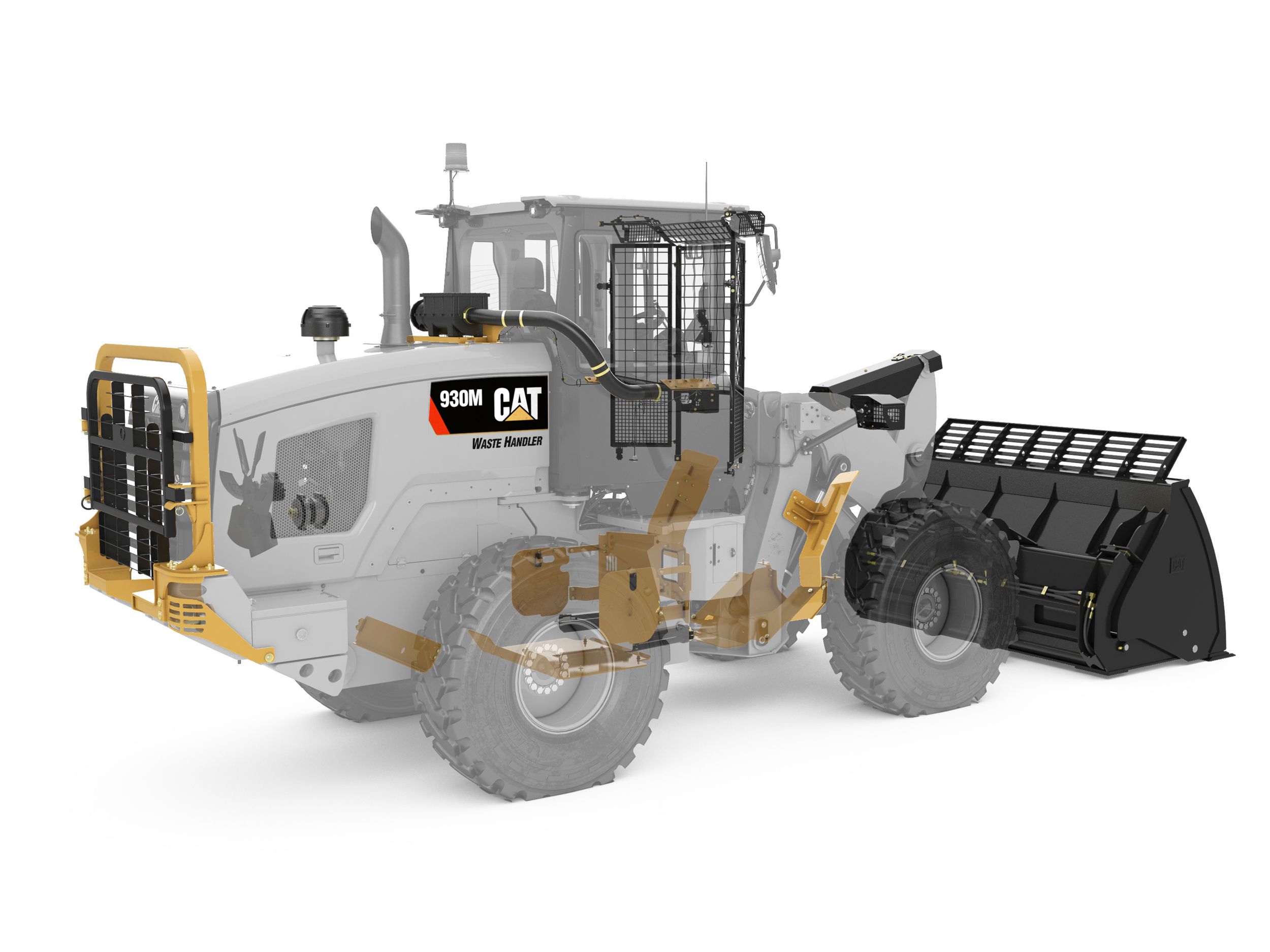

    • Guarding packages
    • Linkage, high lift
    • Lights, auxiliary, halogen or LED with engine and DEF compartment lights
    • Payload Technology
      – Cat Production Measurement (CPM)
      – CPM Printer
    • Product Link ELITE with capabilities for software push, data logging, histogram and trend mapping
    • Radio packages
    • Rear Object Detection
    • Ride Control System, adjustable through secondary display
    • Seats
      – Deluxe seat – fully adjustable fabric air suspension seat with mid seat backrest
      – Premium seat – fully adjustable leather and fabric air suspension with high backrest and air lumbar support. Seat is heated and ventilated on bottom cushion and backrest.
    • Steering
      – Dual mode and secondary
    • Tire Pressure Monitoring (TPM)
