Overview

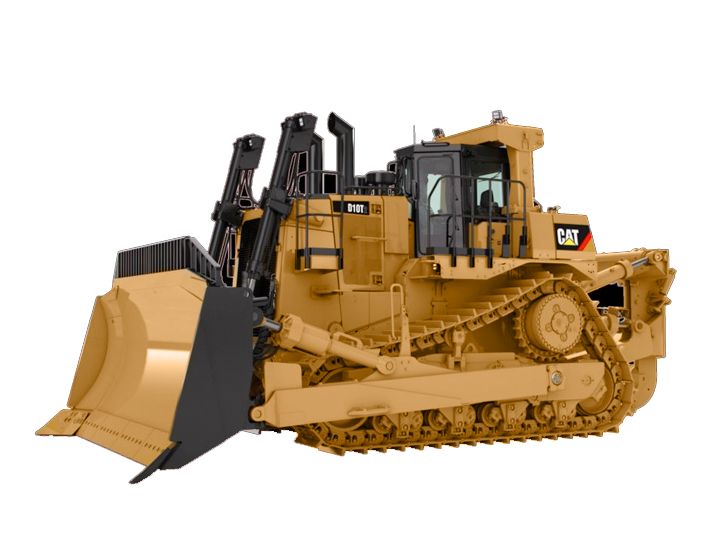

Over the years, the D10 dozer has proven itself to be a highly productive and versatile machine. It is flexible enough to be used on heavy construction sites and robust enough to be used on mine sites. Continuing the D10T's legacy, Cat customers can count on the D10T2's superior performance, long life, ease of operation and world-class service from the global Cat dealer network to be the backbone of their operation.

Engine

Engine Model
Cat® C27 ACERT™
Flywheel Power
600.00 HP
447.00 kW
Bore
5.40 in
137.00 mm
Stroke
6.00 in
152.00 mm
Displacement
1648.00 in3
27.00 L
Engine Power - Gross SAE J1995* (FWD/REV)
471/571 kW (632/766 HP)
Engine Power - ISO 14396 (FWD/REV)
462/562 kW (620/754 HP)
Engine Power - Net SAE J1349/ISO 9249 (FWD/REV)
447/538 kW (600/722 HP)
Note
*Excludes all fan losses.

Weights

Operating Weight
154700.00 lb
70171.00 kg
Shipping Weight
109775.00 lb
49793.00 kg

Undercarriage

Shoe Type
Extreme Service (ES)
Width - Shoe
24.00 in
610.00 mm
Shoes/Side
44
Grouser Height
3.70 in
93.00 mm
Pitch
10.25 in
260.00 mm
Ground Clearance
28.50 in
725.00 mm
Track Gauge
100.40 in
2550.00 mm
Ground Contact Area
7347.00 in²
4.74 m²
Track Rollers/Side
8
Number of Carrier Rollers
1 per side (optional)
Length of Track on Ground
152.80 in
3880.00 mm

Transmission

1 Forward
2.50 mile/h
4.00 km/h
2 Forward
4.50 mile/h
7.20 km/h
3 Forward
7.90 mile/h
12.70 km/h
1 Reverse
3.20 mile/h
5.20 km/h
2 Reverse
5.60 mile/h
9.00 km/h
3 Reverse
9.80 mile/h
15.80 km/h
Type
3-speed planetary powershift
Transmission Clutch Diameter
17.10 in
434.30 mm

Service Refill Capacities

Fuel Tank
314.40 gal
1190.00 L
Cooling System
47.60 gal
180.00 L
Engine Crankcase*
18.00 gal (US)
68.00 l
Power Train
60.80 gal (US)
230.00 l
Final Drive - Each
6.10 gal (US)
23.00 l
Roller Frames - Each
16.90 gal (US)
64.00 l
Pivot Shaft Compartment
8.70 gal (US)
33.00 l
Hydraulic Tank
34.60 gal (US)
131.00 l
Note
*With oil filters.

Hydraulic Controls

Pump Type
Variable displacement piston
Bulldozer Relief Valve Setting
4061.00 psi
28000.00 kPa
Tilt Cylinder Relief Valve Setting
2944.00 psi
20300.00 kPa
Ripper - Lift - Relief Valve Setting
4061.00 psi
28000.00 kPa
Ripper - Pitch - Relief Valve Setting
4061.00 psi
28000.00 kPa
Combined Pump Output - Implement
100.40 gal/min
380.00 l/min

Standards

FOPS
Falling Objects Protective Structure (FOPS) meets the following criteria: ISO 3449:2005 LEVEL II.
ROPS
Rollover Protective Structure (ROPS) meets the following criteria: ISO 3471:2008.
Sound
The exterior sound pressure level for the standard machine (ISO 6395) is 115 dB(A)/111 dB(A) (sound suppressed).
Sound
The operator equivalent sound pressure level (ISO 6396) is 77 dB(A)/74 dB(A) (sound suppressed).

Steering and Brakes

Hydraulically Applied Multiple-disc Steering Clutch
15.40 in
392.00 mm
Spring Applied Multiple-disc Brake
15.40 in
392.00 mm

Dimensions (Approximate)

Height (FOPS Cab)*
161.30 in
4098.00 mm
Height (ROPS/Canopy)*
173.50 in
4406.00 mm
Height (Top of Stack)*
171.50 in
4356.00 mm
Length Basic Tractor with Drawbar
220.40 in
5598.00 mm
Length with Multi-Shank Ripper
285.10 in
7241.00 mm
Length - With SU-Blade
292.00 in
7416.00 mm
Length with Single-Shank Ripper
278.80 in
7081.00 mm
Length with U-Blade
305.10 in
7750.00 mm
Overall Length SU-Blade and SS Ripper
360.60 in
9158.00 mm
Overall Length Basic Tractor
209.60 in
5324.00 mm
Track Gauge
100.40 in
2550.00 mm
Width over Trunnions
147.10 in
3736.00 mm
Width - Without Trunnions - 610 mm/24 in ES
129.60 in
3292.00 mm
Ground Clearance*
28.50 in
725.00 mm
Drawbar Height (Center of Clevis)
34.00 in
864.00 mm
Length of Track on Ground
152.80 in
3880.00 mm

Track Roller Frame

Oscillation
13.80 in
351.00 mm

Engine

Emissions
U.S. EPA Tier 4 Final
Net SAE J1349/ISO 9249 (FWD/REV)
447/538 kW (600/722 HP)

Dimensions (Approximate)

Note
*Includes grouser height for total dimensions on hard surfaces.

Engine

Note
Engine ratings apply at 1,800 rpm.
Note
Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, and engine emissions controls as required.
Note
No derating (in FWD gears) required up to 4572 m (15,000 ft) altitude.

Weights

Note
D10T2 Operating Weight includes coolant, lubricants, full fuel tank, ROPS, FOPS cab, SU ABR bulldozer, dual tilt, single-shank ripper with pin-puller, fast fuel, 610 mm/24 in ES shoes, and operator.
Note
D10T2 Shipping Weight includes coolant, lubricants, 10% fuel, FOPS cab, fast fuel, and 610 mm/24 in ES shoes.

Hydraulic Controls

Note
Pump output measured at 1,800 rpm engine speed.
Note
Electro-hydraulic pilot valves assist operations of ripper and dozer controls.
Note
Complete system consists of pump, tank with filter, oil cooler, valves, lines, and control levers.

Engine

Net SAE J1349/ISO 9249 DIN (FWD/REV)
608/732 mhp
Engine Power - Net SAE J1349/ISO 9249 DIN (FWD/REV)
608/732 mhp

Air Conditioning System

Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (3.0 tons).

Engine

Engine Model
Cat® C27
Bore
5.40 in
137.00 mm
Stroke
6.00 in
152.00 mm
Displacement
1648.00 in³
27.00 l
Note (1)
*Excludes all fan losses.

Dimensions (Approximate)

Ground Clearance*
28.50 in
725.00 mm
Height - FOPS Cab*
161.30 in
4098.00 mm
Height - ROPS/Canopy*
173.50 in
4406.00 mm
Height - Top of Stack*
171.50 in
4356.00 mm
Length - Basic Tractor - With Drawbar
220.40 in
5598.00 mm
Length - Track on Ground
152.80 in
3880.00 mm
Length - With Multi-Shank Ripper
285.10 in
7241.00 mm
Length - With Single-Shank Ripper
278.80 in
7081.00 mm
Length - With U-Blade
305.10 in
7750.00 mm
Overall Length - Basic Tractor
209.60 in
5324.00 mm
Overall Length - SU-Blade/SS Ripper
360.60 in
9158.00 mm
Track Gauge
100.40 in
2550.00 mm
Width - Over Trunnions
147.10 in
3736.00 mm

Transmission

Type
3-speed planetary powershift

Undercarriage

Length - Track on Ground
152.80 in
3880.00 mm
Number of Carrier Rollers
1 per side (optional)

Service Refill Capacities

Fuel Tank
314.40 gal (US)
1190.00 l
Cooling System
47.60 gal (US)
180.00 l
Note
*With oil filters.

Standards

FOPS
Falling Objects Protective Structure (FOPS) meets the following criteria: ISO 3449:2005 LEVEL II.
ROPS
Rollover Protective Structure (ROPS) meets the following criteria: ISO 3471:2008.
Sound (1)
The exterior sound pressure level for the standard machine (ISO 6395) is 115 dB(A)/111 dB(A) (sound suppressed).
Sound (2)
The operator equivalent sound pressure level (ISO 6396) is 77 dB(A)/74 dB(A) (sound suppressed).

Air Conditioning System

Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (3.0 tons).

Dimensions (Approximate)

Note
*Includes grouser height for total dimensions on hard surfaces.

Engine

Emissions
U.S. EPA Tier 4 Final
Note (2)
Engine ratings apply at 1,800 rpm.
Note (3)
Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, muffler, alternator, fan, and engine emissions controls as required.
Note (4)
No derating (in FWD gears) required up to 4572 m (15,000 ft) altitude.

Hydraulic Controls

Note (1)
Pump output measured at 1,800 rpm engine speed.
Note (2)
Electro-hydraulic pilot valves assist operations of ripper and dozer controls.
Note (3)
Complete system consists of pump, tank with filter, oil cooler, valves, lines, and control levers.

Weights

Note (1)
D10T2 Operating Weight includes coolant, lubricants, full fuel tank, ROPS, FOPS cab, SU ABR bulldozer, dual tilt, single-shank ripper with pin-puller, fast fuel, 610 mm/24 in ES shoes, and operator.
Note (2)
D10T2 Shipping Weight includes coolant, lubricants, 10% fuel, FOPS cab, fast fuel, and 610 mm/24 in ES shoes.
Features

Structures

Engine

Emissions Technology

Cooling System

Hydraulics

Power Train

Undercarriage

Work Tools

Operator Station

Integrated Technologies

Cat MineStar

Safety

Serviceability

Customer Support

Sustainability

Sales Features

Structures

Engineered for maximum production and service life.

Engine

Power and reliability to help you move more.

Emissions Technology

Providing you reliable, integrated solutions.

Cooling System

Superior cooling keeps you moving in the most demanding work conditions.

Hydraulics

Increased performance and improved efficiency to move more material with less fuel.

Power Train

Power and control to efficiently move your material.

Undercarriage

Designed to optimize machine balance and performance at your site.

Work Tools

Provide flexibility to match the machine to your job.

Operator Station

Designed for your comfort, convenience, and productivity.

Integrated Technologies

Monitor, manage, and enhance job site operations.

Cat MineStar

Configurable to suit your operation’s needs.

Safety

Focused on keeping everyone safe.

Serviceability

Reduce service time to increase your uptime.

Customer Support

Your Cat dealer knows how to keep your mining machines producing.

Sustainability

Thinking about your legacy for future generations.
Standard Equipment
  • ELECTRICAL
    • Alternator, 150 amp
    • Back up alarm
    • Batteries, 12-volt (2), 200 amp-hour
    • Converter, 12-volt, 10 amp and 20 amp
    • Diagnostic connector
    • Horn, forward warning
    • Light, engine compartment
    • Lighting system, 8 Halogen
    • Starting receptacle
  • OPERATOR ENVIRONMENT
    • Air conditioner and heater
    • Armrest, adjustable
    • Cab, FOPS
    • Deactivation switch, hydraulic controls
    • Decelerator, pedal
    • Finger Tip Control (FTC) steering
    • Governor switch, electronic
    • Hydraulic system, electronically controlled
    • Information display – Multi-color
    • Mirror, rearview
    • Radio ready, entertainment
    • ROPS rollbar
    • Seat belt, retractable 76 mm (3 in)
    • Seat, cloth, air suspension
    • Wipers, intermittent, low and high speeds
    • Work monitor
  • POWER TRAIN
    • Aluminum bar-plate radiator, 6 fpi
    • Aftercooler, air-to-air
    • Air filters, dual with precleaner
    • Cat C27
    • Coolant, extended life
    • Shift management:
      – Advanced Productivity Electronic Control System (APECS)
      – Enhanced AutoShift (EAS)
    • Engine Idler Shutdown Timer
    • Ether starting aid, automatic
    • Hydraulic demand fan
    • Fast fuel system
    • Four planet, double-reduction planetary final drives
    • Fuel priming pump, electric
    • High speed oil change system
    • Mufflers, dual
    • Parking brake, electronic
    • Prescreener
    • Separator, water/fuel
    • Thermal shields, exhaust
    • Torque divider
    • Transmission, powershift:
      – (3F/3R speeds)
  • SAFETY AND SECURITY
    • Anchorage points
    • Fender guard rails
    • Heavy duty steps and handles
    • Operator Not Present Monitoring System
    • Seat belt warning system
    • Slope and side-slope monitor
  • UNDERCARRIAGE
    • 610 mm (24 in) Extreme Service track shoe
    • Equalizer bar end pin grease fittings, remote
    • Rollers and idlers, lifetime lubricated
    • Sprocket rim segments, replaceable
    • Suspension-type undercarriage, eight-roller tubular track roller frame (carrier roller ready)
    • Three bolt idler caps
    • Track adjusters, hydraulic
    • Track guides
    • Two-piece master links
  • OTHER STANDARD EQUIPMENT
    • Auto-blade assist – Dual tilt required
    • Bottom guard
    • CD ROM parts book
    • Ecology drains
    • Engine enclosure
    • Fluid sampling ports
    • Grade control ready
    • Ground level service center
    • Hydraulic system, electronically controlled load sensing
    • Mounting, lift cylinders
    • Ripper hydraulics
    • Vandalism, protection (8 caplocks)
    • VIMS 3G
    • Product Link (Satellite)
Optional Equipment
  • BULLDOZER ATTACHMENTS
    • 10SU Abrasion resistant blade
    • 10SU Abrasion resistant blade, black
    • 10SU Push plate
    • 10U No wear plate
    • 10U Abrasion resistant blade
    • 10U Abrasion resistant blade, black
  • GUARDS
    • Bottom guards, cushion dozer
    • Bottom guards, front counterweight
    • Bottom guards, partial
    • Bottom guards, sealed
    • Guard, fan debris
    • Guard, undercarriage idlers
    • Mounting GP, rear screen
    • Screens, grill door
  • OPERATOR STATION
    • Air conditioner:
      – Fender
      – ROPS
    • Cab glass:
      – 276 kPa (40 psi)
      – Dual pane impact resistance glass
    • Operator arrangement:
      – 5th Percentile Arrangement
      – Quick opening floor plates
    • Powered precleaner
    • Seat, air suspension:
      – Cloth, heated and ventilated
      – Vinyl
    • Visibility arrangement:
      – Single camera
      – Dual camera
      – Mirrors
    • Window shades
  • POWER TRAIN
    • Coolant, arctic
    • Engine prelube
    • Final drives:
      – Clamshell guard
      – Cold weather
      – Guarded
    • Lubrication, arctic
    • Copper Grommetted Tube Radiator
    • Reversible cooling fan
    • Remote high speed oil change system:
      – Ripper
      – Counterweight
  • REAR ATTACHMENTS
    • Counterweight:
      – 3 slab with hitch
      – 4 slab with hitch
    • CapSure hammerless installation and positive retention system:
      – Single shank
      – Multi shank
      – Single shank deep
    • Drawbar, rear
    • Multi shank ripper:
      – Deep shank
      – Standard shank
    • Single shank ripper:
      – Push block with pin puller
      – Standard shank
      – Standard shank with pin puller
    • Ripper mounting:
      – Standard
      – Wide track
  • SAFETY AND SECURITY
    • Access arrangement
    • Fire suppression ready
    • Fire suppression installation
    • Fuel tank, platform ready
    • Lights:
      – Halogen, twelve
      – HID
      – LED
      – LED, high intensity
    • Powered access ladder
    • Rear access platform
  • SPECIAL ARRANGEMENTS
    • High debris
    • Sound
    • Stockpile
  • TECHNOLOGY
    • Machine control, performance:
      – AutoCarry
      – Automatic ripper control
    • Command for Dozing
    • Terrain for Grading:
      – with blade control
  • UNDERCARRIAGE
    • Carrier rollers
    • Carrier rollers, cold weather
    • Tracks, PPR, sealed and lubricated:
      – 610 mm (24 in) Extreme Service Trapezoidal Hole
      – 610 mm (24 in) Super Extreme Service
      – 610 mm (24 in) Extreme Service Scallop Resistant
      – 610 mm (24 in) Super Extreme Service Scallop Resistant
      – 610 mm (24 in) Super Extreme Service Scallop Resistant Round Hole
      – 710 mm (28 in) Extreme Service
      – 710 mm (28 in) Super Extreme Service
      – 710 mm (28 in) Extreme Service Trapezoidal Hole
      – 710 mm (28 in) Extreme Service Scallop Resistant
      – 710 mm (28 in) Super Extreme Service Scallop Resistant
      – 710 mm (28 in) Super Extreme Service Scallop Resistant Round Hole
      – 760 mm (30 in) Extreme Service Clipped
      – 760 mm (30 in) Super Extreme Service Clipped
      – 786 mm (31 in) Extreme Service
      – 786 mm (31 in) Extreme Service Trapezoidal Hole
      – 786 mm (31 in) Extreme Service Scallop Resistant ARM
    • Undercarriage arrangements:
      – Abrasion resistant
      – Cold abrasion
      – Cold weather
      – Guarded
      – Sound
  • OTHER ATTACHMENTS
    • Automatic lubrication system
    • Fire suppression ready
    • Fire suppression installation
    • Fuel lines, heater
    • Grease points, grouped
    • Heater, engine coolant
    • Hydraulic, dual tilt
    • Hydraulic, dual tilt, cushion dozer
    • Hydraulic, single tilt, cushion dozer
    • Main frame, cushion dozer
    • Starting cold weather
