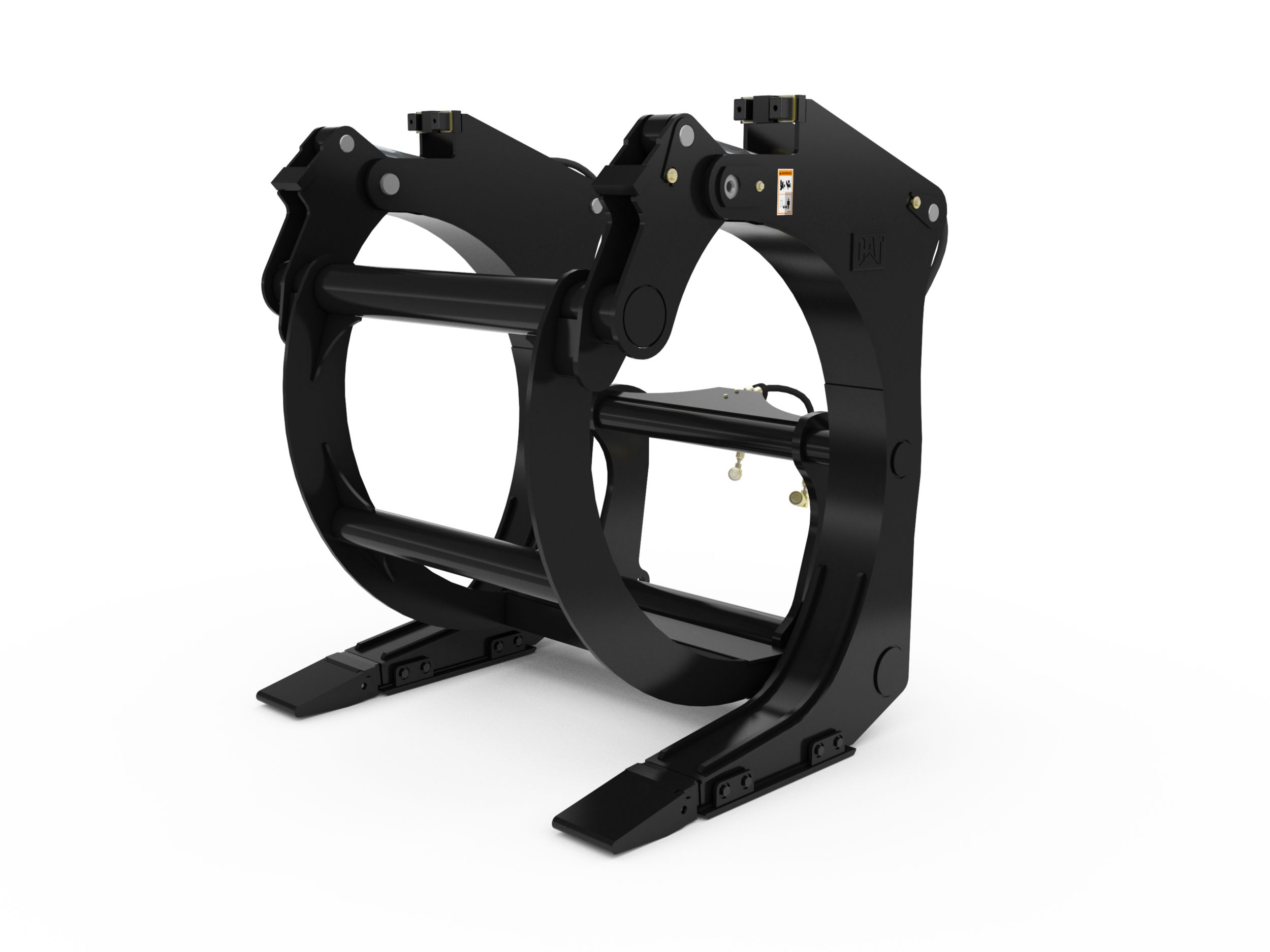

1812 mm (71 in) ISO Coupler Sorting Grapple Fork

US
Metric

Overview

The Cat® Sorting Grapple Forks for Small Wheel Loaders are designed for numerous applications in log and lumber handling. Moving logs from stack piles for further processing or unloading trucks the Sorting Grapple Forks are built to perform. With adjustable clamp pressure and bolt-wear plates the Sorting Grapple Forks are adjustable to meet the operator’s preferences while reducing owning and operating cost.
Width
71.30 in
1812.00 mm
Tine Length
49.40 in
1256.00 mm
Grapple Area
20.60 ft²
1.91 m²
Grapple Height
102.60 in
2606.00 mm
Grapple Weight
3741.20 lb
1697.00 kg
Interface Type
ISO Coupler
Operating Weight
33276.50 lb
15094.00 kg
Features

Application

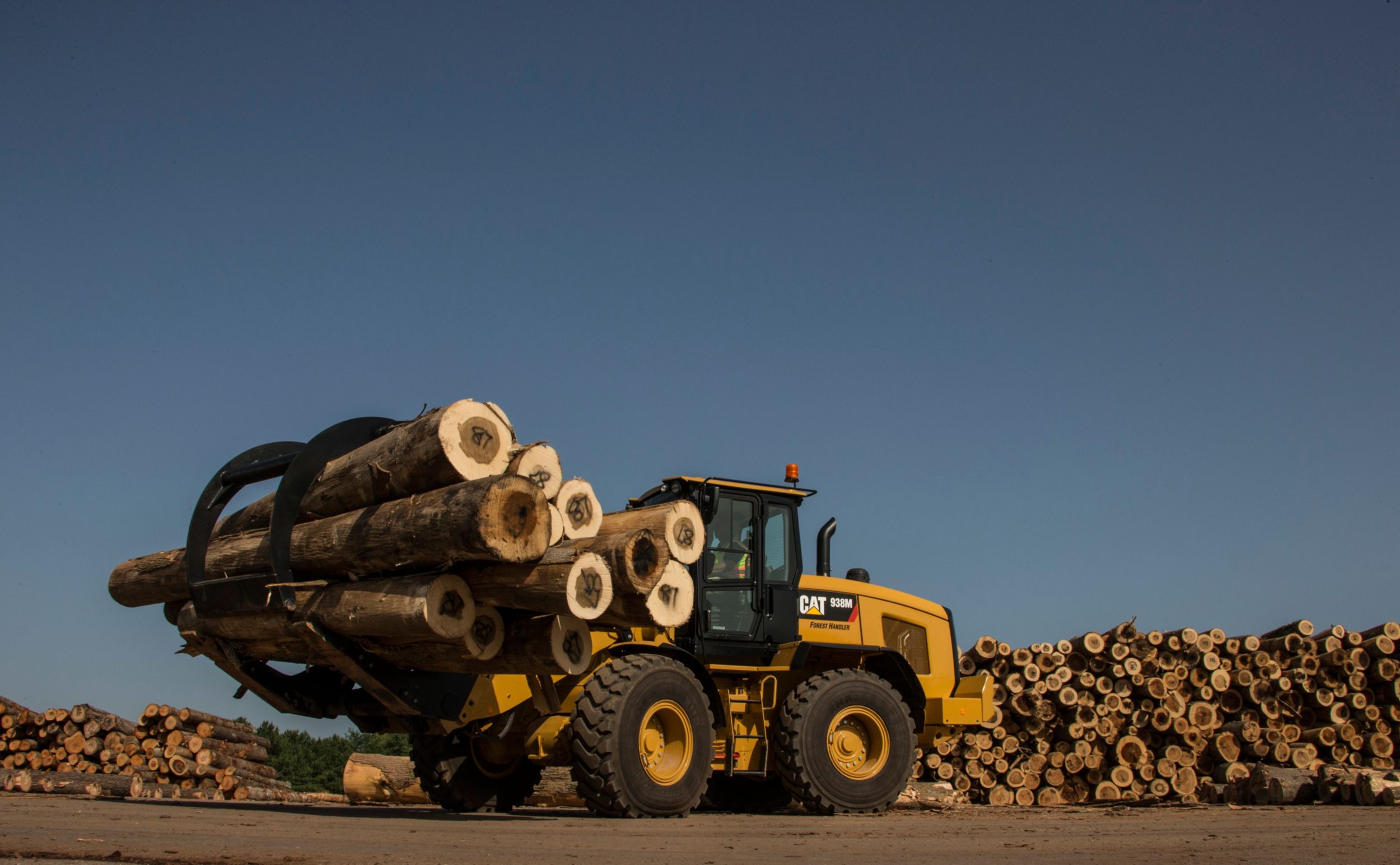

Designed and built for log and lumber and is primarily used for moving logs from stack piles for further processing.

Lumber-Handling Performance

Purpose-built for use in log and lumber applications, the Sorting Grapple Fork is equipped with a large clamp creating a 21 square foot opening for material.

Pressure Regulated Clamping Force

Integrated pressure regulator provides the ability to adjust clamping force, minimizing the potential to damage material being carried.

Short Tines

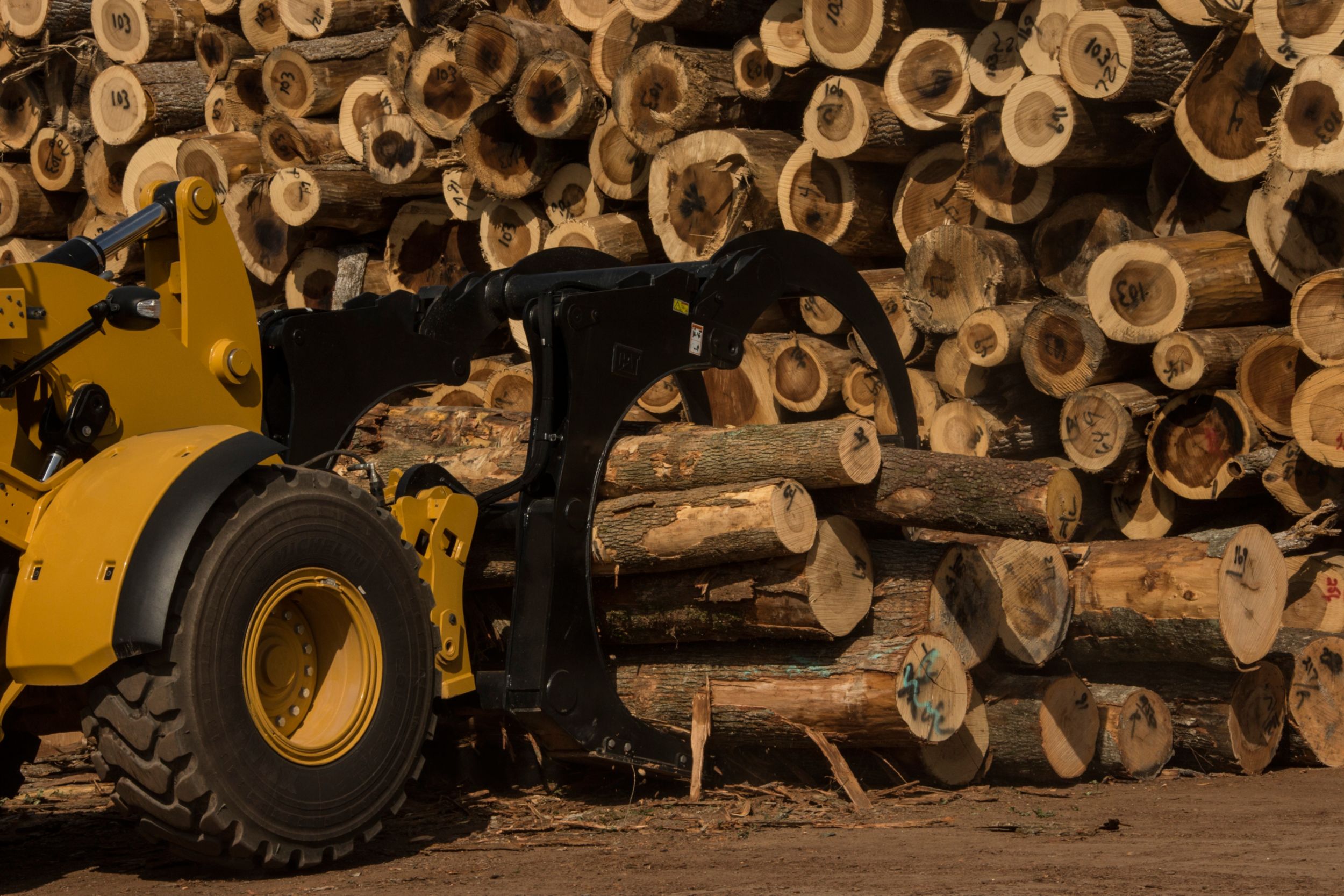

Specifically designed to slide under log piles and roll them into the grapple. Short tines allow for precise control when loading the grapple with logs.

Replaceable Wear Strips

Bolt-on wear strips on the underside of the grapple are easily replaced at regular service intervals avoiding additional welding.

User-Configurable

Various available fork tips allow the Sorting Grapple to be configured to machine and operation.
