Trash Grapple, 319/320/321 Excavators

US
Metric

Overview

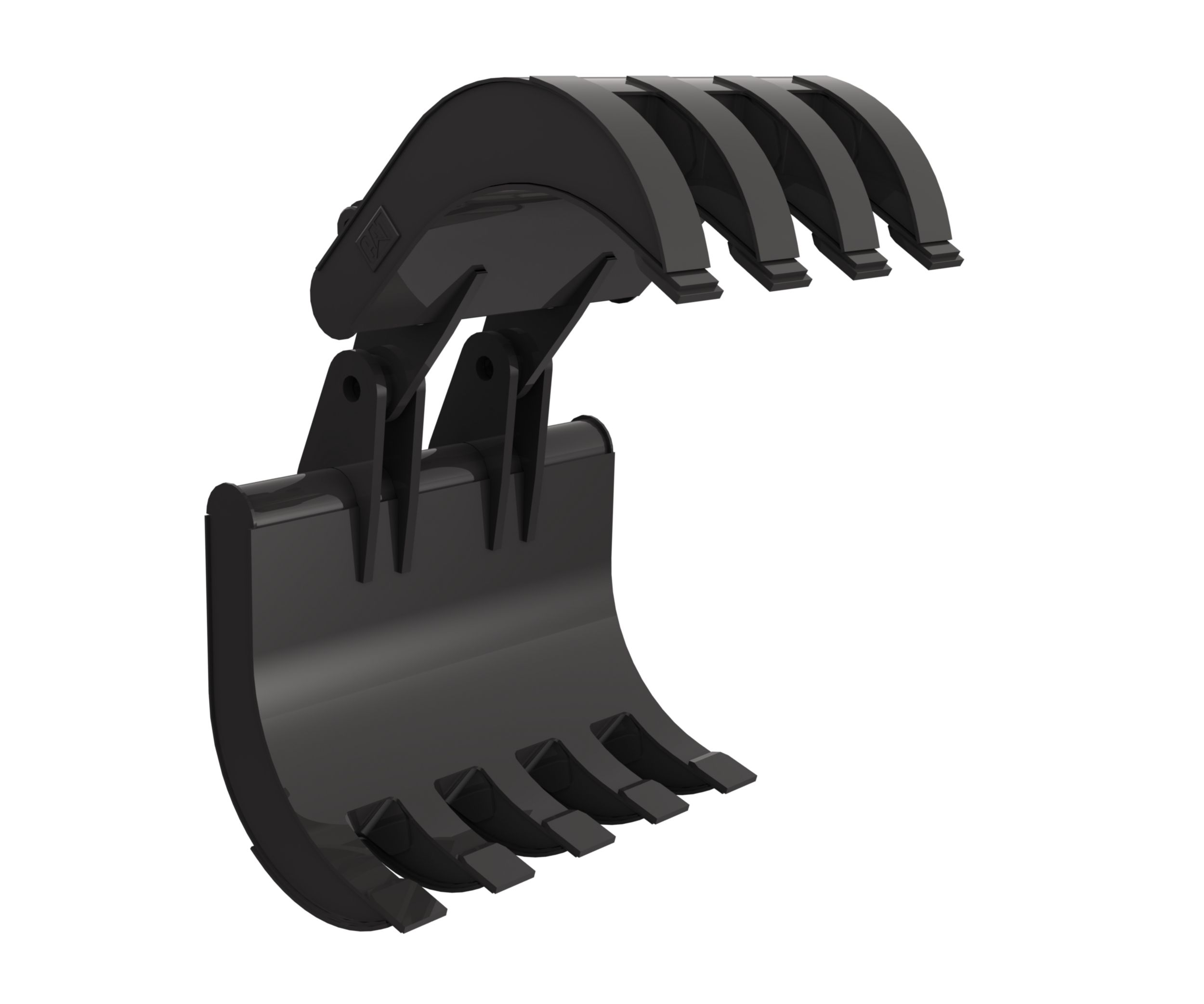

Pin on trash grapple, four tines over five, for 315C, 320C, 322CL, or M318 hydraulic excavator with B or S linkage.
Rated Capacity
4.50 yd3
3.44 m3
Weight
3069.00 lb
1392.00 kg
Upper Jaw Width
43.00 in
1100.00 mm
Lower Jaw Width
57.00 in
1450.00 mm
Maximum Jaw Opening
102.00 in
2600.00 mm
Outside Jaw Dimension - Closed
12.00 in
300.00 mm
Outside Jaw Dimension - Open
110.00 in
2802.00 mm
Tip Radius
57.00 in
1449.00 mm
Jaw Depth
8.00 in
204.00 mm
Tip Thickness
0.98 in
25.00 mm
Wear Plate Thickness
0.55 in
14.00 mm
Wrapper Thickness
0.39 in
10.00 mm
