US
Metric

Overview

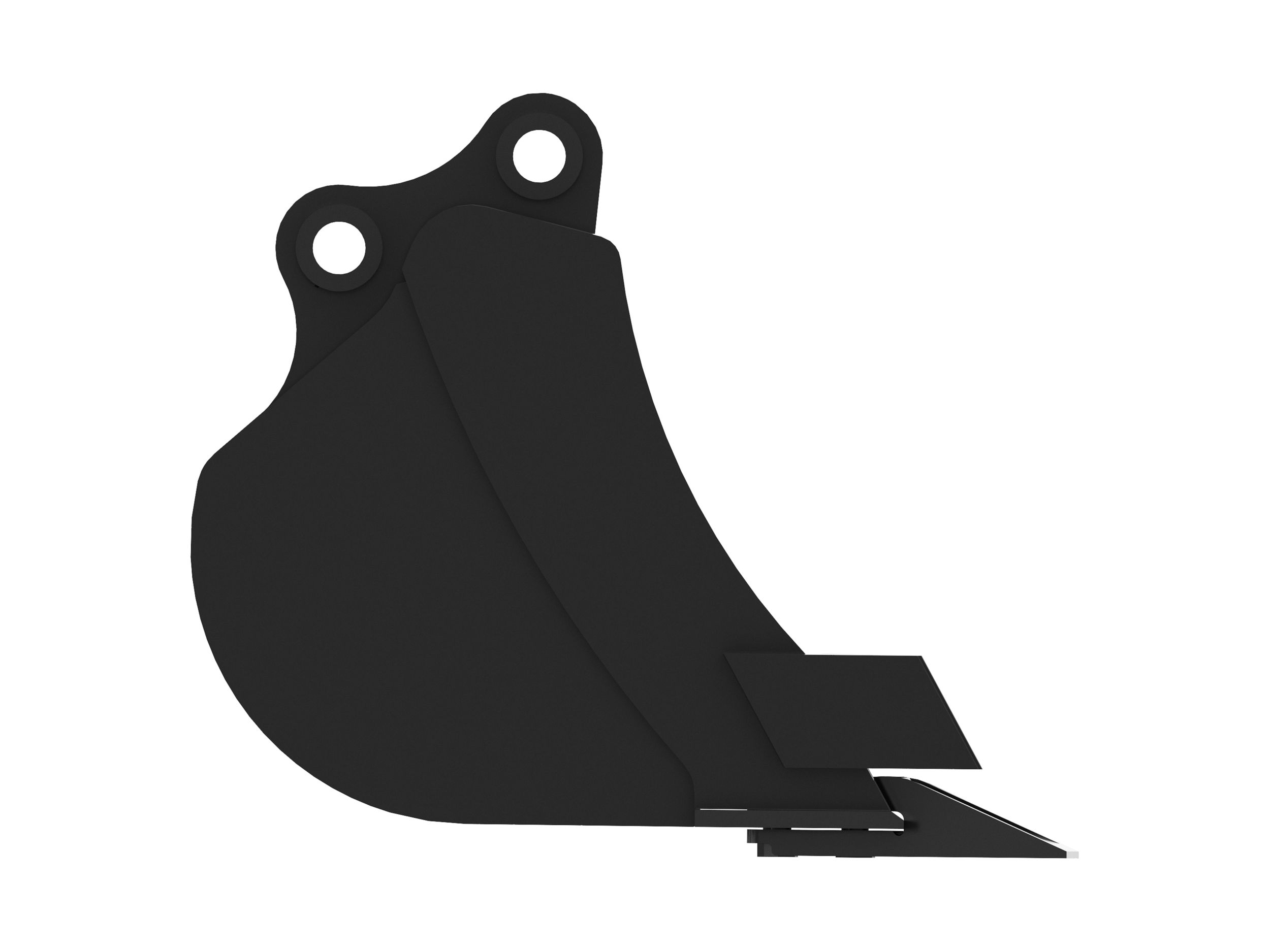

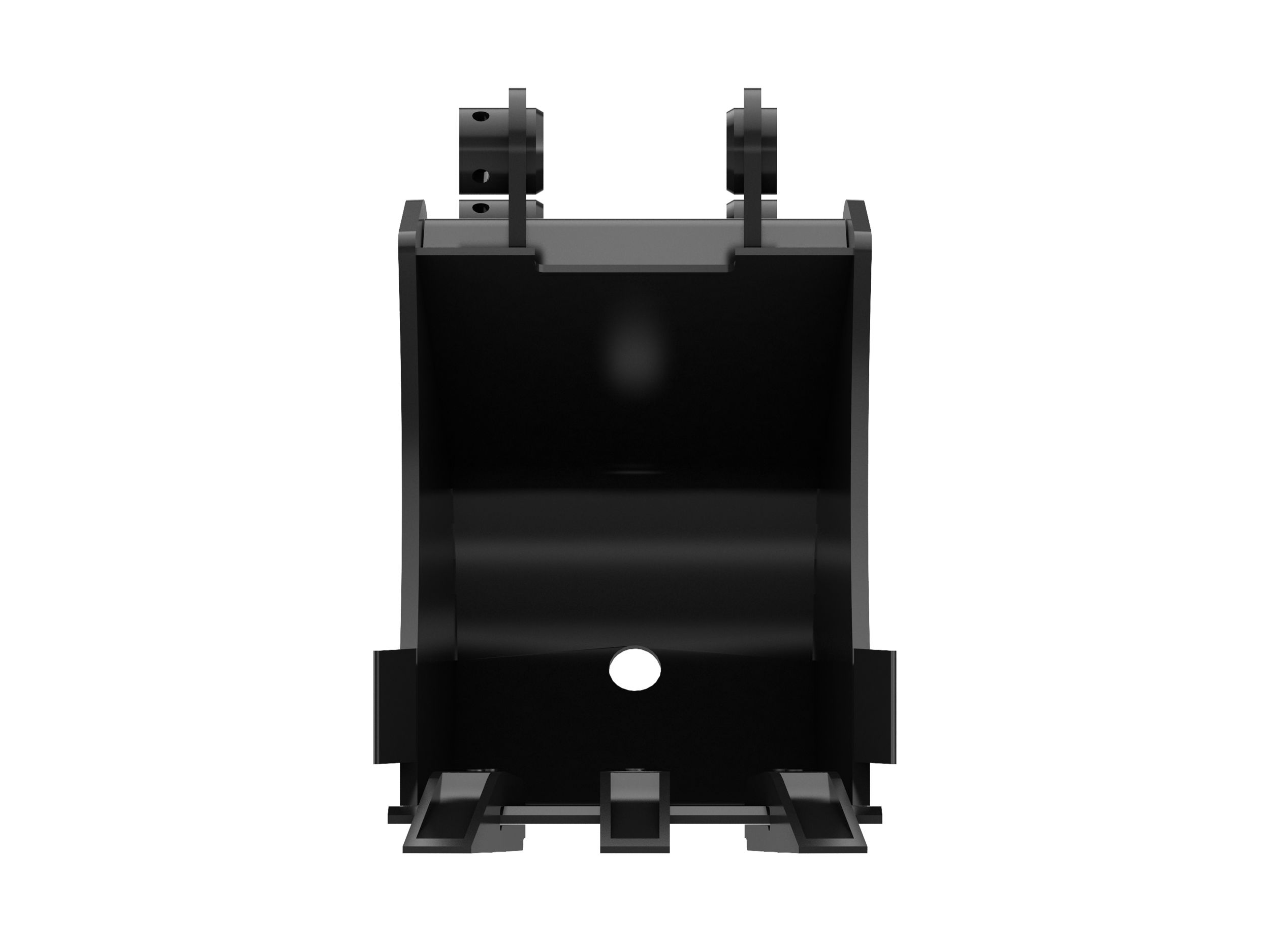

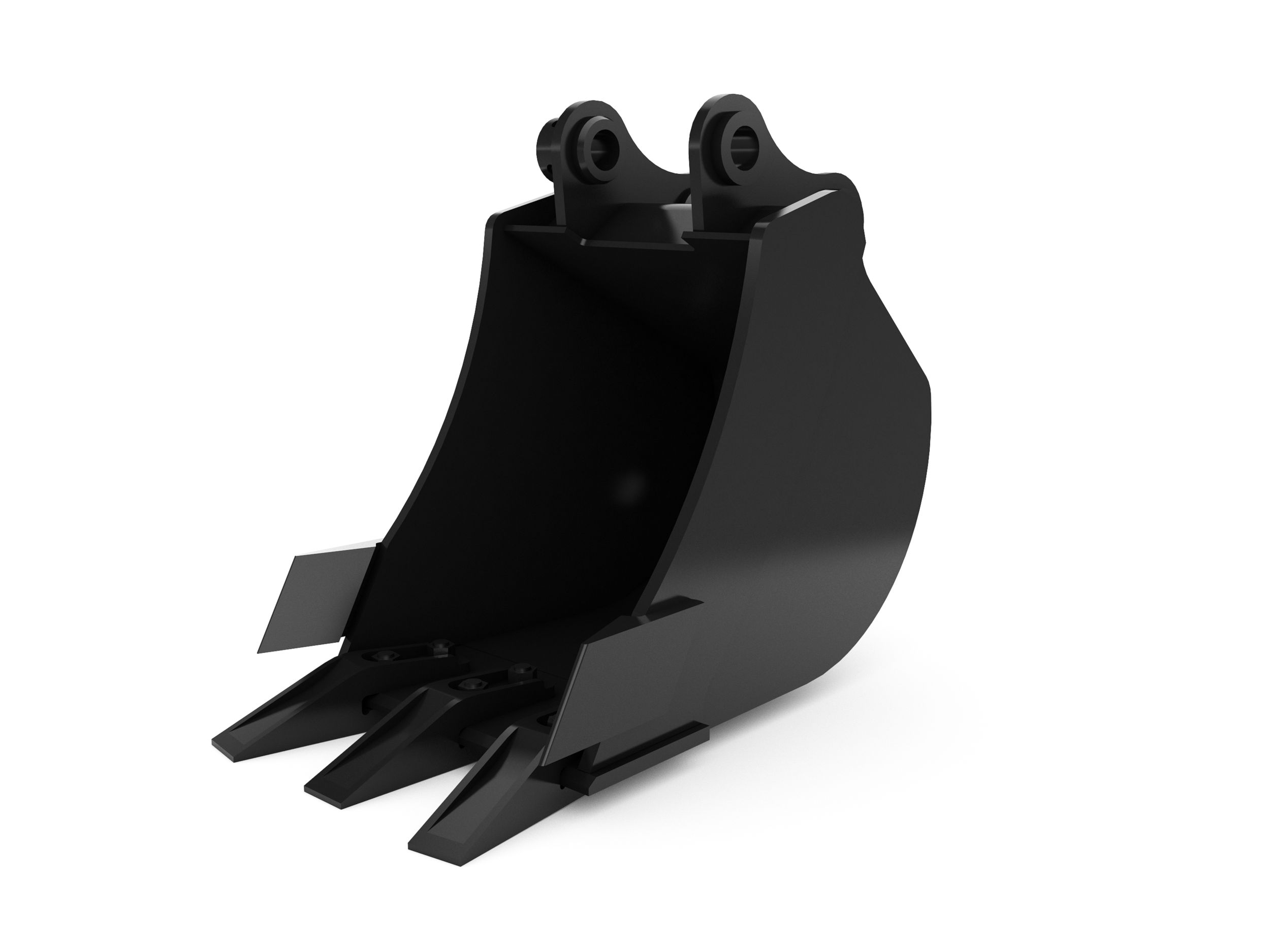

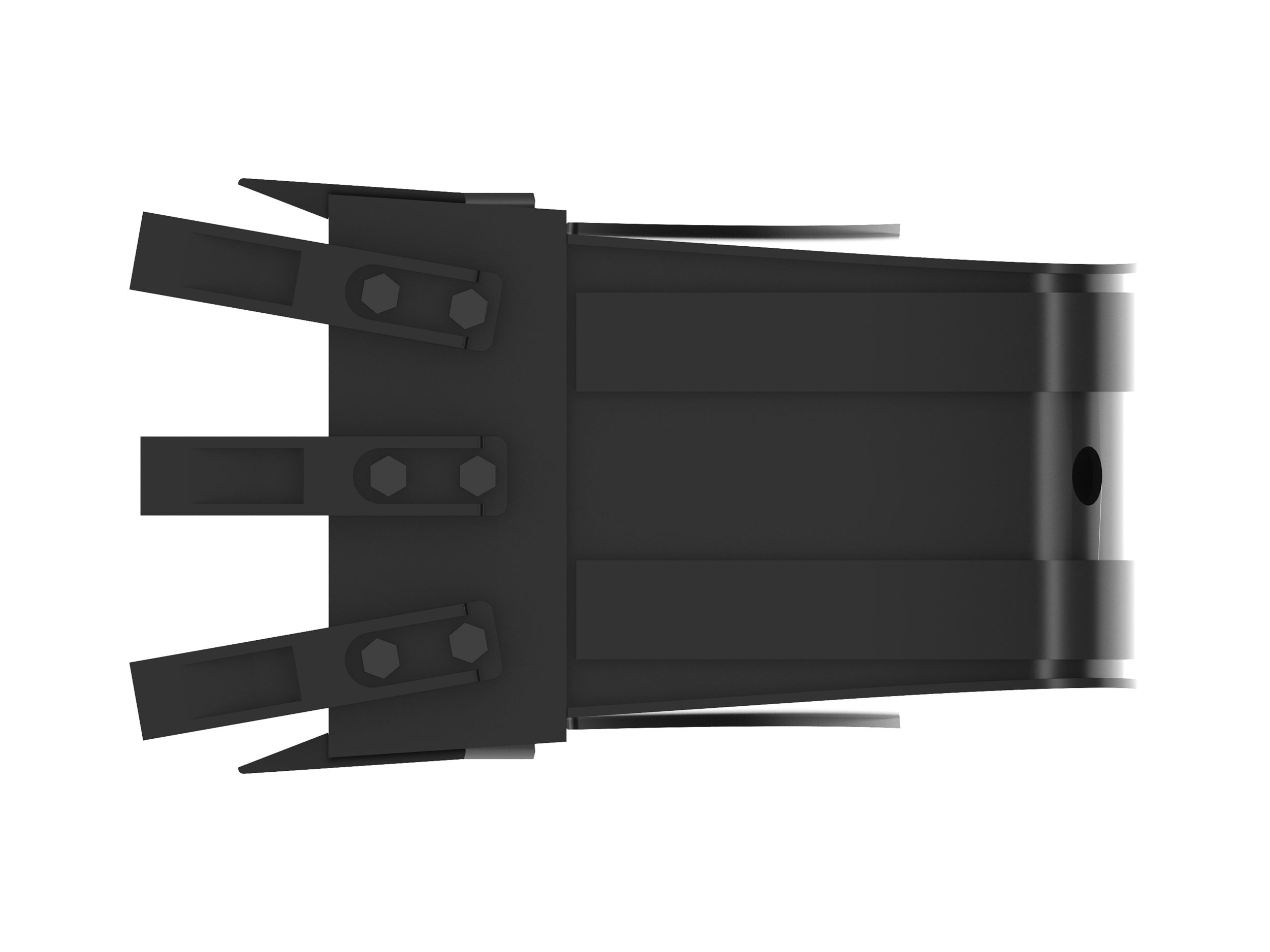

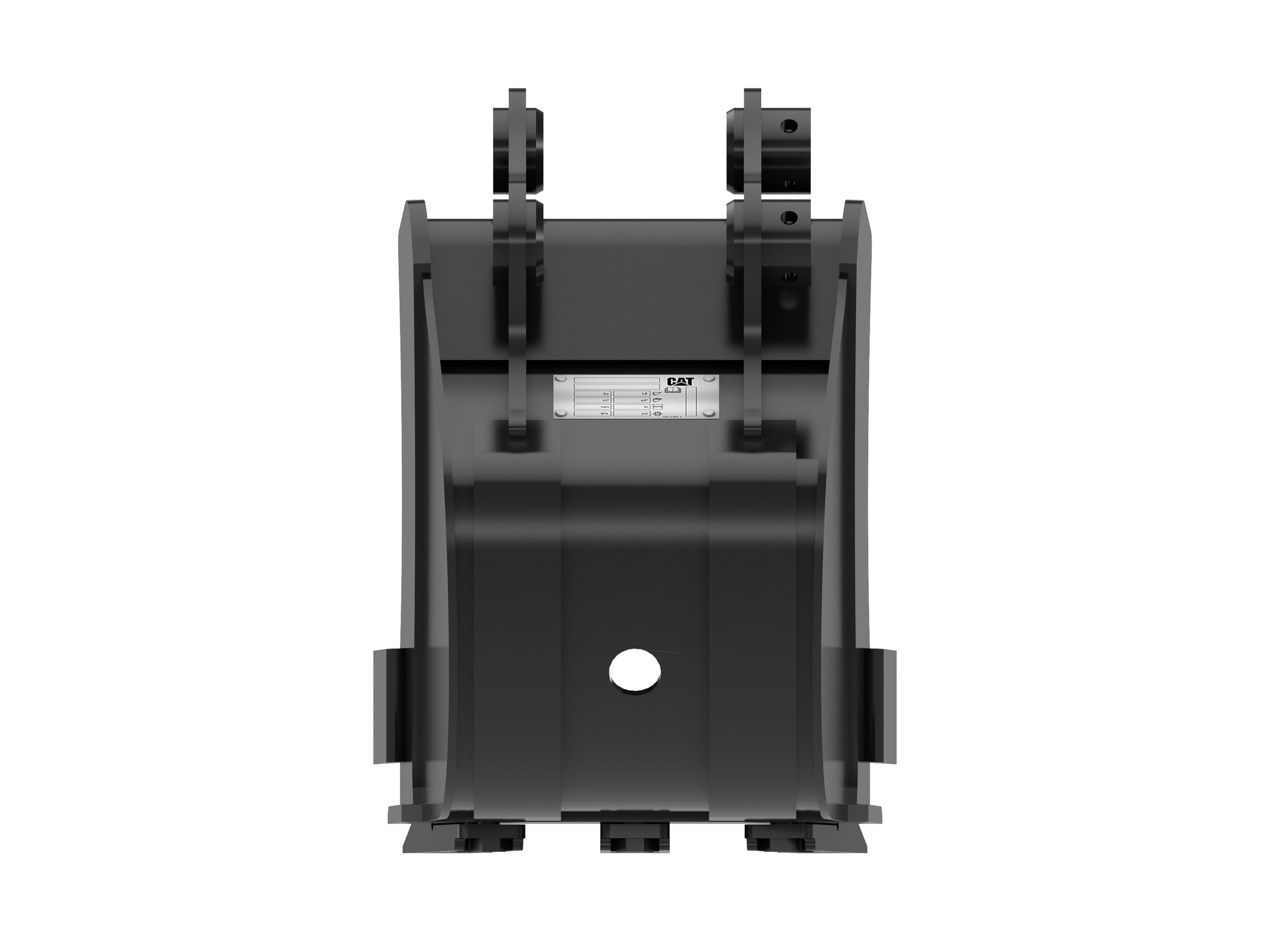

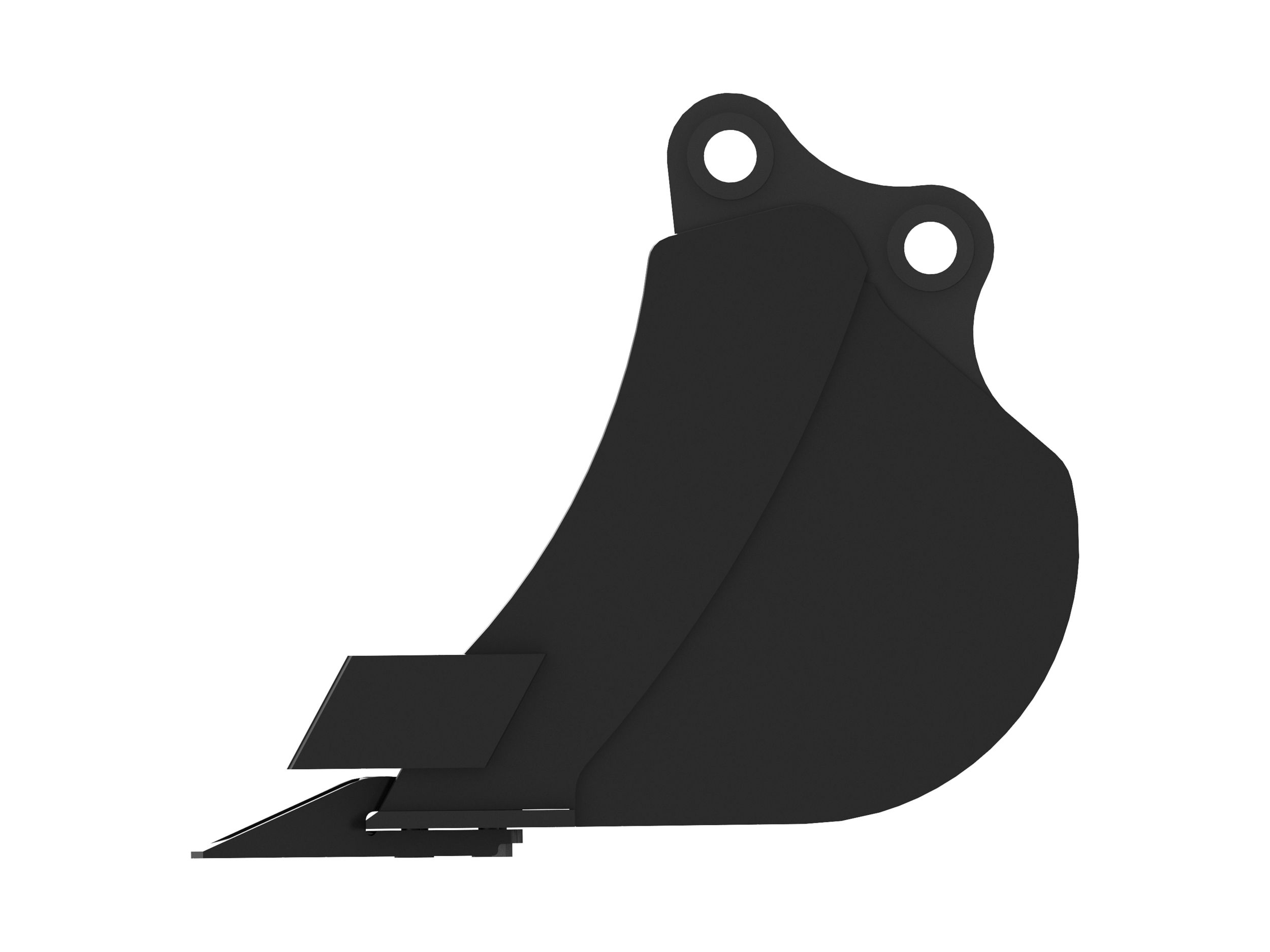

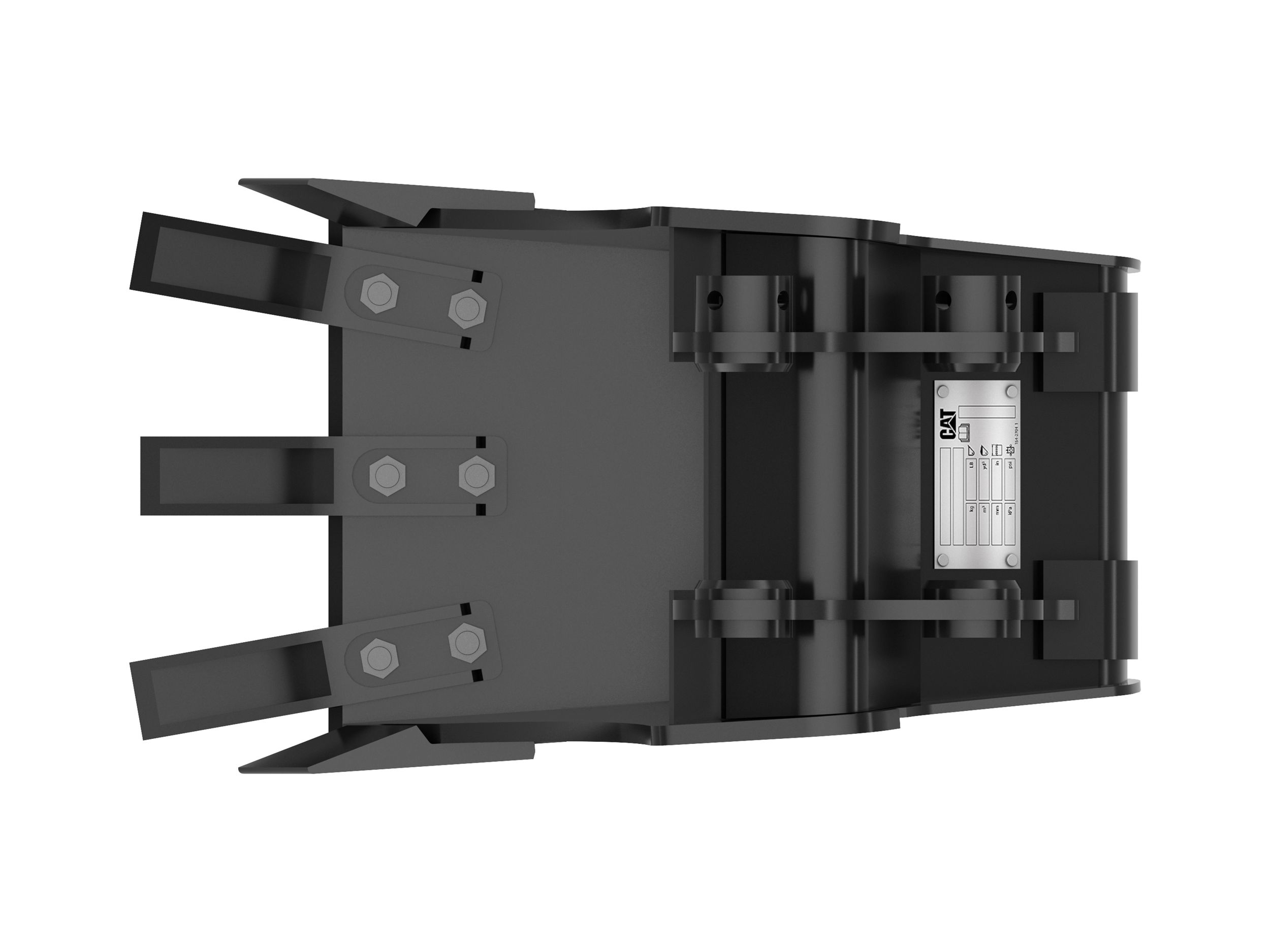

Digging Buckets for Cat® Mini Excavators are ideal for utility trenching, general excavating and back-filling in soft to moderate ground.
Width
11.80 in
300.00 mm
Capacity
0.80 ft³
22.70 l
Weight
68.60 lb
31.10 kg
Base Edge Thickness
0.40 in
10.00 mm
Tip Radius
20.00 in
508.50 mm
Interface Type
Pin On
Features

Application

Designed for a wide variety of applications and materials.

Bucket Design

Formed back wrapper design enhances bucket loadability and production.

Superior Bucket Fill

Optimum wrapper angle and no sharp corners promote superior bucket fill and reduce material packing.

Bucket Shape

Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.
