Digging Buckets - Mini Excavator

400 mm (16 in), 34 L (1.2 ft3) Pin On Digging Bucket With Bolt-On Teeth

Request A Quote New and Used Inventory

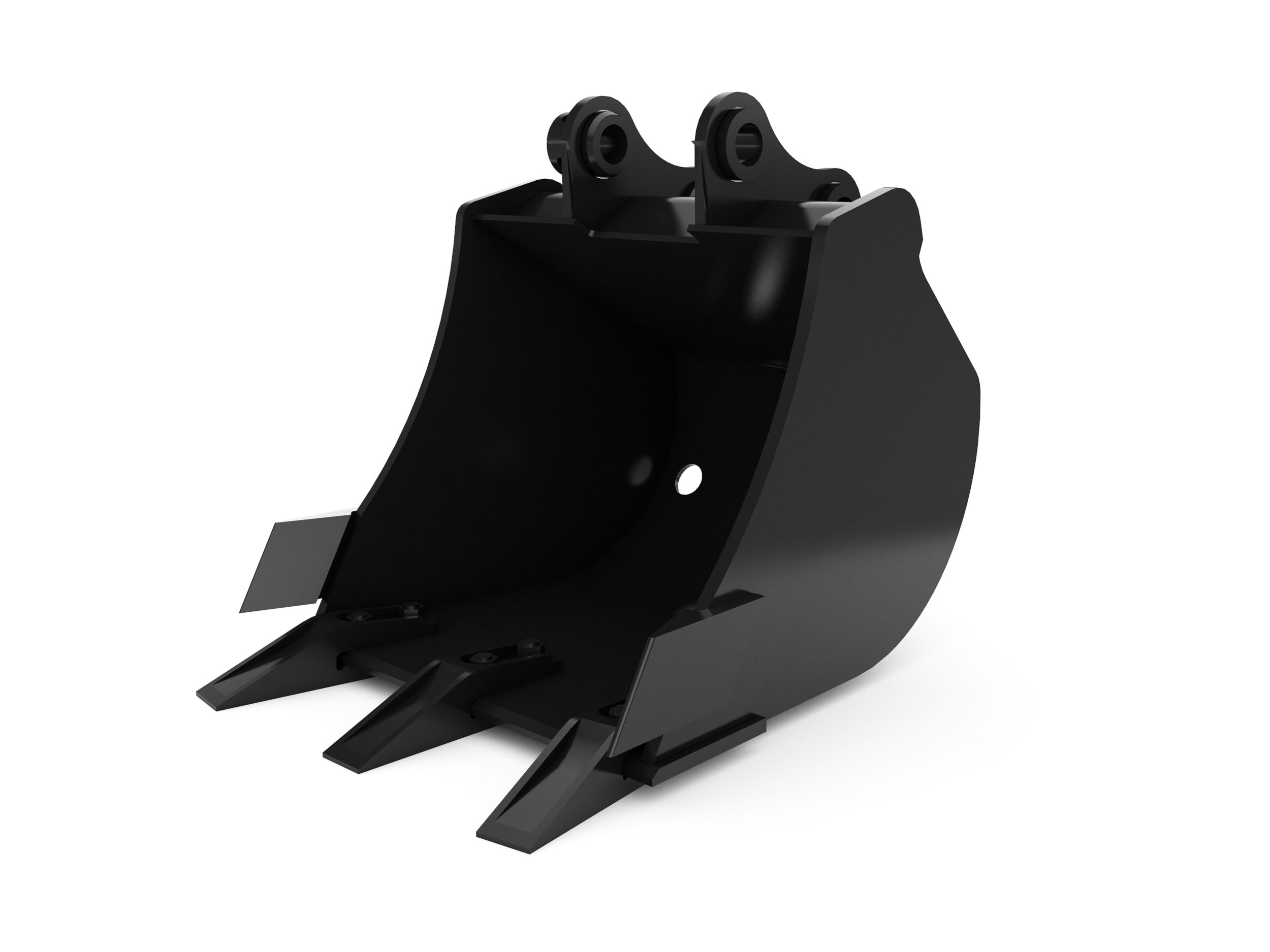

Studio Shot

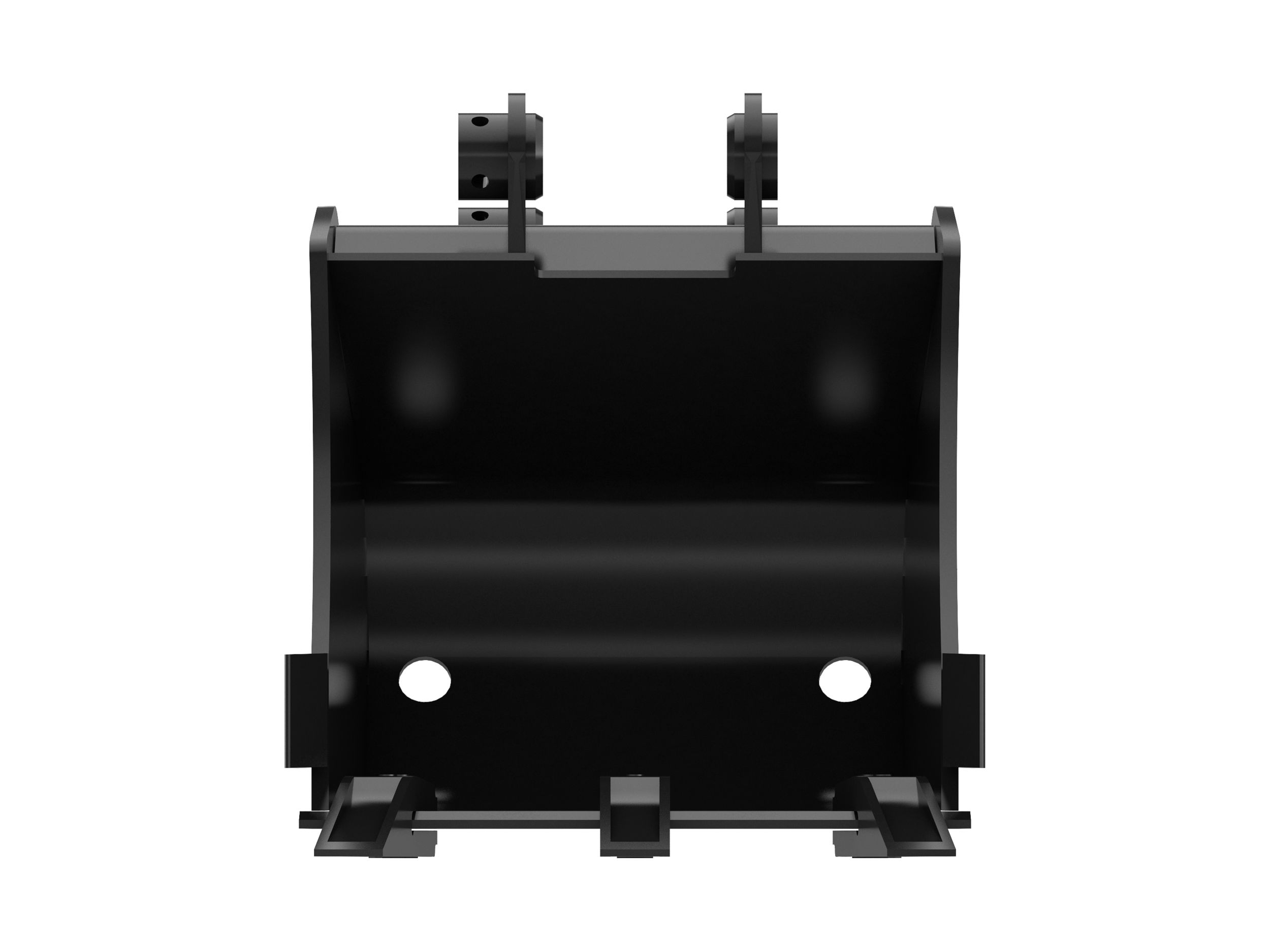

Front View

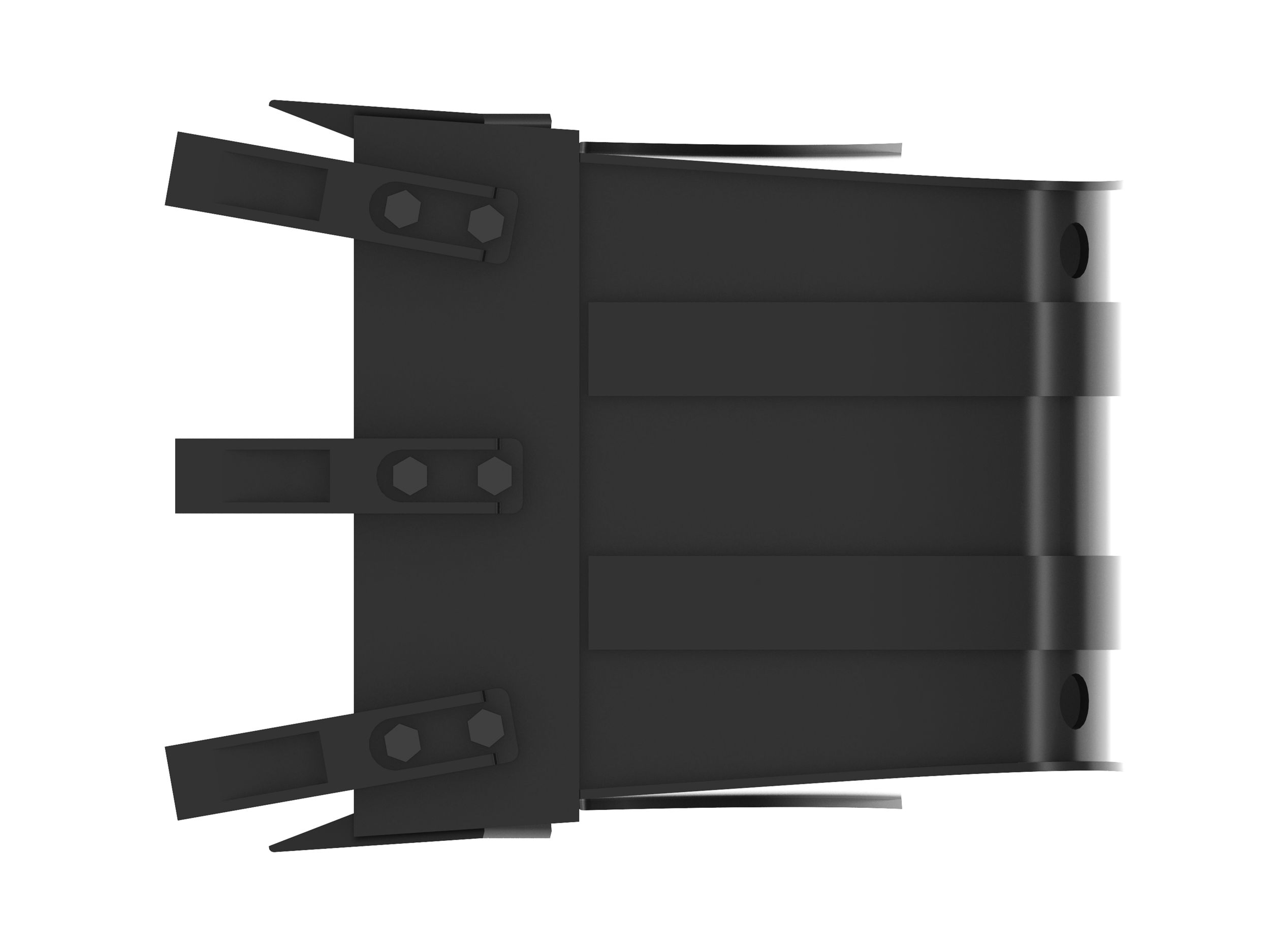

Top View

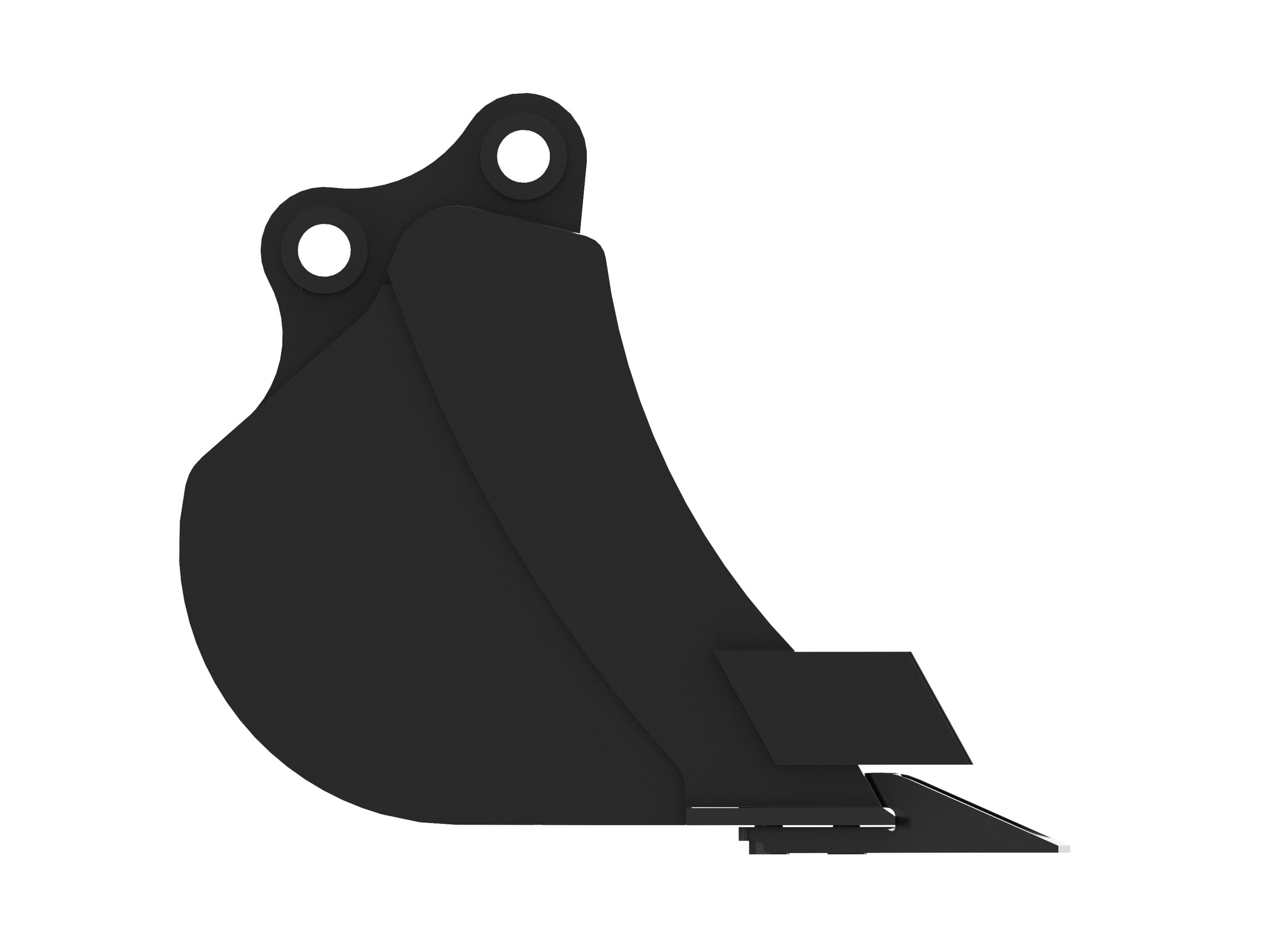

Left View

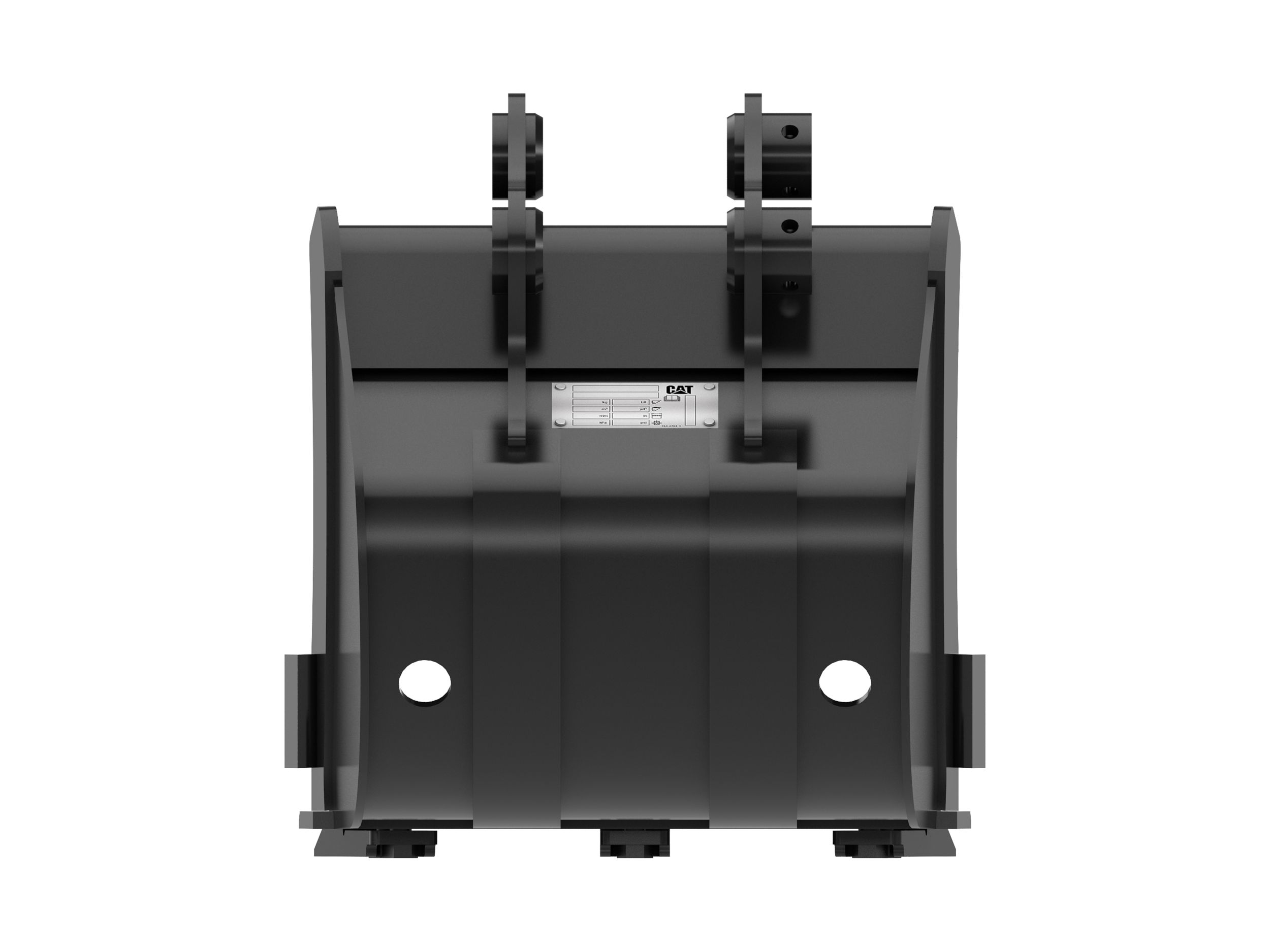

Rear View

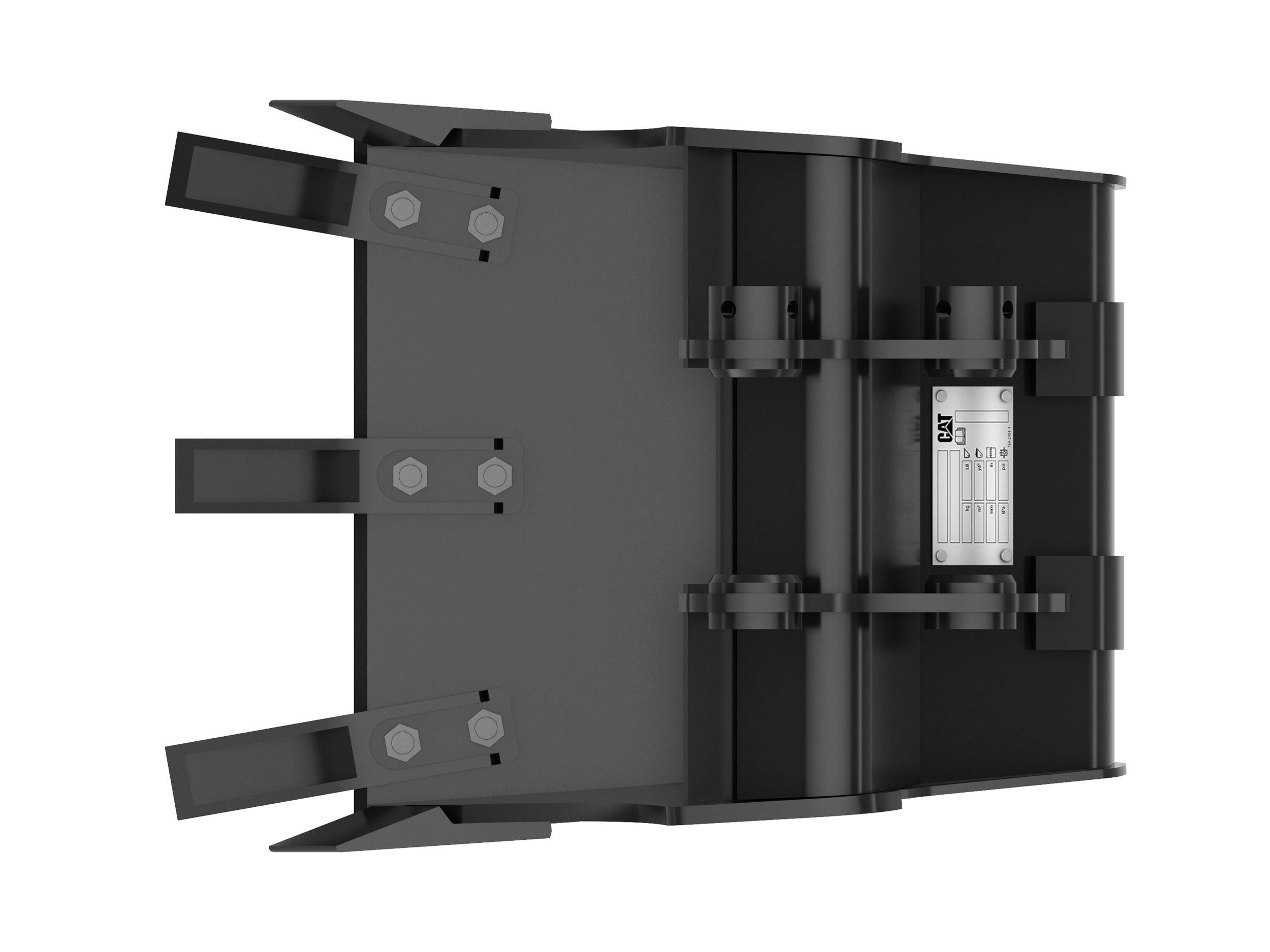

Bottom View

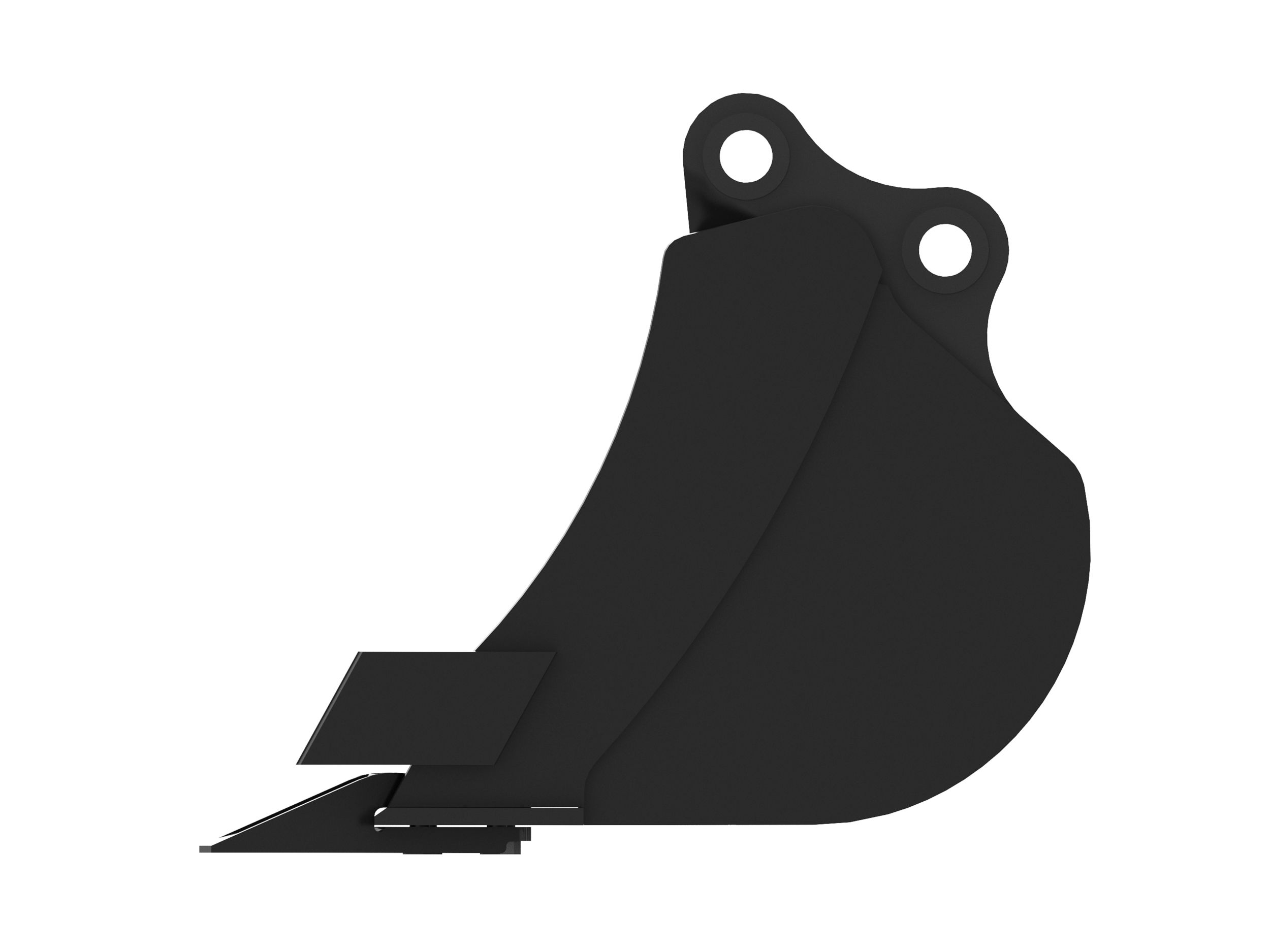

Right View
US
Metric

Overview

Digging Buckets for Cat® Mini Excavators are ideal for utility trenching, general excavating and back-filling in soft to moderate ground.
Width
15.70 in
400.00 mm
Capacity
1.20 yd³
34.00 m³
Weight
78.00 lb
35.40 kg
Base Edge Thickness
0.40 in
10.00 mm
Tip Radius
20.00 in
508.50 mm
Interface Type
Pin On
Features

Application

Designed for a wide variety of applications and materials.

Bucket Design

Formed back wrapper design enhances bucket loadability and production.

Superior Bucket Fill

Optimum wrapper angle and no sharp corners promote superior bucket fill and reduce material packing.

Bucket Shape

Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.
