Overview

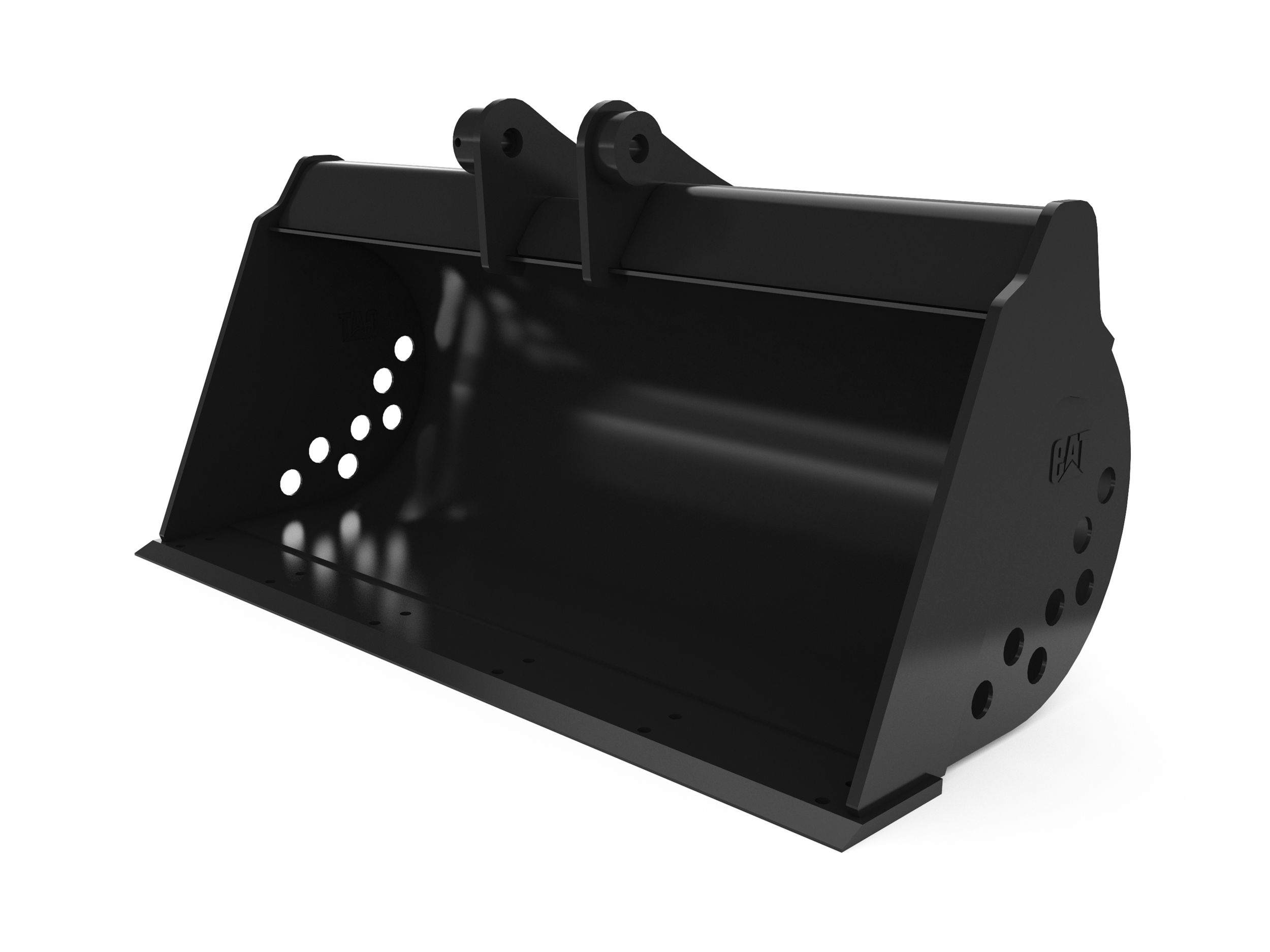

Ditch Cleaning Buckets for Cat® Mini Excavators are ideal for cleaning wide trenches, loading materials, slope cutting, grading and finishing work in construction, landscaping and road maintenance applications.
Width
60.00 in
1524.00 mm
Rated Capacity
14.85 ft3
420.50 L
Weight
557.10 lbs
252.70 kg
Base Edge Thickness
0.80 in
20.00 mm
Tip Radius
31.30 in
795.00 mm
Width
60.00 in
1524.00 mm
Rated Capacity
14.85 ft³
420.50 l
Weight
557.10 lb
252.69 kg
Base Edge Thickness
0.80 in
20.00 mm
Tip Radius
31.30 in
795.00 mm

Specifications

Capacity
420.50 l
14.85 ft³

Interface Type
Pin On
Capacity
14.80 ft³
420.50 l
Features

Application

Versatile bucket for applications such as cleaning wide trenches, loading materials, grading, dressing slopes and more.

Bucket Design

Formed back wrapper design enhances bucket loading and production.

Superior Bucket Fill

Optimum wrapper angle and no sharp corners promote superior bucket fill and reduce material packing.

Bucket Shape

Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.
