Overview

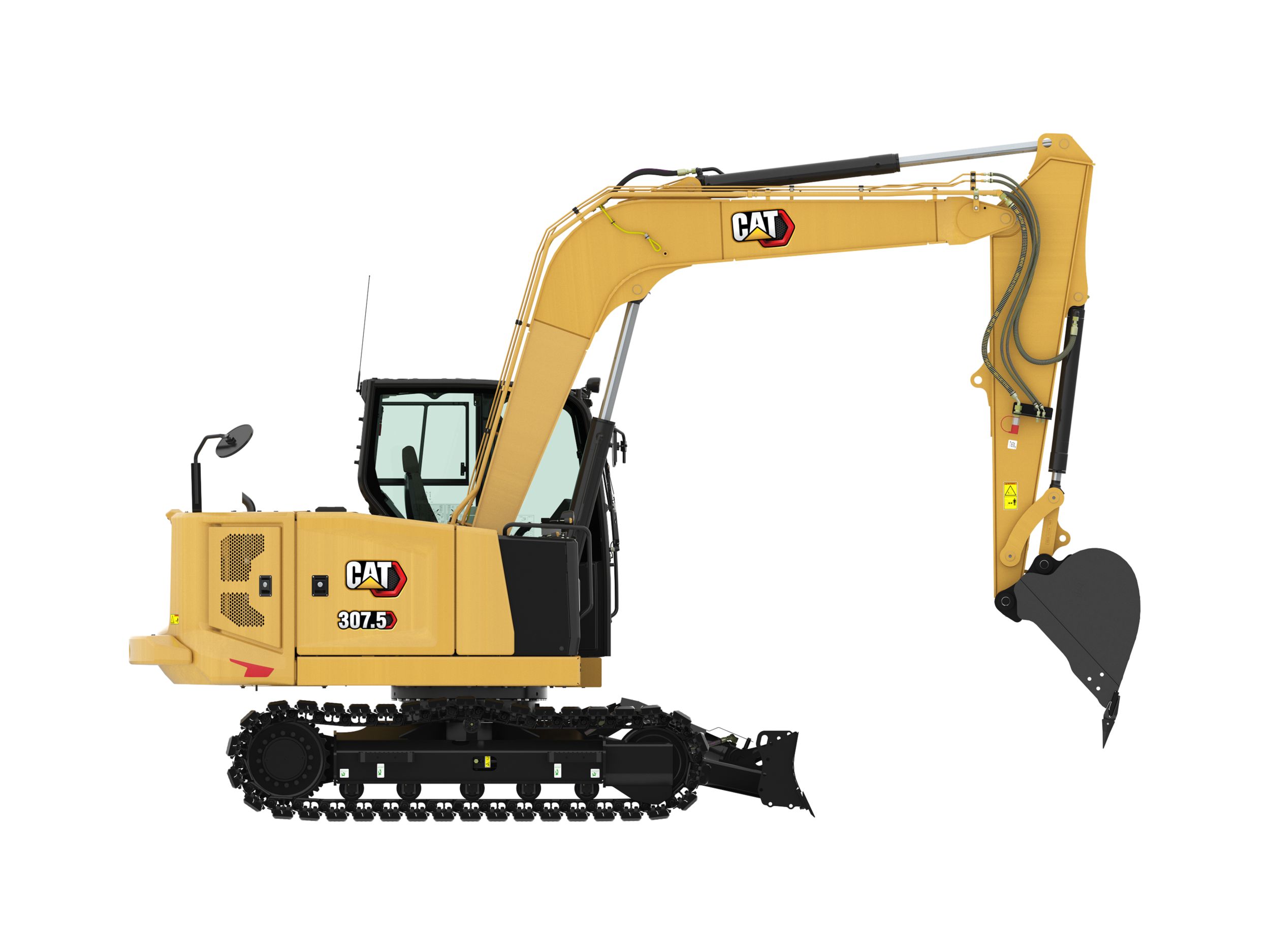

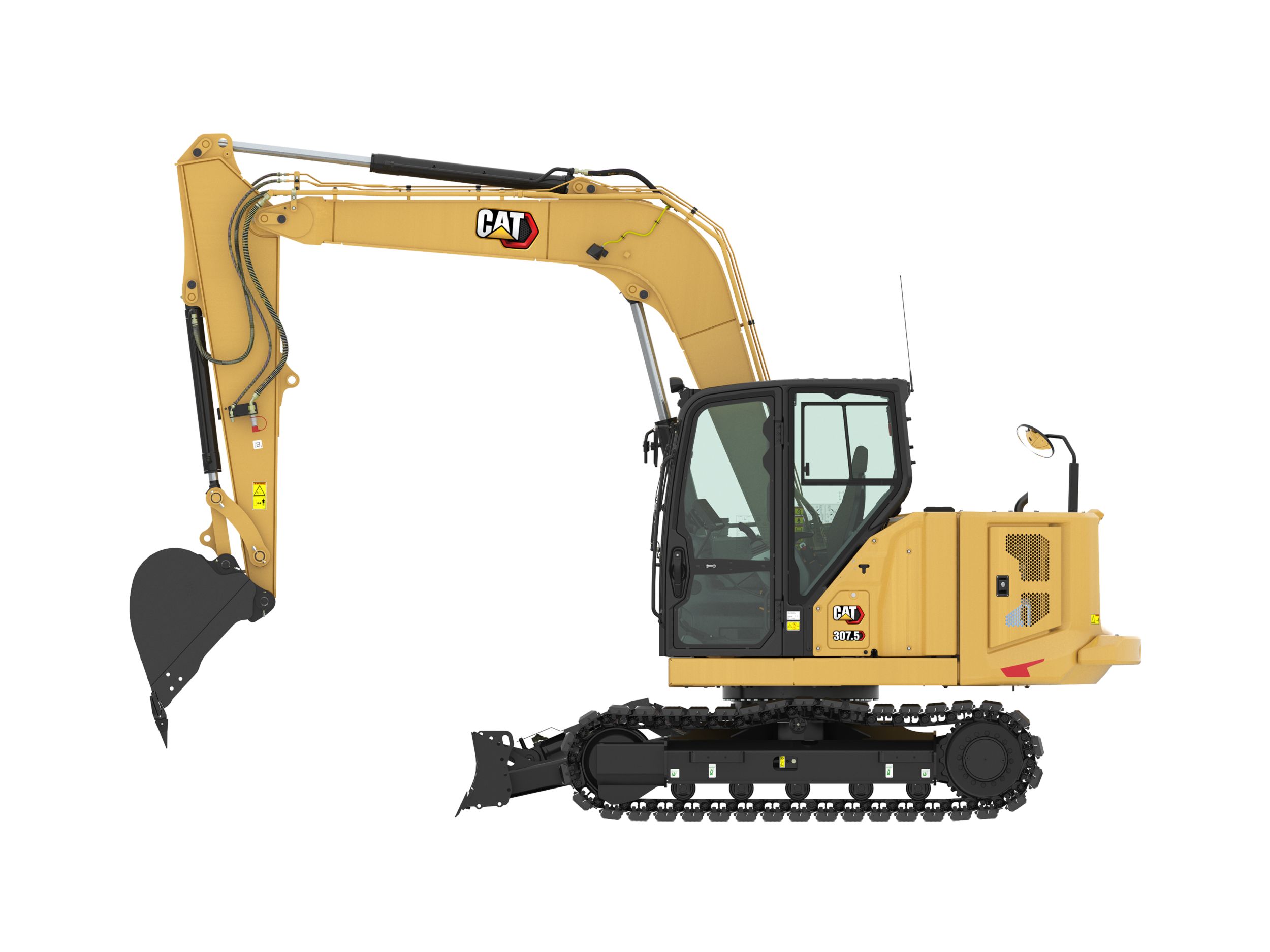

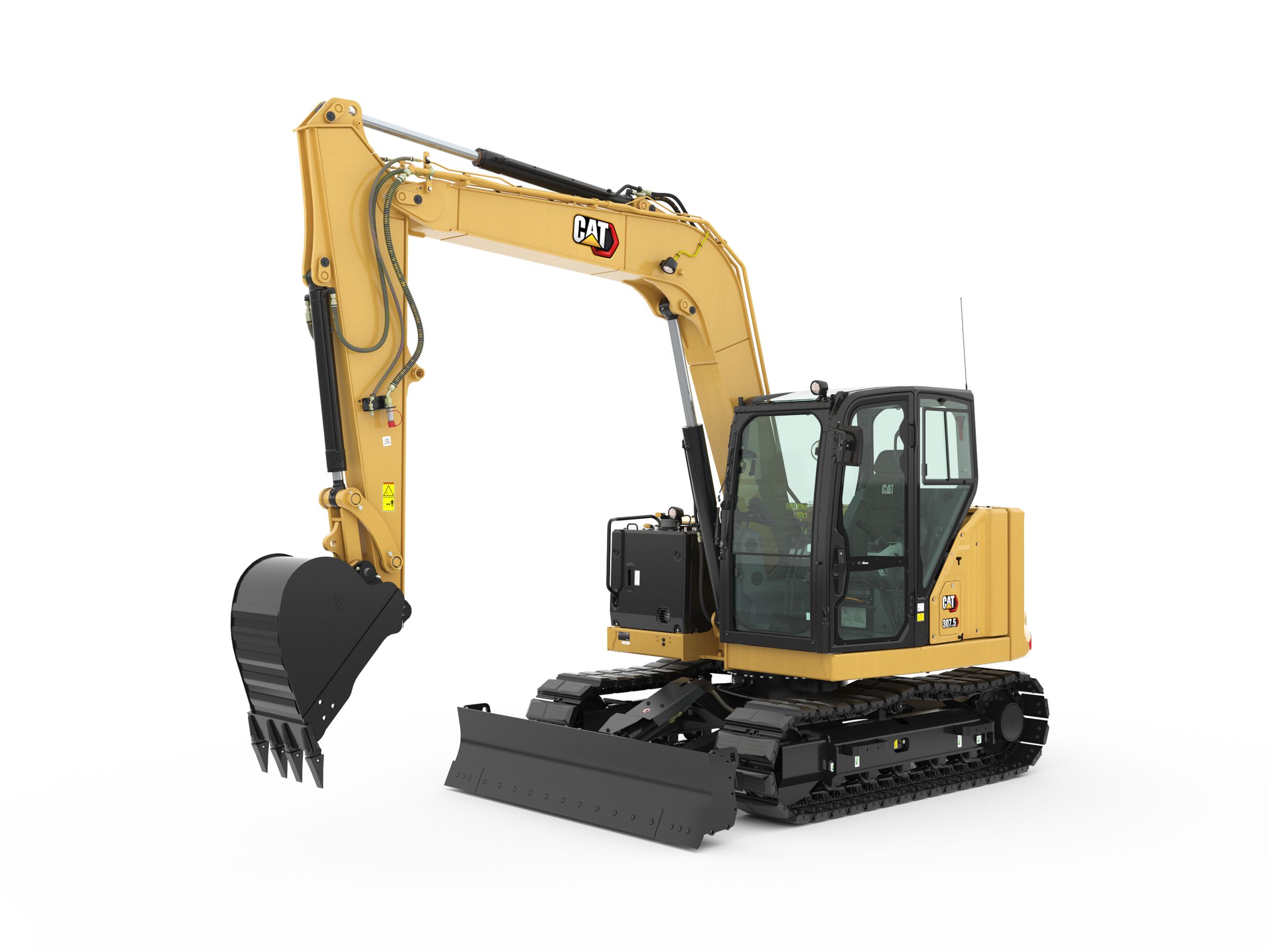

The Cat® 307.5 Mini Excavator delivers maximum power and performance in a mini size to help you work in a wide range of applications.

Engine

Net Power
54.80 hp
40.90 kW

Weights

Operating Weight
17905.00 lb
8120.00 kg

Dimensions - Long Stick

Dig Depth
182.80 in
4642.00 mm

Engine

Engine Model
Cat C2.4 Turbo

Blade

Height
17.00 in
431.00 mm

Engine

Displacement
148.00 in³
2.43 l

Hydraulic System

Type
Load Sensing Hydraulics with Variable Displacement Piston Pump

Dimensions - Long Stick

Cab Height
100.00 in
2541.00 mm

Travel System

Maximum Traction Force - Low Speed
14035.00 lb
62.40 kN

Dimensions - Standard Stick

Tail Swing with Counterweight
76.00 in
1930.00 mm
Vertical Wall
141.60 in
3597.00 mm
Transport Height
101.00 in
2558.00 mm

Weights

Note (2)
**Maximum Weight is based on steel tracks with rubber pads, counterweight, operator, full fuel tank, long stick, blade and no bucket.

Dimensions - Standard Stick

Tail Swing without Counterweight
70.90 in
1800.00 mm

Dimensions - Long Stick

Maximum Blade Height
14.60 in
370.00 mm

Dimensions - Standard Stick

Stick Length
65.60 in
1665.00 mm

Dimensions - Long Stick

Track Belt/Shoe Width
17.70 in
450.00 mm

Dimensions - Standard Stick

Boom In Reach
66.20 in
1681.00 mm

Travel System

Maximum Traction Force - High Speed
5856.00 lb
26.10 kN

Dimensions - Long Stick

Maximum Dump Clearance
225.10 in
5717.00 mm

Dimensions - Standard Stick

Track Belt/Shoe Width
17.70 in
450.00 mm
Ground Clearance
14.60 in
370.00 mm
O/A Track Width
86.60 in
2200.00 mm

Weights

Maximum Operating Weight with Cab**
17905.00 lb
8120.00 kg

Weight Increase from Minimum Configuration

Long Stick
181.00 lb
82.00 kg

Dimensions - Long Stick

O/A Undercarriage Length
108.70 in
2760.00 mm

Service Refill Capacities

Cooling System
2.60 gal (US)
10.00 l

Hydraulic System

Operating Pressure - Swing
3626.00 psi
250.00 bar

Dimensions - Standard Stick

Maximum Reach - Ground Level
242.10 in
6151.00 mm

Service Refill Capacities

Hydraulic System
29.00 gal (US)
110.00 l

Dimensions - Long Stick

O/A Track Width
86.60 in
2200.00 mm

Service Refill Capacities

Hydraulic Tank
14.00 gal (US)
53.00 l

Dimensions - Standard Stick

O/A Undercarriage Length
108.70 in
2760.00 mm

Dimensions - Long Stick

Transport Height
105.00 in
2656.00 mm

Hydraulic System

Auxiliary Circuit - Secondary - Pressure
4134.00 psi
285.00 bar

Blade

Width
90.00 in
2280.00 mm

Travel System

Travel Speed - High
3.10 mile/h
5.00 km/h

Sound

Operator Sound Pressure (ISO 6396:2008)
72.00 dB(A)
72.00 dB(A)

Dimensions - Standard Stick

Width over Upper House
88.60 in
2250.00 mm

Service Refill Capacities

Fuel Tank
38.00 gal (US)
145.00 l

Hydraulic System

Pump Flow at 2,400 rpm
44.00 gal/min
167.00 l/min

Swing System

Machine Swing Speed
10.00 r/min
10.00 r/min

Dimensions - Standard Stick

Maximum Reach
247.90 in
6297.00 mm

Travel System

Ground Pressure - Maximum Weight
5.50 psi
37.70 kPa

Dimensions - Long Stick

Vertical Wall
161.90 in
4113.00 mm
Width over Upper House
88.60 in
2250.00 mm
Boom In Reach
88.60 in
2250.00 mm

Service Refill Capacities

Engine Oil
2.50 gal (US)
9.50 l

Dimensions - Standard Stick

Swing Bearing - Height
29.70 in
756.00 mm

Hydraulic System

Digging Force - Stick - Standard
8504.00 lb
37.80 kN
Auxiliary Circuit - Primary - Pressure
4134.00 psi
285.00 bar
Operating Pressure - Travel
4134.00 psi
285.00 bar

Dimensions - Standard Stick

Maximum Blade Height
14.60 in
370.00 mm

Hydraulic System

Operating Pressure - Equipment
4134.00 psi
285.00 bar

Dimensions - Standard Stick

Maximum Blade Depth
16.00 in
407.00 mm

Engine

Gross Power - ISO 14396
57.90 HP
43.20 kW

Dimensions - Long Stick

Stick Length
86.90 in
2208.00 mm

Engine

Rated Net Power - 2,400 rpm - ISO 9249/EEC 80/1269
55.90 HP
41.70 kW

Dimensions - Standard Stick

Dig Depth
161.40 in
4100.00 mm

Travel System

Travel Speed - Low
1.90 mile/h
3.10 km/h

Dimensions - Long Stick

Tail Swing with Counterweight
76.00 in
1930.00 mm
Maximum Reach
267.90 in
6805.00 mm

Hydraulic System

Auxiliary Circuit - Primary - Flow
35.00 gal/min
131.00 l/min

Engine

Bore
3.40 in
87.00 mm

Dimensions - Long Stick

Ground Clearance
14.60 in
370.00 mm

Weights

Minimum Operating Weight with Cab*
16549.00 lb
7505.00 kg

Weight Increase from Minimum Configuration

Counterweight
552.00 lb
250.00 kg

Dimensions - Long Stick

Swing Bearing - Height
29.70 in
756.00 mm

Dimensions - Standard Stick

O/A Shipping Length
242.00 in
6144.00 mm
Maximum Dump Clearance
208.60 in
5300.00 mm

Hydraulic System

Auxiliary Circuit - Secondary - Flow
9.00 gal/min
33.00 l/min

Engine

Stroke
4.00 in
102.40 mm

Hydraulic System

Digging Force - Stick - Long
7579.00 lb
33.70 kN

Sound

Average Exterior Sound Pressure (ISO 6395:2008)
98.00 dB(A)
98.00 dB(A)

Dimensions - Long Stick

O/A Shipping Length
246.00 in
6257.00 mm

Sound

Note
European Union Directive “2000/14/EC”

Travel System

Gradeability - Maximum
30 degrees

Dimensions - Standard Stick

Cab Height
100.00 in
2541.00 mm

Dimensions - Long Stick

Tail Swing without Counterweight
70.90 in
1800.00 mm
Maximum Dig Height
305.70 in
7765.00 mm
Maximum Blade Depth
16.00 in
407.00 mm

Hydraulic System

Digging Force - Bucket
12272.00 lb
54.60 kN

Weight Increase from Minimum Configuration

Steel Tracks with Pads
628.00 lb
285.00 kg

Certification - Cab

Roll Over Protective Structure (ROPS)
ISO 12117-2:2008

Weights

Note (1)
*Minimum Weight is based on steel tracks, no counterweight, operator, full fuel tank, standard stick, blade and no bucket.

Certification - Cab

Top Guard
ISO 10262:1998 (Level I)

Travel System

Ground Pressure - Minimum Weight
5.10 psi
34.80 kPa

Dimensions - Long Stick

Maximum Reach - Ground Level
262.60 in
6670.00 mm

Certification - Cab

Tip Over Protective Structure (TOPS)
ISO 12117:1997

Dimensions - Standard Stick

Maximum Dig Height
289.30 in
7348.00 mm

Engine

Gross Power - SAE J1995
57.90 hp
43.20 kW
Rated Net Power - 2,400 rpm - U.S. EPA Tier 4 Final/EU Stage V - ISO 9249/EEC 80/1269
54.80 hp
40.90 kW

Hydraulic System

Note
Flow and pressure are not combinable. Under load, as flow rises pressure goes down.
Maximum Auxiliary Circuit - Secondary - Flow at Pump
9.00 gal/min
33.00 l/min
Maximum Auxiliary Circuit - Secondary - Pressure at Pump
4134.00 psi
285.00 bar
Maximum Auxiliary Circuit - Primary - Flow at Pump
35.00 gal/min
131.00 l/min
Maximum Auxiliary Circuit - Primary - Pressure at Pump
4134.00 psi
285.00 bar

Air Conditioning System

Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains .90 kg of refrigerant which has a CO2 equivalent of 1.287 metric tonnes.

Dimensions - Standard Stick

Height - Boom Working - With Tools
107.50 in
2730.00 mm
Overall Shipping Length - with Counterweight
245.30 in
6230.00 mm
Note (2)
Boom Height when stick is pinned in working position with attachments. Standard Stick offers only one pin position.
Overall Shipping Length - without Counterweight
240.20 in
6100.00 mm
Height - Boom Transport - No Tools
101.20 in
2570.00 mm
Note (1)
Boom Height when stick is pinned in transport position with no attachments.

Dimensions - Long Stick

Height - Boom Transport - No Tools
100.40 in
2550.00 mm
Overall Shipping Length - without Counterweight
240.90 in
6120.00 mm
Overall Shipping Length - with Counterweight
246.10 in
6250.00 mm
Note (1)
Boom Height when stick is pinned in transport position with no attachments.
Height - Boom Working - With Tools
124.00 in
3150.00 mm
Note (2)
Boom Height when stick is pinned in working position with attachments.

Sustainability

Recyclability
96%
Features

ALL DAY COMFORT

  • A sealed and pressurized cab is equipped with an improved air conditioning system, adjustable wrist rests and a suspension seat to help keep you working comfortably all day long.

EASY TO OPERATE

  • Controls are easy to use and the intuitive Next Generation Monitor provides customizable machine operator preferences and easy to read machine information.

STICK STEER TRAVEL MODE

  • Moving around the job site is even easier with Cat Stick Steer. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!

BIG PERFORMANCE IN A MINI DESIGN

  • Increased lifting, swinging, travel and multi-functioning performance helps you get the job done more efficiently, and blade float allows for easy grading.

SAFETY ON THE JOB SITE

  • Your safety is our top priority. The Cat Mini Excavator is designed to help keep you safe on the job. A back-up camera, courtesy work lights and a fluorescent retractable seat belt are just a few of the safety features we’ve built into the machine.

SIMPLE SERVICE FOR LESS DOWNTIME

  • Maintenance is quick and easy on the Cat Mini Excavator. Routine check points are easy to access at ground level with grouped service points and robust service panels.

LOWER OPERATING COSTS

  • Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat Mini Excavator was designed with reducing your operating costs in mind.

UNMATCHED DEALER SUPPORT

  • Your Cat dealer is here to help you reach your business goals. From providing equipment solutions to operator training to service needs and beyond, your Cat dealer is ready to help.

SUSTAINABILITY

  • The Cat® C2.4 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
  • Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
  • Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
  • Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
  • Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
  • The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
  • Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
  • Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
  • Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)
  • Cat Grade with advanced 2D and 3D technologies combine advanced guidance with optional automated machine control helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy. (if equipped).
*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)
Standard Equipment
  • ENGINE
    • Cat C2.4 Diesel Engine (U.S. EPA Tier 4 Final/EU Stage V) – Electronic Engine, Turbo, Diesel Particulate Filter (DPF)
    • Automatic Engine Idle
    • Automatic Engine Shutdown
    • Automatic Swing Brake
    • Automatic Two Speed Travel
    • Fuel Water Separator with Indicator
    • Radial Seal – Double Element Air Filter
    • Extended Life Coolant, –37° C ( –37° F)
  • HYDRAULICS
    • Smart Tech Electronic Pump
    • Variable Displacement Piston Pump
    • Load Sensing/Flow Sharing Hydraulics
    • Power On Demand
    • Hydraulic Temperature Monitoring
    • Certified Accumulator
    • HYDO Advanced Hydraulic Oil
  • OPERATOR ENVIRONMENT
    • Top Guard ISO 10262 1998 Level I
    • ROPS ISO 12117-2:2008
    • Stick Steer Mode
    • Travel Cruise Control
    • Control Pattern Changer
    • Adjustable Wrist Rests
    • Molded Footrests
    • Removable, Washable Floor Mat
    • Travel Pedals and Hand Levers
    • Cat Key with Passcode Option
    • HVAC with Automatic Temperature Control
    • Hydraulic Lockout Controls
    • Integrated Lower Front Window
    • Assisted Front Window Overhead Storage
    • Rear Window Emergency Exit
    • Fabric, High Back, Suspension Seat
    • Retractable Seat Belt (75 mm/3 in)
    • Coat Hook
    • Cup Holder
    • LED Interior Light
    • Literature Holder
    • Mounting Bosses for Top and Front Guards
    • 12V Power Socket
    • Radio – Bluetooth®, Auxiliary, Microphone, USB (charging only)
    • Skylight
    • Signaling/Warning Horn
    • Cab and (left side) Boom Work Lights
    • Utility Space for Mobile Phone
    • Next Generation Color LCD Monitor (IP66)
      – Jog Dial Interface (cab machines only)
      – Fuel Level and Coolant Temperature Gauges
      – Maintenance and Machine Monitoring
      – Performance and Machine Adjustments
      – Numeric Security Code
      – Multiple Languages
      – Camera Ready (IP68 & IP69K)
      – Hour Meter with Wake Up Switch
  • UNDERCARRIAGE
    • Greased and Lubricated Track
    • Tie Down Eyes on Track Frame

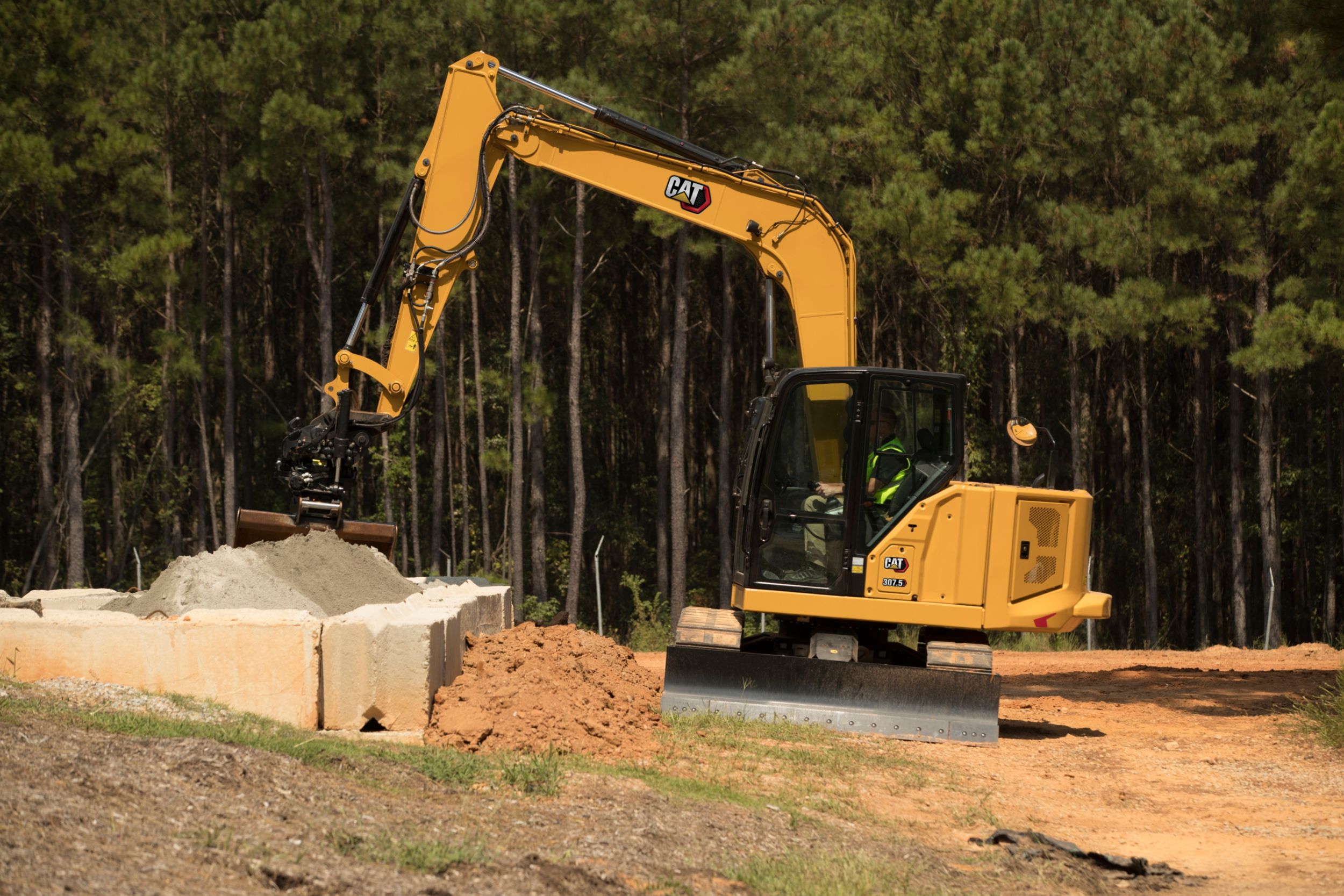

    • Dozer Straight Blade
    • Dozer Float
    • Bolt-on, Reversible Wear Edge
  • BOOM, STICK AND LINKAGES
    • One Piece Boom (3700 mm/145.7 in)
    • Standard Stick (1665 mm/65.6 in)
    • Front Shovel Capable – Pin-on/Manual Coupler/Hydraulic Coupler for Cat Tools
    • Thumb Ready (not available in all regions)
    • Certified Lifting Eye (optional in some regions)
  • ELECTRICAL
    • 12 Volt Electrical System
    • 90 Ampere Alternator
    • 900 CCA Maintenance Free Battery
    • Battery Disconnect
    • Ignition Key Stop Switch
    • Product Link™ Basic (regulations apply)
    • Travel Alarm
  • OTHER
    • Locks on External Enclosure Doors
    • Lockable Fuel Cap
    • Beacon Socket
    • Rear Reflectors
Optional Equipment
  • OPERATOR ENVIRONMENT
    • Air Suspension Heated Seat
    • Rain Visor
    • Next Generation Advanced Monitor (below are all included with Next Generation Advanced Monitor option)
      – Jog Dial Control Interface
      – Touch Screen
      – Site Reference System
      – High Definition Camera Capable (IP68 & IP69K)
      – Numeric Security Code
  • UNDERCARRIAGE
    • Steel Tracks (450 mm/17.7 in wide)
    • Wide Steel Tracks (600 mm/23.6 in)
    • Steel Track with Rubber Pads
    • Track Guides
  • BOOM, STICK AND LINKAGES
    • Long Stick (2200 mm/86.6 in)

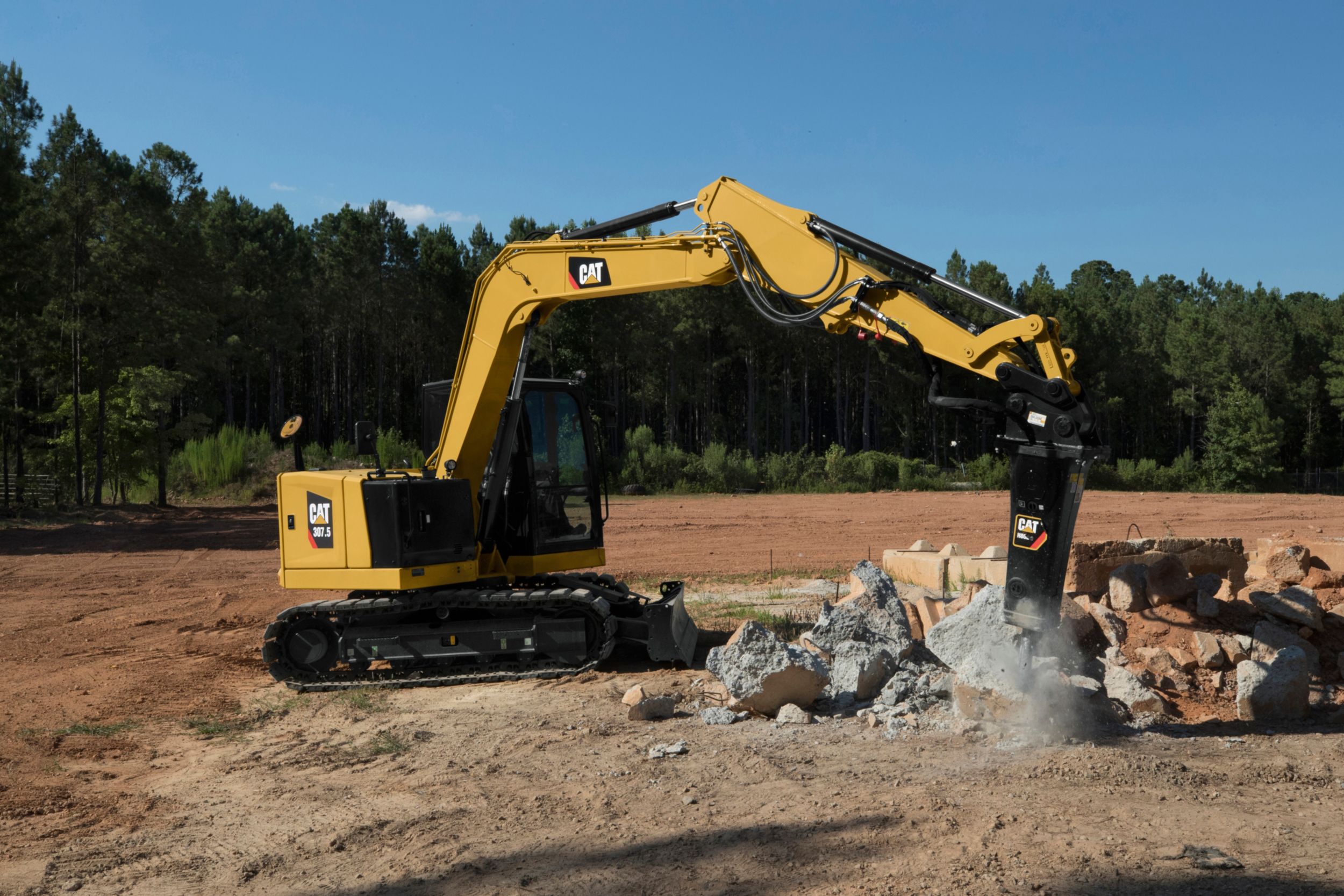

    • Attachments including Buckets, Augers and Hammers
    • 2nd Auxiliary Hydraulic Lines
    • Boom Lowering Check Valve
    • Stick Lowering Check Valve
    • Bucket Linkage with Lift Eye
  • ELECTRICAL
    • Product Link Elite (regulations apply)
    • Rearview Camera
    • Rotating Beacon
  • GUARDING
    • Heavy Duty Front Guard ISO 10262 1998 Level II
    • Mesh Front Guard ISO 10262 1998 Level I
    • Overhead Cab Guard ISO 10262 1998 Level II
    • Polycarbonate Front Window EN356 P5A (Cab Only)
    • Track Guards
  • OTHER
    • Water Jacket Heater
    • Refueling Pump
