Overview

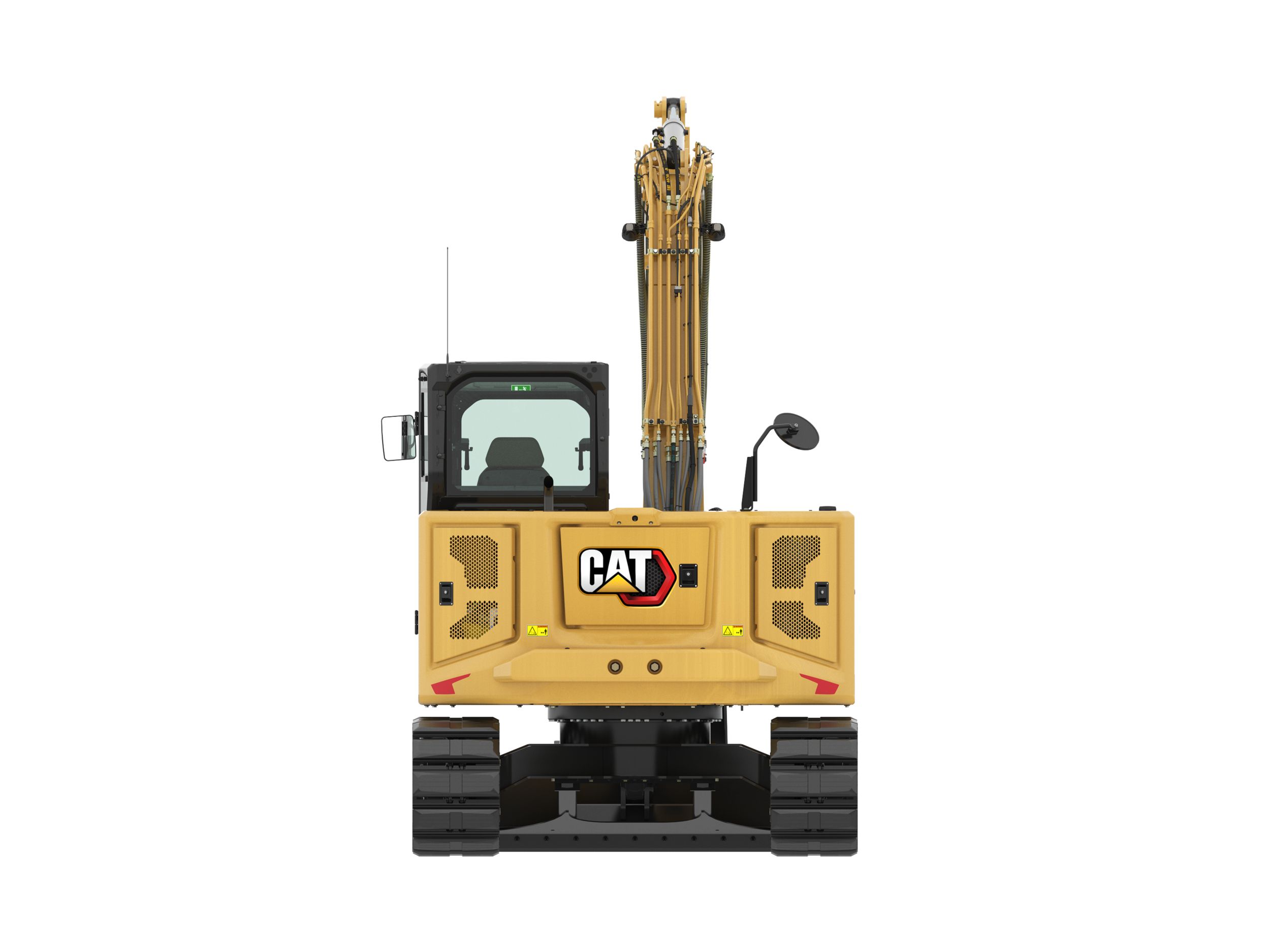

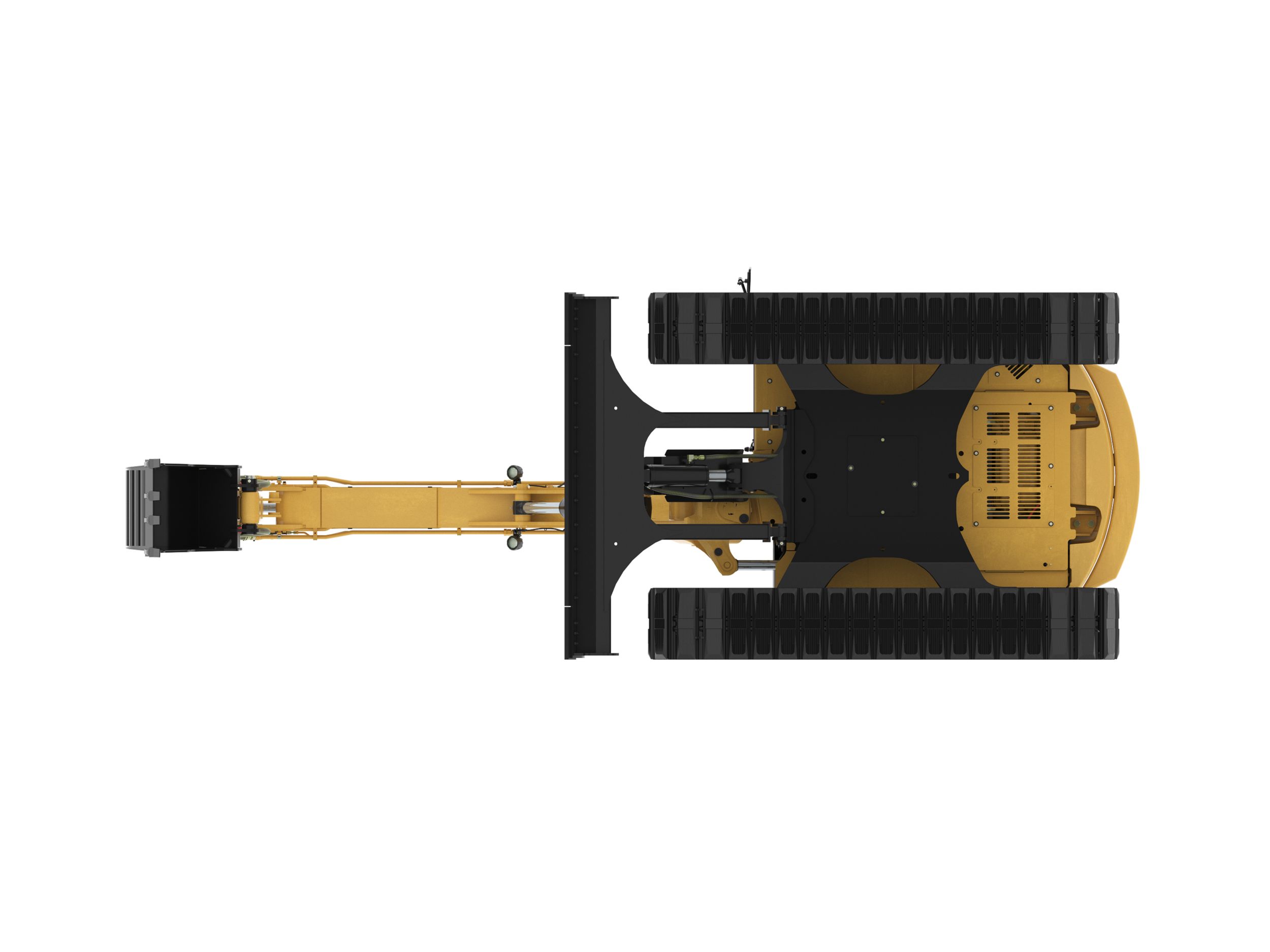

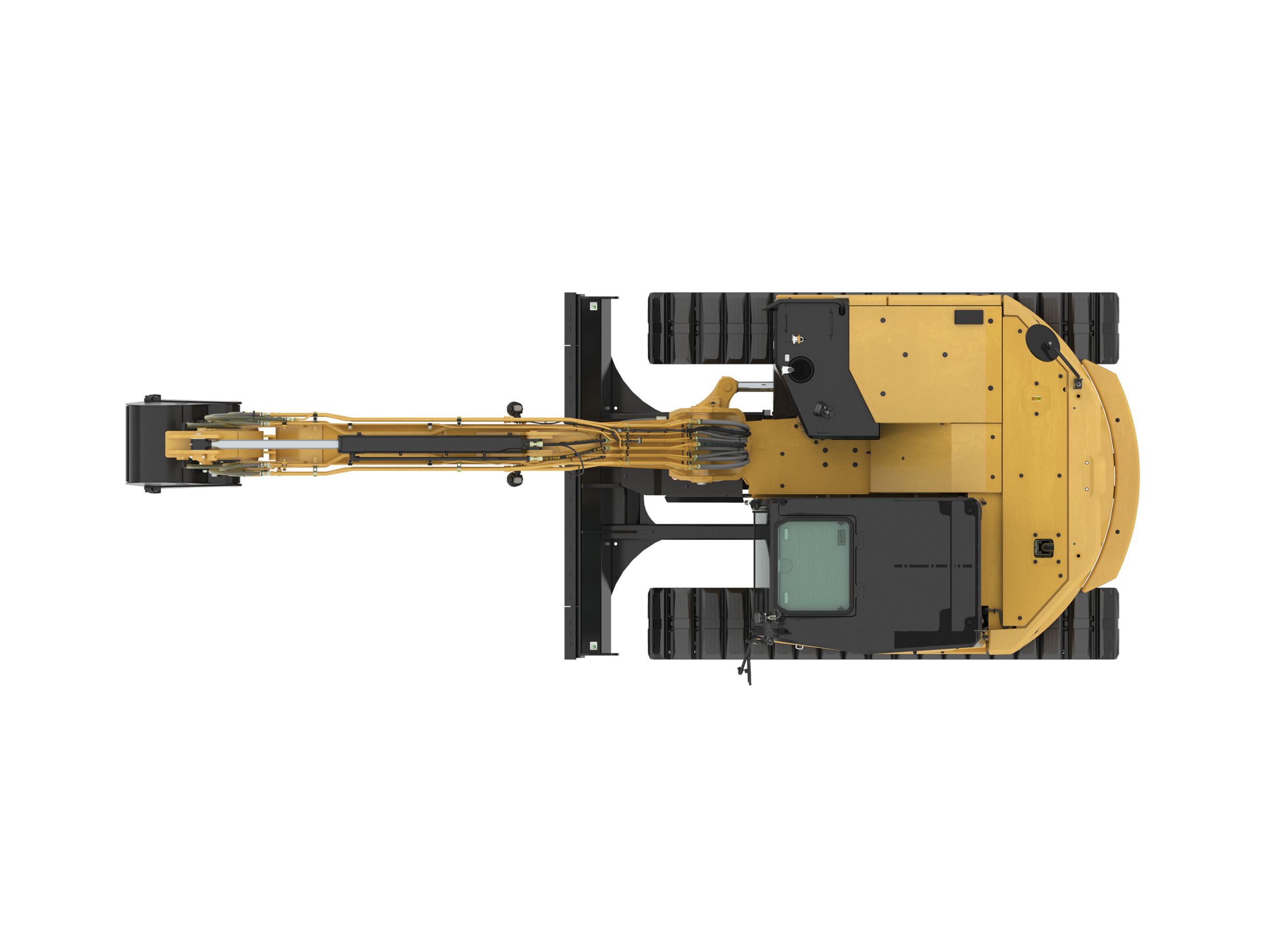

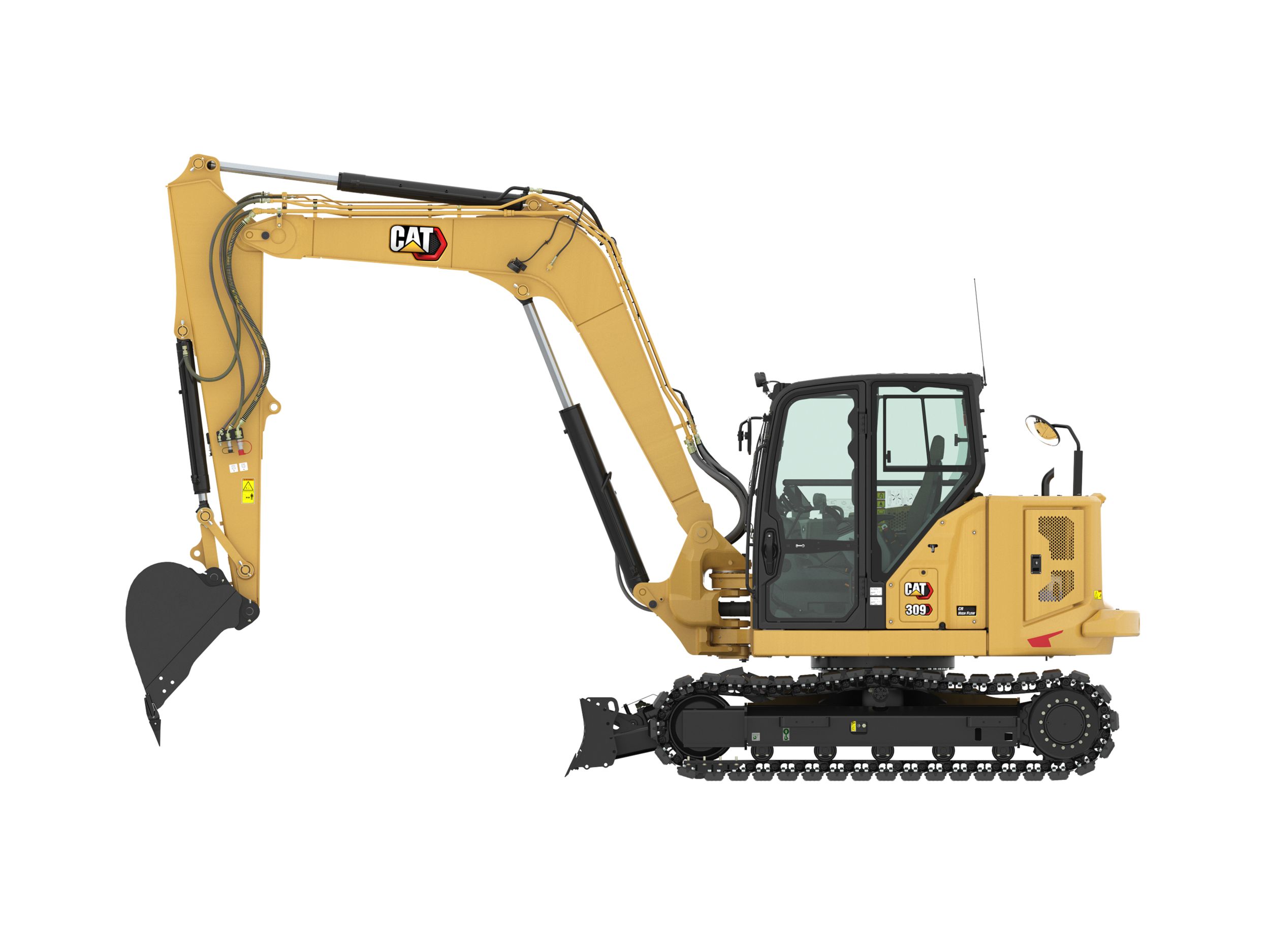

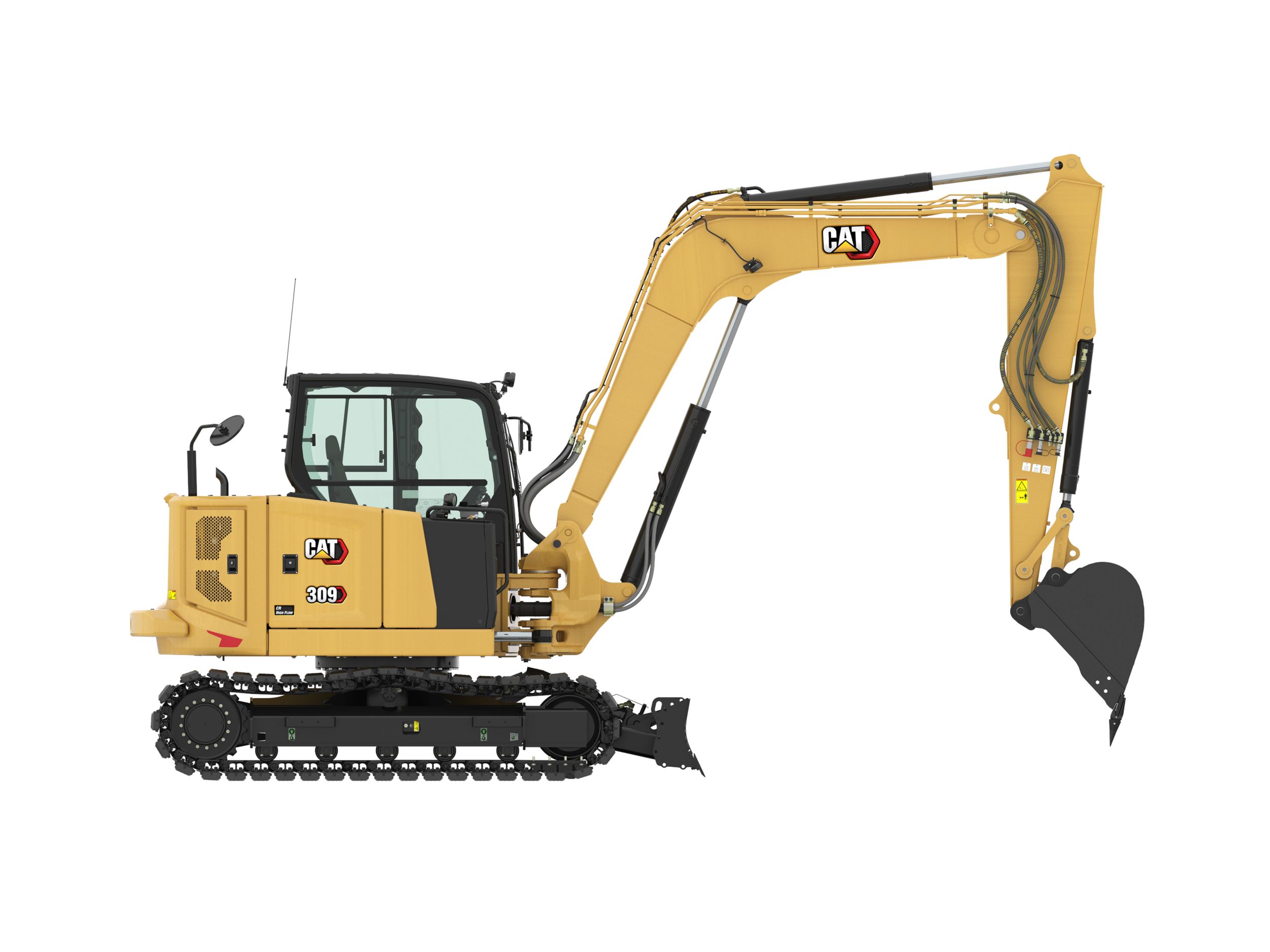

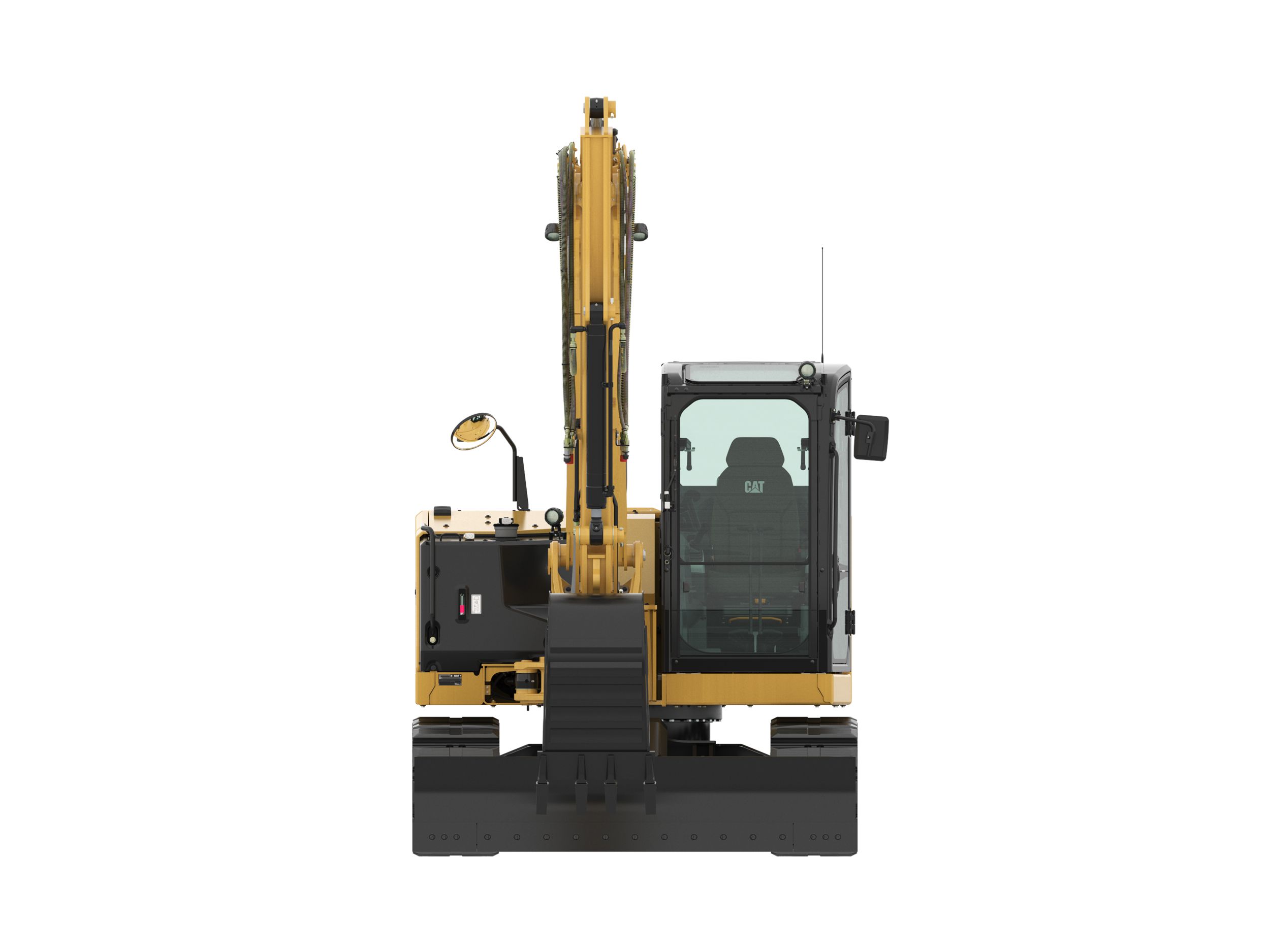

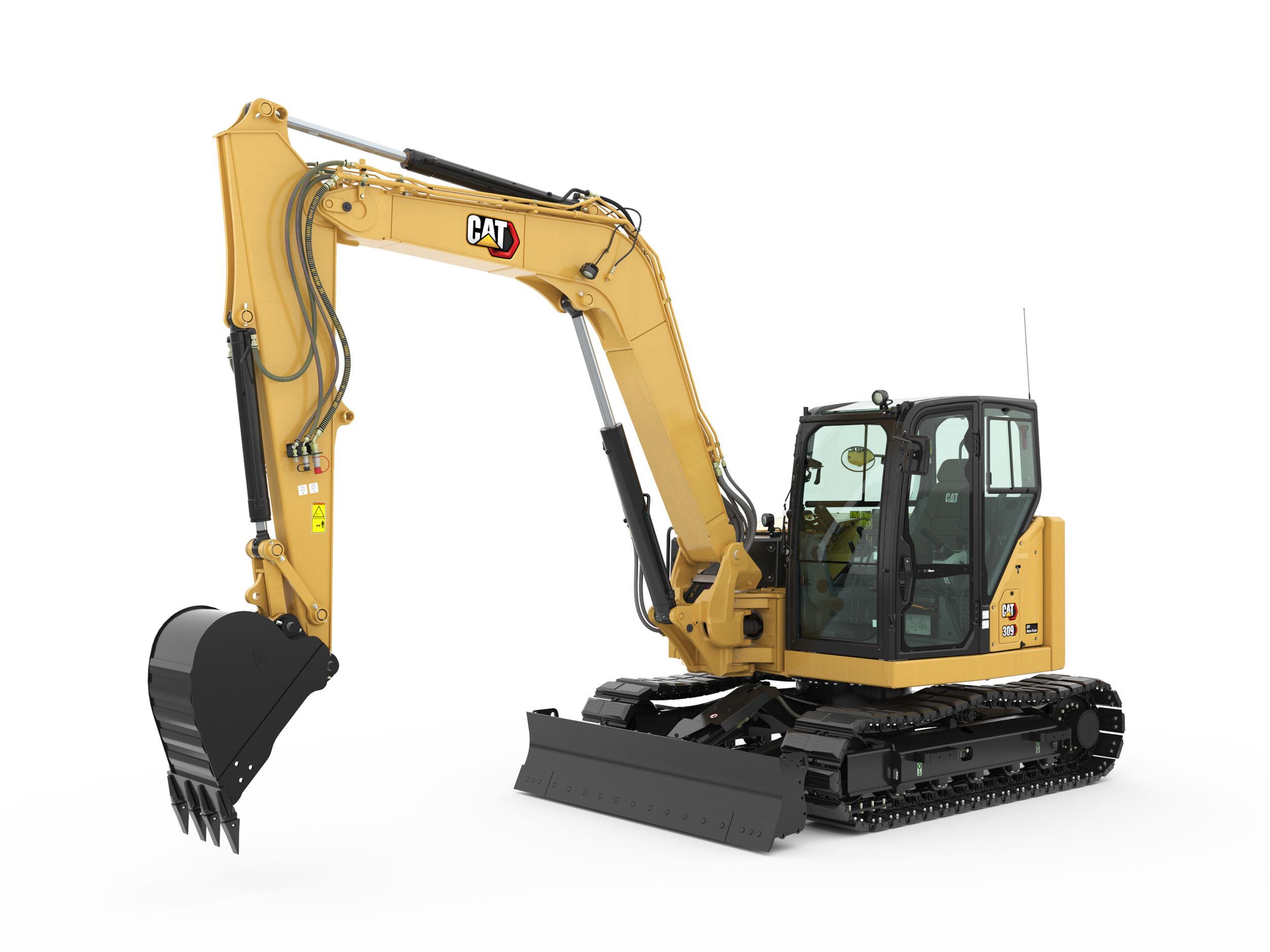

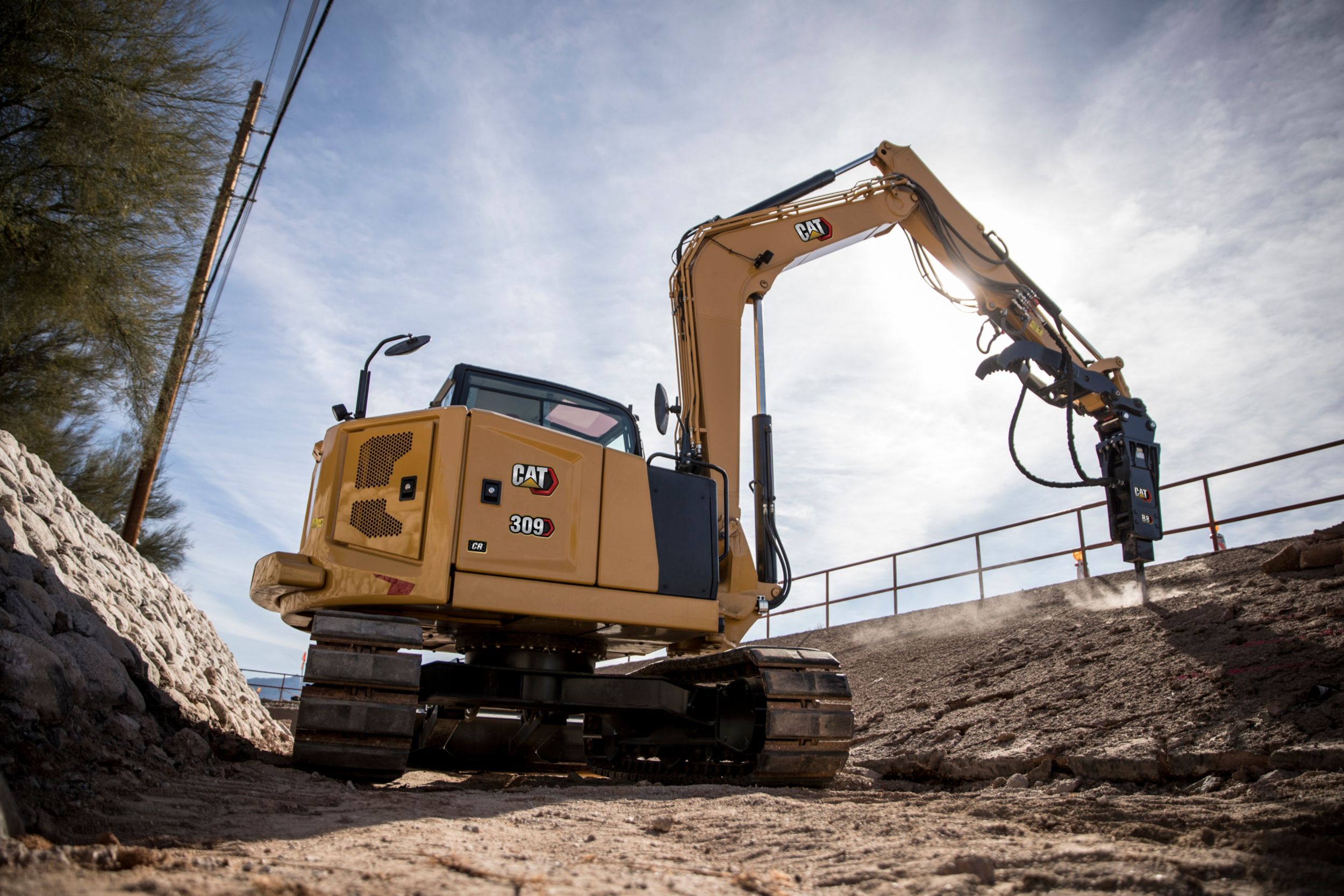

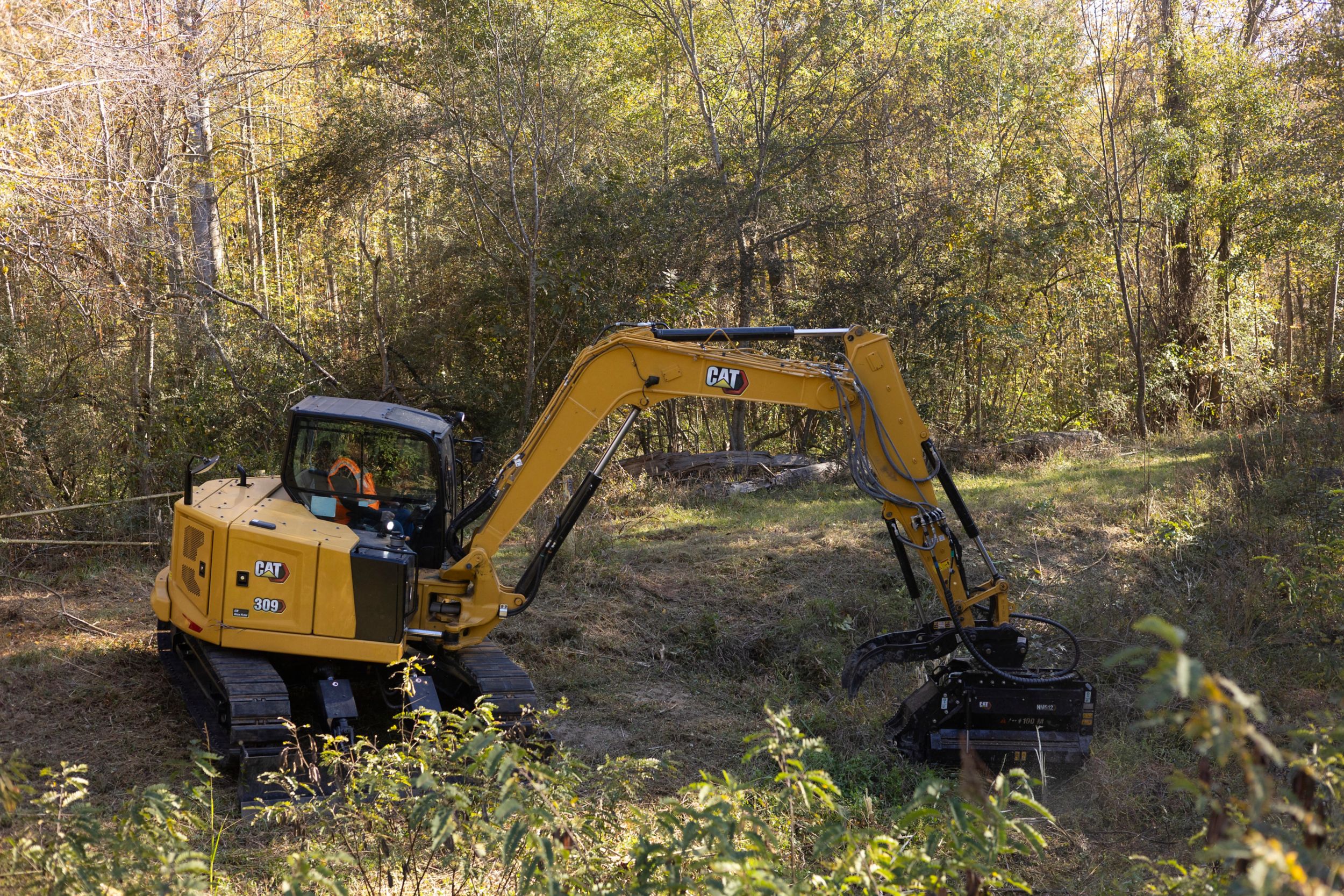

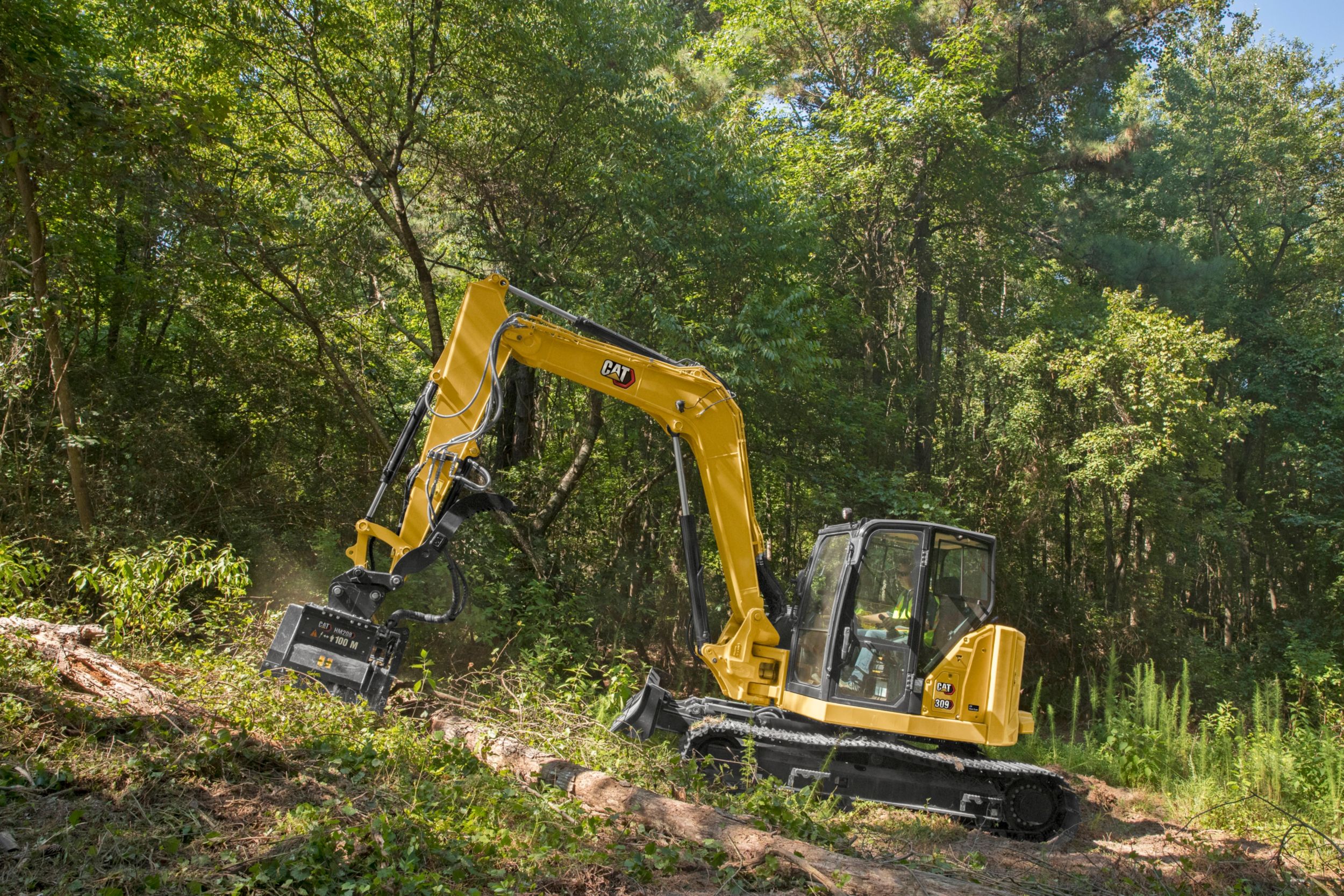

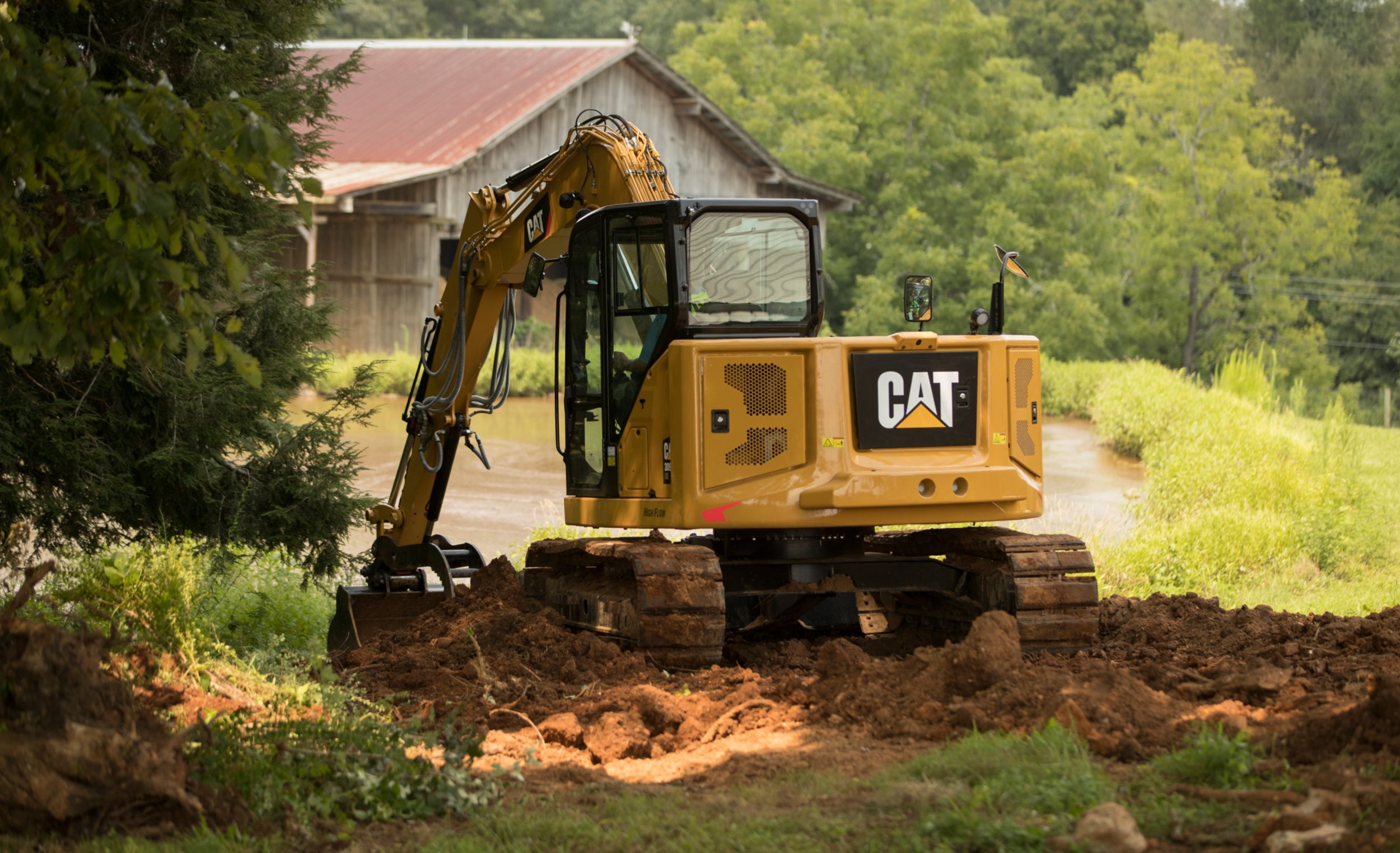

The Cat® 309 CR Mini Excavator delivers maximum power and performance in a mini size to help you work in a wide range of applications.

Engine

Net Power
69.00 hp
51.20 kW
Engine Model
Cat® C2.8 Turbo
Net Power - 2,200 rpm - ISO 9249:2007, 80/1269/EEC
69.00 hp
51.20 kW
Gross Power - ISO 14396
55.40 kW
74.30 hp
Bore
3.50 in
90.00 mm
Stroke
4.30 in
110.00 mm
Displacement
171.00 in³
2.80 l
Note
Meets U.S. EPA Tier 4 Final and EU Stage V emissions standards.
Note (1)
Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)
Net power advertised is the power available at the flywheel when the engine is at the rated speed of 2,400 rpm and the engine is installed with the factory configured fan, air intake system, exhaust system and alternator with a minimum alternator load.

Weights

Operating Weight
20870.00 lb
9465.00 kg
Minimum Operating Weight with Cab*
18886.00 lb
8565.00 kg
Maximum Operating Weight with Cab**
20870.00 lb
9465.00 kg
Note (1)
*Minimum Weight is based on steel tracks, no counterweight, operator, full fuel tank, standard stick, blade and no bucket.
Note (2)
**Maximum Weight is based on steel tracks with rubber pads, counterweight, operator, full fuel tank, long stick, blade and no bucket.

Weight Increase from Minimum Configuration

Counterweight
552.00 lb
250.00 kg
Long Stick
146.00 lb
66.00 kg
Steel Tracks with Pads
728.00 lb
330.00 kg

Travel System

Travel Speed - High
3.10 mile/h
4.90 km/h
Travel Speed - Low
1.60 mile/h
2.60 km/h
Maximum Traction Force - High Speed
6497.00 lb
28.90 kN
Maximum Traction Force - Low Speed
19064.00 lb
84.80 kN
Ground Pressure - Minimum Weight
5.40 psi
37.50 kPa
Ground Pressure - Maximum Weight
6.00 psi
41.40 kPa
Gradeability - Maximum
30 degrees

Service Refill Capacities

Cooling System
2.60 gal (US)
10.00 l
Engine Oil
2.30 gal (US)
8.80 l
Fuel Tank
39.00 gal (US)
147.00 l
Hydraulic Tank
14.00 gal (US)
53.00 l
Hydraulic System
29.00 gal (US)
110.00 l

Hydraulic System

Type
Load Sensing Hydraulics with Variable Displacement Piston Pump
Pump Flow at 2,400 rpm
62.00 gpm
233.00 L/min
Operating Pressure - Equipment
4134.00 psi
285.00 bar
Operating Pressure - Travel
4134.00 psi
285.00 bar
Operating Pressure - Swing
3626.00 psi
250.00 bar
Maximum Auxiliary Circuit - Primary - Flow at Pump
35.00 gpm
131.00 L/min
Maximum Auxiliary Circuit - Primary - Pressure at Pump
4134.00 psi
285.00 bar
Maximum Auxiliary Circuit - High Flow - Flow at Pump
37.00 gpm
140.00 L/min
Maximum Auxiliary Circuit - High Flow - Pressure at Pump
4134.00 lbf/in
285.00 bar
Digging Force - Stick - Standard
9500.00 lb
42.30 kN
Digging Force - Stick - Long
8023.00 lb
35.70 kN
Digging Force - Bucket
13943.00 lb
62.00 kN
Note
Flow and pressure are not combinable. Under load, as flow rises pressure goes down.

Swing System

Machine Swing Speed
10.00 r/min
10.00 r/min
Boom Swing - Left
60 degrees
Boom Swing - Right
50 degrees

Blade

Width - Standard
97.00 in
2470.00 mm
Width - Wide
104.00 in
2640.00 mm
Height
17.00 in
431.00 mm

Certification - Cab

Roll Over Protective Structure (ROPS)
ISO 12117-2:2008
Top Guard
ISO 10262:1998 (Level I)

Dimensions - Standard Stick

Dig Depth
161.70 in
4108.00 mm
Vertical Wall
117.80 in
2991.00 mm
Maximum Reach - Ground Level
273.60 in
6949.00 mm
Maximum Reach
281.10 in
7141.00 mm
Maximum Dig Height
265.20 in
6736.00 mm
Maximum Dump Clearance
187.40 in
4760.00 mm
Boom In Reach
120.40 in
3059.00 mm
Tail Swing with Counterweight
62.40 in
1585.00 mm
Tail Swing without Counterweight
57.10 in
1450.00 mm
Maximum Blade Height
16.10 in
408.00 mm
Maximum Blade Depth
26.00 in
671.00 mm
Height - Boom Transport - No Tools*
95.70 in
2430.00 mm
Height - Boom Working - With Tools**
104.70 in
2660.00 mm
Cab Height
100.00 in
2541.00 mm
Swing Bearing - Height
29.70 in
756.00 mm
O/A Undercarriage Length
126.00 in
3200.00 mm
Overall Shipping Length - with Counterweight
266.70 in
6774.00 mm
Overall Shipping Length - without Counterweight
266.70 in
6774.00 mm
Track Belt/Shoe Width
17.70 in
450.00 mm
O/A Track Width
97.20 in
2470.00 mm
Ground Clearance
14.00 in
356.00 mm
Stick Length
71.80 in
1820.00 mm
Note
*Boom Height when stick is pinned in transport position with no attachments.
Note (1)
**Boom Height when stick is pinned in working position with attachments Standard Stick offers only one pin position.
Note (2)
***With blade positioned at the rear of the machine.

Dimensions - Long Stick

Dig Depth
182.80 in
4642.00 mm
Vertical Wall
134.00 in
3404.00 mm
Maximum Reach - Ground Level
293.70 in
7460.00 mm
Maximum Reach
300.70 in
7637.00 mm
Maximum Dig Height
277.10 in
7039.00 mm
Maximum Dump Clearance
199.70 in
5072.00 mm
Boom In Reach
126.60 in
3215.00 mm
Tail Swing with Counterweight
62.40 in
1585.00 mm
Tail Swing without Counterweight
57.10 in
1450.00 mm
Maximum Blade Height
16.10 in
408.00 mm
Maximum Blade Depth
26.00 in
671.00 mm
Height - Boom Transport - No Tools*
89.00 in
2260.00 mm
Height - Boom Working - With Tools**
120.10 in
3050.00 mm
Cab Height
100.00 in
2541.00 mm
Swing Bearing - Height
29.70 in
756.00 mm
O/A Undercarriage Length
126.00 in
3200.00 mm
Overall Shipping Length - with Counterweight
7052 mm (277.6 in)***
Overall Shipping Length - without Counterweight
7052 mm (277.6 in)***
Track Belt/Shoe Width
17.70 in
450.00 mm
O/A Track Width
97.20 in
2470.00 mm
Ground Clearance
14.00 in
356.00 mm
Stick Length
92.80 in
2358.00 mm
Note
*Boom Height when stick is pinned in transport position with no attachments.
Note (1)
**Boom Height when stick is pinned in working position with attachments Standard Stick offers only one pin position.
Note (2)
***With blade positioned at the rear of the machine.

Air Conditioning System

Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf (Europe) (Global Warming Potential = 1430). See label or instruction manual for gas refrigerant identification. The system contains 0.75 kg (1.65 lb), 0.90 kg (1.98 lb) or 1.0 kg (2.20 lb) of refrigerant which has a CO2 equivalent of 1.430 metric tonnes (1.576 tons) for R134a and 0.001 tonnes (0.001 tons) for R1234yf (Europe).

Sound

Operator Sound Pressure (ISO 6396:2008)
72.00 dB(A)
72.00 dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)
99.00 dB(A)
99.00 dB(A)
Note
European Union Directive "2000/14/EC"

Sustainability

Recyclability
96%

Specifications

Note
The 309 CR specifications are based on a machine configured with a Long (L) Undercarriage.

Engine

Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC
69.00 hp
51.20 kW
Features

ALL DAY COMFORT

  • A sealed and pressurized cab is equipped with an improved air conditioning system, adjustable wrist rests and a suspension seat to help keep you working comfortably all day long.

EASY TO OPERATE

  • Controls are easy to use and the intuitive Next Generation Monitor provides customizable machine operator preferences and easy to read machine information.

STICK STEER TRAVEL MODE

  • Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!

BIG PERFORMANCE IN A MINI DESIGN

  • Increased lifting, swinging, travel and multi-functioning performance helps you get the job done more efficiently, blade float allows for easy clean up and long undercarriage provides improved stability.

HIGH FLOW

  • Dedicated auxiliary hydraulic pump is ideal for running power-hungry attachments while allowing the machine to simultaneously travel and multifunction. This feature allows consistent pressure to the auxiliary lines with no loss of hydraulic power keeping your attachment running at full power maintaining optimal productivity.

SAFETY ON THE JOB SITE

  • Your safety is our top priority. The Cat Mini Excavator is designed to help keep you safe on the job. A back-up camera, courtesy work lights and a fluorescent retractable seat belt are just a few of the safety features we’ve built into the machine.

SIMPLE SERVICE FOR LESS DOWNTIME

  • Maintenance is quick and easy on the Cat Mini Excavator. Routine check points are easy to access at ground level with grouped service points and robust service panels.

LOWER OPERATING COSTS

  • Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat Mini Excavator was designed with reducing your operating costs in mind.

UNMATCHED DEALER SUPPORT

  • Your Cat dealer is here to help you reach your business goals. From providing equipment solutions to operator training to service needs and beyond, your Cat dealer is ready to help.

SUSTAINABILITY


  • The Cat® C2.8 Turbo engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
  •
  • Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
  •
  • Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
  •
  • Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
  •
  • Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
  •
  • The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
  •
  • Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
  •
  • Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
  •
  • Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)
  •
  • Cat Grade with advanced 2D and 3D technologies combine advanced guidance with optional automated machine control helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy. (if equipped).
*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)
Standard Equipment
  • ENGINE
    • Cat C2.8 Diesel Engine (U.S. EPA Tier 4 Final/EU Stage V) – Electronic Engine, Turbo, Fit-For-Life Diesel Particulate Filter (DPF) and Diesel Oxidation Catalyst (DOC) Aftertreatment System
    • Automatic Engine Idle
    • Automatic Engine Shutdown
    • Automatic Swing Brake
    • Automatic Two Speed Travel
    • Fuel Water Separator with Indicator
    • Radial Seal – Double Element Air Filter
    • Extended Life Coolant, –37° C (–35° F)
  • HYDRAULICS
    • Electronic Variable Displacement Piston Pump
    • Load Sensing/Flow Sharing Hydraulics
    • Dedicated Auxiliary Hydraulic Pump
    • Power On Demand
    • Hydraulic Temperature Monitoring
    • Certified Accumulator
    • HYDO Advanced Hydraulic Oil
    • Ecology Drain
  • OPERATOR ENVIRONMENT
    • Top Guard ISO 10262:1998 (Level I)
    • ROPS ISO 12117-2:2008
    • Stick Steer Mode
    • Travel Cruise Control
    • Control Pattern Changer
    • Adjustable Wrist Rests
    • Molded Footrests
    • Removable, Washable Floor Mat
    • Travel Pedals and Hand Levers
    • Cat Key with Passcode Option
    • HVAC with Automatic Temperature Control
    • Hydraulic Lockout Controls
    • Integrated Lower Front Window
    • Assisted Front Window Overhead Storage
    • Rear Window Emergency Exit
    • Cab Mirrors (vary by region)
    • Fabric, High Back, Suspension Seat
    • Retractable Seat Belt (75 mm/3 in)
    • Coat Hook
    • Cup Holder
    • LED Interior Light
    • Literature Holder
    • Mounting Bosses for Top and Front Guards
    • 12V Power Socket
    • Radio – Bluetooth, Auxiliary, Microphone, USB (charging only)
    • Skylight
    • Signaling/Warning Horn
    • Cab and (left side) Boom Work Lights
    • Utility Space for Mobile Phone
    • Next Generation Color LCD Monitor (IP66)
      – Jog Dial Interface
      – Fuel Level and Coolant Temperature Gauges
      – Maintenance and Machine Monitoring
      – Performance and Machine Adjustments
      – Numeric Security Code
      – Multiple Languages
      – Camera Ready (IP68 & IP69K)
      – Hour Meter with Wake Up Switch
  • TECHNOLOGY (availability varies by region)
    • Product Link™ Elite (regulations apply)
  • UNDERCARRIAGE
    • Greased and Lubricated Track
    • Tie Down Eyes on Track Frame
    • Dozer Blade
    • Dozer Float
    • Bolt-on, Reversible Wear Edge
  • BOOM, STICK AND LINKAGES
    • One Piece Boom (3400 mm/133.9 in)
    • Standard Stick (1820 mm/71.7 in)
    • Front Shovel Capable – Pin-on/Manual Coupler/Hydraulic Coupler (not available in all regions)
    • Thumb Ready (not available in all regions)
  • ELECTRICAL
    • 12 Volt Electrical System
    • 60 Ampere Alternator
    • Circuit Breaker
    • 900 CCA Maintenance Free Battery
    • Lock Out/Tag Out Battery Disconnect
    • Ignition Key Stop Switch
    • Travel Alarm
  • GUARDING
    • ROPS ISO 12117-2:2008
    • Top Guard ISO 10262:1998 (Level I)
  • OTHER
    • Locks on External Enclosure Doors
    • Lockable Fuel Cap
    • Beacon Socket
    • Rear Reflectors
Optional Equipment
  • HYDRAULICS
    • Third Auxiliary
  • OPERATOR ENVIRONMENT
    • Push to Start with Bluetooth® Key
    • Air Suspension Heated Seat
    • Seat Belt Reminder System
    • Rain Visor
    • Next Generation Advanced Monitor (below are all included with Next Generation Advanced Monitor option)
      – Touch Screen
      – Site Reference System
      – High Definition Camera Capable (IP68 & IP69K)
      – Numeric Security Code
  • TECHNOLOGY (availability varies by region)
    • Ease of Use Indicate
    • Ease of Use E-Fence
    • Ease of Use Laser Catcher
    • Cat Grade Advanced 2D
    • Cat Grade 3D
  • UNDERCARRIAGE
    • Wide Dozer Blade
    • Steel Tracks (450 mm/17.7 in wide)
    • Wide Steel Tracks (600 mm/23.6 in)
    • Steel Track with Rubber Pads
    • Track Guides
  • BOOM, STICK AND LINKAGES
    • Long Stick (2360 mm/92.9 in)
    • Attachments including Buckets, Augers and Hammers
    • 2nd Auxiliary Hydraulic Lines with Case Drain
    • Boom Lowering Check Valve
    • Stick Lowering Check Valve
    • Certified Lifting Eye
  • ELECTRICAL
    • Rear and Side Camera
    • Rotating Beacon
  • GUARDING
    • Top Guard ISO 10262:1998 (Level II)
    • Front Guard (Mesh) ISO 10262:1998 (Level I)
    • Front Guard (Heavy Duty) ISO 10262:1998 (Level II)
    • Track Guards
  • OTHER
    • Counterweight (250 kg/551 lb)
    • Counterweight (500 kg/1103 lb)
    • Water Jacket Heater
    • Refueling Pump
    • Variable Angle Boom (refer to 309 CR VAB brochure for VAB specs and additional information)
