Overview

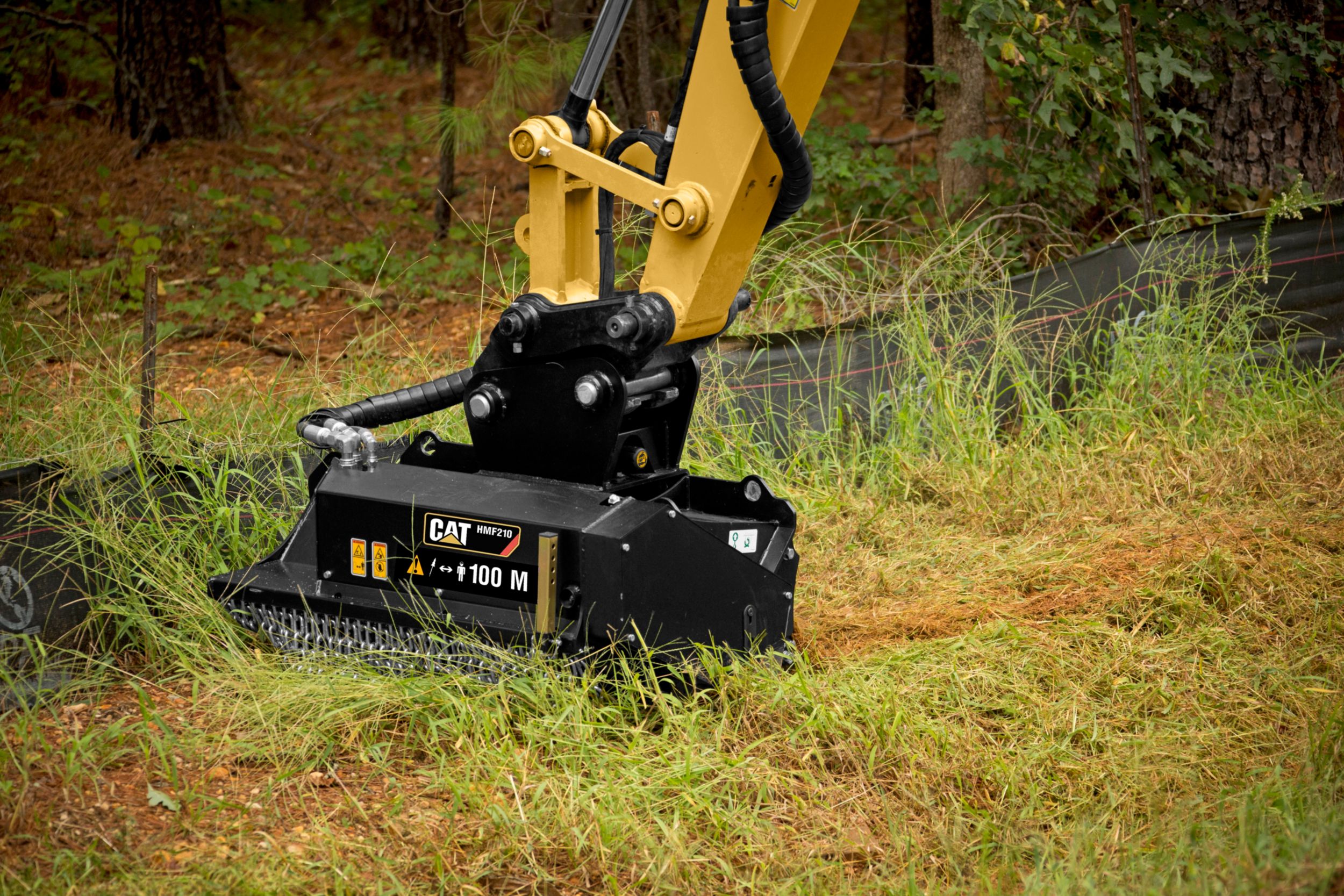

Cat® Flail Mowers for Mini Excavators are designed for high-performance cutting and mulching of vegetation and undergrowth from overgrown and forested terrain. Flail Mowers are ideal for environmental maintenance applications, such as mowing along ditches, fence rows and retention ponds and cleaning up high banks and slopes.
Working Width
39.40 in
1000.00 mm
Required Hydraulics
Standard Flow
Overall Width
46.60 in
1184.00 mm
Optimal Hydraulic Flow
70-130 L/min (18-34 gpm)
Maximum Cutting Diameter
50-75 mm (2-3 in)
Swinging Teeth per Drum
16
Length
33.10 in
842.00 mm
Overall Height
30.20 in
766.00 mm
Weight
844.40 lb
383.00 kg
Drive Method
V-Belt Drive
Motor
Axial Piston
Optimal Hydraulic Pressure
150-250 bar (2175-3626 psi)
Drum Speed
2560-2630 RPM
Features

Application

Flail Mowers are used for high performance cutting of vegetation, saplings and undergrowth from overgrown agricultural areas, retention ponds and forested terrain.

Piston Motor

Piston motor is used to improve operational efficiency of tool and flow is matched to ideal machine condition.

Balanced Drum

Mulching drum is weighted for maximum mulching performance and smooth operation. Staggered tooth design allows for only one tooth to contact material at all times for efficient cutting performance.

Cat® XTC Hydraulic Hoses

Quick disconnect hydraulic lines allow for easy tool swapping. Case drain line improves motor life and protects internal motor components.

Integrated Rear Roller

Integrated real roller keeps swinging teeth out of the dirt as it rolls flat with the ground, preventing excess wear and extending tooth life.

Bolt-On Replaceable Skid Shoes

Bolt-On replaceable skid shoes are reinforced and built to last, yet easily replaceable as needed.

Integrated Stand

Integrated stand eases access for attachment and removal. Allows mower to sit flat for storage.

Front Chain Guard

Front chain guard limits material thrown from tool and helps protect swinging teeth and drum.

Tool Mounted Operation and Maintenance Manual Holder

Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.
