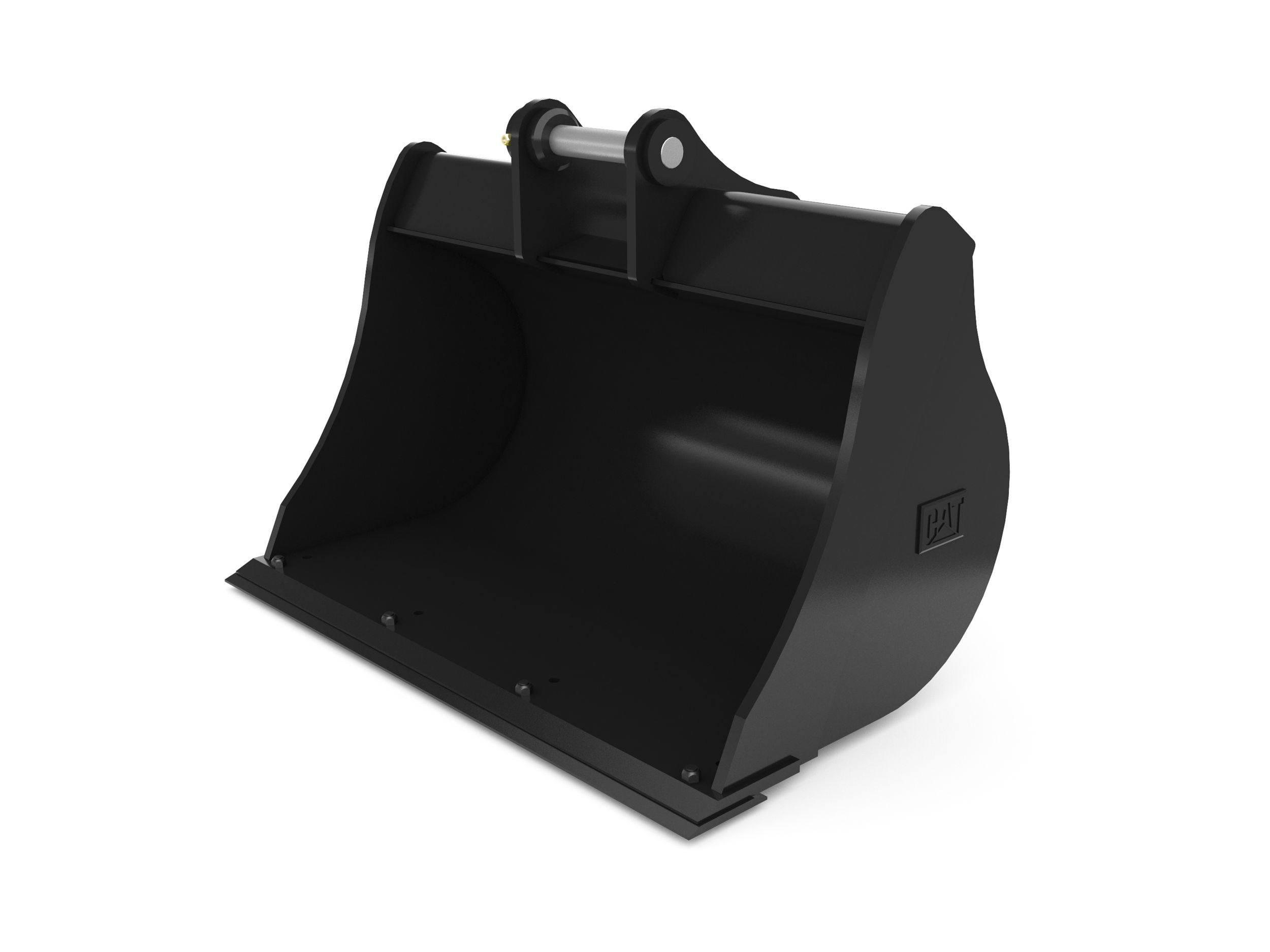

1200 mm (47 in) Grading Bucket

US
Metric

Overview

Grading Buckets for Cat® Mini Excavators are designed to provide optimum grading, trenching, slope-cutting and finishing work in addition to nesting additional buckets for ease of transportation.
Width
47.20 in
1200.00 mm
Rated Capacity
8.19 ft3
231.90 L
Weight
380.90 lb
172.80 kg
Base Edge Thickness
0.80 in
20.00 mm
Tip Radius
25.70 in
653.00 mm
Width
47.20 in
1200.00 mm
Rated Capacity
8.19 yd³
231.90 m³
Weight
380.90 lb
172.80 kg
Base Edge Thickness
0.80 in
20.00 mm
Tip Radius
25.70 in
653.00 mm
Capacity
8.19 ft³
231.90 l
Interface Type
Pin On
Features

Application

Designed for cleaning ditches, sloping, grading and other finishing work.

Bucket Nesting

Transport all buckets needed for a job within the Grading Bucket.

Bolt-on Cutting Edge

Allows for smooth finish in grading applications.

Lack of Drainage Holes

Retains material and water for waste removal and light material applications.

Included Pins

Pins come pre-installed with bucket.
