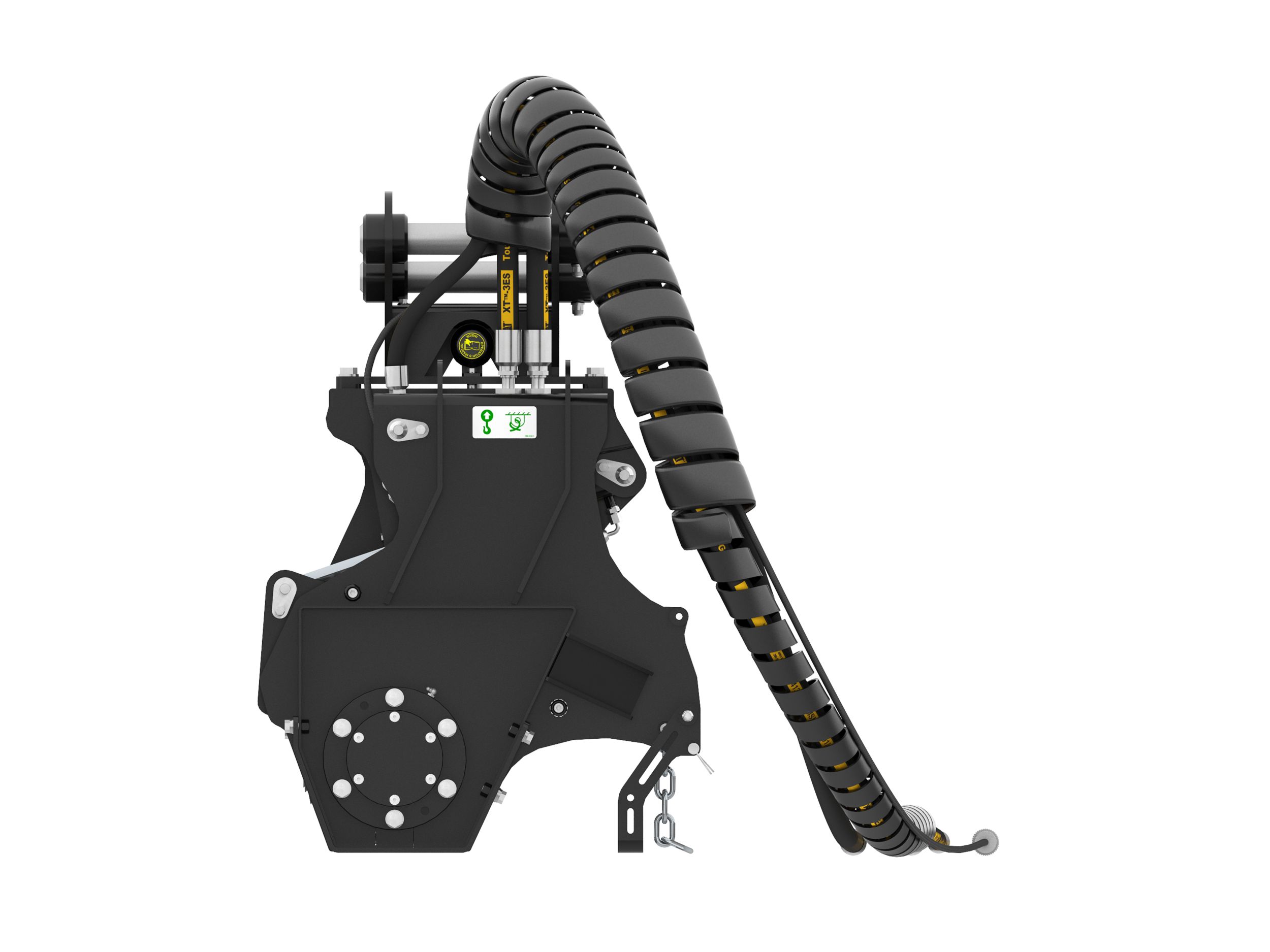

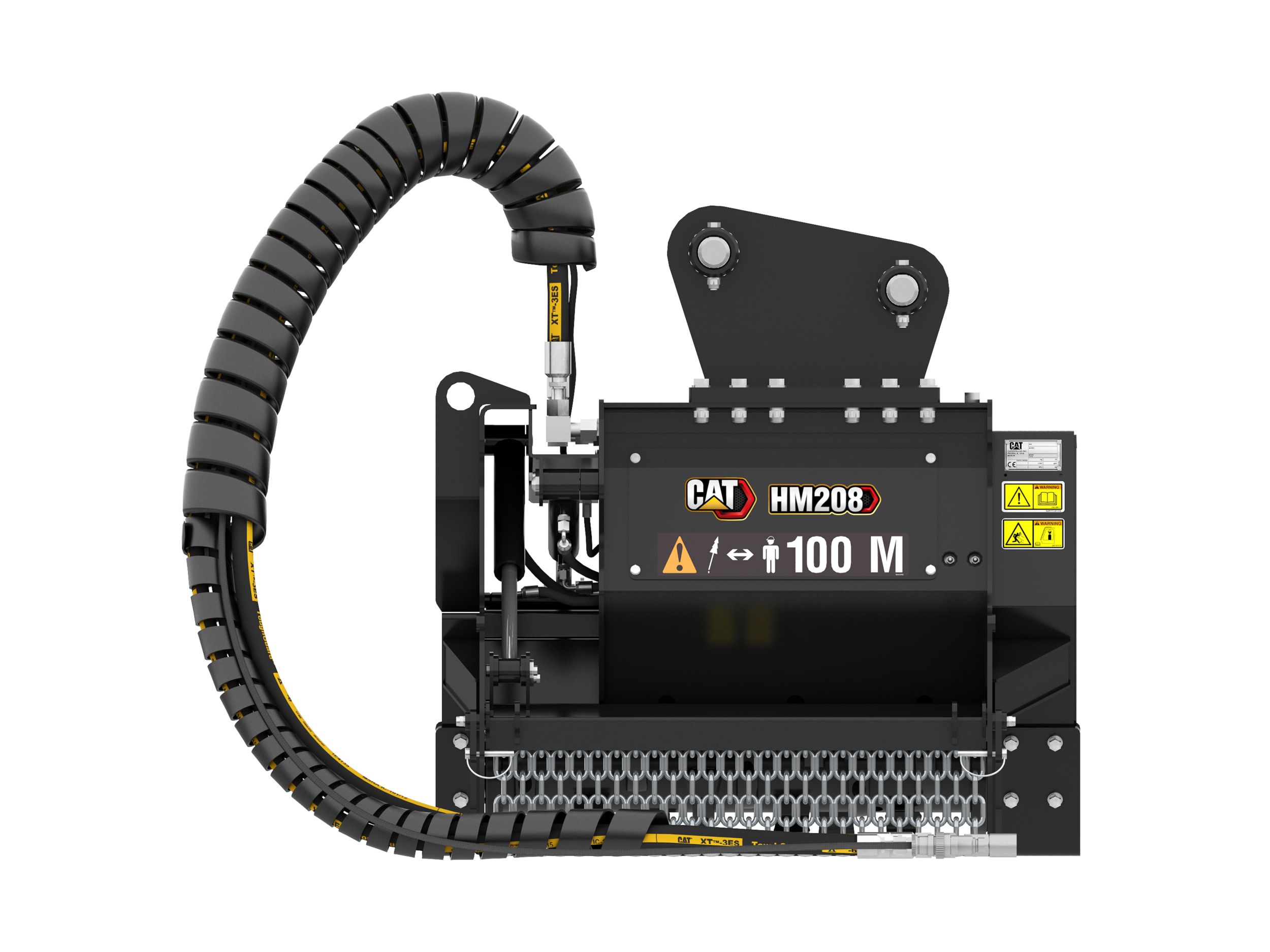

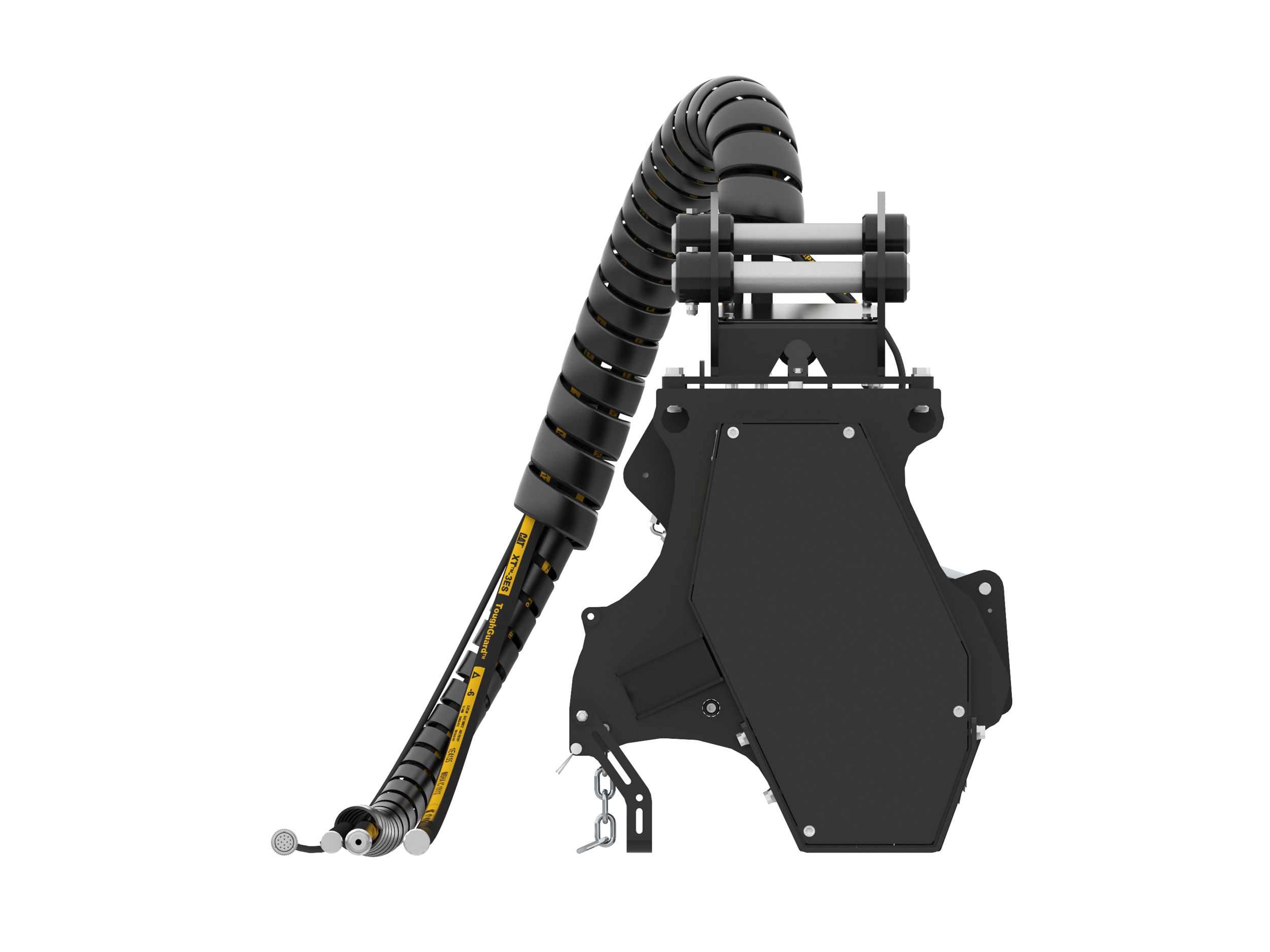

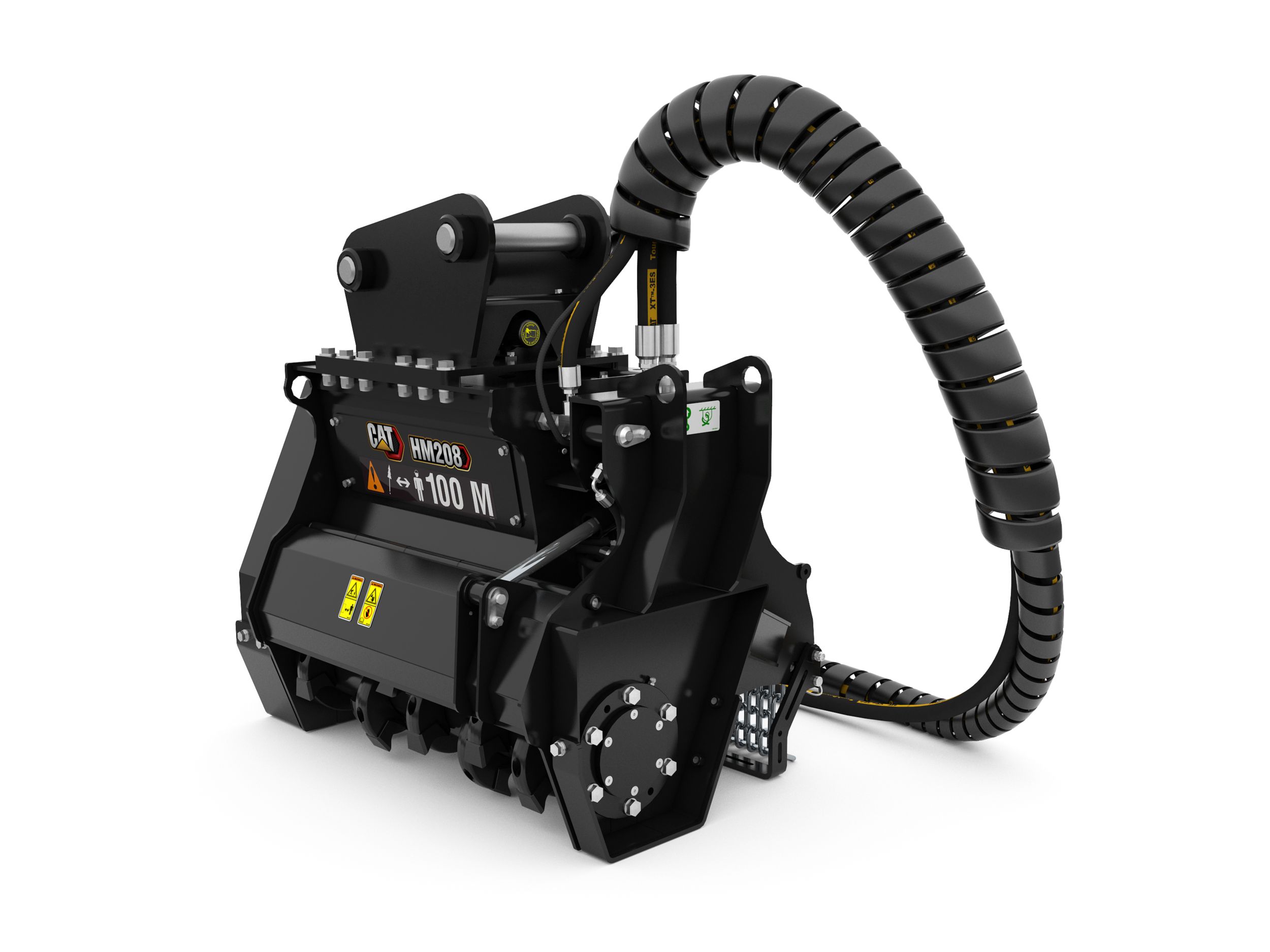

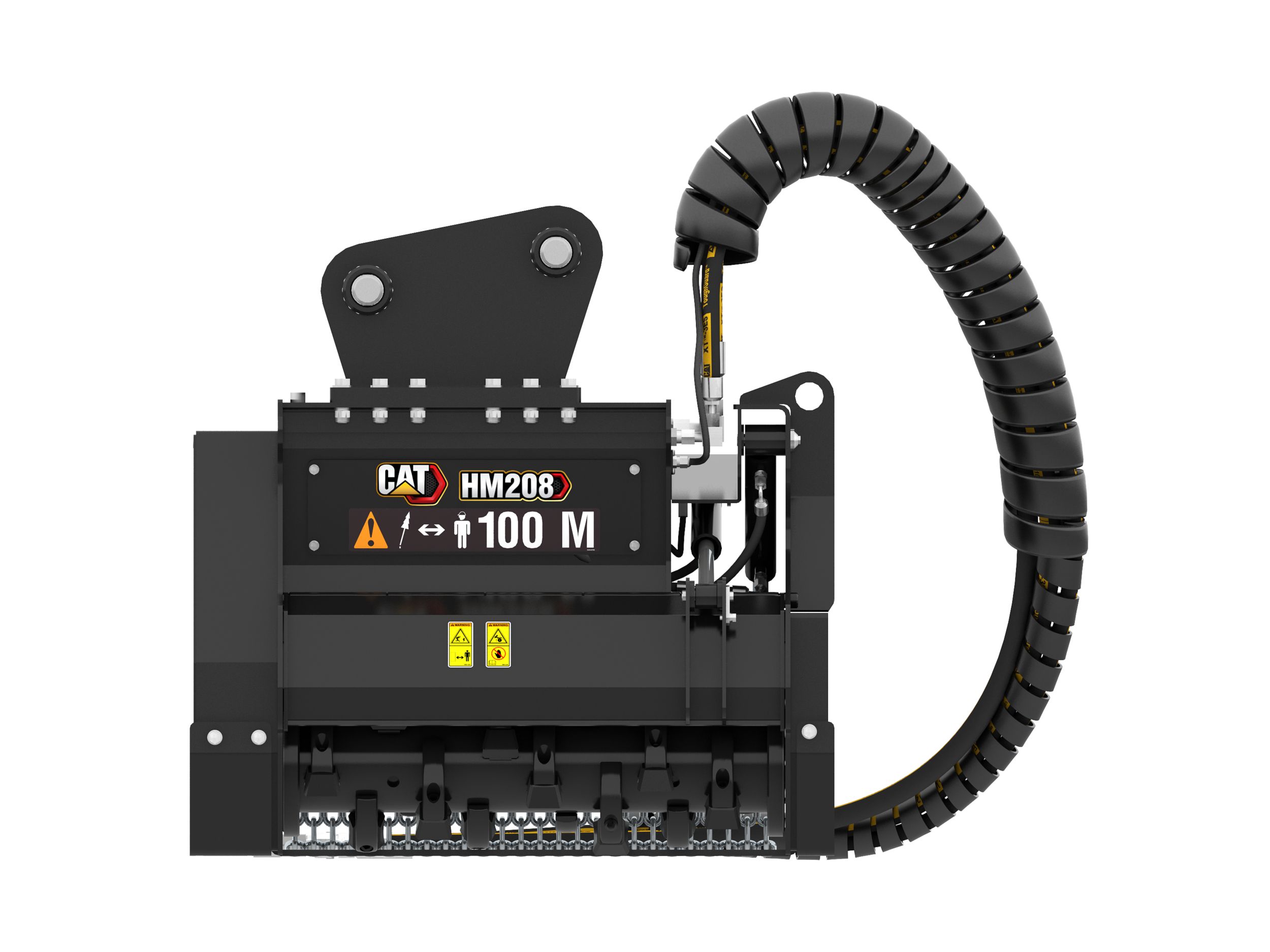

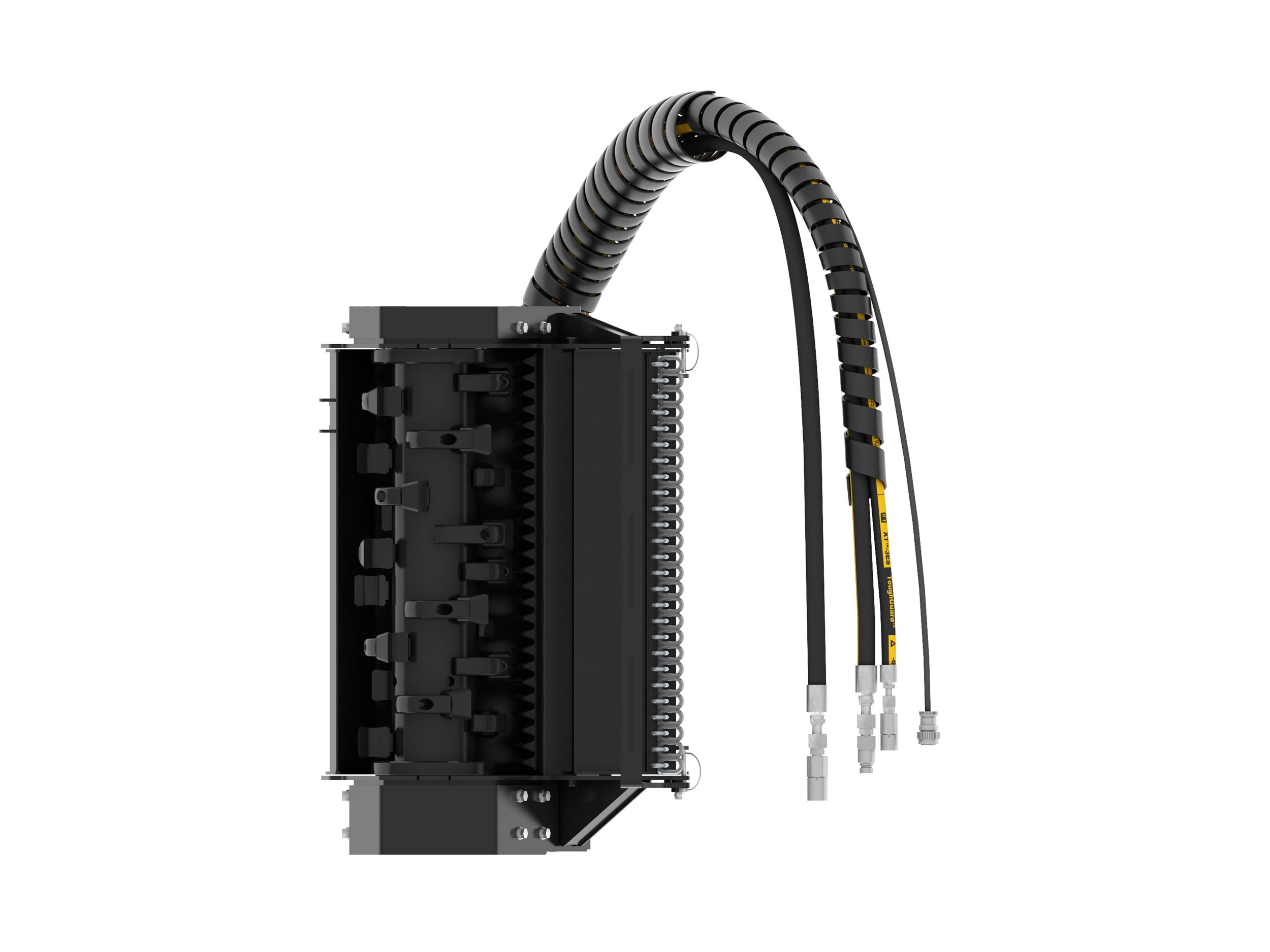

HM208 Mulcher

US
Metric

Overview

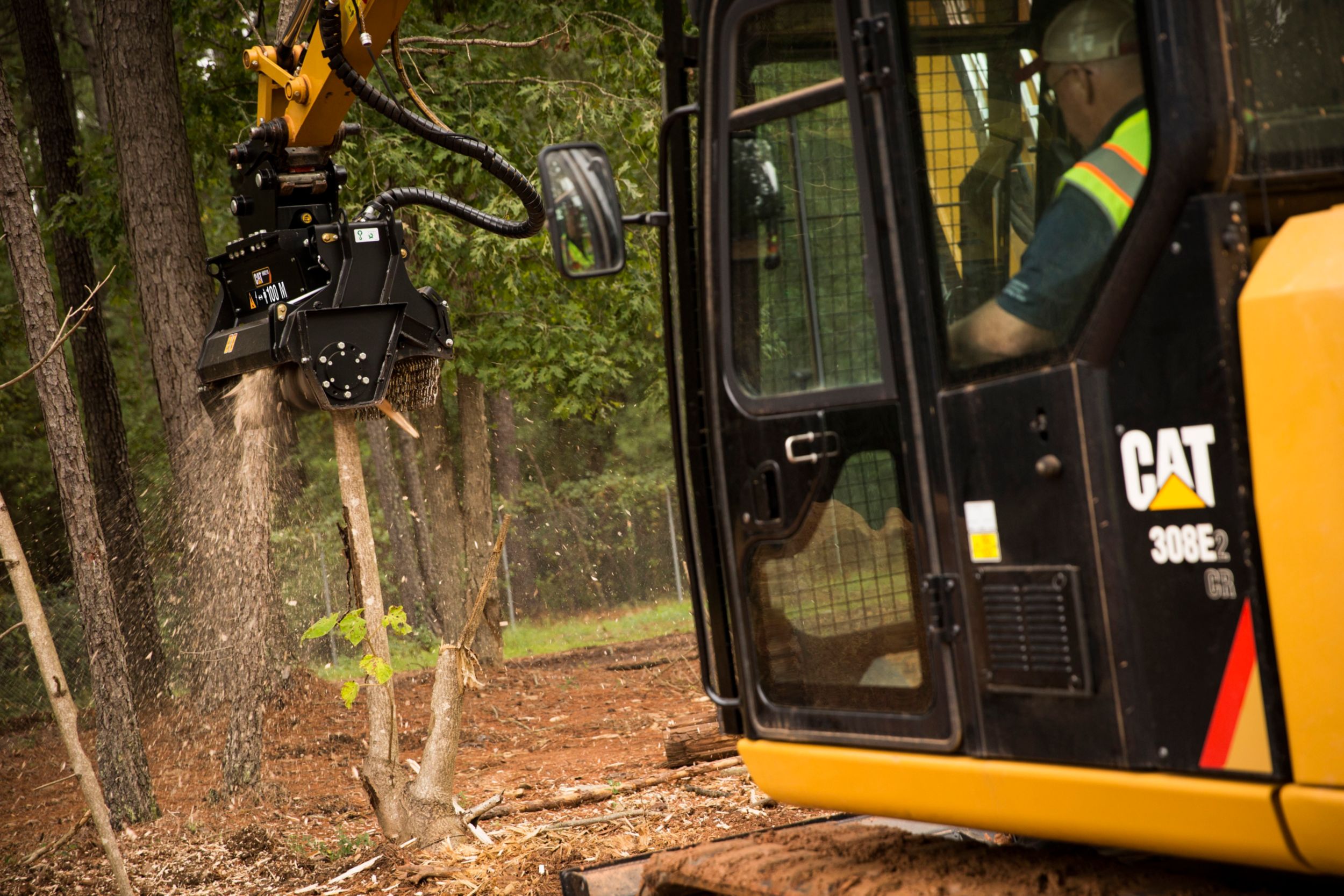

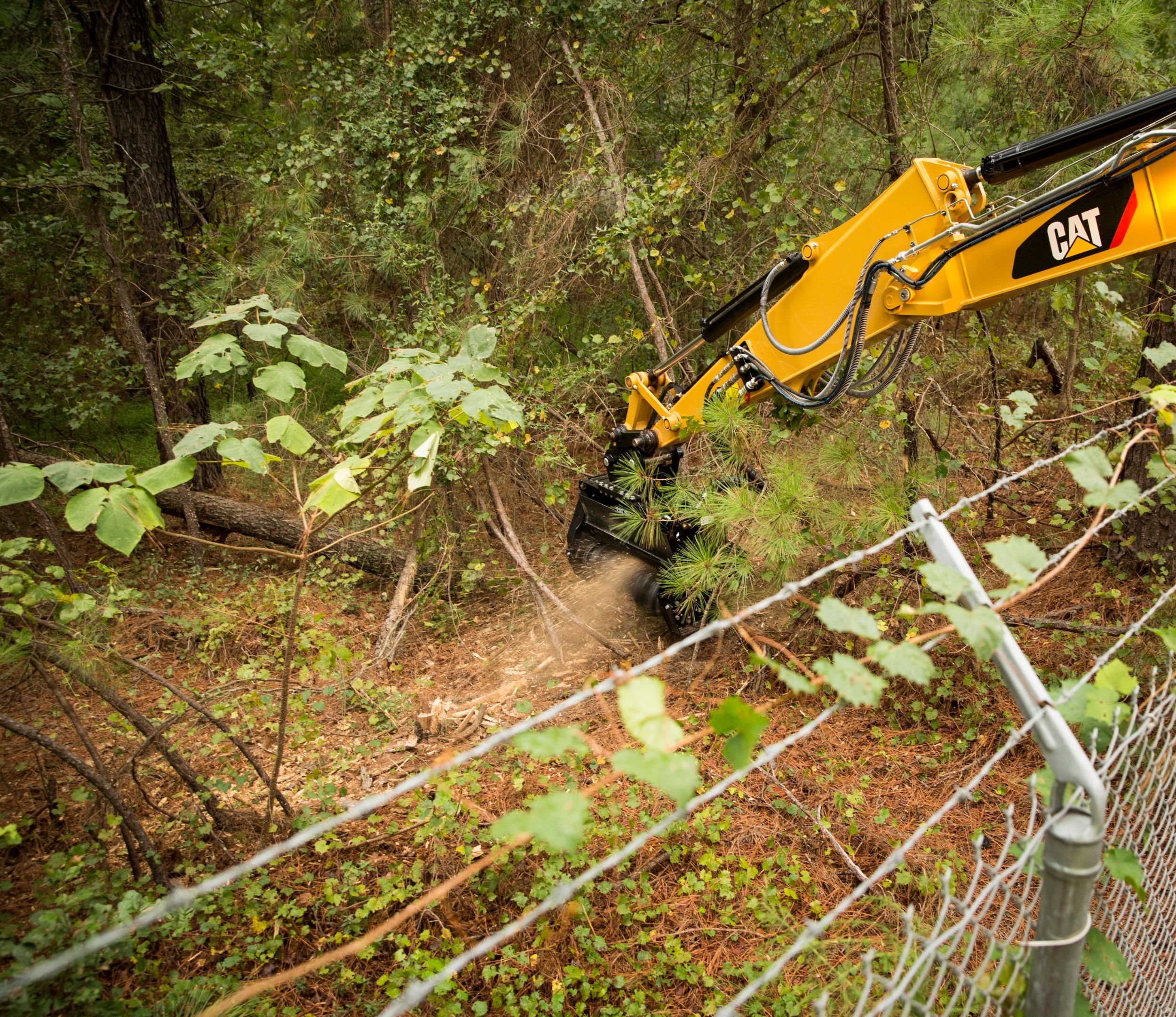

Cat® Mulchers for Skid Steer Loaders, , Multi Terrain Loaders, Compact Track Loaders and Mini Excavators are designed for high-performance cutting and mulching vegetation and undergrowth from forested terrain. The hydraulic mulcher reduces saplings, shrubs and trees into mulched material, making it ideal for environmental maintenance, such as creating fire lanes. Other applications include: land reclamation, foliage removal from building construction sites, and shredding pruned material and organic waste for biomass production.
Working Width
32.00 in
818.00 mm
Optimal Hydraulic Flow
70-130 L/min (18-34 gpm)
Maximum Cutting Diameter
120-200 mm (5-8 in)
Fixed Teeth per Drum
15
Overall Width
40.00 in
1026.00 mm
Length
28.00 in
714.00 mm
Overall Height
42.00 in
1065.00 mm
Weight
1080.00 lb
490.00 kg
Drive Method
V-Belt
Motor
Axial Piston, Dual Speed
Optimal Hydraulic Pressure
150-250 bar (2175-3626 psi)
Drum Speed
2770-2890 RPM
Required Hydraulics
Standard Flow
Working Width
32.00 in
818.00 mm
Overall Width
40.00 in
1026.00 mm
Drive Method
V-Belt
Fixed Teeth per Drum
15
Length
28.00 in
714.00 mm
Optimal Hydraulic Pressure
150-250 bar (2175-3626 psi)
Overall Height
42.00 in
1065.00 mm
Weight
1080.00 lb
490.00 kg
Required Hydraulics
Standard Flow
Features

Application

Use Mulchers for brush clearing, vegetation management, reclaiming untitled land, environmental maintenance, shredding pruned material and organic waste for biomass production.

Variable Displacement Piston Motor

When motor pressure approaches a stall condition, the motor displacement will change to provide high torque at low speed to power through material with reduced risk of stalling. The motor automatically switches the displacement back for high speed operation once the material is cleared.

Balanced Drum

Mulching drum weighted for maximum mulching performance and smooth operation. Staggered tooth design allows for only one tooth to contact material at all times for efficient cutting performance.

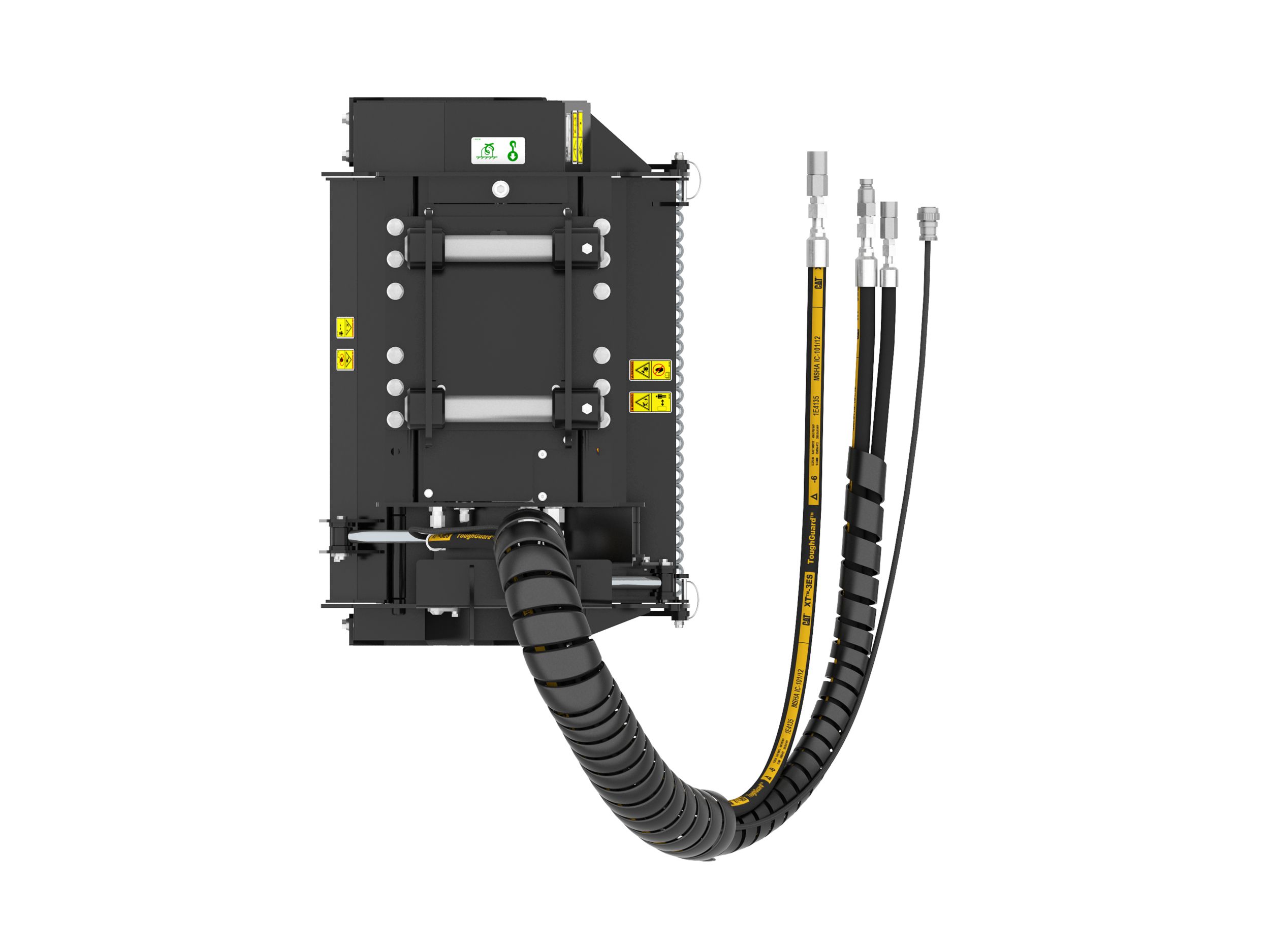

Cat® XTC Hydraulic Hoses

Quick disconnect hydraulic lines allow for easy tool swapping. Case drain line improves motor life and protects internal motor components. Spiral wrapped hose protection helps protects the hydraulic lines during use.

Dual Hydraulic Doors

Standard dual hydraulic doors (front and back) allow for debris to be recirculated through drum longer for a finer finished product.

Integrated Stand

Integrated stand eases access for attachment and removal. Allows mulcher to sit flat for storage.

Rear Chain Guard

Rear chain guard limits the amount of debris thrown behind the machine.

Bolt-on Replaceable Skid Shoes

Bolt-on replaceable skid shoes are reinforced and built to last, yet easily replaceable as needed.

Tool Mounted Operation and Maintenance Manual Holder

Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.
