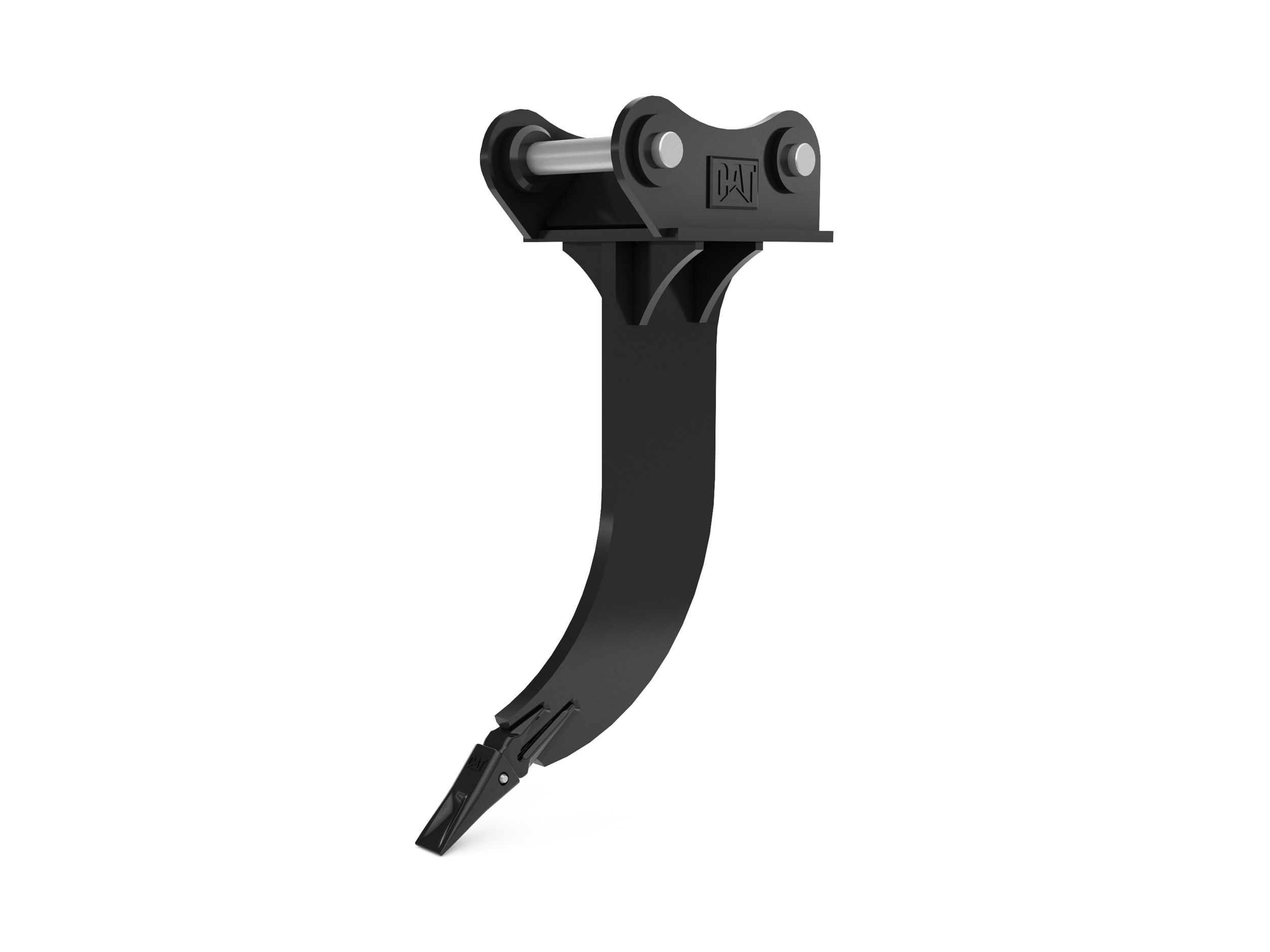

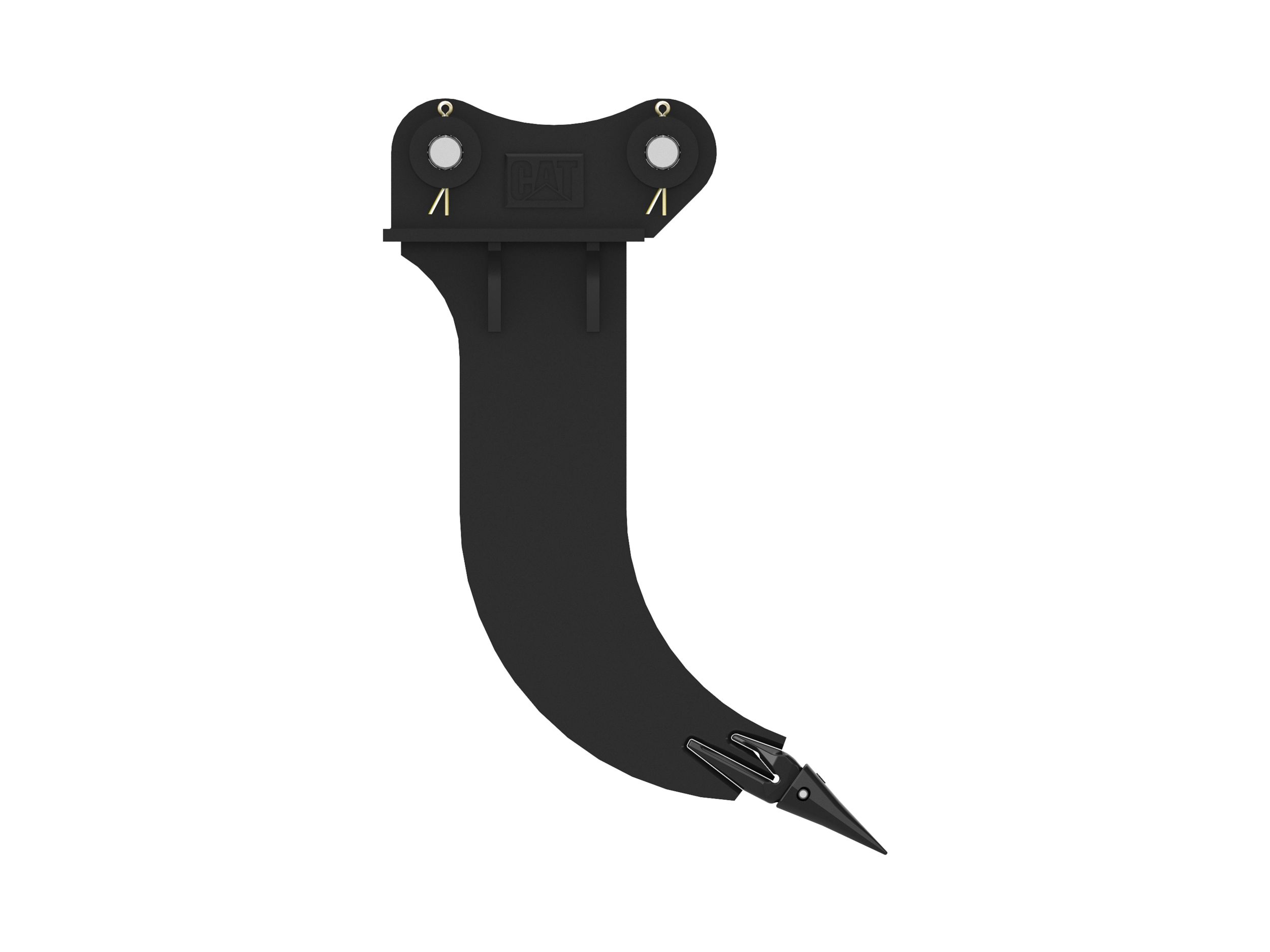

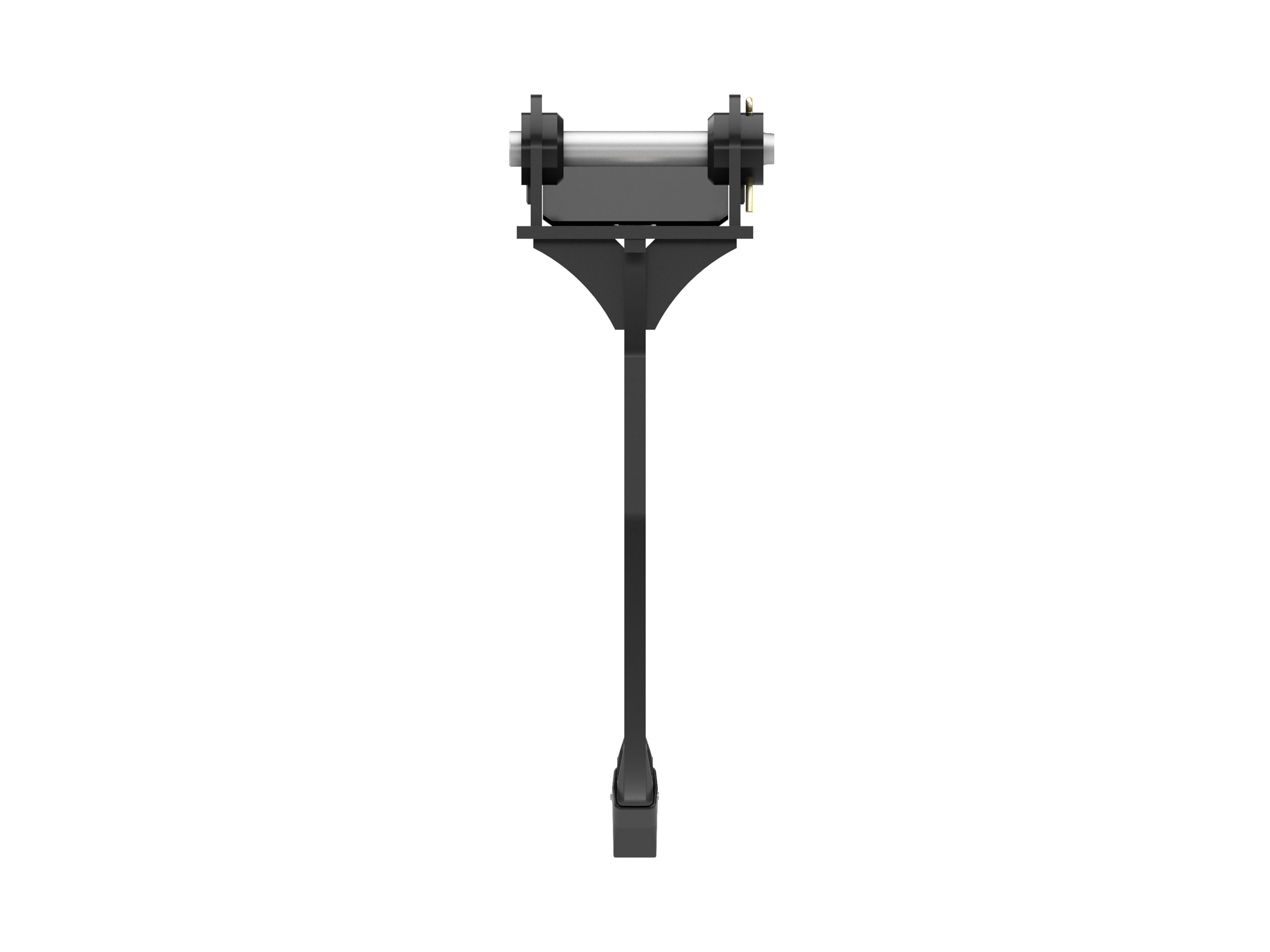

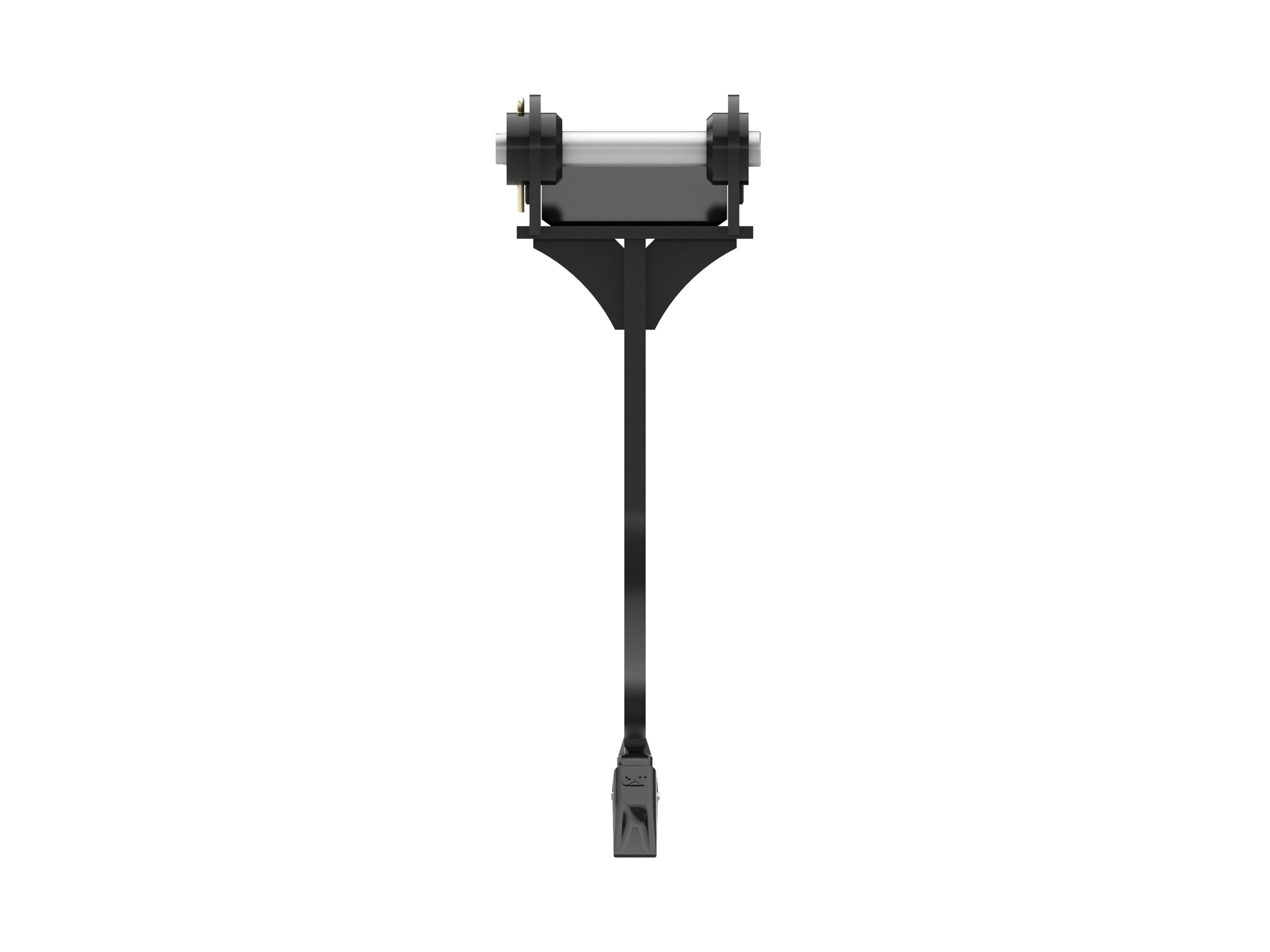

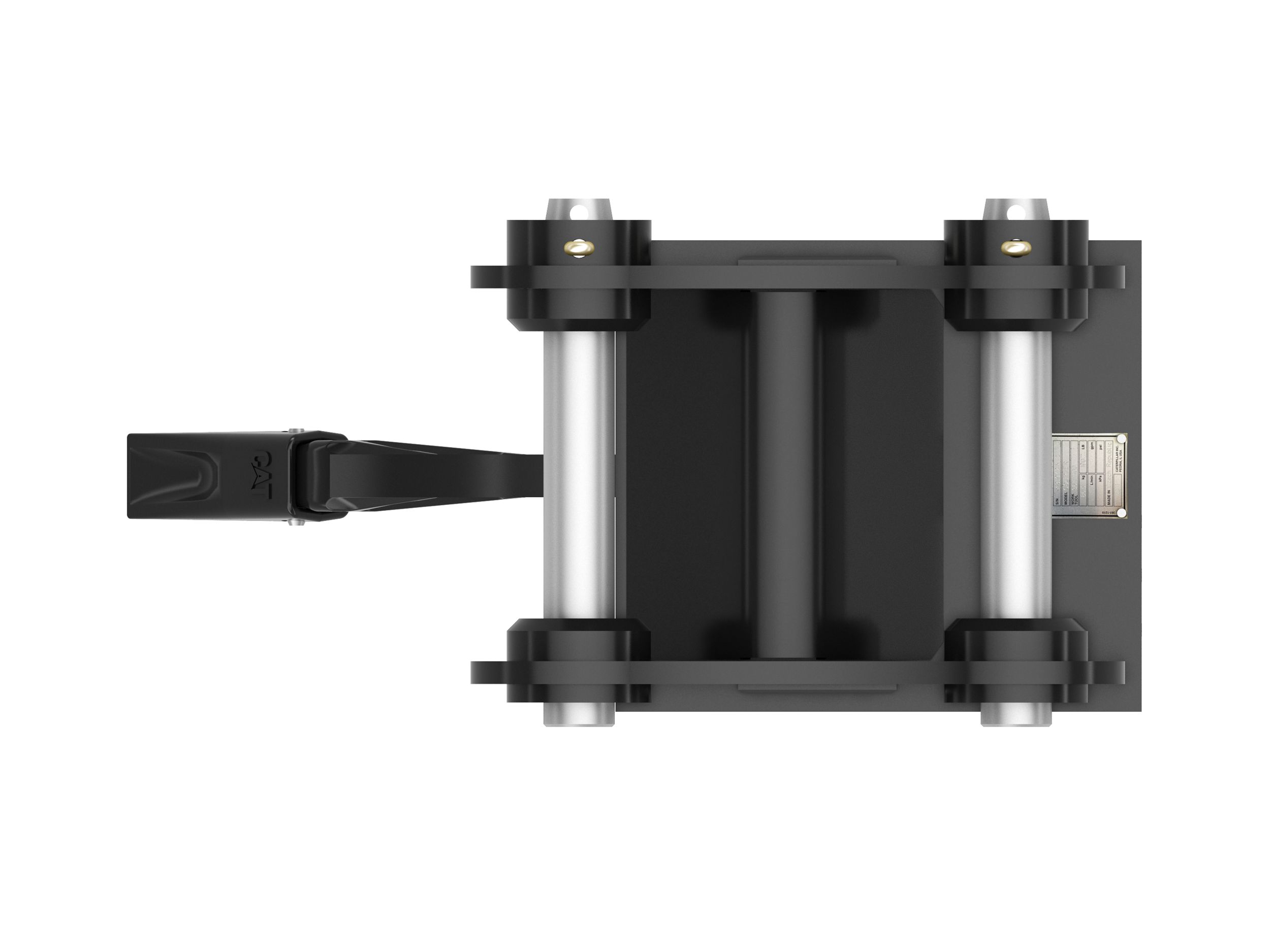

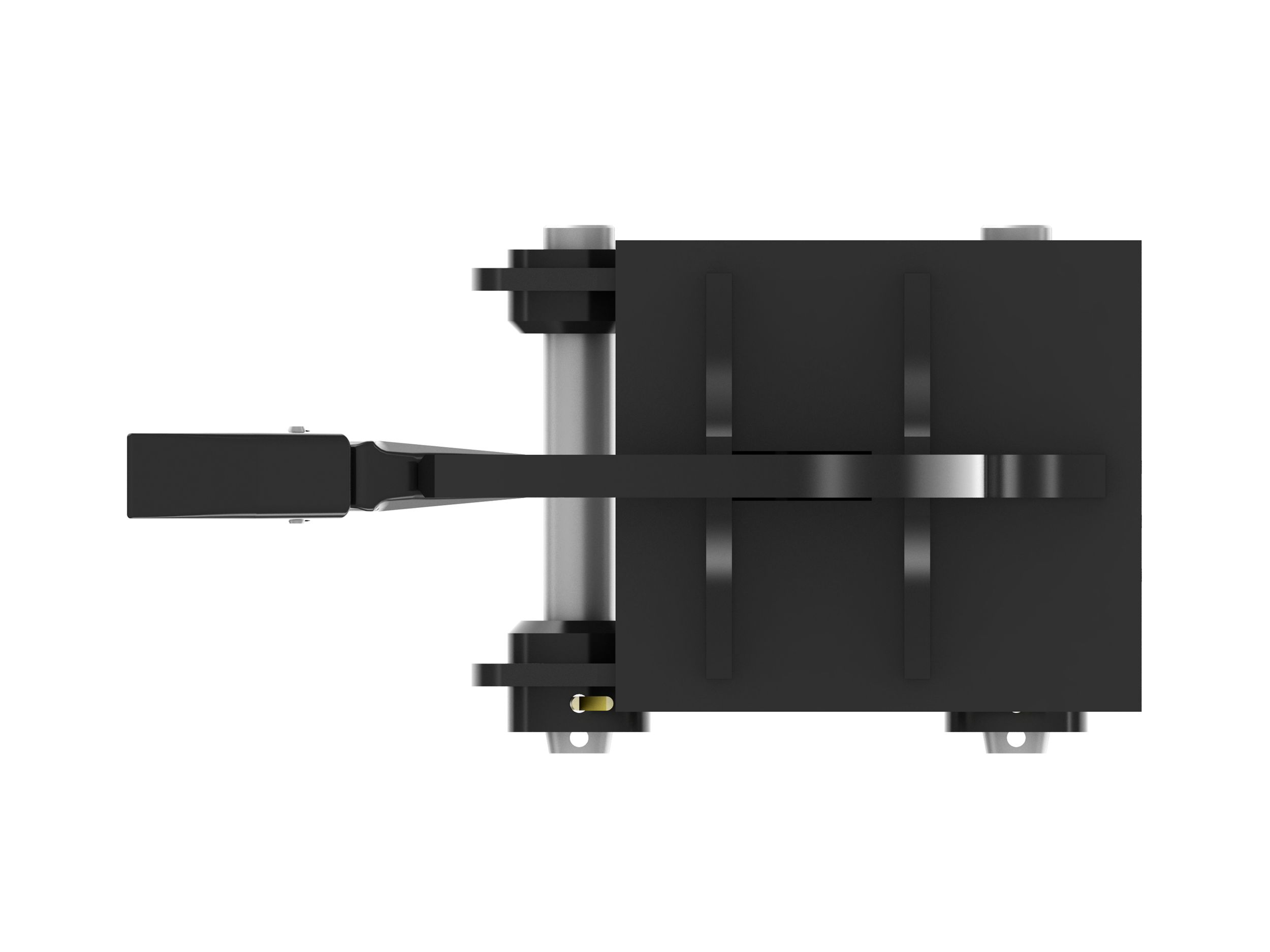

861 mm (34 in) Ripper

US
Metric

Overview

Cat® Excavator Rippers offer a cost-effective alternative to blasting. In quarry production work, they offer a lower cost per ton, better product quality and less environmental impact than explosive excavation. They are the ideal tool for land clearing or site preparation in rock, quarry work and similar high-impact digging applications. Take productivity to the next level with a Cat Rip & Load package. A quick coupler switches you rapidly between the ripper, and an Extreme Duty Rock bucket. Pull the rock from the ground and load it with the same machine.
Shank Length
34.00 in
861.00 mm
Overall Length
42.00 in
1066.00 mm
Weight
236.00 lb
107.00 kg
Width
14.00 in.
344.00 mm
Tip Radius
41.00 in
1039.00 mm
Weight
236.00 lb
107.00 kg
Overall Length
42.00 in
1066.00 mm
Width
14.00 in
344.00 mm
Shank Length
34.00 in
861.00 mm
Tip Radius
41.00
1039.00
Tip Radius
41.00 in
1039.00 mm
Features

Application

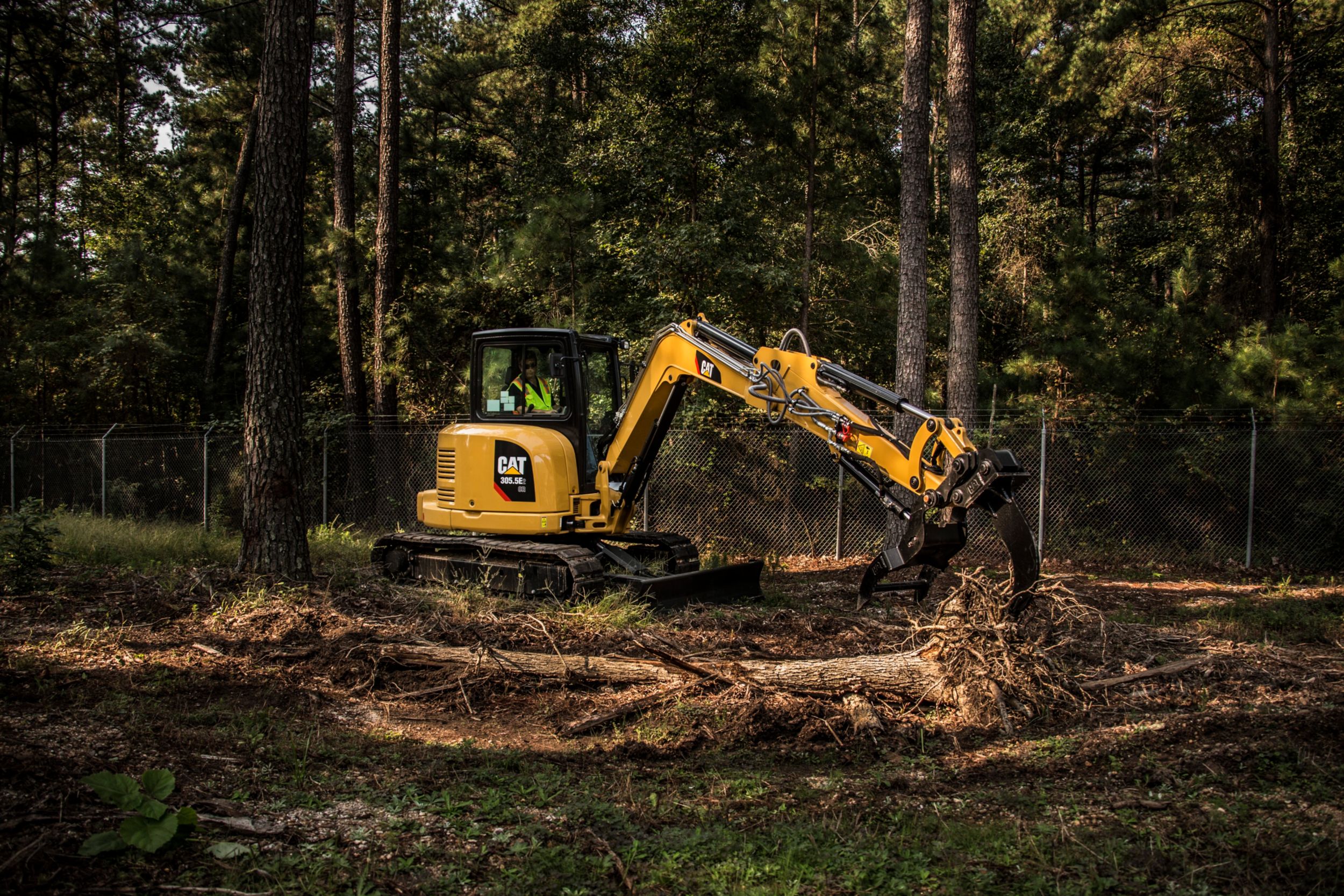

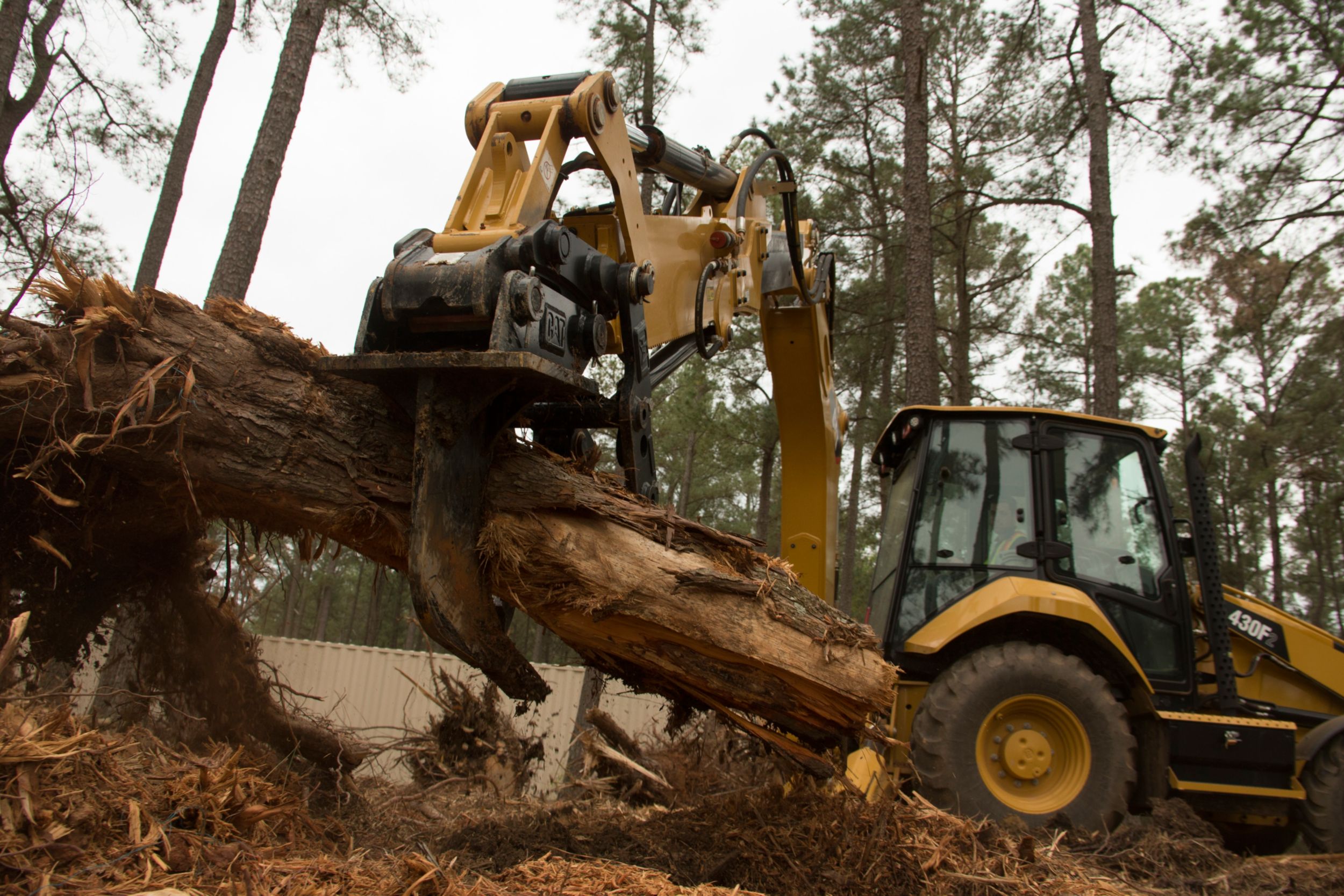

Designed for land clearing or site preparation in rock, quarry work and similar high-impact digging applications.

Pin-On or Coupler

Available as pin-on, also works with several popular quick couplers.

Heavy Construction

Reinforced, one piece shank is made of Hardox® 400. Includes adjuster group and Cat® GET. Gussets on top plate designed to withstand side loads.

Serviceability

Teeth are common with Cat® buckets and thumbs.

Thumb Compatible

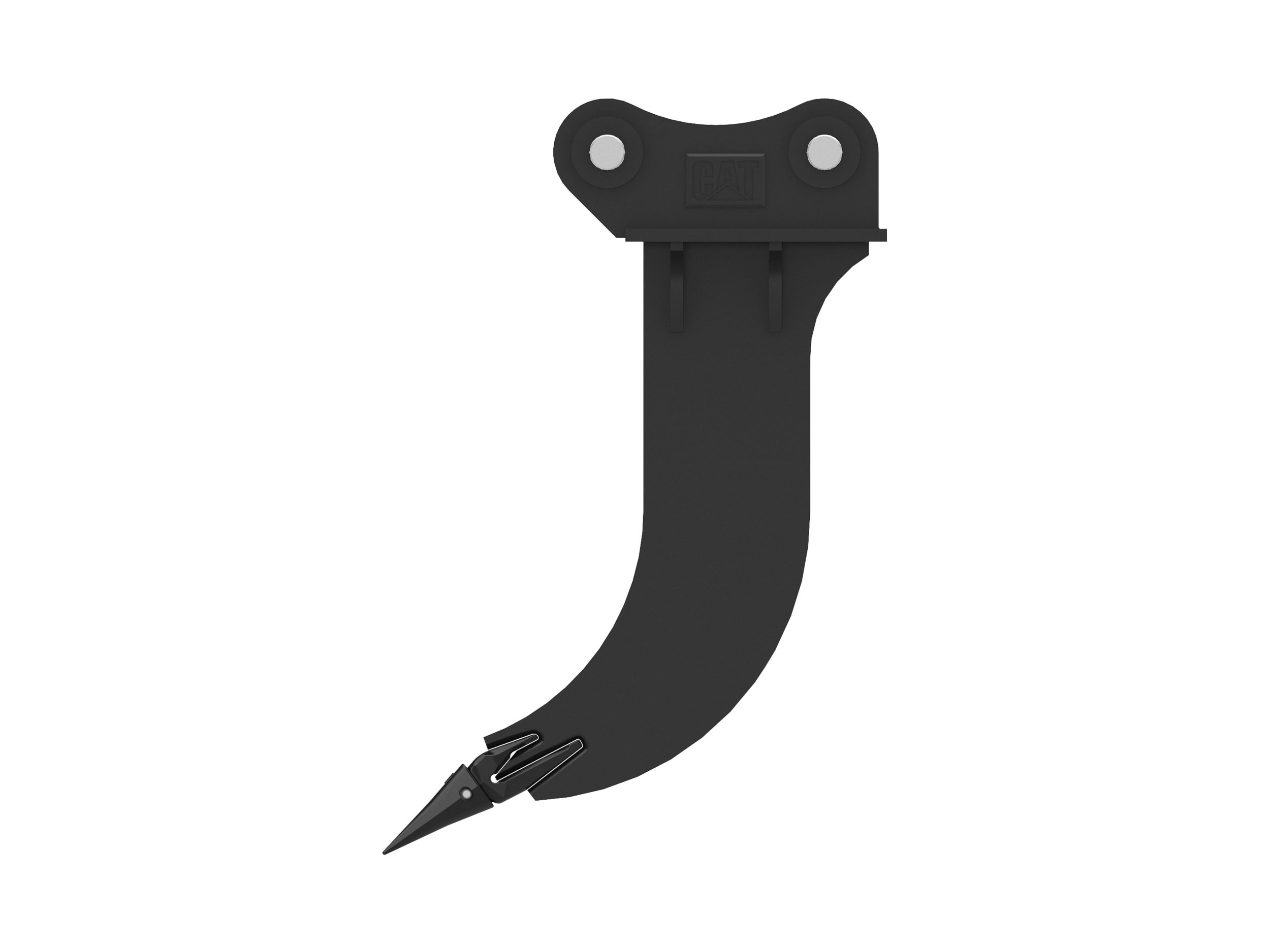

Curved shape works with existing thumbs.
