Overview

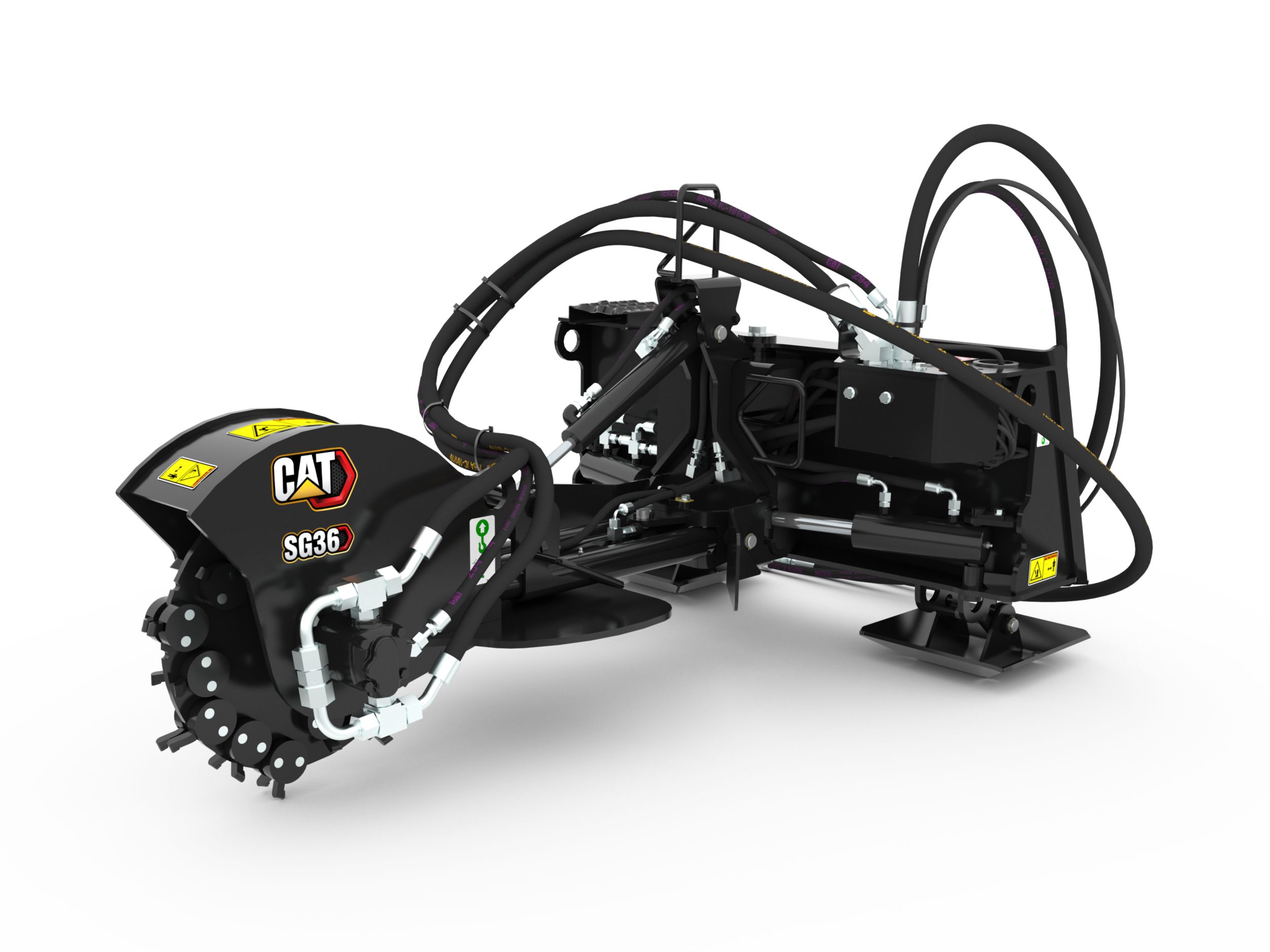

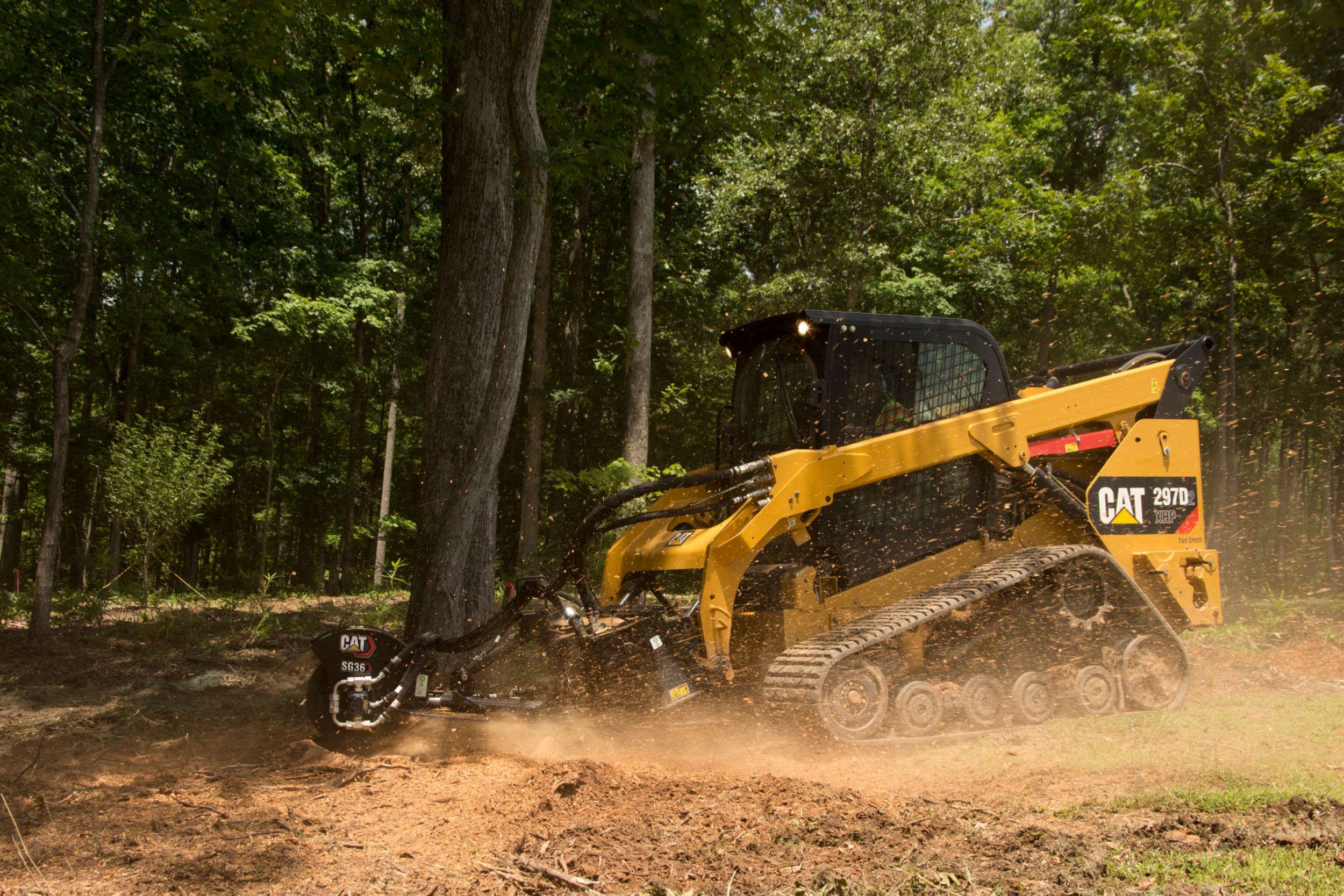

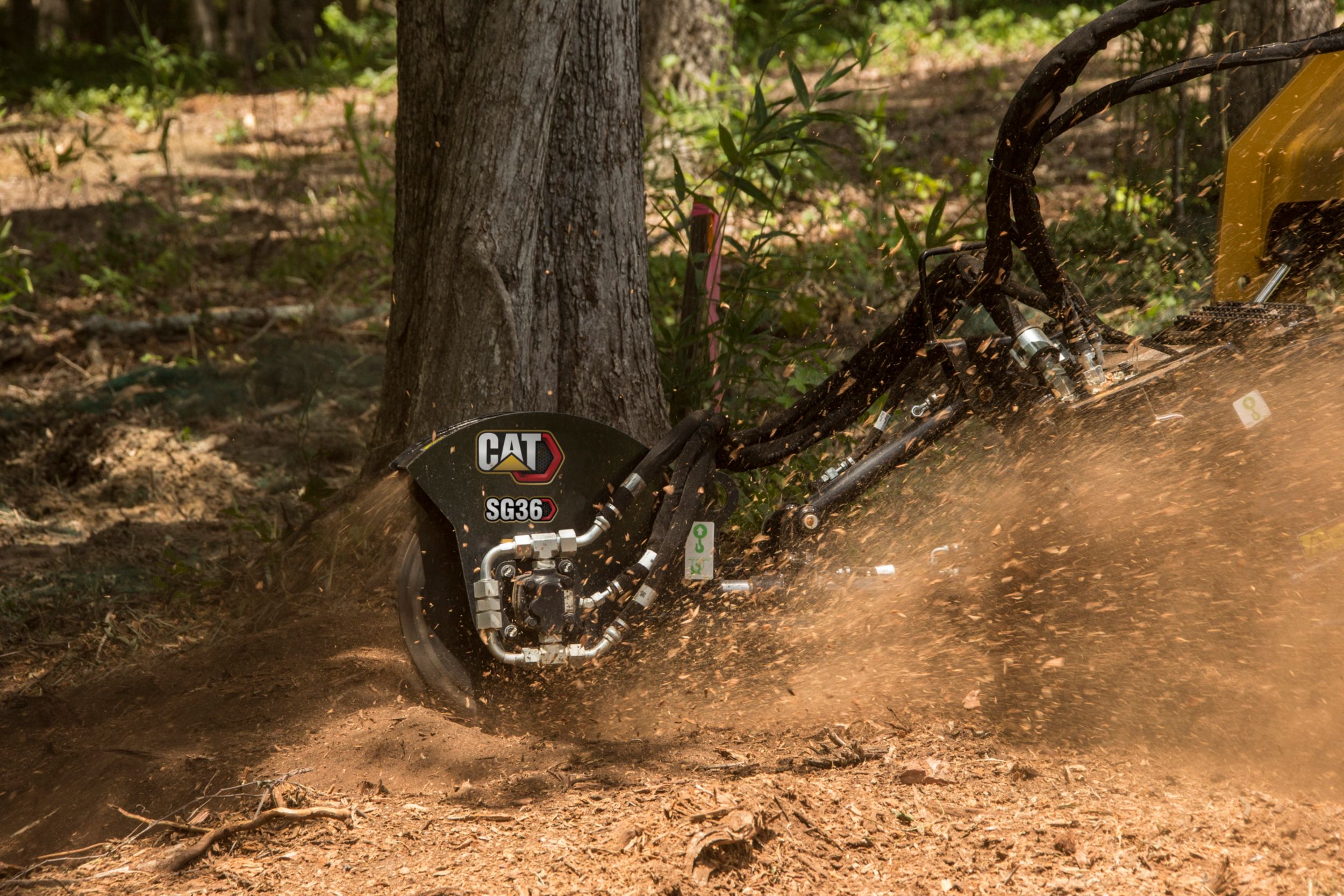

Cat® Stump Grinders are designed to economically remove stumps in residential, commercial and agricultural settings. They offer increased production over tow-behind grinders in situations where multiple stump removal is required. The right balance of cutting wheel speed and torque makes quick work of most tree varieties.
Required Hydraulics
High Flow XPS
Cutting Wheel Diameter - With Teeth
21.50 in
547.00 mm
Cutting Depth - Below Ground
20.50 in
521.00 mm
Cutting Head Extension
11.00 in
280.00 mm
Cutting Head Speed at Maximum Flow
1230 rpm
Cutting Head Swing Range
70 degrees
Cutting Height - Above Ground
18.50 in
470.00 mm
Cutting Wheel Width - With Teeth
3.30 in
83.00 mm
Cutting Width - Full Swing Range
60.00 in
1524.00 mm
Drive Method
Gerotor Motor- Direct
Drive Shaft Torque at Maximum Pressure
345.90 lb/ft
469.00 N·m
Motor Displacement
6.10 in³
100.00 cm³
Optimal Hydraulic Pressure
207-310 bar (3000-4500 psi)
Overall Height
32.00 in
813.00 mm
Overall Length
68.40 in
1737.00 mm
Overall Width
46.30 in
1175.00 mm
Optimal Hydraulic Flow
95-125 L/min (25-33 gpm)
Weight
881.80 lb
400.00 kg
Number of Carbide Teeth per Cutting Wheel
32
Features

Application

Designed to economically remove stumps in residential, commercial and agricultural settings. Offers increased production over tow-behind grinders in situations where multiple stump removal is required.

Drive System

Direct drive system features a variable speed, unidirectional, gerotor style motor for optimal cutting wheel speed and high torque for efficient grinding performance.

Heavy Duty Cutting Wheel

Heavy-duty cutting wheel and 32 bolt-on and replaceable carbide teeth provide maximum durability and cutting efficiency.

Adjustability

Adjustable cutting wheel swing, extension and depth for superior operator control.

Hydraulic Controls

Swing and extension are controlled hydraulically from the operator's compartment using an electro-hydraulic valve for greater productivity and swing cycle time efficiency.

Dual Height Pivoting Stand Feet

Heavy-duty, dual height, pivoting stand feet provide a stable platform when grinding. Feet are adjustable to compensate for specific machine coupler-to-ground height and tire diameters.
