Overview

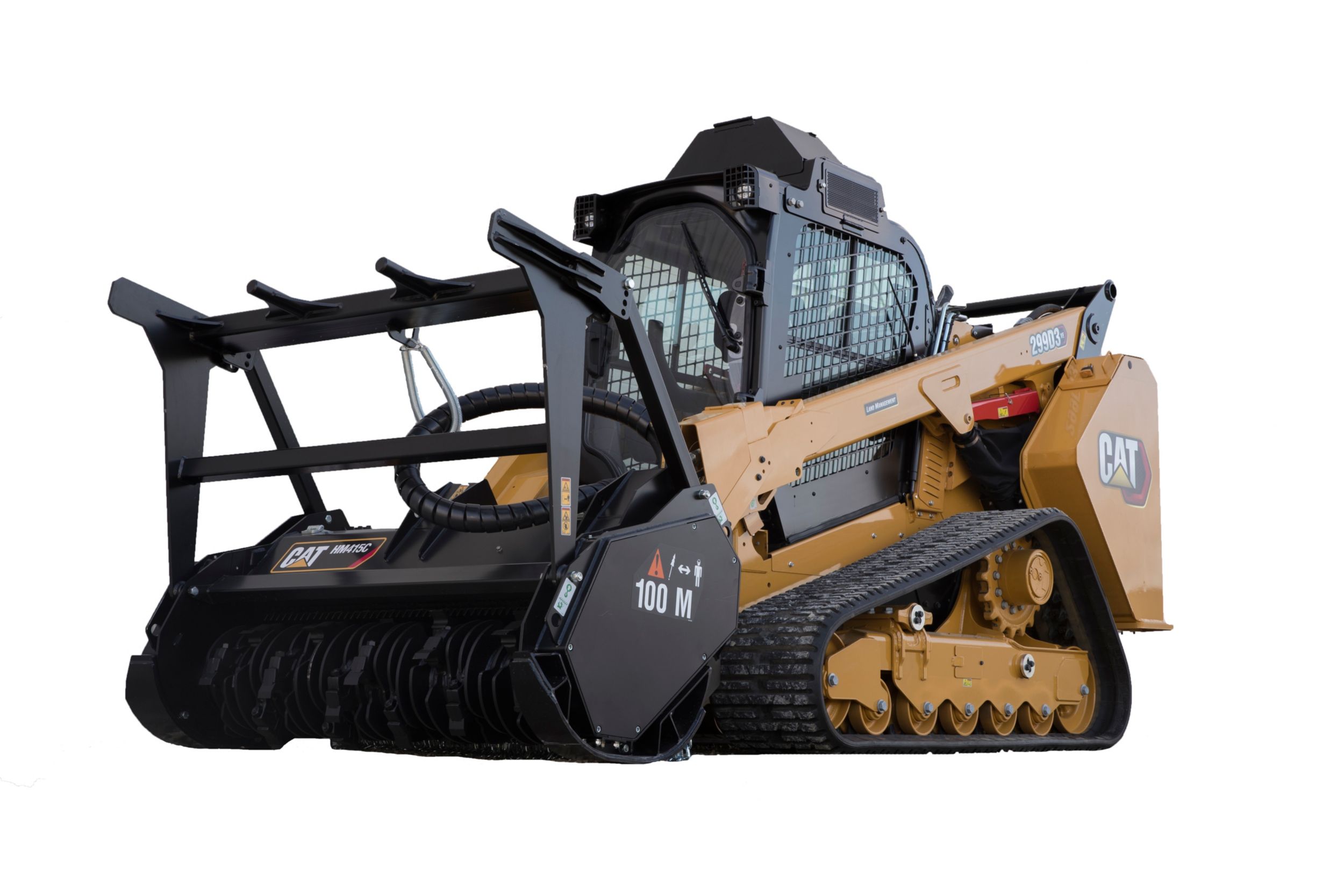

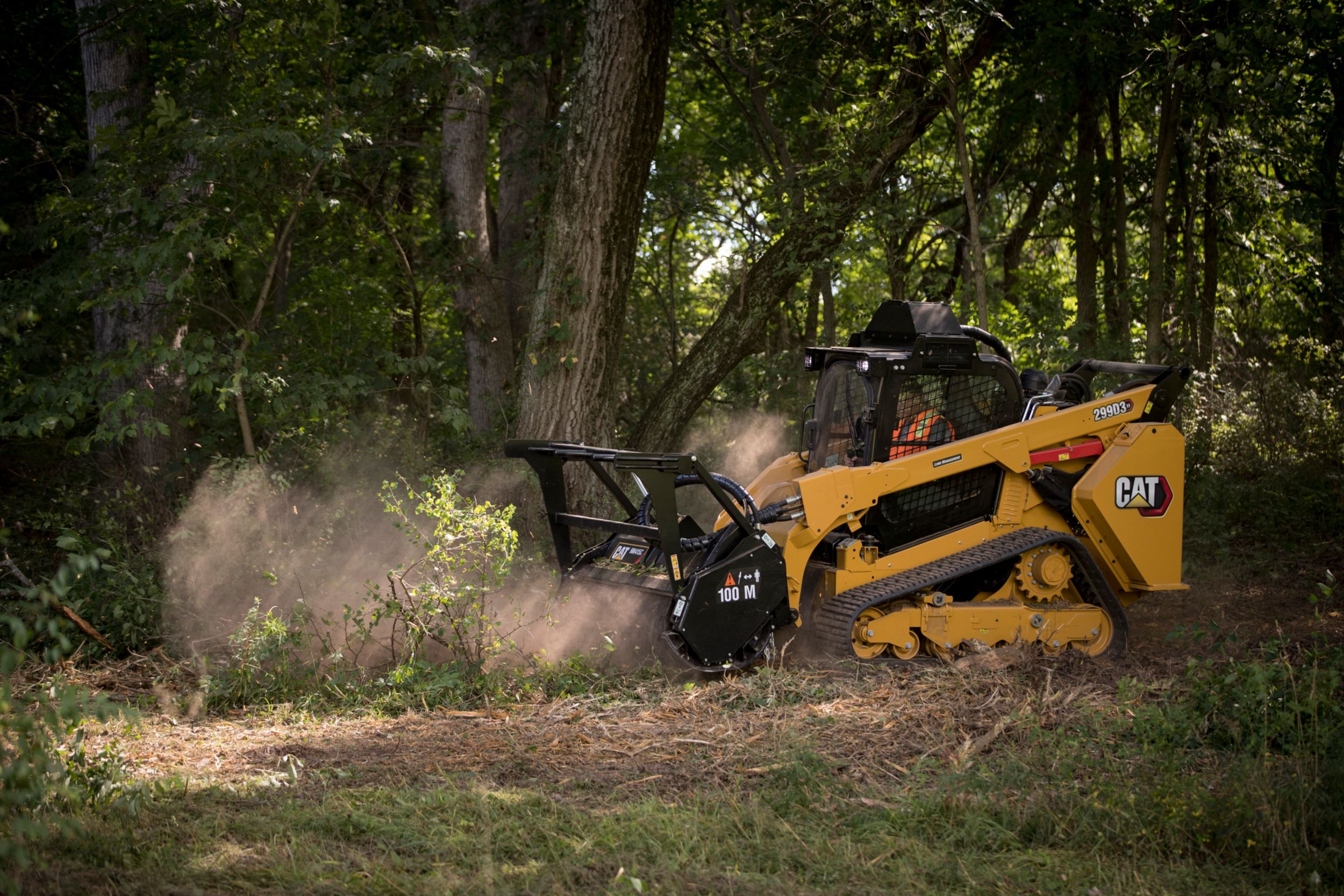

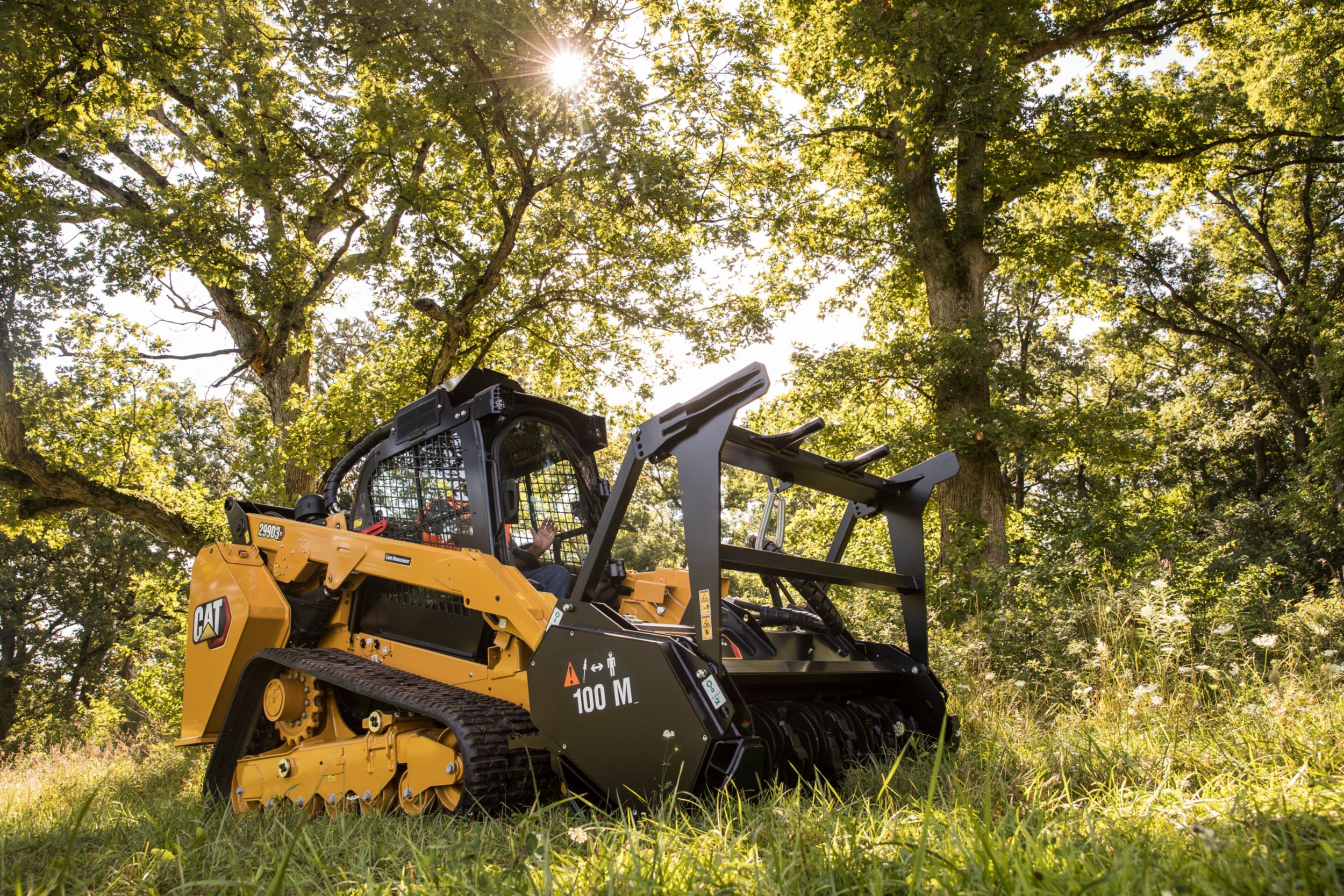

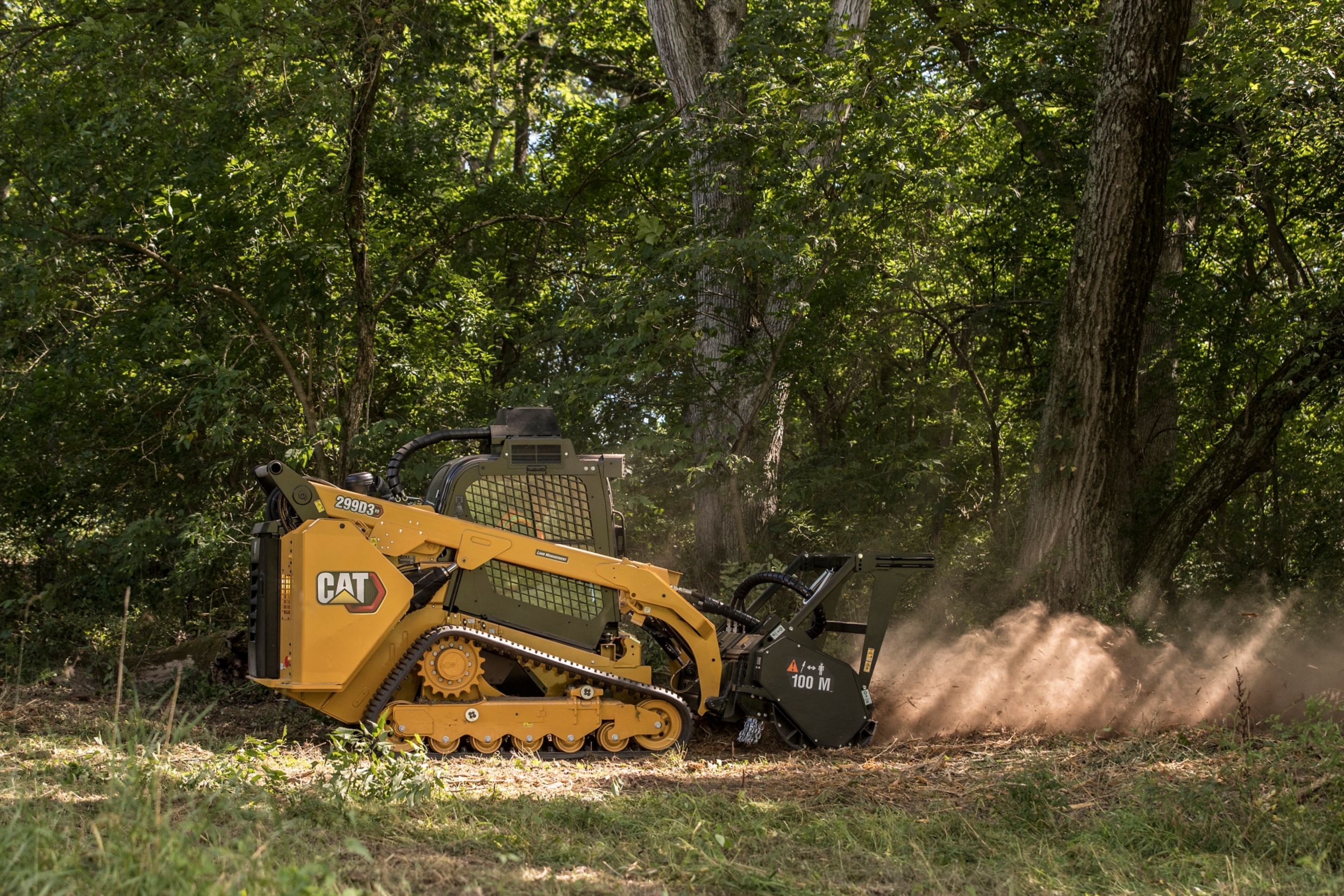

The Cat® 299D3 XE Land Management Compact Track Loader is a segment focused machine solution for customers involved in demanding vegetation-management applications, ranging from mulching, brush-cutting, vegetation control, and mowing. The 299D3 XE Land Management machine’s powerful Cat C3.8 engine combined with its high-flow/high-pressure auxiliary hydraulic system to deliver a calculated hydraulic power rating of 70 kW (94 hp), resulting in optimum performance when powering high-production, hydro-mechanical attachments.

Engine

Gross Power - SAE J1995
110.00 hp
82.00 kW

Operating Specifications

Rated Operating Capacities - 35% Tipping Load
4340.00 lb
1975.00 kg

Weights

Operating Weight
12764.00 lb
5790.00 kg

Dimensions

Length - Track on Ground
69.60 in
1767.00 mm
Overall Length - Track
89.40 in
2270.00 mm
Height - Top of Cab
83.60 in
2125.00 mm
Ground Clearance
9.60 in
245.00 mm
Departure Angle
33°
Maximum Dump Angle
54°
Turning Radius from Center - Coupler
58.10 in
1476.00 mm
Turning Radius from Center - Machine Rear
74.00 in
1881.00 mm
Vehicle Width (400 mm/15.7 in tracks)
76.00 in
1931.00 mm
Turning Radius from Center - Bucket (racked)
91.10 in
2314.00 mm
Note
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with polycarbonate door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, and manual quick coupler.
Length - Without Bucket
125.50 in
3189.00 mm
Bucket Pin Reach - Maximum Lift
19.40 in
493.00 mm
Clearance at Maximum Lift and Dump
94.50 in
2399.00 mm
Rack Back Angle - Maximum Height
81°
Vehicle Width (450 mm/17.7 in tracks)
78.00 in
1982.00 mm
Maximum Overall Height
158.70 in
4032.00 mm
Reach - Maximum Lift/Dump
33.60 in
852.00 mm
Length - With Bucket on Ground
154.70 in
3931.00 mm
Maximum Reach - With Arms Parallel to Ground
51.90 in
1319.00 mm
Bucket Pin Height - Maximum Lift
126.30 in
3208.00 mm
Bucket Pin Height - Carry Position
7.10 in
180.00 mm
Roll Back Angle
25°

Hydraulic System

Standard Flow Mode - Loader Hydraulic Flow
23.00 gal/min
86.00 l/min
Standard Flow Mode - Loader Hydraulic Pressure
3335.00 psi
23000.00 kPa
Standard Flow Mode - Hydraulic Power - Calculated
44.00 hp
33.00 kW
Hydraulic Flow - XE - Hydraulic Power (calculated)
94.00 hp
70.00 kW
Hydraulic Flow - XE - Maximum Loader Hydraulic Flow*
40.00 gal/min
150.00 l/min
Hydraulic Flow - XE - Maximum Loader Hydraulic Pressure
4061.00 psi
28000.00 kPa
Note
*When equipped with Cat 400 Series work tools.

Cab

ROPS
ISO 3471:2008
FOPS
ISO 3449:2005 Level I

Power Train

Travel Speed - Forward or Reverse - Two Speed
8.30 mile/h
13.30 km/h
Travel Speed - Forward or Reverse - One Speed
5.50 mile/h
8.90 km/h

Service Refill Capacities

Cooling System
4.10 gal (US)
16.00 l
Engine Crankcase
3.50 gal (US)
13.00 l
Fuel Tank
58.00 gal (US)
220.00 l
Hydraulic System
14.50 gal (US)
55.00 l
Hydraulic Tank
10.30 gal (US)
39.00 l
Diesel Exhaust Fluid (DEF) Tank
5.00 gal (US)
19.00 l

Engine

Net Power - SAE 1349
106.00 hp
79.00 kW
Displacement
232.00 in³
3.80 l
Bore
3.90 in
100.00 mm
Stroke
4.70 in
120.00 mm
Net Power
106.00 hp
79.00 kW
Net Power - ISO 9249
107.00 hp
80.00 kW
Engine Model
Cat C3.8 DIT (turbo)
Peak Torque - 1,500 rpm - SAE J1995
276.00 ft·lbf
374.00 N·m

Operating Specifications

Tipping Load
12400.00 lb
5635.00 kg
Breakout Force - Tilt Cylinder
7270.00 lb
3298.00 kg
Breakout Force - Lift Cylinder
6162.00 lb
2795.00 kg
Ground Pressure - With 450 mm/17.7 in Track
5.20 psi
35.80 kPa
Rated Operating Capacities - 50% Tipping Load
6200.00 lb
2820.00 kg
Ground Contact Area - With 400 mm/15.7 in Track
2171.00 in²
1.41 m²
Ground Contact Area - With 450 mm/17.7 in Track
2443.00 in²
1.58 m²
Ground Pressure - With 400 mm/15.7 in Track
5.90 psi
40.50 kPa
Note
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with polycarbonate door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, and manual quick coupler.

Weights

Note
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with polycarbonate door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, and manual quick coupler.

Noise Level

Note (2)
*The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Inside Cab*
83.00 dB(A)
83.00 dB(A)

Air Conditioning System (if equipped)

Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.

Noise Level

Outside Cab**
104.00 dB(A)
104.00 dB(A)
Note (1)
Sealed and pressurized cab is standard in North America and Europe.
Note (3)
**The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Features

Extend Your Working Time

The 299D3 XE Land Management machine comes standard with two large capacity external fuel tanks (220 L /58 gal - total). These large tanks will help increase your working time by fueling up less.

Powerful Hydraulics

The XE hydraulic system provides high flow and high pressure that delivers industry leading hydraulic horsepower to efficiently run even the most power hungry work tools.

Protective Guarding and Sealing

Factory-equipped guarding and sealing components to provide additional protection for areas that could be exposed to damage and to help reduce debris entry.

Maximum Performance

High performance power train provides maximum performance and production capability through the Electronic Torque Management system, standard two speed travel and an electronic hand/foot throttle with decel pedal capability.

Quiet and Comfortable

The industry leading sealed and pressurized cab option provides the operator with a cleaner and quieter operating environment with excellent work tool visibility. Continuing the industry leading trend, the D3 Series also includes as standard, seat mounted adjustable joystick controls for operator comfort.

Standard Equipment
  • ELECTRICAL
    • 12 volt Electrical System
    • 100 ampere Alternator
    • Ignition Key Start/Stop Switch
    • Lights: Gauge Backlighting, Two Rear Tail Lights, Two Rear LED Working Lights, Two Adjustable Front LED Lights, Dome Light
    • Backup Alarm
    • Heavy Duty Battery, 1,000 CCA, with Battery Disconnect
  • OPERATOR ENVIRONMENT
    • Gauges: Fuel Level, DEF Level, Hour Meter
    • Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Air Inlet Heater Activation, Hydraulic Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged, Engine Emission System
    • High Back Cloth Seat with Air Suspension, Heated with Recline and Lumbar Support and Fully Adjustable Seat Mounted Controls
    • Fold In Ergonomic Contoured Armrest
    • Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages
    • ROPS Cab, Enclosed, Tilt Up
    • FOPS, Level I
    • Top, Rear and Side Windows
    • Headliner, Deluxe
    • Floor Mat
    • Interior Rearview Mirror
    • USB Charging Port
    • Horn
    • Hand (Dial) and Foot Throttle, Electronic with Decel Feature
    • Advanced Display with Rearview Camera: Full Color, 127 mm (5 in) LCD screen; Advanced Multi-operator Security System; On-screen Adjustments for Implement Response, Hystat Response and Creep Control
    • Storage Compartment with Netting
  • POWER TRAIN
    • Cat C3.8, Turbo Diesel Engine, Meeting U.S. EPA Tier 4 Final and EU Stage V Emission Standards
    • Air Cleaner, Dual Element, Radial Seal
    • S·O·SSM Sampling Valve, Hydraulic Oil
    • Filters, Cartridge-type, Hydraulic
    • Filters, Canister-type, Fuel and Water Separator
    • Radiator/Hydraulic Oil Cooler (side-by-side)
    • Spring Applied, Hydraulically Released, Wet Multi Disc Parking Brakes
    • Hydrostatic Transmission, Two Speed Travel
    • Suspension – Independent Torsion Axles (4)
    • Speed Sensitive Ride Control
  • OTHER
    • Engine Enclosure, Lockable
    • Extended Life Antifreeze, –37° C (–34° F)
    • Machine Tie Down Points (6)
    • Support, Lift Arm
    • Hydraulic Oil Level Sight Gauge
    • Radiator Coolant Level Sight Gauge
    • Radiator, Expansion Bottle
    • Cat ToughGuard™ Hose
    • Auxiliary, Hydraulics, Continuous Flow
    • Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm
    • Electrical Outlet, Beacon
    • Belly and Engine Compartment Access Panels for Cleanout
    • Variable Speed Demand Fan with Reversing Functionality
    • Steel Embed Rubber Track – 400 mm (15.7 in) Block Tread
    • Triple Flange Idlers (front and rear)
    • Product Link™ PL240, Cellular
    • Fire Extinguisher Mounting Bracket (in-cab)
    • Screw-to-Connect Auxiliary Hydraulic Couplings (¾ in)
    • Push-to-Connect Flat Faced Auxiliary Hydraulic Couplings (½ in)
    • Debris Guarding (external and turbo)
    • Precleaner for Engine Air Intake
    • Additional Machine Guarding
    • Drive-line Guarding
    • Turbo Guard
    • Additional Machine Sealing
    • Fire Suppression System – Ready
  • MANDATORY EQUIPMENT
    • Quick Coupler, Mechanical or Powered
    • High Visibility Seat Belt, 50 mm (2 in) or 75 mm (3 in)
    • PERFORMANCE PACKAGE:
      – Performance Package H3: XE Hydraulics, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower)
    • COMFORT PACKAGE:
      – Enclosed ROPS with A/C (C3): Foot Throttle, Headliner, Heater and Defroster, Side Windows, Cup Holder, Radio Ready, Air Ride Seat (High Back and Heated) and Polycarbonate Door
Optional Equipment
  • OPTIONAL EQUIPMENT
    • Beacon, Rotating
    • Engine Block Heater – 120V
    • Oil, Hydraulic, Cold Operation
    • Paint, Custom
    • Product Link PL641, Cellular
    • Bluetooth® Radio with Microphone (AM/FM/Weather Band Receiver with USB and Auxiliary Input Jack)
    • Roof Mounted Auxiliary Hydraulic Cooler
    • Steel Embed Rubber Track – 450 mm (17.7 in) Block Tread
    • Steel Embed Rubber Track – 450 mm (17.7 in) BAR Tread
    • Steel Track – 355 mm (14 in) Sealed and Lubricated Steel Track (SALT) with Triple Grouser Shoes
    • Fire Suppression System - Fully Installed
