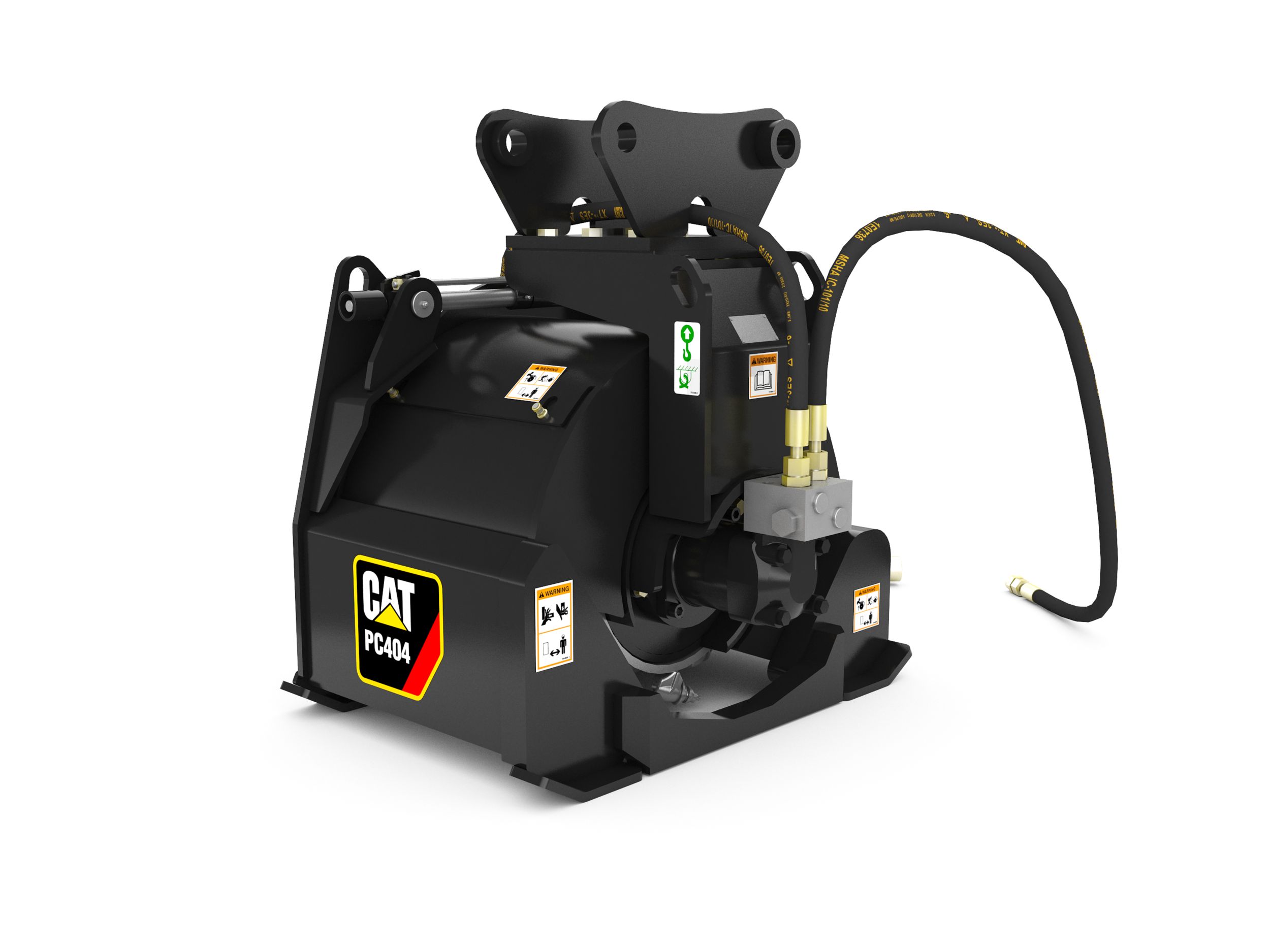

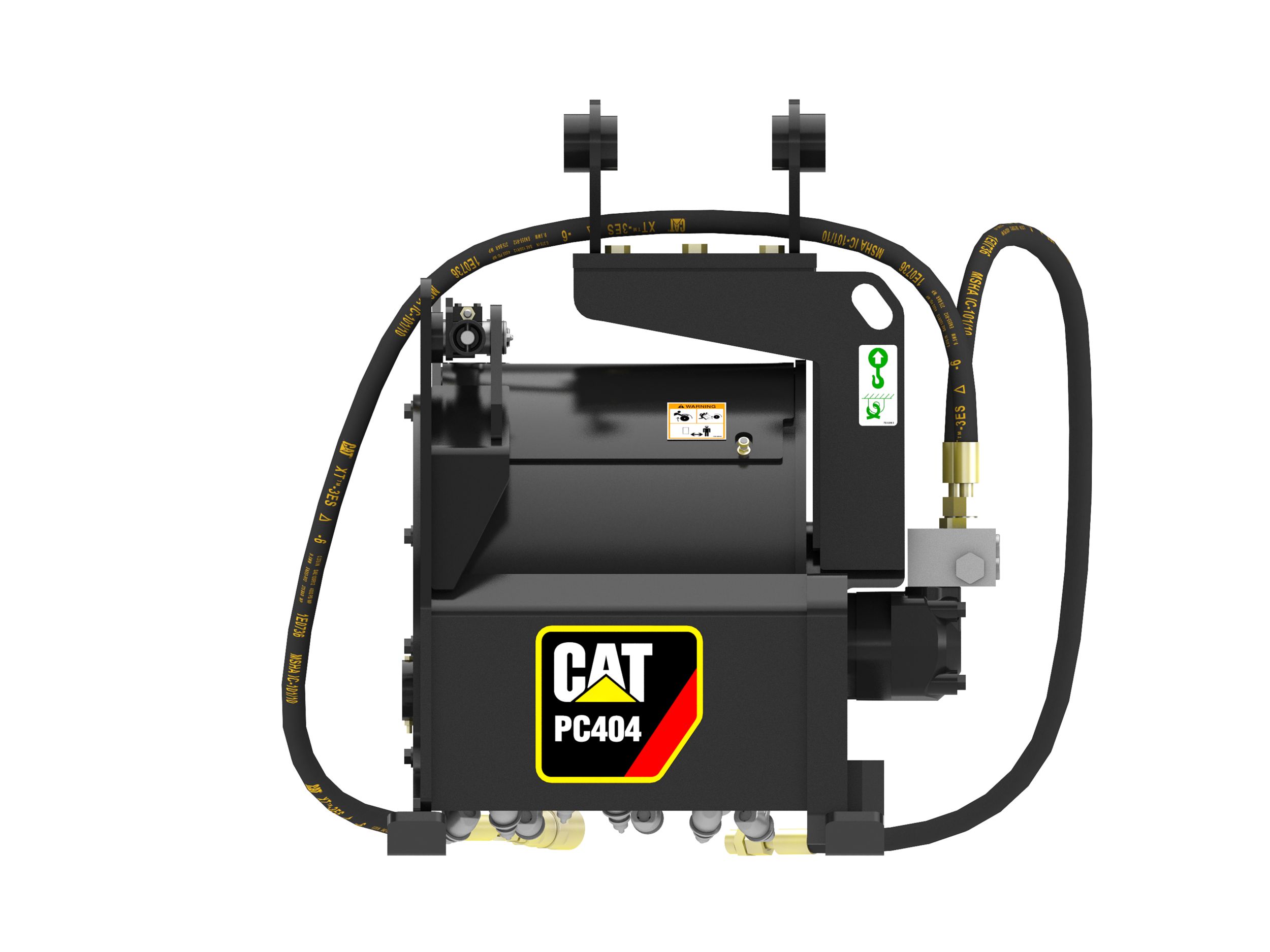

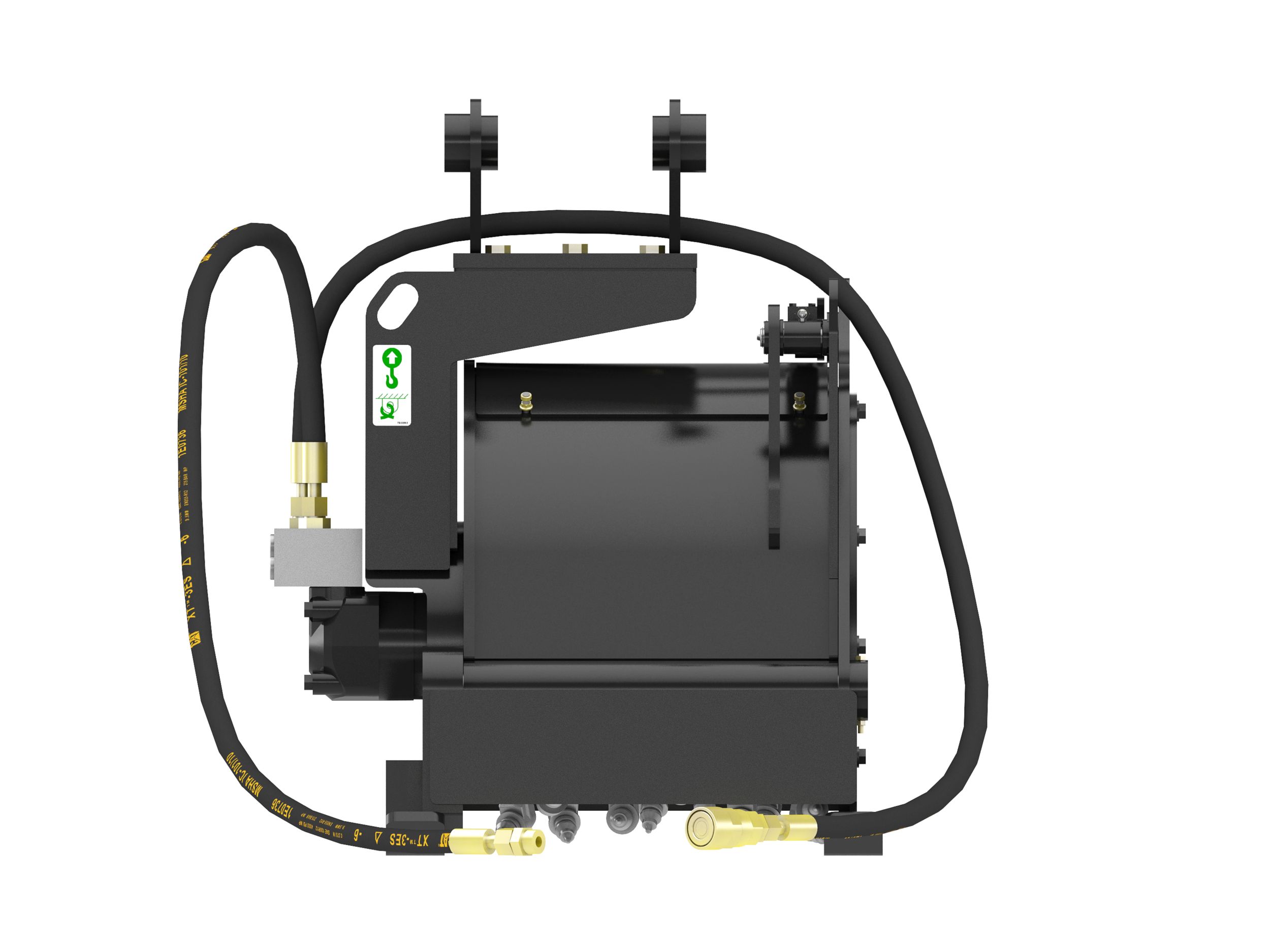

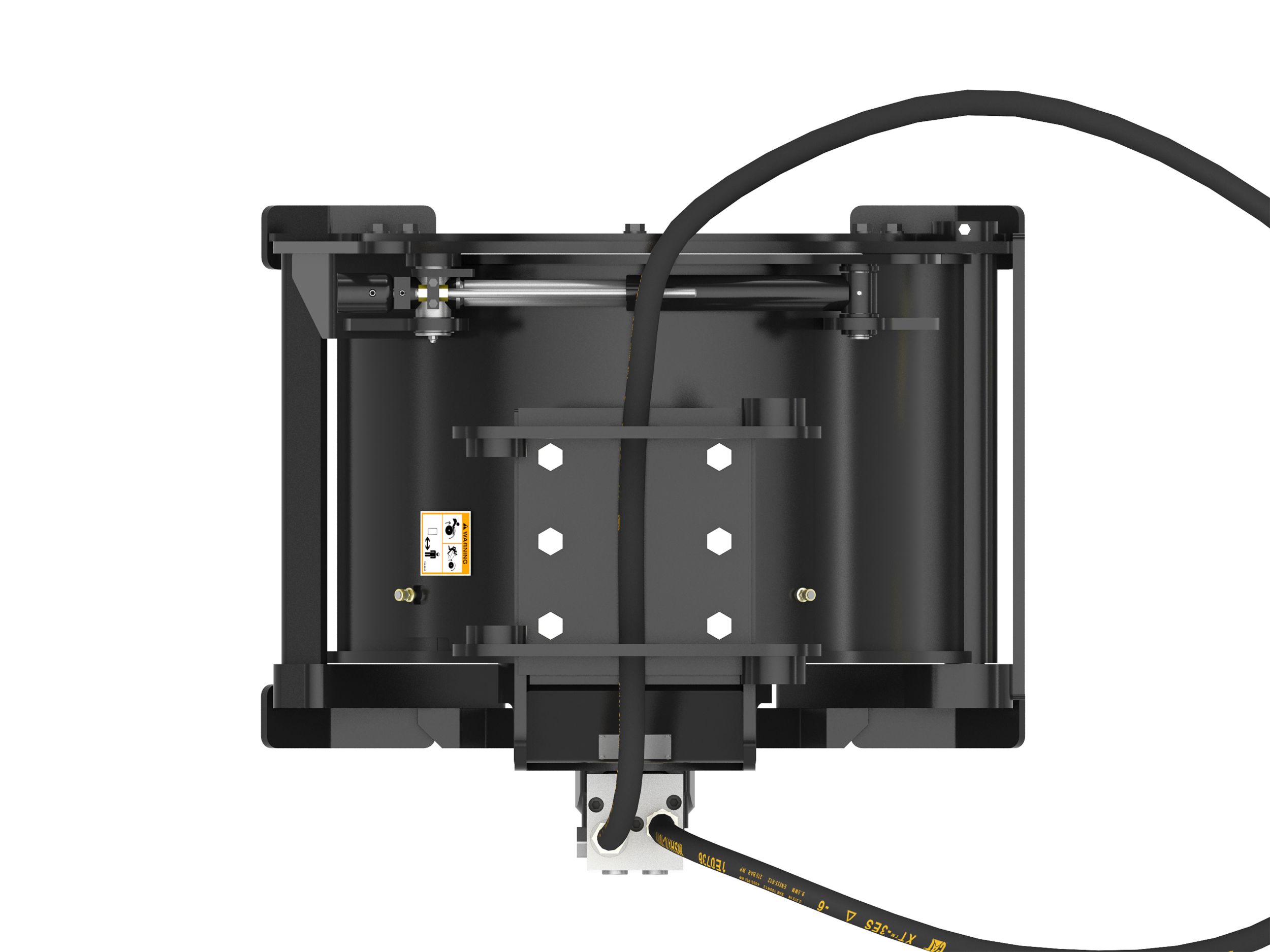

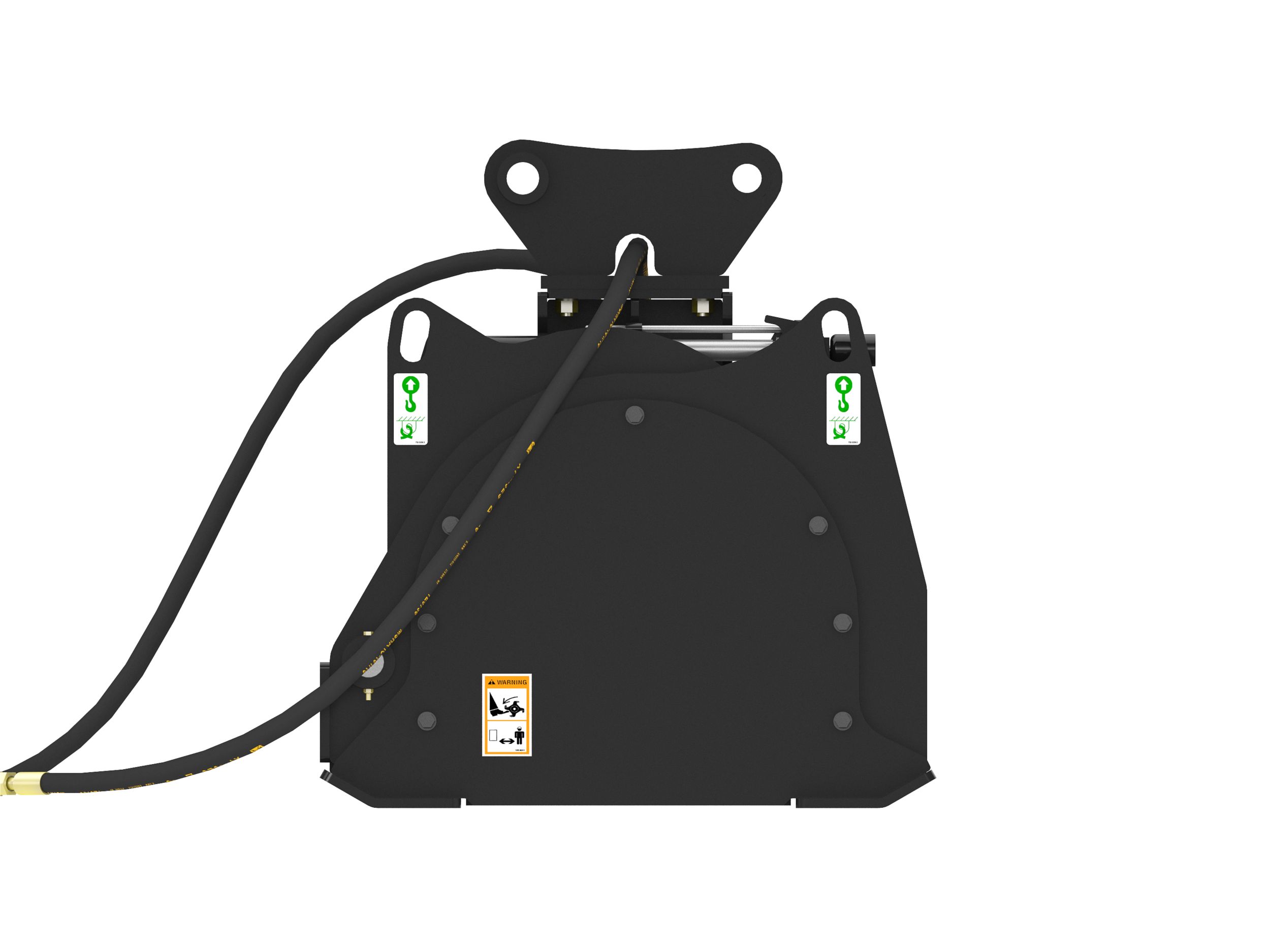

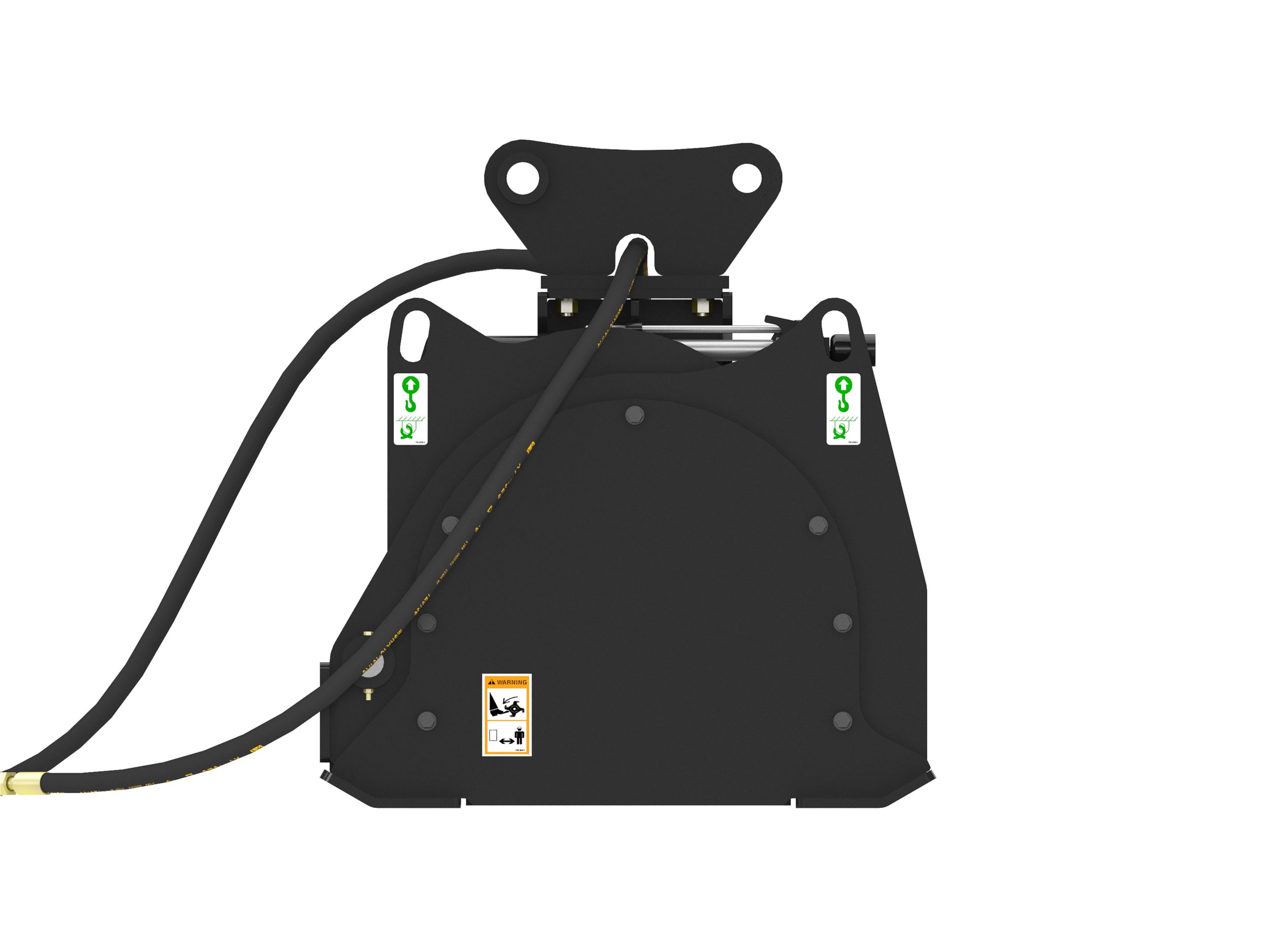

PC404 Cold Planer

US
Metric

Overview

Cat® Cold Planers are designed for small paving jobs in residential and commercial applications and are primarily used to economically restore asphalt and concrete surfaces. They are ideal for milling imperfections prior to resurfacing, removing deteriorated pavement, removing traffic lane stripes and jobs where the use of dedicated planers is limited. The Cat Cold Planers are designed for use on Cat Skid Steer Loaders, Multi Terrain Loaders, Compact Track Loaders, Compact Wheel Loaders and Backhoe Loaders.
Maximum Drum Width
18.00 in
450.00 mm

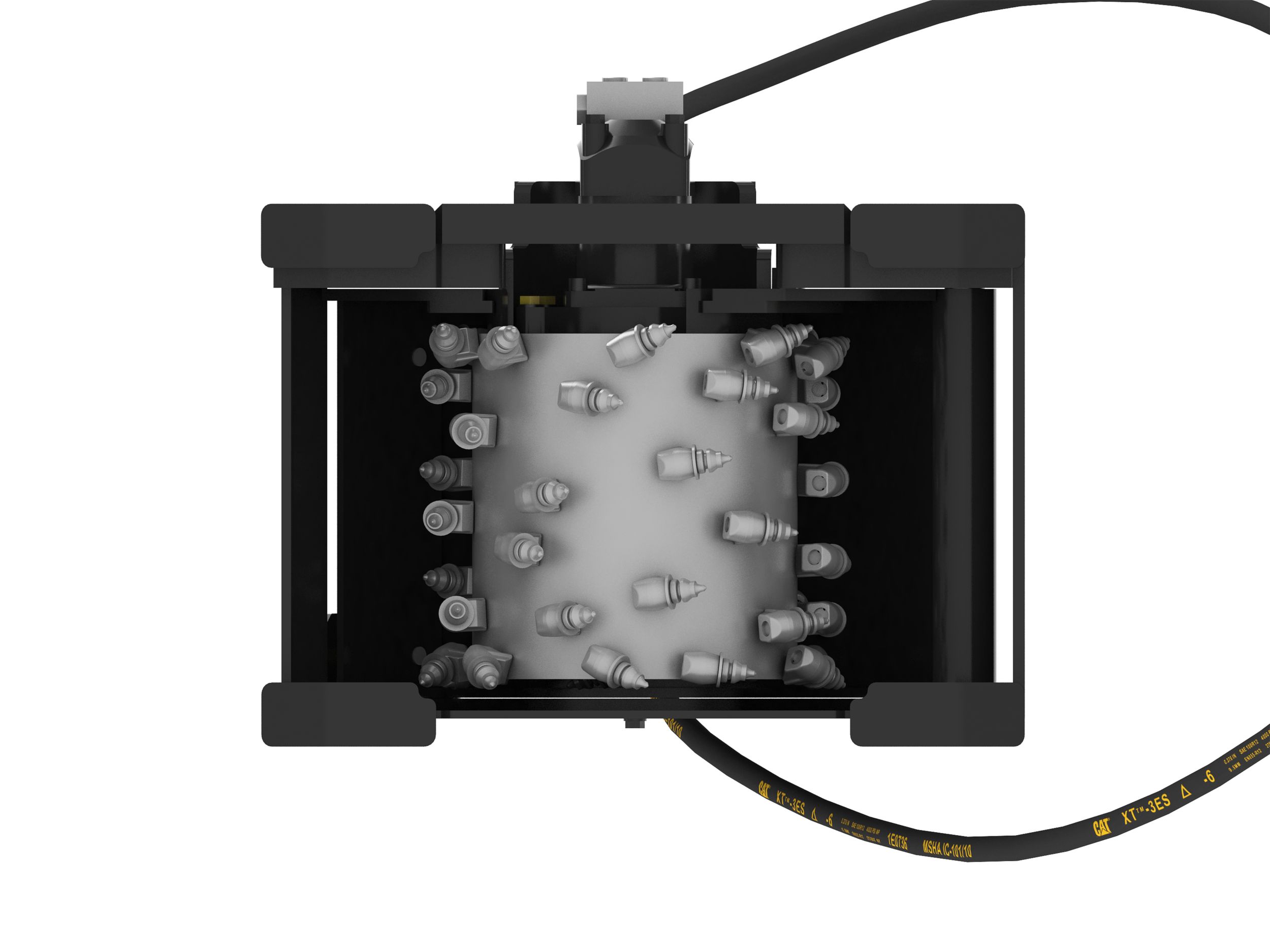

Conical Bits
48
Weight
1500.00 lb
680.00 kg
Standard Bit Type
Asphalt/Concrete
Required Hydraulic Flow
80-160 L/min (21-42 gal/min)
Optimum Hydraulic Pressure
160-240 bar (2,320-3,480 psi)
Maximum Cutting Depth
5.00 in
125.00 mm
Overall Width
32.50 in
828.00 mm
Overall Height
41.00 in
1030.00 mm
Overall Length
37.00 in
950.00 mm
Working Width
18.00 in
450.00 mm
Required Hydraulics
Standard
Rotation
130 degrees
Optimum Hydraulic Pressure
160-240 bar (2,320-3,480 psi)
Overall Height
41.00 in
1030.00 mm
Overall Length
37.00 in
950.00 mm
Overall Width
32.50 in
828.00 mm
Required Hydraulic Flow
80-160 L/min (21-42 gal/min)
Weight
1500.00 lb
680.00 kg
Working Width
18.00 in
450.00 mm
Required Hydraulics
Standard Flow
Optional Drum Widths/Depths
n/a
Optimal Hydraulic Flow
80-160 L/min (21-42 gal/min)
Optimal Hydraulic Pressure
160-240 bar (2320-3480 psi)
Features

Application

Designed for small paving jobs in residential and commercial applications, and are primarily used to economically restore asphalt and concrete surfaces. Ideal for milling imperfections prior to resurfacing, removing deteriorated pavement, removing traffic lane stripes and jobs where the use of dedicated planers is limited.

Self-leveling Design

Self-leveling design automatically levels itself when placed on the ground for consistent depth control without operator adjustments and excellent spoil retention.

Manual Depth Control

Manual depth control allows the operator to plane up to 5 inches.

Rotation

130 degrees of rotation offers smooth, unrestricted performance.

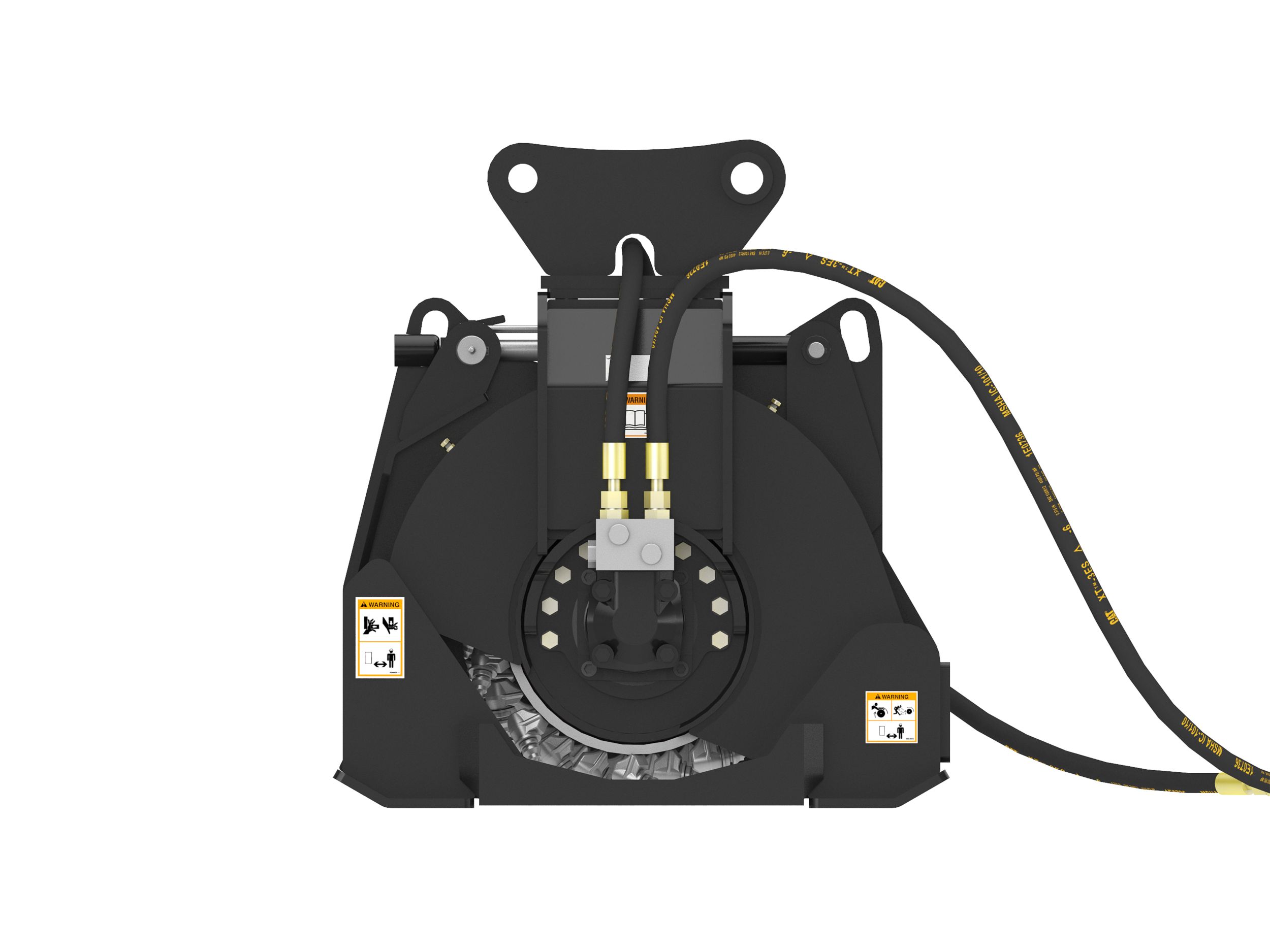

Direct Drive System

Direct drive system features a variable speed, uni-directional, gerotor style hydraulic motor for optimum speed and torque.
