Overview

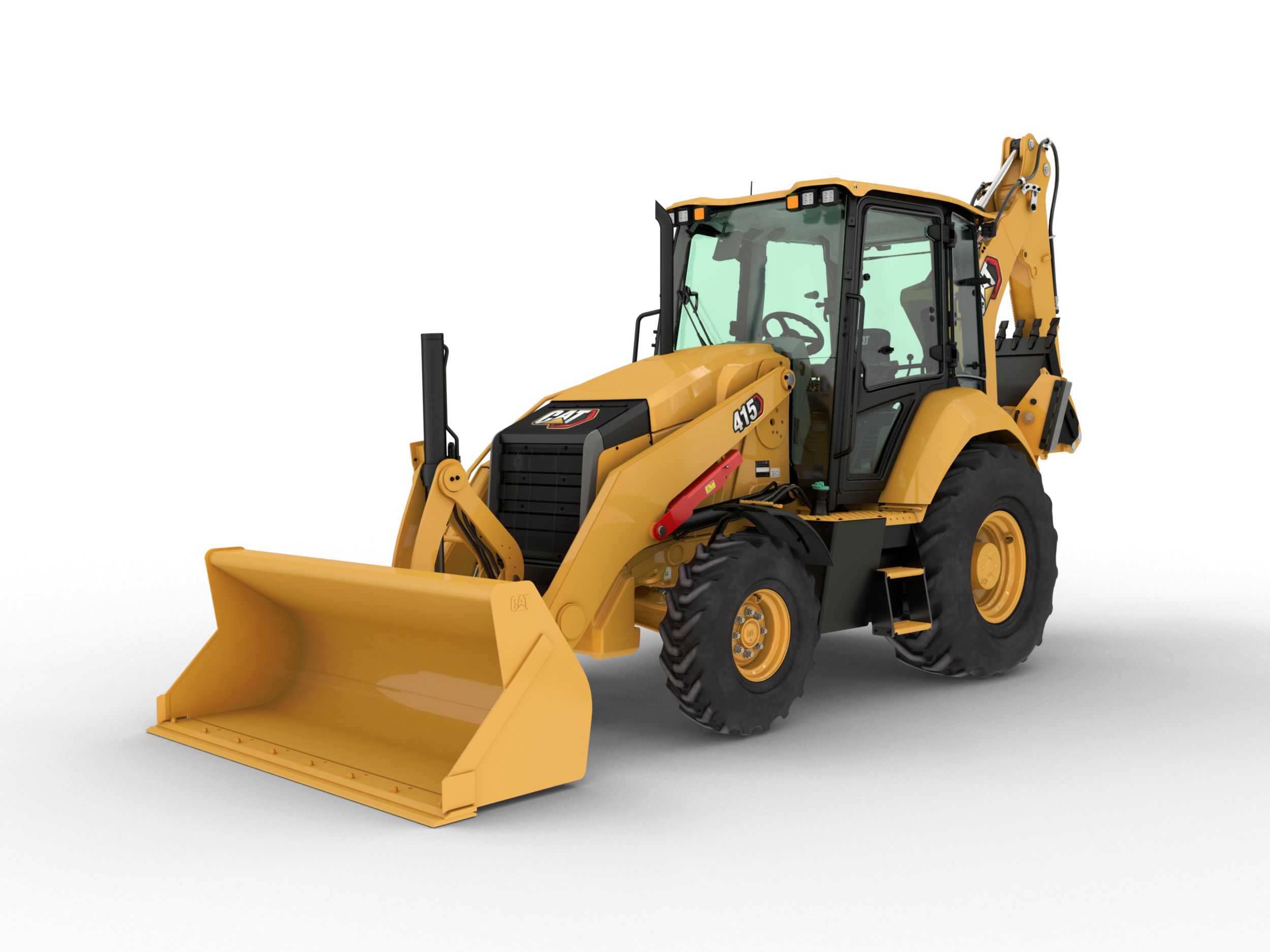

The Cat® 415 Backhoe Loader delivers exceptional performance, increased fuel efficiency, superior hydraulic system and an updated operator station.

Engine

Net Power - SAE J1349
70.00 HP
52.00 kW
Displacement
220.00 in³
3.60 l
Emissions
Engine meets U.S. EPA Tier 4 Final/EU Stage V emission standards.
Net Power Rating at 2,200 rpm - SAE J1349
70.00 HP
52.00 kW
Net Power Rating at 2,200 rpm - ISO 9249
69.00 HP
52.00 kW
Power Rating Conditions - No De-Rating Required Up To
10000.00 ft
3048.00 m
Net Torque Rise - 1,400 rpm - SAE J1349
308.00 ft-lb
418.00 N·m
Ratings at 2,200 rpm - Gross Power ISO 14396
74.00 HP
55.00 kW
Net Torque Rise - 1,400 rpm
85%
Ratings at 2,200 rpm - Gross Power SAE J1995
75.00 HP
56.00 kW
Engine Model
C3.6 55 kW (74 hp) Electronic Turbo Intercooled
Net Peak Power Rating @ 2,200 rpm - ISO 9249
71.00 HP
53.00 kW
Dimensions - Bore
3.86 in
98.00 mm
Net Peak Power Rating @ 2,200 rpm - SAE J1349
70.00 HP
52.00 kW
Dimensions - Stroke
4.72 in
120.00 mm

Weights

Operating Weight - Maximum
24251.00 lb
11000.00 kg
Cab - ROPS/FOPS
306.00 lb
139.00 kg
Air Conditioning
99.00 lb
45.00 kg
Auto-Shift Transmission
269.00 lb
122.00 kg
MP Bucket (0.96 m3/1.25 yd3) - With Fold-Over Forks
2017.00 lb
915.00 kg
Operating Weight - Maximum - ROPS Capacity
24251.00 lb
11000.00 kg
Operating Weight - Estimated*
16279.00 lb
7384.00 kg
MP Bucket (0.96 m3/1.25 yd3) - Without Fold-Over Forks
1642.00 lb
745.00 kg
Ride Control
33.00 lb
15.00 kg
Note
*Machine configuration: standard stick hoe, OROPS canopy, 4WD standard shift transmission, 0.96 m³ (1.25 yd³) GP (General Purpose) loader bucket, 610 mm (24 in) standard duty hoe bucket, front 340/80-18 and rear 500/70-24 tires, 240 kg (530 lb) counterweight, 80 kg (176 lb) operator, full fuel tank.
Loader QC
540.00 lb
245.00 kg
Counterweights, base - Maximum
1014.00 lb
460.00 kg
Counterweights, base - Stackable, one
529.00 lb
240.00 kg
Counterweights, base
256.00 lb
115.00 kg
All-Wheel Drive
STD
Extendible Stick (excludes ft. counterweight)
613.00 lb
278.00 kg

Backhoe

Dig Depth - Standard
14.00 ft
4277.00 mm

Transmission

Note
Travel speeds of backhoe loader at full throttle, when equipped with 500/70-24 rear tires.
Power-Shift Transmission - Optional - Forward - 4th
25.00 mile/h
40.00 km/h
Power-Shift Transmission - Optional - Reverse - 3rd
17.00 mile/h
27.00 km/h
Power-Shift Transmission - Optional - Forward - 2nd
5.80 mile/h
9.40 km/h
Power-Shift Transmission - Optional - Forward - 3rd
12.00 mile/h
20.00 km/h
Power-Shift Transmission - Optional - Reverse - 2nd
7.60 mile/h
12.00 km/h
Power-Shift Transmission - Optional - Forward -1st
3.70 mile/h
5.90 km/h
Power-Shift Transmission - Optional - Reverse - 1st
3.70 mile/h
5.90 km/h
Power Shuttle Transmission - Standard - Forward - 3rd
13.00 mile/h
21.00 km/h
Power Shuttle Transmission - Standard - Forward - 1st
3.40 mile/h
5.50 km/h
Power Shuttle Transmission - Standard - Reverse - 4th
23.00 mile/h
38.00 km/h
Power Shuttle Transmission - Standard - Forward - 2nd
5.70 mile/h
9.10 km/h
Power Shuttle Transmission - Standard - Forward - 4th
23.00 mile/h
38.00 km/h
Power Shuttle Transmission - Standard - Reverse - 1st
3.40 mile/h
5.50 km/h
Power Shuttle Transmission - Standard - Reverse - 2nd
5.70 mile/h
9.10 km/h
Power Shuttle Transmission - Standard - Reverse - 3rd
13.00 mile/h
21.00 km/h

Axle Ratings

Front Axle, AWD - Static
51808.00 lb
23500.00 kg
Front Axle, AWD - Dynamic
19841.00 lb
9000.00 kg
Rear Axle - Static
58422.00 lb
26500.00 kg
Rear Axle - Dynamic
22046.00 lb
10000.00 kg

Hydraulic System

Pump Type
Variable-flow, Axial Piston
Type
Closed Center
System Pressure - Loader
3336.00 psi
23000.00 kPa
System Pressure - Backhoe
3336.00 psi
23000.00 kPa
Pump Capacity at 2,200 rpm
34.90 gal/min
132.00 l/min

Steering

Turning Circle - (inner wheel not braked) - Outside Front Wheels
26.92 ft
8.21 m
Stroke
4.20 in
106.00 mm
Bore
2.60 in
65.00 mm
Type
Front Wheel Steering
Power Steering
Hydrostatic
Rod Diameter
1.60 in
40.00 mm
Turning Circle - (inner wheel not braked) - Outside Widest Loader Bucket
35.25 ft
10.75 m
Axle Oscillation
11°
Cylinder
One Double-Acting

Service Refill Capacities

Hydraulic System
25.10 gal (US)
95.00 l
Rear Axle - Planetaries
0.40 gal (US)
1.70 l
Cooling System with Air Conditioning
4.80 gal (US)
18.00 l
Rear Axle
4.20 gal (US)
16.00 l
Hydraulic Tank
11.10 gal (US)
42.00 l
Fuel Tank
42.30 gal (US)
160.00 l
Engine Oil - With Filter
2.40 gal (US)
9.00 l
Diesel Exhaust Fluid (DEF)
5.00 gal (US)
19.00 l
Transmission - Power Shuttle - AWD
4.80 gal (US)
18.00 l
Front Axle (AWD) - Planetaries
0.20 gal (US)
0.70 l
Front Axle (AWD)
2.90 gal (US)
11.00 l
Transmission - Power Shift - AWD
5.00 gal (US)
19.00 l

Sustainability

Recyclability
92%
Features

Ergonomic Operator Station

Ample legroom inside the cab makes rotating the seat simple. The air suspension seat provides comfort to the operator while roading.

Joystick Controls

Pilot joysticks are available for additional operator comfort, reduced fatigue and increased productivity. New Proportional Thumb Rollers on the Pilot Joysticks places E-Stick and Rear Auxiliary Controls at the operator's fingertips.

Load Sensing Hydraulics

The Cat Backhoe Loader’s load sensing piston pump provides full hydraulic lifting and digging forces at any engine speed. Variable flow pump matches hydraulic power to work demands.

Machine Performance

The proven Cat C3.6 engine delivers solid performance, meets U.S. EPA Tier 4 Final/EU Stage V emission standards, and requires no diesel exhaust fluid (DEF).

Machine Versatility

The all new Integrated Tool Carrier (IT Coupler) for Single Tilt Loader Arm configurations are available from the factory or for simple field installation. The Cat Backhoe Loader with Integrated Tool Carrier (IT Coupler) will be the most versatile machine on the job site providing quick connection to a variety of Cat Attachments.

Cat Attachments

A large portfolio of Backhoe Loader Attachments, including but not limited to, Quick Couplers, Thumbs, assorted Buckets, and Brooms are available from the factory or for field installation. Cat Backhoe Loaders will be “Dirt Ready” upon delivery.

Sustainability

  • The Cat® C3.6 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
  • Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to:
    • 20% biodiesel FAME (fatty acid methyl ester)
    • 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels
    Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.

  • The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg (3.5 lb) of refrigerant which has a CO2 equivalent of 2.3 metric tonnes (2.5 tons).

  • Operator Sound Pressure Level (ISO 6396:2008) – 76 dB(A)*
  • Exterior Sound Power Level (ISO 6395:2008) – 101 dB(A)
  • * Measurements were conducted with properly installed and maintained cab doors and windows closed.

  • Caterpillar factory fills with ethylene glycol coolants. Cat Diesel Engine Antifreeze/Coolant (DEAC) and Cat Extended Life Coolant (ELC) can be recycled. Consult your Cat dealer for more information.
  • Cat Bio HYDO™ Advanced is an EU Ecolabel approved biodegradable hydraulic oil.
  • Additional fluids are likely to be present, please consult the Operations and Maintenance Manual or the Application and Installation guide for complete fluid recommendations and maintenance intervals.

  • The following features and technology may contribute to fuel savings and/or carbon reduction. Features may vary. Consult your Cat dealer for details.
    – Save fuel and reduce your greenhouse gas emissions with efficiency features such as operator control modes selectable through the display and with fuel management modes.
    – Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
    – Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Standard Equipment
  • STANDARD EQUIPMENT
    • Air cleaner
    • Alarm, back-up
    • Audible system fault alarm
    • Backhoe controls, mechanical two lever
    • Battery, maintenance-free, 850 CCA
    • Battery disconnect switch
    • Boom transport lock
    • Brace, lift cylinder
    • Brake, parking, mechanical
    • Brakes, hydraulically boosted, oil disc, dual pedals, interlocking
    • Bucket level indicator
    • Canopy, ROPS/FOPS
    • Coat restraint
    • Coolant/antifreeze, extended life
    • Dome light (cab only)
    • Diagnostic port for engine
    • Differential lock, loader joystick
    • Drink holders, two
    • Engine, Cat C3.6 (Direct Injection Turbocharged), meets Tier 4 Final/Stage V emission standards, diesel particulate filter
    • Engine enclosure, sound suppression, removable side panels
    • Face seals, O-ring
    • Fan, suction and guard
    • Fast reversing shuttle, all gears
    • Fenders, rear
    • Filters, spin-on: fuel, engine oil, transmission oil, water separator
    • Filters, bowl and cartridge: hydraulic fluid
    • Flashing hazards/signal lights
    • Floor mat
    • Four wheel drive
    • Four wheel drive shaft guard
    • Fuel tank, fully enclosed
    • Fully hinged front grill for cooling package cleaning access
    • Gauge cluster: coolant temperature, fuel level, torque converter temperature, battery voltage
    • Ground level fuel fill
    • Halogen Lights, working (2 front, 2 rear)
    • High ambient cooling package
    • Hood lock, inside cab
    • Hydraulic hose, XT™
    • Hydraulic oil cooler
    • Hydraulic oil level sight gauge
    • Hydraulic valves, loader 2 function
    • Hydraulic valves, backhoe 4 function
    • Hydraulics, load sensing with variable displacement piston pump
    • Indicator lights: wait to start, water in fuel, engine warning, warning lamp, regeneration inhibited, low engine oil pressure; LCD warnings: machine locked, service due, air filter blocked, auto idle shutdown, high coolant temperature, high torque converter temperature, high exhaust temperature, engine oil life indicator
    • Instrument panel lights
    • Key start/stop system
    • LCD operator display with soft key controls: engine speed, hour meter, gear/direction, battery voltage, hydraulic oil temperature, torque converter temperature, coolant temperature, trip totals (fuel and hours), lifetime totals (fuel and hours), operator settings (units, brightness, programmable hoe auxiliary flow), service mode diagnostics, oil life reset, DPF force regeneration, maintenance intervals, ECM/system info
    • Loader, self-leveling, return-to-dig and transmission disconnect switch
    • Loader, single tilt
    • Mirror, interior, rearview
    • Open circuit breather
    • Power receptacle, 5 volt USB, 1 internal
    • Power receptacle, 12 volt, 2 internal, 1 external
    • Power steering, hydrostatic
    • Product Link™, cellular, network manager
    • Product Link, satellite, network manager
    • Seat belt, retractable, 51 mm (2 in)
    • Stabilizer shoes, street
    • Steering column, fixed
    • Steering knob
    • Seat, air suspension, vinyl cover, with armrest
    • Socket, two roof
    • Starting system, glow plugs
    • Steering, hydrostatic
    • Storage compartment, lockable
    • Storage tray
    • Stop and tail lights
    • Swing transport lock
    • Tires
    • Toolbox, external, lockable
    • Torque converter
    • Throttle, hand and foot, electronic
    • Transmission, four speed, manual, syncromesh
    • Transmission neutralizer switch
    • Transport tie-downs
    • Vandalism locks, three
    • Warning horn, electric
Optional Equipment
  • OPTIONAL EQUIPMENT
    • Auxiliary Hydraulics, rear, Adjustable Flow
    • Battery, additional, 850 CCA
    • Cab, standard
    • Cold weather fuel (–30° C/–22° F)
    • Cold weather package, including additional battery, engine block heater, radiator antifreeze (–50° C/–58° F), cold weather fuel (–30° C/–22° F) and mounting for an ether bottle
    • Counterweights, 115 kg (255 lb), 240 kg (530 lb) or 460 kg (1,015 lb)
    • Fenders, front with integral steps
    • Guard, boom protection plate
    • Guard, stabilizer, rock
    • Hydraulic valves, loader (3rd valve for MP or Quick Coupler)
    • Hydraulic valves, backhoe (5th and 6th function)
    • Hydraulic lines, combined function auxiliary
    • Joystick controls: pilot operated, excavator style with pattern changer
    • LED lights, working (2 front, 2 rear)
    • Pattern changer, in cab
    • Quick Coupler, hydraulic, dual lock
    • Quick Coupler, manual, dual lock
    • Quick Coupler, manual, pin lock
    • Radio and CD player, Bluetooth®
    • Ride Control
    • Rotating beacon, magnetic mount
    • Seat, air suspension, fabric with armrest
    • Seat belt, retractable, 75 mm (3 in)
    • Security system, Bluetooth
    • Security System, operator display
    • Side mirrors, cab, external
    • Single Tilt Loader Coupler, Integrated Tool Carrier (IT) Interface
    • Stabilizer pads, grouser type
    • Stabilizer pads, reversible
    • Steering column, tilting
    • Stick, extendible
    • Vandalism protection, gauge cover
    • Work Tool Attachments such as buckets, forks, material handling arms, augers, hammers, brooms, cold planers and vibratory plate compactors. See your Cat dealer for more information.
