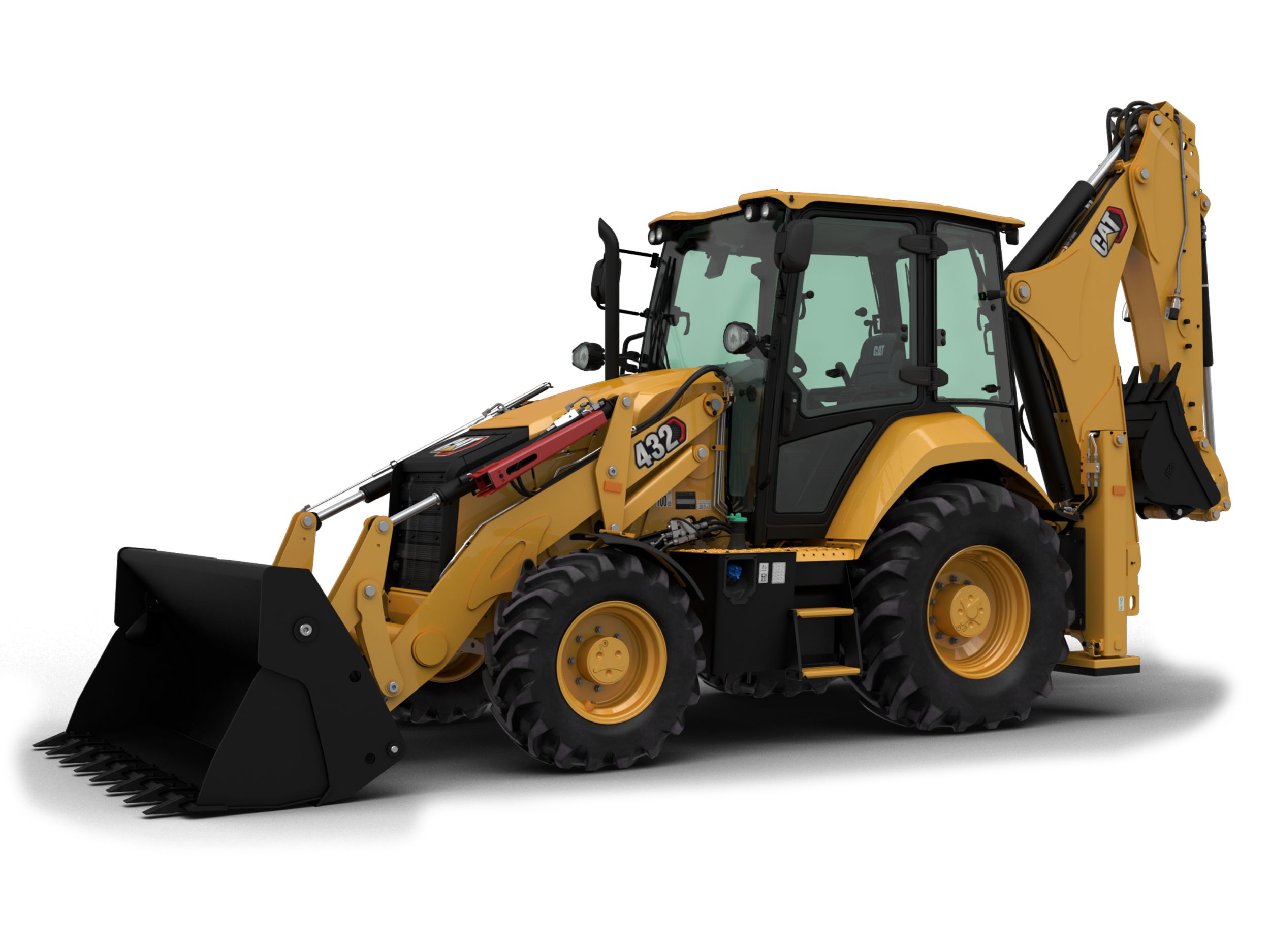

New machines, original DNA – The first Cat® backhoe loader hit the road in 1985. The machine was co-developed by a team of designers in Illinois, U.S. and a manufacturing team in Desford, UK. The machines are still designed by experts to meet the needs of today’s operators. Every model provides reliability, power and a top-quality operator environment to see you through the toughest projects. The latest backhoe loader range is crafted from 35 years of passion, expertise and experience.

Engine

Power - Net
92.00 hp
68.00 kW
Power
74.4 kW or 82 kW

Engine - EU Stage V (Standard)

Torque Rise (net)
48% @ 1,500 rpm
Stroke
4.72 in
120.00 mm
Note (1)
Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator.
Displacement
220.00 in³
3.60 l
Net Torque - SAE J1349
322.00 lbf
436.00 N·m
Bore
3.86 in
98.00 mm
Engine
C3.6 74.4 kW Electronic Turbo Intercooled
Note (2)
No derating required up to 3048 m altitude. Auto derate protects hydraulic and transmission systems.
Emissions
Meets EU Stage V emission standards.
Ratings at 2,200 rpm - Gross Power SAE J1995:2014
76 kW/103 hp
Ratings at 2,200 rpm - Engine Power ISO 14396:2002
74 kW/101 hp
Net Power Rating @ 2,200 rpm - ISO 9249:2007
68 kW/92 hp
Net Power Rating @ 2,200 rpm - SAE J1349:2011
68 kW/92 hp

Engine - EU Stage V (Optional)

Note (1)
Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator.
Torque Rise (net)
48% @ 1,500 rpm
Bore
3.86 in
98.00 mm
Net Torque - SAE J1349
358.00 ft-lb
485.00 N·m
Stroke
4.72 in
120.00 mm
Displacement
220.00 in³
3.60 l
Note (2)
No derating required up to 3048 m altitude. Auto derate protects hydraulic and transmission systems.
Engine
C3.6 82 kW Electronic Turbo Intercooled
Emissions
Meets EU Stage V emission standards.
Net Power Rating @ 2,200 rpm - SAE J1349:2011
76 kW/103 hp

Engine - EU Stage V (Optional) - A

Ratings at 2,200 rpm - Engine Power ISO 14396:2002
82 kW/111 hp

Engine - EU Stage V (Optional)

Ratings at 2,200 rpm - Gross Power SAE J1995:2014
84 kW/114 hp
Net Power Rating @ 2,200 rpm - ISO 9249:2007
75 kW/102 hp
Note (3)
Advertised power is tested per the specified standard in effect at the time of manufacture.

Transmission

Note
Travel speeds of backhoe loader at full throttle, when equipped with 480/80-26 rear tires.

Transmission - Powershift Transmission (Standard)

Reverse - 1st
3.70 mile/h
6.00 km/h
Forward - 1st
3.70 mile/h
6.00 km/h
Forward - 2nd
6.20 mile/h
10.00 km/h
Reverse - 2nd
8.10 mile/h
13.00 km/h
Forward - 4th
24.90 mile/h
40.00 km/h
Reverse - 3rd
17.00 mile/h
27.30 km/h
Forward - 3rd
12.40 mile/h
20.00 km/h

Transmission - Auto-Shift Transmission (Optional)

Forward - 6th
24.90 mile/h
40.00 km/h
Reverse - 1st
3.70 mile/h
6.00 km/h
Forward - 1st
3.70 mile/h
6.00 km/h
Forward - 5th
16.80 mile/h
27.00 km/h
Forward - 2nd
6.20 mile/h
10.00 km/h
Forward - 3rd
8.10 mile/h
13.00 km/h
Reverse - 3rd
17.00 mile/h
27.30 km/h
Forward - 4th
12.40 mile/h
20.00 km/h
Reverse - 2nd
8.10 mile/h
13.00 km/h

Transmission - Auto-Shift Transmission with Lock-Up Torque Converter (Optional)

Forward - 1st
3.70 mile/h
6.00 km/h
Reverse - 3rd
17.00 mile/h
27.30 km/h
Reverse - 2nd
8.10 mile/h
13.00 km/h
Forward - 5th
16.80 mile/h
27.00 km/h
Forward - 2nd
6.20 mile/h
10.00 km/h
Forward - 4th
12.40 mile/h
20.00 km/h
Forward - 6th
24.90 mile/h
40.00 km/h
Reverse - 1st
3.70 mile/h
6.00 km/h
Forward - 3rd
8.10 mile/h
13.00 km/h

Axle Ratings

Rear Axle - Dynamic
22046.00 lb
10000.00 kg
Rear Axle - Static
58423.00 lb
26500.00 kg
Front Axle - Dynamic
19842.00 lb
9000.00 kg
Front Axle - Static
51809.00 lb
23500.00 kg

Weights

Operating Weight - Nominal
18671.00 lb
8469.00 kg
Operating Weight - Maximum
24251.00 lb
11000.00 kg
Operating Weight
18671.00 lb
8469.00 kg
Counterweights - Maximum
1014.00 lb
460.00 kg
Operating Weight - Maximum - ROPS Capacity
24251.00 lb
11000.00 kg
Ride Control
33.00 lb
15.00 kg
Counterweights - Base
254.00 lb
115.00 kg
Air Conditioning
99.00 lb
45.00 kg
MP Bucket (1.03 m³/1.3 yd³) - without Fold-over Forks
1486.00 lb
674.00 kg
Total Gross Weight Not to Exceed
24251.00 lb
11000.00 kg
Minimum Counterweight Recommendations - Standard Stick - Loader Bucket - No QC - MP
0.00 lb
0.00 kg
Power-Shift Transmission
Standard
Minimum Counterweight Recommendations - Standard Stick - Loader Bucket - IT Loader with QC - MP
1014.00 lb
460.00 kg
Cab - ROPS/FOPS
Standard
Minimum Counterweight Recommendations - Standard Stick - Loader Bucket - IT Loader with QC - GP
1014.00 lb
460.00 kg
MP Bucket (1.03 m³/1.3 yd³) - with Fold-over Forks
1896.00 lb
860.00 kg
Minimum Counterweight Recommendations - Extendible Stick - Loader Bucket - IT Loader with QC - MP
1014.00 lb
460.00 kg
Minimum Counterweight Recommendations - Extendible Stick - Loader Bucket - No QC - GP
1014.00 lb
460.00 kg
Minimum Counterweight Recommendations - Standard Stick - Loader Bucket - No QC - GP
529.00 lb
240.00 kg
Minimum Counterweight Recommendations - Extendible Stick - Loader Bucket - No QC - MP
254.00 lb
115.00 kg
Note
Machine Configuration – HRC 74.5 kW engine; 4.3 m standard stick hoe; standard cab with A/C; AWD powershift transmission; 1.03 m³ MP loader bucket; 600 mm standard duty hoe bucket; 340/80-20 and 480/80-26 tires; no counterweight; One Way Aux Lines; AWD Guard; Front Fenders; HD Battery; 80 kg operator; full fuel tank.
Minimum Counterweight Recommendations - Extendible Stick - Loader Bucket - IT Loader with QC - GP
1014.00 lb
460.00 kg
Counterweights - Mid
529.00 lb
240.00 kg
Loader QC
408.00 lb
185.00 kg
4.3 m Extendible Stick
439.00 lb
199.00 kg
4.9 m Extendible Stick
783.00 lb
355.00 kg

Hydraulic System

System Pressure - Backhoe
3626.00 psi
250.00 bar
System Pressure - Loader
3626.00 psi
250.00 bar
Pump Capacity @ 2,200 rpm
49.40 gal/min
187.00 l/min
Type
Closed Center
Pump Type
Variable-Flow, Axial Piston

Steering

AWD Cylinder, One (1) Double Acting - Rod Diameter
1.60 in
40.00 mm
Power Steering
Hydrostatic
AWD Cylinder, One (1) Double Acting - Stroke
4.20 in
106.00 mm
AWD Cylinder, One (1) Double Acting - Bore
2.60 in
65.00 mm
Type
Front Wheel
Turning Circle - AWD (inner wheel not braked) - Outside, Widest Loading Bucket
38.10 ft
11622.00 mm
Turning Circle - AWD (inner wheel not braked) - Outside, Front Wheels
30.40 ft
9273.00 mm

Service Refill Capacities

Cooling System - A/C
4.80 gal (US)
18.00 l
Rear Axle
4.20 gal (US)
16.00 l
Engine Oil - With Filter
2.40 gal (US)
9.00 l
Hydraulic Tank
11.10 gal (US)
42.00 l
Rear Axle - Planetaries
0.40 gal (US)
1.70 l
Fuel Tank
42.30 gal (US)
160.00 l
Diesel Exhaust Fluid
5.00 gal (US)
19.00 l
Hydraulic System
25.10 gal (US)
95.00 l
Front Axle - Planetaries
0.02 gal (US)
0.70 l
Front Axle
2.90 gal (US)
11.00 l

Service Refills Capacities

Transmission (Powershift/Autoshift)
4.18 Gal
19.00 l

Loader Performance

Breakout Force
12297.00 ft·lbf
54.70 kN

Operator Station

Controls
Seat Mounted Controls with Dual Mode

Backhoe Digging Depth

Dig Depth
4778 mm/6150 mm (E-Stick)
Features

POWERFUL LOAD SENSING HYDRAULIC SYSTEM

BACKHOE – BUILT FOR THE TASK

POWER TRAIN – POWERFUL, PROVEN AND EFFICIENT

LOADER PERFORMANCE – MAKING LIGHT WORK OF LIFTING AND LOADING

THE CLASS LEADING OPERATOR ENVIRONMENT JUST GOT BETTER – SET YOUR MACHINE PERFORMANCE TO INCREASE PRODUCTIVITY AND EFFICIENCY

ATTACHMENTS

EASY TO OPERATE – EASY TO MAINTAIN

YOUR MACHINE – YOUR SUPPORT

Standard Equipment
  • Cab ROPS and FOPS
    • Cab, Standard
  • Tires/Steering/Brakes
    • All Wheel Drive
    • 100% Differential Lock
    • Hydraulic Boosted Brakes
    • Tires 26 inch
  • Engine/Transmission
    • Engine, C3.6 74.4 kW
    • Battery, 750 CCA, Standard
    • Hinged Radiator Pack
    • Auto Idle
    • Eco Mode
    • Standard Mode
    • Standard + Mode
    • Transmission Neutralizer
    • Transmission, Four Speed Powershift
  • Controls
    • Controls, Electro Hydraulic Seat Mounted
    • Pattern Selector (ISO/SAE)
    • Power Steering, Hydrostatic
  • Electrical
    • Display Screen, Soft Key
    • Product Link Cellular
    • Reversing Alarm
    • Stabilizer Alarm
  • Hydraulics
    • Variable Displacement Piston Pump
    • Side Shift Lock
    • Hydraulic Oil Cooler
    • Loader Kickout, Float
    • Loader Kickout, Return to Dig
    • Continuous Flow
    • Programmable Auxiliary Flow
  • Booms, Sticks and Linkages
    • Stick Standard, 4.3 m
    • Transport Lock, Swing
    • Transport Lock, Boom
  • Other Attachments
    • External Tool Box
    • Transport Tie Downs
Optional Equipment
  • Cab ROPS and FOPS
    • Cab, Deluxe
  • Tires/Steering/Brakes
    • Tires 28 inch
  • Engine/Transmission
    • Engine, C3.6 82 kW
    • Battery, 750 CCA, Heavy Duty
    • Engine Block Heater
    • Transmission, Six Speed Automatic
    • Transmission, Six Speed Autoshift with Lock-Up Torque Converter
  • Electrical
    • Display Screen, Touchscreen
    • Product Link, Dual Mode (cellular and satellite)
    • Beacon, Rotating
    • Beacon, Strobe
  • Hydraulics
    • Hydraulic Quick Disconnects
    • Hydraulic Lines, One Way
    • Hydraulic Lines, Two Way
    • Powered Side Shift
    • Ride Control
  • Booms, Sticks and Linkages
    • Stick Extending, 4.3 m
    • Stick Extending, 4.9 m
    • Hoe Quick Coupler, Mechanical
    • Hoe Quick Coupler, Hydraulic
    • Loader Quick Coupler, Hydraulic
  • Other Attachments
    • Counterweight, 115 kg
    • Counterweight, 240 kg
    • Counterweight, 460 kg
    • Front Fenders
    • Street Pads, Stabilizers
