Overview

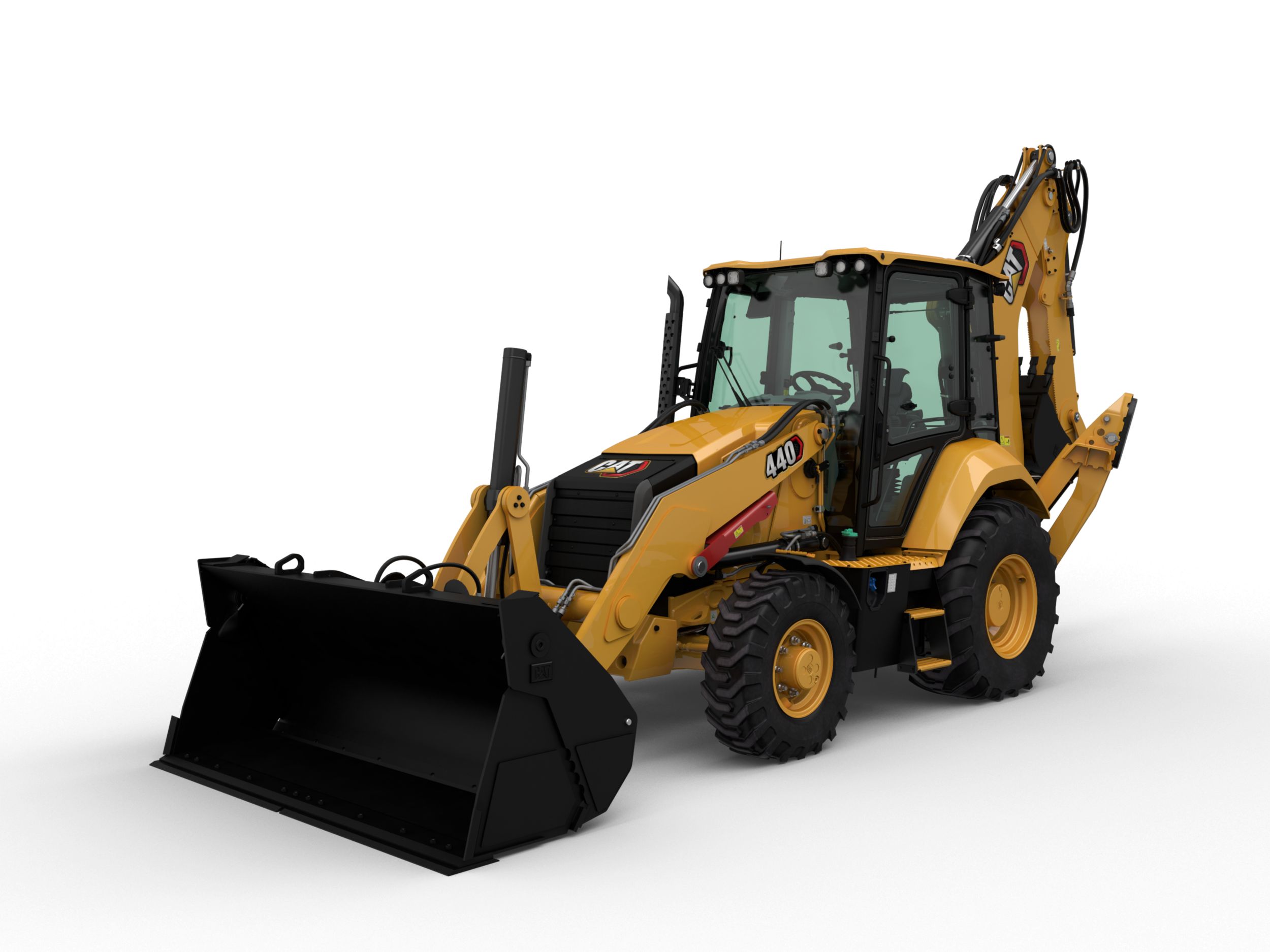

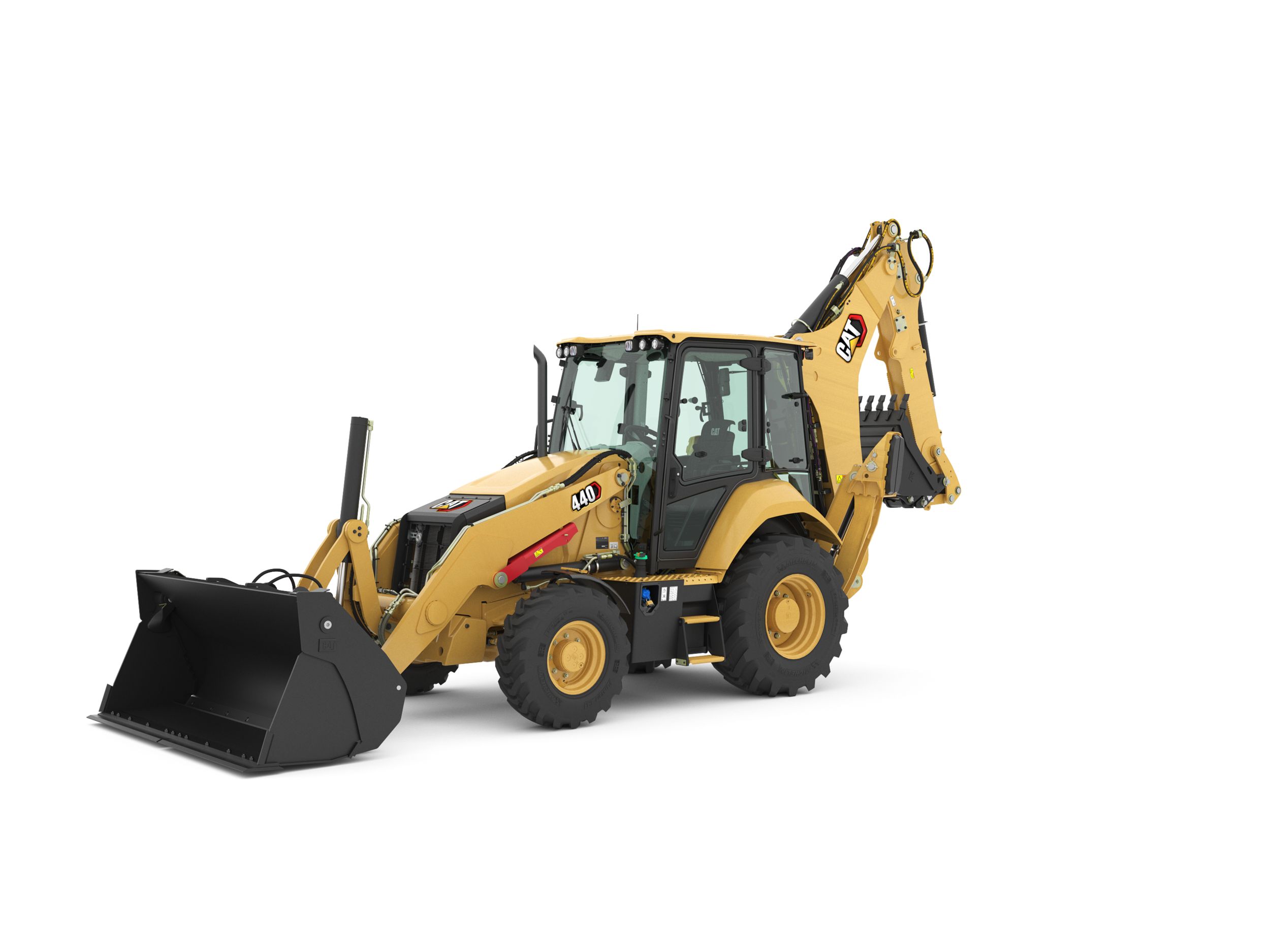

The Cat® 440 Backhoe Loader delivers improved machine performance, a superior hydraulic system, improved operator controls and ergonomics, and overall versatility.

Engine

Net Power - SAE J1349
104.00 HP
78.00 kW
Bore
4.13 in
105.00 mm
Stroke
5.00 in
127.00 mm
Displacement
268.00 in³
4.40 l
Engine Model
C4.4 ACERT 87 kW (116 hp) Electronic – Turbo Intercooled
Net Peak Power Rating - ISO 9249 at 1,800 rpm
108.00 HP
80.70 kW
Net Peak Power Rating - SAE J1349 at 2,100 rpm
108.00 HP
80.70 kW
Net Power Rating at 2,200 rpm - ISO 9249
104.00 HP
78.00 kW
Net Power Rating at 2,200 rpm - SAE J1349
104.00 HP
78.00 kW
Net Torque Rise - 1,400 rpm
44%
Net Torque Rise - 1,400 rpm - SAE J1349
360.00 ft·lbf
487.00 N·m
Power Rating Conditions - No De-Rating Required Up To
7500.00 ft
2286.00 m
Ratings at 2,200 rpm - Gross Power ISO 14396
116.00 HP
87.00 kW
Ratings at 2,200 rpm - Gross Power SAE J1995
118.00 HP
88.00 kW

Weights

Operating Weight - Maximum
29321.00 lb
13300.00 kg
Backhoe Quick Coupler
+87 kg (+192 lb)
Cab, ROPS/FOPS
+243 kg (+536 lb)
Counterweight
1102.00 lb
500.00 kg
Extendible Stick
+301 kg (+664 lb)
Loader Bucket - 1.34 m³ (1.75 yd³) GP (Hook-On)
–150 kg (–331 lb)
Loader Bucket - 1.34 m³ (1.75 yd³) MP ED (Hook-On)
+160 kg (+353 lb)
Loader Bucket - 1.34 m³ (1.75 yd³) MP ED (Pin-On)
+290 kg (+639 lb)
Loader Bucket - 1.34 m³ (1.75 yd³) MP HD (Hook-On)
+85 kg (+187 lb)
Loader Bucket - 1.34 m³ (1.75 yd³) MP HD (Pin-On)
+214 kg (+472 lb)
Loader Bucket - 1.53 m³ (2.0 yd³) GP (Hook-On)
–73 kg (–162 lb)
Loader Bucket - 1.53 m³ (2.0 yd³) GP (Pin-On)
+80 kg (+176 lb)
Loader Quick Coupler
+250 kg (+551 lb)
Note (1)
*Machine equipped with 340/80-18 front and 500/70-24 rear, AWD, OROPS, 1.34 m³ (1.75 yd³) general purpose bucket with bolt-on cutting edge, standard stick, 610 mm (24"") severe-duty backhoe bucket.
Note (2)
GP = General Purpose
Note (3)
MP = Multi Purpose
Note (4)
HD = Heavy Duty
Note (5)
ED = Extreme Duty
Operating Weight - Estimated*
21544.00 lb
9772.00 kg
Operating Weight - Maximum - ROPS Capacity
29321.00 lb
13300.00 kg

Transmission

Autoshift Transmission - Forward - 1st
3.70 mile/h
5.90 km/h
Autoshift Transmission - Forward - 2nd
5.90 mile/h
9.50 km/h
Autoshift Transmission - Forward - 3rd
7.70 mile/h
12.40 km/h
Autoshift Transmission - Forward - 4th
12.20 mile/h
19.60 km/h
Autoshift Transmission - Forward - 5th
16.70 mile/h
26.80 km/h
Autoshift Transmission - Forward - 6th
24.40 mile/h
39.20 km/h
Autoshift Transmission - Reverse - 1st
3.70 mile/h
5.90 km/h
Autoshift Transmission - Reverse - 2nd
7.70 mile/h
12.40 km/h
Autoshift Transmission - Reverse - 3rd
16.70 mile/h
26.80 km/h
Note
Travel speeds of backhoe loader in two wheel drive at full throttle, when equipped with 500/70-24 rear tires.

Hydraulic System

Pump Type
Variable Flow, Axial Piston
Pump Capacity at 2,200 rpm
58.10 gal/min
220.00 l/min
System Pressure - Backhoe
3800.00 psi
26200.00 kPa
System Pressure - Loader
3800.00 psi
26200.00 kPa
Type
Closed Center

Service Refill Capacities

Cooling System with Cab Heater
6.00 gal (US)
22.50 l
Diesel Exhaust Fluid (DEF)
5.00 gal (US)
19.00 l
Engine Oil - With Filter
2.30 gal (US)
8.80 l
Front Axle (Center Housing)
2.90 gal (US)
11.00 l
Fuel Tank
42.30 gal (US)
160.00 l
Hydraulic System (Minimum)
31.70 gal (US)
120.00 l
Hydraulic Tank (Nominal)
14.30 gal (US)
54.00 l
Planetaries
0.20 gal (US)
0.70 l
Rear Axle (Center Housing)
4.40 gal (US)
16.50 l
Transmission (Autoshift) - AWD, Autoshift
4.80 gal (US)
18.00 l

Steering

Axle Oscillation
11°
Bore
3.35 in
85.00 mm
Note
AWD cylinder, one (1) double-acting.
Power Steering
Hydrostatic HMU
Rod Diameter
1.65 in
42.00 mm
Stroke
9.29 in
236.00 mm
Turning Circle - AWD (inner wheel not braked) - Outside Front Wheels
27.33 ft
8.33 m
Turning Circle - AWD (inner wheel not braked) - Outside Widest Loader Bucket
37.75 ft
11.50 m
Type
Front Wheel

Axle Ratings

Front Axle, AWD - Dynamic
20225.00 lb
9174.00 kg
Front Axle, AWD - Static
50565.00 lb
22936.00 kg
Rear Axle - Dynamic
20225.00 lb
9174.00 kg
Rear Axle - Static
50565.00 lb
22936.00 kg

Backhoe

Dig Depth - Standard
15.50 ft
4718.00 mm

Engine

Gross Power - ISO 14396
74.00 HP
55.00 kW
Gross Power - SAE J1995
74.00 HP
55.00 kW
Net Peak Power - 1,800 rpm - EEC 80/1269
73.00 HP
54.00 kW
Net Peak Power - 1,800 rpm - ISO 9249
73.00 HP
54.00 kW
Net Peak Power - 1,800 rpm - SAE J1349
72.00 HP
54.00 kW
Net Torque Rise - 1,200 rpm
88.00 %
88.00 %
Rated Net Power - 2,200 rpm - EEC 80/1269
69.00 HP
51.00 kW
Rated Net Power - 2,200 rpm - ISO 9249
68.00 HP
51.00 kW
Rated Net Power - 2,200 rpm - SAE J1349
68.00 HP
51.00 kW

Weights

Cab - ROPS/FOPS
359.00 lb
163.00 kg
Air Conditioning
101.00 lb
46.00 kg
Front Counterweight - Counterweights - Option 1
255.00 lb
115.00 kg
Front Counterweight - Counterweights - Option 2
530.00 lb
240.00 kg
MP Bucket (1.00 m3/1.31 yd3) - With Fold-Over Forks
2018.00 lb
915.00 kg
MP Bucket (1.00 m3/1.31 yd3) - Without Fold-Over Forks
3622.00 lb
1642.00 kg
Operating Weight - Minimum
14035.00 lb
6366.00 kg

Loader Bucket

Dig Depth - Standard
3.00 in
83.00 mm

Weights

Front Counterweight - Counterweights - Option 3
1015.00 lb
460.00 kg
Rear Counterweight
198.00 lb
90.00 kg

Hydraulic System

System Pressure - Hitch/Box Scraper
2973.00 psi
20500.00 kPa

Transmission

Power Shuttle Transmission - Forward 1st
3.40 mile/h
5.40 km/h
Power Shuttle Transmission - Forward 2nd
5.50 mile/h
8.90 km/h
Power Shuttle Transmission - Forward 3rd
13.00 mile/h
20.00 km/h
Power Shuttle Transmission - Forward 4th
23.00 mile/h
36.00 km/h
Power Shuttle Transmission - Reverse 1st
3.40 mile/h
5.40 km/h
Power Shuttle Transmission - Reverse 2nd
5.50 mile/h
8.90 km/h
Power Shuttle Transmission - Reverse 3rd
13.00 mile/h
20.00 km/h
Power Shuttle Transmission - Reverse 4th
23.00 mile/h
36.00 km/h

Service Refill Capacities

Cooling System with Air Conditioning
4.40 gal (US)
16.50 l
Front Axle (4WD)
2.90 gal (US)
11.00 l
Front Axle (4WD) - Planetaries
0.20 gal (US)
0.70 l
Hydraulic System
23.80 gal (US)
90.00 l
Rear Axle
4.40 gal (US)
16.50 l
Rear Axle - Planetaries
0.40 gal (US)
1.70 l
Transmission - Power Shuttle - 2WD
4.00 gal (US)
15.00 l
Transmission - Power Shuttle - 4WD
4.00 gal (US)
15.00 l

Axle Ratings

Front Axle (4WD) - Dynamic
20233.00 lb
9186.00 kg
Front Axle (4WD) - Static
50582.00 lb
22964.00 kg

Counterweights - Front - Minimum Recommendations

Standard Stick - GP Loader Bucket - 4WD
255.00 lb
116.00 kg
Standard Stick - MP Loader Bucket - 4WD
no counterweight

Engine

Emissions
Engine meets U.S. EPA Tier 4 Final emission standards.
Net Peak Torque SAE J1349
307.00 ft·lbf
416.00 N·m
Note
No derating required up to 2286 m (7,500 ft).

Service Refill Capacities

Hydraulic Tank
10.60 gal (US)
40.00 l
Note
Requires ultra-low sulfur fuel less than or equal to 15 ppm fuel sulfur

Steering

Turning Circle - 2WD/AWD (inner wheel not braked) - Outside Front Wheels
26.80 ft
8.18 m
Turning Circle - 2WD/AWD (inner wheel not braked) - Outside Widest Loader Bucket
36.00 ft
10.97 m

Tires

Standard Configuration of Front/Rear Tires
Front: 12.5 80/16.9; Rear: 16.9-24
Features

Features

Adjustable Seat Mounted Controls improve ergonomics by increasing operator comfort and legroom. Operators have Loader and Backhoe Controls in the palm of their hands, whether they are facing the Loader, the Backhoe, or sitting off set. Variable Speed Steer reduces operator fatigue in applications, such as truck loading, by reducing the number of steering wheel rotations required to turn the machine. The new Spring Applied Hydraulically Released (SAHR) Parking Brake is controlled by simply pressing a button.

Advanced Hydraulics

The Cat Backhoe Loader’s load sensing piston pump provides full hydraulic lifting and digging forces at any engine speed. Variable flow pump matches hydraulic power to work demands. The advanced hydraulic system allows the operator to adjust Loader and Backhoe Auxiliary Flow matching attachment specifications, program Loader Bucket Kickout and Return to Dig, and Enable Parallel Lift.

Machine Performance

The Cat C4.4 ACERT™ engine delivers solid performance and meets U.S. EPA Tier 4 Final/EU Stage IV emission standards by utilizing Selective Catalytic Reduction technology with a Diesel Oxidation Catalyst. The new Backhoe design and optimized Loader Linkage increases lift capacity and breakout forces on both ends of the machine. A redesigned Loader System provides superior machine balance and stability regardless of the ground conditions.

Machine Versatility

The all new Integrated Tool Carrier (IT Coupler) for Single Tilt Loader Arm configurations are available from the factory or for simple field installation. The Cat Backhoe Loader with Integrated Tool Carrier (IT Coupler) will be the most versatile machine on the job site providing quick connection to a variety of Cat Attachments.

Cat Attachments

A variety of Mechanical and Hydraulic Cat Backhoe Couplers are available from the factory or for field installation. Options include, but not limited to, Dual Lock Pin Grabber Couplers and Pin Lock Couplers. Redesigned General Purpose and Multi Purpose Loader Buckets increase digging performance and improve bucket durability for long term value.

Standard Equipment
  • STANDARD EQUIPMENT
    • 4572 mm (15 ft) center pivot excavator style backhoe
    • Adjustable auxiliary flow controls, loader and backhoe
    • Air cleaner
    • Alarm, back-up
    • Alternator, 150 amp
    • Audible system fault alarm
    • Automatic Engine Speed Control (AESC)
    • Autoshift transmission with six (6) forward and three (3) reverse gears and neutral safety switch
    • Backhoe Safety Manual
    • Battery Box, external, lockable
    • Battery disconnect switch
    • Battery, maintenance-free, 1,000 CCA
    • Boom transport lock
    • Brace, lift cylinder
    • Brake, SAHR secondary parking
    • Brakes, hydraulically boosted, oil disc, dual pedals, interlocking
    • Canopy, ROPS/FOPS
    • Cat cushion swing system
    • CD-ROM Parts Manual
    • Coat restraint
    • Coolant/antifreeze, extended life
    • Counterweight, bumper, 500 kg (1,102 lb)
    • Diagnostic port for engine, machine and gauge cluster Electronic Control Modules
    • Differential lock, loader joystick
    • Dome light (cab only)
    • Engine enclosure, sound suppression removal panels
    • Engine, Cat C4.4 ACERT (Direct Injection Turbocharged), meets Tier 4 Final/Stage IV emission standards, selective catalyst reduction, diesel oxidation catalyst (DOC)
    • Face seals, O-ring
    • Fan, suction and guard
    • Fast reversing shuttle, all gears
    • Fenders, rear
    • Filters, bowl and cartridge: fuel, hydraulic fluid
    • Filters, spin-on: engine oil, transmission oil, water separator
    • Flashing hazards/signal lights
    • Floor mat
    • Four Wheel Drive/Brake Mode Selector
    • Fuel tank, fully enclosed
    • Fully hinged front grill for cooling package cleaning access
    • Ground level fuel fill and DEF fill
    • High ambient cooling package
    • Hood lock, inside cab
    • Hydraulic hose, XT™
    • Hydraulic oil cooler
    • Hydraulic oil level sight gauge
    • Hydraulic valves, backhoe six (6) function
    • Hydraulic valves, loader three (3) function
    • Hydraulics, load sensing with variable displacement piston pump and flow sharing valve
    • Indicator lights: hydraulic implement lockout, hydraulic filter bypass, water in fuel, operator presence, remote dial throttle active, air filter blocked, engine warning, machine locked (if equipped), warning lamp, emissions module malfunction, low battery/charging system warning, high hydraulic oil temperature; LCD warnings: engine oil pressure, service due, high coolant temperature, auto idle shutdown, high torque converter temperature
    • Instrument panel lights
    • Joystick controls: electrohydraulic controls with pattern changer valve
    • Key start/stop system
    • LCD operator screen
    • Lights, working (four [4] front, four [4] rear)
    • Loader joystick, self-leveling, return-to-dig, transmission disconnect switch, Forward/Neutral/Reverse Switch, MP Auxiliary roller
    • Loader, single tilt
    • Machine Security System integrated into LCD operator display
    • Mirror, rearview
    • One-touch low idle
    • Open circuit breather
    • Operations and Maintenance Manual
    • Pattern changer, in cab
    • Power receptacle, 12 volt, one (1) internal + one (1) USB, two (2) external
    • Product Link™
    • Radio ready (Cab)
    • Rubber impact strips on radiator guards
    • Seat belt, retractable, 51 mm (2 in)
    • Seat mounted controls
    • Seat, air suspension with armrest
    • Stabilizer pads, reversible
    • Stabilizers, electrohydraulic, auto-up function
    • Starting system, glow plugs
    • Steering knob
    • Steering, hydrostatic
    • Stop and tail lights
    • Storage compartment (Cab/Canopy), lockable
    • Storage tray, electronics and miscellaneous items
    • Swing transport lock
    • Throttle, hand and foot, electronic
    • Tilt steering wheel (Canopy), Tilt/telescoping (Cab)
    • Tire Valve Stem Protection
    • Tires
    • Torque converter
    • Transmission neutralizer switch
    • Transport tie-downs
    • Vandalism locks, four (4)
    • Vandalism protection, gauge cover (Canopy)
    • Warning horn, electric
Optional Equipment
  • OPTIONAL EQUIPMENT
    • Battery, additional, 1,000 CCA
    • Cab, deluxe with air conditioning
    • Cold weather fuel (–30° C/–22° F)
    • Cold weather package, including additional battery, engine block heater, radiator antifreeze, cold weather fuel (–30° C/–22° F) and mounting for an ether bottle
    • Fenders, front with integral steps
    • Guard, boom protection plate
    • Guard, stabilizer, rock
    • Guard, stabilizer, stab leg bottom
    • Hydraulic lines, combined function auxiliary
    • Hydraulic valves, loader quick coupler
    • Lights, LED work lights, wide and spot
    • Loader, Quick Coupler
    • Quick Coupler, backhoe, hydraulic, dual lock
    • Quick Coupler, backhoe, manual, dual lock
    • Quick Coupler, backhoe, pin lock
    • Radio and CD player, Bluetooth®
    • Ride Control
    • Rotating beacon, magnetic mount
    • Seat belt, 75 mm (3 in)
    • Seat, heated
    • Stick, extendible
    • Transmission, Autoshift with lock-up torque converter
    • Work Tool Attachments such as buckets, forks, material handling arms, augers, hammers, brooms, cold planers and vibratory plate compactors. See your Cat dealer for more information.
