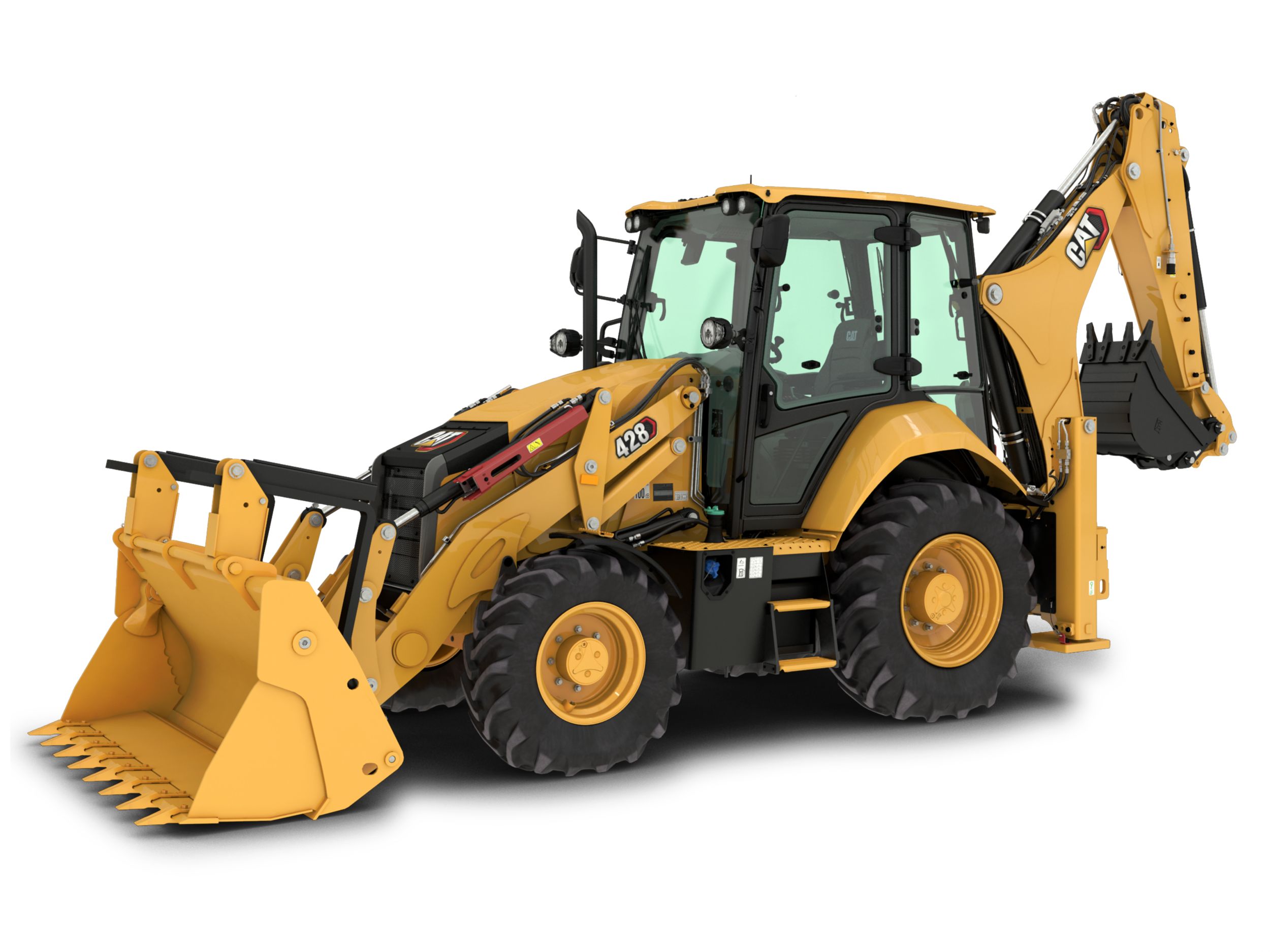

New Machines, Original DNA – The first Cat® backhoe loader hit the road in 1985. The machine was co-developed by a team of designers in Illinois, U.S. and a manufacturing team in Desford, UK. The machines are still designed by experts to meet the needs of today’s operators. Every model provides reliability, power and a top-quality operator environment to see you through the toughest projects. The latest backhoe loader range is crafted from 35 years of passion, expertise and experience.

Engine

Power - Net
70.00 hp
52.00 kW
Power
55.4 kW, 70 kW or 74.4 kW

Engine - EU Stage V (Standard)

Stroke
4.72 in
120.00 mm
Bore
3.86 in
98.00 mm
Note (1)
Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator.
Displacement
220.00 in³
3.60 l
Engine
C3.6 55.4 kW Electronic Turbo Intercooled
Emissions
Meets EU Stage V emission standards.
Net Torque - SAE J1349
308.00 lb/ft
418.00 N·m
Torque Rise (net)
86% @ 1,200 rpm
Note (2)
No derating required up to 3048 m altitude. Auto derate protects hydraulic and transmission systems.
Net Power Rating @ 2,200 rpm - SAE J1349:2011
52 kW/70 hp
Ratings at 2,200 rpm - Engine Power ISO 14396:2002
55 kW/75 hp
Ratings at 2,200 rpm - Gross Power SAE J1995:2014
56 kW/76 hp
Net Power Rating @ 2,200 rpm - ISO 9249:2007
51 kW/70 hp

Engine - EU Stage V (Optional)

Stroke
4.72 in
120.00 mm
Note (1)
Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator.
Emissions
Meets EU Stage V emission standards.
Torque Rise (net)
43% @ 1,500 rpm
Displacement
220.00 in³
3.60 l
Net Torque - SAE J1349
291.00 lb/ft
395.00 N·m
Engine
C3.6 70 kW Electronic Turbo Intercooled
Note (2)
No derating required up to 3048 m altitude. Auto derate protects hydraulic and transmission systems.
Bore
3.86 in
98.00 mm
Net Power Rating @ 2,200 rpm - SAE J1349:2011
64 kW/86 hp
Ratings at 2,200 rpm - Engine Power ISO 14396:2002
70 kW/95 hp
Ratings at 2,200 rpm - Gross Power SAE J1995:2014
71 kW/97 hp
Net Power Rating @ 2,200 rpm - ISO 9249:2007
63 kW/86 hp

Engine - EU Stage V (Optional) - A

Net Torque - SAE J1349
322.00 lb/ft
436.00 N·m
Torque Rise (net)
48% @ 1,500 rpm
Engine
C3.6 74.4 kW Electronic Turbo Intercooled
Emissions
Meets EU Stage V emission standards.
Displacement
220.00 in³
3.60 l
Note (2)
No derating required up to 3048 m altitude. Auto derate protects hydraulic and transmission systems.
Note (1)
Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator.
Bore
3.86 in
98.00 mm
Stroke
4.72 in
120.00 mm
Ratings at 2,200 rpm - Gross Power SAE J1995:2014
76 kW/103 hp
Net Power Rating @ 2,200 rpm - SAE J1349:2011
68 kW/92 hp
Net Power Rating @ 2,200 rpm - ISO 9249:2007
68 kW/92 hp
Ratings at 2,200 rpm - Engine Power ISO 14396:2002
74 kW/101 hp

Transmission

Note
Travel speeds of backhoe loader at full throttle, when equipped with 480/80-26 rear tires.

Transmission - Standard Shift Transmission (Standard)

Forward - 4th
24.90 mile/h
40.00 km/h
Reverse - 1st
3.70 mile/h
6.00 km/h
Reverse - 2nd
5.60 mile/h
9.00 km/h
Forward - 1st
3.70 mile/h
6.00 km/h
Reverse - 3rd
13.00 mile/h
21.00 km/h
Forward - 3rd
13.00 mile/h
21.00 km/h
Forward - 2nd
5.60 mile/h
9.00 km/h
Reverse - 4th
24.90 mile/h
40.00 km/h

Transmission - Powershift Transmission (Optional)

Reverse - 3rd
16.80 mile/h
27.00 km/h
Reverse - 1st
3.70 mile/h
6.00 km/h
Forward - 4th
24.90 mile/h
40.00 km/h
Forward - 2nd
6.20 mile/h
10.00 km/h
Forward - 3rd
12.40 mile/h
20.00 km/h
Reverse - 2nd
7.50 mile/h
12.00 km/h
Forward - 1st
3.70 mile/h
6.00 km/h

Transmission - Auto-Shift Transmission (Optional)

Reverse - 1st
3.70 mile/h
6.00 km/h
Forward - 4th
12.40 mile/h
20.00 km/h
Forward - 3rd
7.50 mile/h
12.00 km/h
Forward - 6th
24.90 mile/h
40.00 km/h
Forward - 1st
3.70 mile/h
6.00 km/h
Reverse - 2nd
7.50 mile/h
12.00 km/h
Forward - 2nd
6.20 mile/h
10.00 km/h
Reverse - 3rd
16.80 mile/h
27.00 km/h
Forward - 5th
16.80 mile/h
27.00 km/h

Transmission - Auto-Shift Transmission with Lock-Up Torque Converter (Optional)

Reverse - 3rd
16.80 mile/h
27.00 km/h
Reverse - 1st
3.70 mile/h
6.00 km/h
Forward - 3rd
7.50 mile/h
12.00 km/h
Forward - 6th
24.90 mile/h
40.00 km/h
Forward - 1st
3.70 mile/h
6.00 km/h
Reverse - 2nd
7.50 mile/h
12.00 km/h
Forward - 5th
16.80 mile/h
27.00 km/h
Forward - 4th
12.40 mile/h
20.00 km/h
Forward - 2nd
6.20 mile/h
10.00 km/h

Axle Ratings

Rear Axle - Static
58422.00 lb
26500.00 kg
Front Axle (AWD) - Static
51809.00 lb
23500.00 kg
Front Axle (AWD) - Dynamic
19842.00 lb
9000.00 kg
Rear Axle - Dynamic
22046.00 lb
10000.00 kg

Weights

Operating Weight - Nominal
18232.00 lb
8270.00 kg
Operating Weight - Maximum
24251.00 lb
11000.00 kg
Counterweights - Maximum
1014.00 lb
460.00 kg
Minimum Counterweight Recommendations - Extendible Stick: Loader Bucket - MP
0.00 lb
0.00 kg
Minimum Counterweight Recommendations - Standard Stick: Loader Bucket - MP
0.00 lb
0.00 kg
Air Conditioning
99.00 lb
45.00 kg
Minimum Counterweight Recommendations - Extendible Stick: Loader Bucket - GP
1014.00 lb
460.00 kg
Counterweights - Base
254.00 lb
115.00 kg
Ride Control
33.00 lb
15.00 kg
Minimum Counterweight Recommendations - Standard Stick: Loader Bucket - GP
254.00 lb
115.00 kg
Operating Weight - ROPS Capacity - Maximum
24251.00 lb
11000.00 kg
Extendible Stick
459.00 lb
208.00 kg
Auto-Shift Transmission
212.00 lb
96.00 kg
MP Bucket (1.03 m³/1.3 yd³) - with Fold-over Forks
1896.00 lb
860.00 kg
Cab - ROPS/FOPS
Standard
Total Gross Weight Not to Exceed
24251.00 lb
11000.00 kg
Operating Weight (estimated) (55 kW/74 hp)
18232.00 lb
8270.00 kg
MP Bucket (1.03 m³/1.3 yd³) - without Fold-over Forks
1486.00 lb
674.00 kg
Note
Machine Configuration – 70 kW HRC engine; standard stick hoe; standard cab with A/C; AWD standard shift transmission; 1.03 m3 MP loader bucket; 600 mm standard duty hoe bucket; 340/80-20 and 480/80-26 tires; no counterweight; One Way Aux Lines; AWD Guard; Front Fenders; HD Battery; 80 kg operator; full fuel tank.
Operating Weight (estimated) (70 kW/94 hp)
18398.00 lb
8345.00 kg
Loader QC
408.00 lb
185.00 kg
Counterweights - Mid
529.00 lb
240.00 kg

Hydraulic System

System Pressure - Loader
3626.00 psi
250.00 bar
System Pressure - Backhoe
3626.00 psi
250.00 bar
Pump Type
Variable-Flow, Axial Piston
Type
Closed Center
Pump Capacity @ 2,200 rpm
42.30 gpm
160.00 L/min

Steering

AWD Cylinder, One (1) Double Acting - Stroke
4.20 in
106.00 mm
Power Steering
Hydrostatic
AWD Cylinder, One (1) Double Acting - Bore
2.60 in
65.00 mm
AWD Cylinder, One (1) Double Acting - Rod Diameter
1.60 in
40.00 mm
Type
Front Wheel
Turning Circle - AWD (inner wheel not braked) - Outside, Front Wheels
30.42 ft
9273.00 m
Turning Circle - AWD (inner wheel not braked) - Outside, Widest Loading Bucket
38.13 ft
11622.00 m

Service Refill Capacities

Rear Axle
4.20 gal (US)
16.00 l
Rear Axle - Planetaries
0.40 gal (US)
1.70 l
Hydraulic Tank
11.10 gal (US)
42.00 l
Engine Oil - With Filter
2.40 gal (US)
9.00 l
Hydraulic System
25.10 gal (US)
95.00 l
Fuel Tank
42.30 gal (US)
160.00 l
Cooling System - A/C
4.80 gal (US)
18.00 l
Diesel Exhaust Fluid
5.00 gal (US)
19.00 l
Front Axle - Planetaries
0.20 gal (US)
0.70 l
Front Axle
2.90 gal (US)
11.00 l

Service Refills Capacities

Transmission (Powershift/Autoshift)
4.18 gal (US)
19.00 l
Transmission (Standard Shift)
3.69 gal (US)
18.00 l

Loader Performance

Breakout Force
12320.00 ft·lbf
54.80 kN

Backhoe Digging Depth

Dig Depth
4778 mm/5700 mm (E-Stick)

Operator Station

Controls
Mechanical Loader; Mechanical Hoe (Pilot Hoe Optional)
Features

POWERFUL LOAD SENSING HYDRAULIC SYSTEM

BACKHOE – BUILT FOR THE TASK

POWER TRAIN – POWERFUL, PROVEN AND EFFICIENT

LOADER PERFORMANCE – MAKING LIGHT WORK OF LIFTING AND LOADING

THE CLASS LEADING OPERATOR ENVIRONMENT JUST GOT BETTER – SET YOUR MACHINE PERFORMANCE TO INCREASE PRODUCTIVITY AND EFFICIENCY

ATTACHMENTS

EASY TO OPERATE – EASY TO MAINTAIN

YOUR MACHINE – YOUR SUPPORT

Standard Equipment
  • Cab ROPS and FOPS
    • Cab, Standard
  • Tires/Steering/Brakes
    • All Wheel Drive
    • 100% Differential Lock
    • Hydraulic Boosted Brakes
    • Tires 26 inch
  • Engine/Transmission
    • Engine, C3.6 55.4 kW
    • Battery, 750 CCA, Standard
    • Hinged Radiator Pack
    • Standard Mode
    • Transmission Neutralizer
    • Transmission, Four Speed Standard Shift
  • Controls
    • Controls, Mechanical Levers
    • Power Steering, Hydrostatic
  • Electrical
    • Display Screen, Soft Key
    • Product Link Cellular
    • Reversing Alarm
    • Stabilizer Alarm
  • Hydraulics
    • Variable Displacement Piston Pump
    • Side Shift Lock
    • Hydraulic Oil Cooler
    • Loader Kickout, Float
    • Loader Kickout, Return to Dig
  • Booms, Sticks and Linkages
    • Stick Standard, 4.3 m
    • Transport Lock, Swing
    • Transport Lock, Boom
  • Other Attachments
    • External Tool Box
    • Transport Tie Downs
Optional Equipment
  • Cab ROPS and FOPS
    • Cab, Deluxe
  • Tires/Steering/Brakes
    • Tires 28 inch
  • Engine/Transmission
    • Engine, C3.6 70 kW
    • Engine, C3.6 74.4 kW
    • Battery, 750 CCA, Heavy Duty
    • Auto Idle
    • Eco Mode
    • Standard + Mode
    • Engine Block Heater
    • Transmission, Four Speed Powershift (not on 55 kW engine)
    • Transmission, Six Speed Autoshift (not on 55 kW Engine)
    • Transmission, Six Speed Autoshift with Lock-Up Torque Converter (not on 55 kW engine)
  • Controls
    • Controls, Pilot Hoe Joysticks
    • Pattern Selector (ISO/SAE)
  • Electrical
    • Display Screen, Touchscreen
    • Product Link, Dual Mode (cellular and satellite)
    • Beacon, Rotating
    • Beacon, Strobe
  • Hydraulics
    • Hydraulic Quick Disconnects
    • Hydraulic Lines, One Way
    • Hydraulic Lines, Two Way
    • Powered Side Shift
    • Ride Control
    • Continuous Flow
    • Programmable Auxiliary Flow
  • Booms, Sticks and Linkages
    • Stick Extending, 4.3 m
    • Hoe Quick Coupler, Mechanical
    • Hoe Quick Coupler, Hydraulic
    • Loader Quick Coupler, Hydraulic
  • Other Attachments
    • Counterweight, 115 kg
    • Counterweight, 240 kg
    • Counterweight, 460 kg
    • Front Fenders
    • Street Pads, Stabilizers
