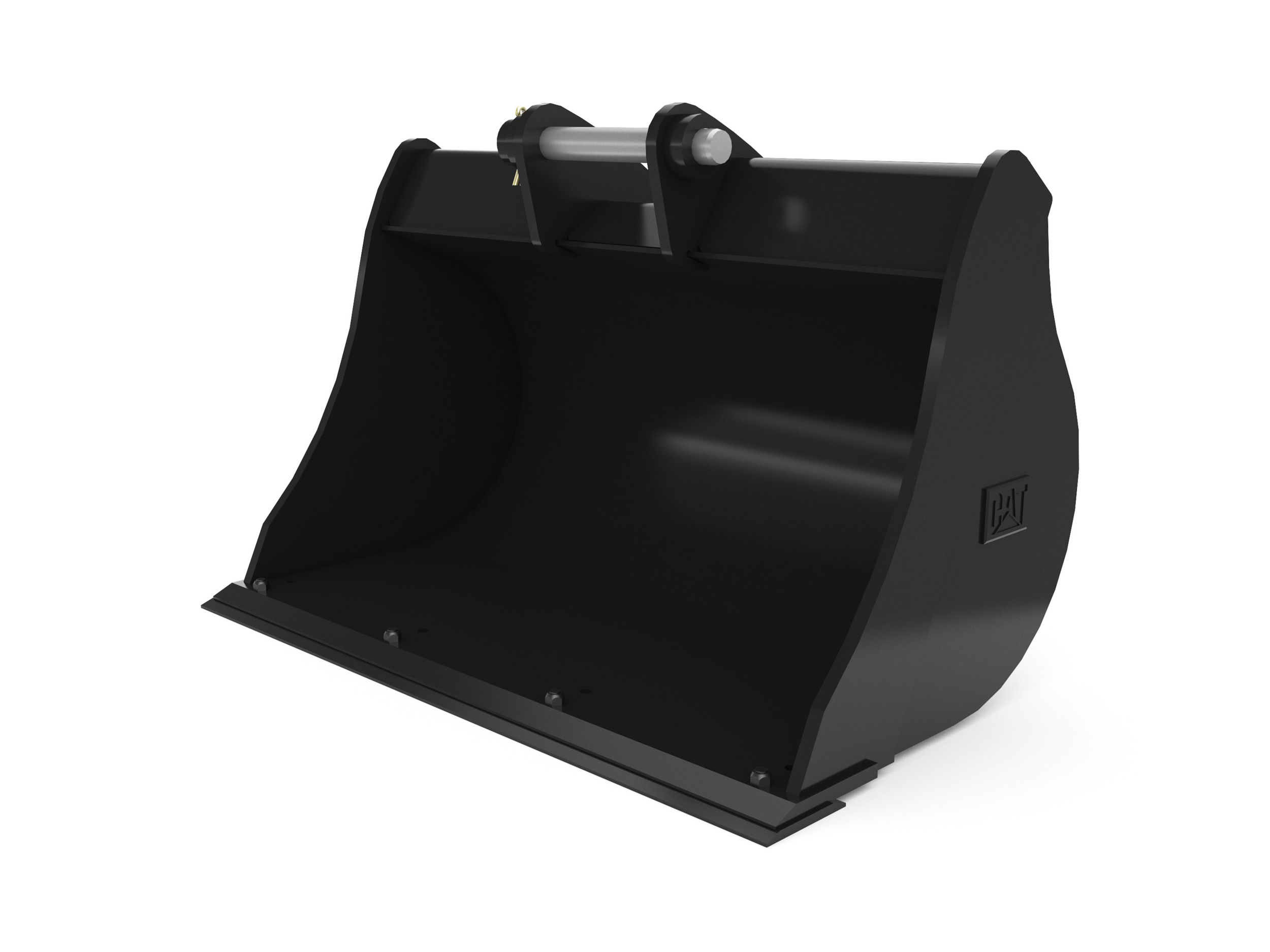

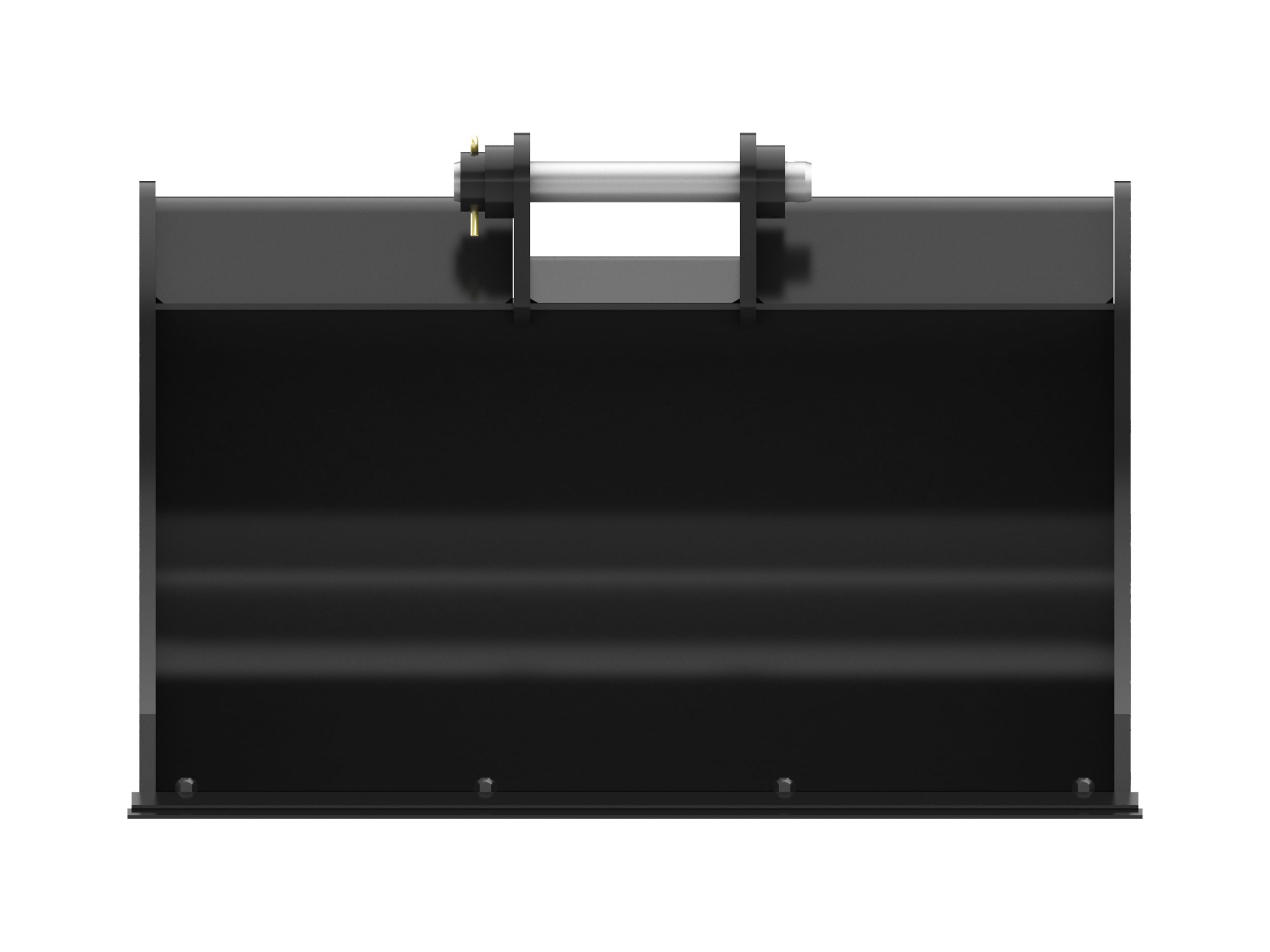

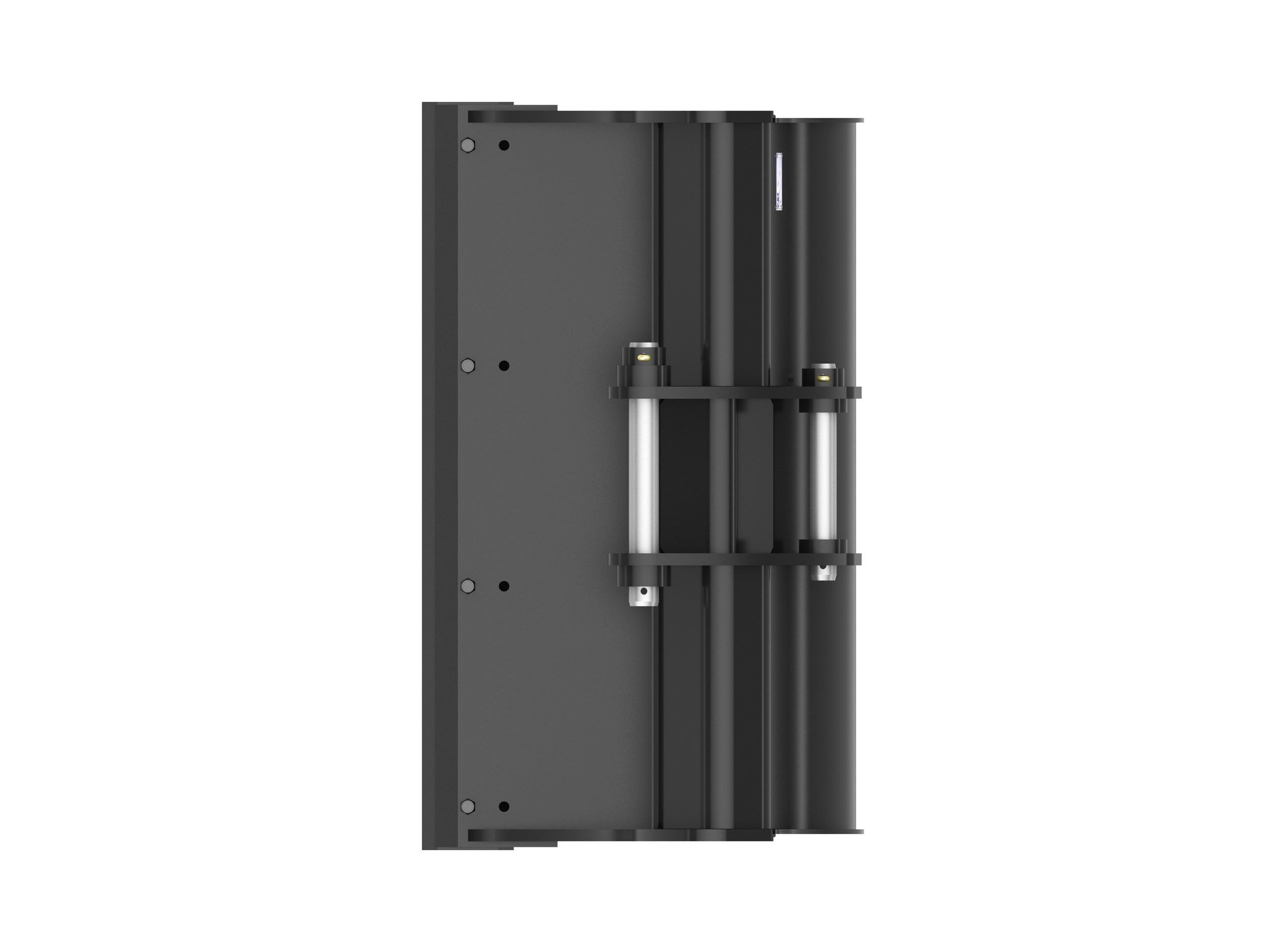

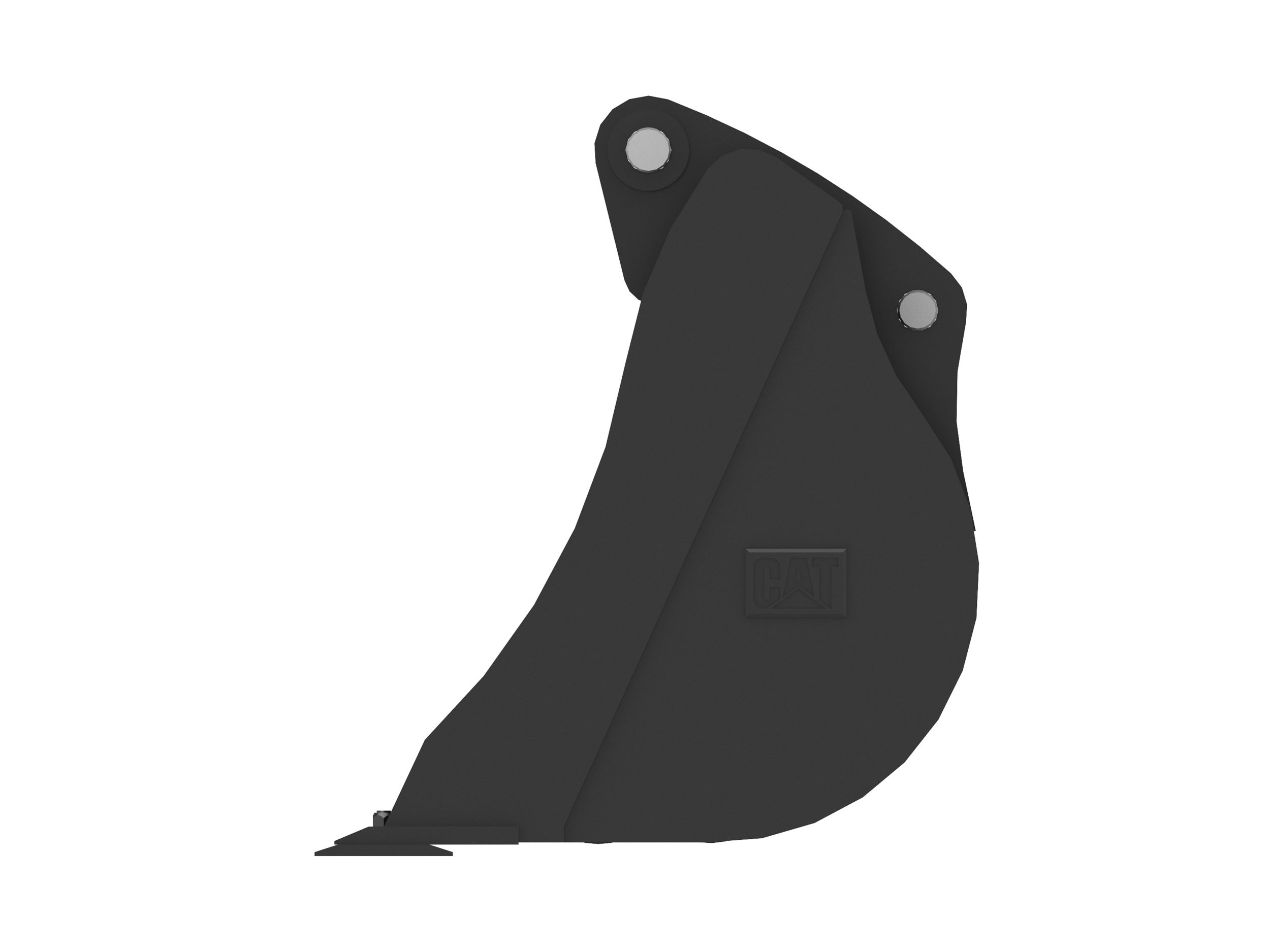

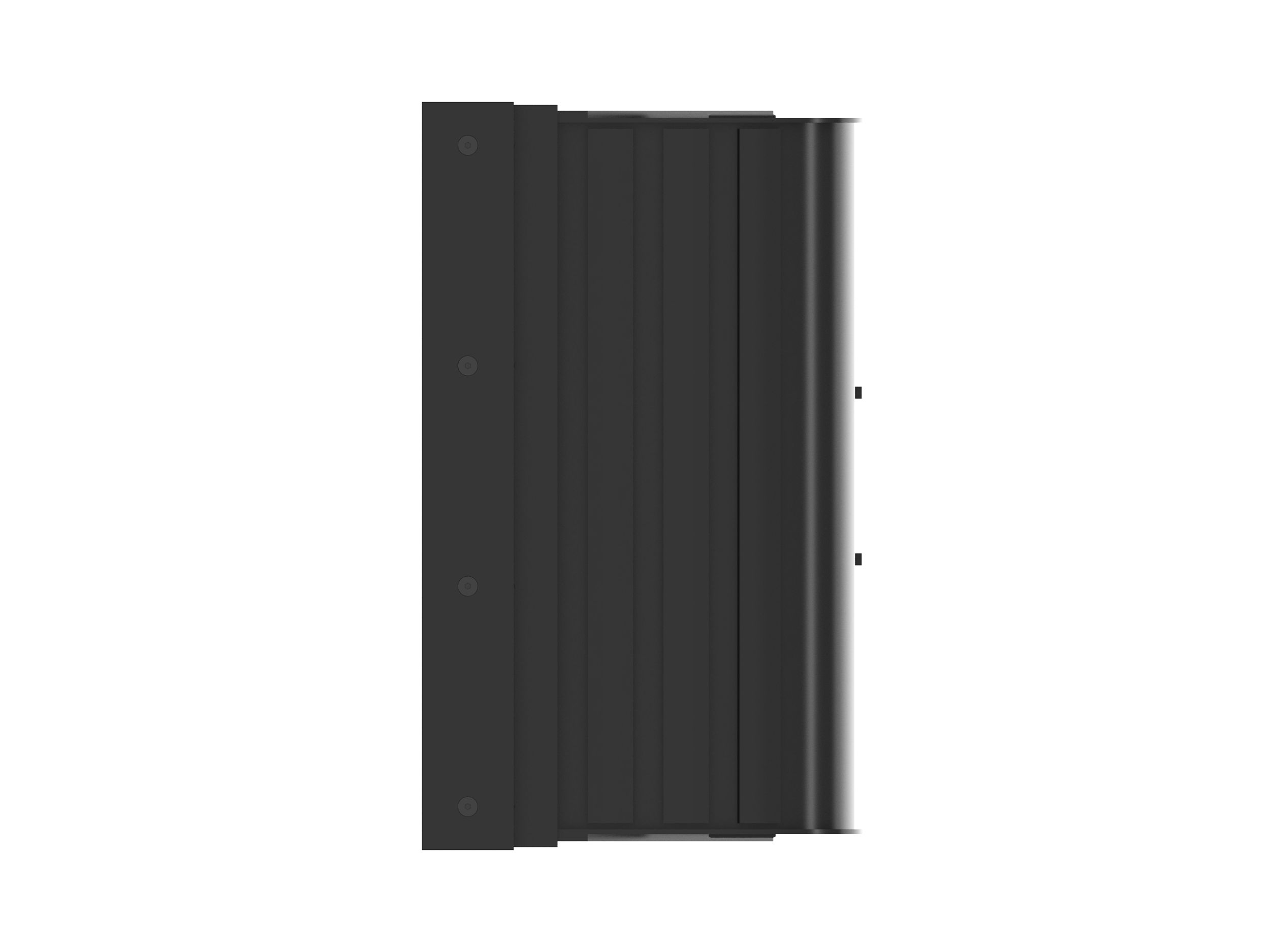

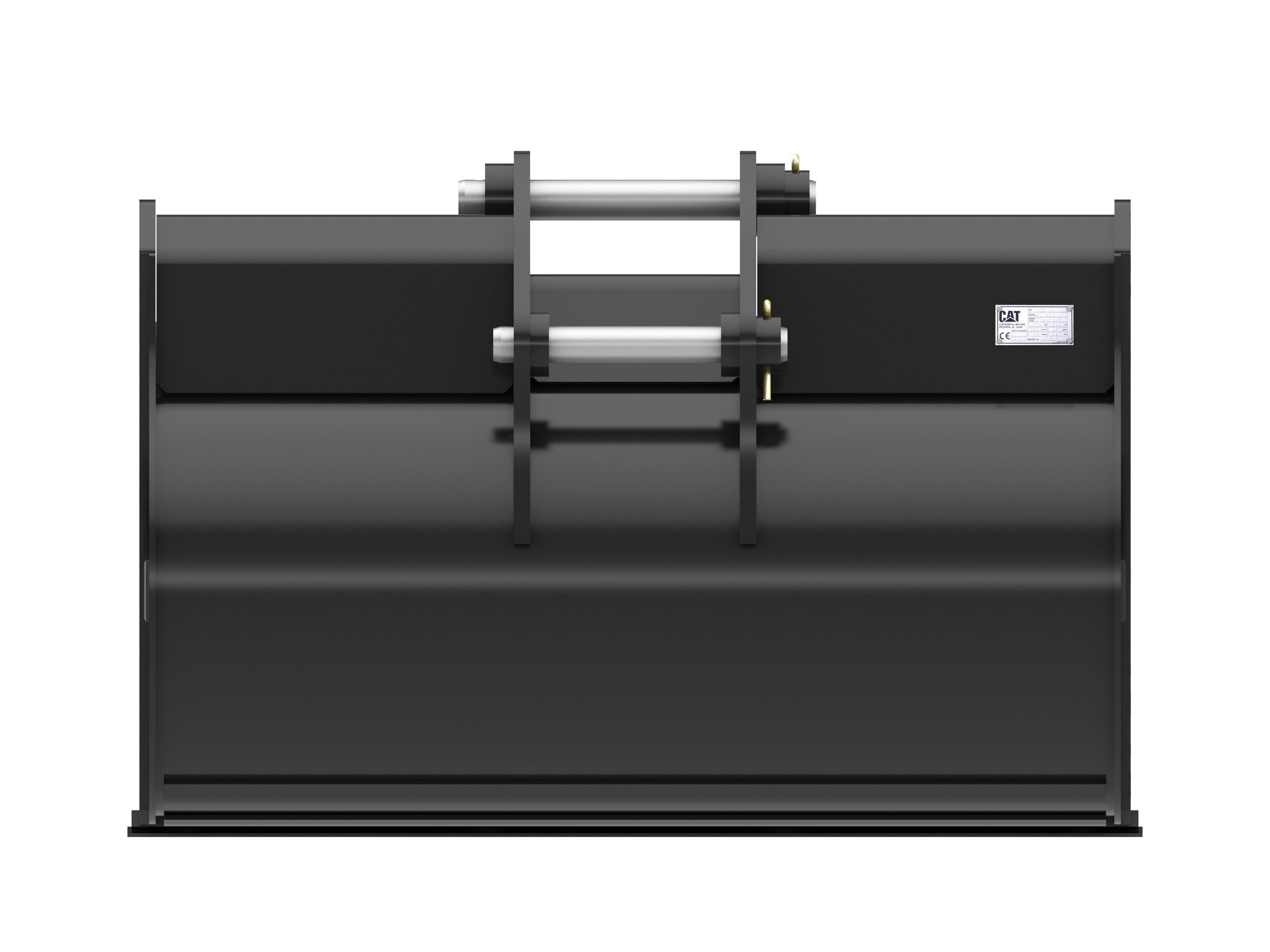

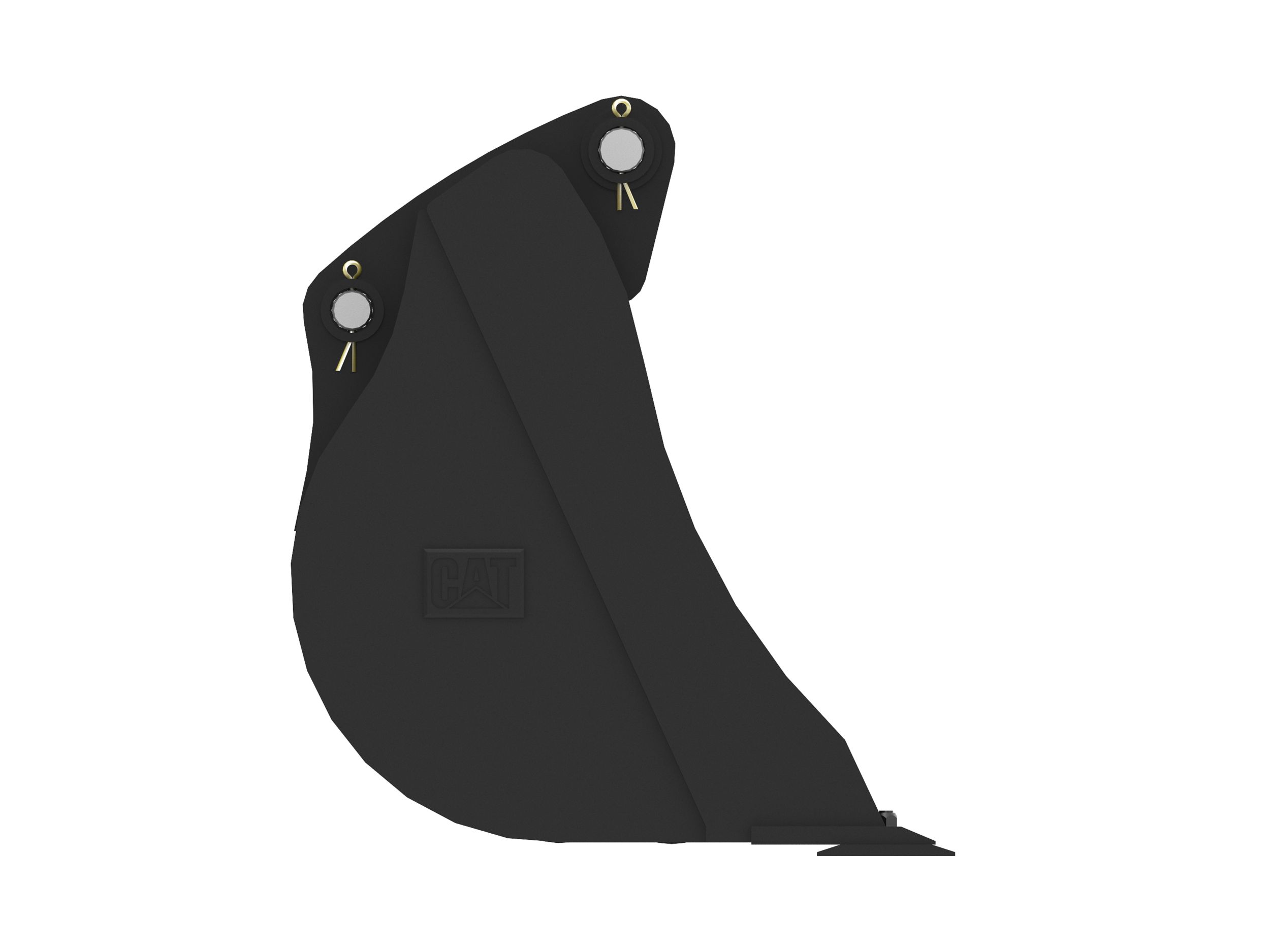

1200 mm (47 in) pin on Grading Bucket

US
Metric

Overview

Cat® Grading buckets for Backhoe Loaders are designed to provide optimum grading, trenching, slope-cutting and finishing work in addition to nesting additional buckets for ease of transportation.
Width
47.00 in
1200.00 mm
Rated Capacity
14.60 ft³
413.00 l
Weight
632.70 lb
287.00 kg
Base Edge Thickness
0.80 in
20.00 mm
Bolt on Cutting Edge
0.50 in
12.70 mm
Tip Radius
33.90 in
860.00 mm
Width
47.00 in
1200.00 mm
Weight
632.70 lb
287.00 kg
Base Edge Thickness
0.80 in
20.00 mm
Bolt on Cutting Edge
0.50 in
12.70 mm
Tip Radius
34.00 in
860.00 mm

Specifications

Capacity
14.60 ft³
413.00 l

Interface Type

Interface Type
Pin on

Capacity
14.60 ft³
413.00 l
Interface Type
Pin on
Features

Bucket Nesting

Transport all buckets needed for a job within the Grading Bucket.

Bolt-on Cutting Edge

Allows for smooth finish in grading applications.

Lack of Drainage Holes

Retains material and water for waste removal and light material applications.

Included Pins

Pins come pre-installed with bucket.
