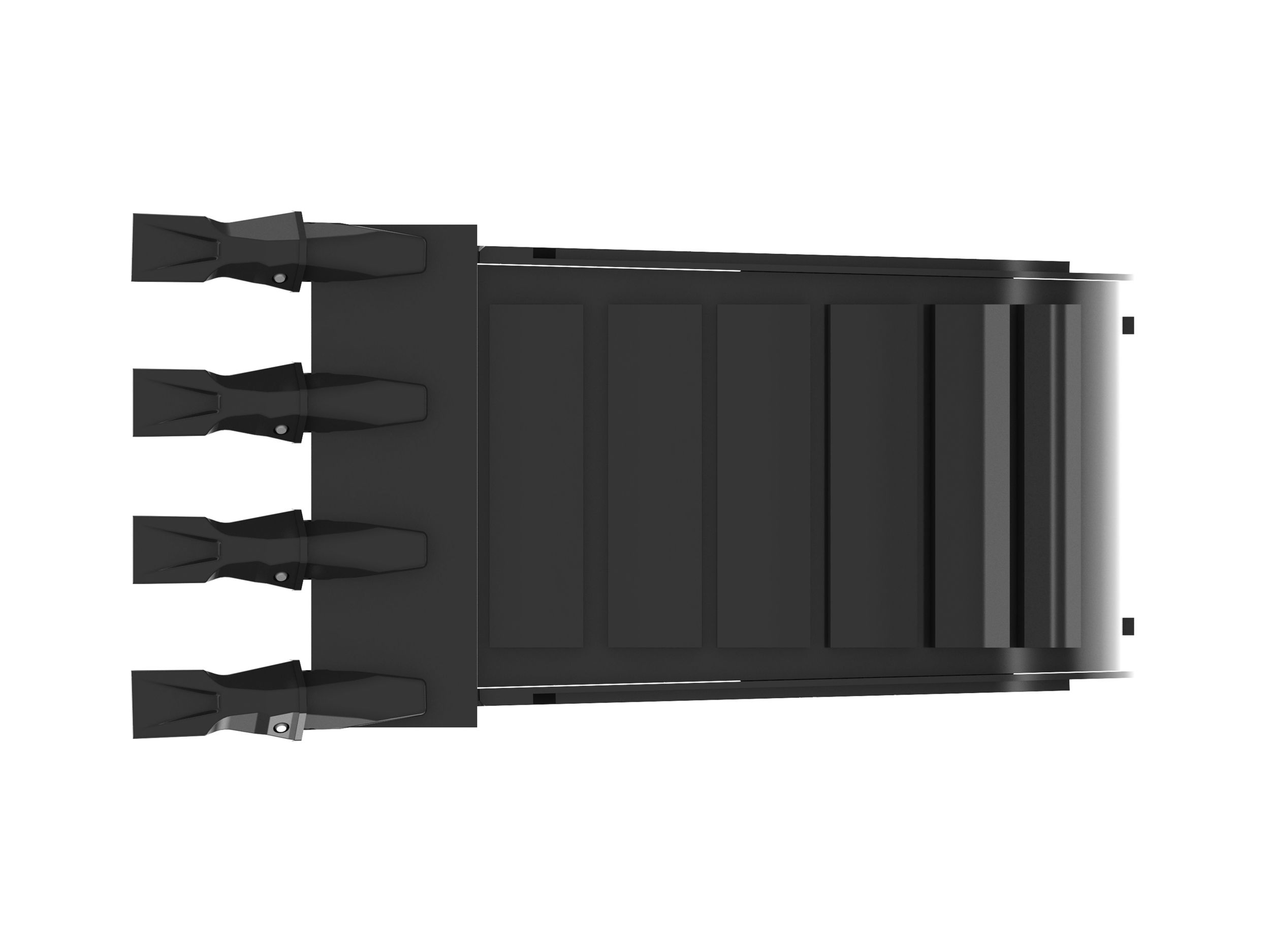

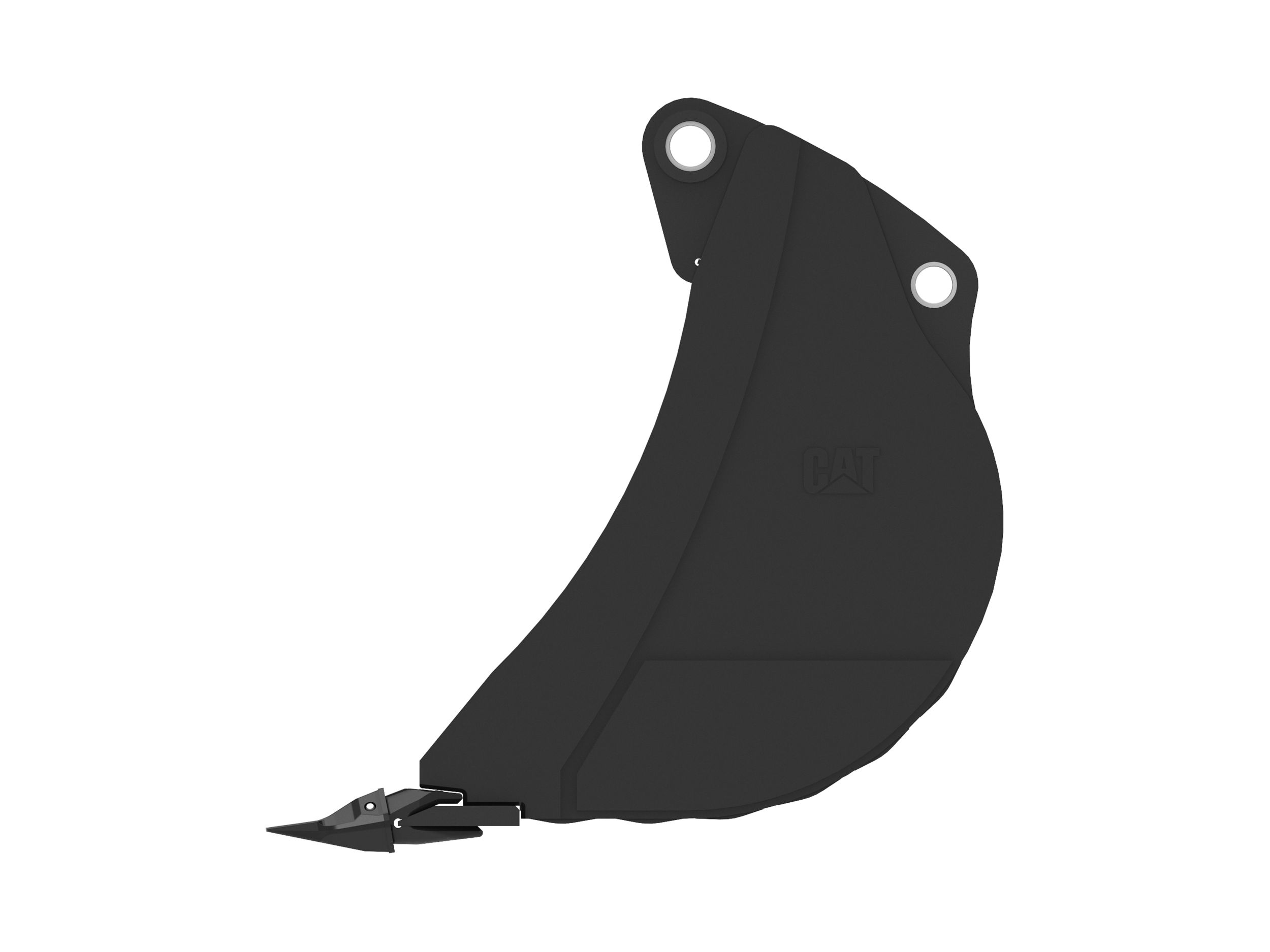

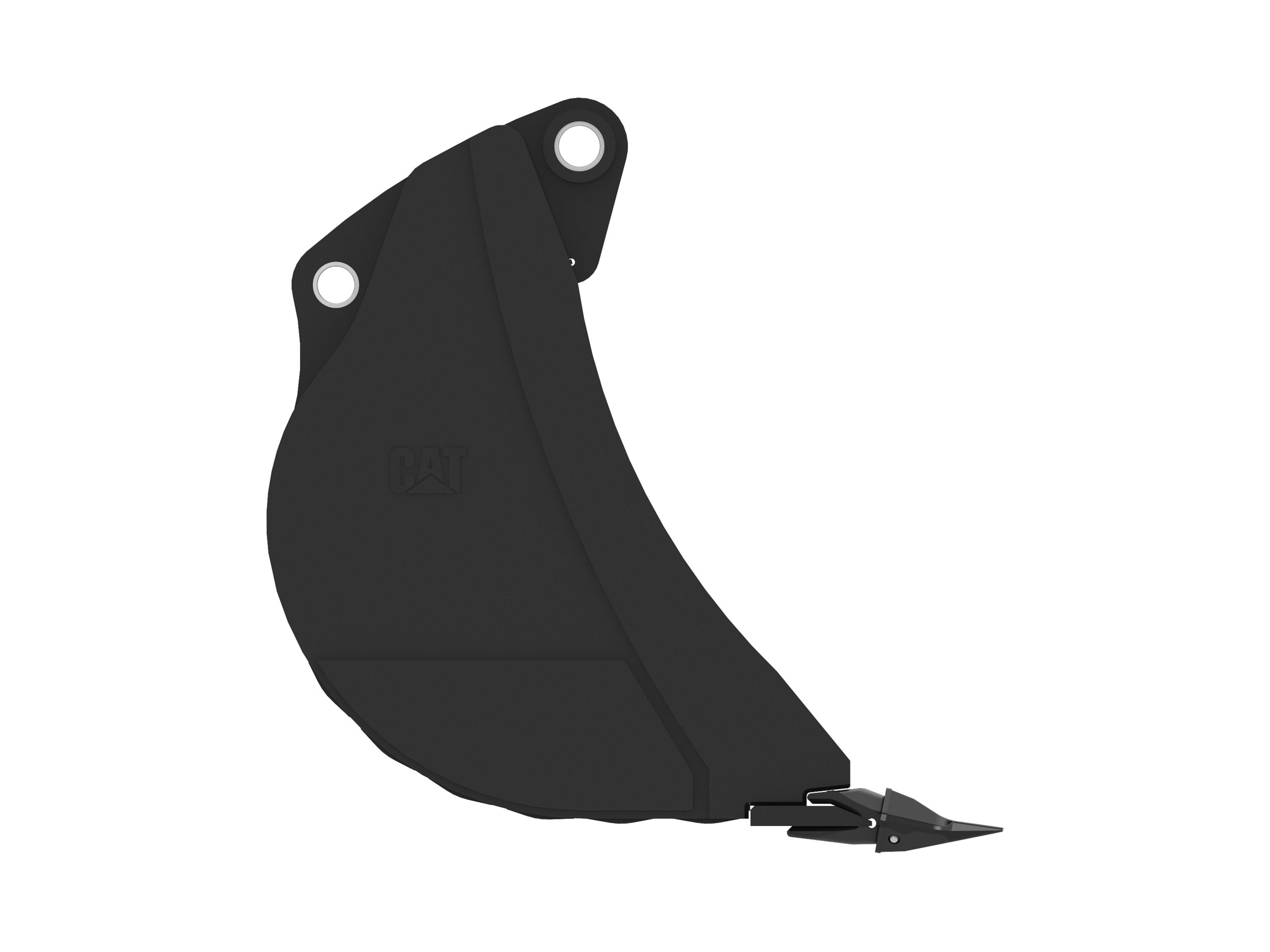

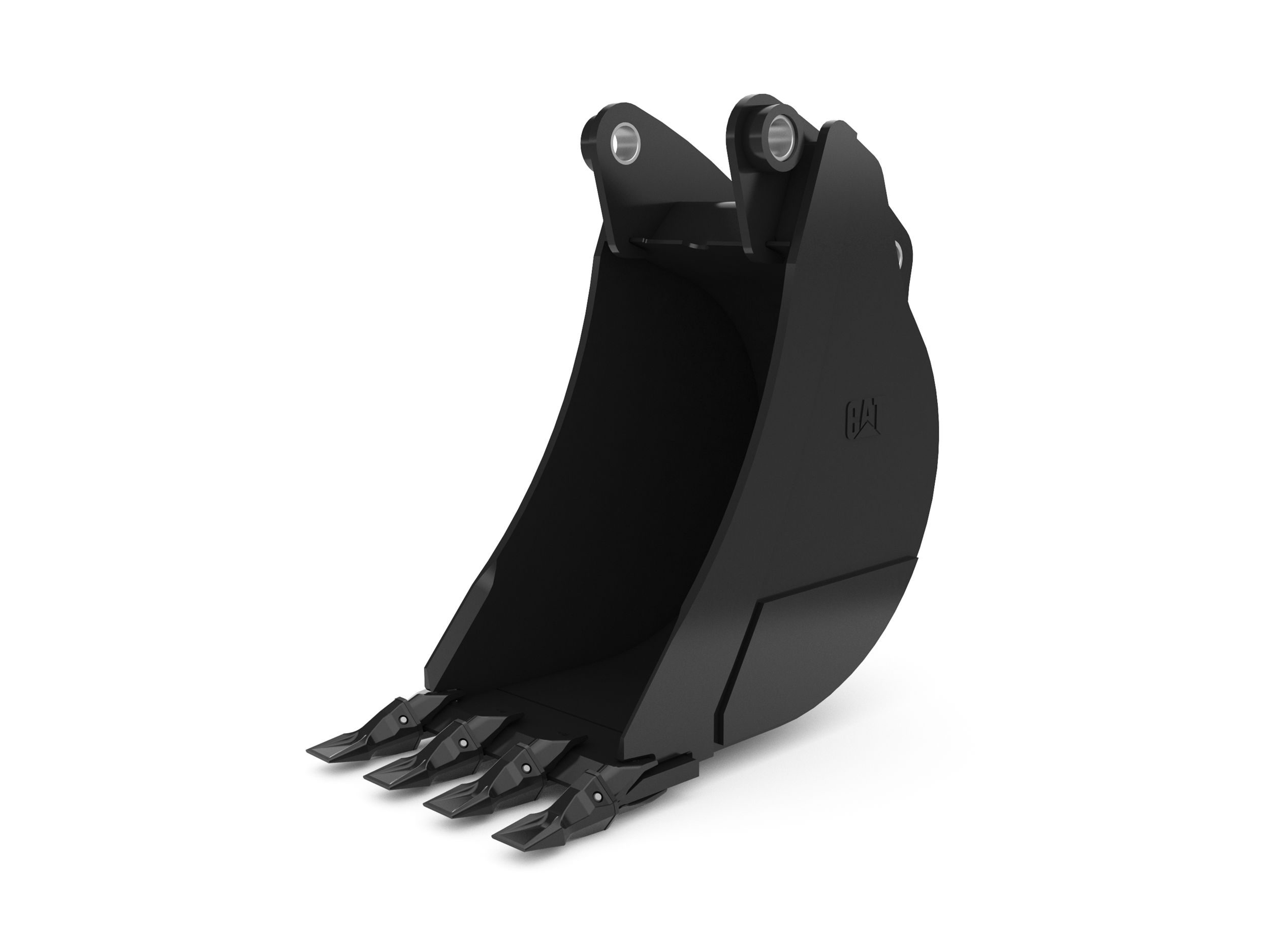

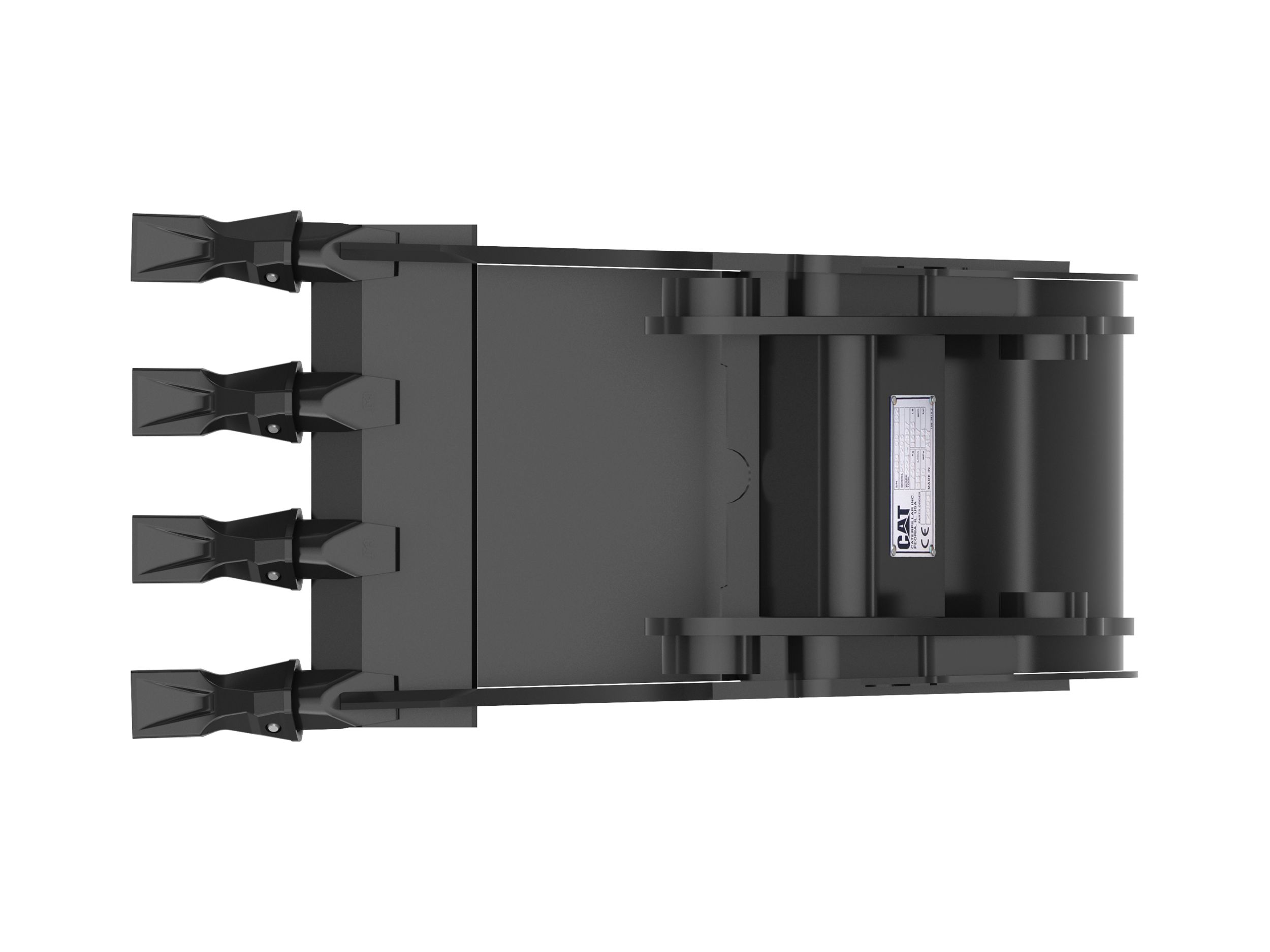

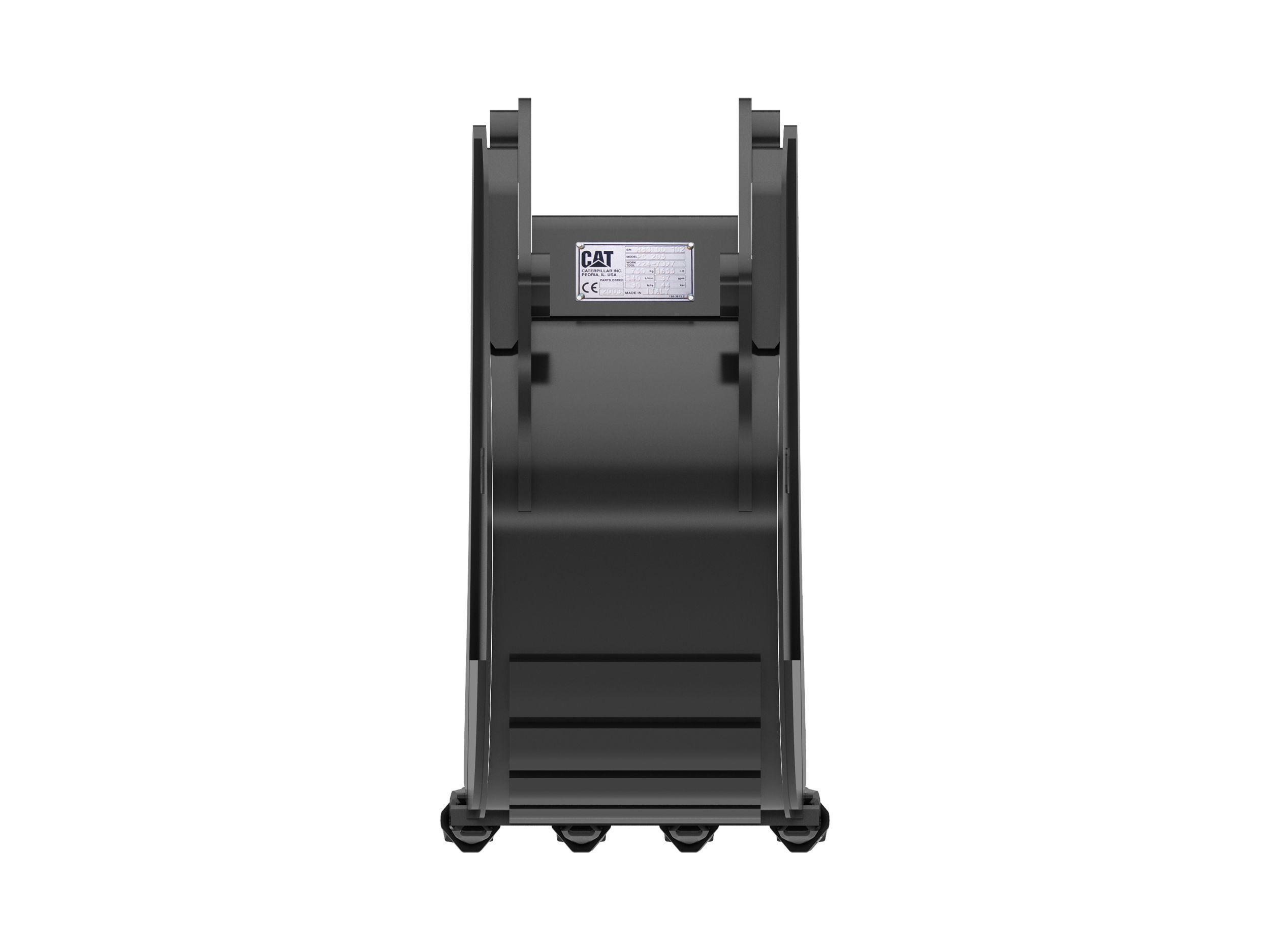

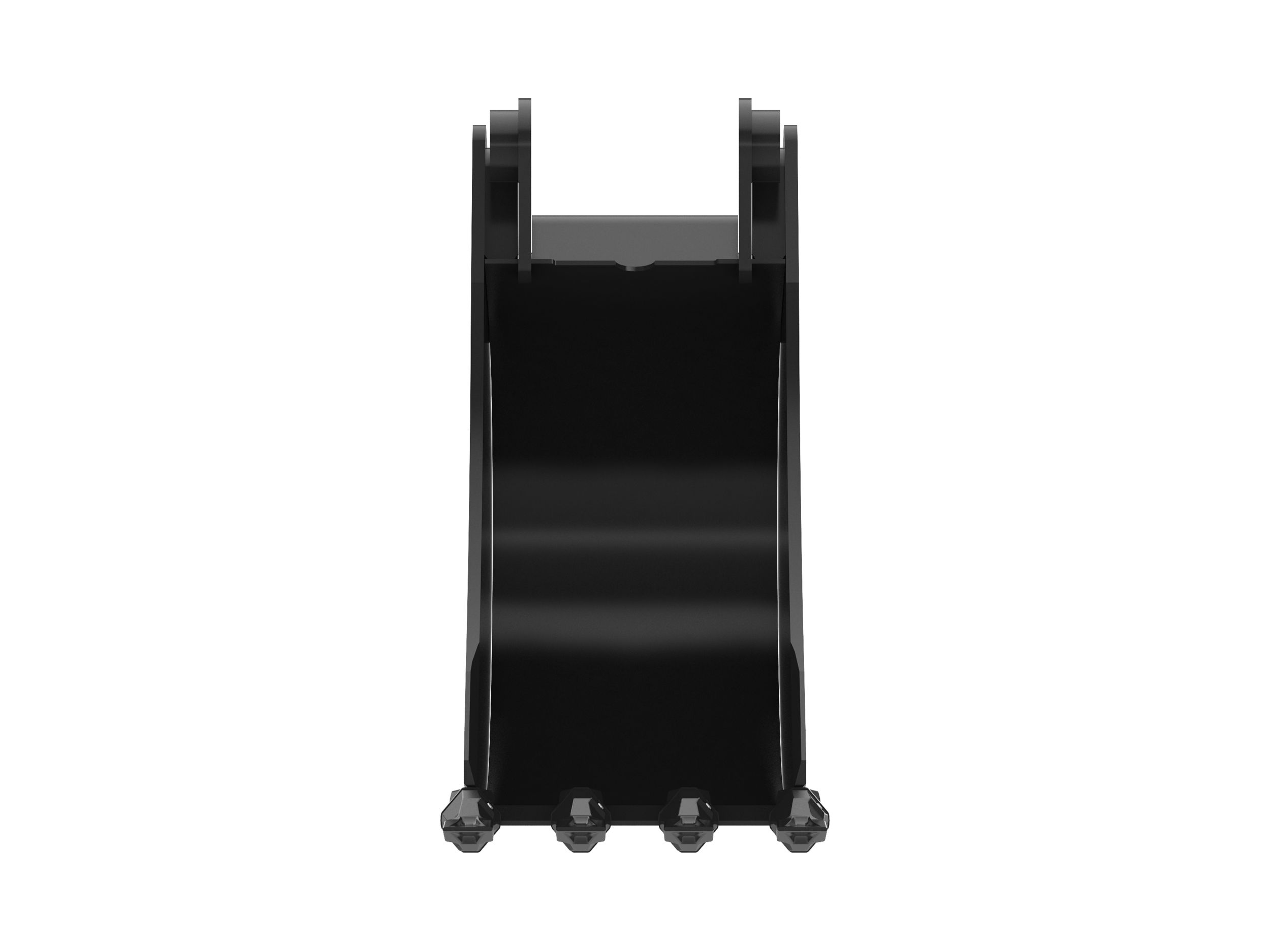

457 mm (18 in) Pin On Heavy Duty Rock Bucket

US
Metric

Overview

Cat® Heavy Duty Rock Buckets for Backhoe Loaders are specifically designed to work in the harsh rocky conditions found in various regions of the world.
Width
18.00 in
457.00 mm
Rated Capacity
4.60 ft3
130.00 L
Weight
304.20 lb
138.00 kg
Base Edge Thickness
1.00 in
25.00 mm
Tip Radius
38.90 in
988.00 mm
Width
18.00 in
457.00 mm
Rated Capacity
4.60 ft³
130.00 l
Weight
304.20 lb
138.00 kg
Base Edge Thickness
1.00 in
25.00 mm
Tip Radius
39.00 in
988.00 mm

Specifications

Capacity
4.60 ft³
130.00 l

Interface Type

Interface Type
Pin on

Capacity
4.60 ft³
130.00 l
Interface Type
Pin On
Features

Application

Specifically designed to work in the harsh rocky conditions found in various regions of the world.

Bucket Shape

Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.

Rugged Design

Cat® Buckets are designed for superior productivity, reliability and long life.
