Overview

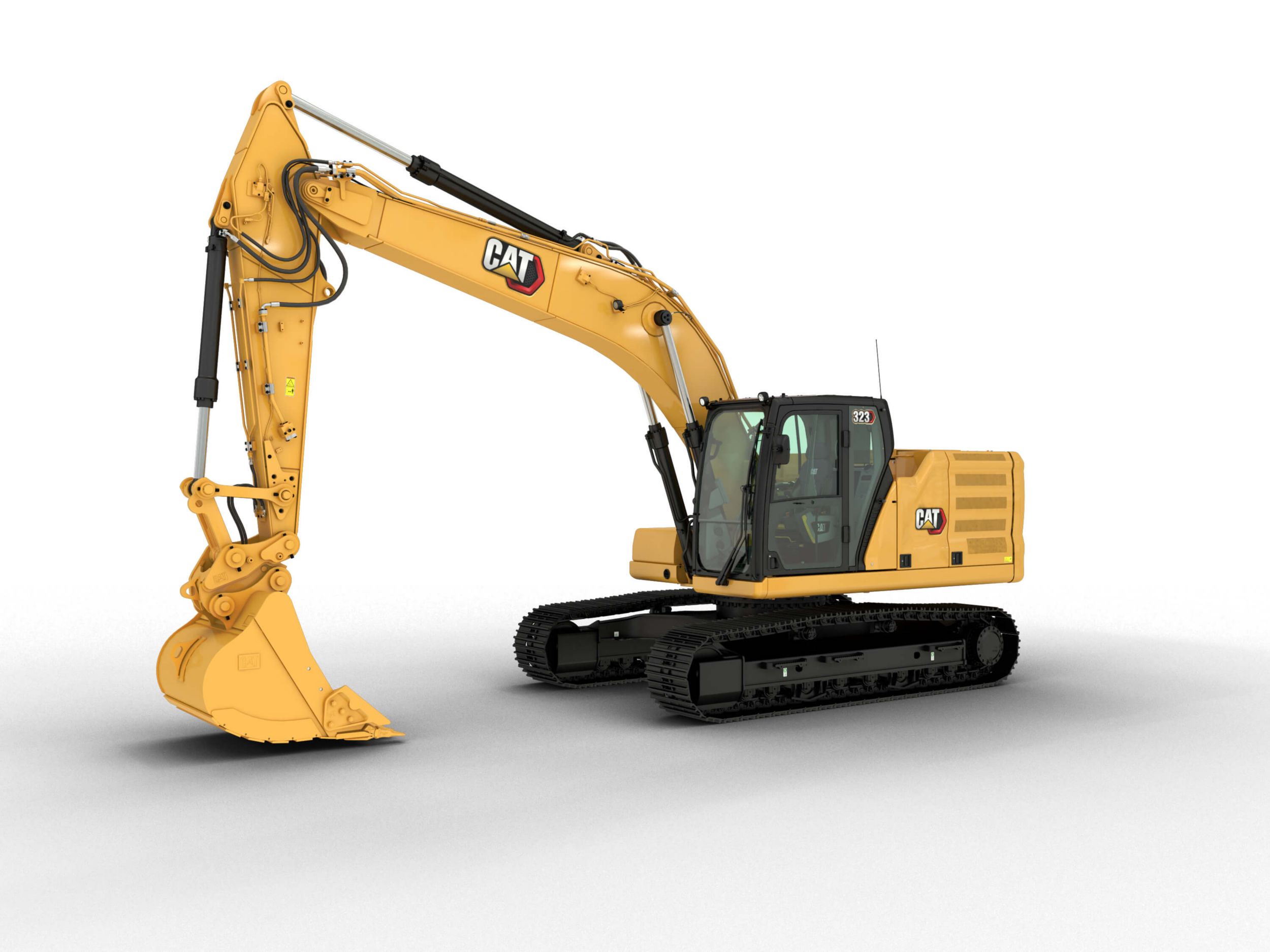

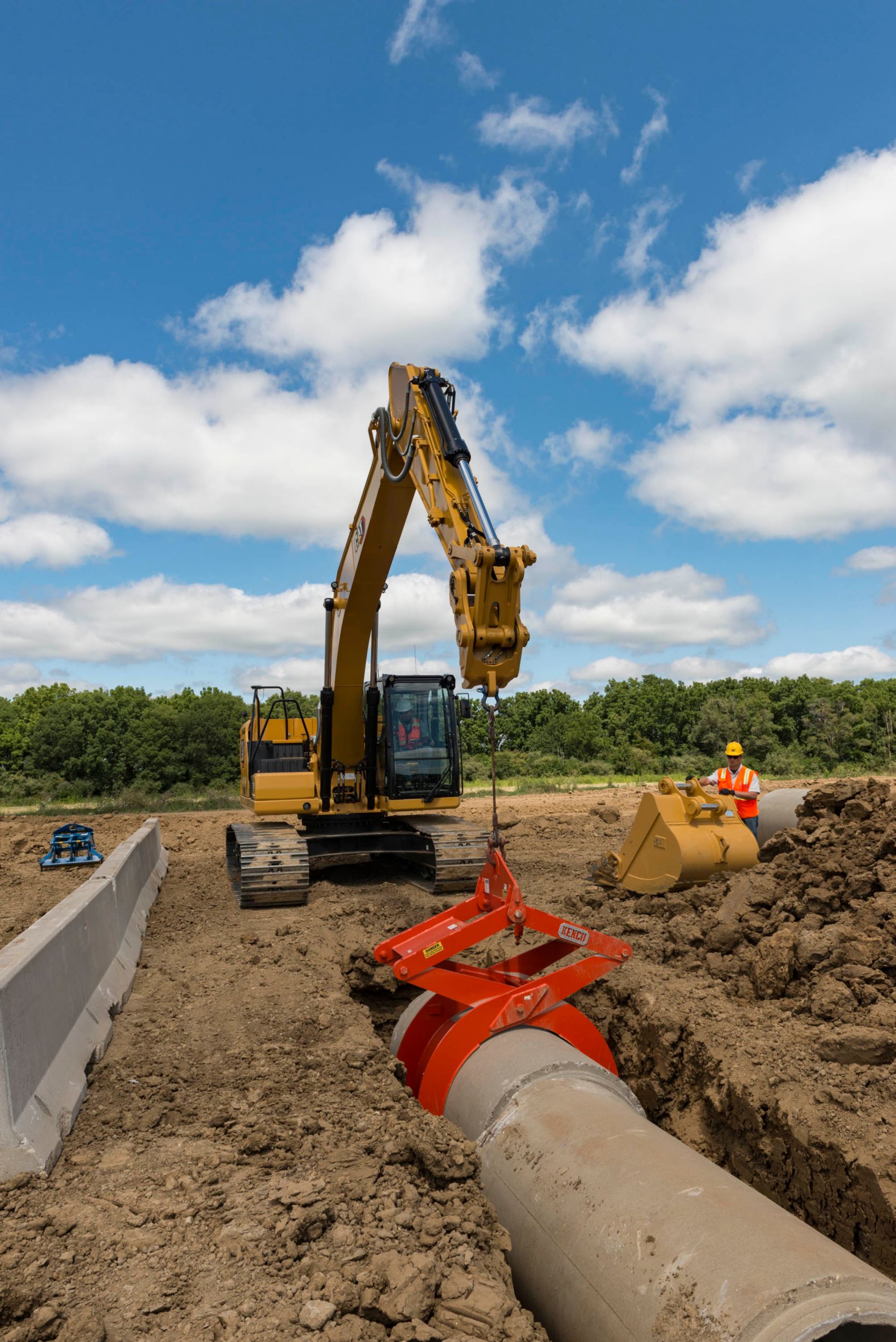

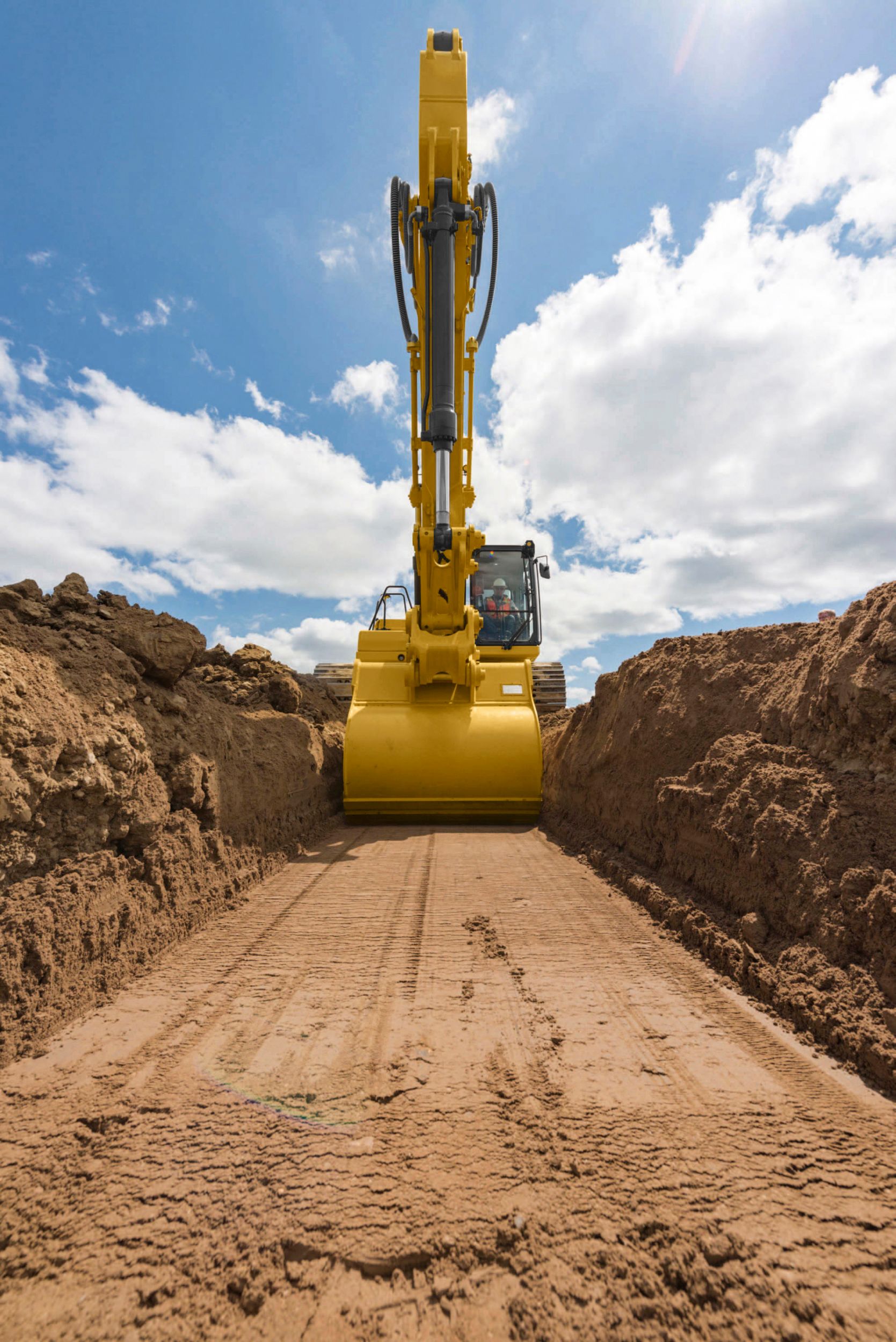

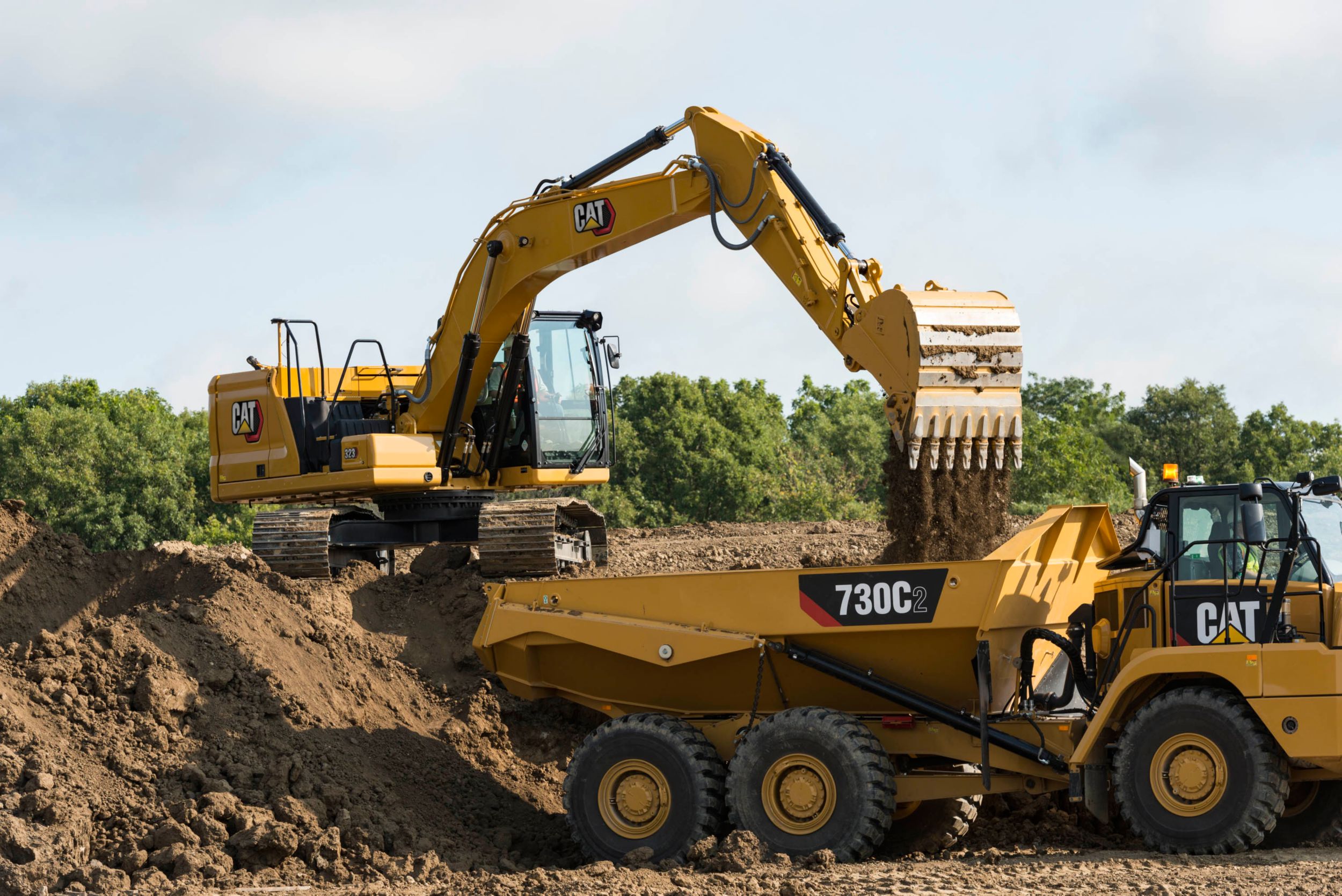

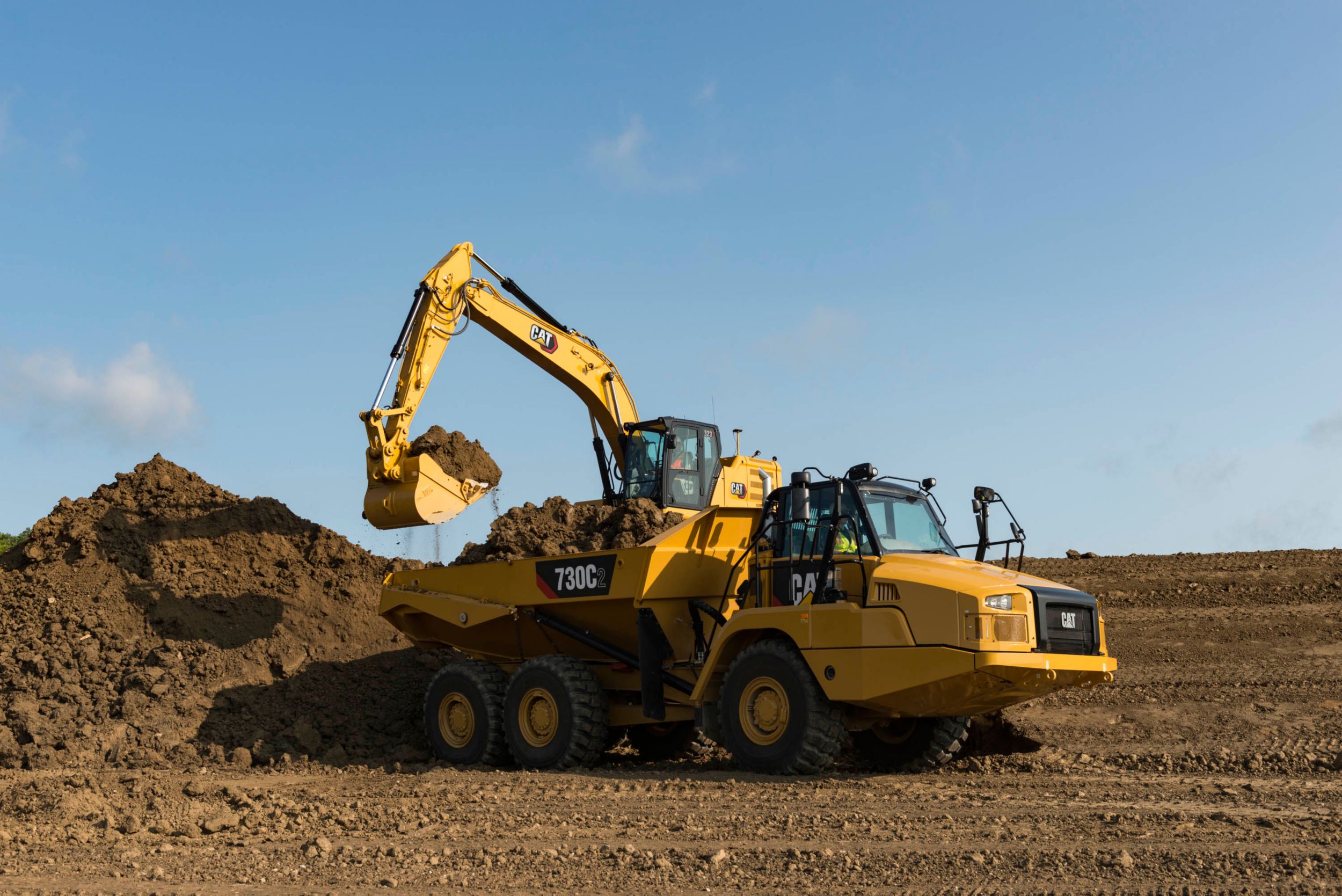

The Cat® 323 excavator has the speed, efficiency, and power for your heavy-duty applications requiring maximum productivity. You get built-in Cat GRADE with 2D, Grade Assist, and Payload as standard equipment right from the factory — boosting your operator efficiency by up to 45%. Combine these features with a new cab, longer maintenance intervals and reduced fuel consumption that lower maintenance costs by up to 15% and fuel consumption by up to 20% and you have an absolutely low-cost-per-unit-of-production excavator built for your heavy-duty applications.

Engine

Engine Model
Cat C7.1 ACERT
Net Flywheel Power
162.00 hp
121.00 kW
Gross Power – SAE J1995
164.00 hp
122.00 kW
Net Power – SAE J1349
162.00 hp
121.00 kW
Bore
4.00 in
105.00 mm
Stroke
5.00 in
135.00 mm
Displacement
428.00 in3
7.01 L

Weights

Operating Weight- North America
56200.00 lb
25500.00 kg
Note
Long Undercarriage, HD Reach Boom, R 2.9 HD Thumb Ready Reach Stick, HD 1.38 m3 bucket and 790mm HD TG shoes, 5.4mton( 11,900lb) Counterweight.
Operating Weight - Europe/Australia & New Zealand
53790.00 lb
24400.00 null
Note
Long undercarriage, Reach boom, R2.9 (9'6") stick, HD 1.38 m3 (1.81 yd3) bucket and 600mm (24 in) triple grouser shoes, 4.2 mt (9,300 lb) counterweight.

Hydraulic System

Main System – Maximum Flow (Total)
113.00 gal/min
429.00 L/min
Maximum Pressure - Equipment - Normal
5075.00 psi
35000.00 kPa
Maximum Pressure – Travel
4974.00 psi
34300.00 kPa
Maximum Pressure – Swing
3886.00 psi
26800.00 kPa

Drive

Maximum gradeability
35°--70%
Maximum Travel Speed
3.50 mph
5.70 km/h
Maximum Drawbar Pull
45614.00 lbf
203.00 kN

Swing

Swing Speed
11.25 rpm
11.25 rpm
Maximum Swing Torque
54440.00 lbf-ft
74.00 kN·m

Service Refill Capacities

Fuel Tank Capacity
96.20 gal
364.00 L
Cooling System
6.60 gal
25.00 L
Engine Oil
6.60 gal
25.00 L
Swing Drive (each)
1.30 gal
5.00 L
Final Drive (each)
1.30 gal
5.00 L
Hydraulic System (including tank)
57.60 gal
218.00 L
Hydraulic Tank
30.40 gal
115.00 L
DEF Tank
7.90 gal
30.00 L

Engine

Engine rpm: Operation
1650.00 rpm
1650.00 rpm
Engine rpm: Travel
1800.00 rpm
1800.00 rpm

Dimensions: Reach Boom 5.7 m (18'8"); R2.9 (9'6") Stick

Shipping Height
10.20 ft
3100.00 mm
Shipping Length
31.30 ft
9530.00 mm

Dimensions: Reach Boom 5.7 m (18'8"); R2.9 (9'6") Stick

Tail Swing Radius
9.30 ft
2830.00 mm

Dimensions: Reach Boom 5.7 m (18'8"); R2.9 (9'6") Stick

Track Length-Length to Center of Rollers
12.00 ft
3650.00 mm

Dimensions: Reach Boom 5.7 m (18'8"); R2.9 (9'6") Stick

Ground Clearance
1.50 ft
470.00 mm

Dimensions: Reach Boom 5.7 m (18'8"); R2.9 (9'6") Stick

Track Gauge
7.80 ft
2380.00 mm
Transport Width: 600 mm (24 in) Shoes
9.80 ft
2980.00 mm
Transport Width: 700 mm (28 in) Shoes
10.10 ft
3080.00 mm
Transport Width: 790 mm (31 in) Shoes
10.40 ft
3170.00 mm

Dimensions - Reach Boom - 5.7 m (18'8"); R2.9 (9'6") Stick

Transport Width - 900 mm (35 in) Shoes
10.80 ft
3280.00 mm

Dimensions: Reach Boom 5.7 m (18'8"); R2.9 (9'6") Stick

Counterweight Clearance
3.40 ft
1050.00 mm
Note
With HD 1.3m3 bucket and 900 mm shoes.
Note
Reach boom as same dimensions as HD reach boom

Working Ranges: Reach Boom 5.7 m (18'8"); R2.9 (9'6") Stick

Maximum Digging Depth
22.10 ft
6730.00 mm
Maximum Reach at Ground Level
32.40 ft
9870.00 mm
Maximum Cutting Height
31.00 ft
9450.00 mm
Maximum Loading Height
21.30 ft
6480.00 mm
Minimum Loading Height
7.10 ft
2160.00 mm
Maximum Depth Cut for 2440 mm (8'0") Level Bottom
21.50 ft
6560.00 mm
Maximum Vertical Wall Digging Depth
18.80 ft
5740.00 mm

Engine

Engine Model
Cat C7.1 ACERT
Net Flywheel Power
162.00 mm H2O
121.00 kg/mm
Bore
4.00 in
105.00 mm
Stroke
5.00 in
135.00 mm
Displacement
428.00 in³
7.01 l
Gross Power - SAE J1995
164.00 mm H2O
122.00 kg/mm
Net Power - SAE J1349
162.00 mm H2O
121.00 kg/mm

Weights

Note (1)
Long Undercarriage, HD Reach Boom, R 2.9 HD Thumb Ready Reach Stick, HD 1.38 m3 bucket and 790mm HD TG shoes, 5.4mton( 11,900lb) Counterweight.
Operating Weight - North America
56200.00 lb
25500.00 null

Service Refill Capacities

Fuel Tank Capacity
86.60 gal (US)
345.00 l
Cooling System
6.60 gal (US)
25.00 l
Engine Oil
6.60 gal (US)
25.00 l
Final Drive - Each
1.30 gal (US)
5.00 l
Hydraulic System - Including Tank
61.80 gal (US)
234.00 l
Hydraulic Tank
30.40 gal (US)
115.00 l
DEF Tank
10.80 gal (US)
41.00 l
Swing Drive - Each
1.30 gal (US)
5.00 l

Swing

Maximum Swing Torque
54440.00 ft·lbf
74.00 null
Swing Speed
11.25 r/min
11.25 r/min

Drive

Maximum Drawbar Pull
45614.00 lbf
203.00 kN
Maximum Travel Speed
3.50 mile/h
5.70 km/h

Hydraulic System

Main System - Maximum Flow - Total
113.00 gal/min
429.00 l/min
Maximum Pressure - Swing
3886.00 psi
26800.00 kPa
Maximum Pressure - Travel
4974.00 psi
34300.00 kPa

Dimensions - Reach Boom - 5.7 m (18'8"); R2.9 (9'6") Stick

Counterweight Clearance
3.40 ft
1050.00 mm
Note (1)
With HD 1.3m3 bucket and 900 mm shoes.
Note (2)
Reach boom as same dimensions as HD reach boom
Shipping Height
10.20 ft
3100.00 mm
Shipping Length
31.30 ft
9530.00 mm
Track Gauge
7.80 ft
2380.00 mm
Track Length - Center of Rollers
12.00 ft
3650.00 mm
Transport Width - 600 mm (24 in) Shoes
9.80 ft
2980.00 mm
Transport Width - 700 mm (28 in) Shoes
10.10 ft
3080.00 mm
Transport Width - 790 mm (31 in) Shoes
10.40 ft
3170.00 mm

Dimensions - Reach Boom - 5.7 m (18'8"); R2.9 (9'6") Stick

Ground Clearance
1.50 ft
470.00 mm
Tail Swing Radius
9.30 ft
2830.00 mm

Drive

Maximum Gradeability
35°--70%

Engine

Engine RPM - Operation
1650.00 r/min
1650.00 r/min
Engine RPM - Travel
1800.00 r/min
1800.00 r/min

Weights

Note (2)
Long undercarriage, Reach boom, R2.9 (9'6") stick, HD 1.38 m3 (1.81 yd3) bucket and 600mm (24 in) triple grouser shoes, 4.2 mt (9,300 lb) counterweight.

Working Ranges - Reach Boom - 5.7 m (18'8"); R2.9 (9'6") Stick

Maximum Cutting Height
31.00 ft
9450.00 mm
Maximum Depth Cut for 2440 mm (8'0") Level Bottom
21.50 ft
6560.00 mm
Maximum Digging Depth
22.10 ft
6730.00 mm
Maximum Loading Height
21.30 ft
6480.00 mm
Maximum Reach - Ground Level
32.40 ft
9870.00 mm
Maximum Vertical Wall Digging Depth
18.80 ft
5740.00 mm
Minimum Loading Height
7.10 ft
2160.00 mm
Features

High Performance with Lower Fuel Consumption

  • Use up to 20% less fuel than the 323F excavator.
  • Increase operator efficiency by up to 45% with a suite of Cat Connect technologies that lower operator fatigue and your operating costs, including fuel consumption and daily maintenance
  • Match the excavator to the job using power modes including new Smart mode that automatically matches engine and hydraulic power to your digging conditions.
  • The advanced hydraulic system provides the optimum balance of power and efficiency while giving you the control you need for your precise digging requirements.
  • The electronically controlled, turbocharged engine meets U.S. EPA Tier 4 Final and EU Stage IV emission standards using a transparent aftertreatment system that requires no operator input or downtime
  • Auxiliary hydraulic options give you the versatility to use a wide range of Cat attachments.
  • Don't let the temperature stop you from working. The excavator has a standard high ambient temperature capability of 52º C (125º F) and cold start capability of -18º C (0º F). An optional -32º C (-25º F) cold start package is available.

Boost Efficiency and Boost Productivity with Integrated Cat Connect

Text too long

Work in Comfort in the All-New Cab

  • Two cab options – Deluxe, and Premium– let you choose the level of comfort you need.
  • Enjoy wide spacing between consoles for a more spacious comfortable environment.
  • Sit in new, wide seats that adjust for operators of all sizes (heated and heated/cooled options are available).
  • Get in and out of the cab easier using the tip-up left console (in Deluxe and Premium cabs only).
  • Control the excavator comfortably with easy-to-reach controls located in front of you.
  • Standard automatic climate control keeps you at the right temperature throughout your shift.
  • Improved viscous mounts reduce cab vibration by up to 50% over our previous excavator models.
  • Stow your gear with plenty of in-cab storage behind the seat, overhead, and in the consoles. A cup holder, document holder, bottle holder, and coat hook are included.
  • The standard radio has USB ports and Bluetooth® technology enabled to connect your device and make hands-free calls.

Built for Long Life

  • Protect hydraulic components in cold weather. The auto warm-up feature speeds hydraulic oil warming in cooler temperatures.
  • The fuel system is protected from contamination of fuel by three levels of filtration.
  • Bottom guarding protects engine and hydraulic components from damage while swinging and traveling.
  • The hydraulic tank with a new oval shape designed to improve stress resistance.
  • The strong X-structure lower frame carries loads from the excavator's upper structure to the track.
  • Travel motor hydraulic lines are routed inside of the frame to protect them from damage.
  • The sloped track frame design prevents mud and debris from accumulating and damaging tracks.
  • The grease lubricated tracks have grease sealed between the pin and bushing to prevent debris from entering and reducing life.
  • The track rollers are rebuild-able and sealed to prevent dirt and debris causing wear of internal components.
  • A bolt-on track guiding guard helps maintain track alignment while traveling or working on slopes.

Simple to Operate

  • You can navigate quickly on the standard, high-resolution 8 in (203 mm) touchscreen monitor or with the optional 10 in (254 m) touchscreen monitor or with the aid of the jog dial control.
  • A second 10 in (254 mm) monitor is available for the advanced grade control.
  • Easy keyless push-to-start engine using your Bluetooth key fob, or your smartphone to enable the pushbutton start feature.
  • Match the excavator's operation to your digging style by adjusting the joystick response and programming the function of each joystick button.
  • Easily use the monitor to change the joystick pattern from the cab. You can choose two-way or four-way patterns options. Store your pattern preference and let the machine automatically set the pattern when you log in with your unique Operator ID.
  • Not sure how a function works or how to maintain the excavator? Always have the operator's manual at your fingertips in the touchscreen monitor..

Maintenance

  • Extended maintenance intervals reduce maintenance costs by 15% over the Cat 323F excavator. (15% savings calculated over 12000 machine hours.)
  • Reversing electric cooling fans make it easy to clean radiator, oil coolers, and condensers.
  • An all-new engine air cleaner with integrated pre-cleaner has twice the life of radial seal air cleaners.
  • The new hydraulic oil filter provides improved filtration performance, anti-drain valves to keep oil clean when the filter is replaced, and longer life with a 3000 hour replacement interval – 50% longer than previous filter designs.
  • Track your excavator's filter life and maintenance intervals can via the in-cab monitor.
  • Check engine oil level quickly and safely with the new engine oil dip stick located on ground level.
  • S·O·S℠ ports with extended sampling intervals are on ground level, simplifying maintenance and allows for quick easy extraction of samples for fluid analysis.

Safety

  • Work safely under structures or near traffic with the standard 2D E-fence feature integrated right out of the factory, which prevents any part of the excavator from moving outside operator-defined set points, avoiding hazards and jobsite accidents.
  • Access 100% of daily maintenance points from ground level – no need for you to climb on top of excavator.
  • The standard ROPS cab meets ISO 12117-2 2008 requirements.
  • Enjoy great visibility into the trench, in each swing direction, and behind you with the help of smaller cab pillars, larger windows, and a flat engine hood design.
  • The standard hydraulic lockout lever isolates all hydraulic and travel functions in the lowered position.
  • Ground level shut-off switch stops all fuel to the engine when activated and shuts down the machine.
  • A rearview camera is standard and upgradable to an optional 360° visibility camera for visibility all around the excavator, allowing the operator to easily visualize objects and personnel around the excavator in a single view.
  • New right-hand service platform design provides easy, safe, and quick access to upper service platform; the service platform steps use anti-skid punch plate to prevent slipping. The handrails comply with ISO 2867 requirements.
Standard Equipment
  • CAT CONNECT TECHNOLOGY
  • ENGINE
  • HYDRAULIC SYSTEM
  • STANDARD DELUXE CAB
  • UNDERCARRIAGE AND STRUCTURES
  • BOOM, STICKS AND LINKAGES
  • ELECTRICAL
  • SAFETY & SECURITY
  • SERVICE & MAINTENANCE
Optional Equipment
  • CAT CONNECT TECHNOLOGY
  • ENGINE
  • HYDRAULIC SYSTEM
  • UNDERCARRIAGE AND GUARDS
  • BOOM,STICKS & LINKAGES
  • ELECTRICAL SYSTEM
  • SERVICE & MAINTENANCE
  • SAFETY & SECURITY
  • PREMIUM CAB UPGRADES, STANDARD PLUS
  • BUCKET
