Overview

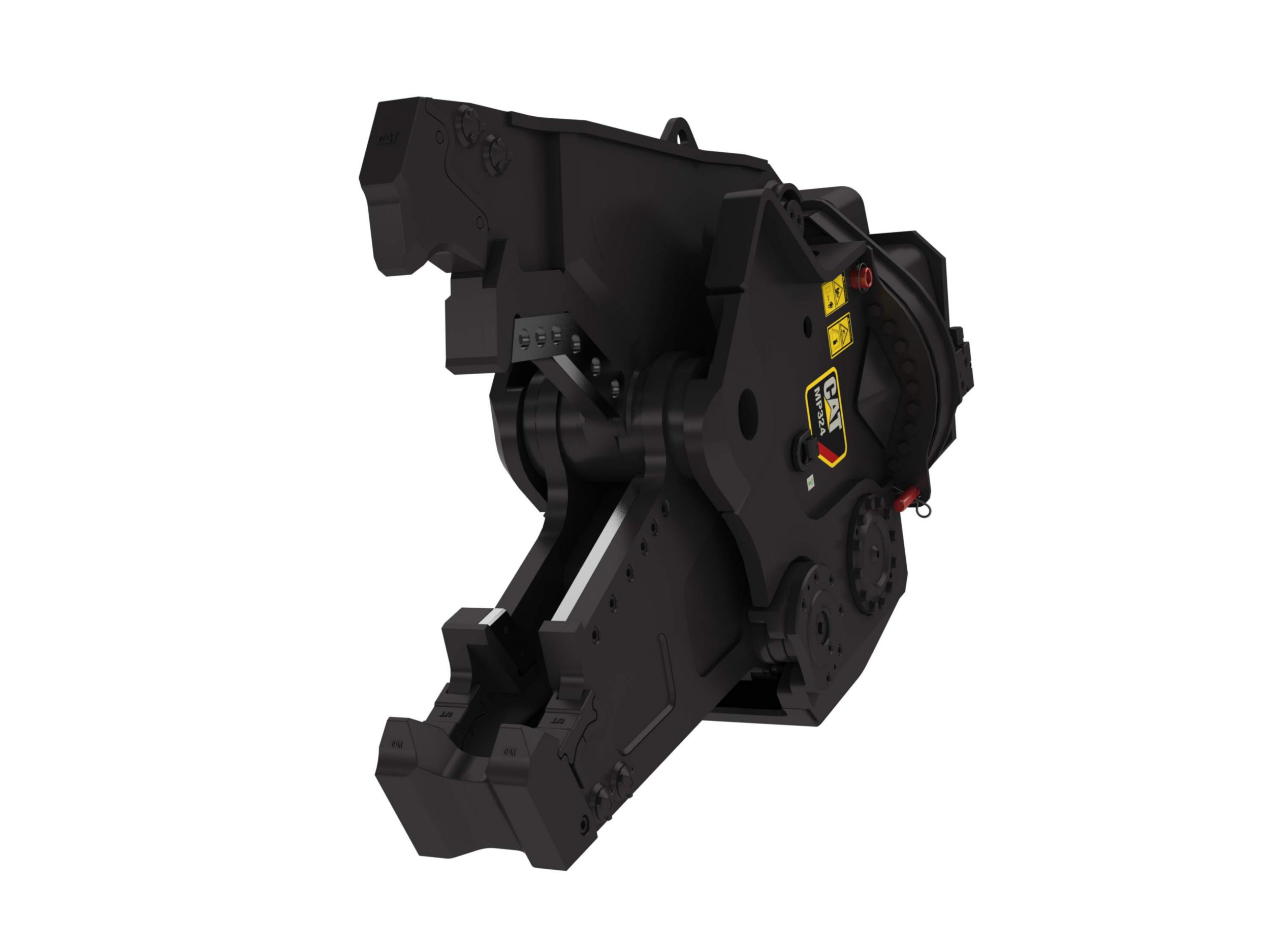

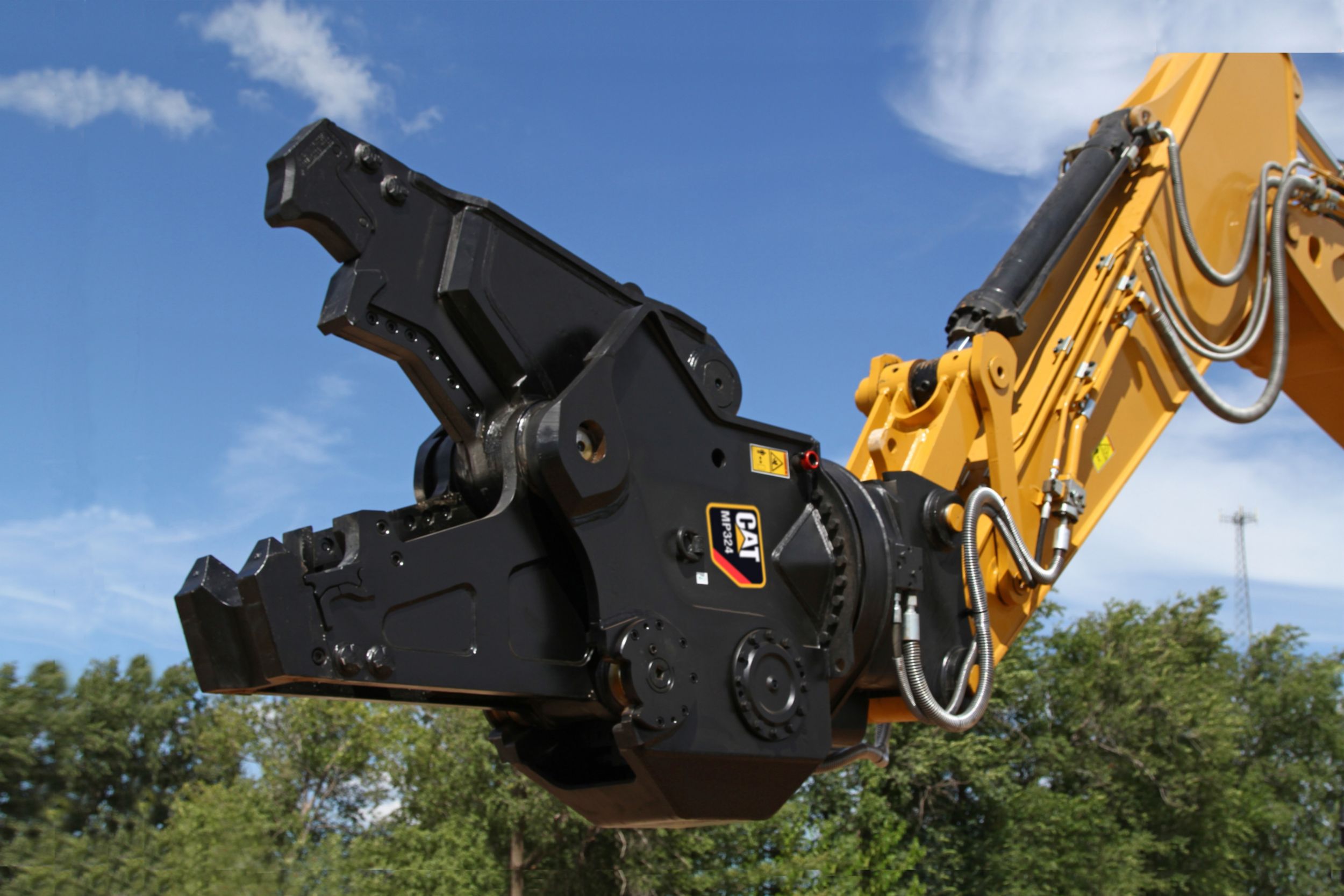

Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.
Length
84.00 in
2133.00 mm
Height
58.50 in
1485.00 mm
Width
31.20 in
793.00 mm
Jaw Depth
29.60 in
753.00 mm
Jaw Width, fixed
13.50 in
344.00 mm
Jaw Opening - max.
32.50 in
826.00 mm
Cutter Length
17.30 in
439.00 mm
Weight (housing, jaw and bracket)
5854.00 lb
2661.00 kg
Weight (jaw only)
2277.00 lb
1035.00 kg
Cycle time
3.00 Seconds
3.00 Seconds
Crushing Force, tooth tip
112.90 Sh Ton
1005.00 kN
Crushing Force, cutter tip
170.80 Sh Ton
1520.00 kN
Crushing Force, primary cutter
359.80 Sh Ton
3202.00 kN

Dimensions - Housing + Jaw

Length
84.00 in
2133.00 mm
Height
59.00 in
1485.00 mm
Width
31.00 in
793.00 mm

Dimensions - Jaw

Jaw Depth
30.00 in
753.00 mm
Jaw Width - Fixed
14.00 in
344.00 mm
Jaw Opening - Maximum
33.00 in
826.00 mm
Cutter Length
17.00 in
439.00 mm

Weight

Weight - Housing, Jaw and Bracket
0.00 lb
0.00 kg
Weight - Jaw Only
2277.00 lb
1035.00 kg

Performance

Cycle Time
3.00 s
3.00 s
Crushing Force - Tooth Tip
127.00 Sh Ton
1133.00 kN
Crushing Force - Cutter Tip
187.00 Sh Ton
1668.00 kN
Crushing Force - Primary Cutter
406.00 Sh Ton
3615.00 kN

Dimensions - Jaw

Jaw Width - Moveable
5.00
122.00

Performance

Cycle Time - Open
1.80 s
1.80 s
Cycle Time - Close
1.20 s
1.20 s
Crushing Force - Primary Cutter
406.00 Sh Ton
3615.00 kN
Crushing Force - Cutter Tip
187.00 Sh Ton
1668.00 kN
Crushing Force - Tooth Tip
127.00 Sh Ton
1133.00 kN

Hydraulic Requirements

Jaw Circuit - Max. Oil Pressure
5076.00 psi
350.00 bar
Jaw Circuit - Max. Oil Flow
225.00 gal/min
59.00 l/min
Rotation Circuit - Max. Oil Pressure
2031.00 psi
140.00 bar
Rotation Circuit - Max. Oil Flow
40.00 l/min
11.00 gal/min

Dimensions - Jaw

Jaw Depth
753.00 mm
30.00 in
Cutter Length
439.00 mm
17.00 in
Jaw Opening - Maximum
826.00 mm
33.00 in
Jaw Width - Fixed
14.00 in
344.00 mm
Jaw Width - Moveable
5.00 in
122.00 mm

Dimensions - Housing + Jaw

Length
84.00 in
2133.00 mm
Height
59.00 in
1485.00 mm
Width
31.00 in
793.00 mm

Weight

Weight - Housing, Jaw and Bracket
5854.00 lb
2661.00 kg
Weight - Jaw Only
2277.00 lb
1035.00 kg

Recommended Carrier Weight

Excavator Minimum
24 tons
Excavator Maximum
35 tons
Features

Cycle Times are 50 Percent Faster

  • New speed booster technology dynamically shifts hydraulic force from speed to boost mode, automatically as you operate.
  • You’ll spend less time waiting for the jaw to open or close to contact, as the speed valve automatically adjusts to fast flow when there’s no load.
  • Maximum crushing/cutting force is applied as soon as the jaw contacts material.

Up to 19 Percent More Force

  • Process more per hour, ship more per shift, make more every day. Speed booster magnifies hydraulic force when the jaw contacts material, quickly making the cut.
  • Mount more power even on smaller excavators. Compact design keeps the center of gravity as close as possible to the machine.
  • Get maximum performance and total support with a complete Cat demolition solution. Programs for the MP are built into the Next Gen Cat operator display. Single point of support your entire system by your local Cat dealer.

Change Jaws in 15 minutes

  • Innovative jaw locking enables a single operator to easily change jaws in 15 minutes or less. Requires only standard hand tools.
  • Simple and safe jaw changes are part of the design. Every jaw sits stable, even on the roughest work site, on the included jaw stand.

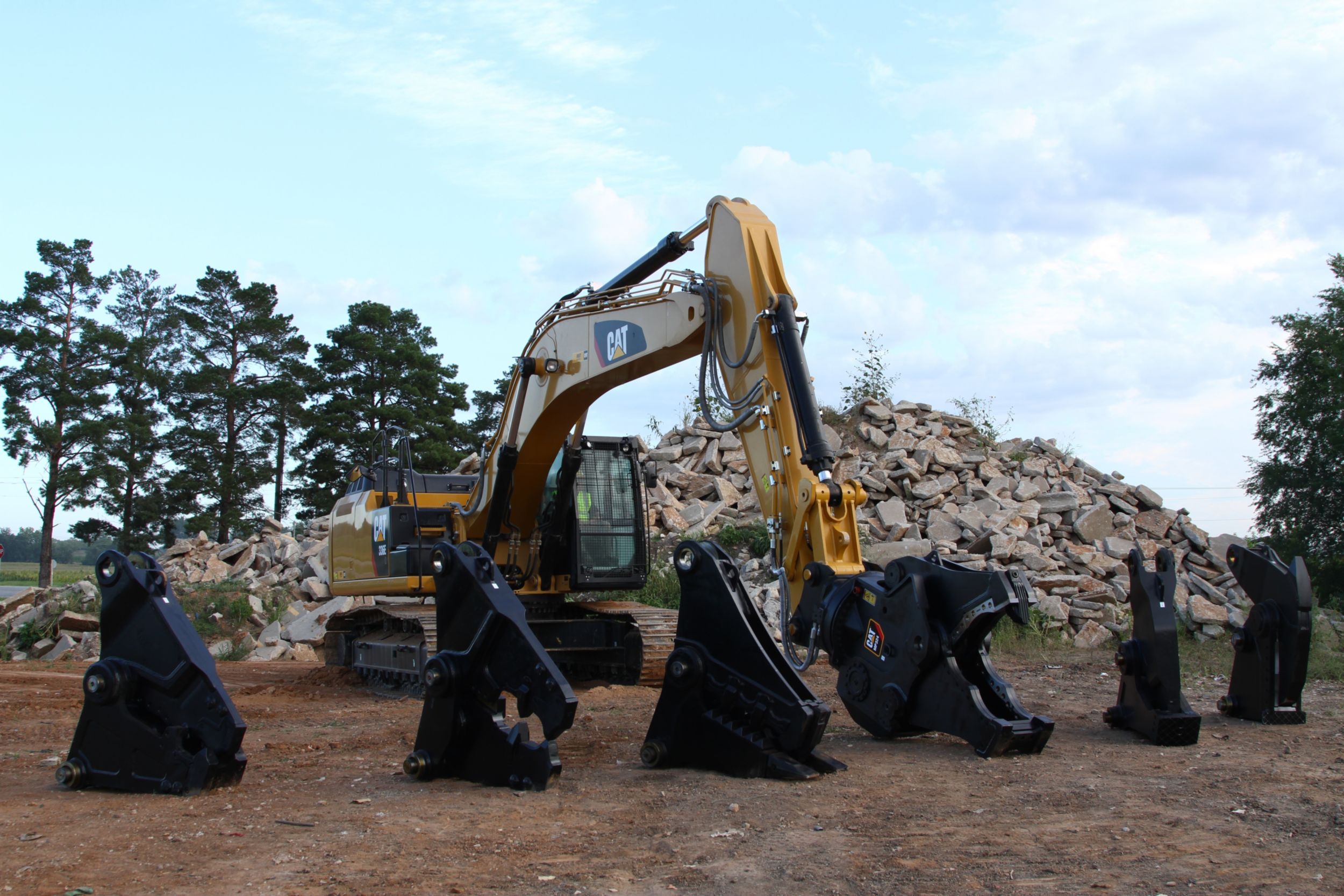

  • MP324 accepts these jaw types:
    • Concrete Cutter – outer jaw cracks concrete; inner shear jaw cuts steel
    • Demolition – opens wide to crack the largest concrete structures
    • Pulverizer – crushes concrete, separating the rebar
    • Secondary Pulverizer – crushes concrete into finer particles; total rebar separation
    • Shear – cuts structural steel, pipe, and cable
    • Tank Shear – cuts at right angle on three sides, cleanly cutting tanks or plate steel
    • Universal – innovative design cuts steel and crushes concrete

Durable and Maintainable

  • Protect your investment and maintain performance, quickly and economically. Jaws are protected with easily changed, individually replaceable wear parts.
  • Get more production time per cutter before replacement. Most cutting blades can be flipped in two ways, to use four different cutting edges.
  • Even when deep into debris, the cylinder rod is armored to prevent damage and the main cylinder body is protected inside the housing.
