Overview

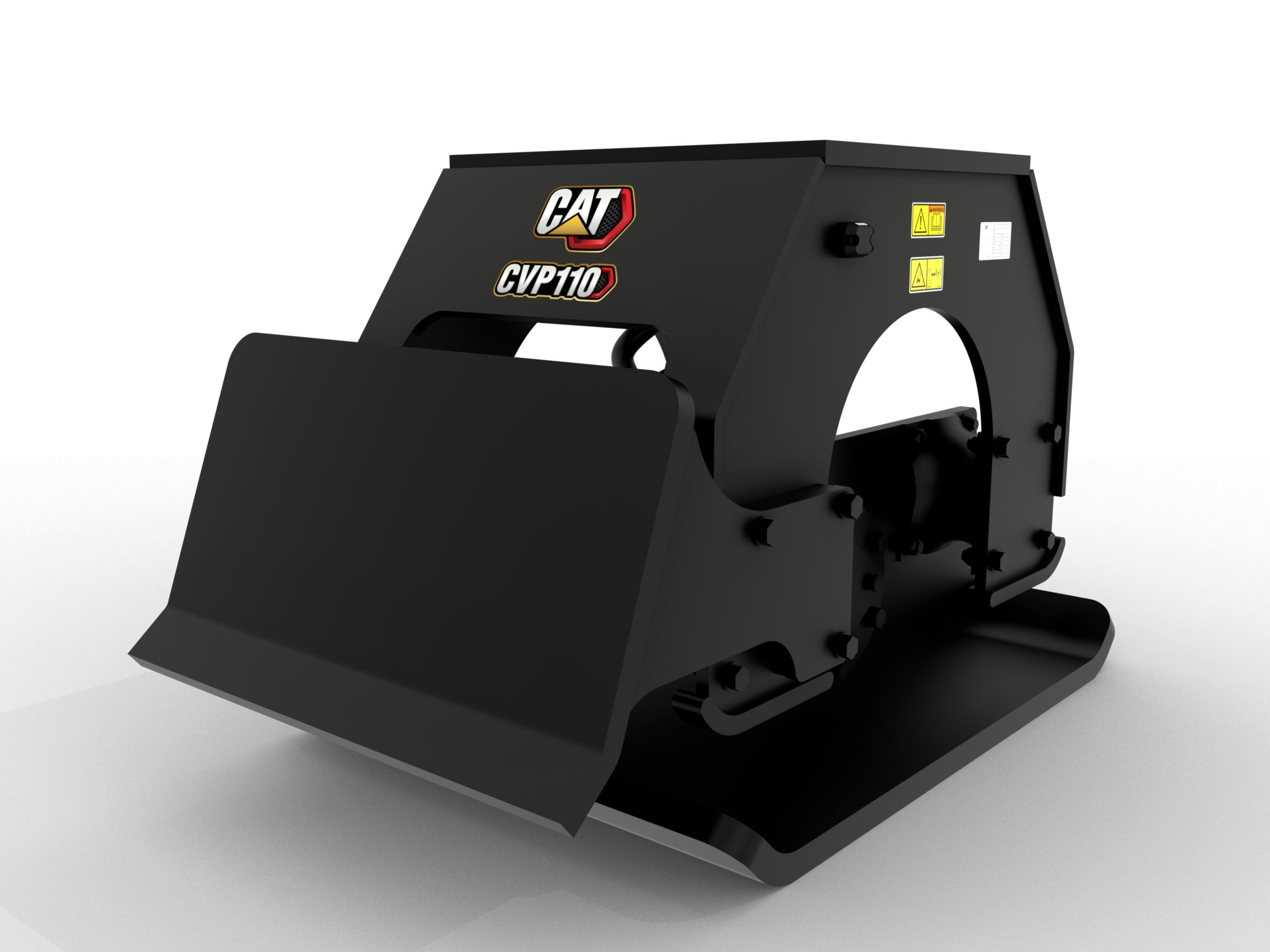

CVP110 Vibratory Plate Compactor - for medium HEX
Impulse Force
24669.00 lb
110.00 kN
Cycles/Minimum
2200
Base Plate Width
34.00 in
864.00 mm
Compaction Area
11.10 ft²
1.03 m²
Base Plate Pressure
15.43 psi
106.39 kPa
Base Plate Length
47.00 in
1194.00 mm
Minimum Hydraulic Flow
38.00 gal/min
144.00 l/min
Minimum Operating Pressure
2000.00 psi
13790.00 kPa
Weight
2319.00 lb
1052.00 kg
Base Plate Width
34.00 in
864.00 mm
Base Plate Length
47.00 in
1194.00 mm
Minimum Operating Pressure
2000.00 psi
13790.00 kPa
Weight
2319.00 lb
1052.00 kg
