Overview

Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.
Length
83.80 in
2129.00 mm
Height
61.90 in
1571.00 mm
Width
31.20 in
793.00 mm
Jaw Depth
19.30 in
490.00 mm
Jaw Width, fixed
11.30 in
286.00 mm
Jaw Width, moveable
4.70 in
120.00 mm
Jaw Opening, max.
19.10 in
485.00 mm
Cutter Length
17.30 in
439.00 mm
Weight (housing, jaw & bracket)
6074.00 lb
2761.00 kg
Weight (jaw only)
2497.00 lb
1135.00 kg
Cycle time
3.00 Seconds
3.00 Seconds

Performance

Cutting Force - Blade Tip
1.74
1550.00
Cutting Force - Blade Center
2.13
1894.00
Cutting Force - Blade Throat
4.88
4344.00

Dimensions - Housing + Jaw

Length
84.00 ft
21.29 m
Height
62.00 in
15.71 mm
Width
31.00 in
7.93 mm

Dimensions - Jaw

Jaw Depth
19.00 in
4.90
Jaw Width - Fixed
11.00
2.86
Jaw Width - Moveable
5.00
1.20
Jaw Opening - Maximum
19.00
4.85
Cutter Length
17.00
4.39

Weight

Weight - Housing, Jaw and Bracket
60.74
2761.00
Weight - Jaw Only
24.97
1135.00

Performance

Cycle Time - close
0.01
0.01

Hydraulic Requirements

Jaw Circuit - Max. Oil Pressure
50.76
350.00
Jaw Circuit - Max. Oil Flow
59.00
2.25
Rotation Circuit - Max. Oil Pressure
20.31
140.00
Rotation Circuit - Max. Oil Flow
10.60
0.40

Performance

Cycle Time - Open
1.80 s
1.80 s
Cycle Time - Close
1.20 s
1.20 s
Cutting Force - Blade Throat
174.00 Sh Ton
1550.00 kN
Cutting Force - Blade Center
213.00 Sh Ton
1894.00 kN
Cutting Force - Blade Tip
488.00 Sh Ton
4344.00 kN

Hydraulic Requirements

Jaw Circuit - Max. Oil Pressure
5076.00 psi
35000.00 bar
Jaw Circuit - Max. Oil Flow
59.00 gal/min
225.00 l/min
Rotation Circuit - Max. Oil Pressure
2030.50 psi
14000.00 bar
Rotation Circuit - Max. Oil Flow
10.60 gal/min
40.00 l/min

Dimensions - Jaw

Jaw Depth
19.00 in
490.00 mm
Cutter Length
17.00 in
439.00 mm
Jaw Opening - Maximum
19.00 in
485.00 mm
Jaw Width - Fixed
11.00 in
286.00 mm
Jaw Width - Moveable
5.00 in
120.00 mm

Dimensions - Housing + Jaw

Width
31.00 in
793.00 mm
Length
84.00 in
2129.00 mm
Height
62.00 in
1571.00 mm

Weight

Weight - Housing, Jaw and Bracket
6074.00 lb
2761.00 kg
Weight - Jaw Only
2497.00 lb
1135.00 kg

Force Primary Blade Center
0.00
0.00
Force at Throat
0.00
0.00 kN
Force at Tooth Tip
0.00
0.00
Jaw Opening
0.00 in
0.00 mm
Weight - Jaw
0.00
0.00
Weight - With Housing
0.00
0.00

Performance

Cycle Time - open
0.02
0.02

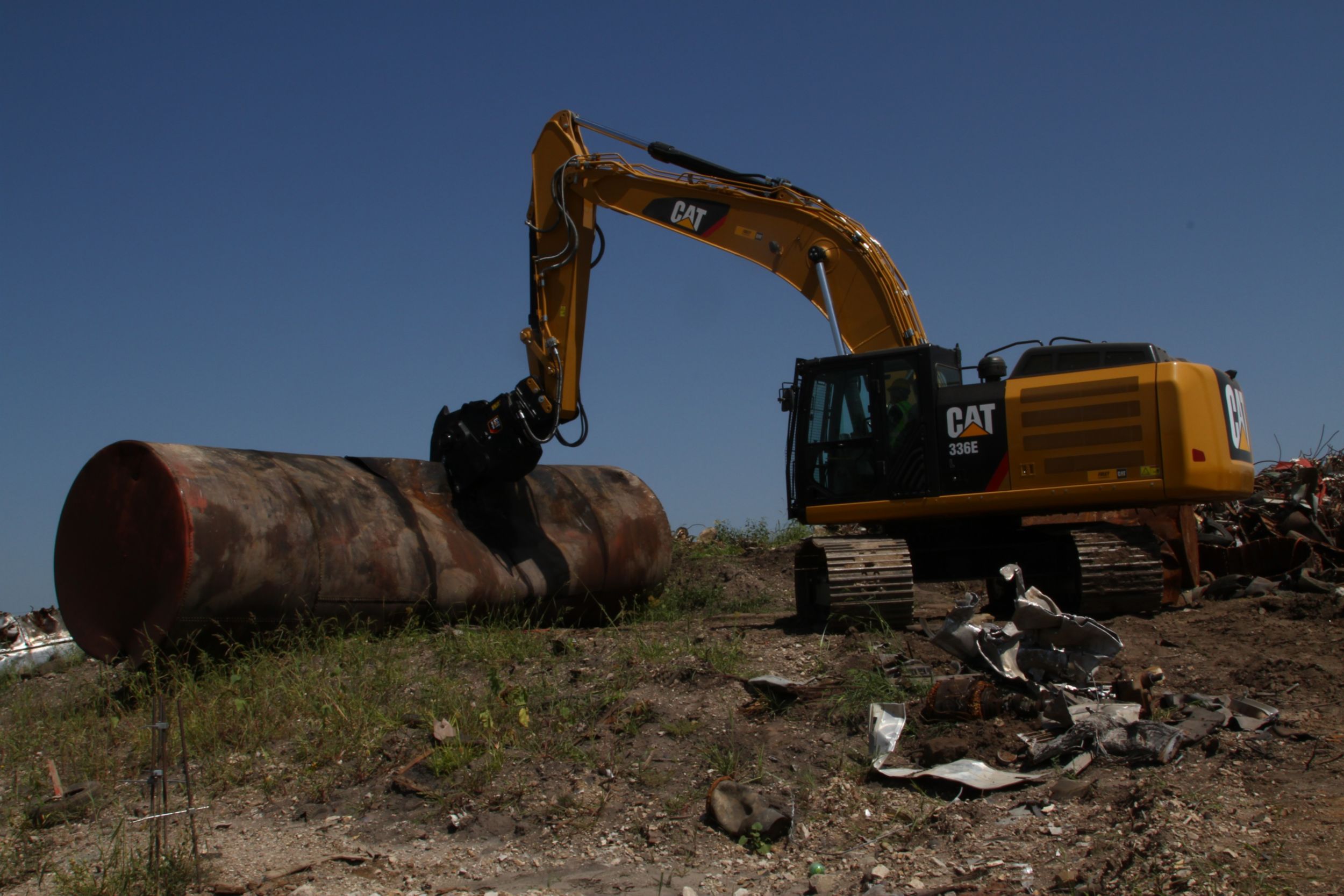

Recommended Carrier Weight

Excavator Minimum
24 tons
Excavator Maximum
35 tons
Features

Cycle Times are 50 Percent Faster

  • New speed booster technology dynamically shifts hydraulic force from speed to boost mode, automatically as you operate.
  • You’ll spend less time waiting for the jaw to open or close to contact, as the speed valve automatically adjusts to fast flow when there’s no load.
  • Maximum crushing/cutting force is applied as soon as the jaw contacts material.

Up to 19 Percent More Force

  • Process more per hour, ship more per shift, make more every day. Speed booster magnifies hydraulic force when the jaw contacts material, quickly making the cut.
  • Mount more power even on smaller excavators. Compact design keeps the center of gravity as close as possible to the machine.
  • Get maximum performance and total support with a complete Cat demolition solution. Programs for the MP are built into the Next Gen Cat operator display. Single point of support your entire system by your local Cat dealer.

Change Jaws in 15 minutes

  • Innovative jaw locking enables a single operator to easily change jaws in 15 minutes or less. Requires only standard hand tools.
  • Simple and safe jaw changes are part of the design. Every jaw sits stable, even on the roughest work site, on the included jaw stand.

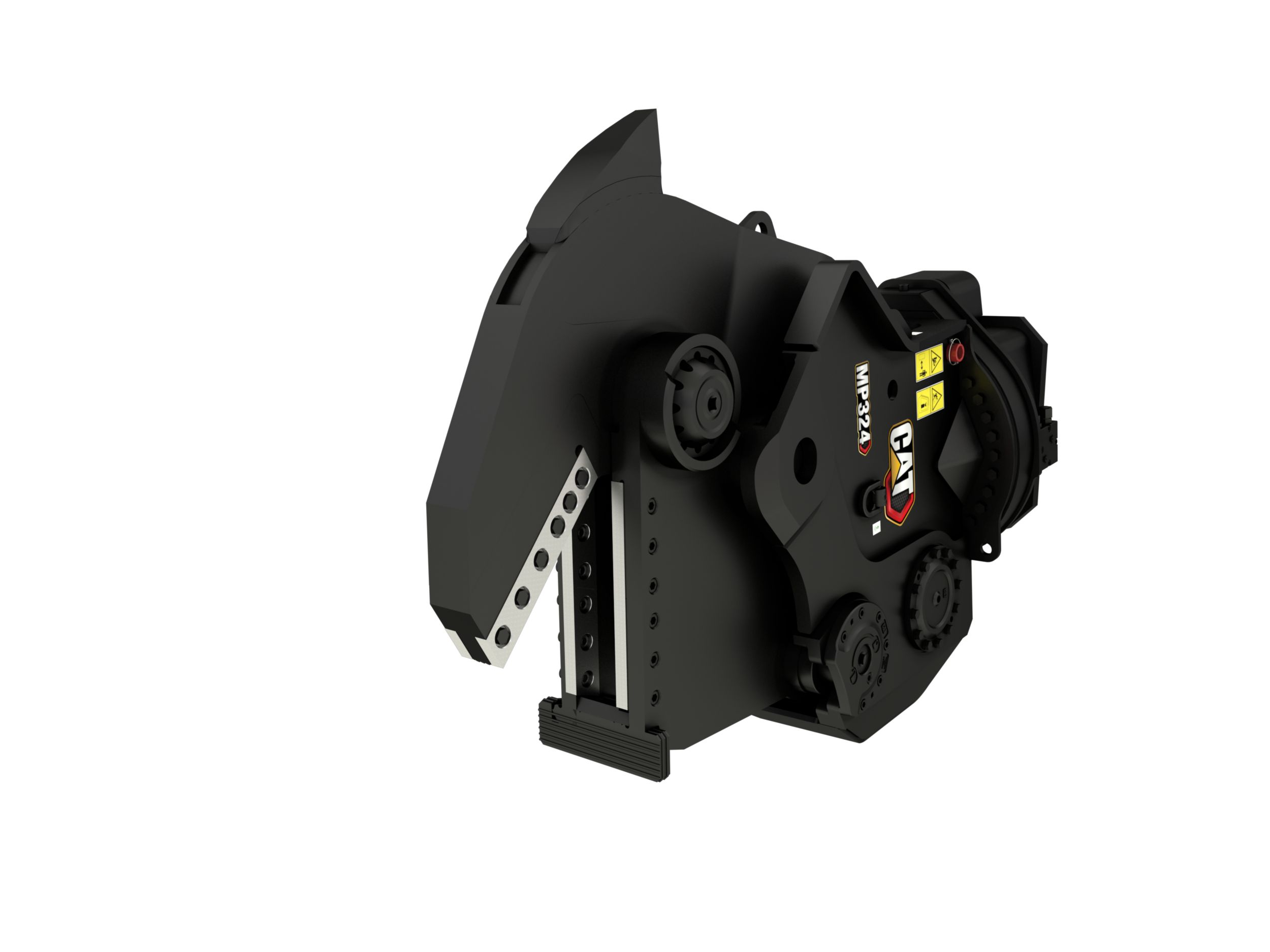

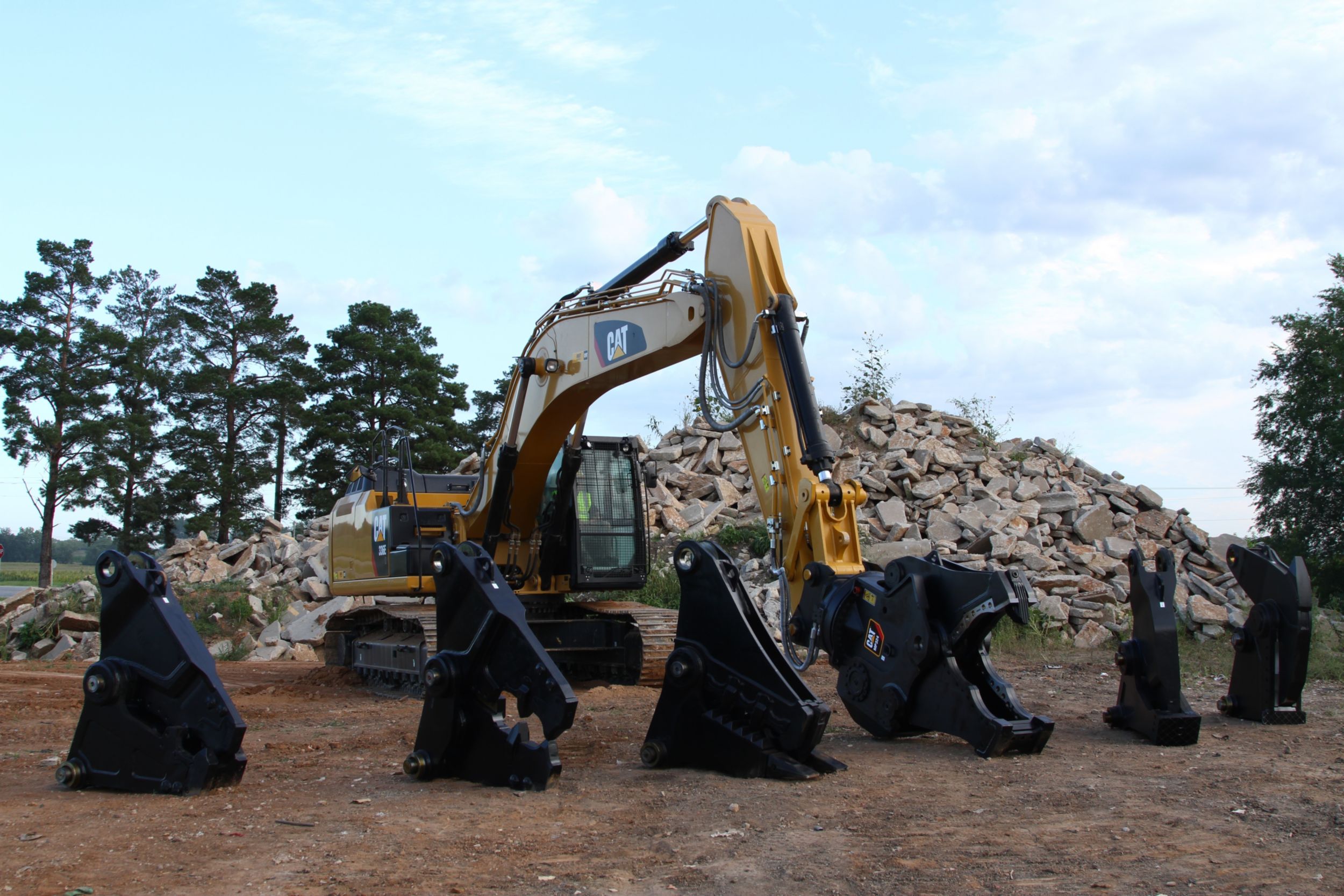

  • MP324 accepts these jaw types:
    • Concrete Cutter – outer jaw cracks concrete; inner shear jaw cuts steel
    • Demolition – opens wide to crack the largest concrete structures
    • Pulverizer – crushes concrete, separating the rebar
    • Secondary Pulverizer – crushes concrete into finer particles; total rebar separation
    • Shear – cuts structural steel, pipe, and cable

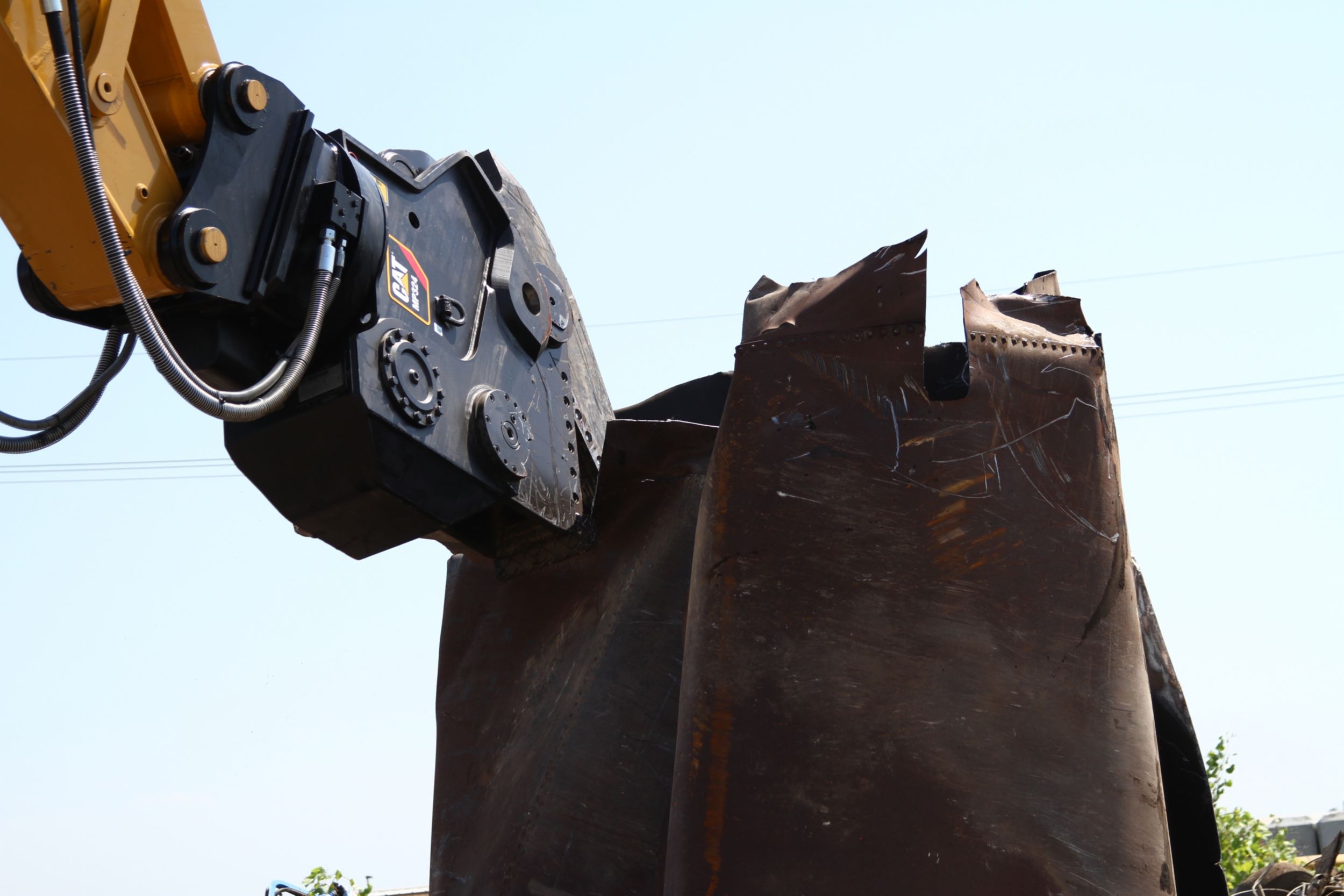

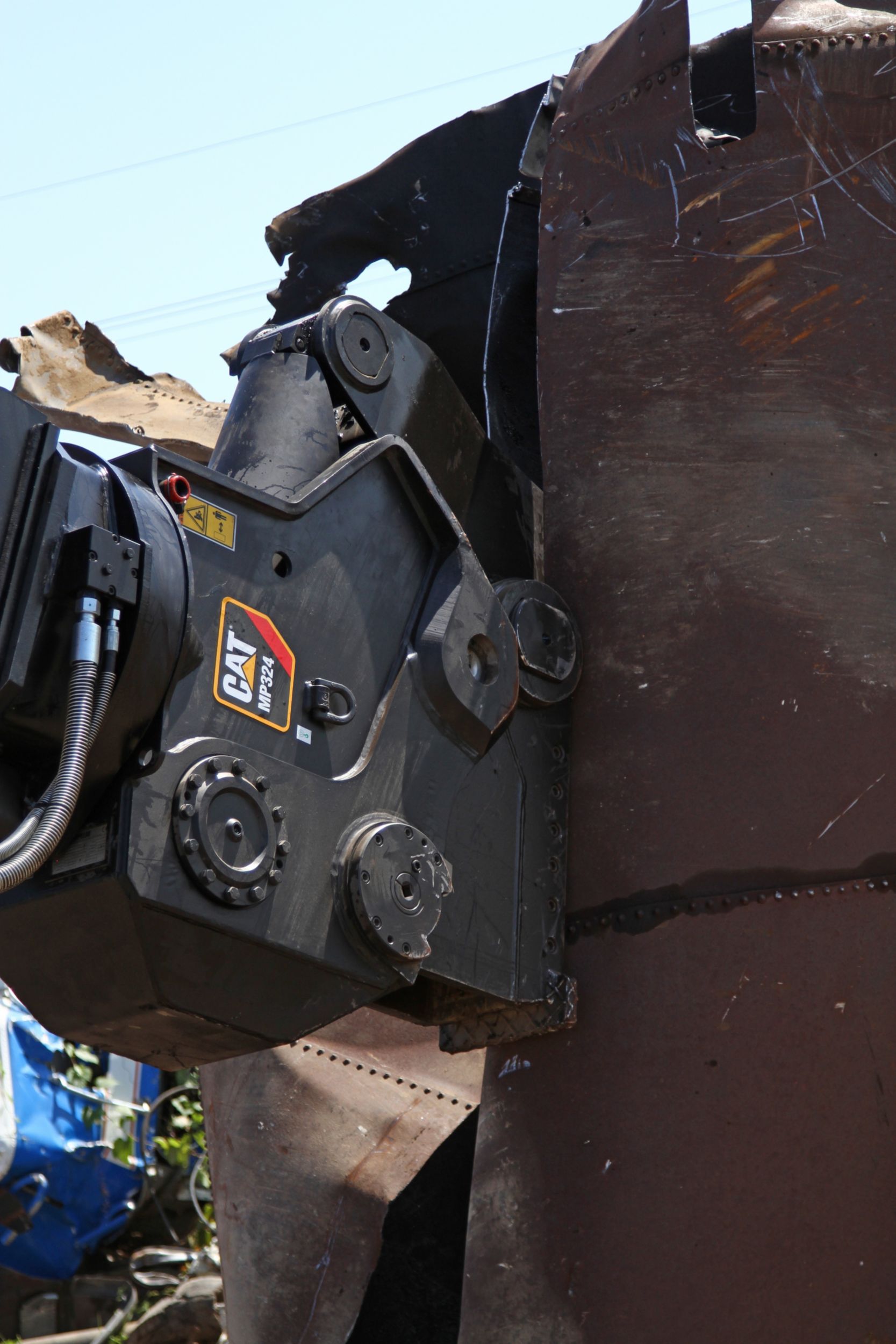

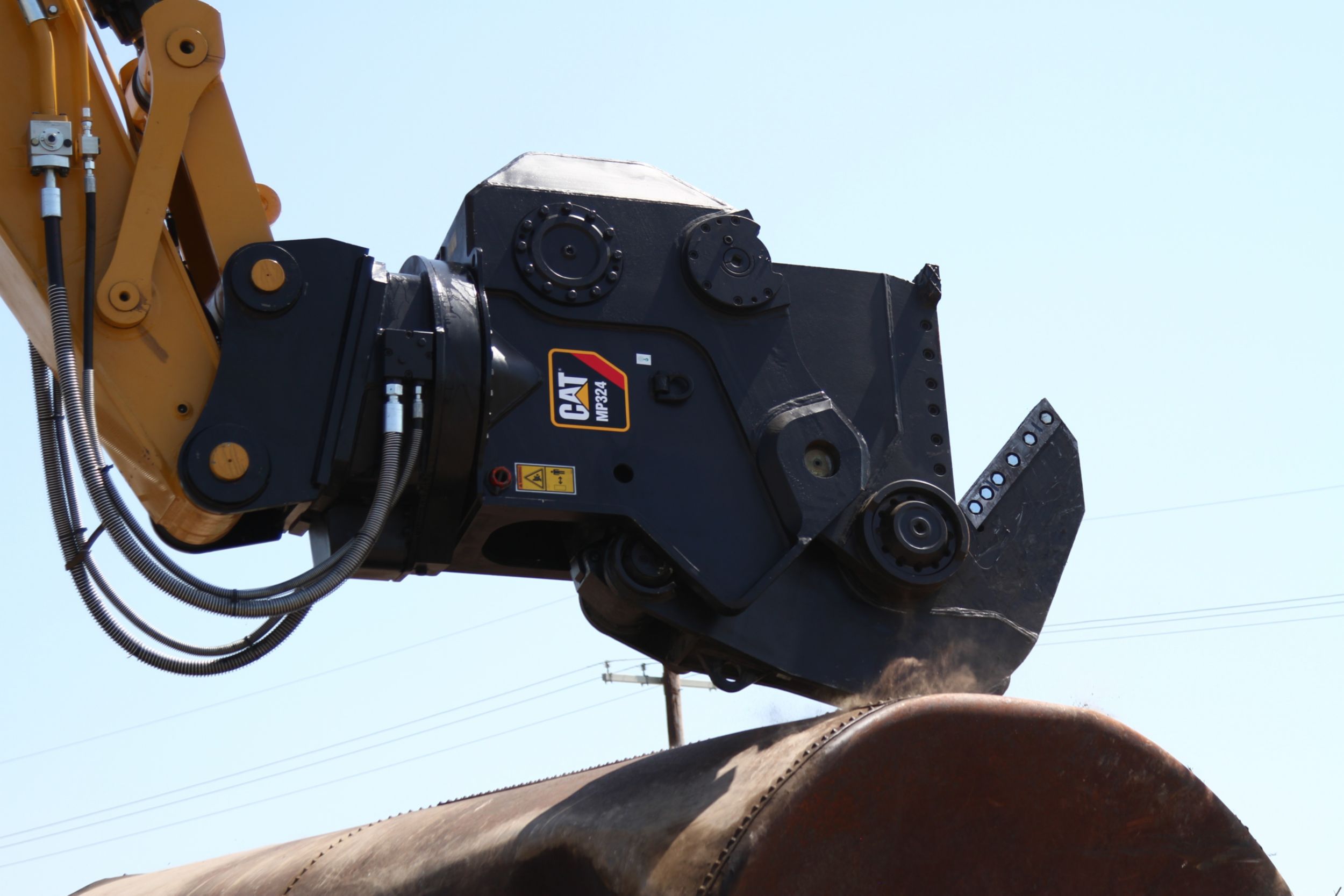

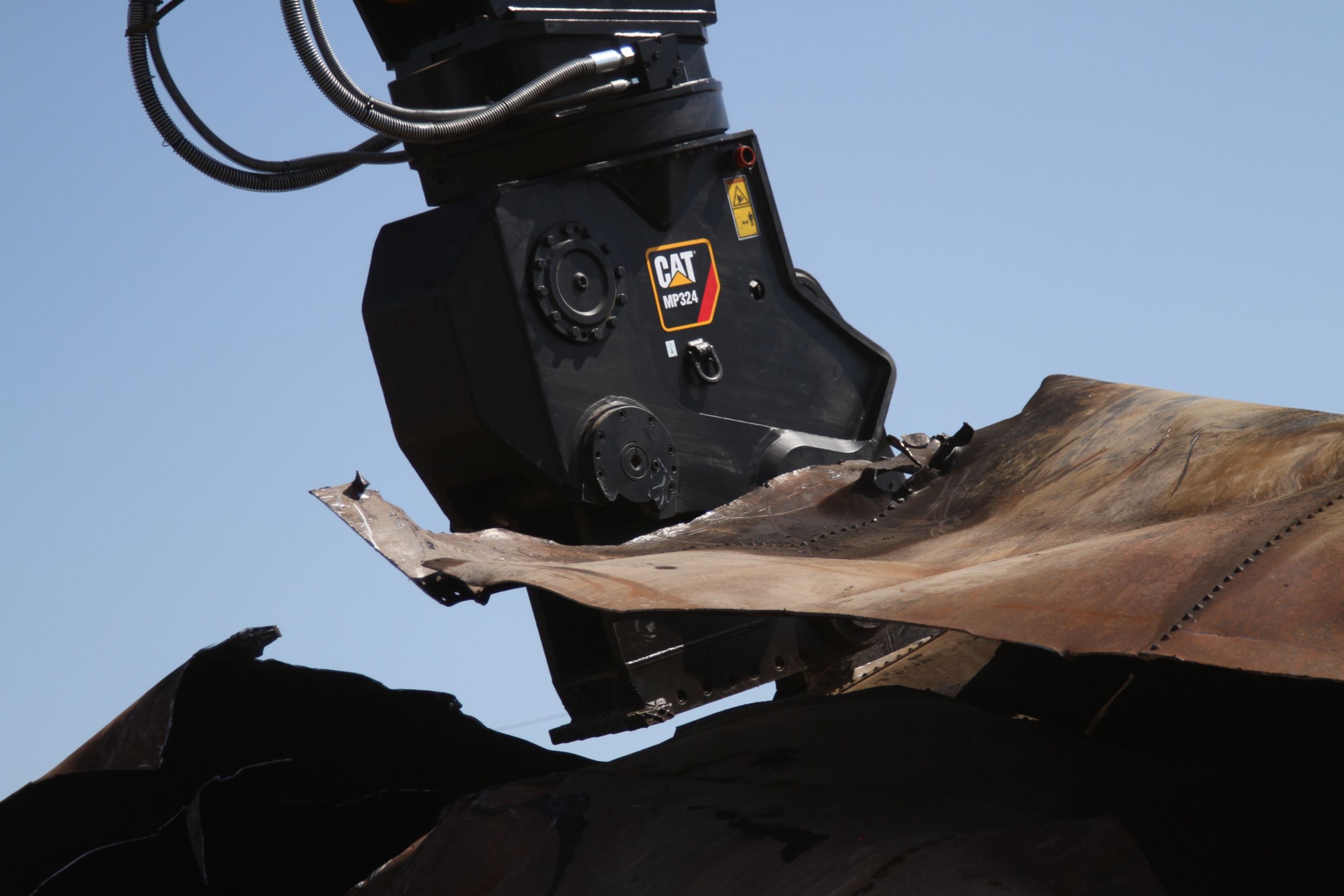

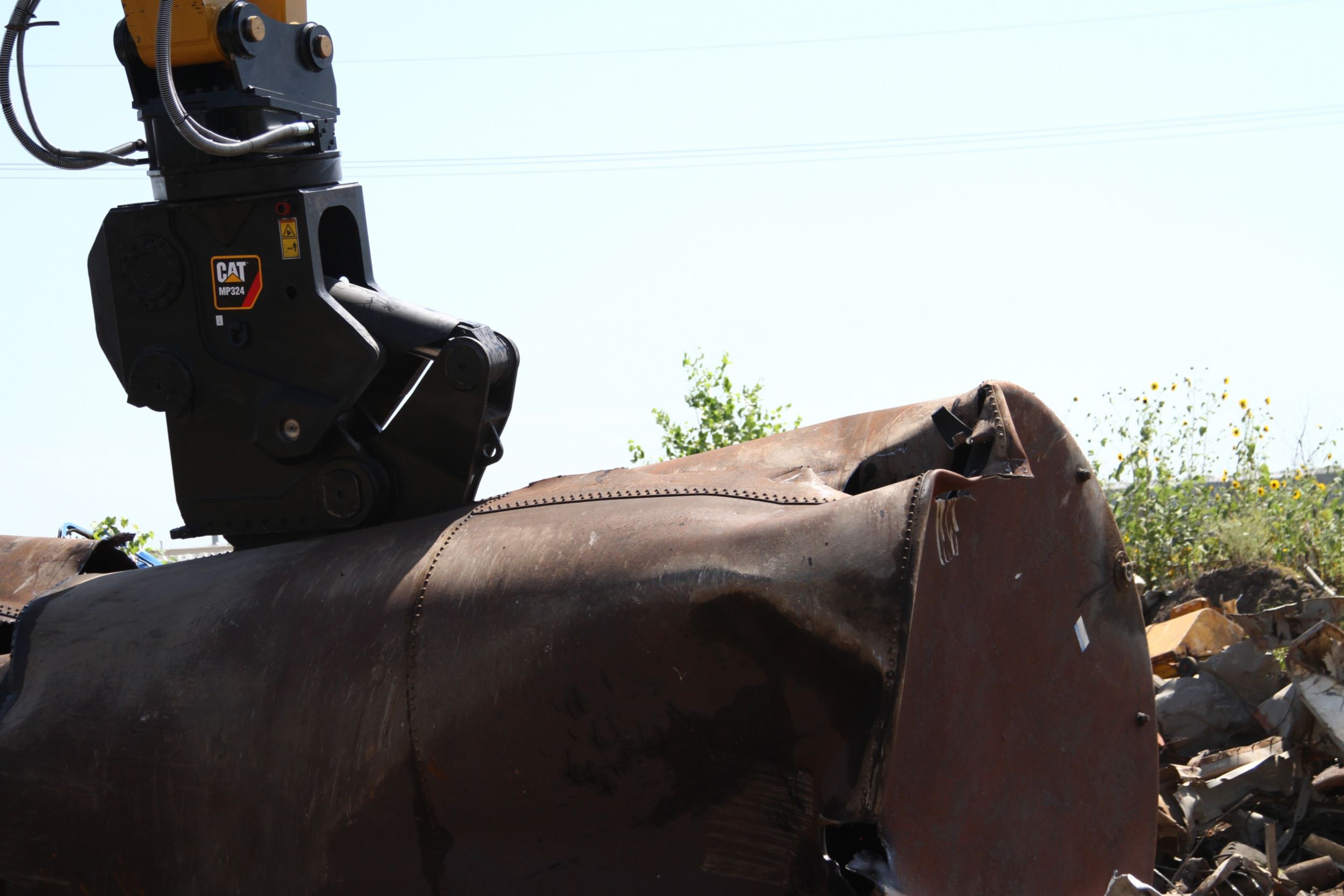

    • Tank Shear – cuts at right angle on three sides, cleanly cutting tanks or plate steel
    • Universal – innovative design cuts steel and crushes concrete

Durable and Maintainable

  • Protect your investment and maintain performance, quickly and economically. Jaws are protected with easily changed, individually replaceable wear parts.
  • Get more production time per cutter before replacement. Most cutting blades can be flipped in two ways, to use four different cutting edges.
  • Even when deep into debris, the cylinder rod is armored to prevent damage and the main cylinder body is protected inside the housing.
