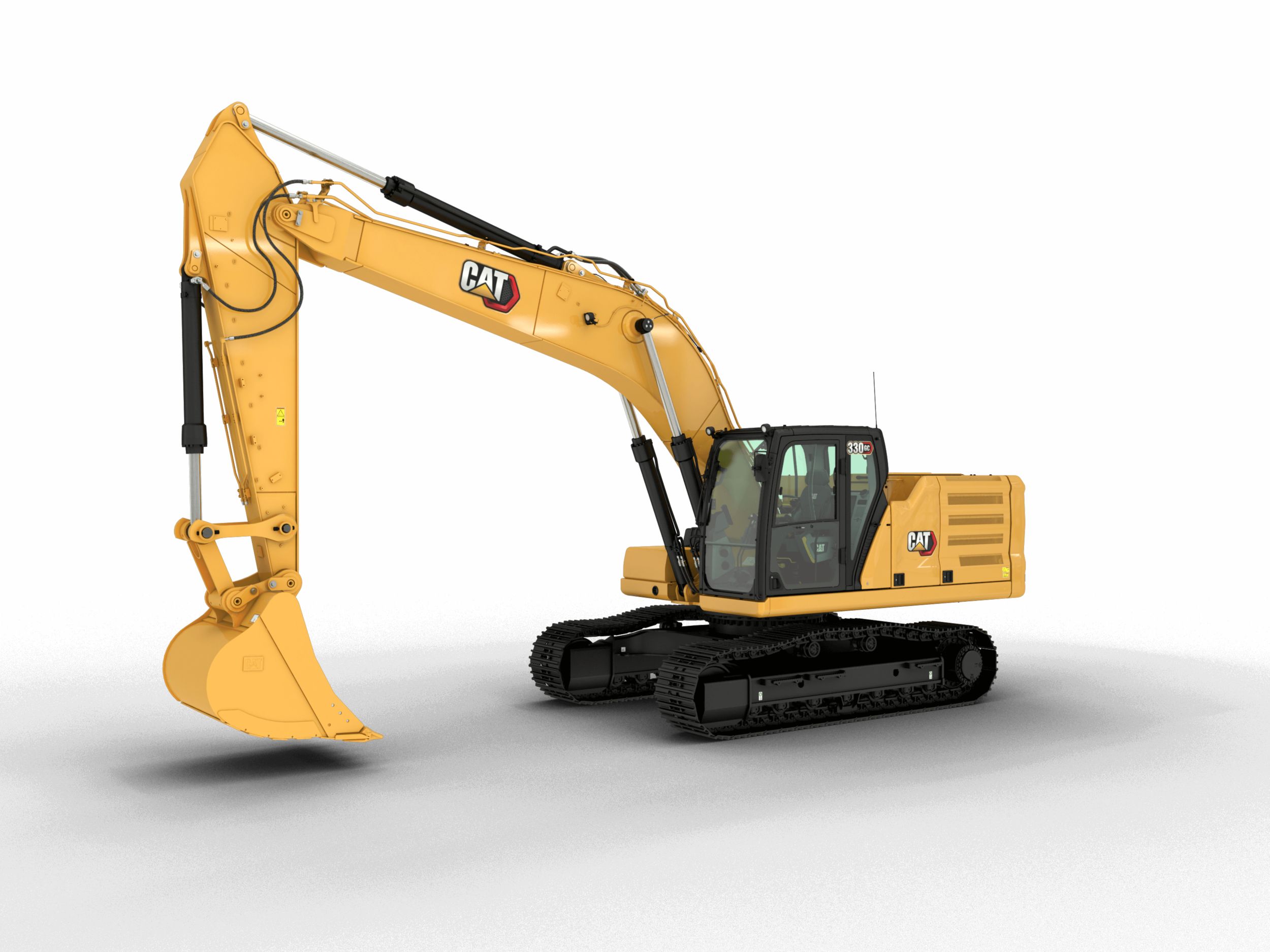

330 GC Medium Hydraulic Excavator

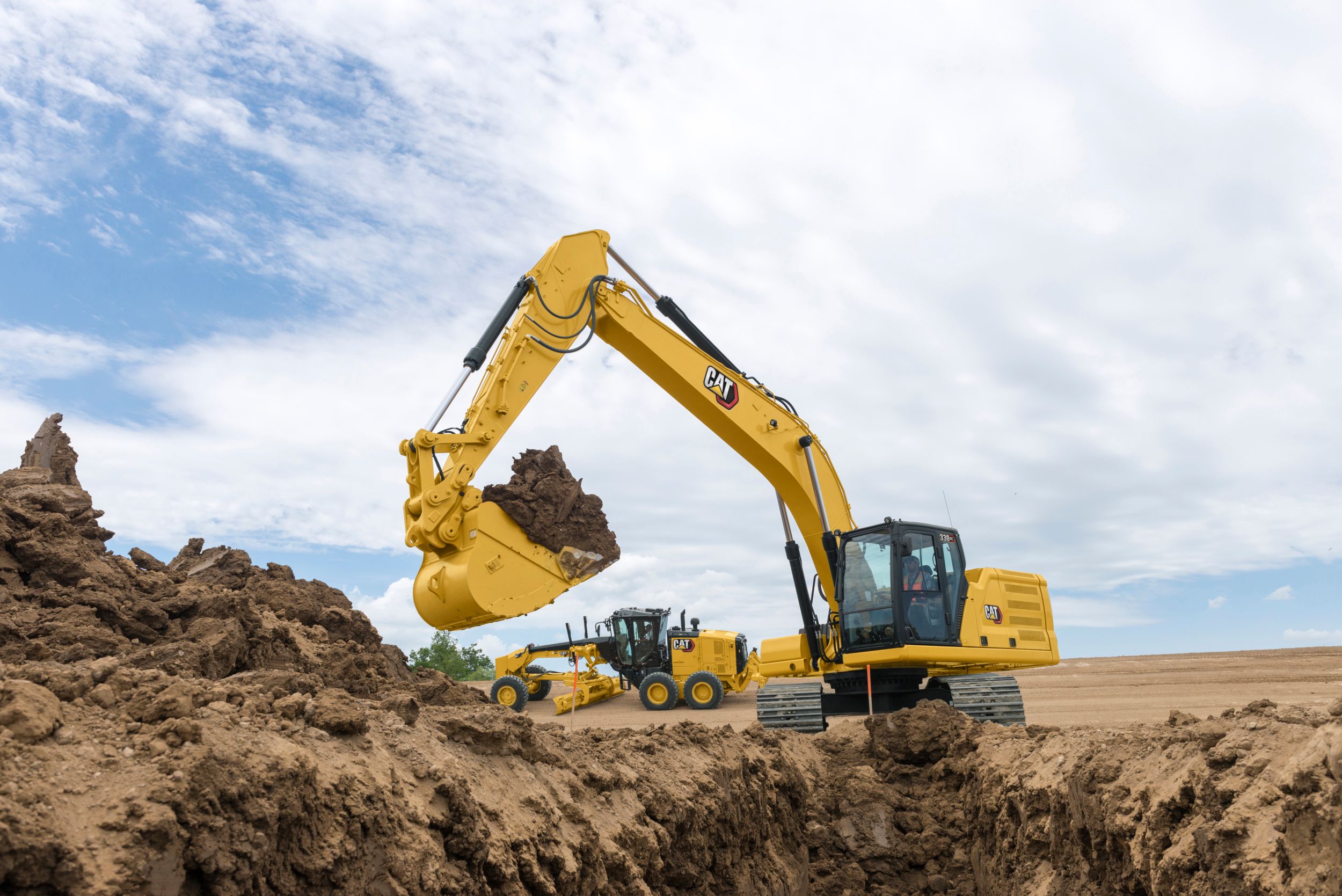

330 GC Hydraulic Excavator with a full bucket of dirt

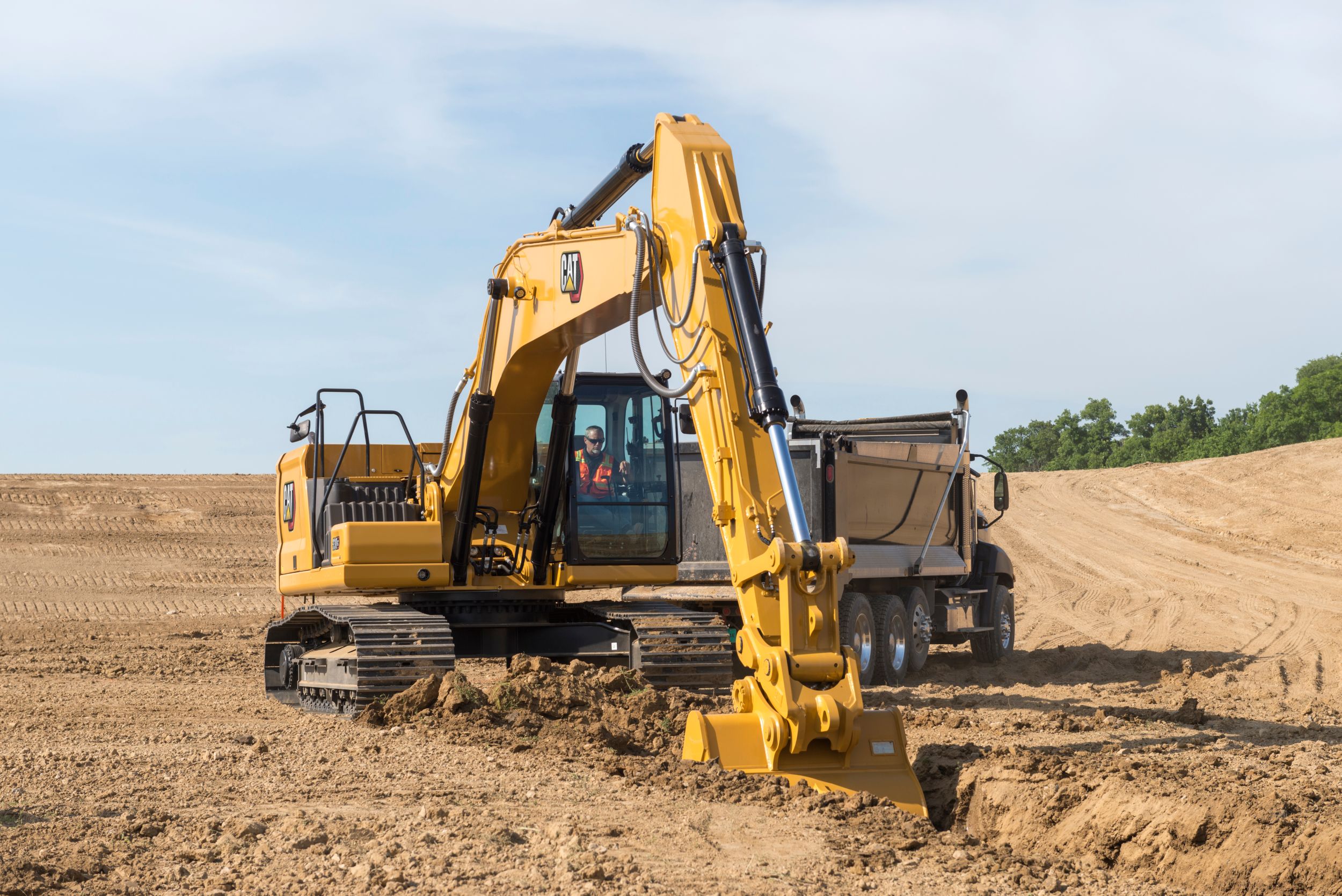

330 GC Hydraulic Excavator digging a utility trench

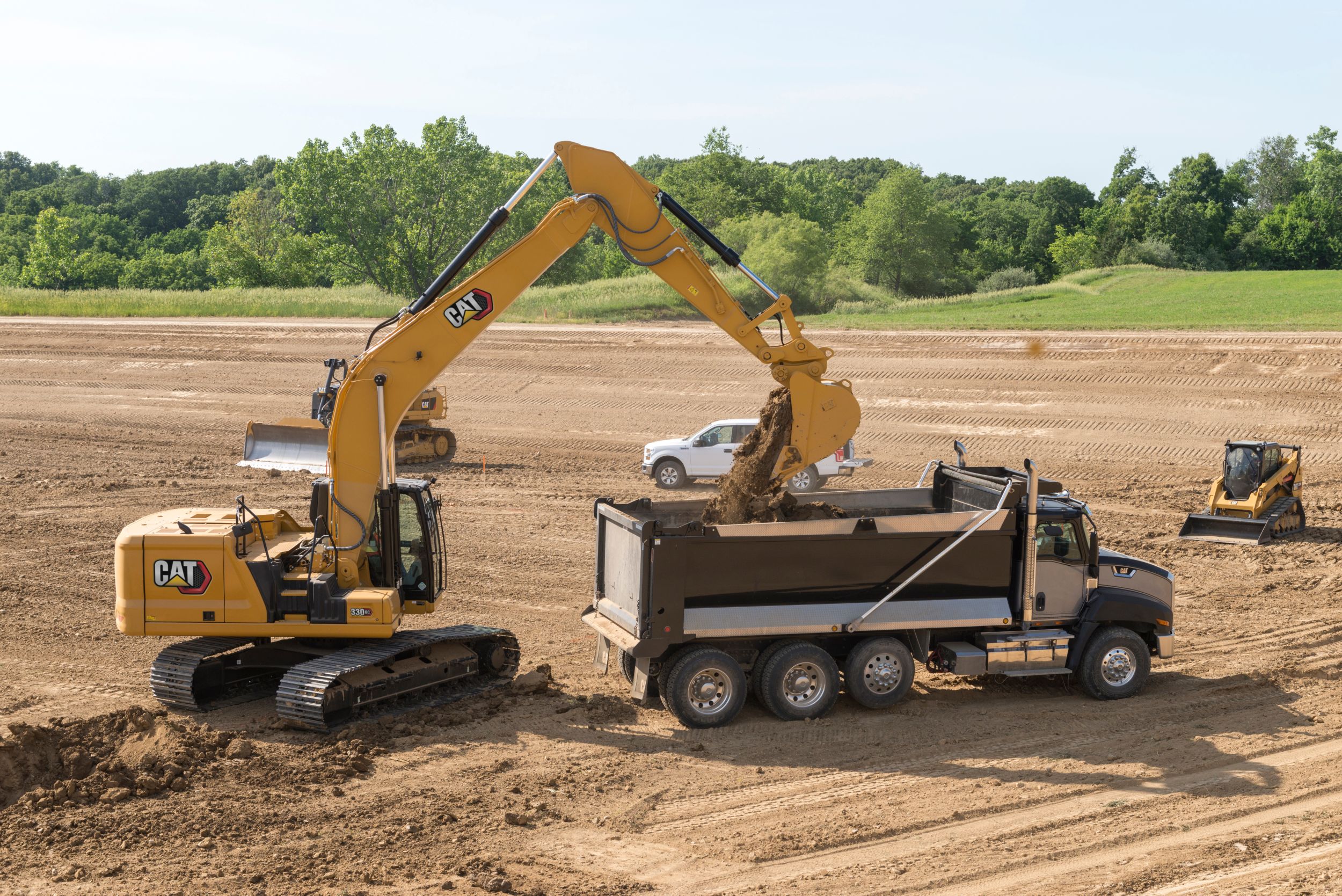

330 GC Hydraulic Excavator loading a dump truck with dirt

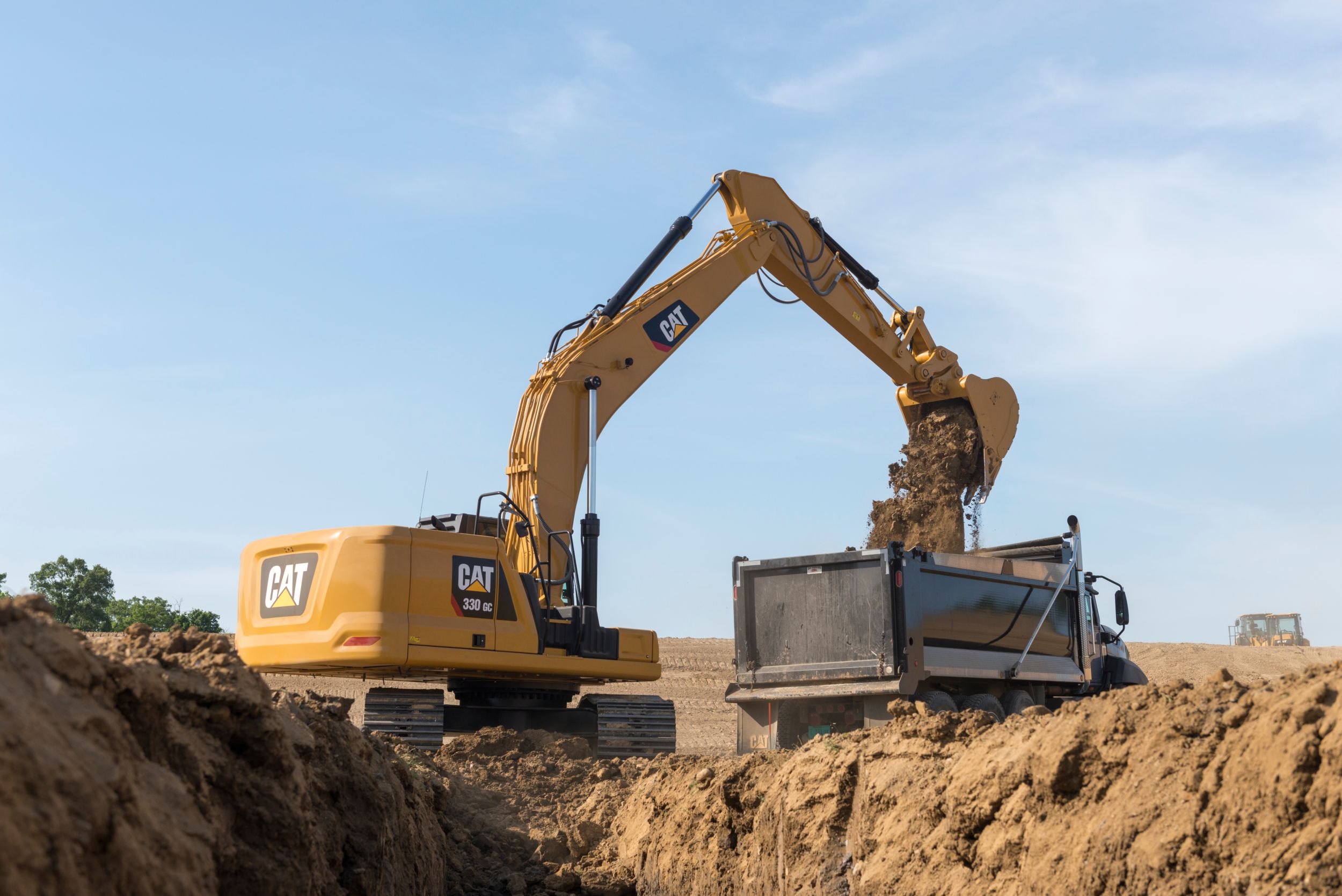

330 GC Excavating and dumping dirt into a truck
US
Metric

Overview

The Cat® 330 GC Excavator balances productivity with easy-to-use controls, a new comfortable cab, reduced fuel consumption by up to 12 percent, and longer maintenance intervals that reduce maintenance costs up to 20 percent – all to give you a durable, low-cost per- hour excavator for your applications.

Not all features are available in all regions. Consult your Cat dealer for specific configurations available in your region.

Engine

Net Power - ISO 9249
201.00 HP
150.00 kW
Engine Model
Cat® C7.1
Engine Power - ISO 14396
202.00 HP
151.00 kW
Bore
4.00 in
105.00 mm
Stroke
5.00 in
135.00 mm
Displacement
428.00 in³
7.01 l

Hydraulic System

Main System - Maximum Flow
560 L/min (148 gal/min)
Maximum Pressure - Equipment
5075.00 psi
35000.00 kPa
Maximum Pressure - Travel
5075.00 psi
35000.00 kPa
Maximum Pressure - Swing
4120.00 psi
28400.00 kPa

Swing Mechanism

Swing Speed
11.50 r/min
11.50 r/min
Maximum Swing Torque
77370.00 ft·lbf
105.00 kN·m

Weights

Operating Weight
67900.00 lb
30800.00 kg

Service Refill Capacities

Fuel Tank Capacity
125.20 gal (US)
474.00 l
Cooling System
6.60 gal (US)
25.00 l
Engine Oil
6.60 gal (US)
25.00 l
Swing Drive - Each
2.60 gal (US)
10.00 l
Final Drive - Each
1.50 gal (US)
5.50 l
Hydraulic System - Including Tank
81.90 gal (US)
310.00 l
Hydraulic Tank
38.80 gal (US)
147.00 l
DEF Tank
10.80 gal (US)
41.00 l

Dimensions

Boom
Reach 6.15 m (20'2")
Stick
Reach 3.2 m (10'6")
Bucket
HD 1.54 m³ (2.01 yd³)
Shipping Height - Top of Cab
10.00 ft
3050.00 mm
Handrail Height
10.00 ft
3050.00 mm
Shipping Length
34.20 ft
10420.00 mm
Tail Swing Radius
10.30 ft
3130.00 mm
Counterweight Clearance
3.70 ft
1110.00 mm
Ground Clearance
1.60 ft
490.00 mm
Track Length
15.11 ft
4860.00 mm
Length to Center of Rollers
13.10 ft
3990.00 mm
Track Gauge
8.60 ft
2590.00 mm
Transport Width
10.50 ft
3190.00 mm

Working Ranges & Forces

Maximum Digging Depth
23.80 ft
7260.00 mm
Boom
Reach 6.15 m (20'2")
Stick
Reach 3.2 m (10'6")
Bucket
HD 1.54 m³ (2.01 yd³)
Maximum Reach at Ground Level
35.10 ft
10690.00 mm
Maximum Cutting Height
32.90 ft
10020.00 mm
Maximum Loading Height
22.80 ft
6940.00 mm
Minimum Loading Height
7.50 ft
2280.00 mm
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom
23.30 ft
7100.00 mm
Maximum Vertical Wall Digging Depth
19.80 ft
6030.00 mm
Bucket Digging Force - ISO
40200.00 lbf
179.00 kN
Stick Digging Force - ISO
28300.00 lbf
126.00 kN
Features

LATEST FEATURES

  • Optional integrated vehicle health management system alerts the operator with service guidance and parts needed to enhance uptime.
  • Enhance visibility to make service work easier and safer with optional inspection lighting.
  • Make the jobsite safer with an optional swing alarm.
Not all features are available in all regions. Please check with your local Cat dealer for specific offering availability in your area.
Build Number: 07E

PERFORMANCE AND PRODUCTIVITY

  • Use up to 12 percent less fuel than the 330F Excavator in similar applications.
  • The C7.1 engine can run on biodiesel up to B20 and meets U.S. EPA Tier 4 Final, EU Stage IV, Japan 2014 (Tier 4 Final) and Korea Tier 4 Final emission standards with an after-treatment system that requires no maintenance or downtime.
  • The advanced hydraulic system provides the optimum balance of power and efficiency while giving you the control you need for precise digging requirements.
  • Valve priority puts hydraulic pressure and flow where you command it to go for fast light- to medium-load cycle times.
  • Match the excavator to the job with power modes; let Smart mode automatically match engine and hydraulic power to digging conditions.
  • Advansys™ bucket tips increase penetration and improve cycle times. Tip changes can be done quickly with a simple lug wrench instead of a hammer or special tool, improving safety and uptime.
  • Auxiliary hydraulic options give you the versatility to use a wide range of Cat attachments.
  • Standard Product Link™ collects data automatically and accurately from your assets – any type and any brand. Information such as location, hours, fuel usage, productivity, idle time, maintenance alerts, diagnostic codes, and machine health can be viewed online through web and mobile applications.

BUILT TO PERFORM

  • Work up to 3000 m (9,840 ft) above sea level without de-rating.
  • Don’t let the temperature stop you from working. The excavator has a standard high-ambient temperature capability of 52° C (125° F) and cold start capability of –18° C (0° F). An optional – 32° C (–25° F) cold start package is available.
  • Auto warm up speeds up hydraulic oil warming in cold temperatures and helps prolong the life of components.
  • Two levels of fuel filtration protect the engine from dirty diesel fuel.
  • Grease sealed between track pins and bushings reduces travel noise and prevents debris from entering to increase undercarriage life.
  • The track guiding guard helps keep the excavator track aligned when traveling and working on slopes.
  • The sloped track frame prevents mud and debris accumulation, helping reduce risk of track damage.

DESIGNED FOR OPERATORS

  • The cab has a wide seat that adjusts for operators of all sizes.
  • Control the excavator comfortably with easy-to-reach controls all located in front of you.
  • Standard automatic climate control keeps you at the right temperature all shift long.
  • Advanced viscous mounts reduce cab vibration by up to 50 percent over previous excavator models.
  • Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles. A cup holder, document holder, bottle holder, and coat hook are also provided.
  • Use the standard radio’s USB ports and Bluetooth® technology to connect to personal devices.

SIMPLE TO OPERATE

  • Start the engine with a push button; use a Bluetooth key fob, or the unique Operator ID function.
  • Program your power mode and joystick preferences using Operator ID; the excavator will remember what you set each time you go to work.
  • Navigate quickly on the standard high-resolution 203 mm (8 in) touchscreen monitor or with the aid of the jog dial control.
  • Protect your hammer tool from overheating and rapid wear. Auto hammer stop warns you after 15 seconds of continuous firing and then automatically shuts it off after 30 seconds - all to extend the tool’s service life.
  • Not sure how a function works or how to maintain the excavator? Always have the operator’s manual at your fingertips in the touchscreen monitor.
  • The Cat PL161 Attachment Locator is a Bluetooth device that makes finding your attachments and other gear quick and easy. The Cat App on your phone will locate the device automatically.
  • Find the tool you need – even if it’s hidden beneath overgrowth or debris. The optional Bluetooth reader can search for any work tool equipped with Cat asset tracking devices up to a range of 60 meters (200 feet).
  • Make moving the excavator much easier with Cat Stick Steer. Simply push a button and use one hand to travel and turn instead of both hands or feet on levers or pedals.

LOWER MAINTENANCE COSTS

  • Expect up to 25 percent less maintenance cost than the 330F (savings calculated over 12,000 machine hours).
  • Do all daily maintenance at ground level.
  • Check engine oil level quickly and safely with the new ground-level engine oil dipstick; fill and check engine oil on top of the machine with a conveniently located second dipstick.
  • Track your excavator’s filter life and maintenance intervals via the in-cab monitor.
  • No required maintenance on the Cat Clean Emissions Module.
  • Expect the new air intake filter with pre-cleaner to last up to 1,000 hours – a 100 percent increase over the previous filter.
  • The new hydraulic oil filter provides improved filtration performance, anti-drain valves to keep oil clean when the filter is replaced, and longer life with a 3,000-hour replacement interval – 50 percent longer than previous filter designs.
  • High-efficiency cooling fans run only when needed; you can program intervals so they automatically reverse to keep cores clean without interrupting your work.
  • Boost productivity with proactive service reminders. Our new integrated vehicle health management system alerts the operator with step-by-step service guidance, along with parts needed, so you don't experience any unnecessary downtime.
  • S·O·SSM ports simplify maintenance and allow for quick, easy extraction of fluid samples for analysis.

SAFELY HOME EVERY DAY

  • Access 100 percent of daily maintenance points from ground level – no need for you to climb on top of the excavator.
  • Keep your excavator secure with Operator ID. Use your PIN code on the monitor to enable the pushbutton starting feature.
  • The standard ROPS cab meets ISO 12117-2:2008 requirements.
  • Enjoy great visibility into the trench, in each swing direction, and behind you with the help of smaller cab pillars, larger windows, and a flat engine hood design. A rearview camera and a right-side-view camera are standard.
  • New right service platform design provides easy, safe, and quick access to upper service platform; the service platform steps use anti-skid punch plate to prevent slipping.
  • The standard hydraulic lockout lever isolates all hydraulic and travel functions in the lowered position.
  • Ground-level shut-off switch stops all fuel to the engine when activated and shuts down the machine.
  • Enhance jobsite safety. Add a swing alarm to alert people when you're rotating from trench to stockpile and back again.
  • Make service work easier and safer with optional inspection lighting. With the flip of a switch, lights will illuminate the engine, pump, battery, and radiator compartments to enhance visibility.
Standard Equipment
  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • CAB
    • Rollover protective structure (ROPS)
    • Mechanical-suspension seat (All regions except Europe)
    • Air-suspension seat (Europe only)
    • High-resolution 203 mm (8 in) LCD touchscreen monitor
  • CAT TECHNOLOGY
    • Cat Product Link™
    • Remote Flash
    • Remote Troubleshoot
    • Auto hammer stop
  • ELECTRICAL SYSTEM
    • Two 1,000 CCA maintenance free batteries
    • Programmable time-delay LED working lights
    • LED chassis light, left-hand/right-hand boom lights, cab lights
  • ENGINE
    • Cat C7.1 single turbo diesel engine
    • Two selectable power modes
    • Auto engine speed control
    • Auto engine idle shutdown
    • 52°C (125°F) high-ambient cooling capacity with de-rate
    • Double element air filter with integrated precleaner
    • Reversing electric cooling fans
    • Biodiesel capability up to B20
  • HYDRAULIC SYSTEM
    • Boom and stick regeneration circuits
    • Auto warm up
    • Auto two-speed travel
    • Boom and stick drift reduction valve
  • SAFETY AND SECURITY
    • Rearview camera
    • Right-hand-sideview camera
    • Ground-level engine shutoff switch
    • Right-hand handrail and handhold
    • Signaling/warning horn
  • SERVICE AND MAINTENANCE
    • Sampling ports for Scheduled Oil Sampling (S·O·S)
    • Ground-level and platform-level engine oil dipsticks
  • UNDERCARRIAGE AND STRUCTURES
    • Tie-down points on base frame
    • 6700 kg (14,770 lb) counterweight (All regions except Japan)
    • 5800 kg (12,790 lb) counterweight (Japan only)
Optional Equipment
  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • BOOMS AND STICKS
    • 6.15 m (20'2") Reach boom
    • 5.55 m (18'2") Mass boom
    • 3.75 m (12'4") Reach stick
    • 3.2 m (10'6") Reach stick
    • 2.65 m (8'8") Reach stick
    • 2.5 m (8'2") Mass stick
  • ENGINE
    • -32°C (-25°F) cold start capability
  • HYDRAULIC SYSTEM
    • Boom and stick lowering check valves
    • Hammer return filter circuit
    • Tool Control (two pump, one/two way high-pressure flow)
    • Medium-pressure circuit
    • Quick coupler circuit
  • SAFETY AND SECURITY
    • Swing alarm
    • Inspection lighting
  • SERVICE AND MAINTENANCE
    • Electric refueling pump with auto shutoff
    • Integrated vehicle health management system
  • UNDERCARRIAGE AND STRUCTURES
    • Long narrow undercarriage
    • 600 mm (24") triple grouser shoes
    • 600 mm (24") HD triple grouser shoes
    • 700 mm (28") HD triple grouser shoes
    • 800 mm (31") triple grouser shoes
    • 900 mm (35") triple grouser shoes
