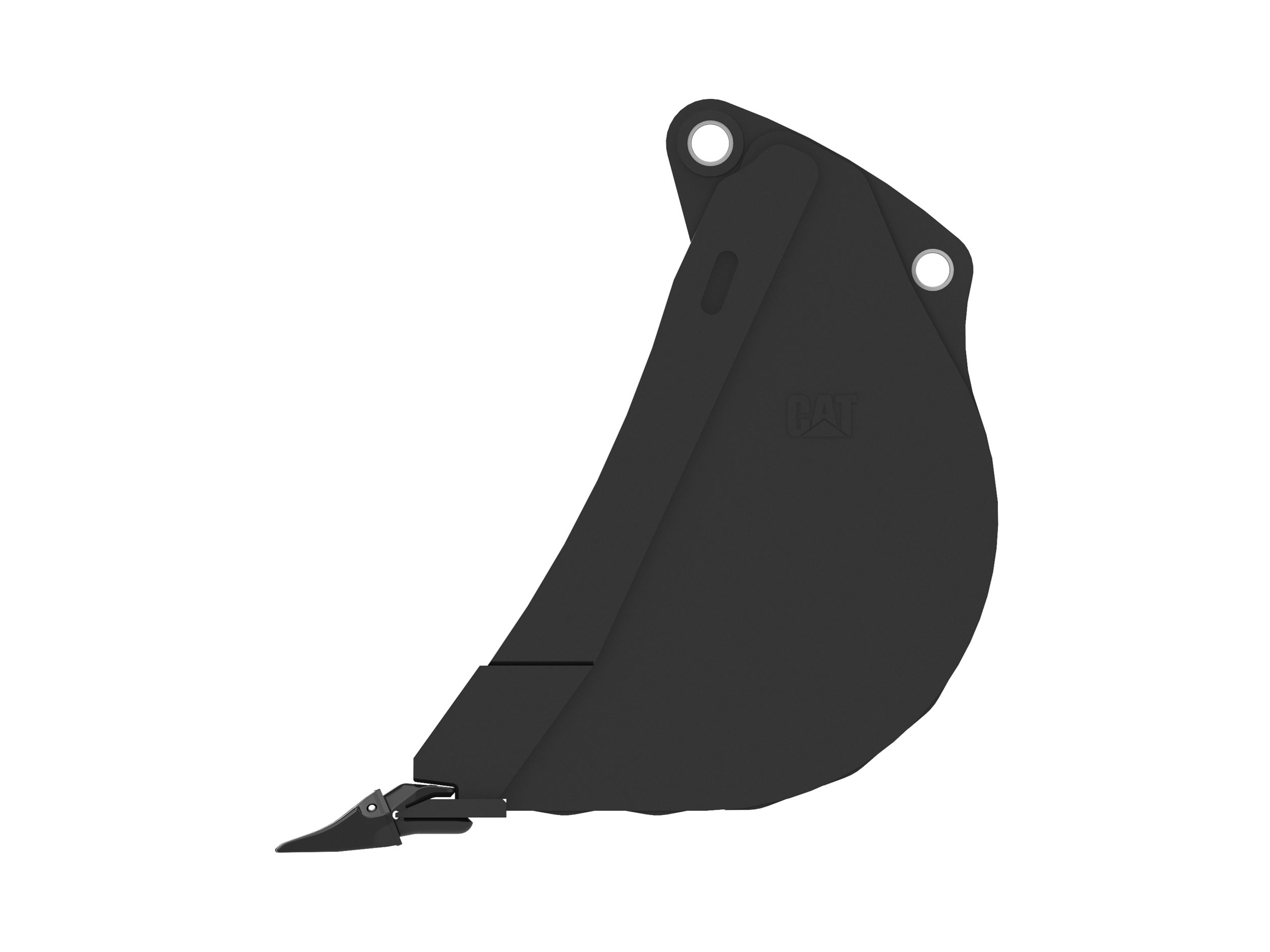

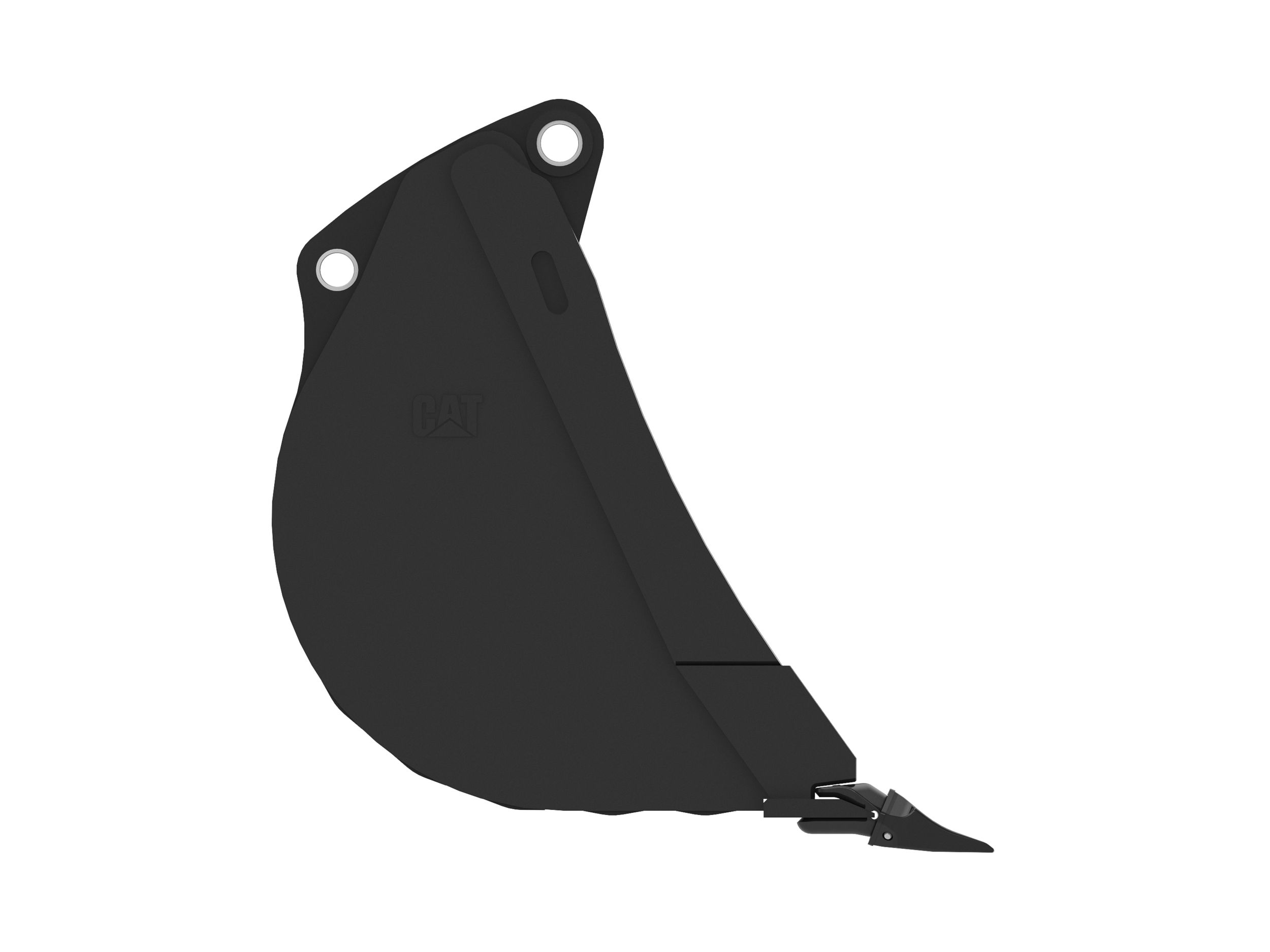

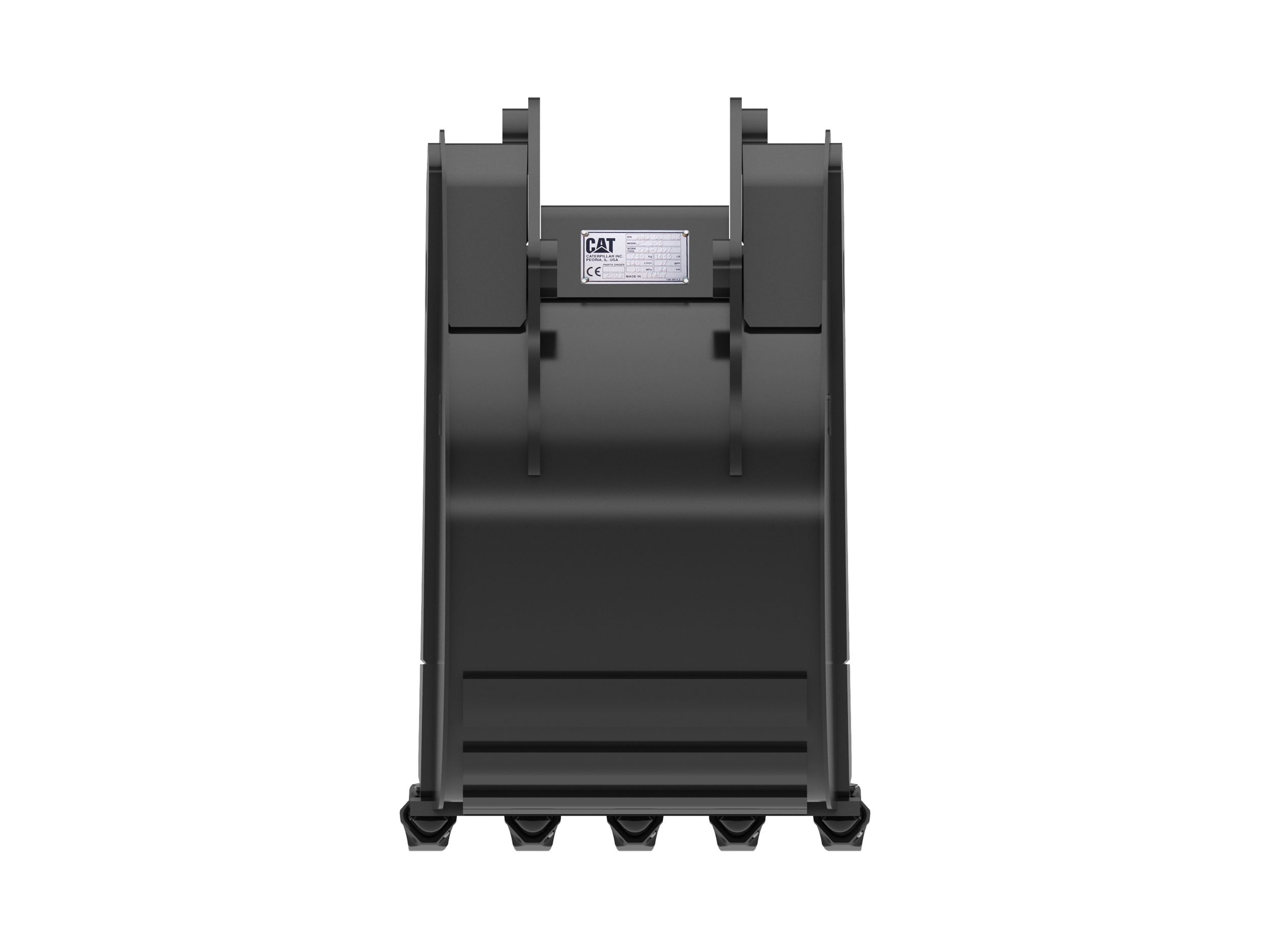

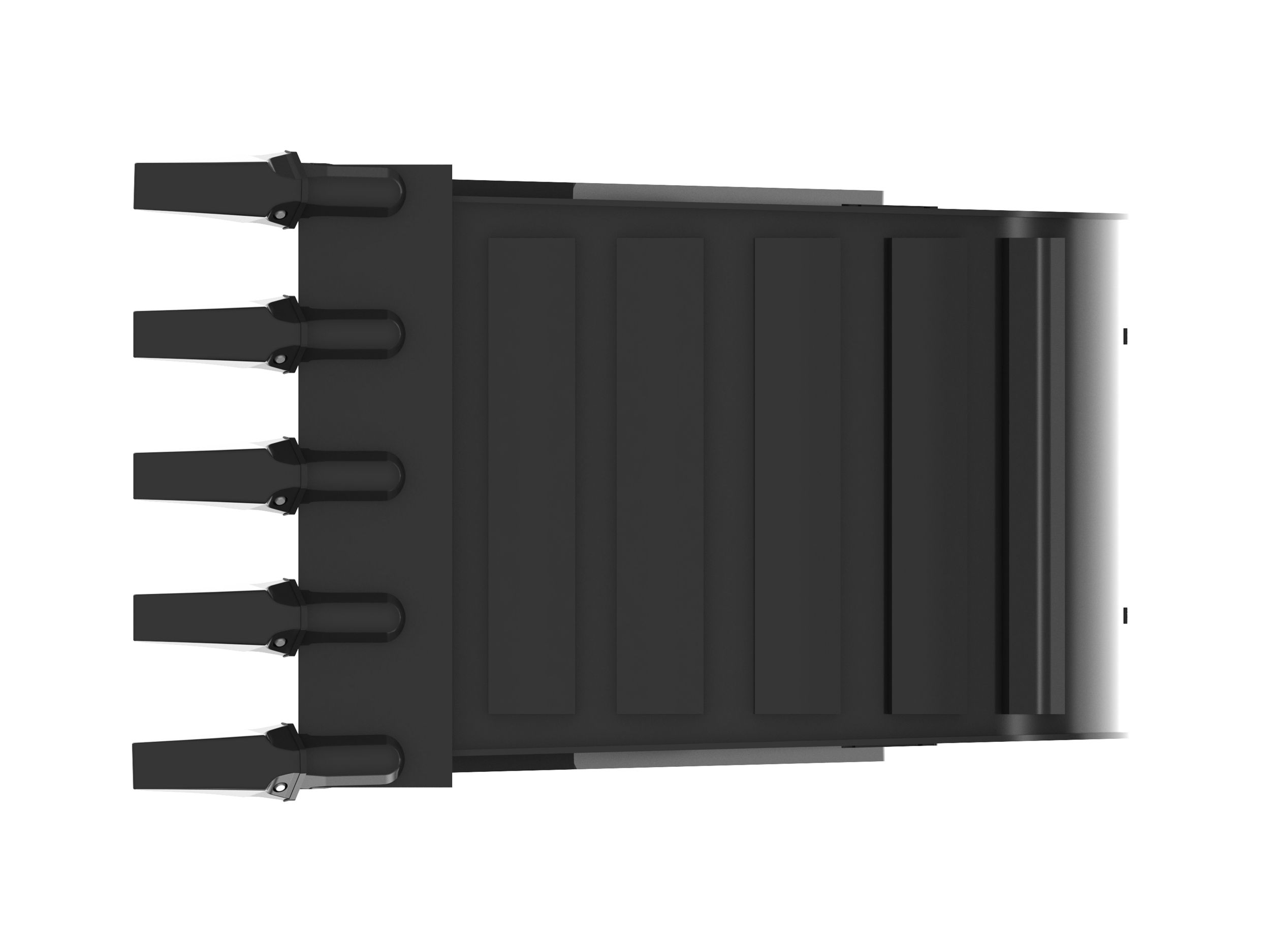

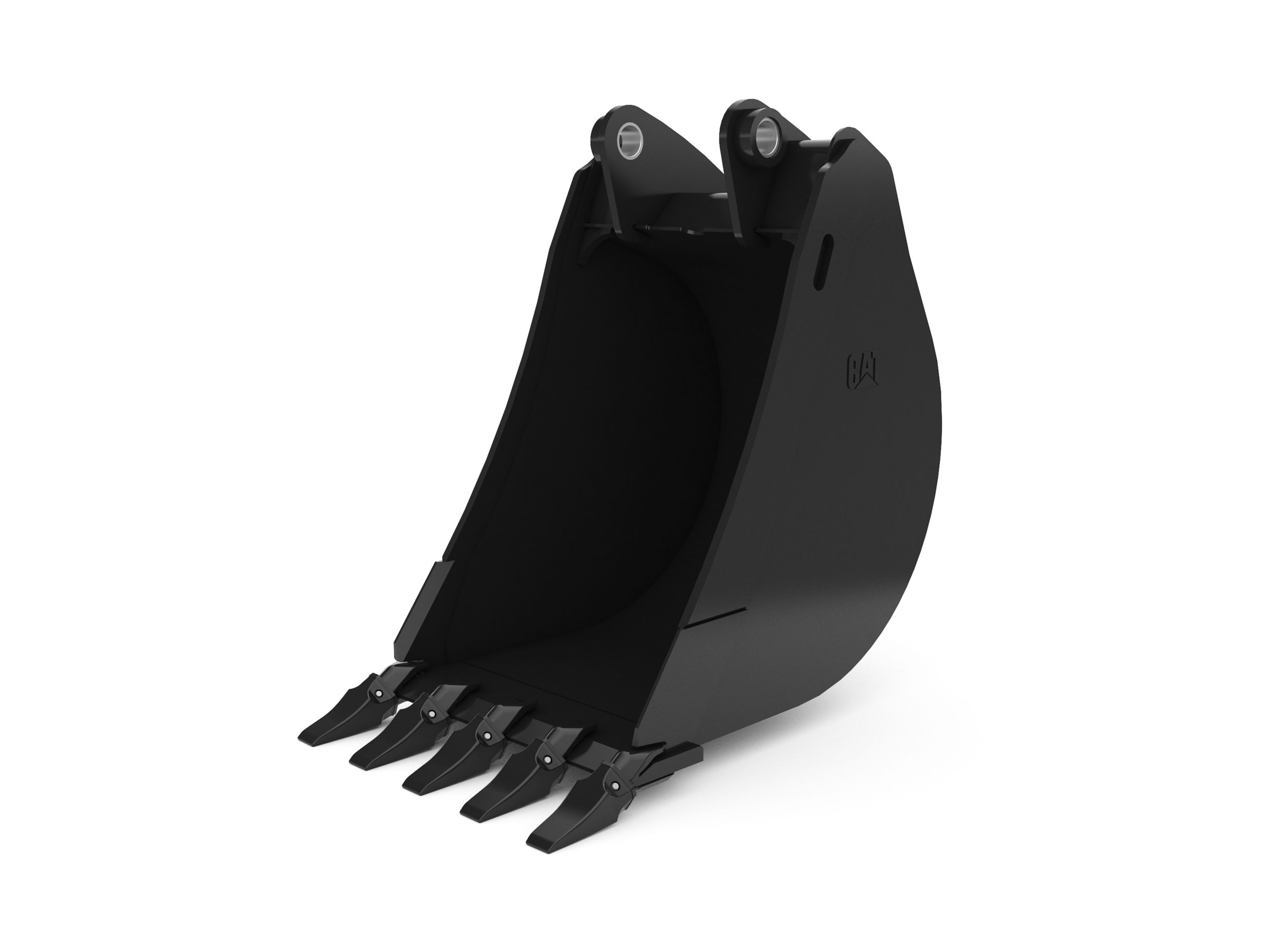

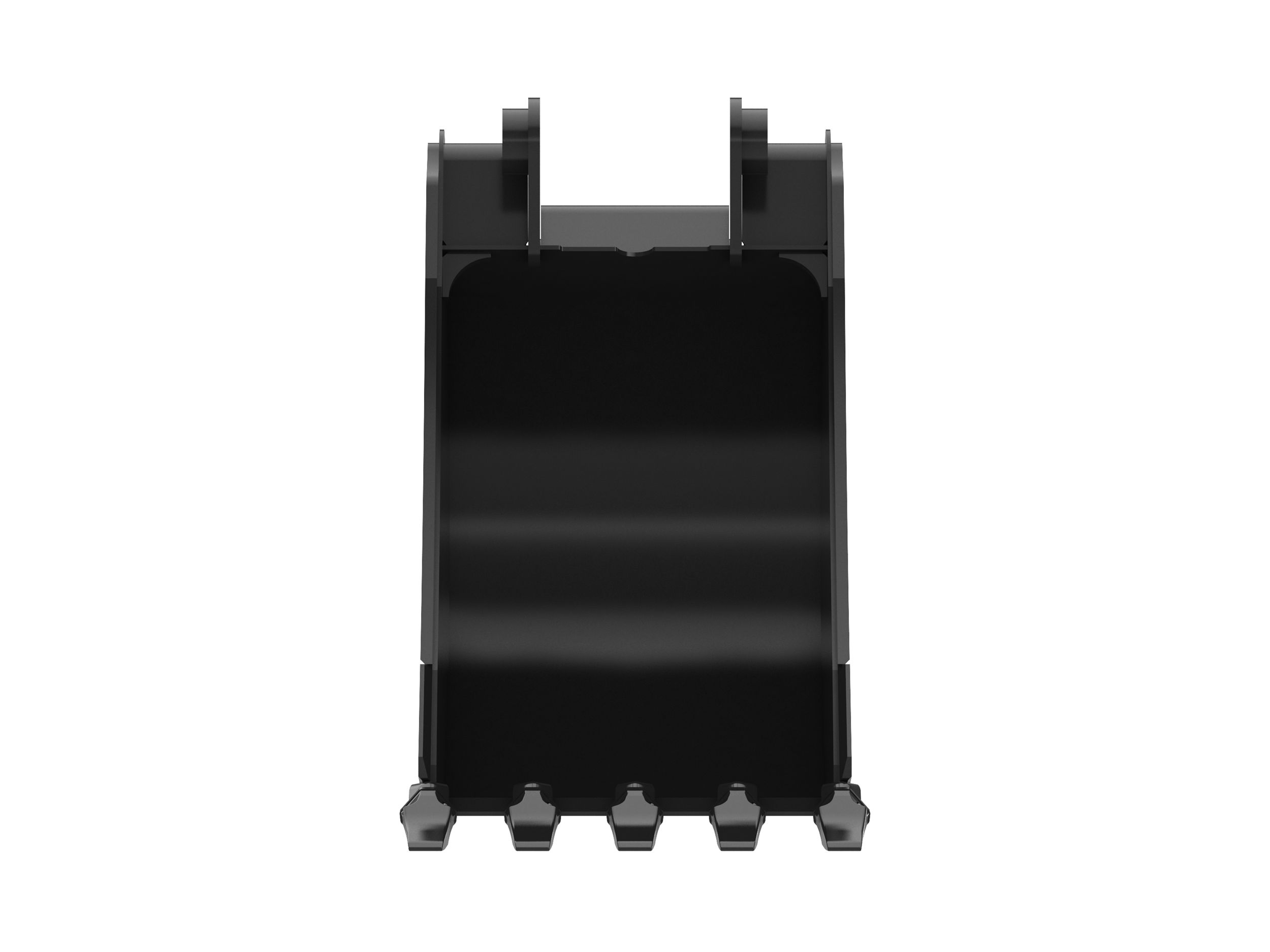

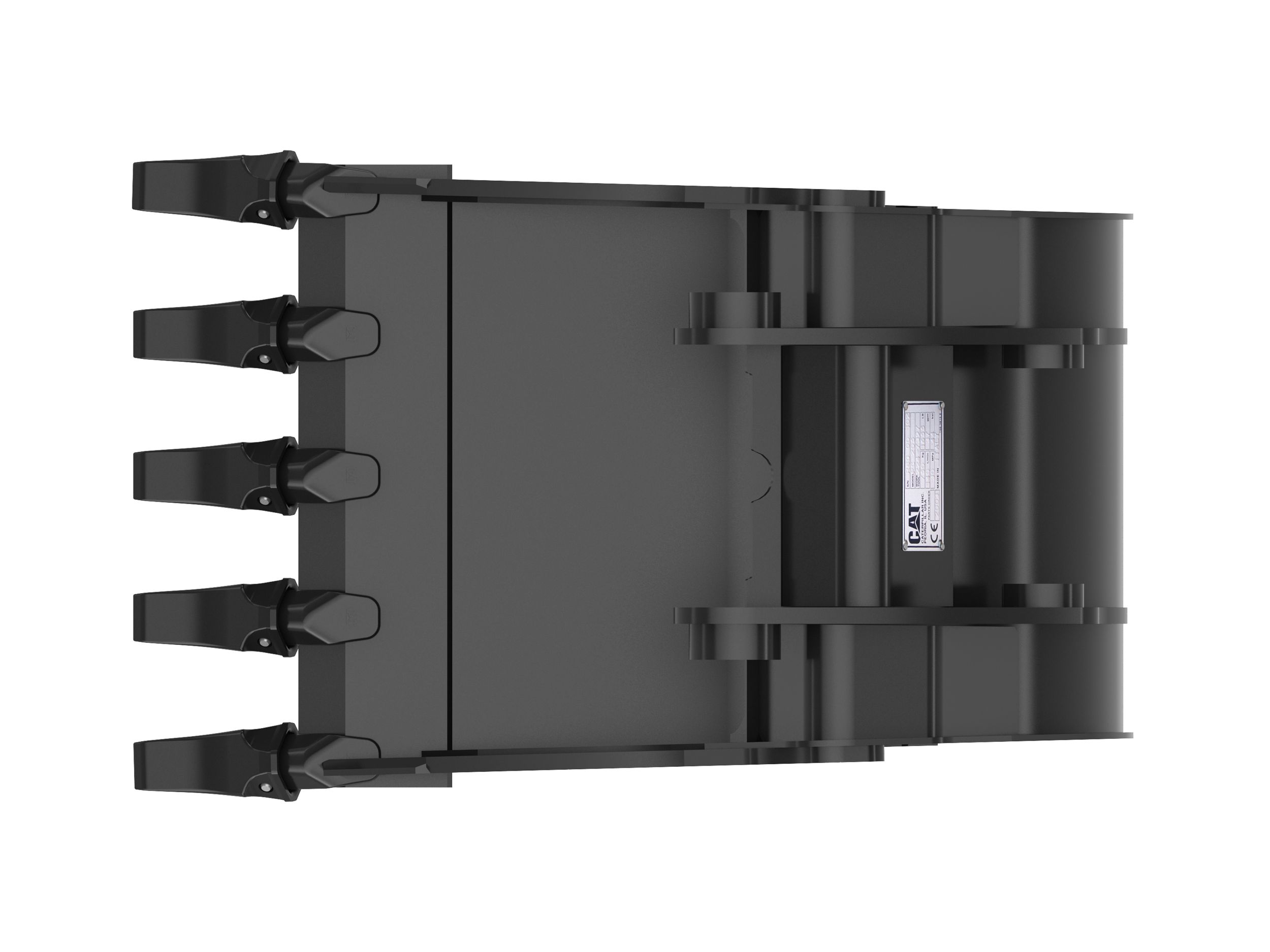

610 mm (24 in) Pin On Soil Excavation Bucket

US
Metric

Overview

Cat® Soil Excavation Buckets feature heavy duty characteristics with higher capacity for use in a variety of conditions including heavy impact.
Width
24.00 in
610.00 mm
Rated Capacity
8.50 ft3
241.00 L
Weight
394.60 lb
179.00 kg
Base Edge Thickness
1.00 in
25.00 mm
Tip Radius
44.10 in
1121.00 mm
Width
24.00 in
610.00 mm
Rated Capacity
8.50 ft³
241.00 l
Weight
394.60 lb
179.00 kg
Base Edge Thickness
1.00 in
25.00 mm
Tip Radius
44.00 in
1121.00 mm

Specifications

Capacity
8.50 ft³
241.00 l

Interface Type

Interface Type
Pin on

Capacity
8.50 ft³
241.00 l
Interface Type
Pin On
Features

Application

Cat® Soil Excavation Buckets feature heavy duty characteristics with higher capacity for use in a variety of conditions including heavy impact.

Design

Aggressive adapter nose angle and tip design provide enhanced productivity in all soils, plus longer wear and sharpness in rocky areas.

Bucket Shape

Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.

Rugged Performance

Cat® Buckets are designed for superior productivity, reliability and long life.
