1676 mm (66 in) Utility Forks

US
Metric

Overview

Cat® Utility Forks for Cat Skid Steer Loaders, Multi Terrain Loaders and Compact Track Loaders are designed for handling a variety of light materials in farming, ranching and landscaping applications. Primary uses include removal of dry compacted livestock waste, transport of small bales, handling of loose material such as straw and hay, loosening of bedding material and aeration of soil. NOTE: Utility forks are not designed for piercing and carrying large, round bales.
Width
66.00 in
1676.00 mm
Height
22.90 in
581.00 mm
Weight
436.50 lb
198.00 kg
Length
36.40 in
924.00 mm
Exposed Fork Tine Length
25.00 in
637.00 mm
Fork Tine Diameter
1.30 in
31.75 mm
Number of Fork Tines
7
Width
66.00 in
1676.00 mm
Height
22.90 in
581.00 mm
Weight
436.50 lb
198.00 kg
Length
36.40 in
924.00 mm
Exposed Fork Tine Length
25.00 in
637.00 mm
Tine Diameter
1.30 in
31.75 mm
Number of Fork Tines
7
Usable Tine Length
25.10 in
637.00 mm
Number of Tines
7
Tine Width
1.30 in
31.75 mm
Interface Type
Skid Steer Coupler
Features

Application

Designed for handling a variety of light materials in farming, ranching and landscaping applications.

Primary Uses

Primary uses include removal of dry compacted livestock waste, transport of small bales, handling of loose materials such as straw and hay, loosening of bedding material and aeration of soil.

Movable / Replaceable Tines

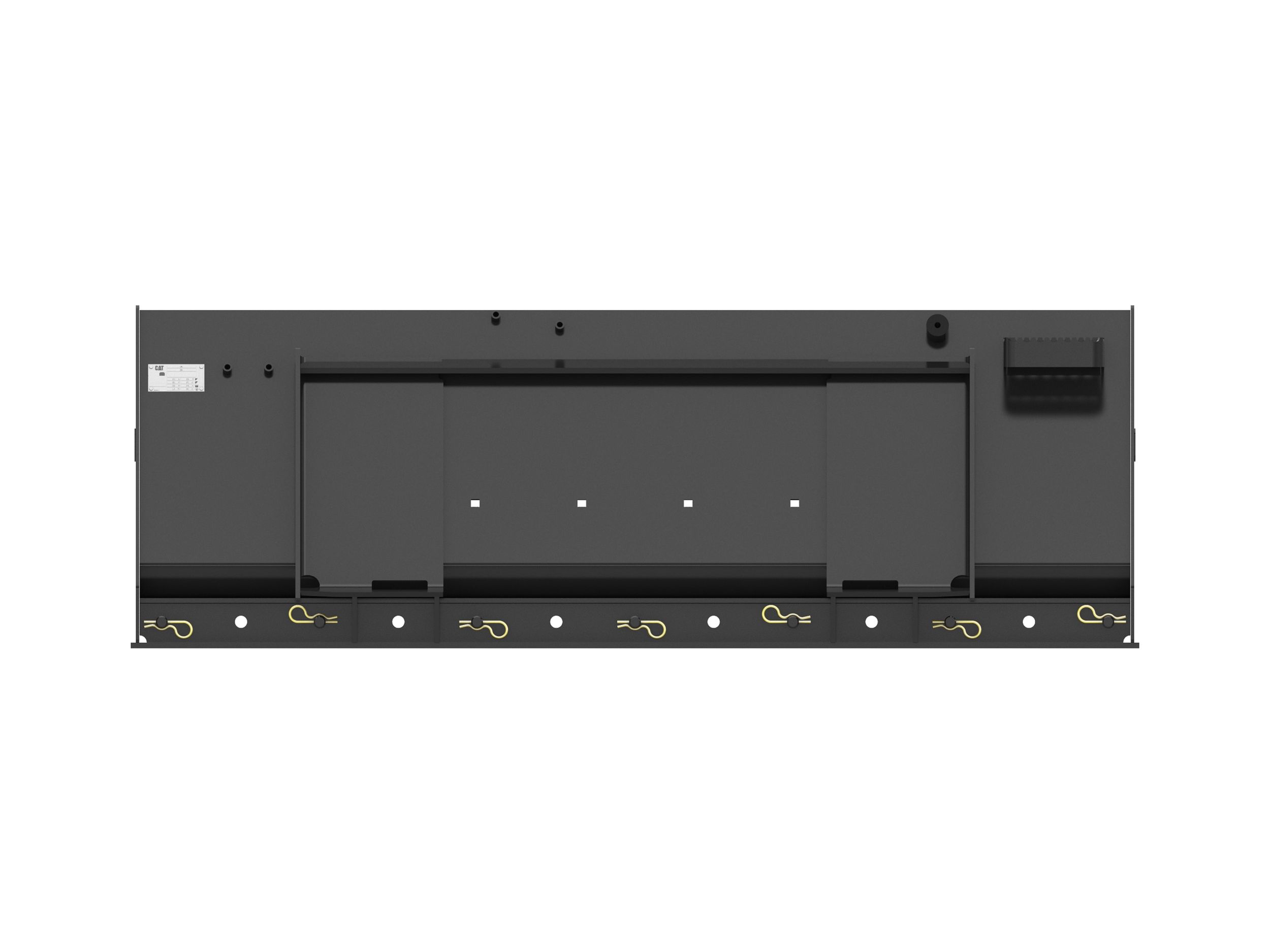

The lower box channel is pre-drilled to accept various combinations of pin-on fork tines.

Serrated Step / Rubber Bumper

Serrated weld-on step provides safe ingress and egress from machine cab. Also, a bolt-on rubber bumper limits rack back travel on the larger Cat radial lift machines.

Not Designed for Large, Round Bales

NOTE: Utility Forks are not designed for piercing and carrying large, round bales.
