Overview

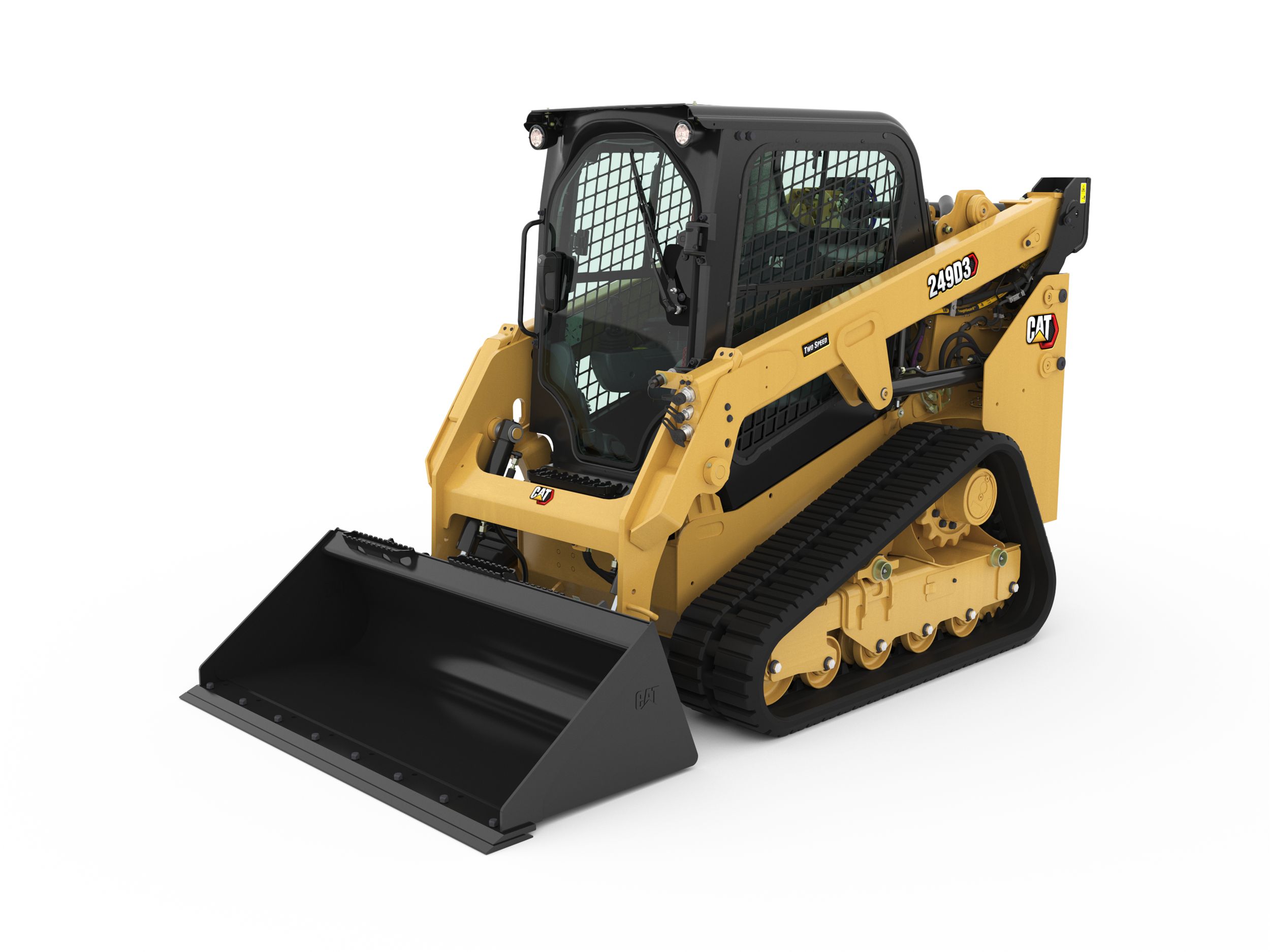

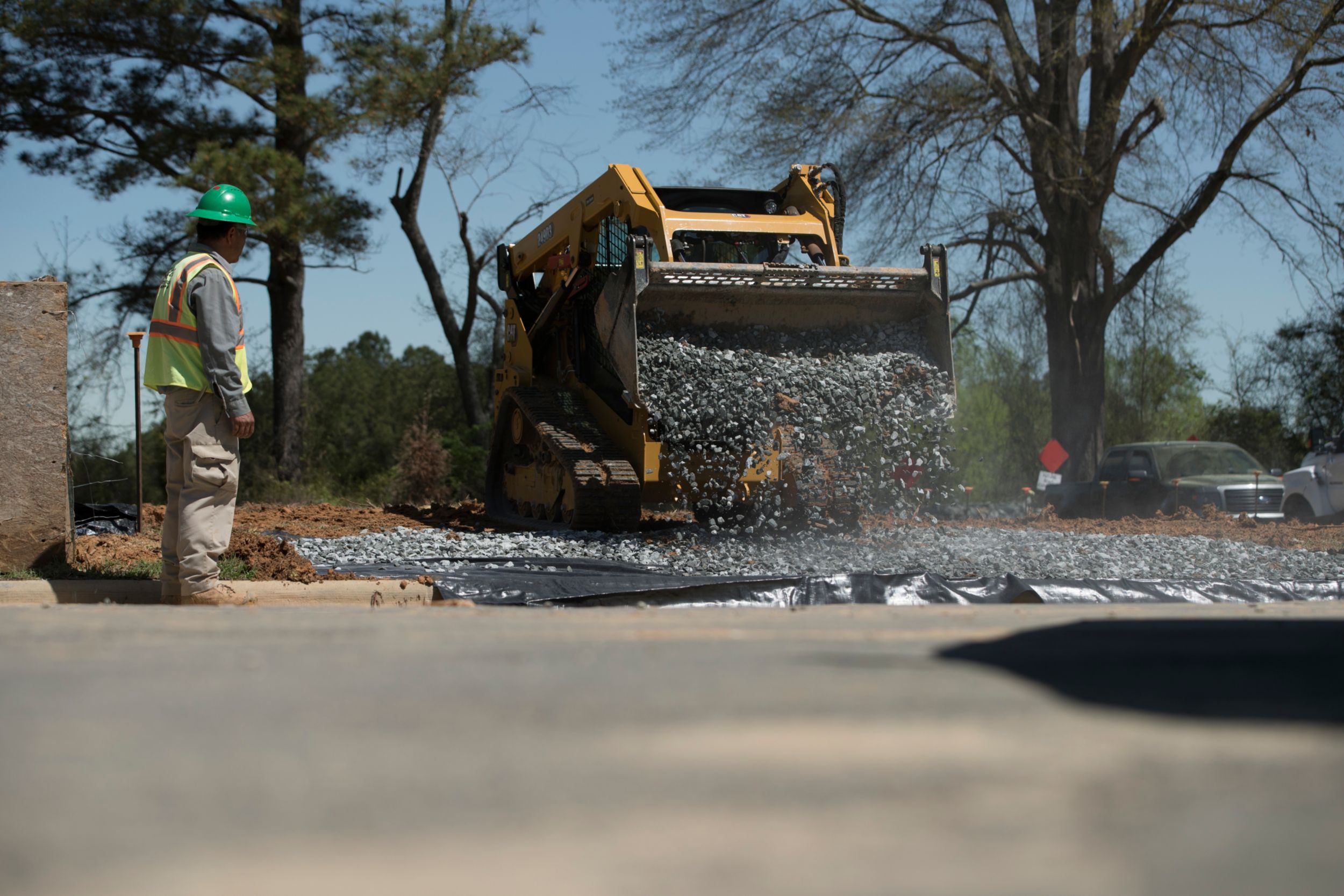

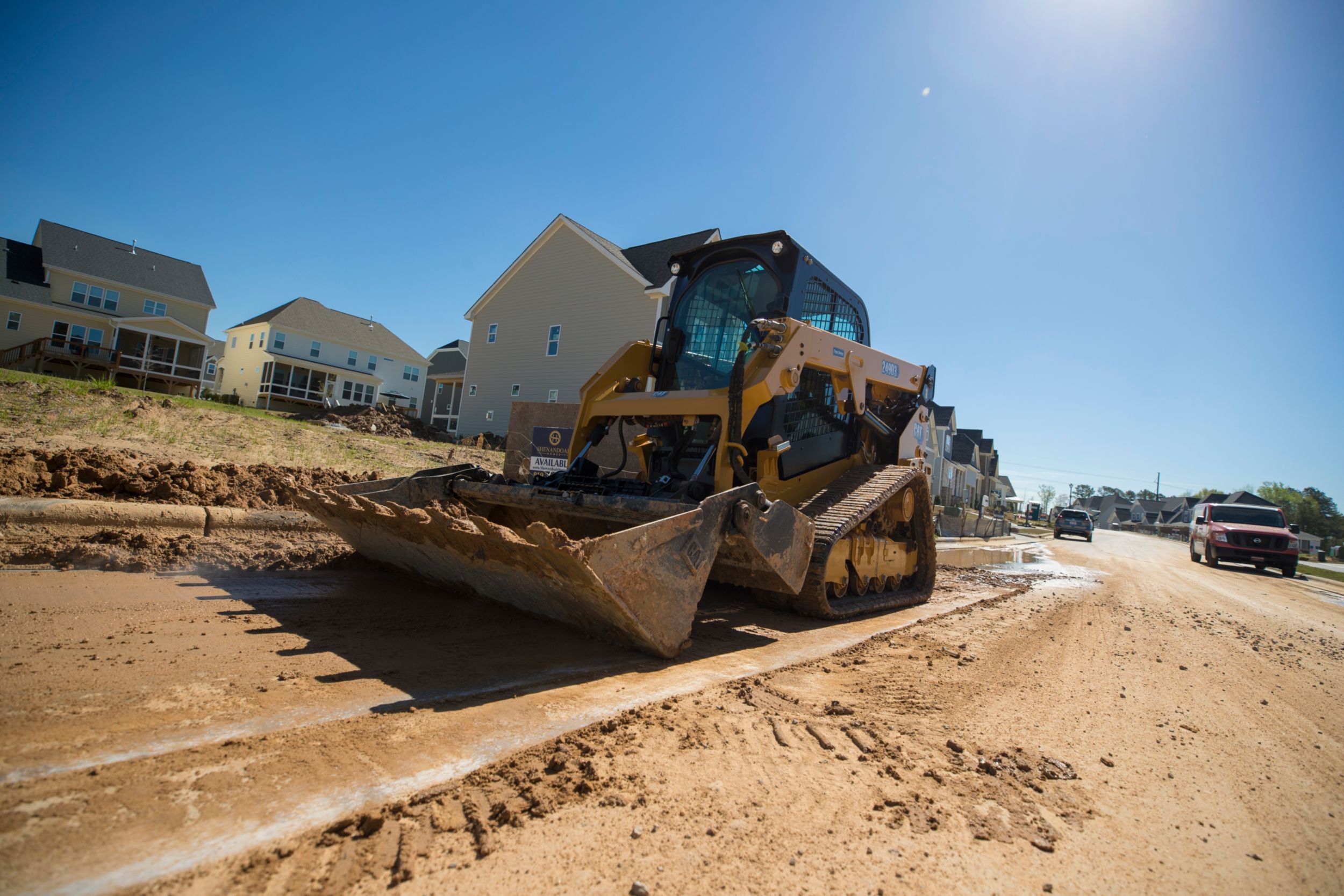

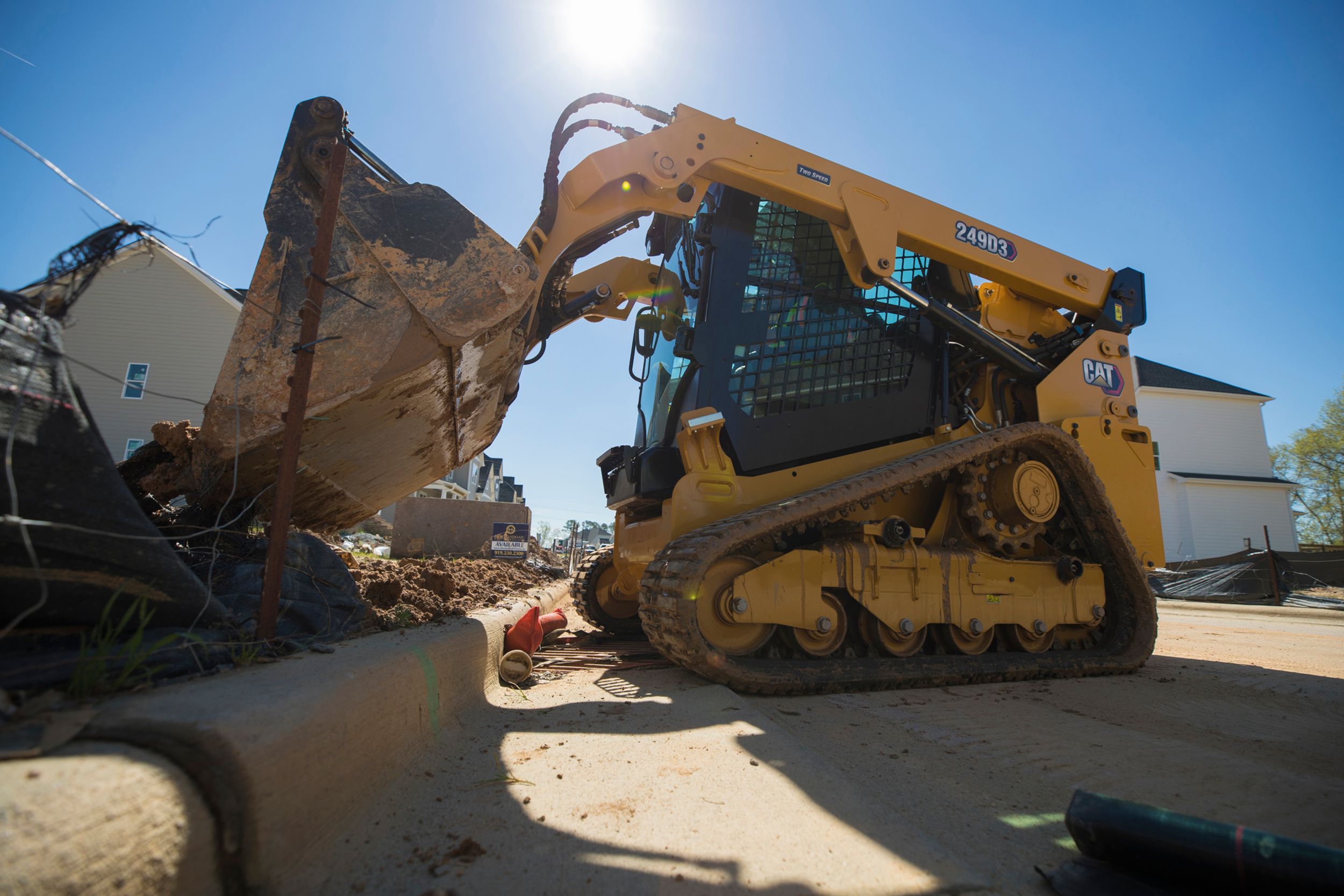

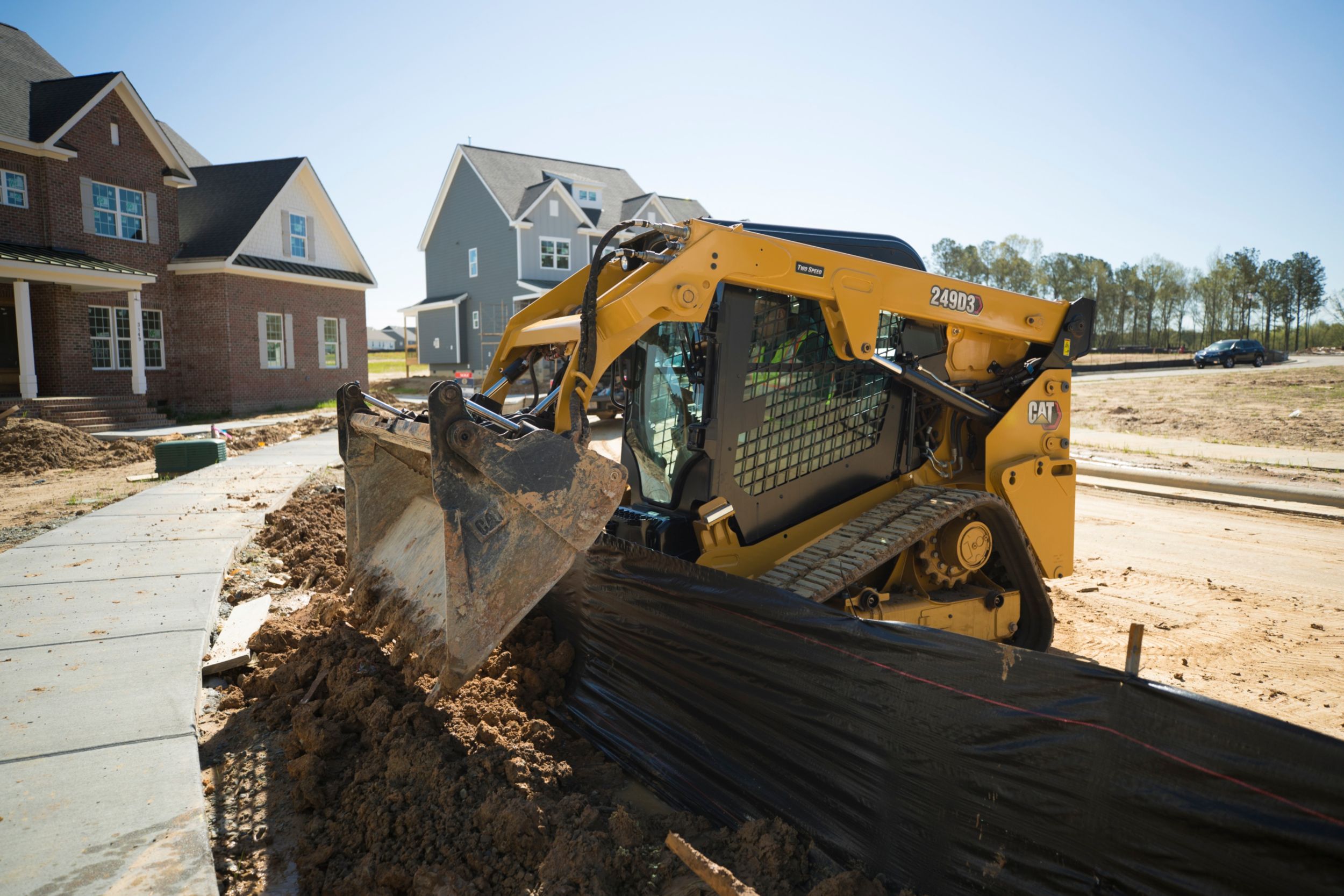

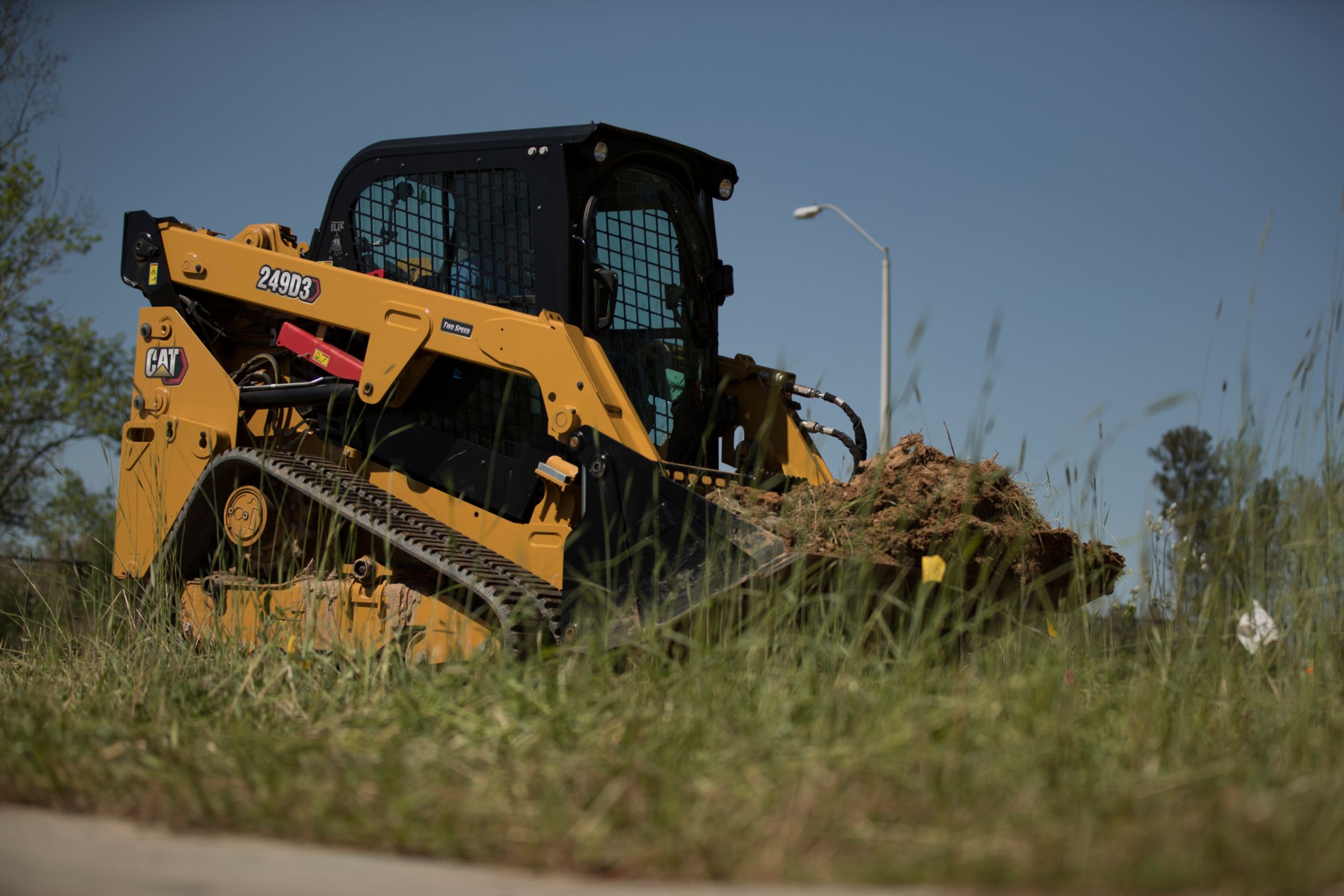

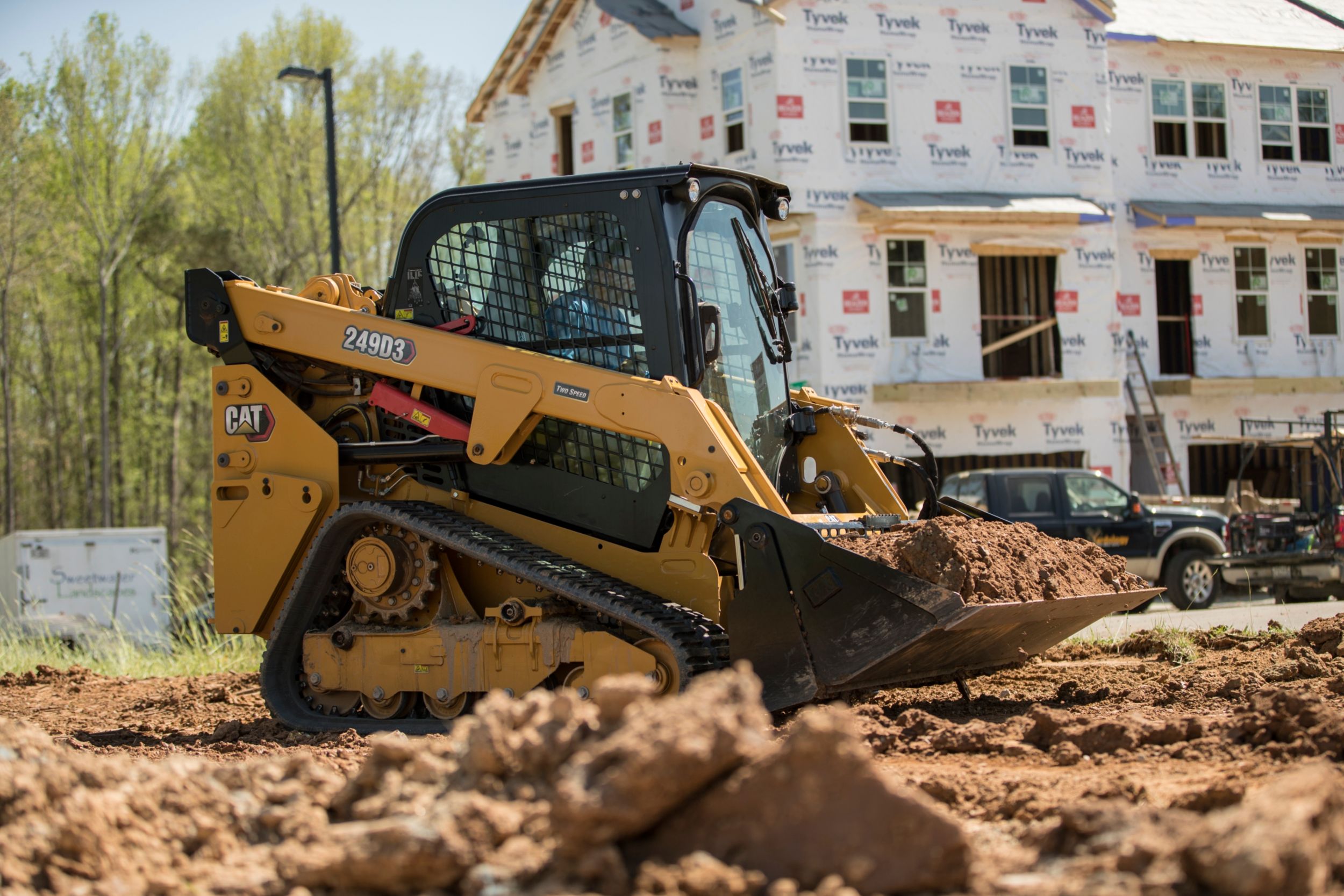

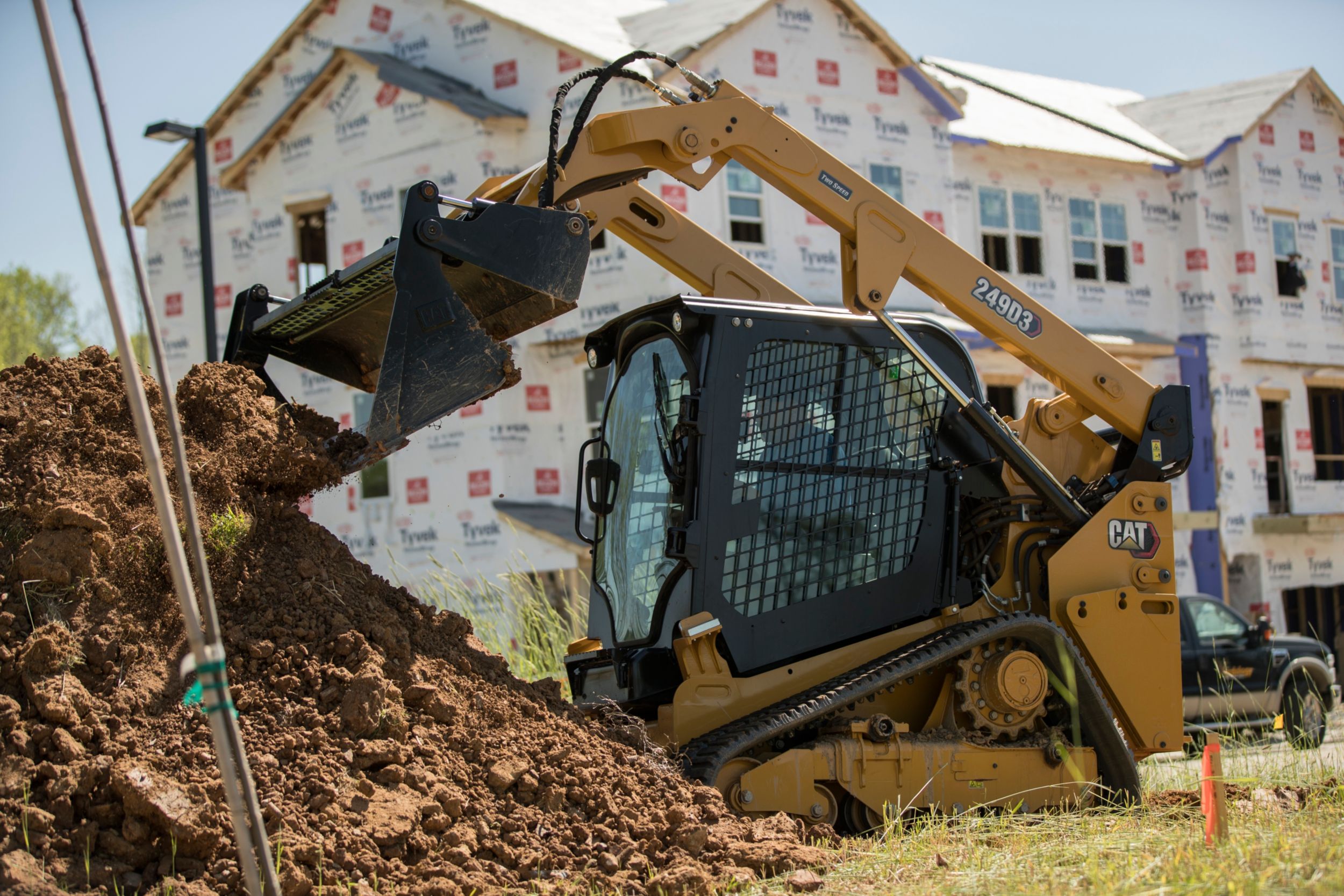

The Cat® 249D3 Compact Track Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its standard, suspended undercarriage system provides superior traction, flotation, stability and speed to work in a wide range of applications and underfoot conditions.

Engine

Gross Power - SAE J1995
67.10 HP
50.10 kW

Operating Specifications

Rated Operating Capacities - 35% Tipping Load
1740.00 lb
790.00 kg

Weights

Operating Weight
7831.00 lb
3552.00 kg

Operating Specifications

Tipping Load
4970.00 lb
2260.00 kg
Ground Contact Area - With 320 mm/12.6 in Track
1373.00 in²
0.89 m²
Ground Pressure - With 320 mm/12.6 in Track
5.70 psi
39.30 kPa

Dimensions

Length - Track on Ground
54.50 in
1384.00 mm
Overall Length - Track
71.20 in
1808.00 mm
Height - Top of Cab
80.30 in
2039.00 mm
Ground Clearance
7.60 in
194.00 mm
Departure Angle
34.5°
Maximum Dump Angle
48°
Vehicle Width (400 mm/15.7 in tracks)
69.10 in
1756.00 mm
Length - With Bucket on Ground
127.30 in
3233.00 mm
Maximum Overall Height
150.80 in
3831.00 mm
Bucket Pin Height - Carry Position
8.60 in
219.00 mm
Maximum Reach - With Arms Parallel to Ground
51.80 in
1317.00 mm
Length - Without Bucket
99.30 in
2523.00 mm
Turning Radius from Center - Machine Rear
57.40 in
1458.00 mm
Bucket Pin Height - Maximum Lift
118.20 in
3002.00 mm
Clearance at Maximum Lift and Dump
88.70 in
2253.00 mm
Vehicle Width (320 mm/12.6 in tracks)
66.00 in
1676.00 mm
Turning Radius from Center - Coupler
45.70 in
1160.00 mm
Reach - Maximum Lift/Dump
28.60 in
727.00 mm
Rack Back Angle - Maximum Height
87.5°
Turning Radius from Center - Bucket
81.10 in
2060.00 mm

Hydraulic System

Hydraulic Flow - Standard - Loader Hydraulic Pressure
3336.00 psi
23000.00 kPa
Hydraulic Flow - High Flow - Loader Hydraulic Flow
26.00 gal/min
99.00 l/min
Hydraulic Flow - High Flow - Loader Hydraulic Pressure
3336.00 psi
23000.00 kPa
Hydraulic Flow - High Flow - Hydraulic Power (Calculated)
50.90 HP
38.00 kW
Hydraulic Flow - Standard - Loader Hydraulic Flow
18.00 gal/min
69.00 l/min
Hydraulic Flow - Standard - Hydraulic Power (Calculated)
35.50 HP
26.50 kW

Cab

ROPS
ISO 3471:2008
FOPS
ISO 3449:2005 Level I

Power Train

Travel Speed - Forward or Reverse - One Speed
5.00 mile/h
8.10 km/h
Travel Speed - Forward or Reverse - Two Speed
7.60 mile/h
12.20 km/h

Service Refill Capacities

Engine Crankcase
2.60 gal (US)
10.00 l
Fuel Tank
15.10 gal (US)
57.00 l
Hydraulic System
11.90 gal (US)
45.00 l
Cooling System
3.20 gal (US)
12.00 l
Hydraulic Tank
9.00 gal (US)
34.00 l

Engine

Displacement
134.30 in³
2.20 l
Bore
3.30 in
84.00 mm
Stroke
3.90 in
100.00 mm
Net Power - ISO 9249
66.50 HP
49.60 kW
Net Power
65.80 HP
49.10 kW
Net Power - SAE 1349
65.80 HP
49.10 kW

Operating Specifications

Breakout Force - Tilt Cylinder
3907.00 lb
1772.00 kg

Dimensions

Note
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C0 cab (OROPS, static seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).

Engine

Peak Torque - 1,500 rpm - SAE J1995
153.00 ft·lbf
208.00 N·m

Dimensions

Bucket Pin Reach - Maximum Lift
12.20 in
311.00 mm

Operating Specifications

Ground Contact Area - With 400 mm/15.7 in Track
1716.00 in²
1.11 m²

Engine

Engine Model
Cat C2.2 CRDI

Noise Level

Outside Cab***
103.00 dB(A)
103.00 dB(A)
Inside Cab**
83.00 dB(A)
83.00 dB(A)

Weights

Note
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C0 cab (OROPS, static seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).

Operating Specifications

Ground Pressure - With 400 mm/15.7 in Track
4.70 psi
32.20 kPa

Noise Level

Note (3)
***The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.

Operating Specifications

Rated Operating Capacities - 50% Tipping Load
2485.00 lb
1130.00 kg
Note
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C0 cab (OROPS, static seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).

Noise Level

Note (2)
**The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.

Operating Specifications

Rated Operating Capacity with Optional Counterweight
2700.00 lb
1225.00 kg

Noise Level

Note (1)
Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.

Air Conditioning System (if equipped)

Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.
Features

Quiet and Comfortable

The industry leading sealed and pressurized cab option provides the operator with a cleaner and quieter operating environment with excellent work tool visibility. Continuing the industry leading trend, the D3 Series also includes as standard, seat mounted adjustable joystick controls for operator comfort.

Maximum Performance

High performance power train provides maximum performance and production capability through the Electronic Torque Management system, standard two speed travel and an electronic hand/foot throttle with decel pedal capability.

Making Your Job Easier

Cat® “Intelligent Leveling” system provides industry leading technology, integration, and available features such as dual direction self level, work tool return to dig, and work tool positioner.

A Smooth Ride

A standard, fully independent torsion axle suspension combined with the optional Speed Sensitive Ride Control system improves operation on rough terrain, enabling better load retention, increased productivity and greater operator comfort.

Optimized Machine Capability

Maximize machine capability and control with the available Advanced Display, providing on-screen adjustments for implement response, hystat response and creep control. Also features multi-language functionality with customizable layouts, security system and rearview camera.

Sustainability

  • The Cat® C2.2 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
  • Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester). Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
  • Cat® Extended Life Coolant and long-life HYDO Advanced hydraulic fluids not only reduce downtime but help decrease the amount of fluid and filters that are replaced over the life of the machine.
  • Boost productivity with Cat technologies like work tool positioner, return to dig, and Cat Smart Attachments.
  • Save fuel and reduce your greenhouse gas emissions with efficiency features such as foot throttle pedal and cooling system demand fan.
Standard Equipment
  • ELECTRICAL
    • 12 volt Electrical System
    • 80 ampere Alternator
    • Ignition Key Start/Stop Switch
    • Lights: Gauge Backlighting, Two Rear Tail Lights, Two Adjustable Front and Rear Halogen Lights, Dome Light
    • Backup Alarm
    • Heavy Duty Battery, 850 CCA
  • OPERATOR ENVIRONMENT
    • Gauges: Fuel Level, Hour Meter
    • Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged
    • Adjustable Vinyl Seat
    • Fold In Ergonomic Contoured Armrest
    • Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages
    • ROPS Cab, Open, Tilt Up
    • FOPS, Level I
    • Top and Rear Windows
    • Floor Mat
    • Interior Rearview Mirror
    • 12 volt Electric Socket
    • Horn
    • Hand (Dial) Throttle, Electronic
    • Adjustable Joystick Controls
    • Anti-theft Security System with 6-button Keypad
    • Storage Compartment with Netting
  • POWER TRAIN
    • Cat C2.2, Turbo Diesel Engine, Meeting Tier 4 Final and Stage V emission standards
    • Air Cleaner, Dual Element, Radial Seal
    • S·O·SSM Sampling Valve, Hydraulic Oil
    • Filters, Cartridge-type, Hydraulic
    • Filters, Canister-type, Fuel and Water Separator
    • ATAAC/Radiator/Hydraulic Oil Cooler (side-by-side)
    • Spring Applied, Hydraulically Released Parking Brakes
    • Hydrostatic Transmission, Two Speed Travel
    • Suspension – Independent Torsion Axles (4)
  • OTHER
    • Engine Enclosure, Lockable
    • Extended Life Antifreeze, –36° C (–33° F)
    • Machine Tie Down Points (6)
    • Support, Lift Arm
    • Hydraulic Oil Level Sight Gauge
    • Radiator Coolant Level Sight Gauge
    • Radiator, Expansion Bottle
    • Cat ToughGuard™ Hose
    • Auxiliary, Hydraulics, Continuous Flow
    • Heavy Duty, Flat Faced Quick Disconnects with Integrated Pressure Release
    • Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm
    • Electrical Outlet, Beacon
    • Belly Pan Cleanout
    • Variable Speed Demand Fan
    • Product Link™ PL240, Cellular
  • MANDATORY EQUIPMENT
    • Hydraulics, Standard or High Flow
    • Quick Coupler, Mechanical or Powered
    • High Visibility Seat Belt, 50 mm (2 in) or 75 mm (3 in)
    • EU Preparation Package (Europe only)
    • Steel Imbed Rubber Track – 320 mm (12.6 in) Block Tread or 400 mm (15.7 in) Bar Tread
    • Dual Flange Front Idler/Single Flange Rear Idler
    • PERFORMANCE PACKAGES:
      – Performance Package H1: Standard Flow Hydraulics (No Self Level)
      – Performance Package H2: Standard Flow Hydraulics, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower)
      – Performance Package H3: High Flow Hydraulics, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower)
    • COMFORT PACKAGES
      – Open ROPS (C0): Static Seat (No Foot Throttle, Headliner, Heater or Door)
      – Open ROPS (C1): Foot Throttle, Headliner, Cup Holder, and choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) (No Heater or Door)
      – Enclosed ROPS with Heater (C2): Foot Throttle, Headliner, Heater and Defroster, Side Windows, Cup Holder, Radio Ready, choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) and Door (Glass or Polycarbonate)
      – Enclosed ROPS with A/C (C3): C2 + Air Conditioner
Optional Equipment
  • OPTIONAL EQUIPMENT
    • Hand-Foot Style Controls
    • External Counterweights
    • Beacon, Rotating
    • Engine Block Heater – 120V
    • Oil, Hydraulic, Cold Operation
    • Paint, Custom
    • Product Link PL641, Cellular
    • Ride Control
    • Advanced Display with Rearview Camera: Full Color, 127 mm (5 in) LCD screen, Advanced Multi-operator Security System, On-screen Adjustments for Implement Response, Hystat Response, and Creep Control. (Standard Equipment in Europe Only)
    • Work Tool Return to Dig and Work Tool Positioner
    • Bluetooth® Radio with Microphone (AM/FM/Weather Band Receiver with USB and Auxiliary Input Jack)
