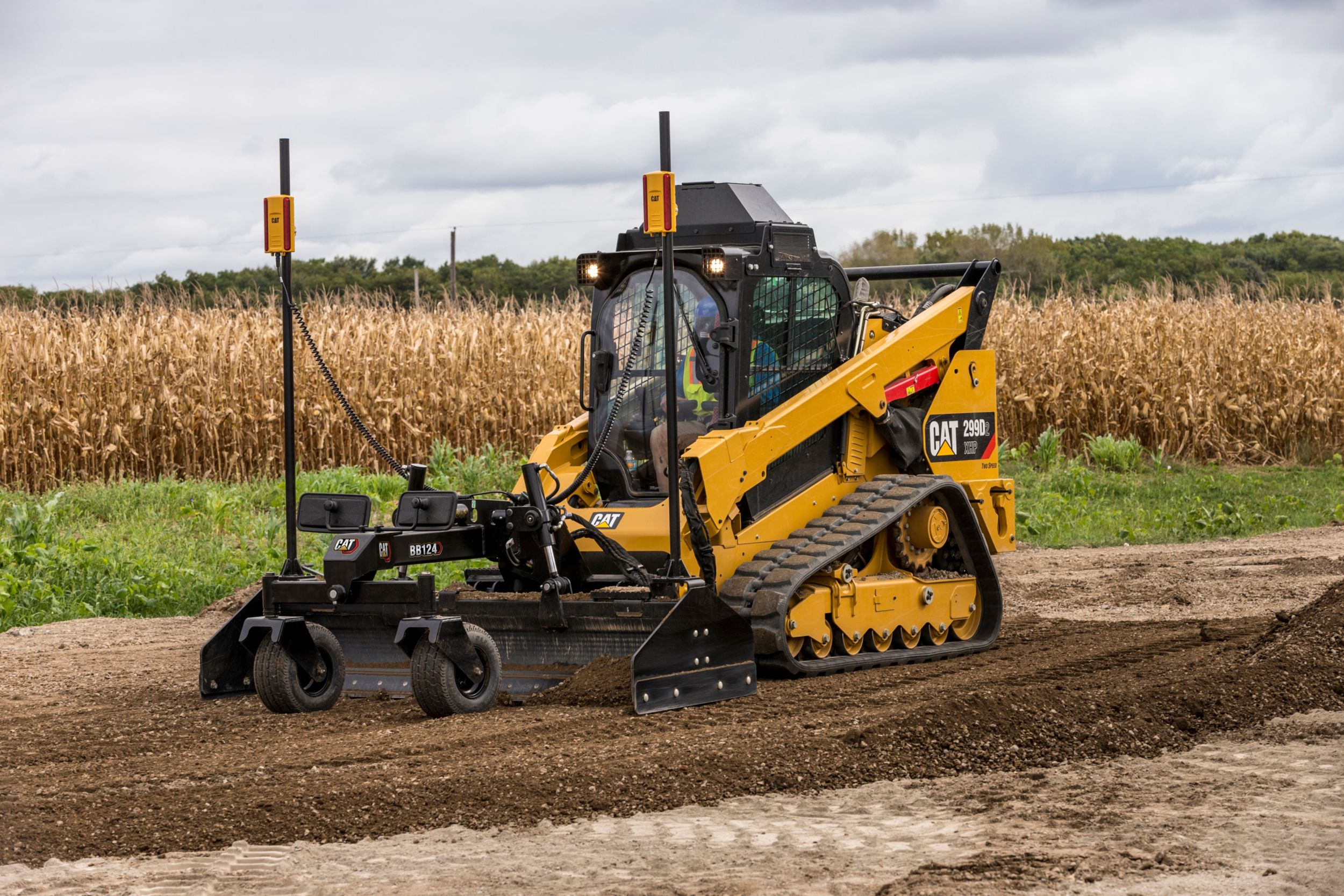

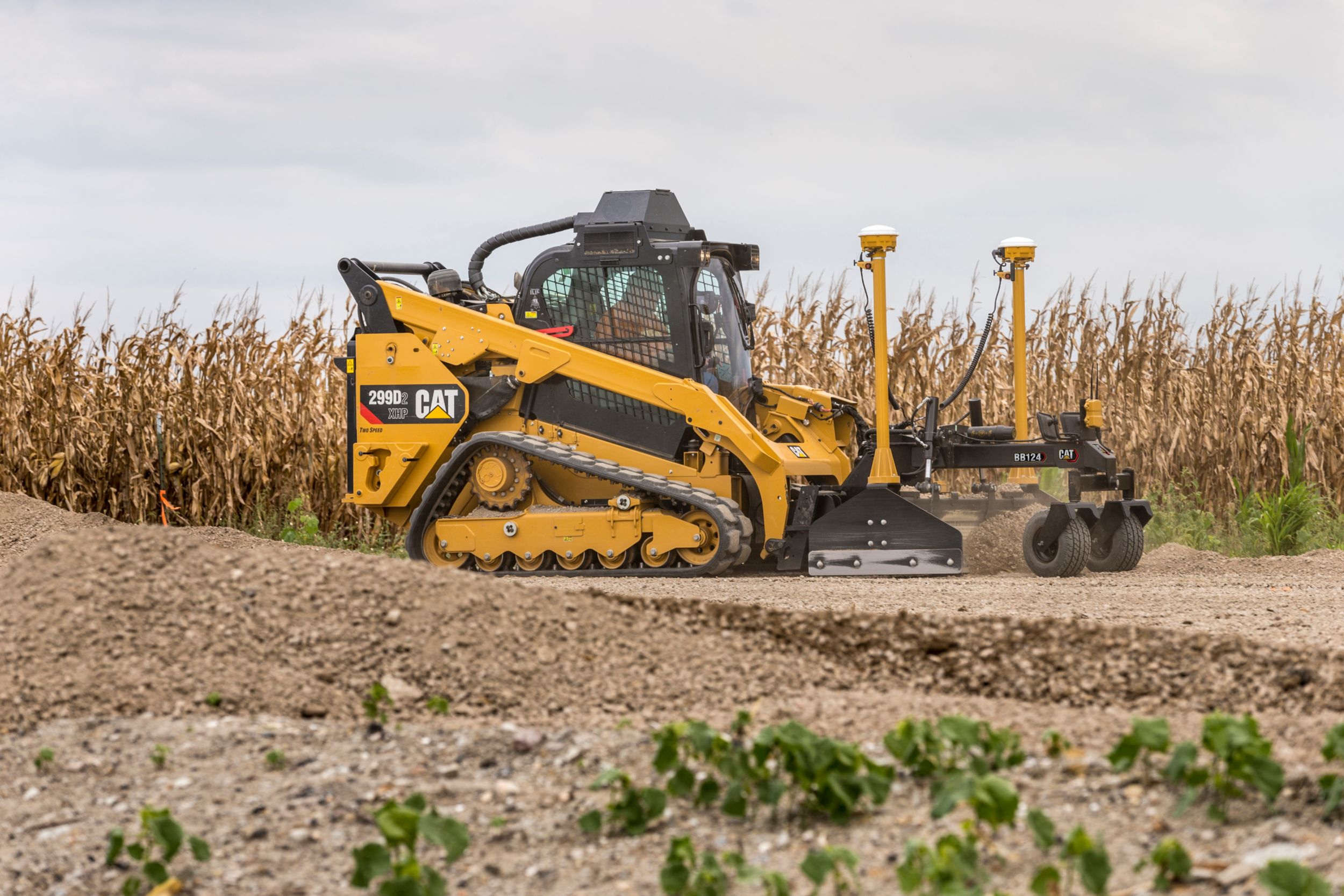

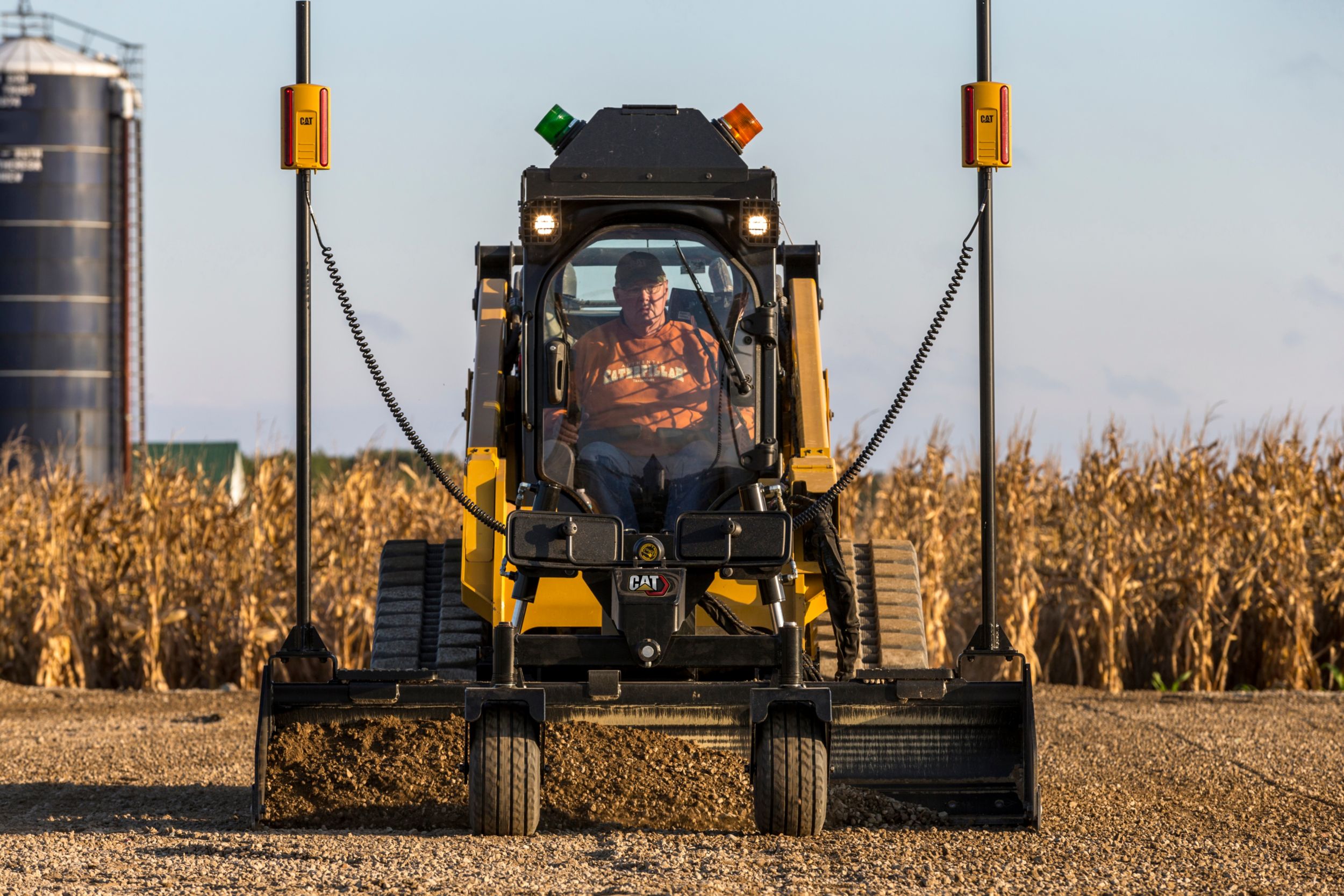

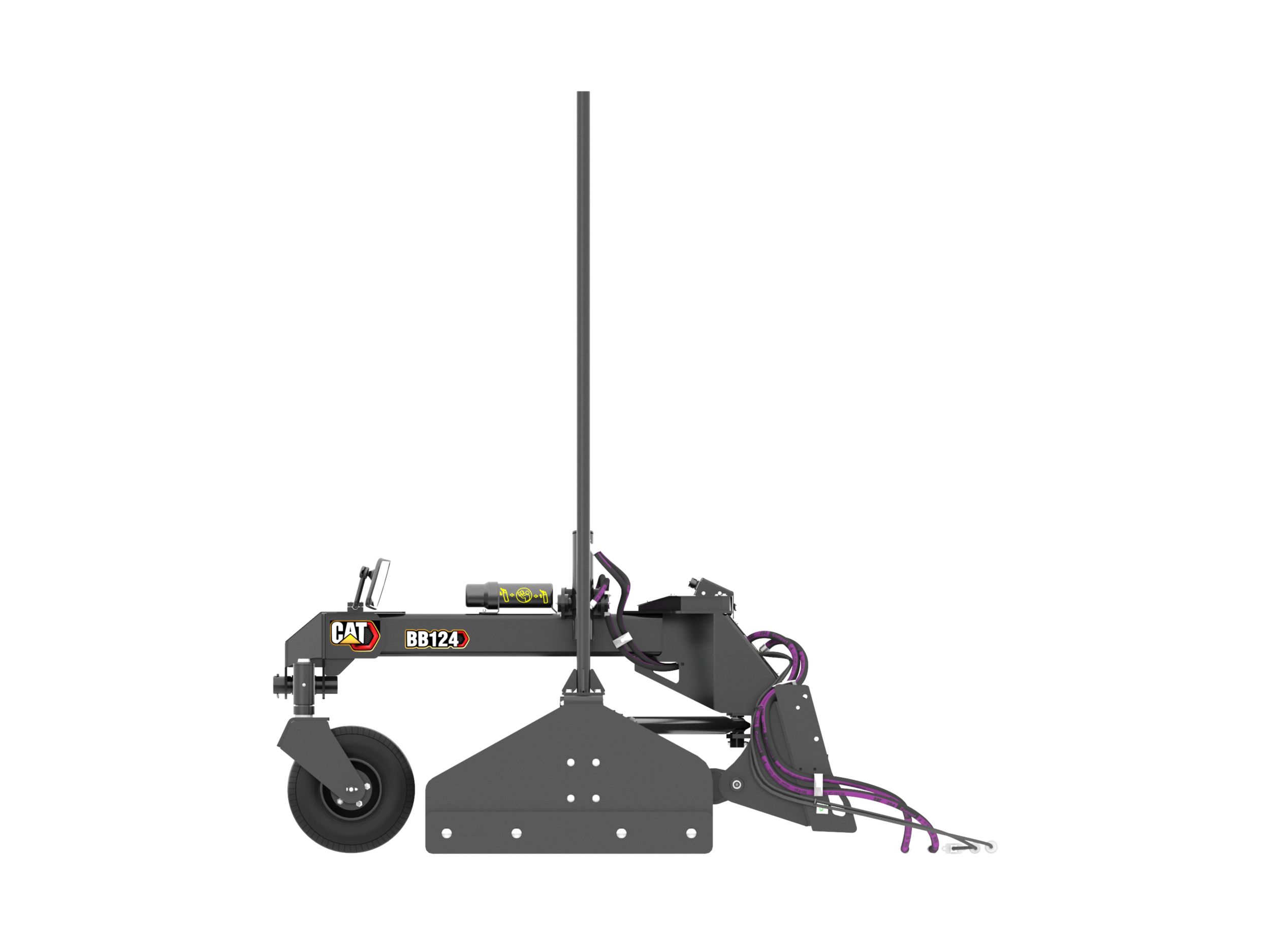

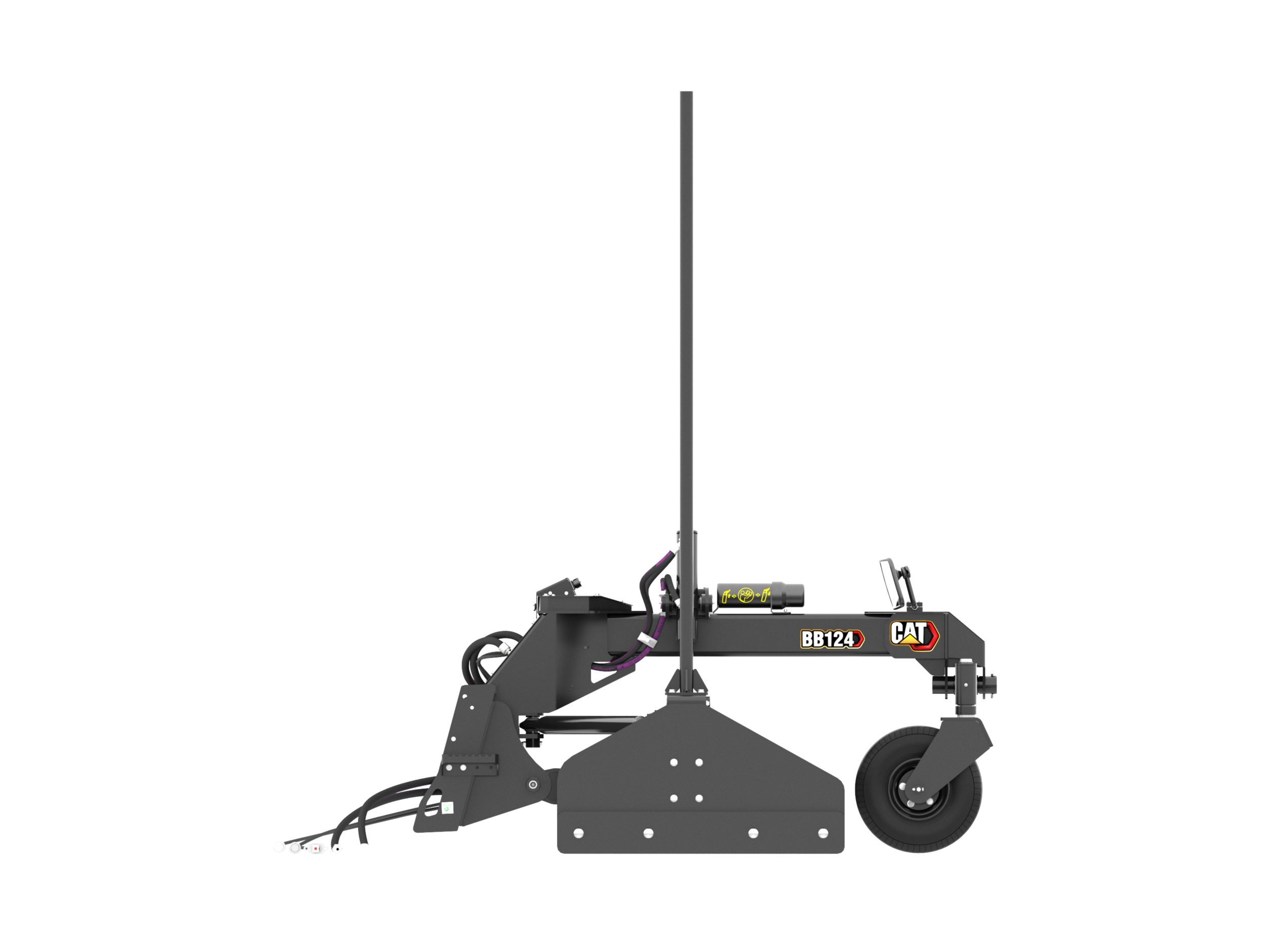

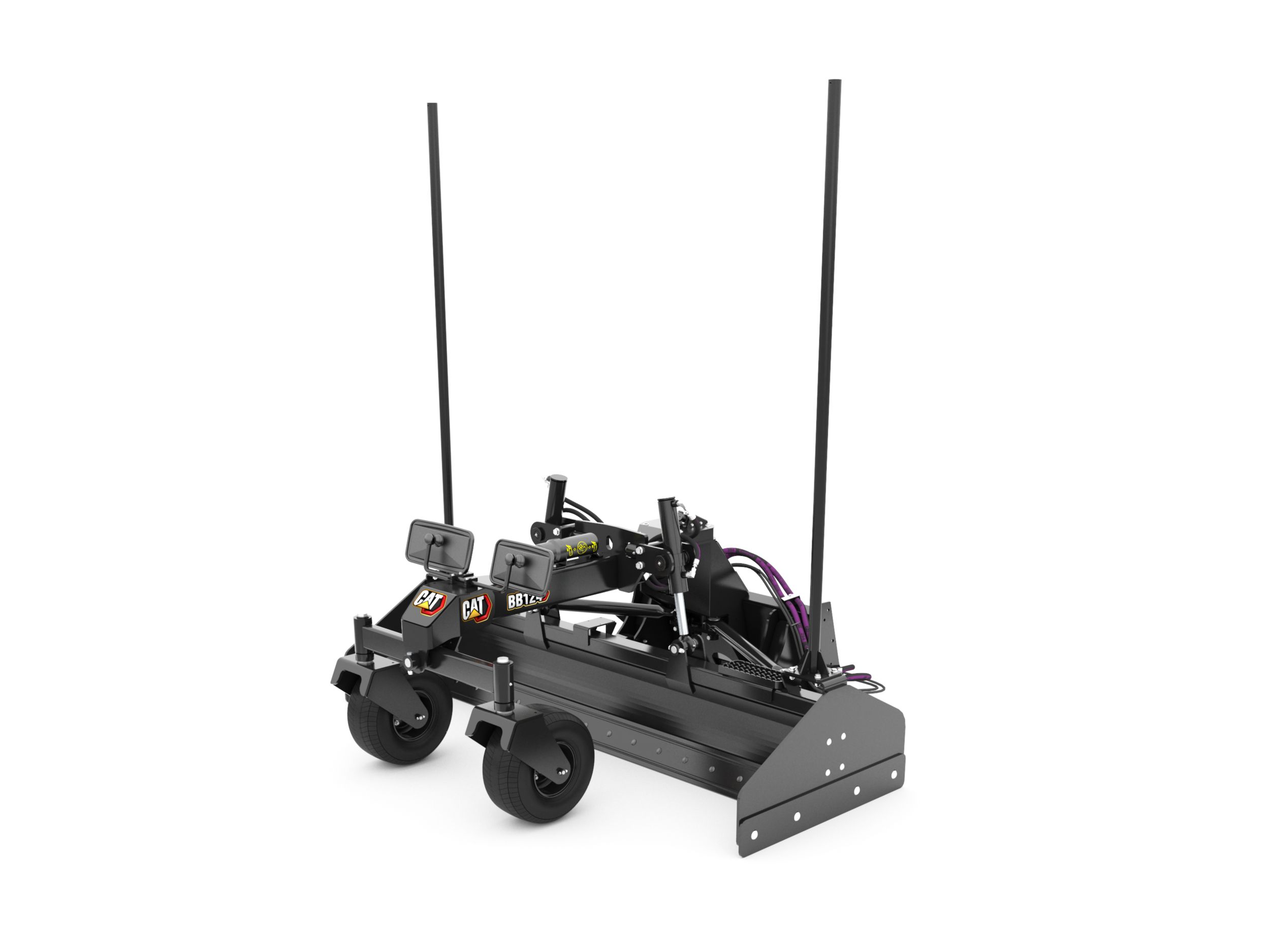

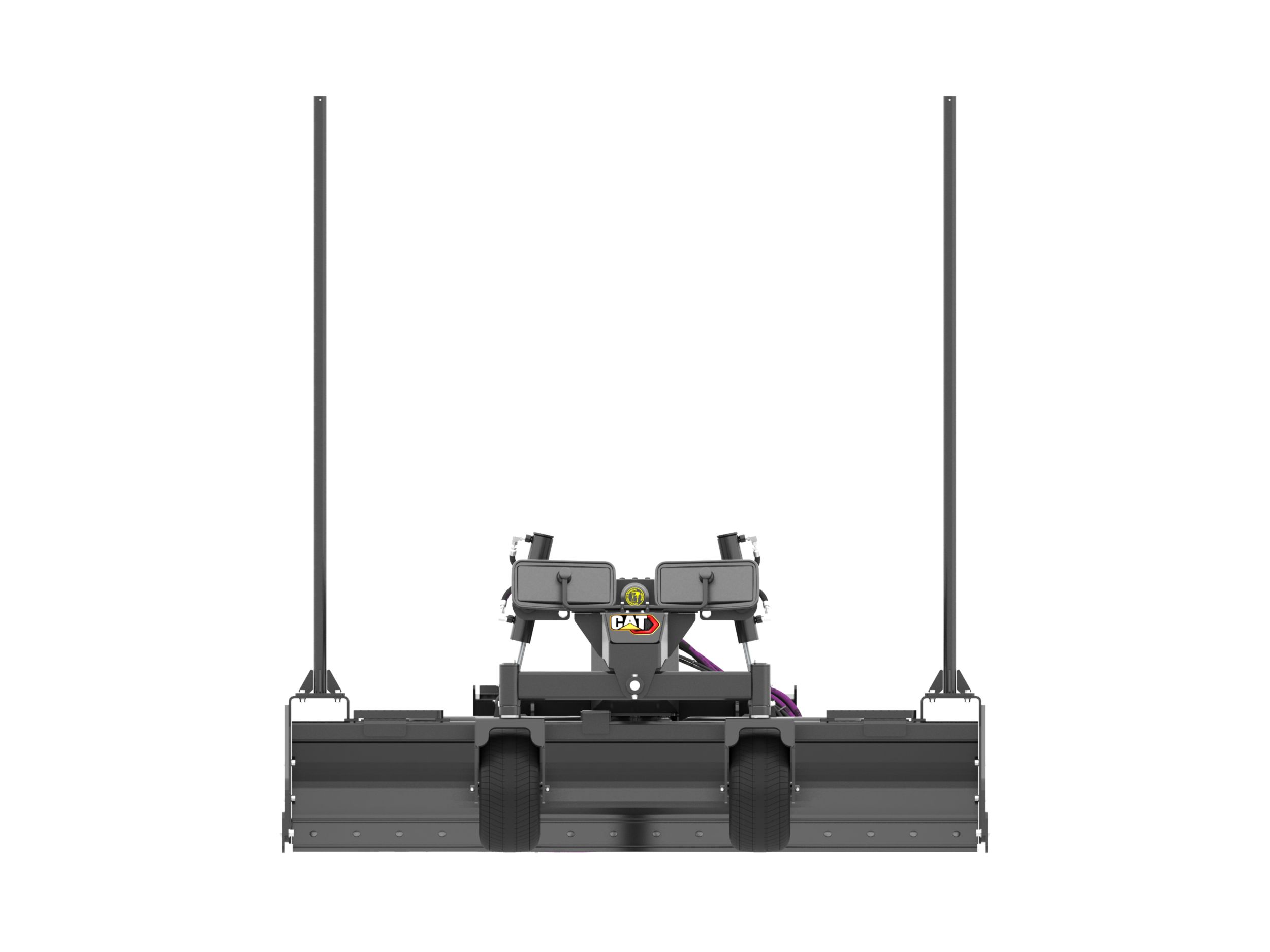

Cat® Box Blades are designed for grading and leveling of large commercial properties, housing pads, roadways, and parking lots and can operate both manually and automatically with the use of Laser or GPS grading systems. Developed to integrate with AccuGrade® electronic components it can achieve high levels of grading accuracy while increasing productivity and reducing operating costs. Designs for athletic fields, concrete prep, grading in buildings and tighter spaces, parking lots, back-filling can all be achieved with the Box Blade Attachment.
Overall Width
99.00 in
2526.00 mm
Working Width
96.00 in
2436.00 mm
Optimum Hydraulic Flow
30-85 L/min (8-22 gpm)
Requires Full Work Tool Control with Both Joysticks
Optimum Hydraulic Pressure
140-170 bar (2031-2466 psi)
Overall Length
81.00 in
2062.00 mm
Overall Height
106.00 in
2694.00 mm
Overall Weight
2150.00 lb
975.00 null
15 degrees
5.00 in
127.00 mm
4.00 in
102.00 mm
Overall Width
99.40 in
2526.00 mm
Working Width
95.90 in
2436.00 mm
Overall Height
106.10 in
2694.00 mm
Overall Length
81.20 in
2062.00 mm
Optimal Hydraulic Flow
30-85 L/min (8-22 gpm)
Optimal Hydraulic Pressure
140-170 bar (2031-2466 psi)
2149.50 lb
975.00 kg
Tilt Angle Range +/-
15 degrees
Interface Type
Skid Steer Coupler


AccuGrade™ ready, the Box Blade is designed for grading and leveling of large commercial properties, housing pads, roadways, and parking lots.

Curved Moldboards

Front and rear curved moldboards allow for material to roll and fold, improving capacity and performance. Flowing material will easily find low spots and improve grading and leveling performance.

Wear Indicating Cutting Edges

Wear indicating cutting edges feature 20% more wear material on the ground engaging section of the edge and also indicate when it is time to flip or replace the edge.

Dual Parabolic Mirrors

Dual parabolic mirrors provide full visibility to the front cutting edge allowing the operator to identify how much the blade is loading and see out to the corners of the Box Blade.

Centrally Located Electronics

Technology components are centrally located and simply route to their respective harnesses back to this location on the tool. Then, a single harness routes to the control module in the cab or on the tool.

Protected Hydraulic Valve and ECM

The hydraulic valve and ECM are enclosed and mounted within the frame of the tool, protected from damage.

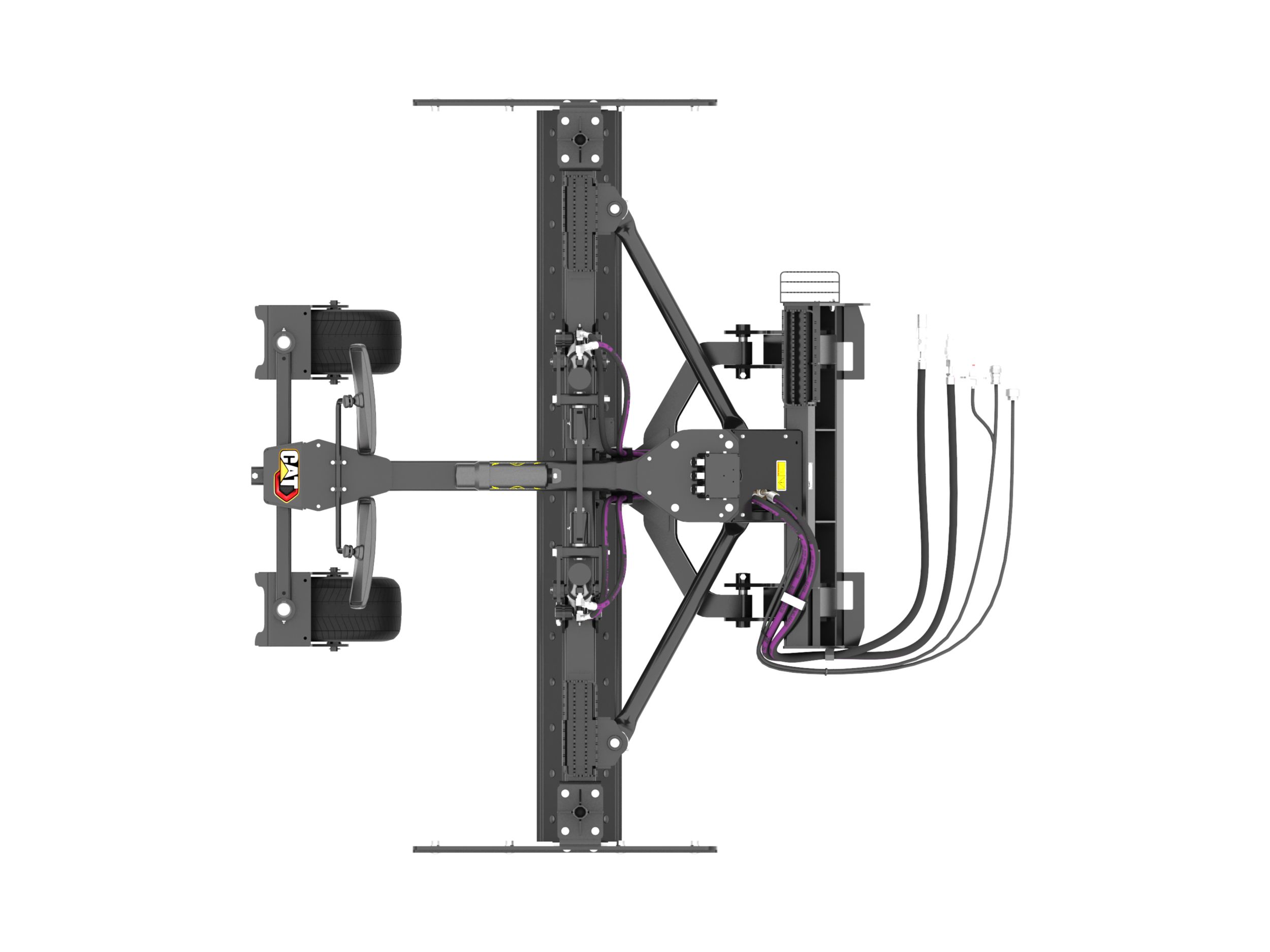

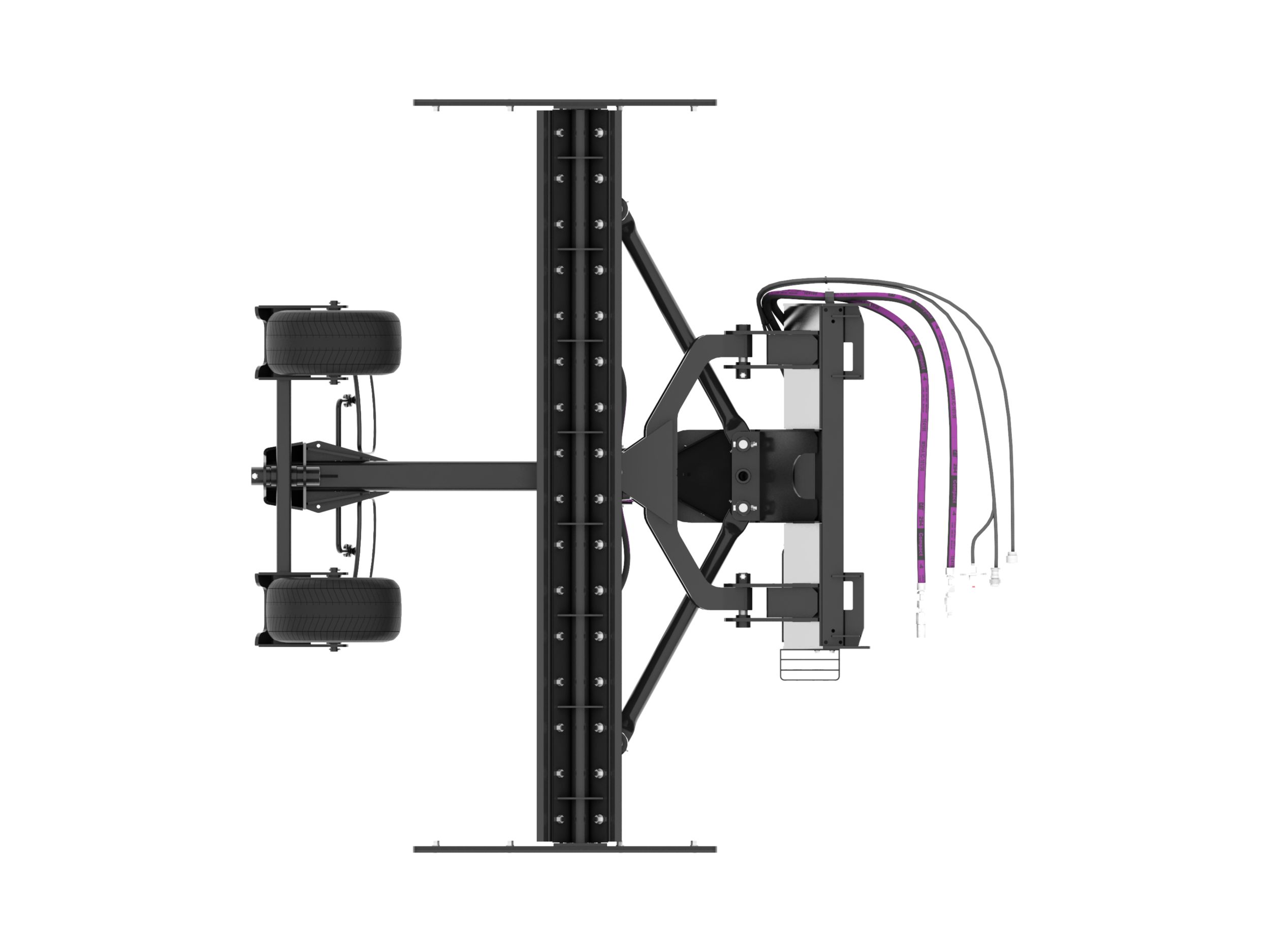

Dual Front Wheels

Dual front wheels are mounted on an independent axle and on casters to provide stability in both directions of travel. These wheels are air filled and will provide balance for the blade in both automatic and manual operation.

Bolt-On Side Cutters and Wings

These improve the life of the tool with reversible side cutters and replaceable box wings. Both are bolt-on for simple replacement.

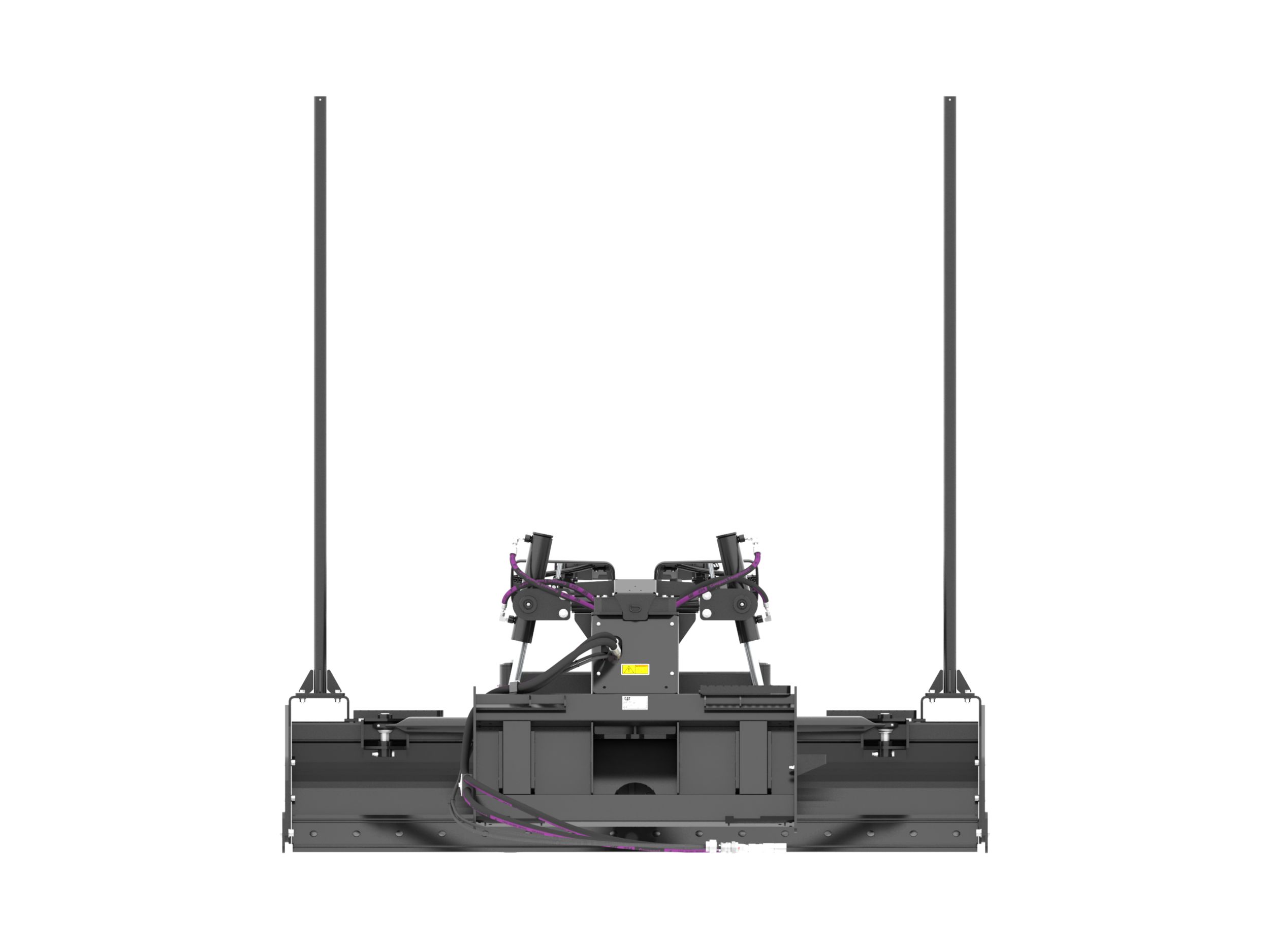

Standard Fixed Masts

Standard fixed masts provide great performance for single or dual laser technology configurations as well as supporting 3D technology.

Serrated Steps

Serrated bolt-on step provides safe ingress and egress from machine cab. Additional weld-on serrated steps on the blade ensure safe receiver adjustment, install, or removal.

Tool Mounted Operation and Maintenance Manual Holder

Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.
