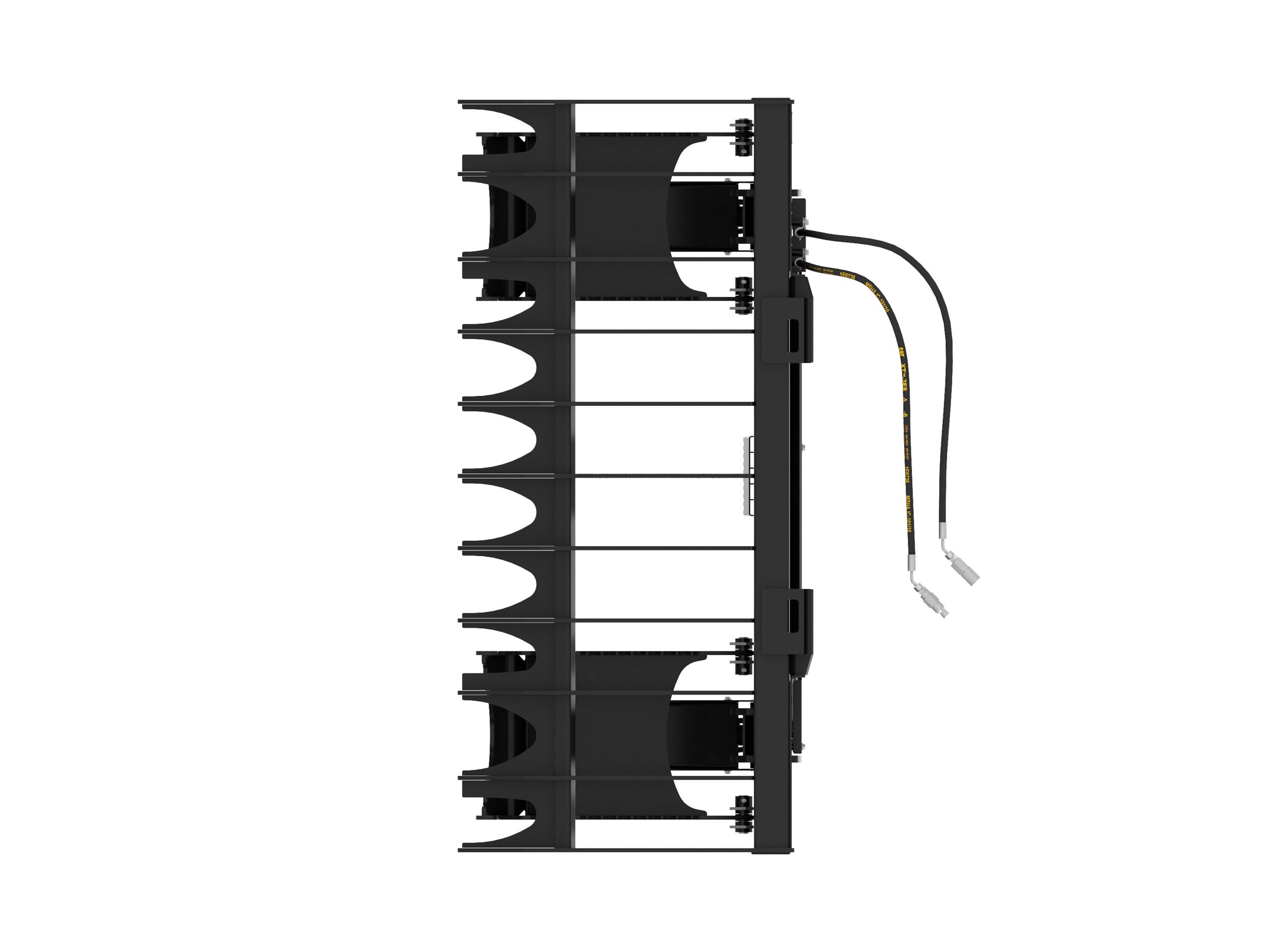

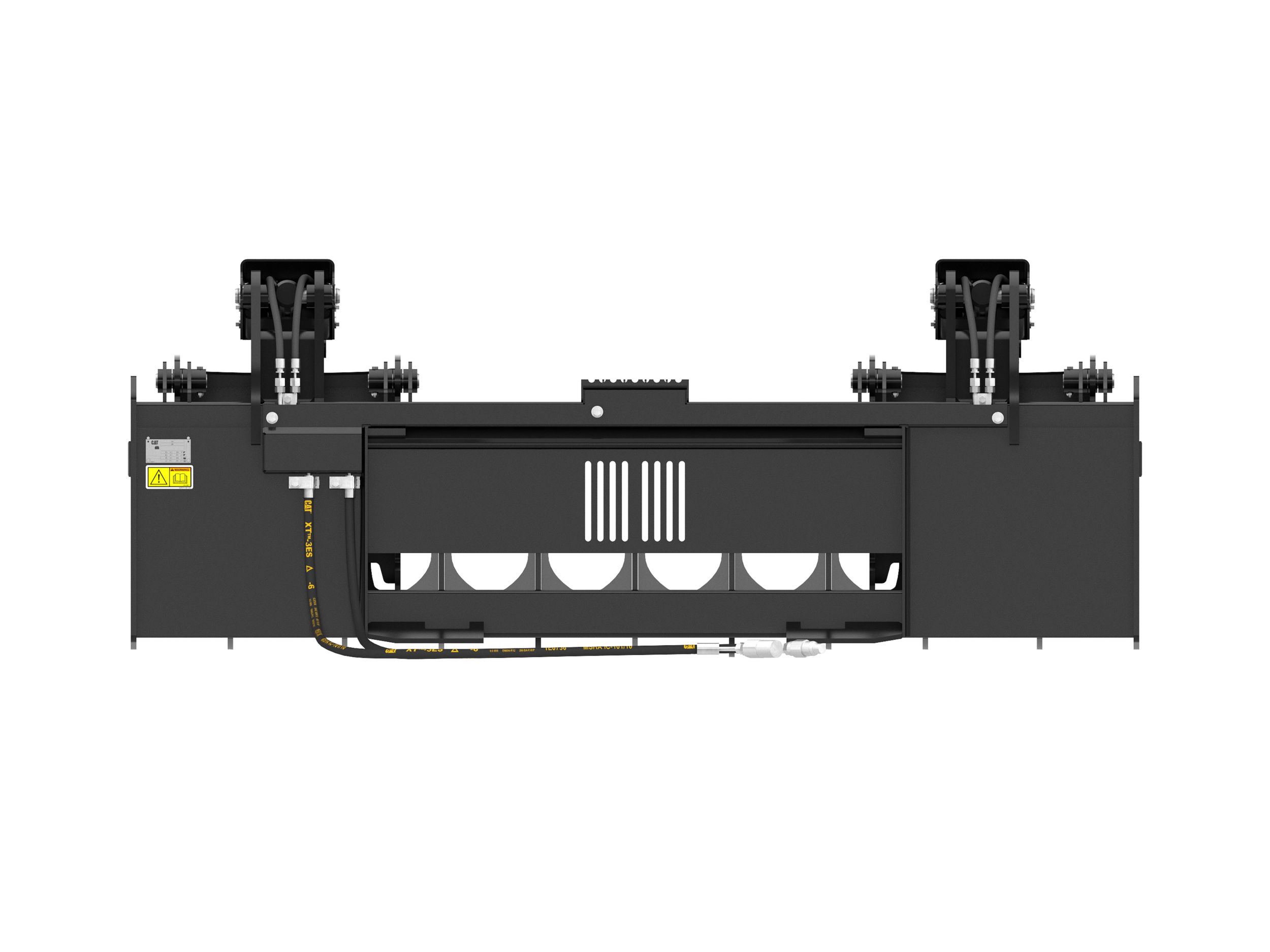

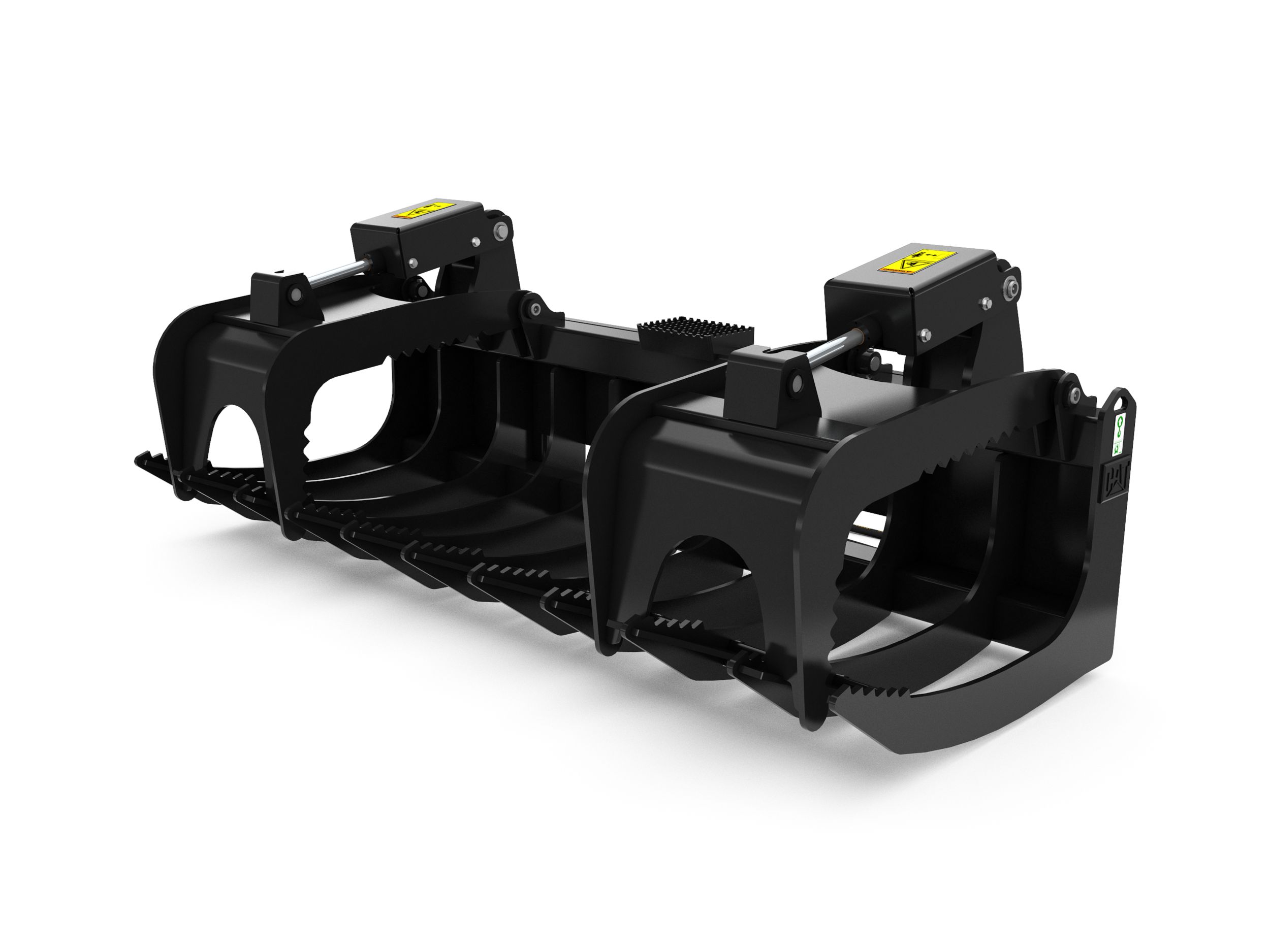

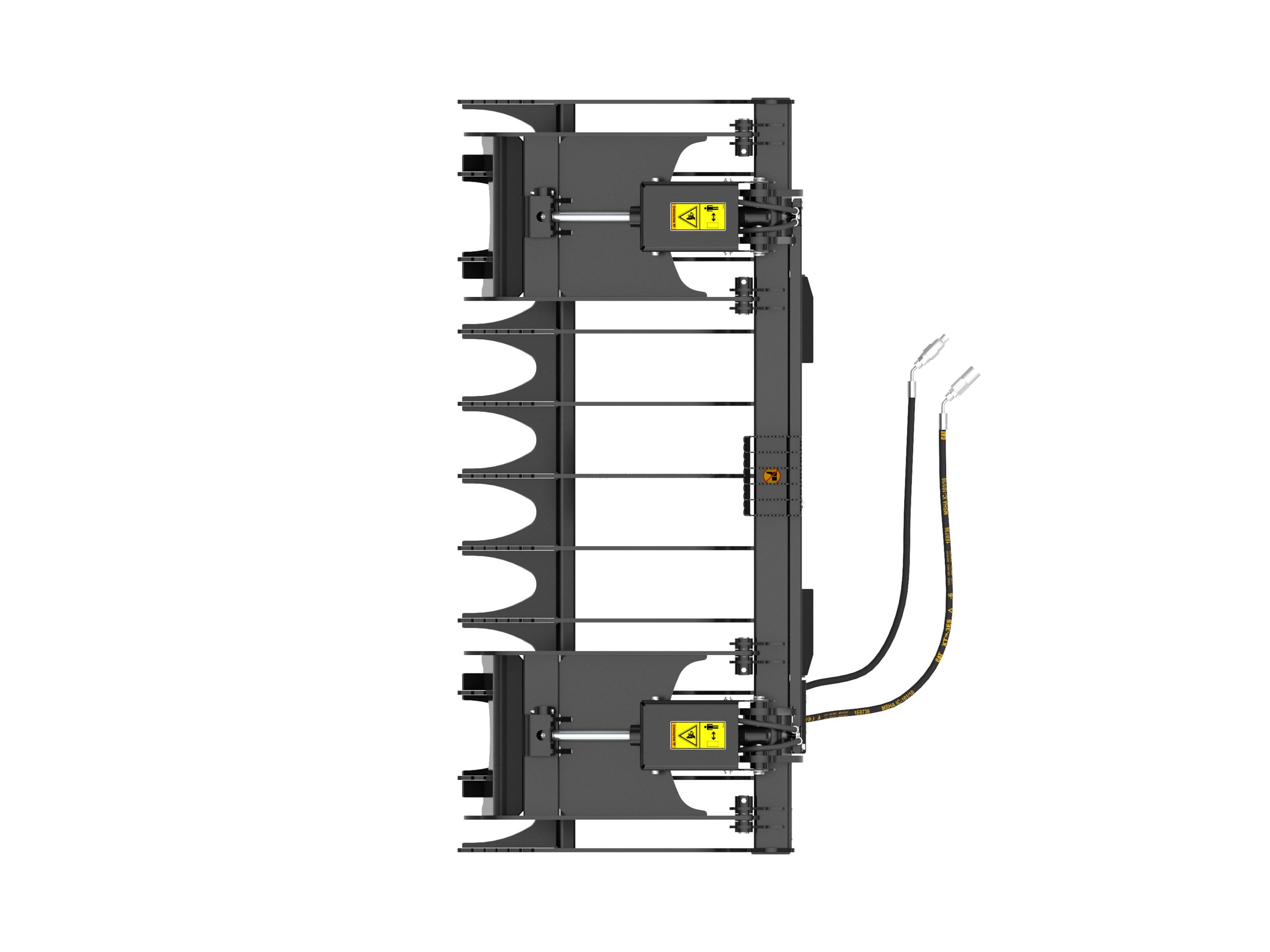

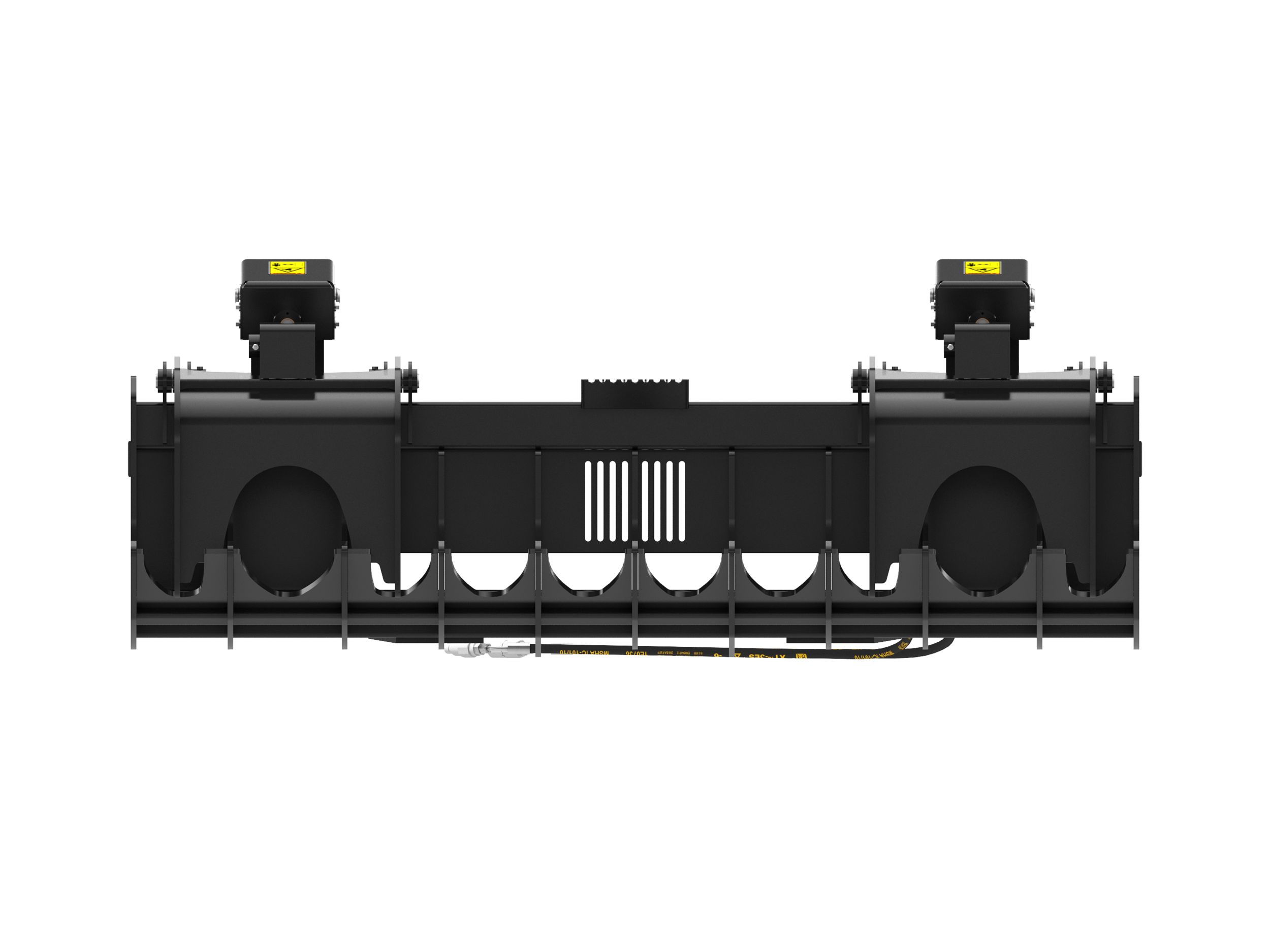

2137 mm (84 in) Industrial Grapple Rake

US
Metric

Overview

Cat® Industrial Grapple Rakes are ideal for storm debris clean-up and land clearing applications due to their open bottom design which allows unwanted material to filter through the bottom of the work tool.
Width
84.00 in
2134.00 mm
Weight
1115.00 lb
506.00 kg
Jaw Opening
37.00 in
940.00 mm
Number of Tines
11
Height
33.00 in
838.00 mm
Length
40.00 in
1016.00 mm
Required Hydraulic Flow
42-86 L/min (11-23 gpm)
Optimal Hydraulic Pressure
145-235 bar (2100-3400 psi)
Required Hydraulics
Standard Flow
Width
84.00 in
2134.00 mm
Weight
1115.00 lb
506.00 kg
Jaw Opening
37.00 in
940.00 mm
Height
33.00 in
838.00 mm
Length
40.00 in
1016.00 mm
Number of Tines
11
Optimal Hydraulic Pressure
145-235 bar (2100-3400 psi)
Required Hydraulic Flow
42-86 L/min (11-23 gpm)
Required Hydraulics
Standard Flow
Features

Application

Cat® Industrial Grapple Rakes are designed to handle a wide array of bulky, irregularly shaped objects encountered in demolition, industrial, construction, recycling, storm debris cleanup, land clearing and other aggressive applications.

Strong Grapple Design

Heavy-duty industrial grapple rake is designed for superior durability, long structural life, and incorporates durable steel rake tines, and dual full-width torque tubes with an additional front torque tube for tine reinforcement.

Open Bottom Design

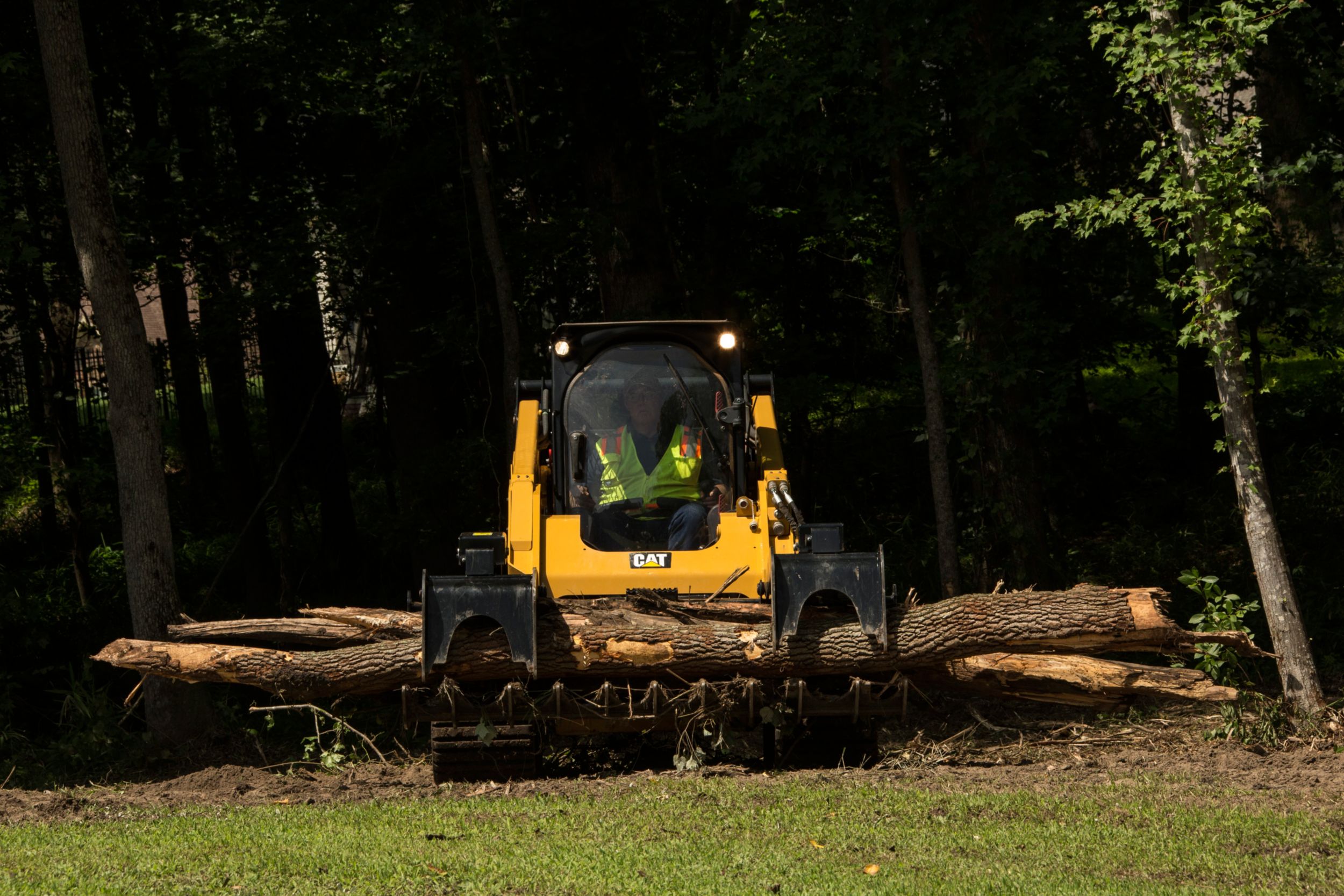

Open bottom design allows unwanted material to filter through the bottom of the work tool making it ideal for storm debris clean-up and land clearing applications.

Wide Jaw Opening

Wide jaw opening for handling large, bulky material such as logs, stumps, rocks and other landscape debris.

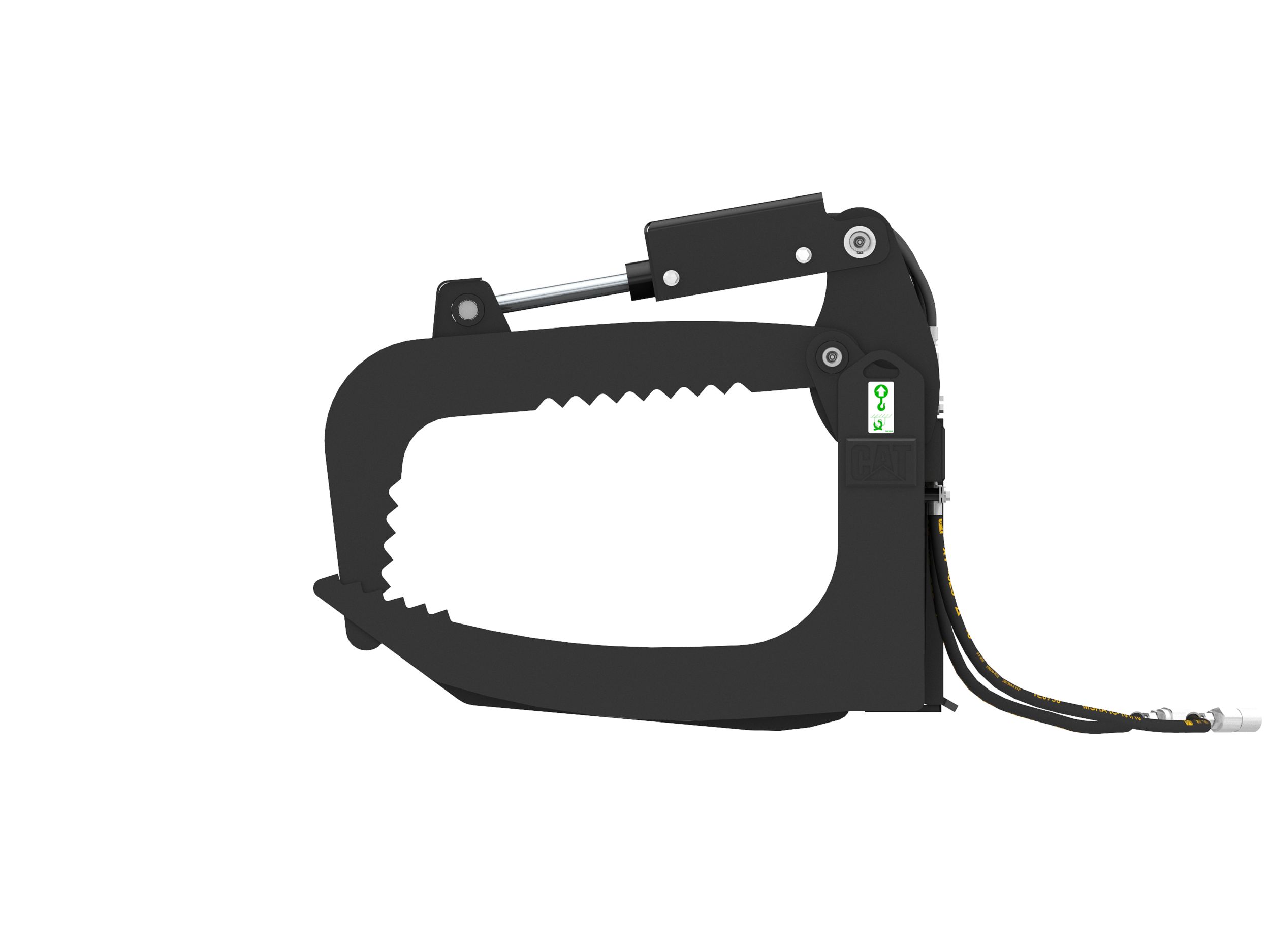

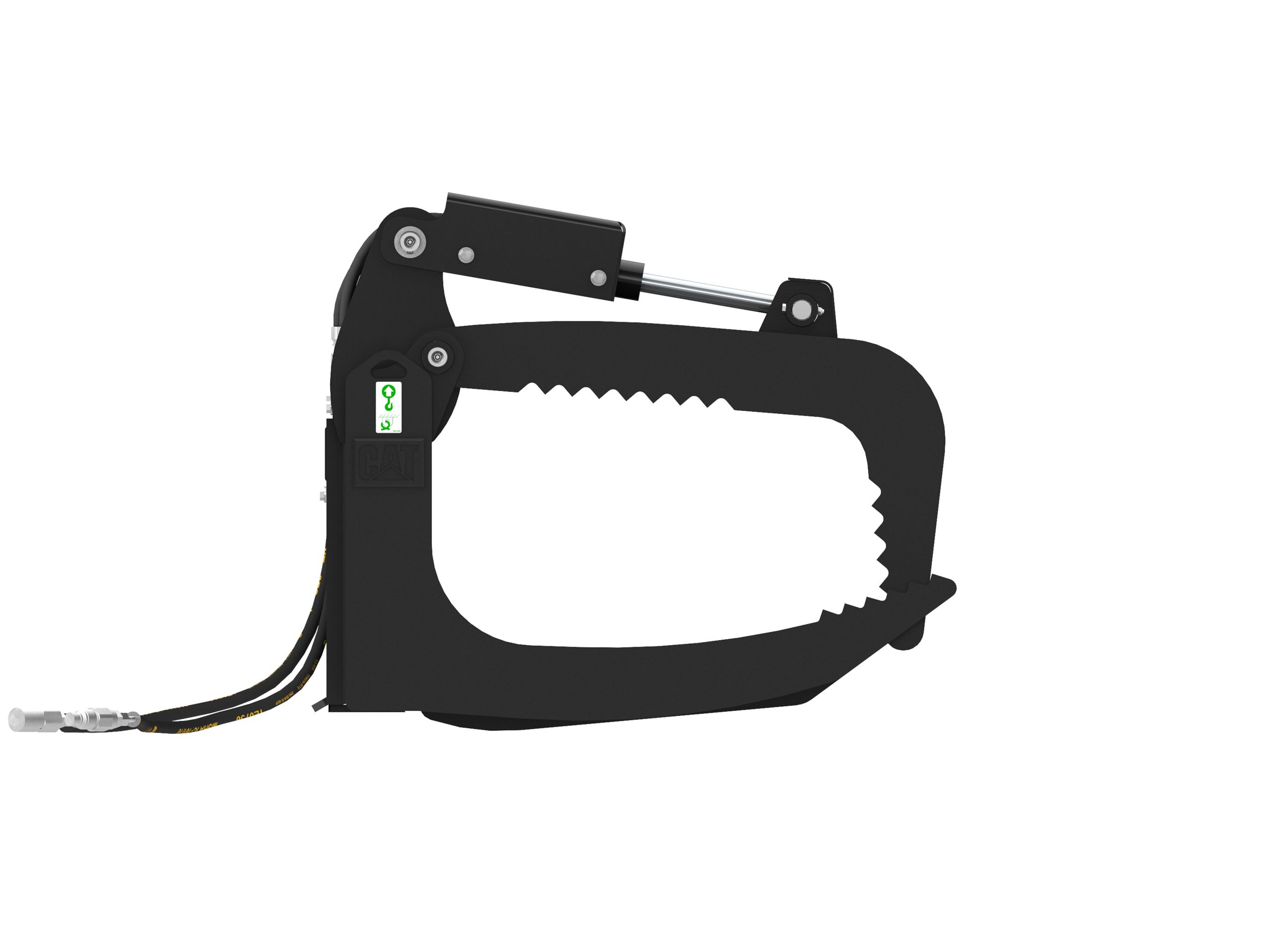

Robust Grapple Assemblies

Robust grapple assemblies incorporate thick, high strength steel to resist bending and increase durability.

Excellent Clamping Force

Excellent clamping force and independently controlled grapple assemblies allow for easy grasping of irregularly shaped objects.

Serrated Step

Serrated step provides safe ingress and egress from machine cab.
