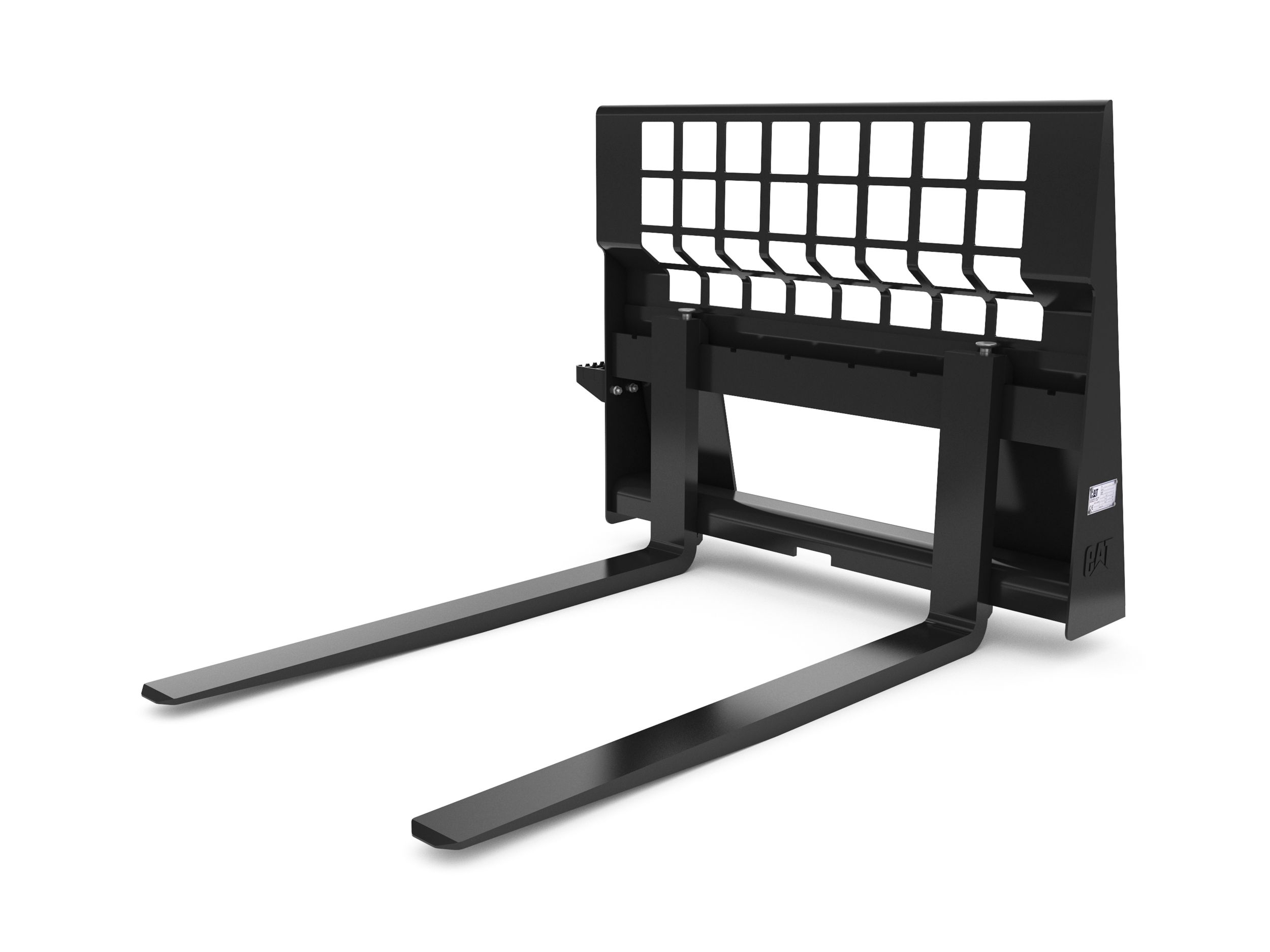

1220 mm (48 in) Pallet Forks

US
Metric

Overview

Cat® Pallet Forks are designed to meet a wide variety of material handling needs. Use pallet forks for moving bulky or palletized materials on construction and industrial sites, handling bagged fertilizer and seed at landscaping and nursery sites.
Carriage Height
36.80 in
934.00 mm
Carriage Width
45.80 in
1164.00 mm
Carriage Weight
211.60 lb
96.00 kg
Fork Tine Length
48.00 in
1220.00 mm
Fork Tine Width
3.90 in
100.00 mm
Fork Tine Height
21.30 in
541.00 mm
Fork Tine Thickness
1.60 in
40.00 mm
Fork Tine Weight
105.80 lb
48.00 kg
Fork Group Weight
430.00 lb
195.00 kg
Fork Tine Height
21.30 in
541.00 mm
Operating Weight
429.90 lb
195.00 kg
Overall Length
58.30 in
1481.90 mm
Interface Type
Skid Steer Coupler
Features

Application

Used for a variety of material handling needs, such as moving bulky or palletized materials on construction and industrial sites, handling bagged fertilizer and seed at landscaping and nursery sites, and similar jobs.

Heavy Duty Backrest

Heavy-duty load backrest structure is functional, durable and easy to see through. It provides operator protection from shifting loads, while maintaining excellent visibility to the fork tips.

Notched Rail-type Carriage

Notched rail-type carriage design allows fork tines to be easily re-spaced or changed and locked into place.

One Carriage for All Carrying Capacities

The fork carriage is designed to meet the load carrying capacity of the largest machine enabling one size to fit all models.
