1676 mm (66 in) Utility Grapple Forks

US
Metric

Overview

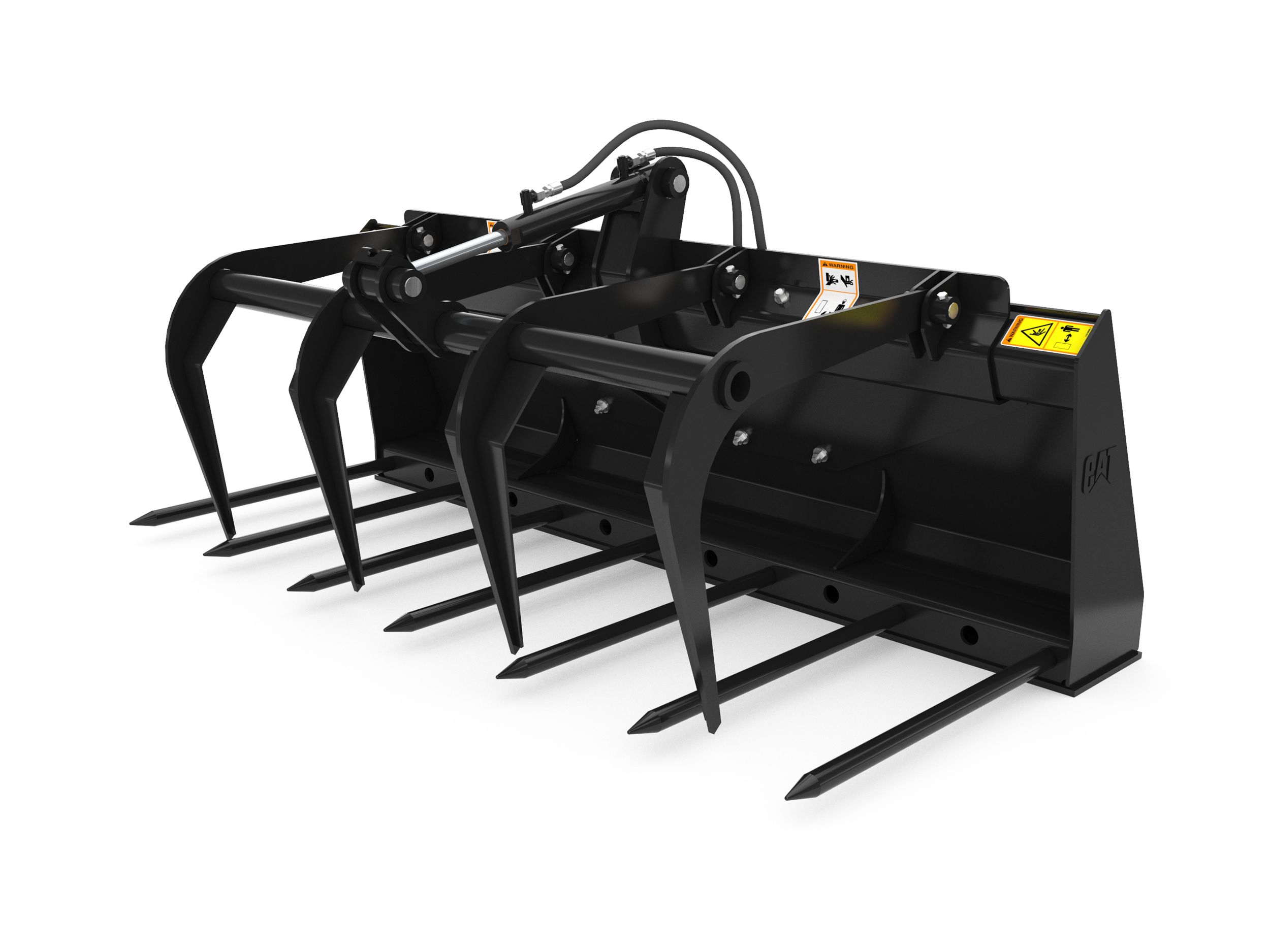

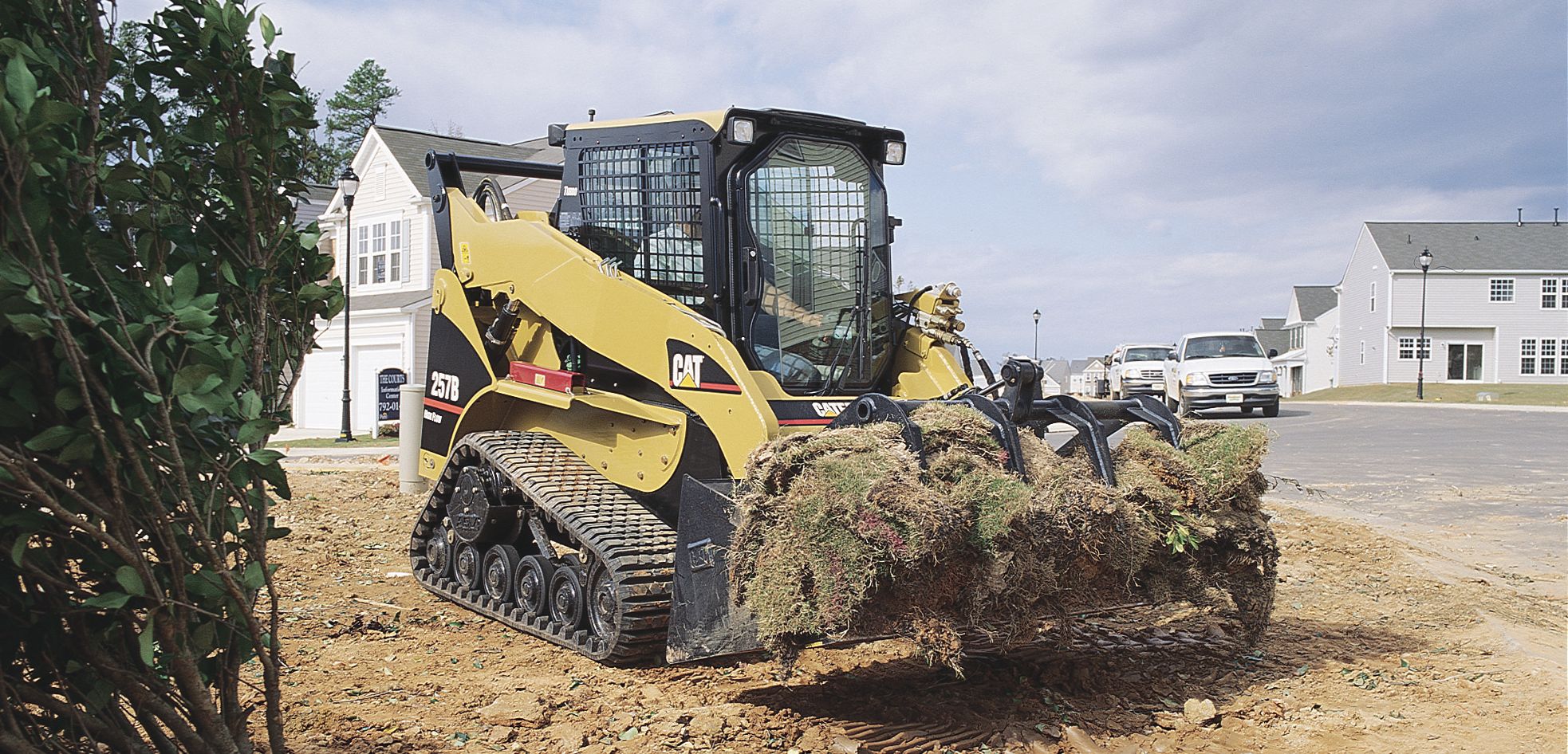

Cat® Utility Grapple Forks for Cat Skid Steer Loaders, Multi Terrain Loaders and Compact Track Loaders are designed to handle light, hard to handle materials encountered on a farm, ranch or landscaping project. The light duty design offers grasping capabilities for materials such as loose hay, straw, bedding materials, dry compacted livestock waste, landscaping mulch, pine straw and pierceable objects. NOTE: Utility grapple forks are not designed for piercing and carrying large, round bales.
Width
66.00 in
1676.00 mm
Height (grapples closed)
30.30 in
770.00 mm
Weight
672.40 lb
305.00 kg
Length
37.00 in
939.00 mm
Jaw Opening
34.50 in
876.00 mm
Exposed Fork Tine Length
25.00 in
637.00 mm
Fork Tine Diameter
1.30 in
31.75 mm
Number of Fork Tines
7
Height - Grapples Closed
30.30 in
770.00 mm
Jaw Opening
34.50 in
876.00 mm
Exposed Fork Tine Length
25.00 in
637.00 mm
Weight
672.40 lb
305.00 kg
Tine Diameter
1.30 in
31.75 mm
Width
66.00 in
1676.00 mm
Length
37.00 in
939.00 mm
Usable Tine Length
25.00 in
637.00 mm
Number of Tines
7
Tine Width
1.30 in
31.75 mm
Interface Type
Skid Steer Coupler
Features

Application

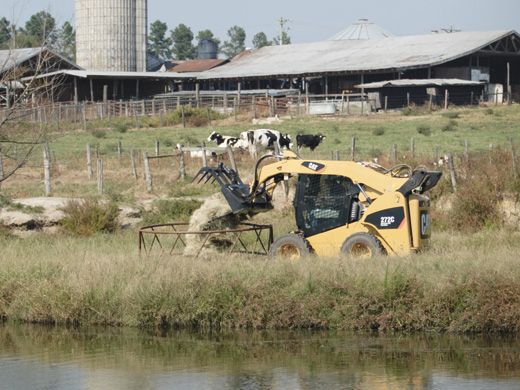

Designed to handle light, hard to handle materials encountered on a farm, ranch or landscaping project.

Light-duty Design

Light-duty design offers grasping capabilities for materials such as loose hay, straw, bedding materials, dry compacted livestock waste, landscaping mulch and pine straw.

Wide Jaw Opening

Wide vertical jaw opening allows for handling of bulky material.

Excellent Clamping

Heavy Duty grapple allow for clamping and grasping of odd shaped materials. Single grapple with wide clamp will grasp non uniform materials such as logs, rocks, and hay.

Not Designed for Large, Round Bales

NOTE: Utility Grapple Forks are not designed for piercing and carrying large, round bales.
