1829 mm (72 in) Industrial Grapple Forks

US
Metric

Overview

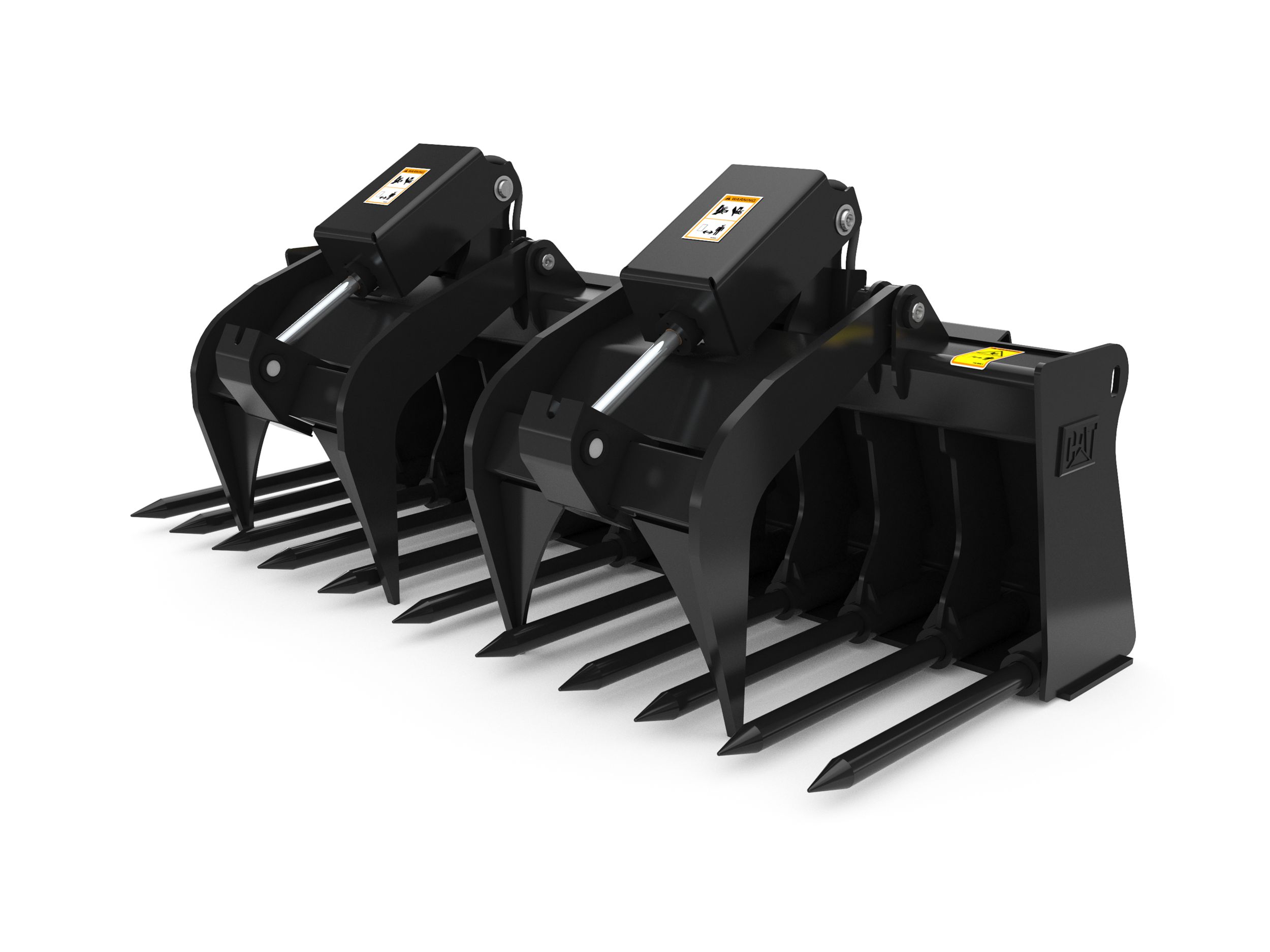

Cat® Industrial Grapple Forks for Cat Skid Steer Loaders, Multi Terrain Loaders, Compact Track Loaders, and Compact Wheel Loaders are designed to easily handle a wide array of bulky, loose, pierceable objects encountered in demolition, industrial, construction, recycling, and other aggressive applications.
Width
72.00 in
1829.00 mm
Height - Grapples Closed
32.00 in
814.00 mm
Weight
1208.10 lb
548.00 kg
Length
36.50 in
927.40 mm
Jaw Opening
38.00 in
965.00 mm
Exposed Fork Tine Length
22.00 in
553.00 mm
Tine Diameter
1.80 in
44.50 mm
Number of Tines
11
Width
72.00 in
1829.00 mm
Weight
1208.10 lb
548.00 kg
Length
36.50 in
927.40 mm
Number of Tines
11
Usable Tine Length
22.00 in
553.00 mm
Features

Application

Ideal for grasping objects such as railroad ties, trees, large rocks, brush, industrial and demolition scrap and recycling debris. Industrial grapple forks are also great for piercing and grasping paper, cardboard, wood and light-gauge metal scrap.

Rugged Design

Heavy-duty construction provides superior structural durability in aggressive conditions found in demolition, construction and recycling.

Wide Jaw Opening

Wide vertical jaw opening allows for handling of large, bulky material.

Excellent Clamping

Independently controlled grapple assemblies allow for grasping of irregularly shaped objects.
