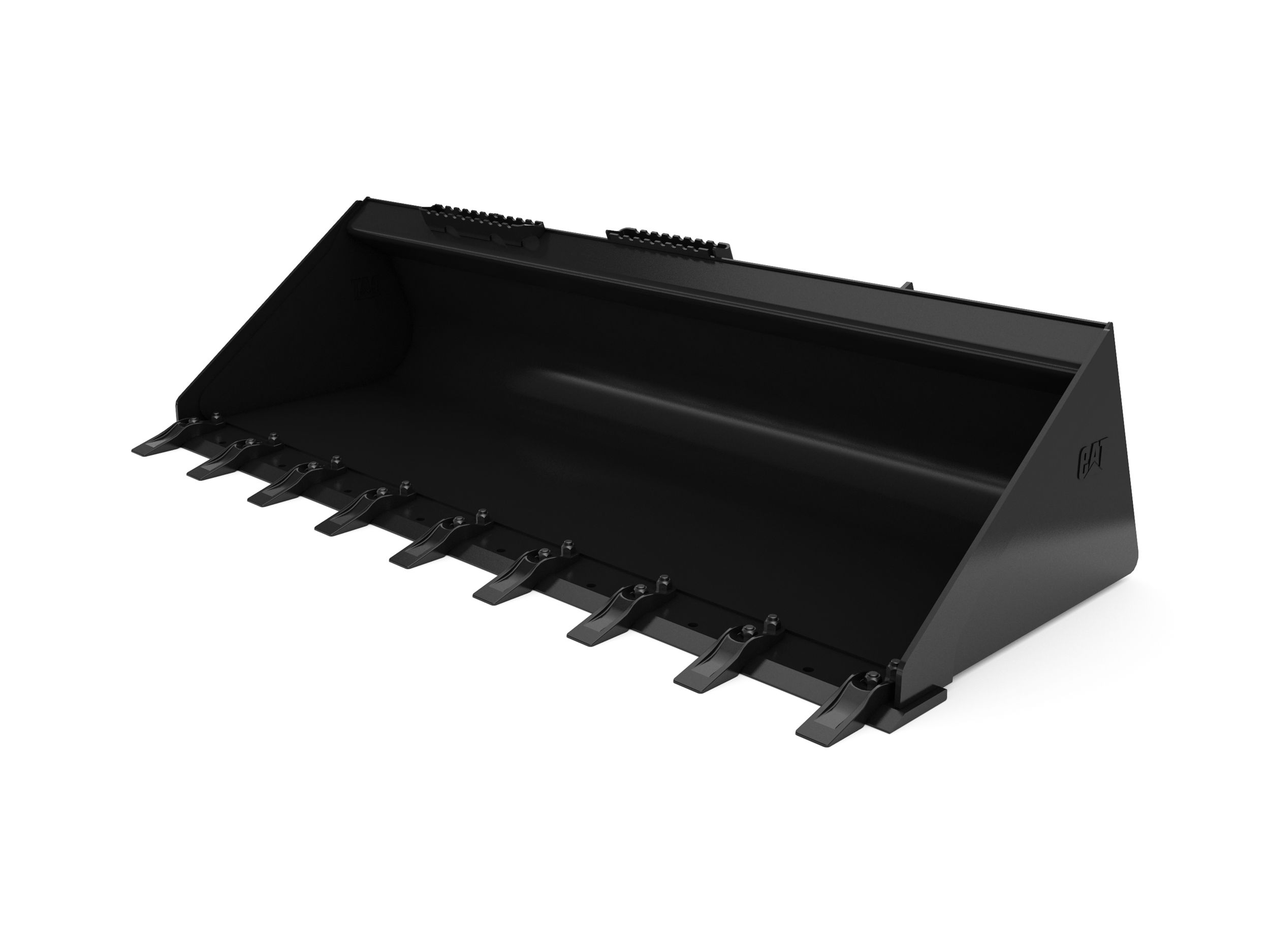

2036 mm (80 in) General Purpose Bucket With Bolt-On Teeth

US
Metric

Overview

Cat® General Purpose Buckets for Cat Skid Steer Loaders and Compact Track Loaders are designed for digging, loading, carrying, leveling, grading and dumping in a variety of applications and materials. These all-purpose buckets are ideal for construction, landscaping, industrial and more aggressive demolition applications.
Width
80.20 in
2036.00 mm
Capacity
0.63 yd³
0.48 m³
Weight
582.00 lb
264.00 kg
Height
16.80 in
426.00 mm
Length
27.90 in
708.00 mm
Base Edge Thickness
0.70 in
19.00 mm
Interface Type
Skid Steer Coupler
Features

Application

Designed for digging, loading, carrying, leveling, grading and dumping in a variety of applications and materials. These all purpose buckets are ideal for construction, landscaping, industrial and more aggressive demolition applications.

Optimum Bucket Geometry

Low back height profile and long floor length, combined with formed back wrapper and optimum wrapper angle, result in excellent visibility to the front cutting edge and front corners, and superior loading and dumping.

Full Length Skid Bars

Full length skid bars provide additional floor rigidity and wear resistance.

Rugged Design

Hardened steel base and side cutting edges provide excellent penetration, durability and wear life.

Ground Engaging Tool Options

Base bucket also available with bolt-on cutting edge, bolt-on teeth and bolt-on tooth bar.
