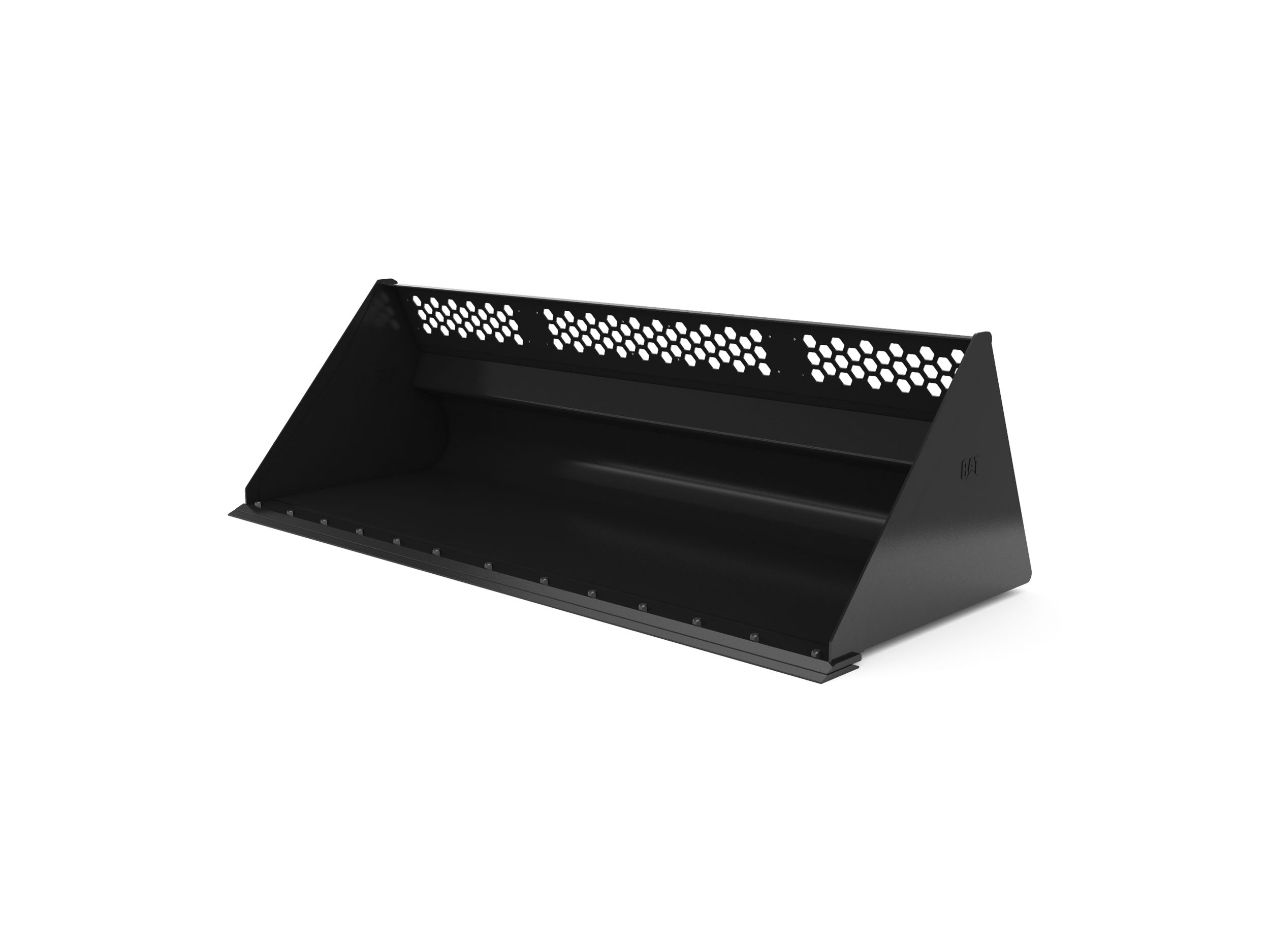

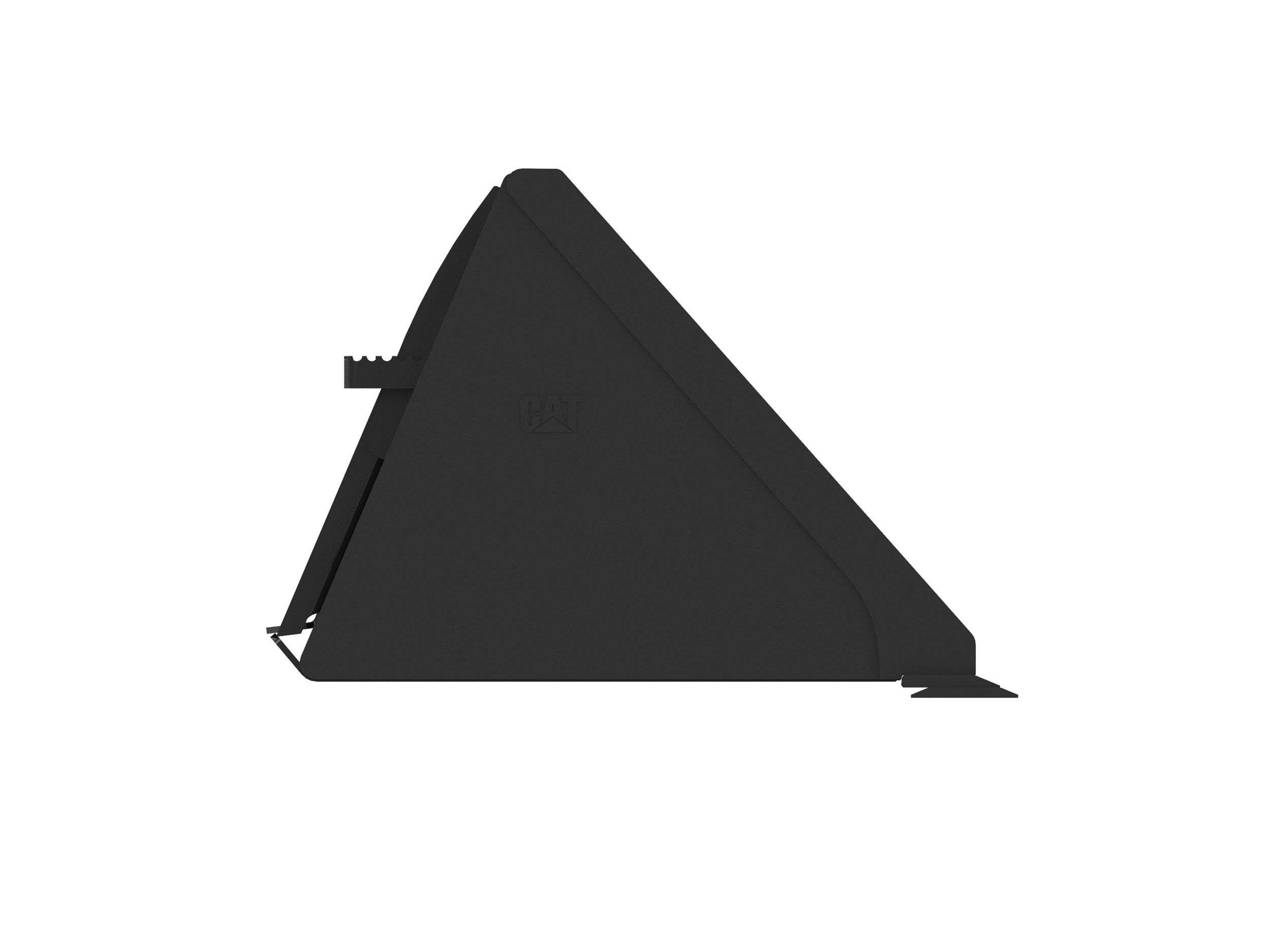

2642 mm (104 in) Material Handling Bucket With Bolt-On Cutting Edge

US
Metric

Overview

Cat® Material Handling Buckets for Cat Skid Steer Loaders and Compact Track Loaders are designed for loading, carrying, dumping and handling light, loosely packed material in agricultural and landscaping applications. They are specifically for applications where a larger capacity than Light Material Buckets is needed.
Width
104.00 in
2642.00 mm
Capacity
1.74 yd³
1.33 m³
Weight
922.00 lb
418.00 kg
Height
32.00 in
814.00 mm
Base Edge Thickness
0.70 in
19.00 mm
Cutting Edge Thickness
0.60 in
16.00 mm
Interface Type
Skid Steer Coupler
Length
45.50 in
1156.00 mm
Features

Rigid Bucket Floor

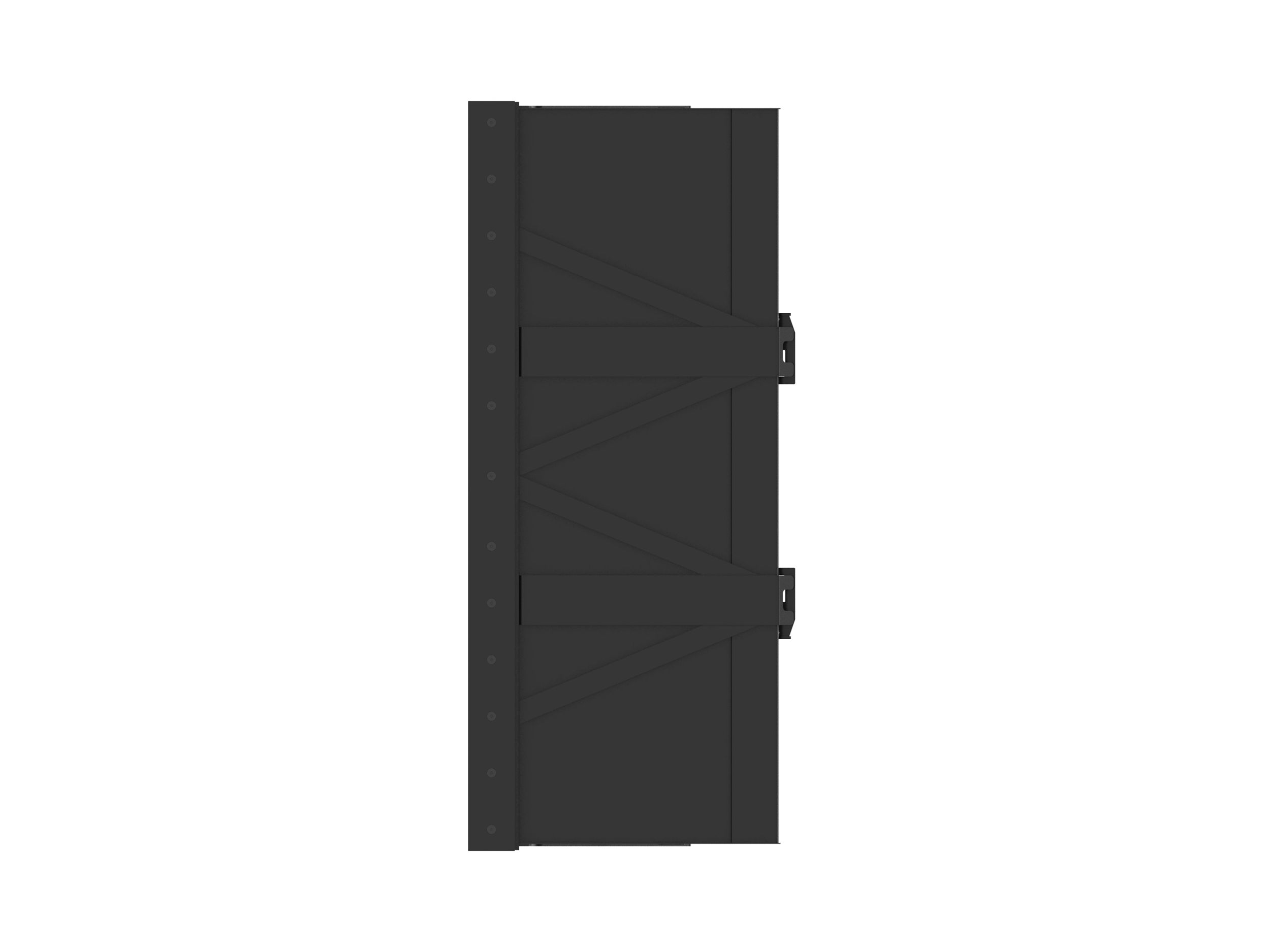

Material Handling Buckets incorporate underside support straps to elongate the life of the bucket and ensure minimal wear to the wrapper sheet.

Integrated Step

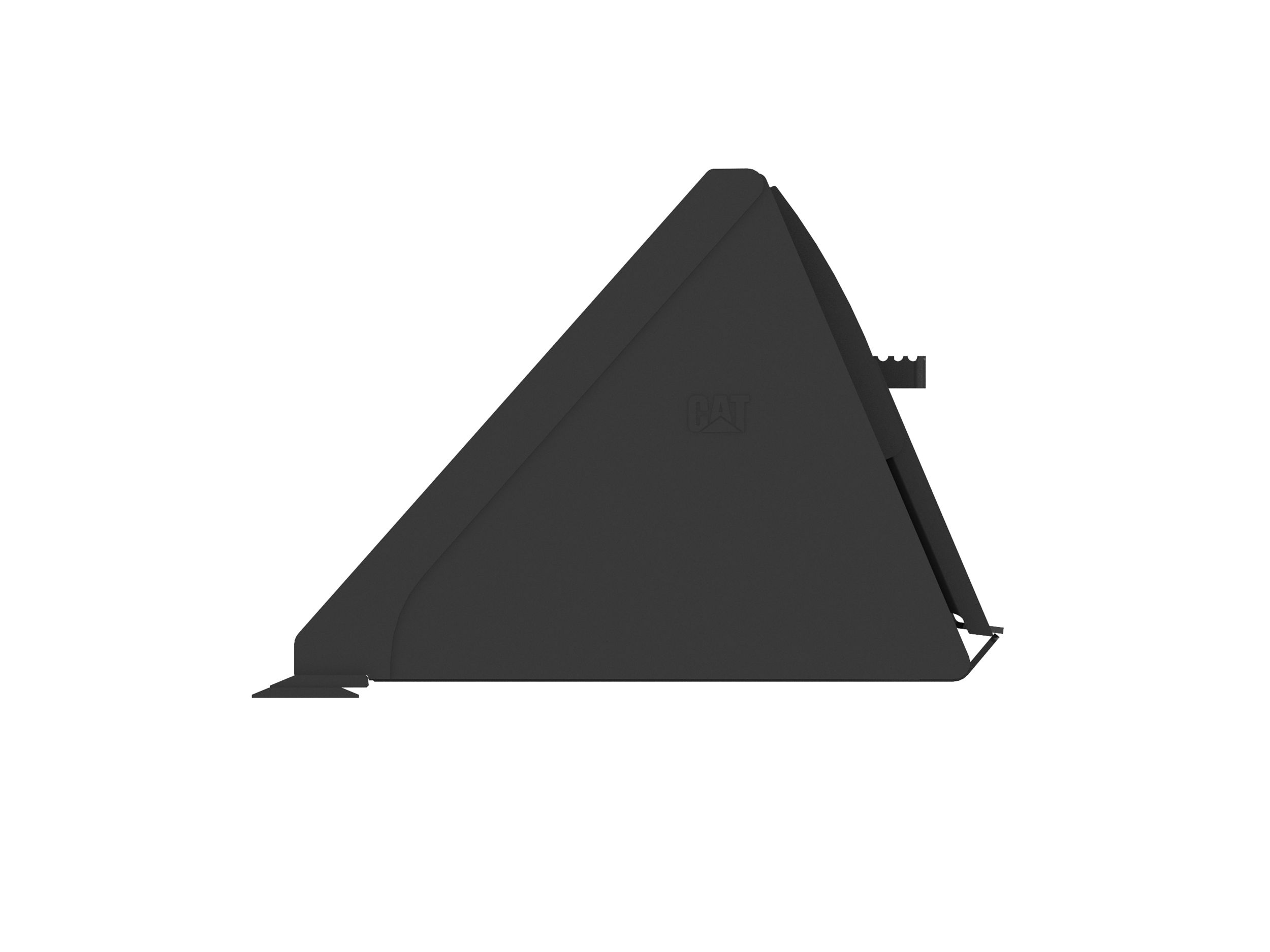

Integrating a serrated step onto the side of the bucket ensures safe entry and exit from the machine cab without having to step over the center of the work tool.

Bolt-On Cutting Edge

Bolt-On cutting edges ensure a ground engaging wear surface that is easily replaced when needed, prolonging the life of the bucket.

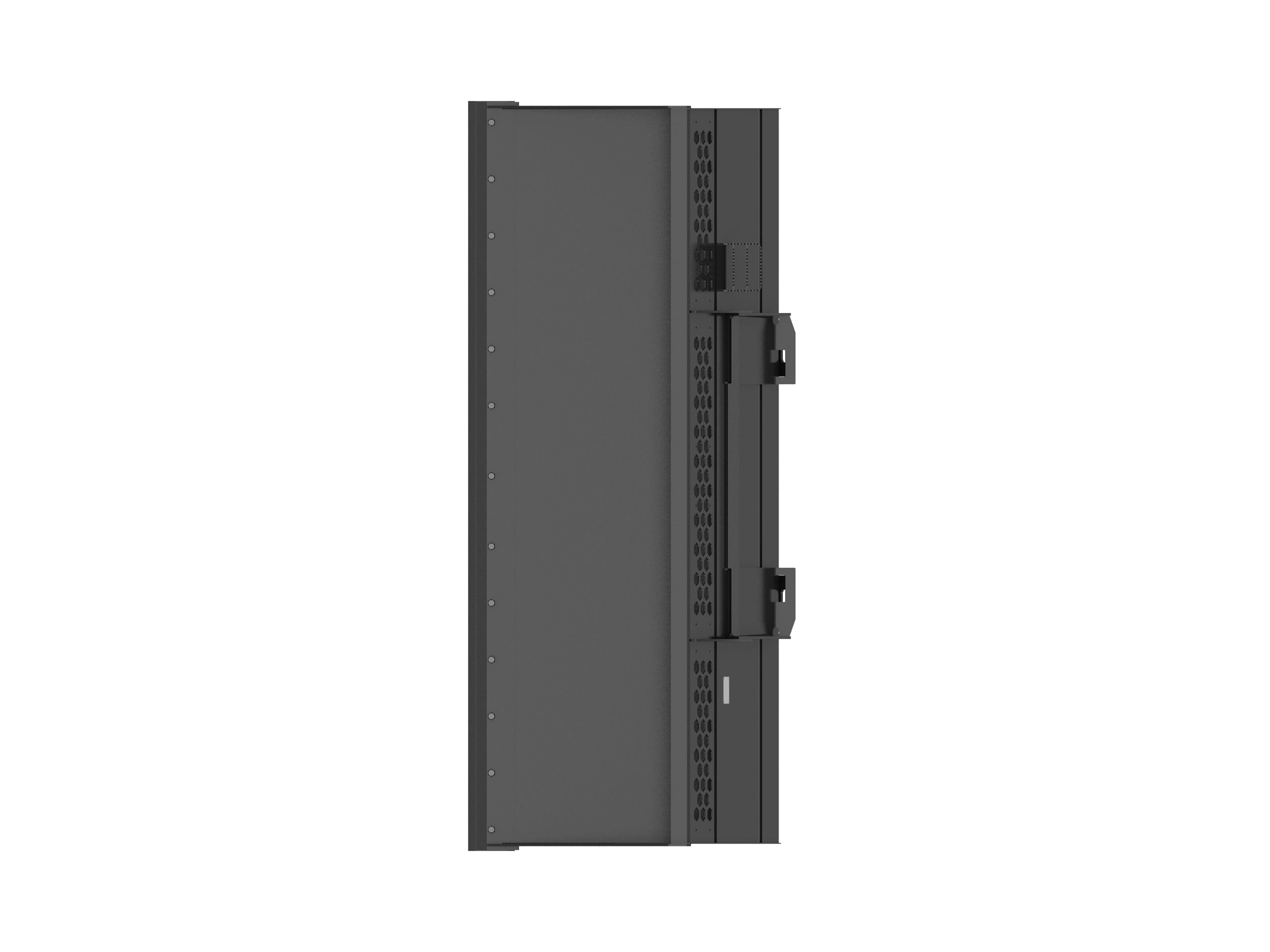

Torque Tube for Increased Rigidity

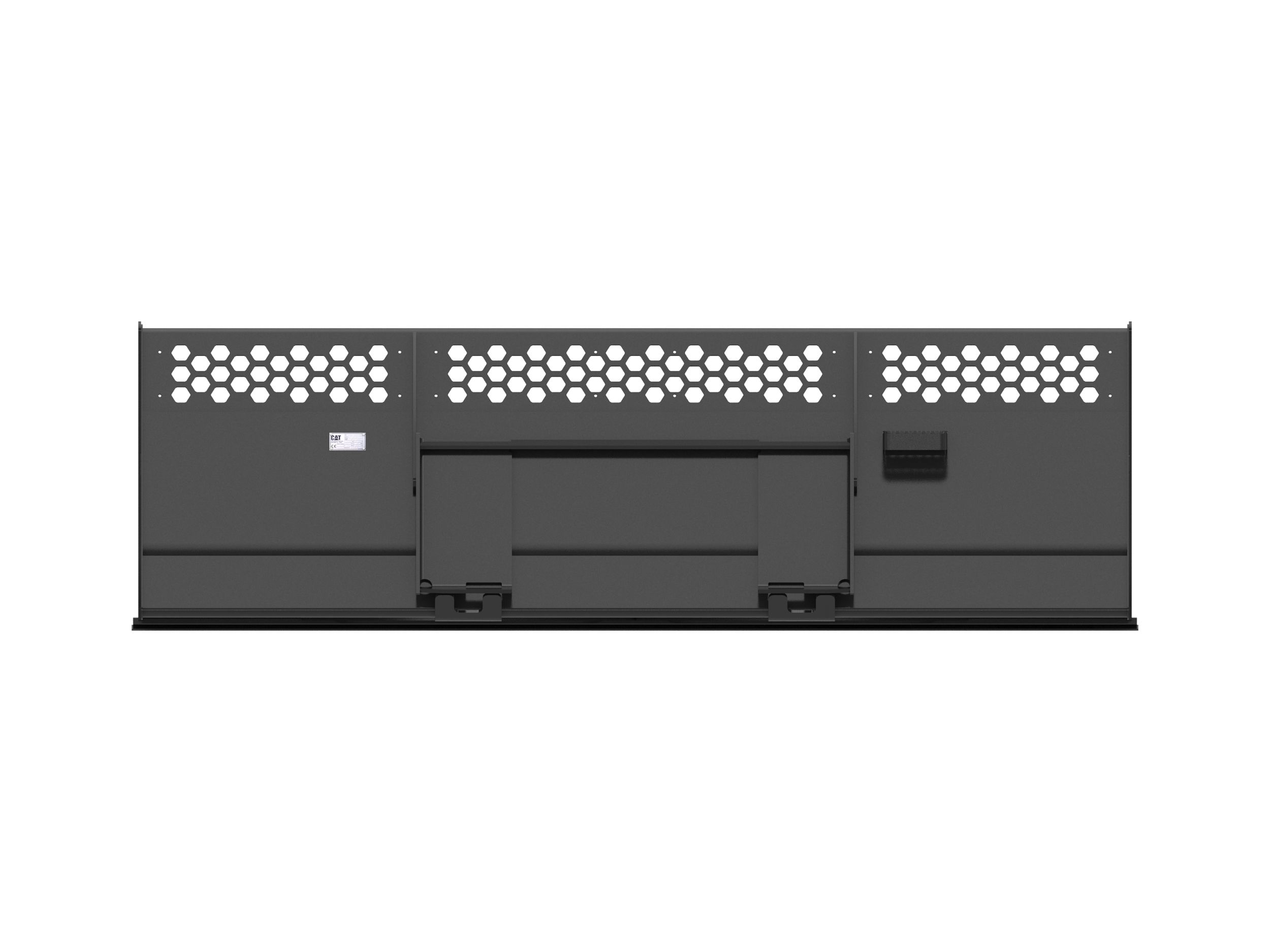

A large torque tube located on the back side of the bucket ensures that it can withstand machine forces and large capacity loads.

Visibility Honeycomb

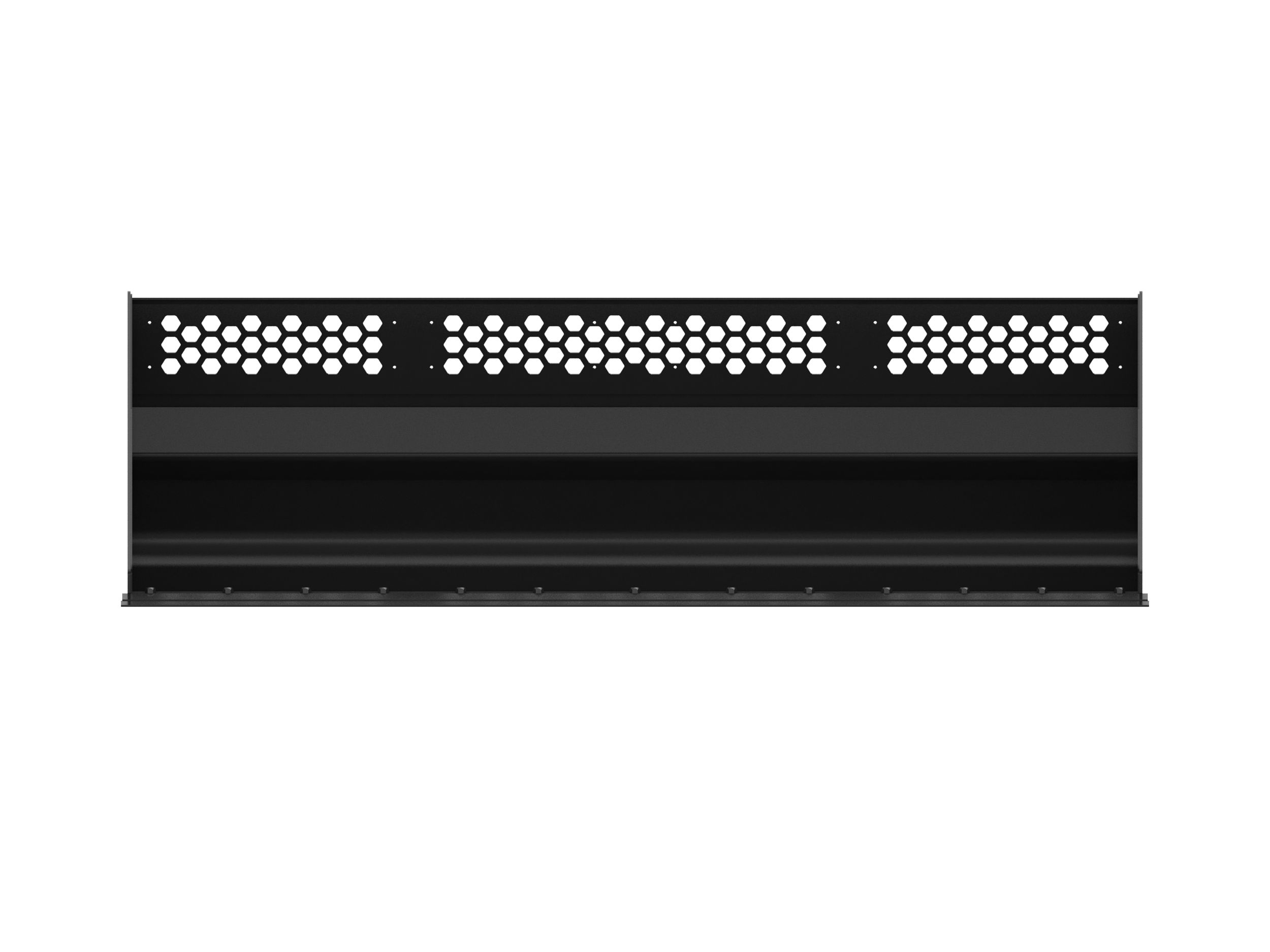

Located above the Torque Tube structural support, the honeycomb visibility section allows the operator to easily view the cutting edge to ensure accurate placement and loading.
