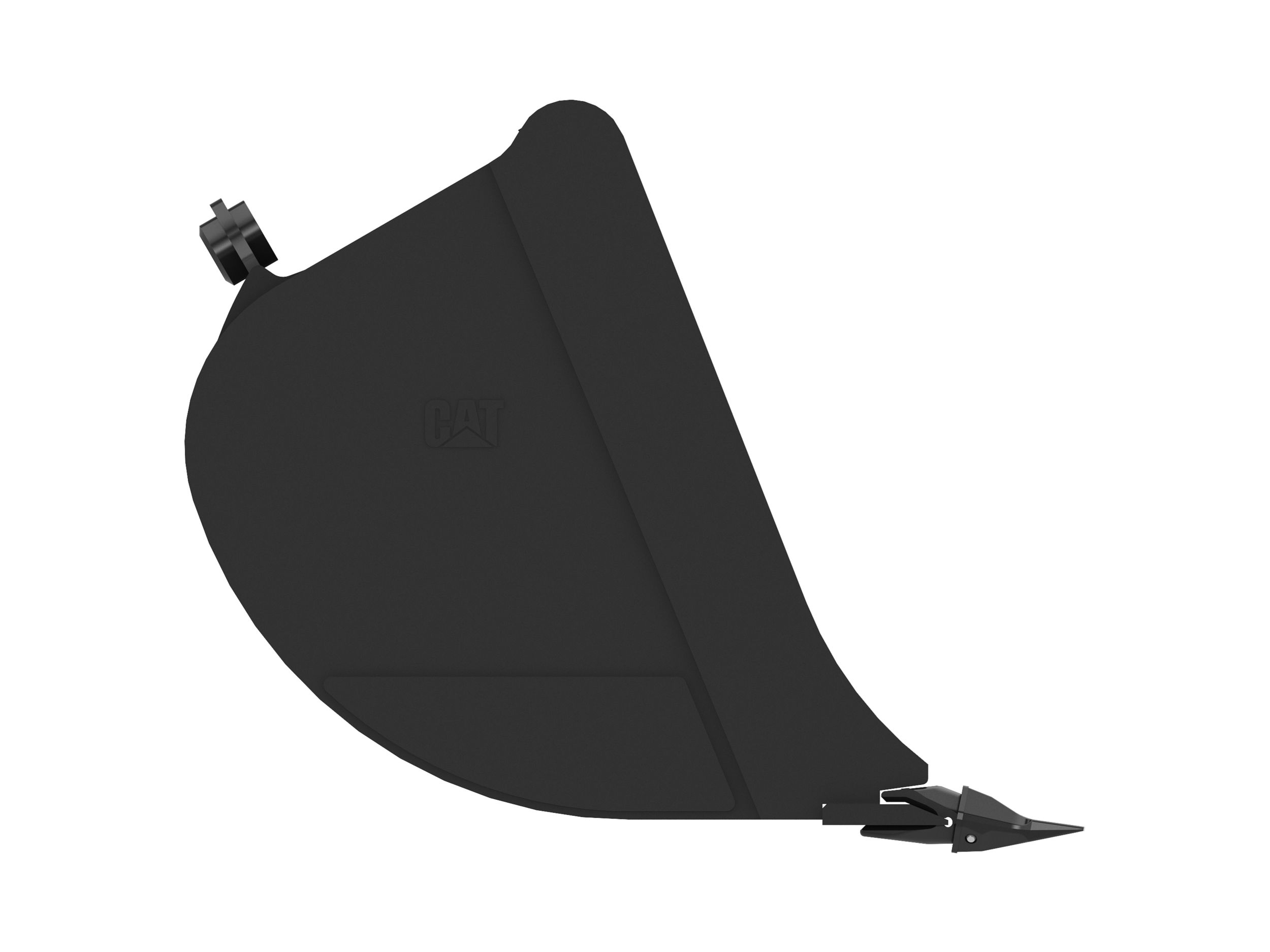

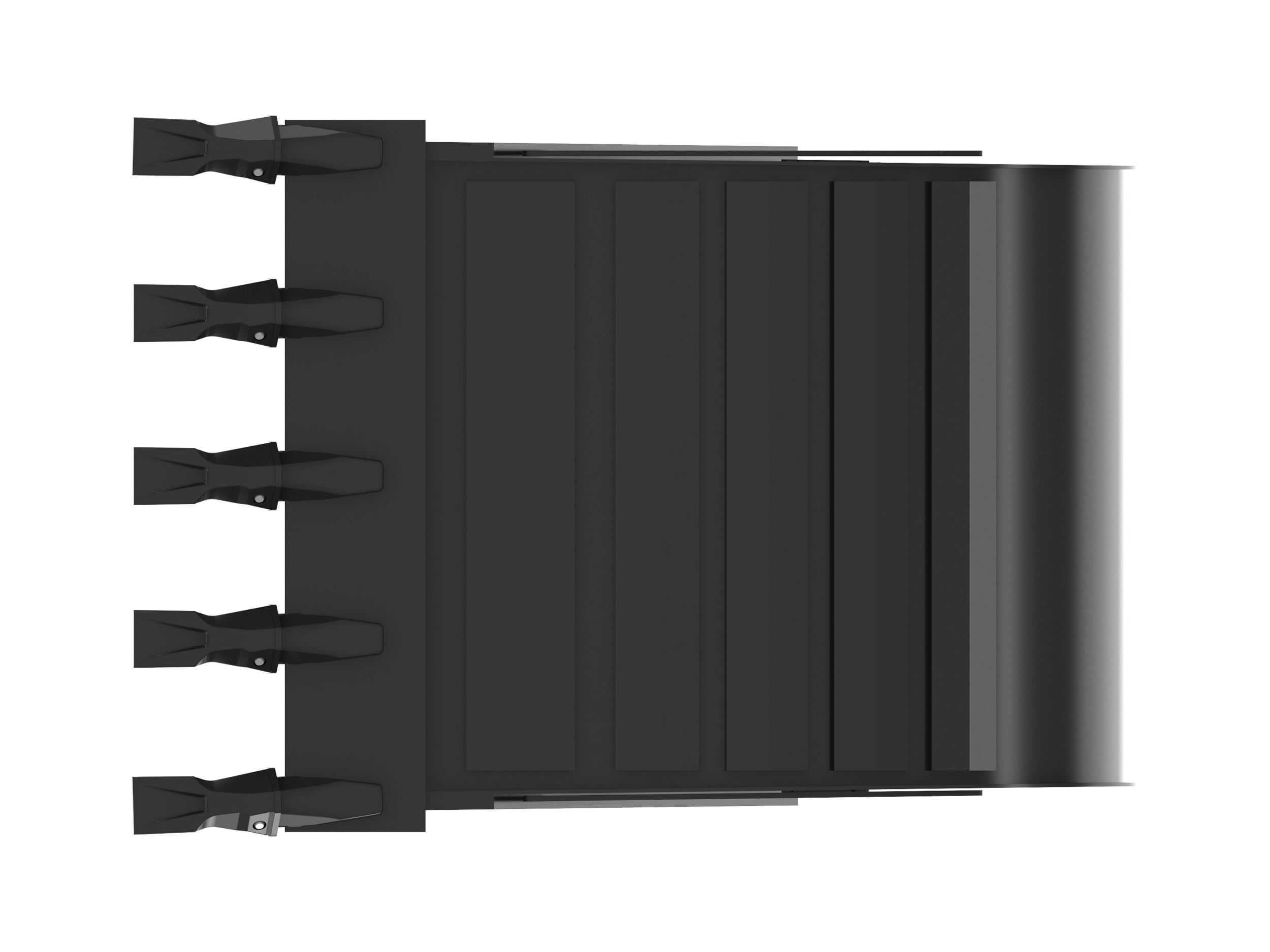

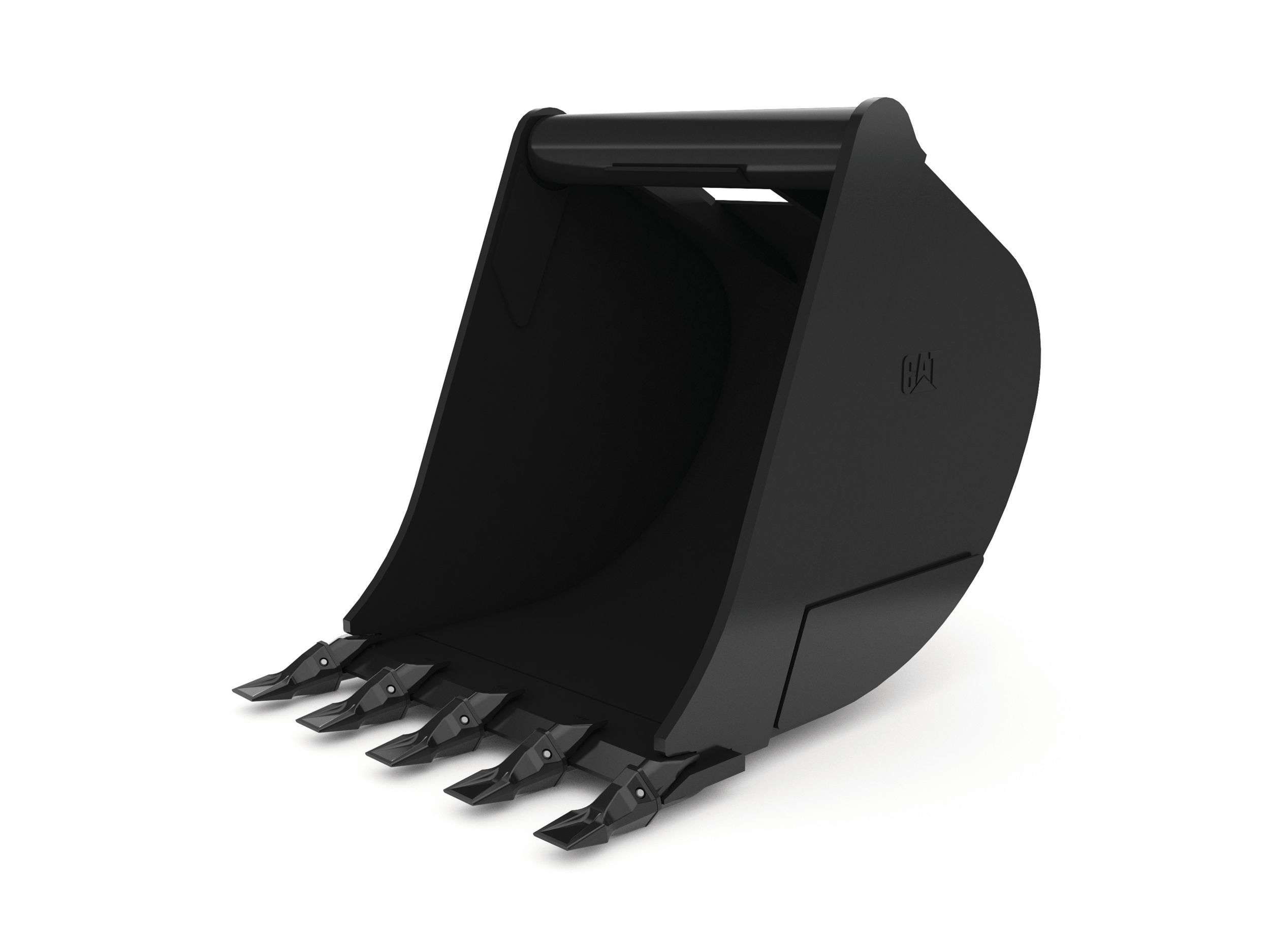

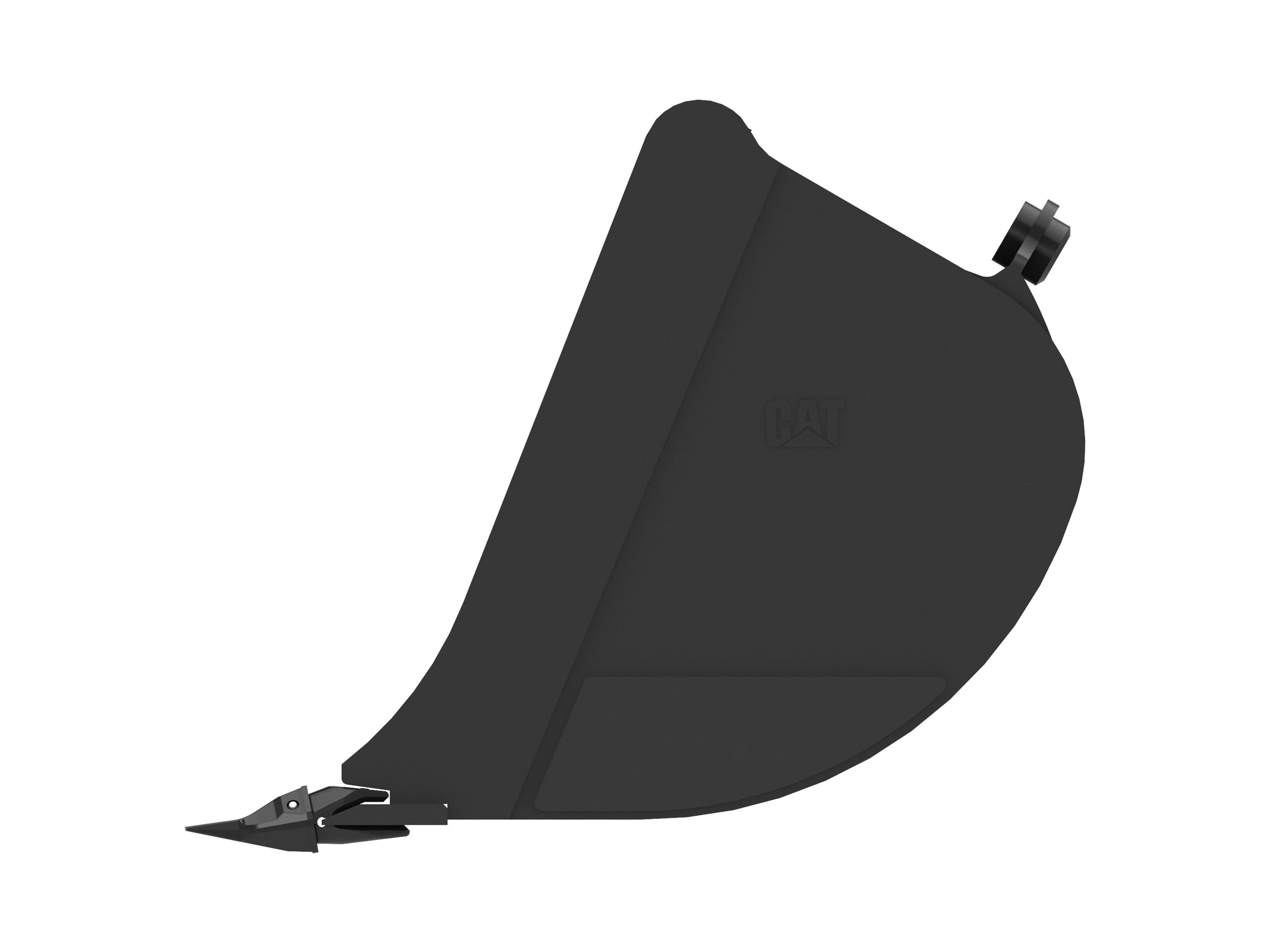

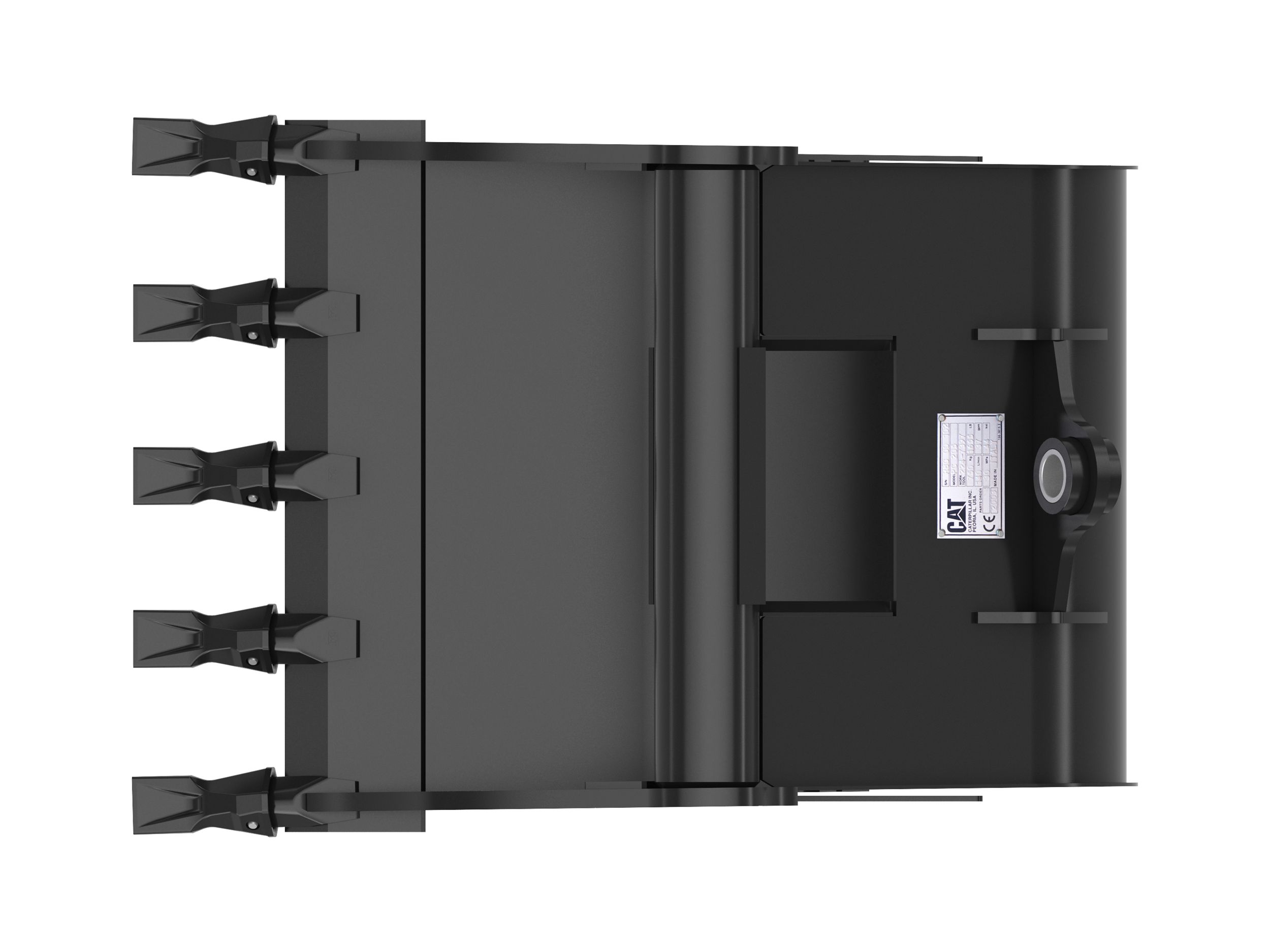

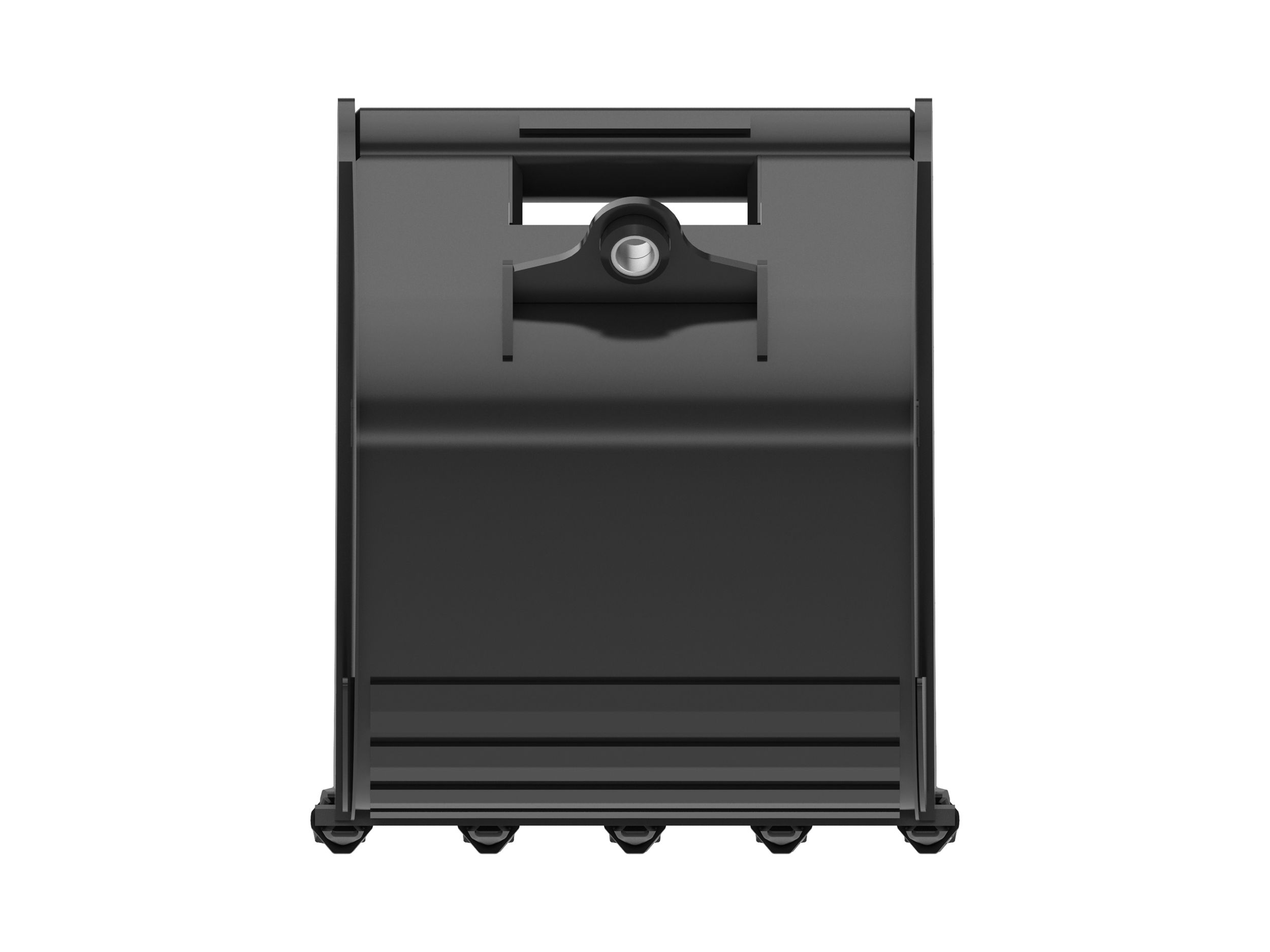

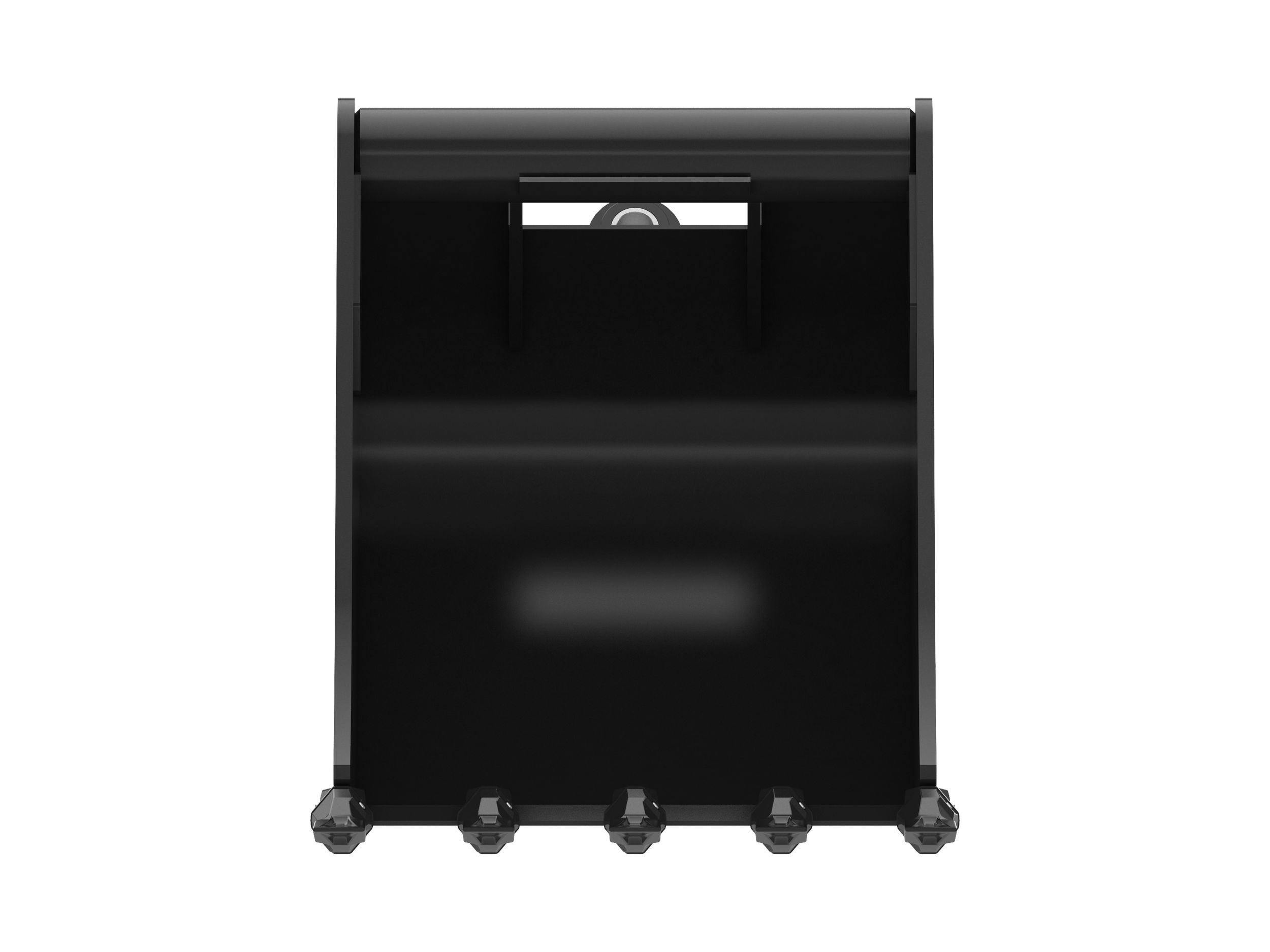

762 mm (30 in) Pin Lock High Capacity Bucket

US
Metric

Overview

Cat® High-Capacity Buckets for Backhoe Loaders are well suited for work in lower density soils and light materials.
Width
30.00 in
762.00 mm
Rated Capacity
12.70 ft3
360.00 L
Weight
489.40 lb
222.00 kg
Base Edge Thickness
1.00 in
25.00 mm
Tip Radius
42.70 in
1084.00 mm
Width
30.00 in
762.00 mm
Rated Capacity
12.70 ft³
360.00 l
Weight
489.40 lb
222.00 kg
Base Edge Thickness
1.00 in
25.00 mm
Tip Radius
43.00 in
1084.00 mm

Specifications

Capacity
12.70 ft³
360.00 l

Interface Type

Interface Type
Pin lock

Capacity
12.70 ft³
360.00 l
Interface Type
Pin Lock
Features

Application

Well suited for work in lower density soils and light materials. Cat® High Capacity Buckets have the same durable characteristics as heavy duty buckets but are capable of moving greater volumes.

Bucket Shape

Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.

Rugged Design

Cat® Buckets are designed for superior productivity, reliability and long life.
