Overview

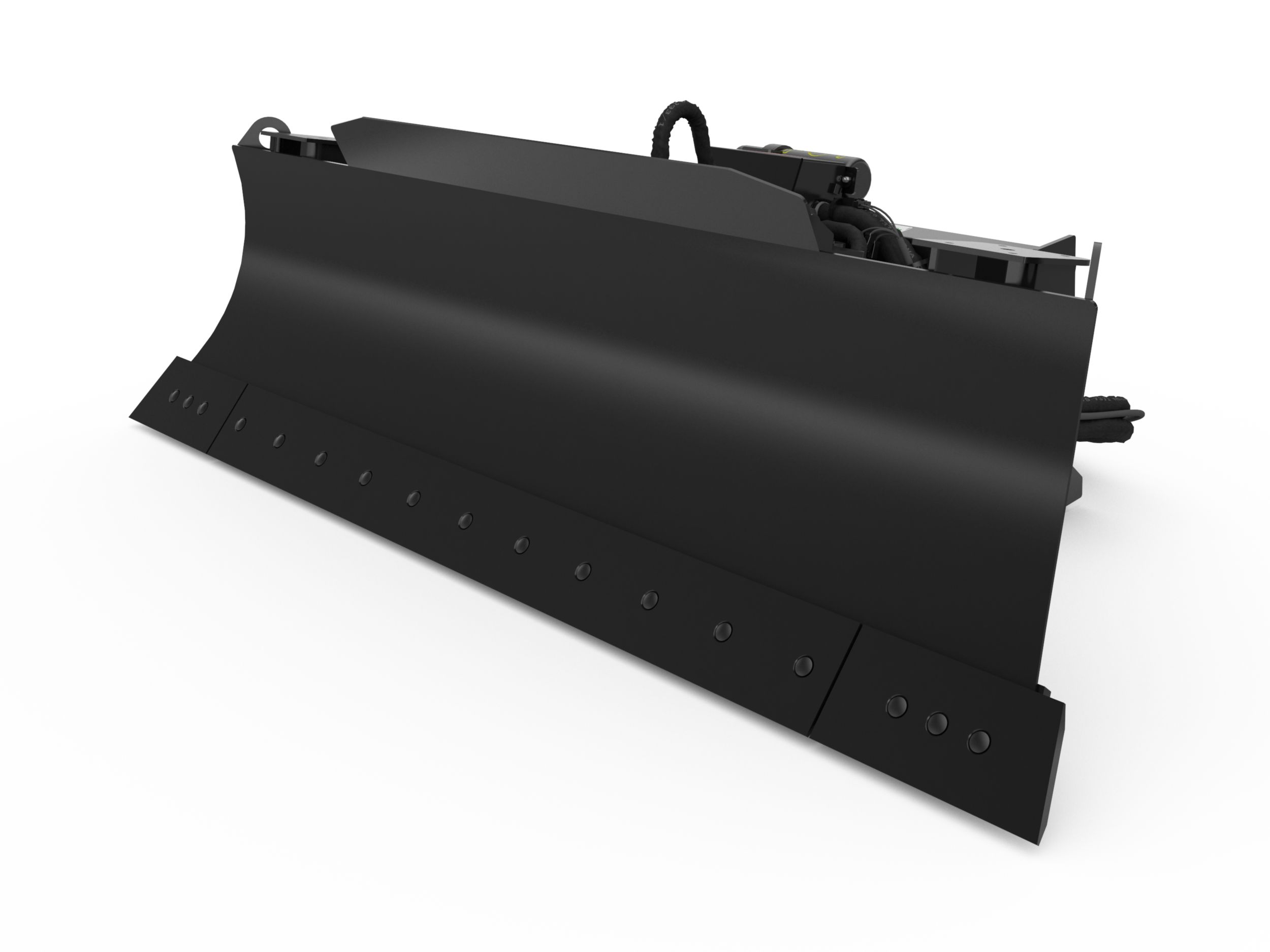

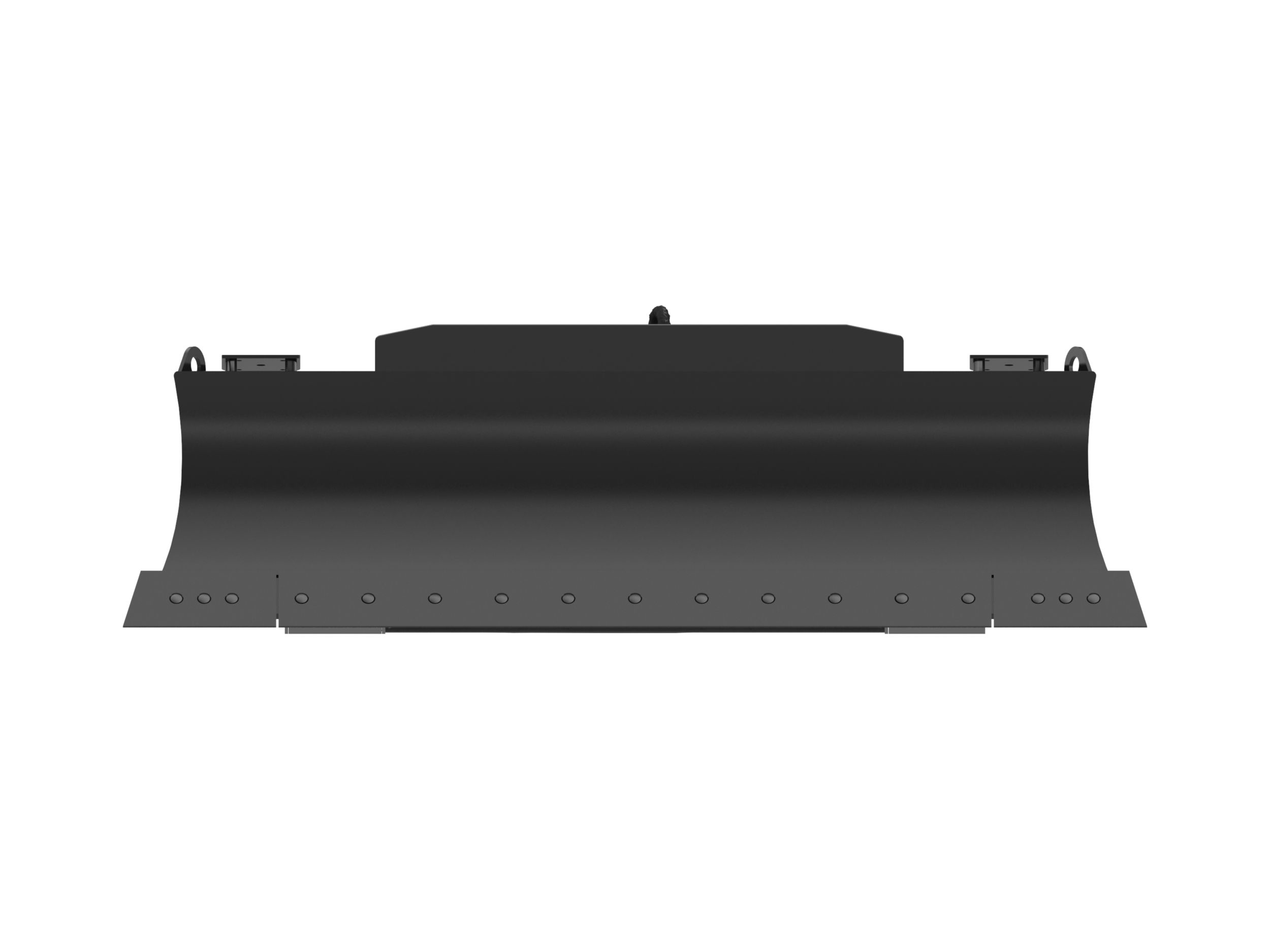

Cat® Dozer Blades are designed for rough and finish grading in dirt and gravel, and light dozing. With their 6-way capabilities, dozer blades are better suited for finish grade work in construction and landscaping applications.
Overall Width
92.00 in
2337.00 mm
Width - Fully Angled
81.00 in
2049.00 mm
Maximum Blade Angle (right/left of center)
±30 degrees
Tilt
±10 degrees
Blade Height
24.00 in
619.00 mm
Length
40.00 in
1028.00 mm
Weight
1164.00 lb
528.00 kg
Cutting Edge Thickness
0.63 in
16.00 mm
Required Hydraulics
Standard Flow
Required Hydraulic Flow
49-125 L/min (13-33 gpm)
Optimum Hydraulic Pressure
206-311 bar (3000-4500 psi)
Overall Width
92.00 in
2337.00 mm
Blade Height
24.00 in
619.00 mm
Cutting Edge Thickness
0.63 in
16.00 mm
Length
40.00 in
1028.00 mm
Maximum Blade Angle - Right/Left of Center
±30 degrees
Required Hydraulic Flow
49-125 L/min (13-33 gpm)
Tilt
±10 degrees
Weight
1164.00 lb
528.00 kg
Required Hydraulics
Standard Flow
Interface Type
Skid Steer Coupler
Features

Application

Designed for rough and finish grading in dirt and gravel as well as for light dozing.

6-Way Capability

With their 6-way capabilities, dozer blades are better suited for finish grade work in construction and landscaping applications than angle blades.

VPAT Design

Track-type tractor variable power angle tilt (VPAT) design with simultaneous tilt and angling capability delivers superior control and maneuverability.

Easy Operation

Operation of Cat® Blade is easy with Cat joystick controls.

Replaceable Cutting Edge

Three-piece, replaceable, bolt-on, hardened cutting edge delivers long life and high performance.
