Overview

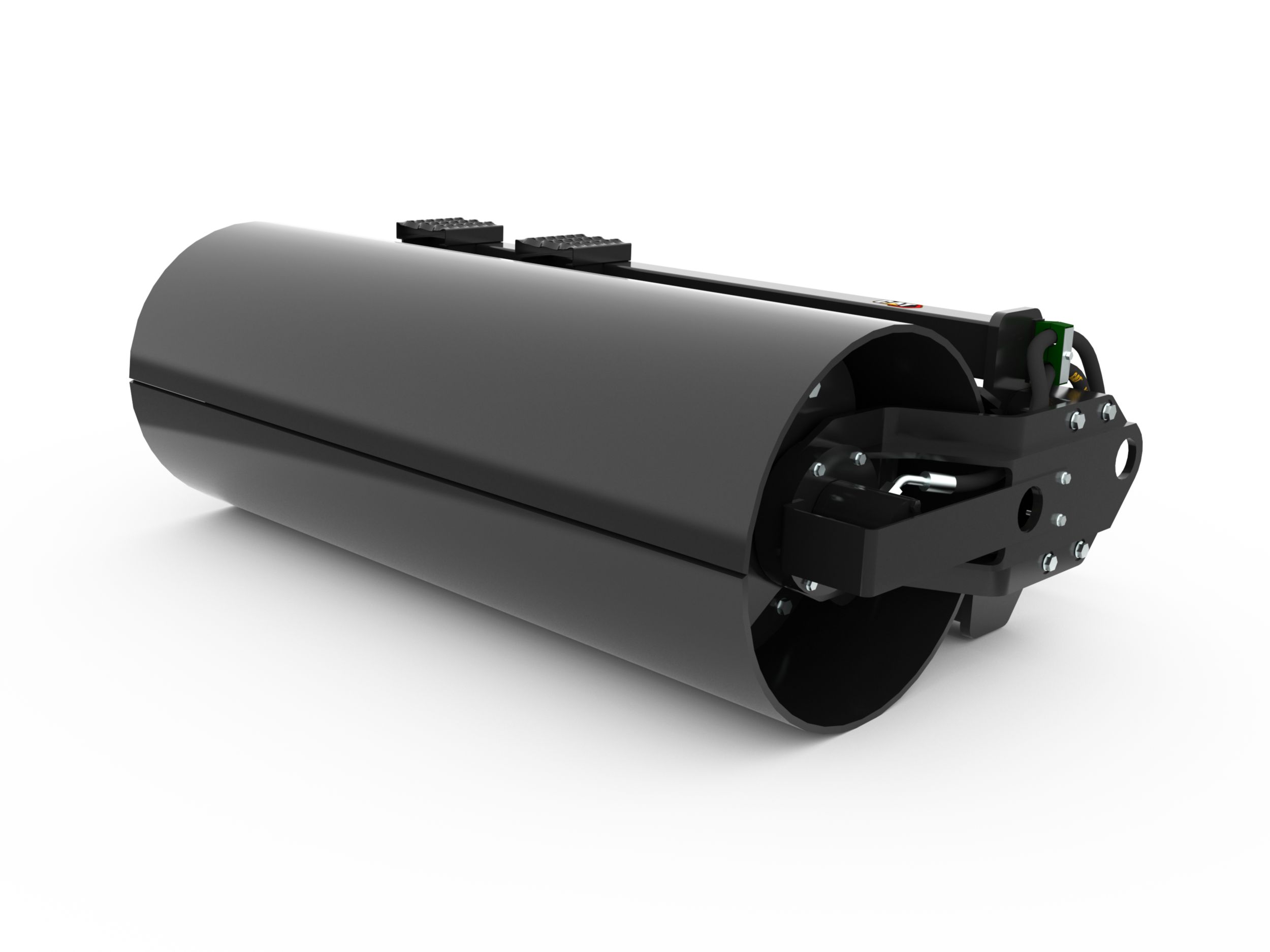

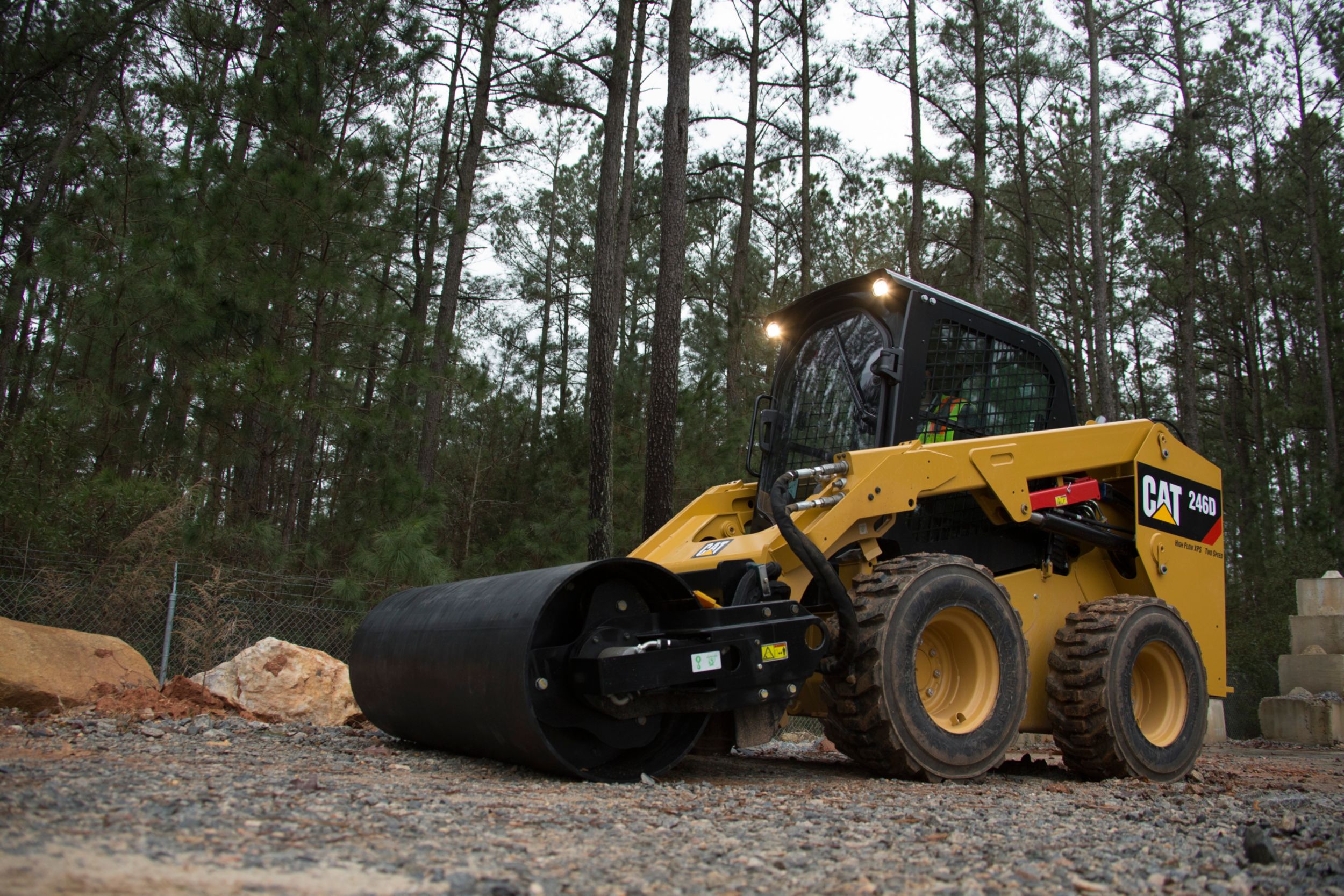

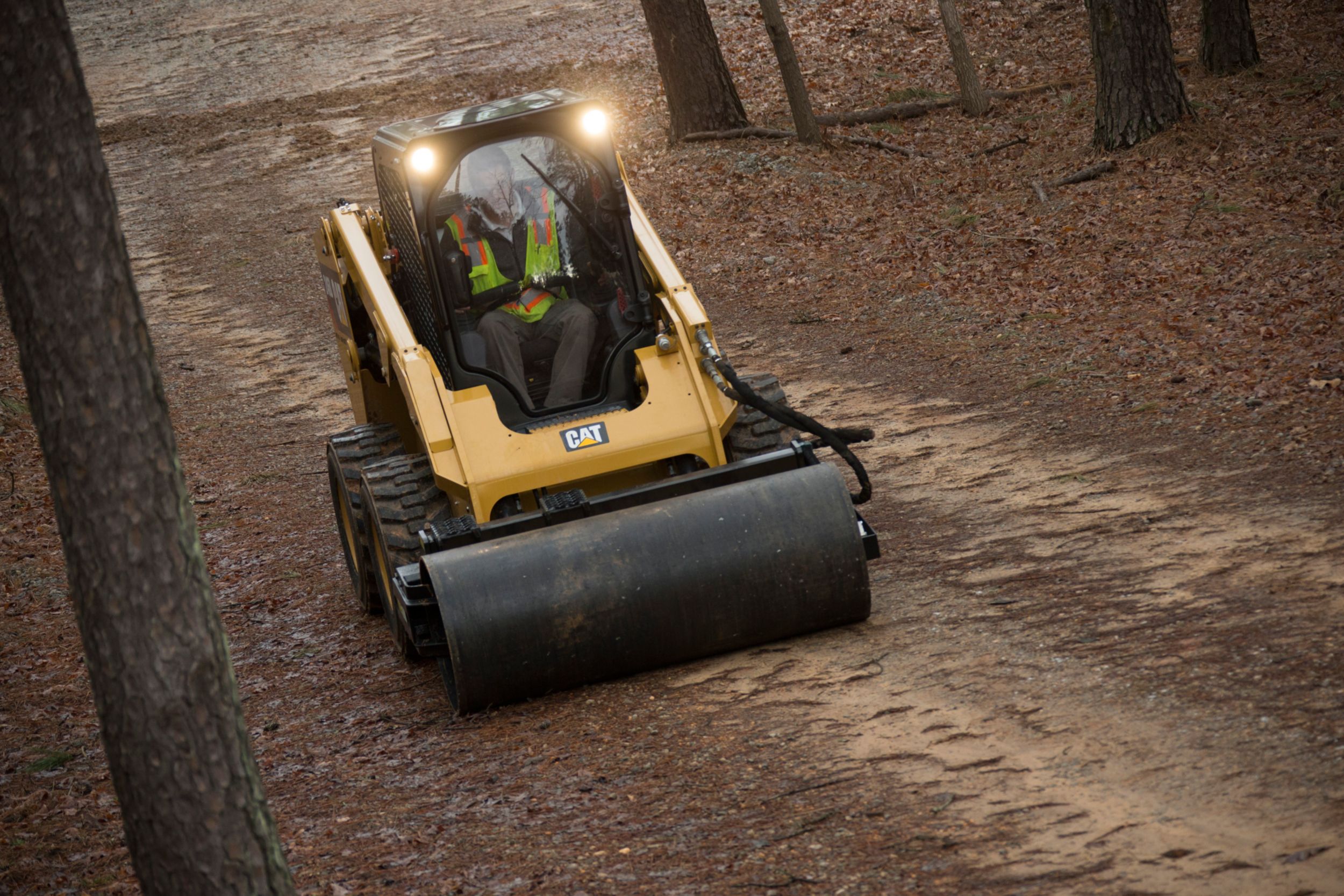

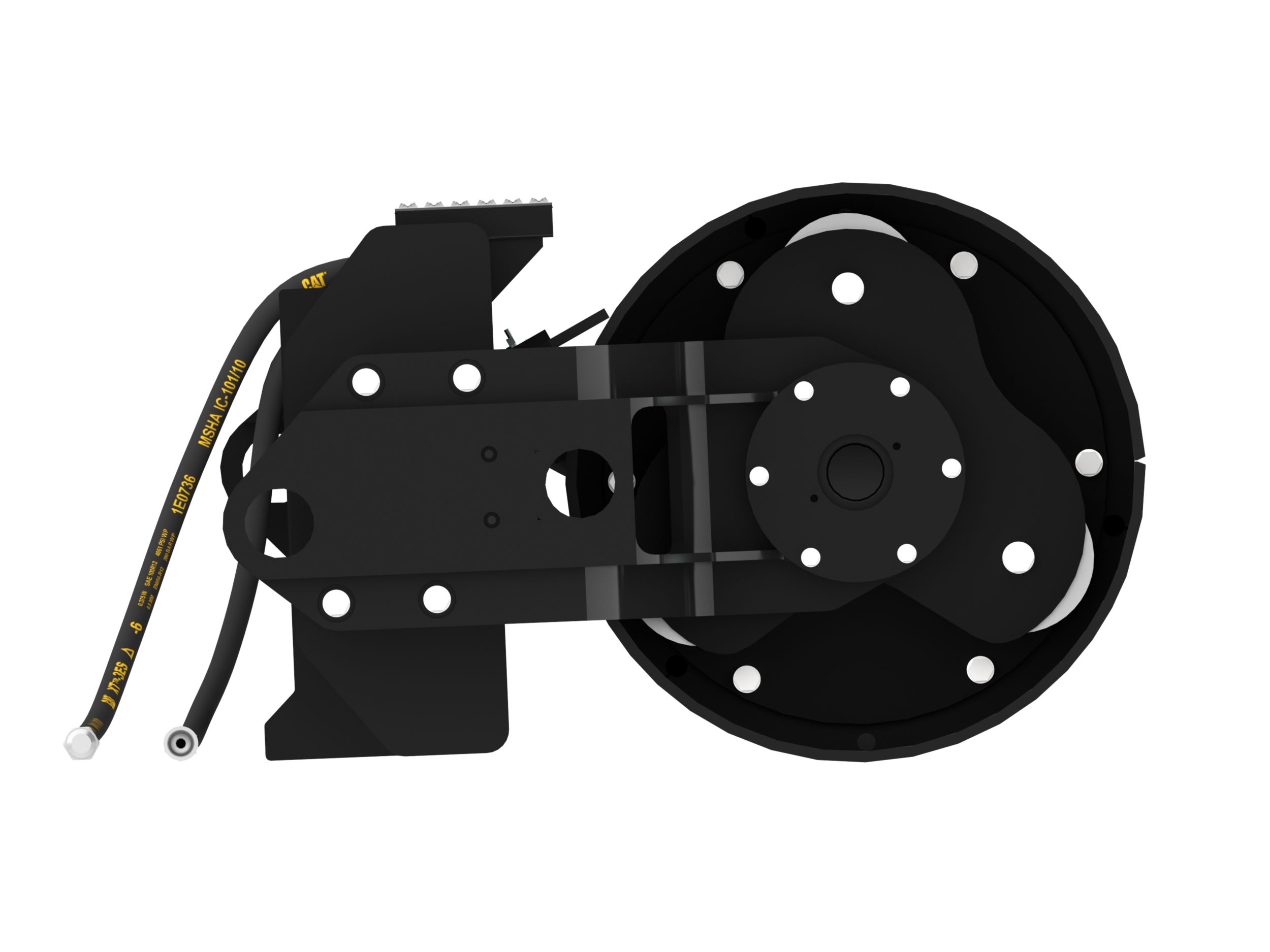

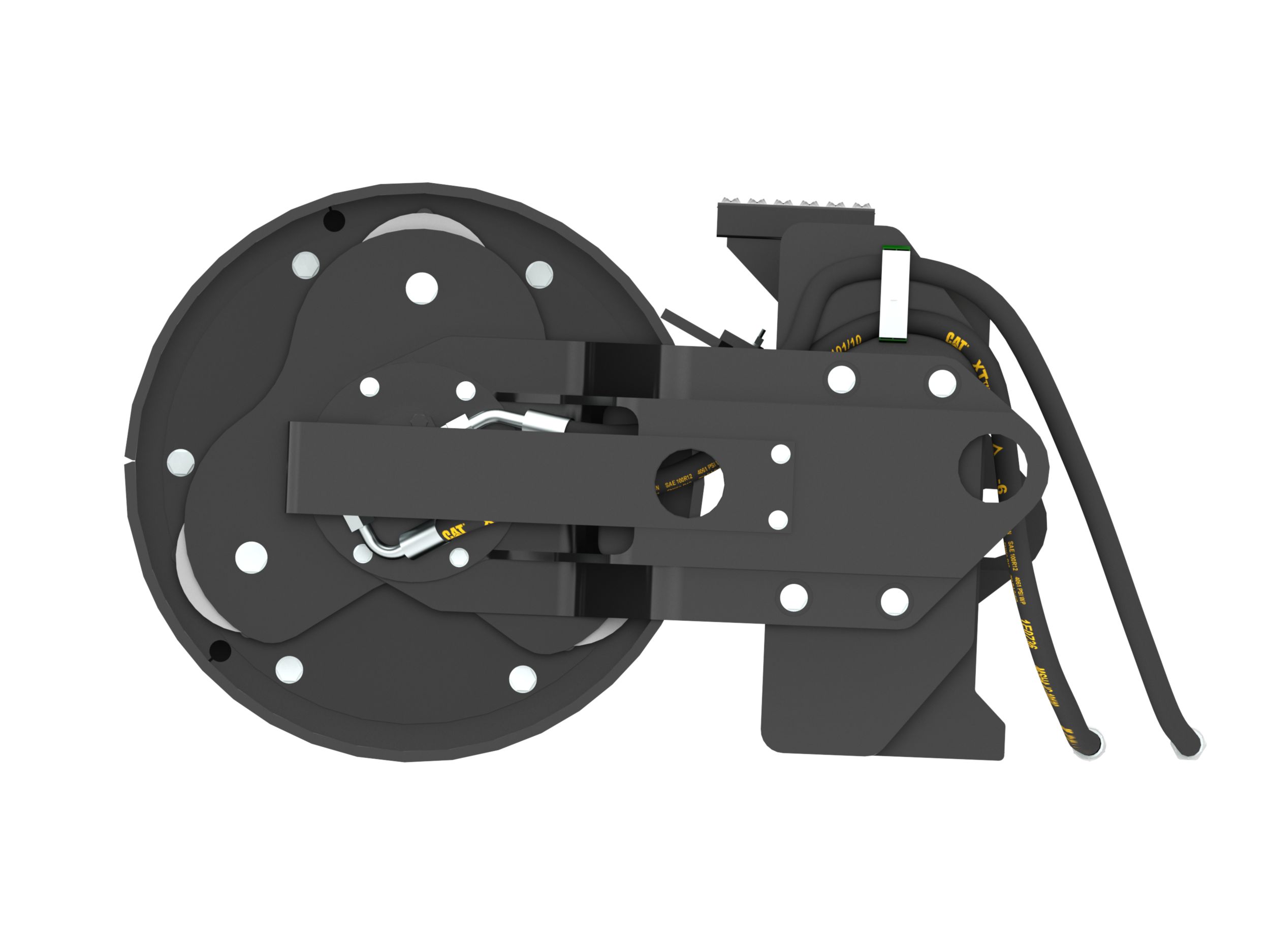

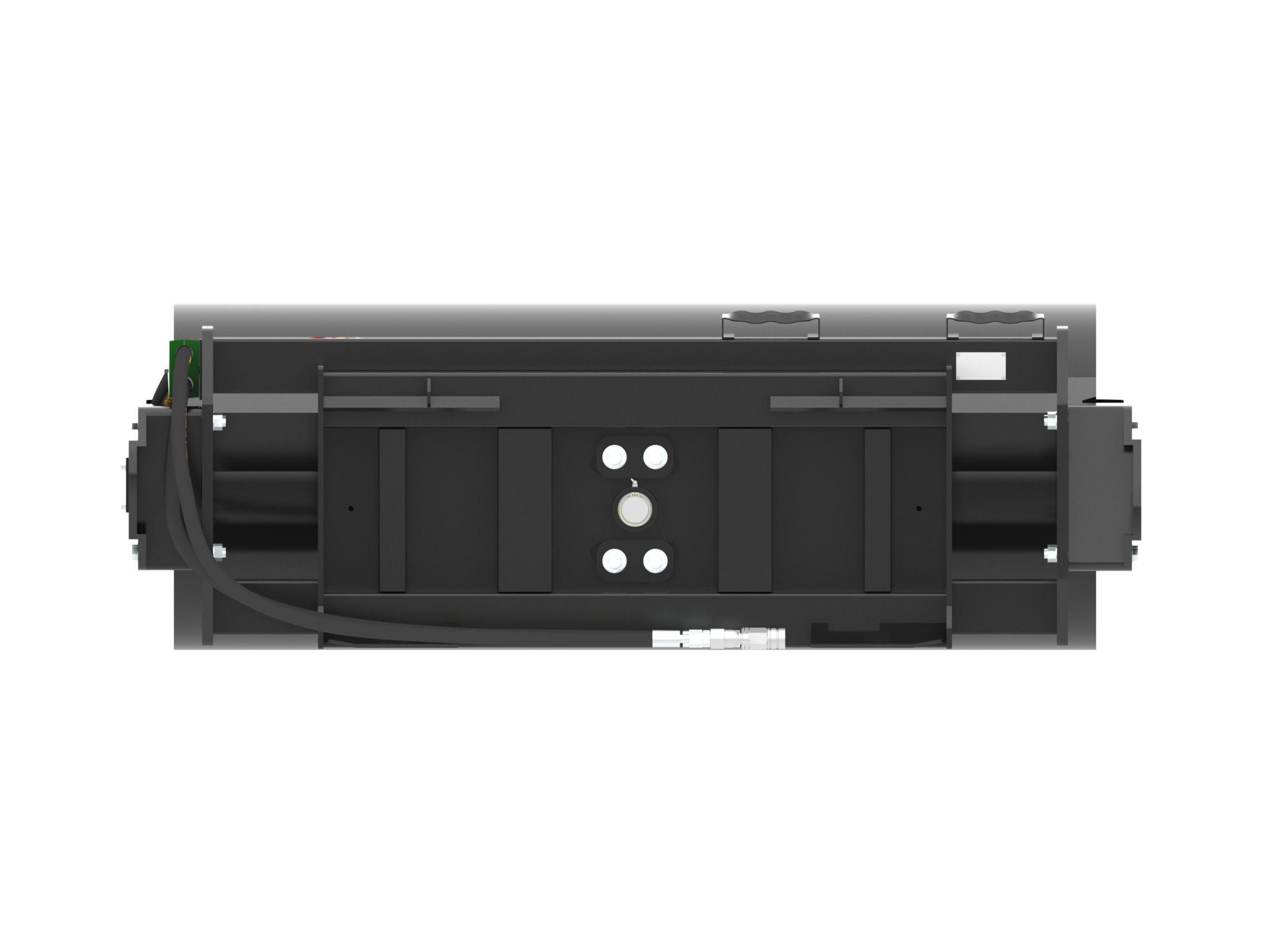

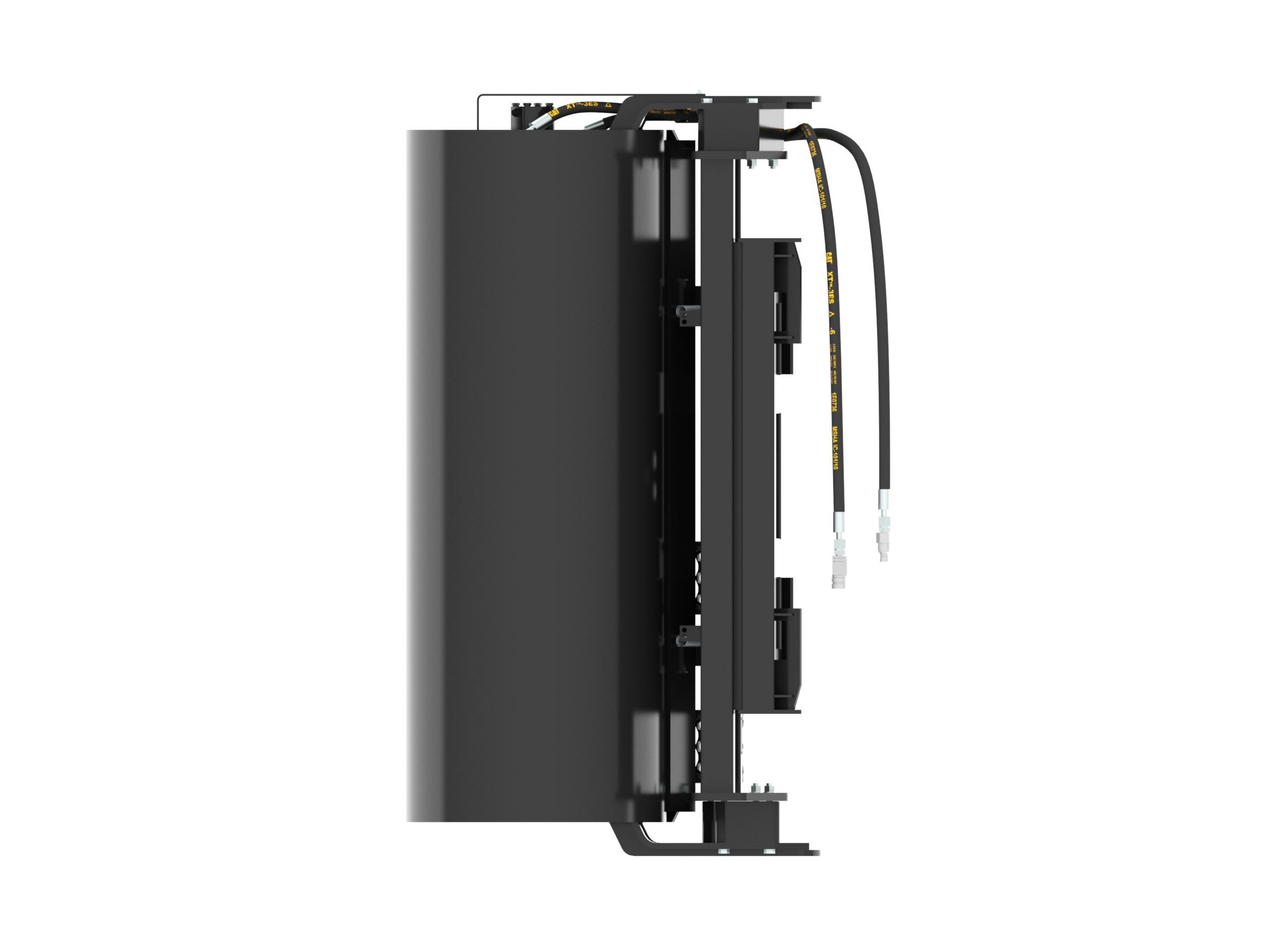

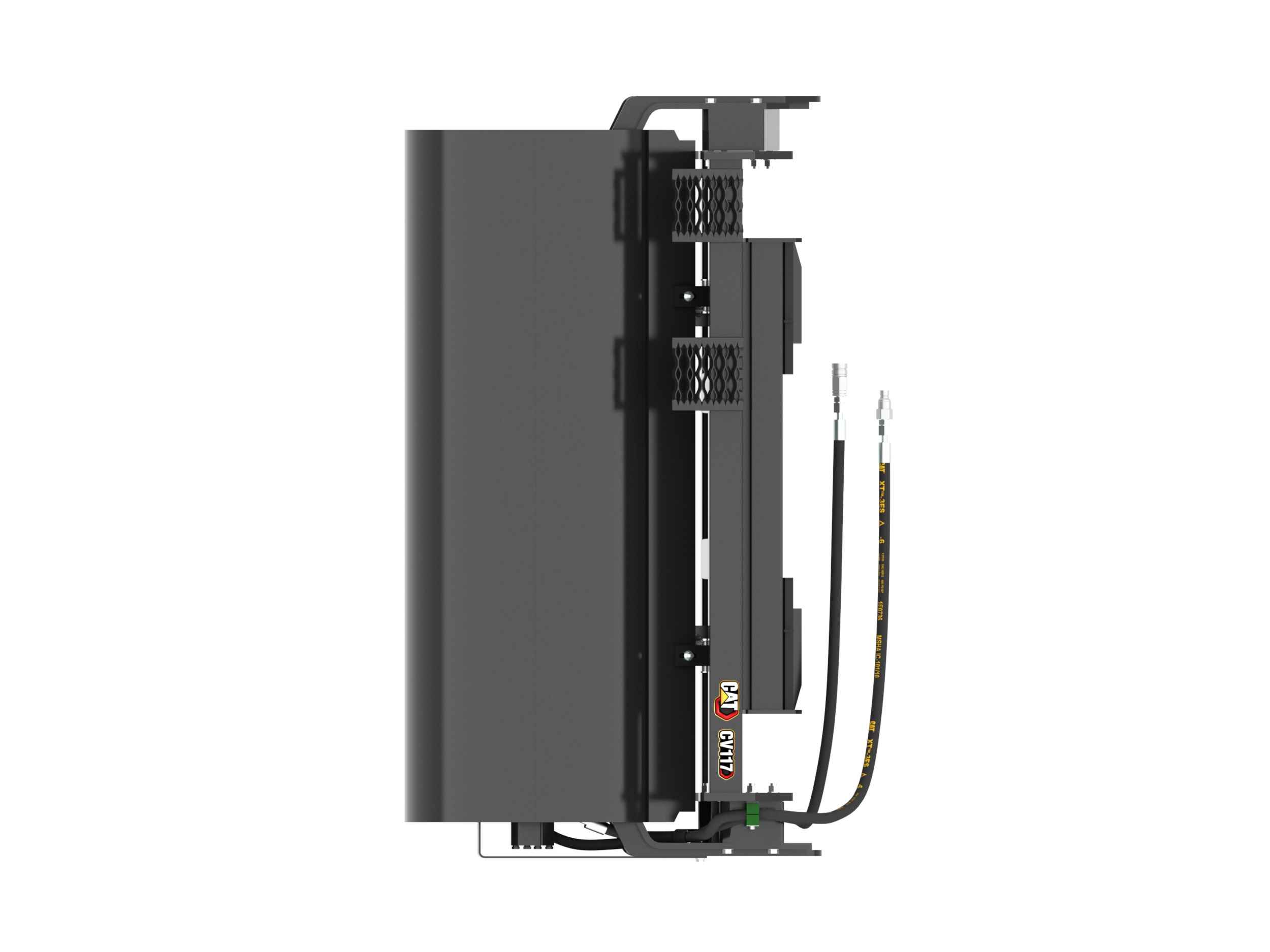

Cat® Vibratory Compactors are used for compacting soil, sand or gravel prior to pouring concrete or laying asphalt surfaces. They are also ideal for asphalt patch work. Their capabilities and lower investment and maintenance costs make them popular with pavers, general contractors and utility contractors in residential, commercial or industrial applications.
Drum Width
66.00 in
1676.00 mm
Weight
2063.50 lb
936.00 kg
Required Hydraulics
Standard Flow
Overall Width
73.00 in
1854.00 mm
Height
25.00 in
634.00 mm
Length
39.70 in
1009.00 mm
Drum Diameter
25.00 in
634.00 mm
Optimal Hydraulic Flow
42-86 L/min (11-23 gpm)
Optimal Hydraulic Pressure
145-235 bar (2100-3400 psi)
Drum Frequency at Maximum Flow
2,946 vibrations/minute
Drum Oscillation Tilt Range
± 15 degrees
Dynamic Force
11902.70 lb
5399.00 kg
Amplitude
0.05 in
1.15 mm
Motor Size
1.70 in³
28.00 cm³
Drive Method
Gear Motor - Direct
Features

Application

Used for compacting soil, sand or gravel prior to pouring concrete or laying asphalt surfaces. Also ideal for asphalt patch work.

Vibratory Pod Design

Caterpillar exclusive vibratory pod design delivers desired balance between frequency and amplitude to provide a superior matte finish.

Higher Compaction Forces

High compaction forces result in fewer passes for greater productivity.

Replaceable Rubber Mounts

Replaceable rubber mounts isolate vibration and enhance vibratory capabilities.

High Strength Steel Drums

Durable high-strength steel drums are roll formed and finish welded for a smoother surface and longer life.

Pivoting Interface

Pivoting interface allows the drum to oscillate +/-15 degrees and follow the contour of the ground.

Spring-Loaded Scraper Bar

Spring-loaded dual direction non-metallic scraper bar maintains constant pressure on drum to prevent material build up. Non-metallic design minimizes noise.
