2198 mm (87 in) Angle Blade

US
Metric

Overview

Cat® Angle Blades are useful work tools in a wide range of applications for moving dirt, gravel, livestock waste and snow. They are also useful for finish grade work in construction and landscaping.
Overall Width
87.00 in
2198.00 mm
Width - Fully Angled
78.00 in
1949.00 mm
Maximum Blade Angle (right/left of center)
±30 degrees
Blade Height
24.00 in
614.00 mm
Length
30.00 in
753.00 mm
Weight
730.00 lb
331.00 kg
Cutting Edge Thickness
0.63 in
16.00 mm
Required Hydraulic Flow
42-86 L/min (11-23 gpm)
Optimum Hydraulic Pressure
145-235 bar (2100-3400 psi)
Required Hydraulics
Standard Flow
Weight
730.00 lb
331.00 kg
Blade Height
24.00 in
614.00 mm
Cutting Edge Thickness
0.63 in
16.00 mm
Length
30.00 in
753.00 mm
Maximum Blade Angle - Right/Left of Center
±30 degrees
Overall Width
87.00 in
2198.00 mm
Required Hydraulic Flow
42-86 L/min (11-23 gpm)
Required Hydraulics
Standard Flow
Features

Application

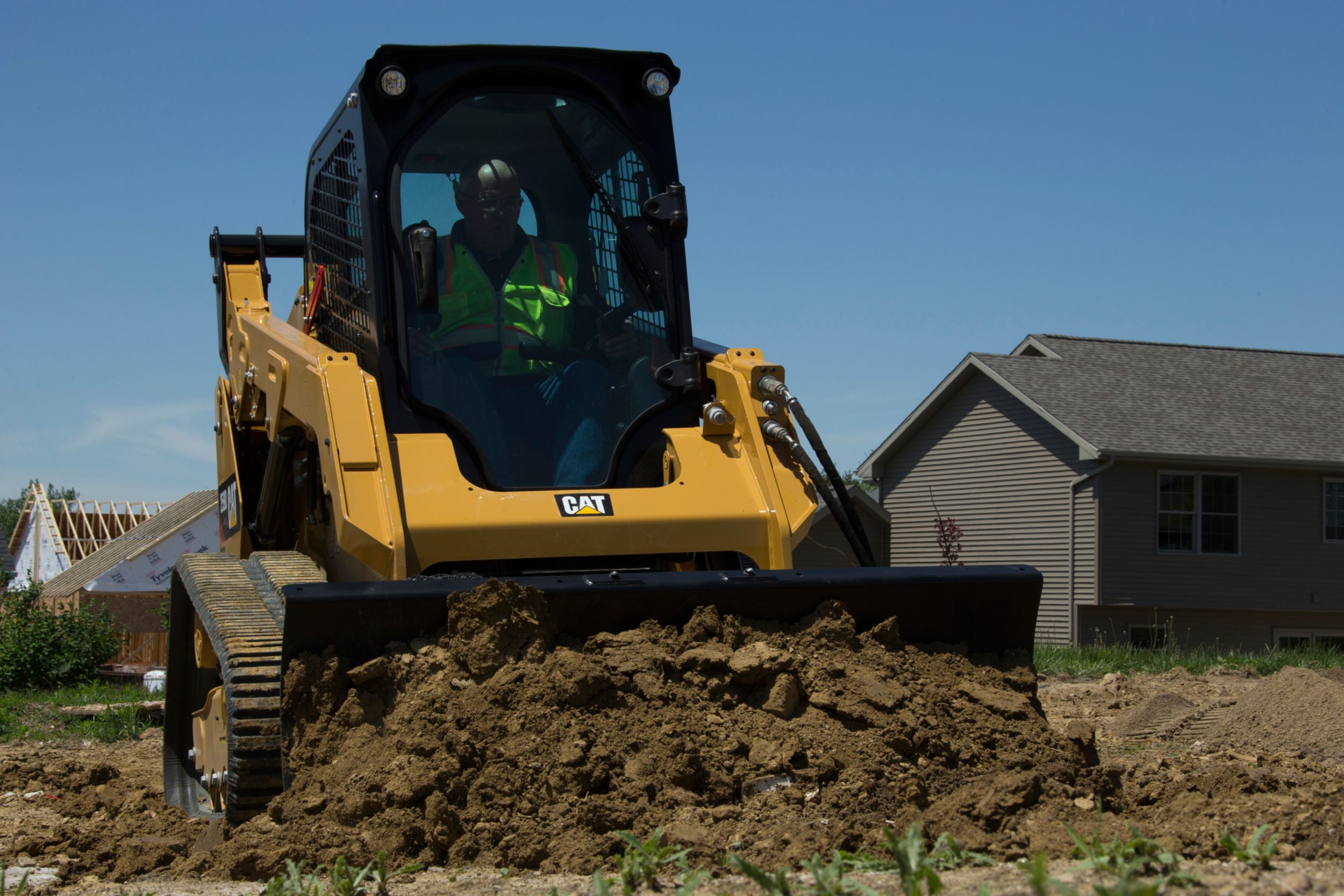

Designed for moving dirt, gravel, livestock waste and snow. Also ideal for finish grade work in construction and landscaping applications.

Two-Way Blade

Two-way blade can be operated with the blade locked for aggressive dozing or with spring-loaded trip engaged for pushing snow or livestock waste.

Angle Range

Blade angles +/- 30 degrees, depending on model.

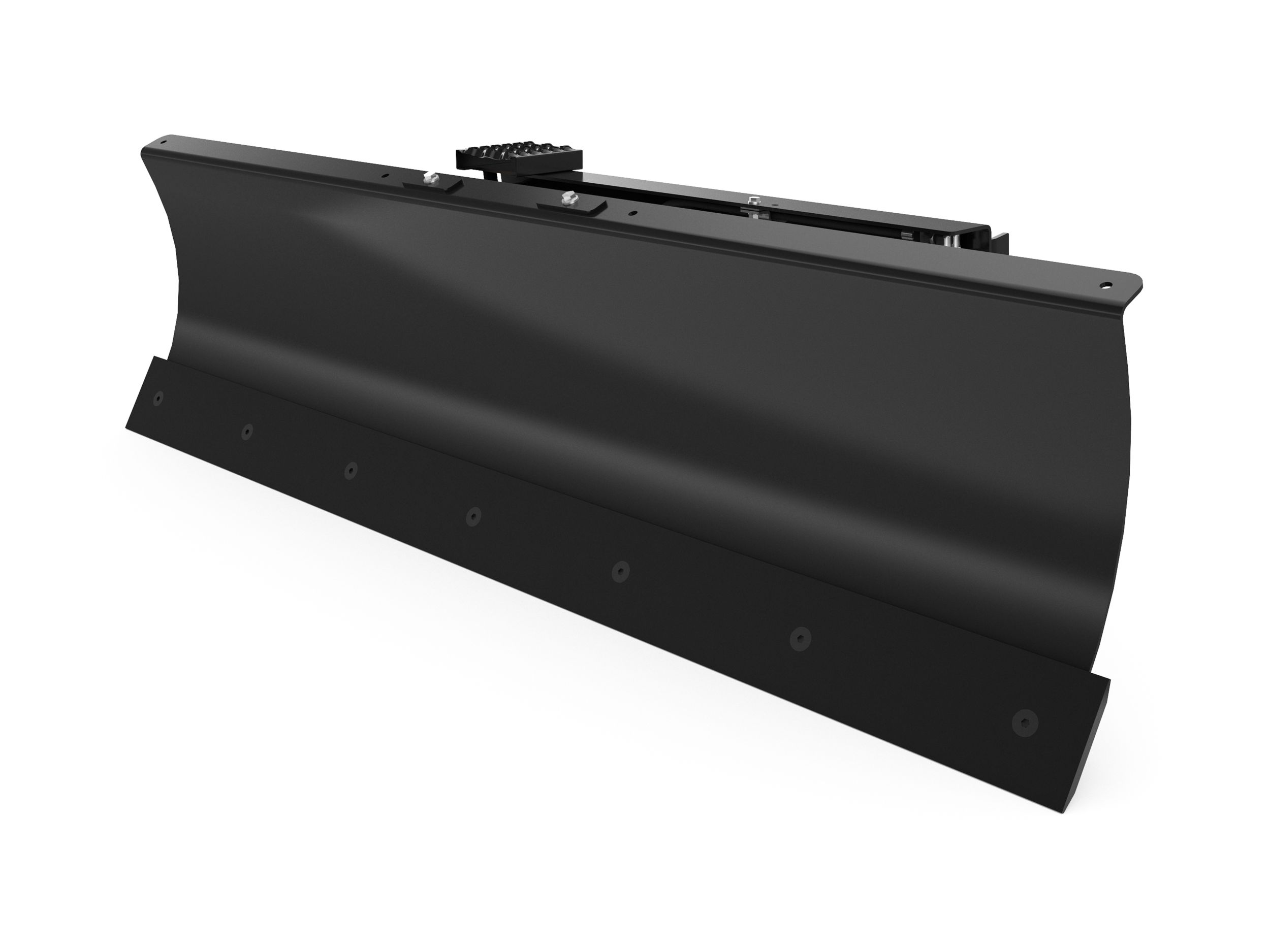

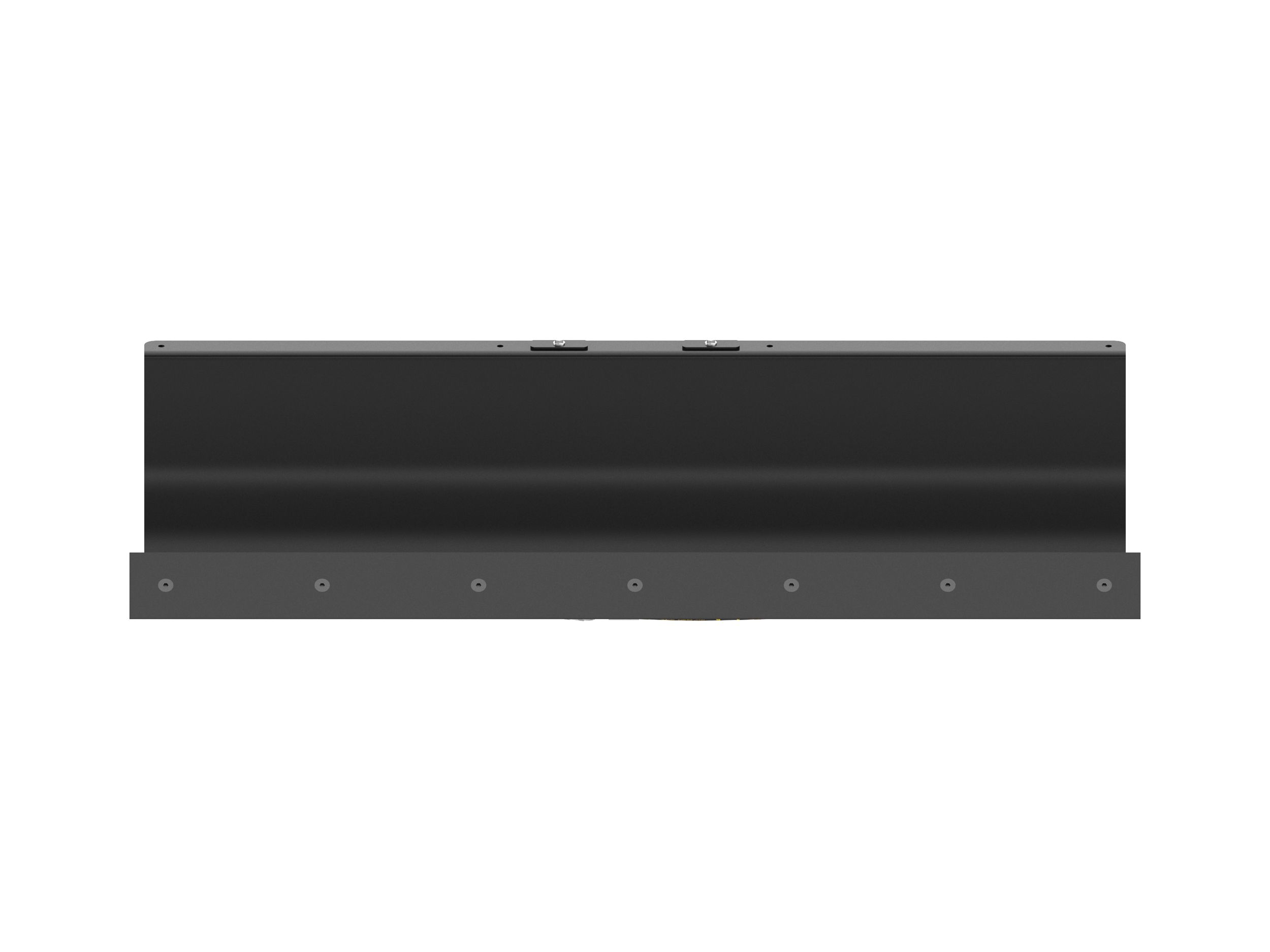

Curved Moldboard

Bolt-on, curved moldboard with standard reversible/replaceable bolt-on, hardened DH-2 steel cutting edge delivers long life and high performance.

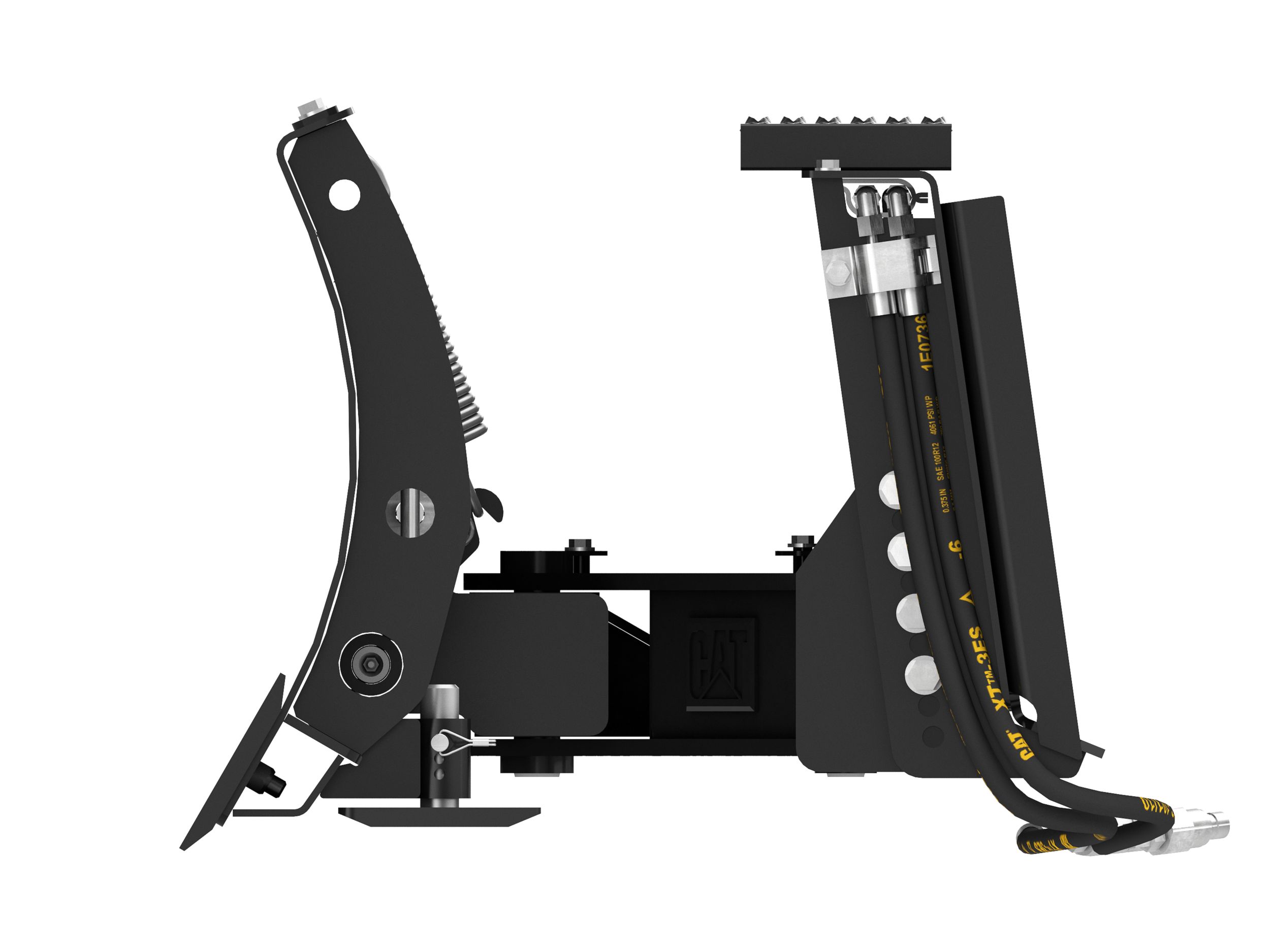

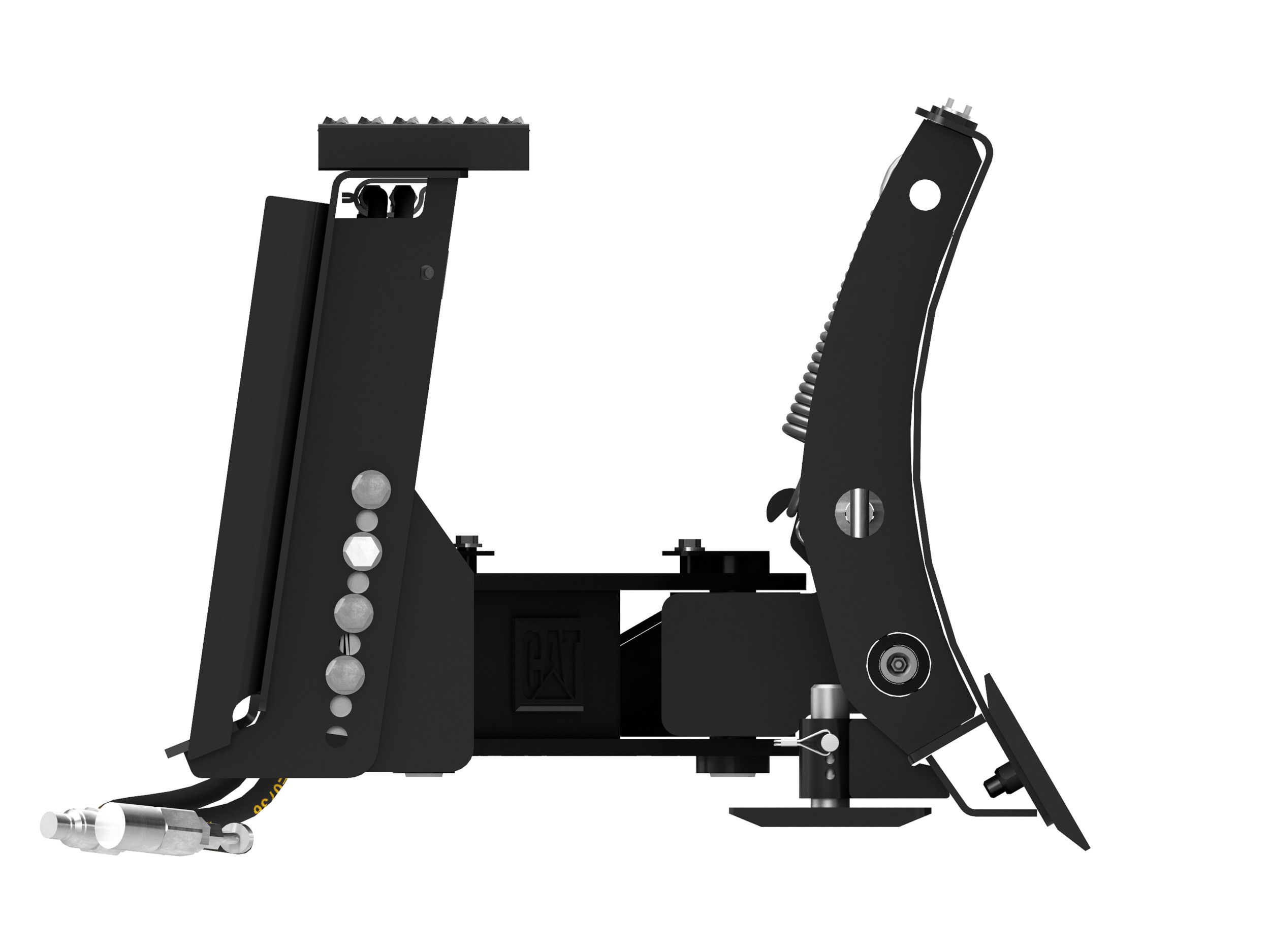

Spherical Rod Eye Cylinder

Spherical rod eye cylinder adds another degree of freedom to jointed section for better impact protection.

Four Pre-loaded Springs

Four pre-loaded springs provide appropriate force with spring-loaded trip engaged. Springs can be removed individually to accommodate a lighter trip.

Optional Snow Kit and Optional Bolt-on Non-metallic Edges

Optional snow kit with heavy-duty guard assembly, two edge markers and mounting hardware. Optional bolt-on, non-metallic edges reduces surface scratches on marring of concrete and asphalt surfaces.
