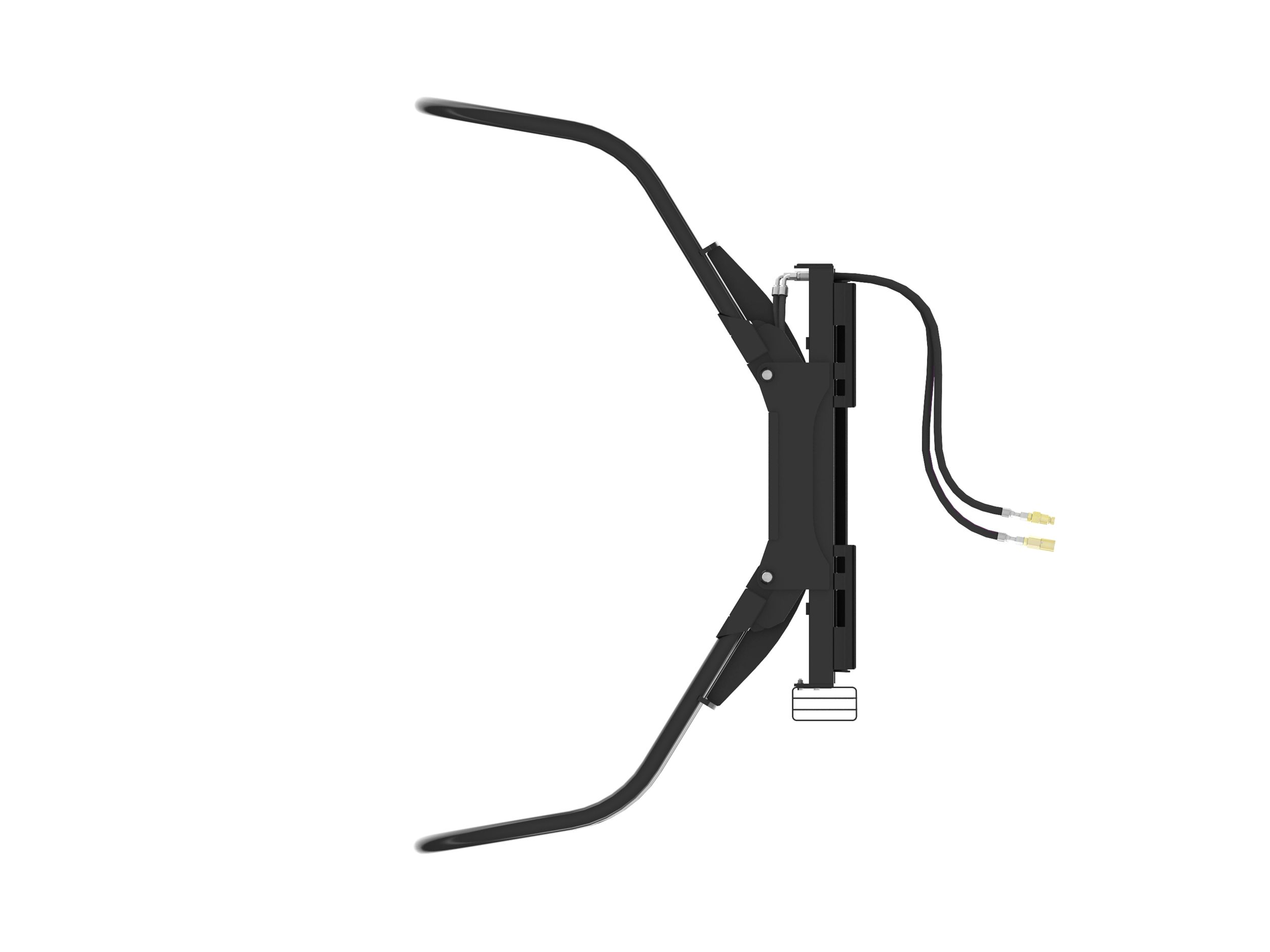

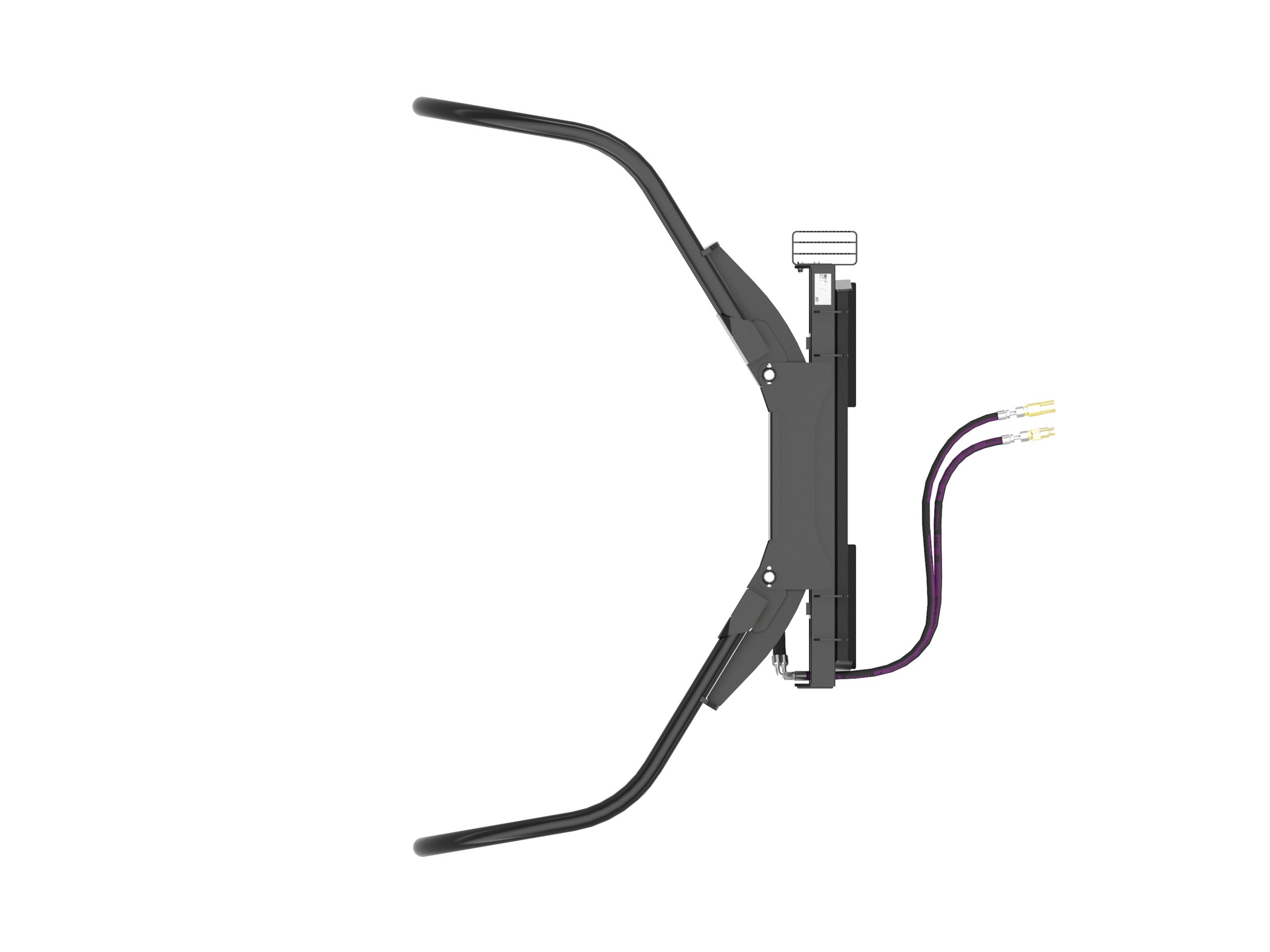

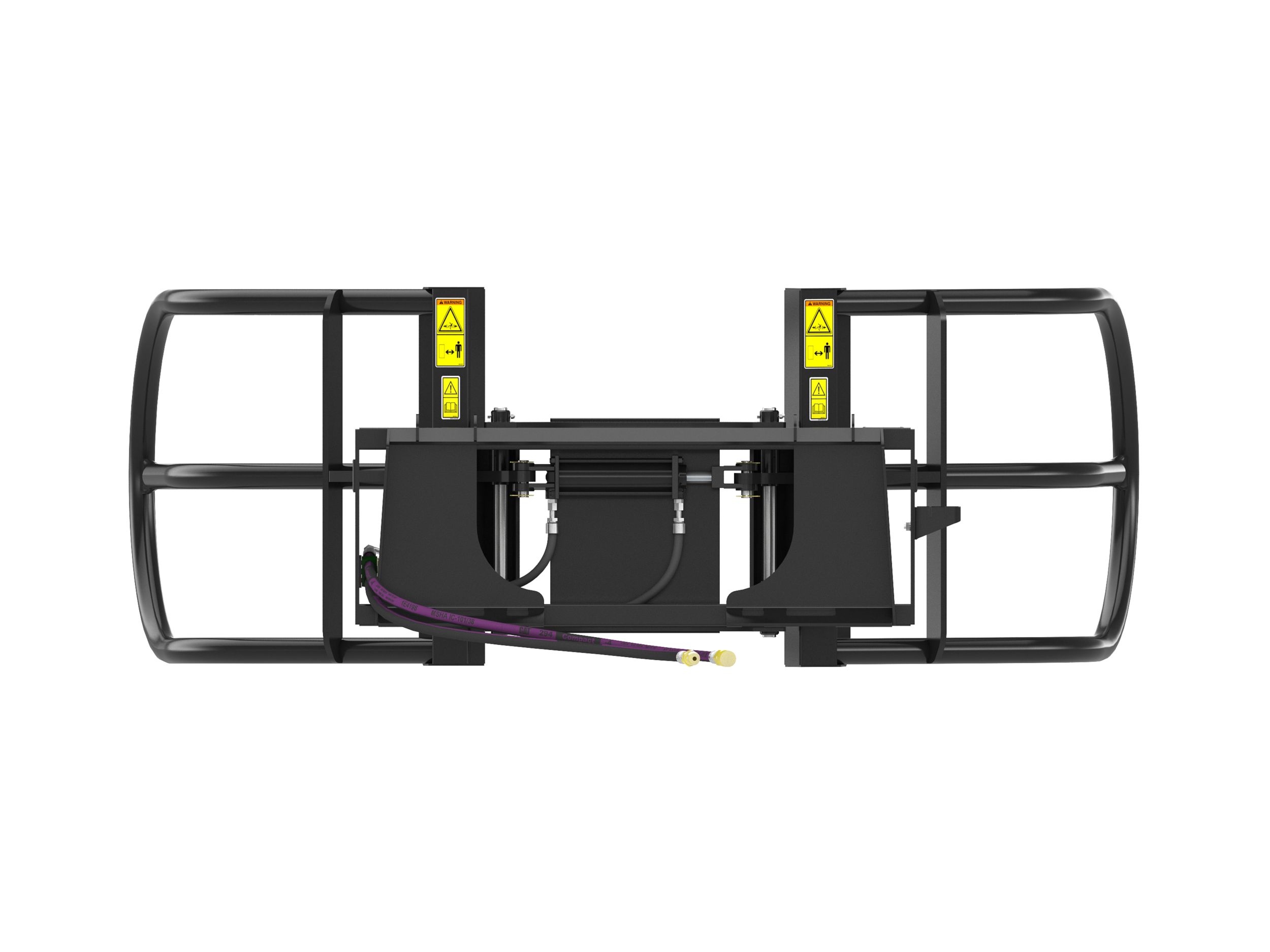

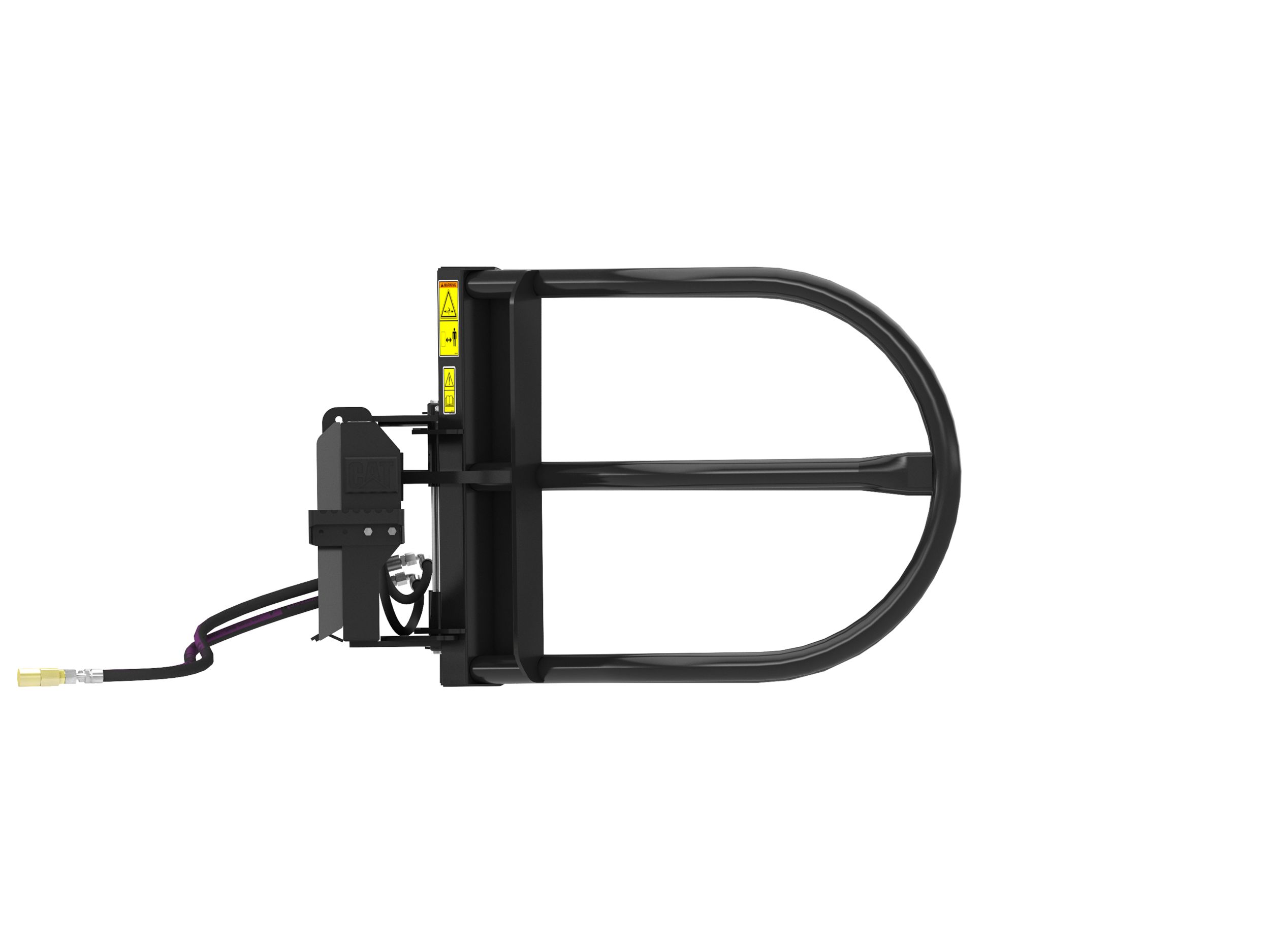

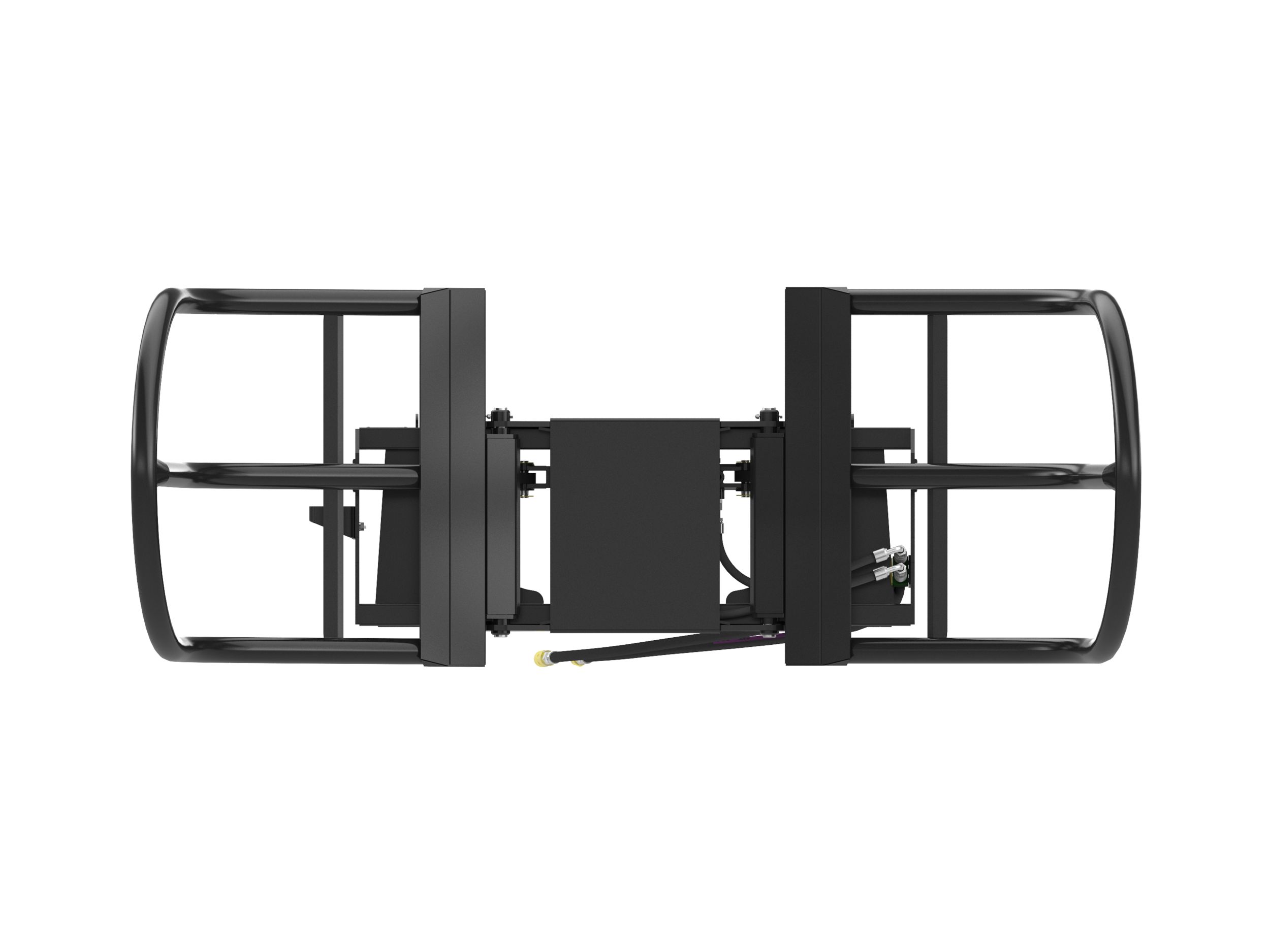

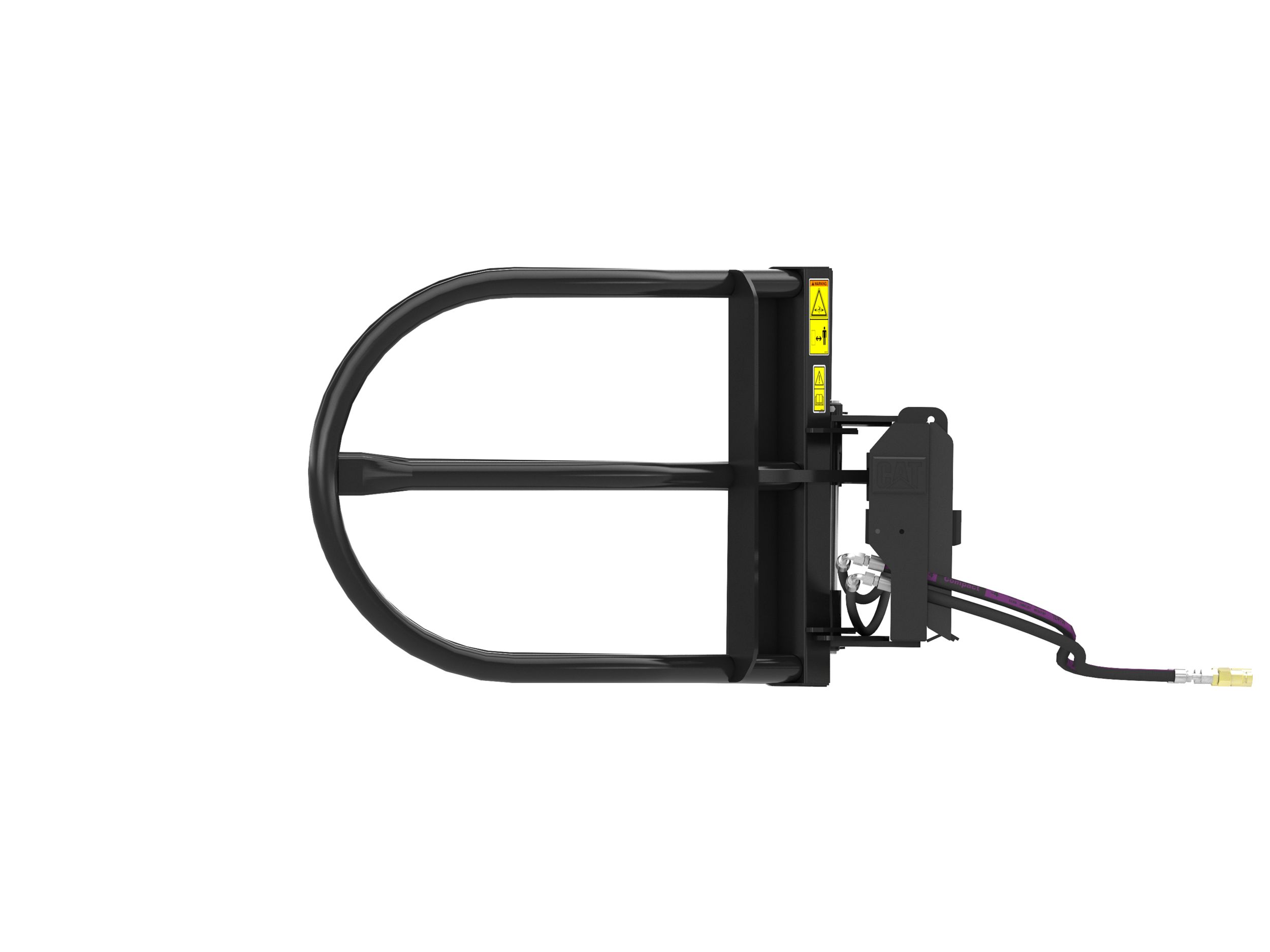

2133 mm (84 in) Bale Grab

US
Metric

Overview

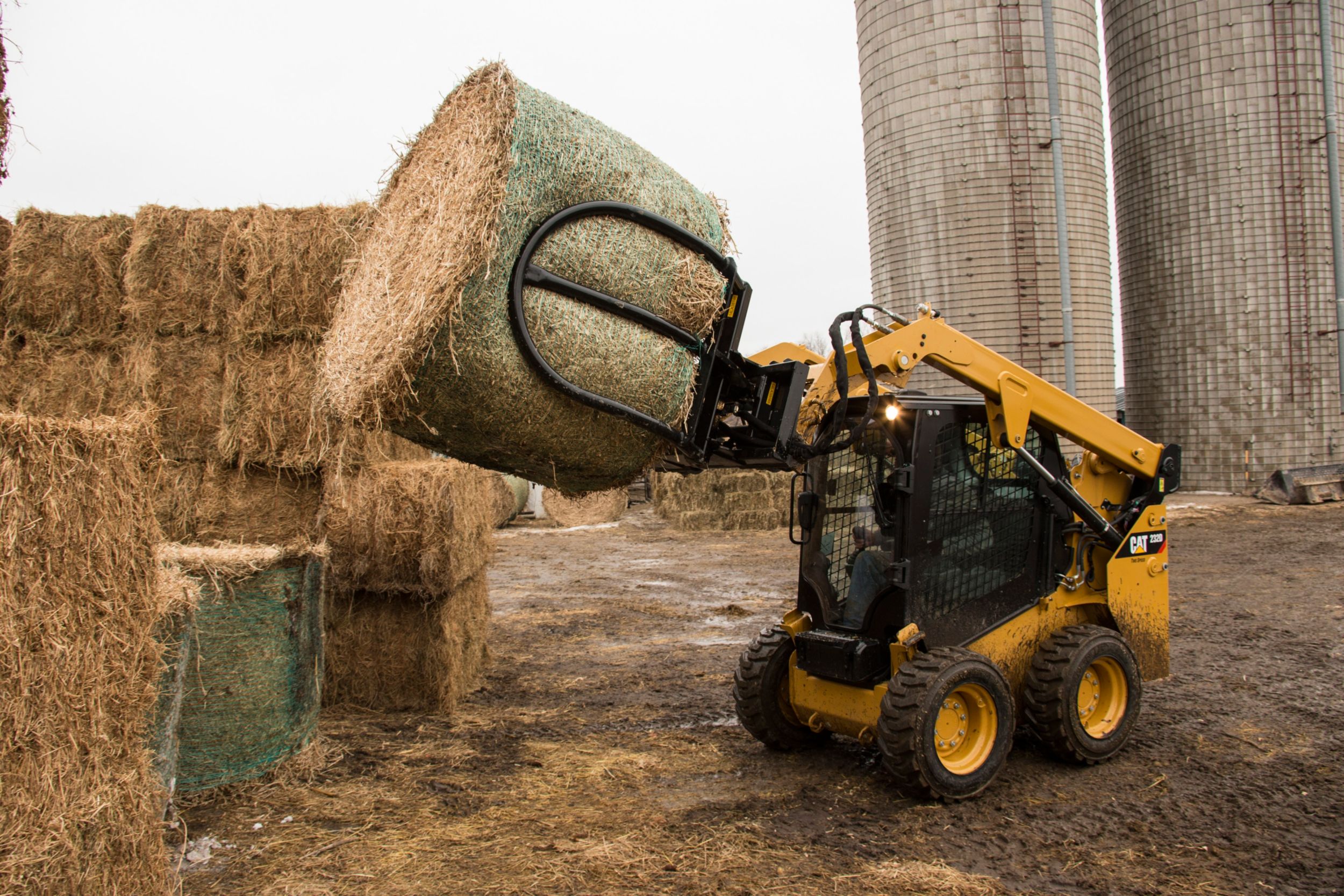

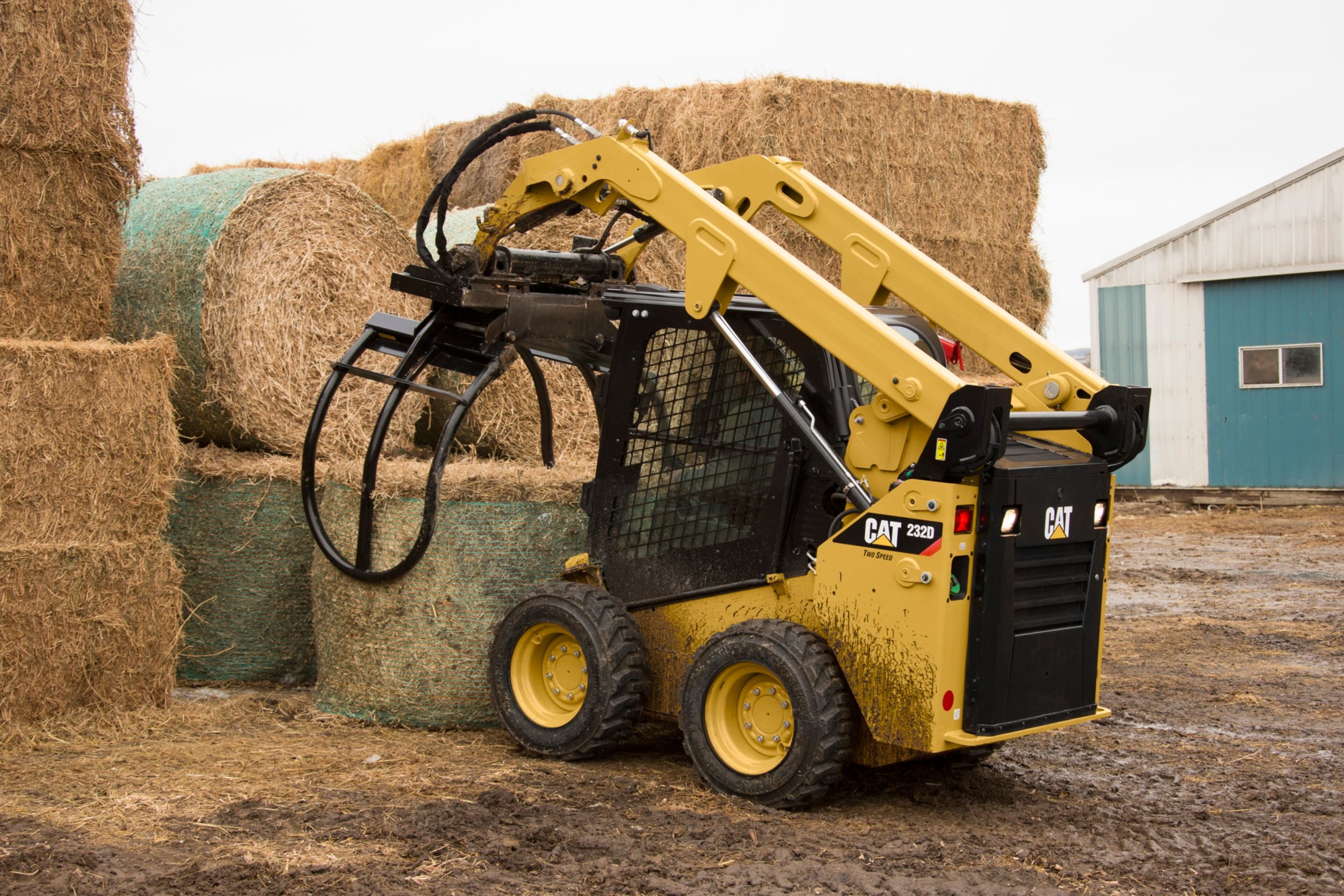

Cat® Bale Grabs for Skid Steer Loaders, Multi Terrain Loaders, Compact Track Loaders and Compact Wheel Loaders are designed for grasping and carrying baled material. Bales of wheat, hay and other materials are easily transported for livestock feed, bedding, to and from bale wrapper, and movement to storage. The Bale Grab firmly grasps baled materials but due to the rounded arm design no damage will take place to the bale. Offering the ability to pick up bales sitting flat or on their side the Bale Grab increases machine versatility to manipulate round or square bales in any position.
Overall Width
55.20 in
1401.00 mm
Overall Height
34.40 in
873.00 mm
Maximum Opening Width
84.00 in
2133.00 mm
Capacity
2400.20 lb
1091.00 kg
Overall Depth
64.20 in
1631.00 mm
Weight
578.60 lb
263.00 kg
Working Pressure
3000.00 psi
21000.00 kPa
Internal Width, Arms Closed
36.10 in
918.00 mm
Required Hydraulics
Standard Flow
Weight
578.60 lb
263.00 kg

Specifications

Capacity
2400.20 lb
1091.00 kg

Required Hydraulics
Standard Flow
Capacity
2400.20 lb
1091.00 kg
Features

Large Capacity Opening

Opening is wide enough to grasp 1803 mm (71 in) or 2133 mm (84 in) bales of hay.

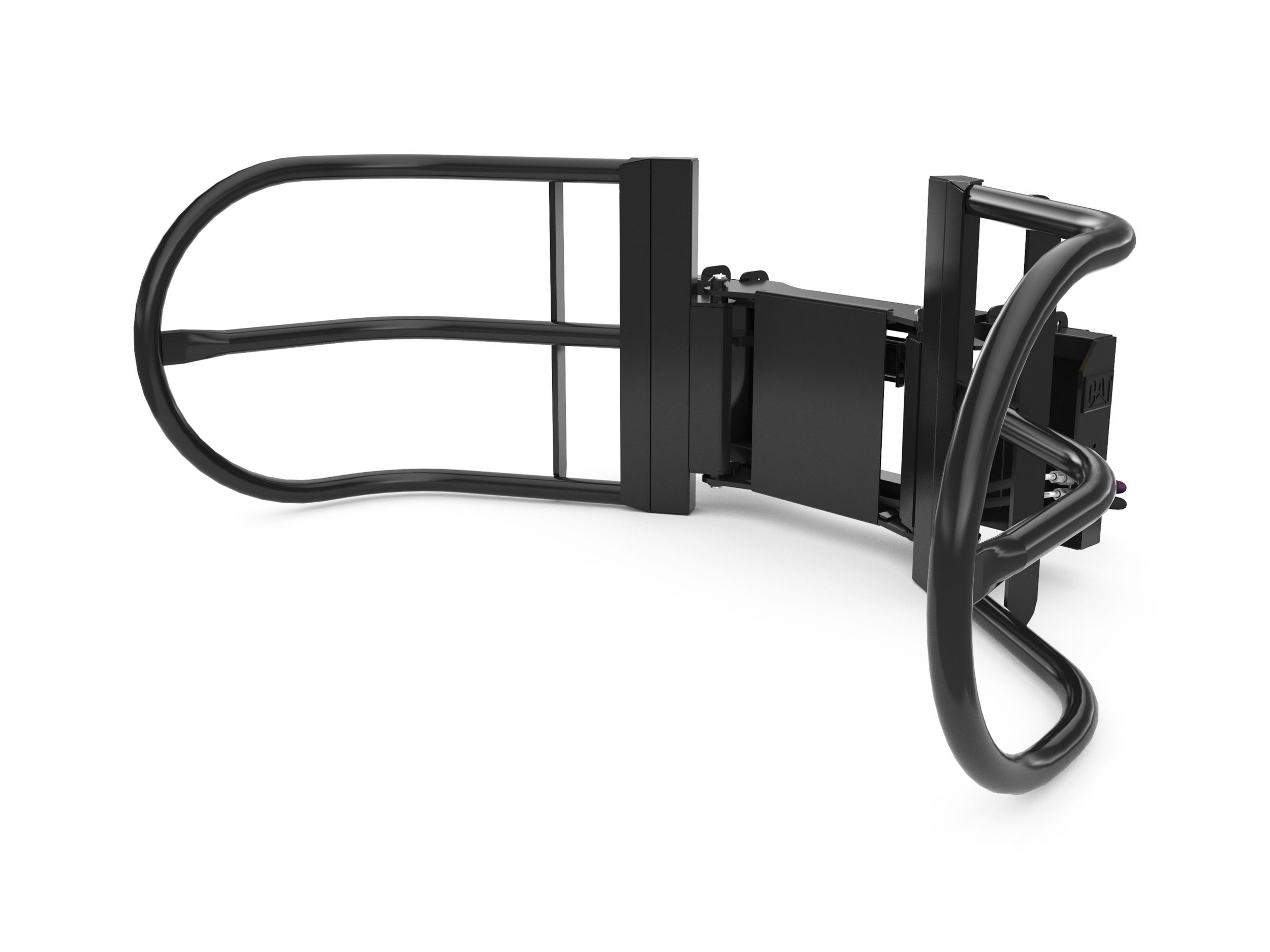

Tubular Arms

Tubular constructed arms eliminate damage to wrapped bales.

Bolt-on Serrated Step

Bolt-on serrated step allows safe and ergonomic access to machine cab and is easily replaceable if damaged.

High Strength Rigid Frame

High strength steel frame ensures durability. Hardened pins and easily accessible grease points lead to extended life and productivity.
