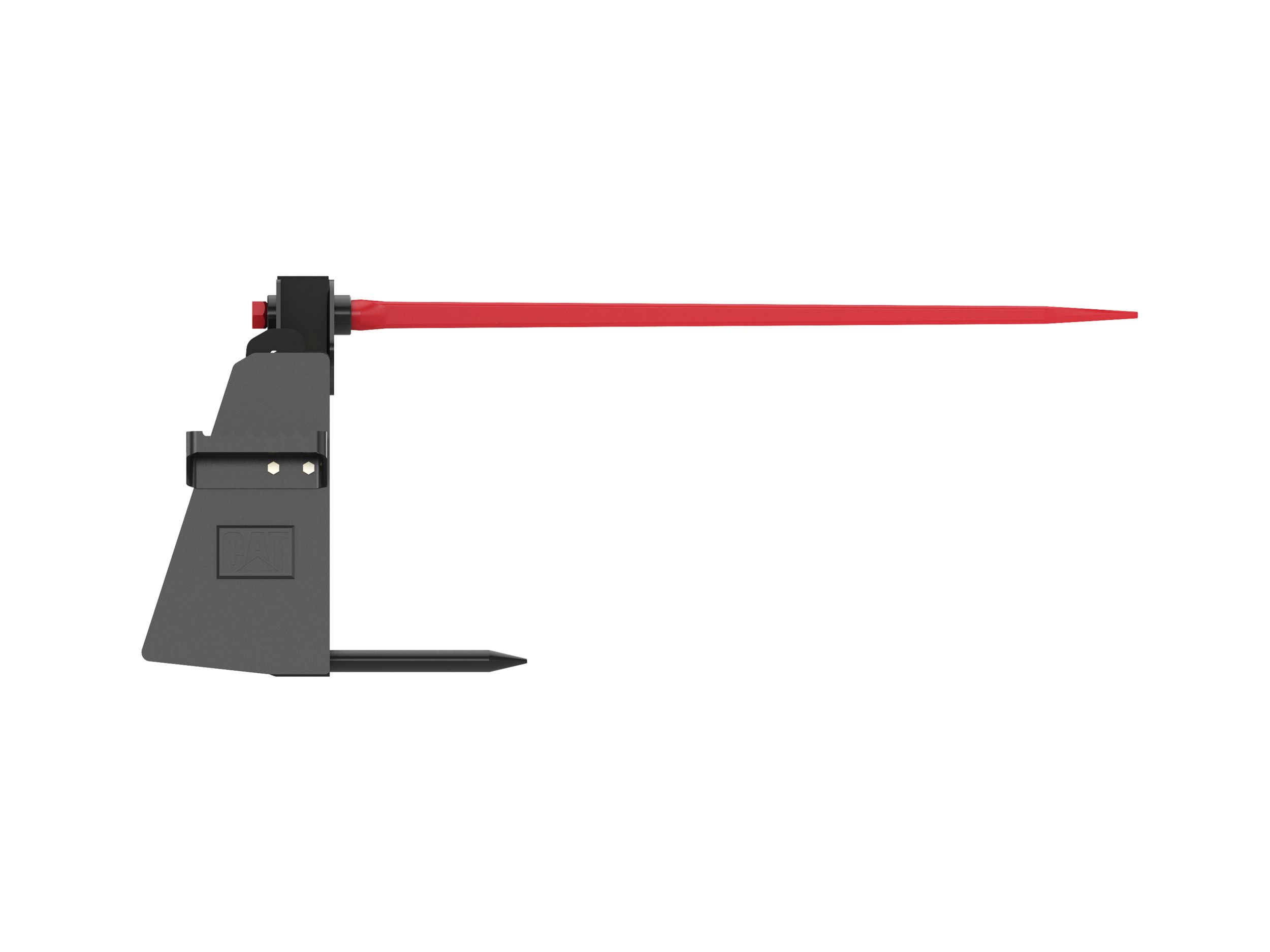

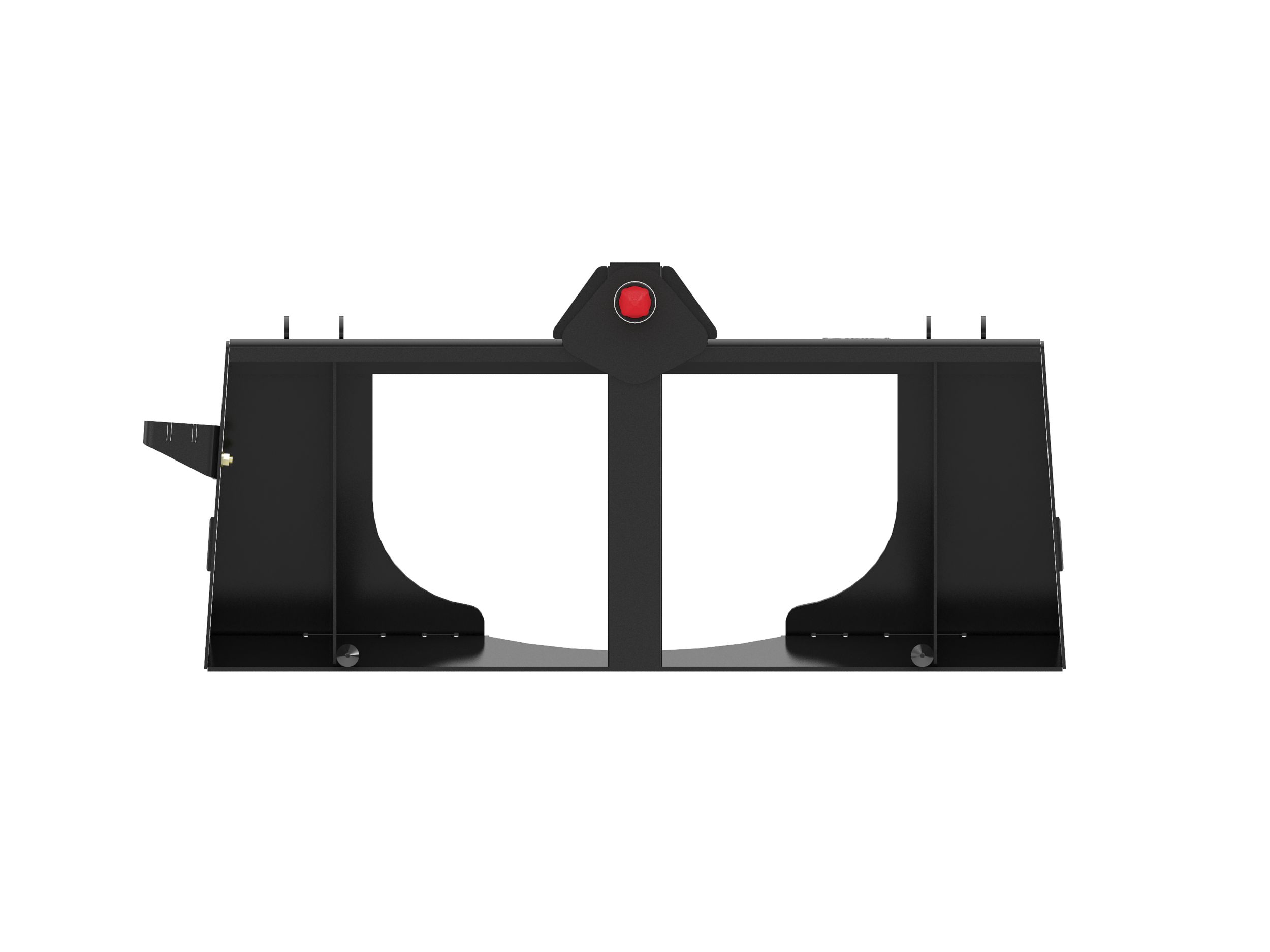

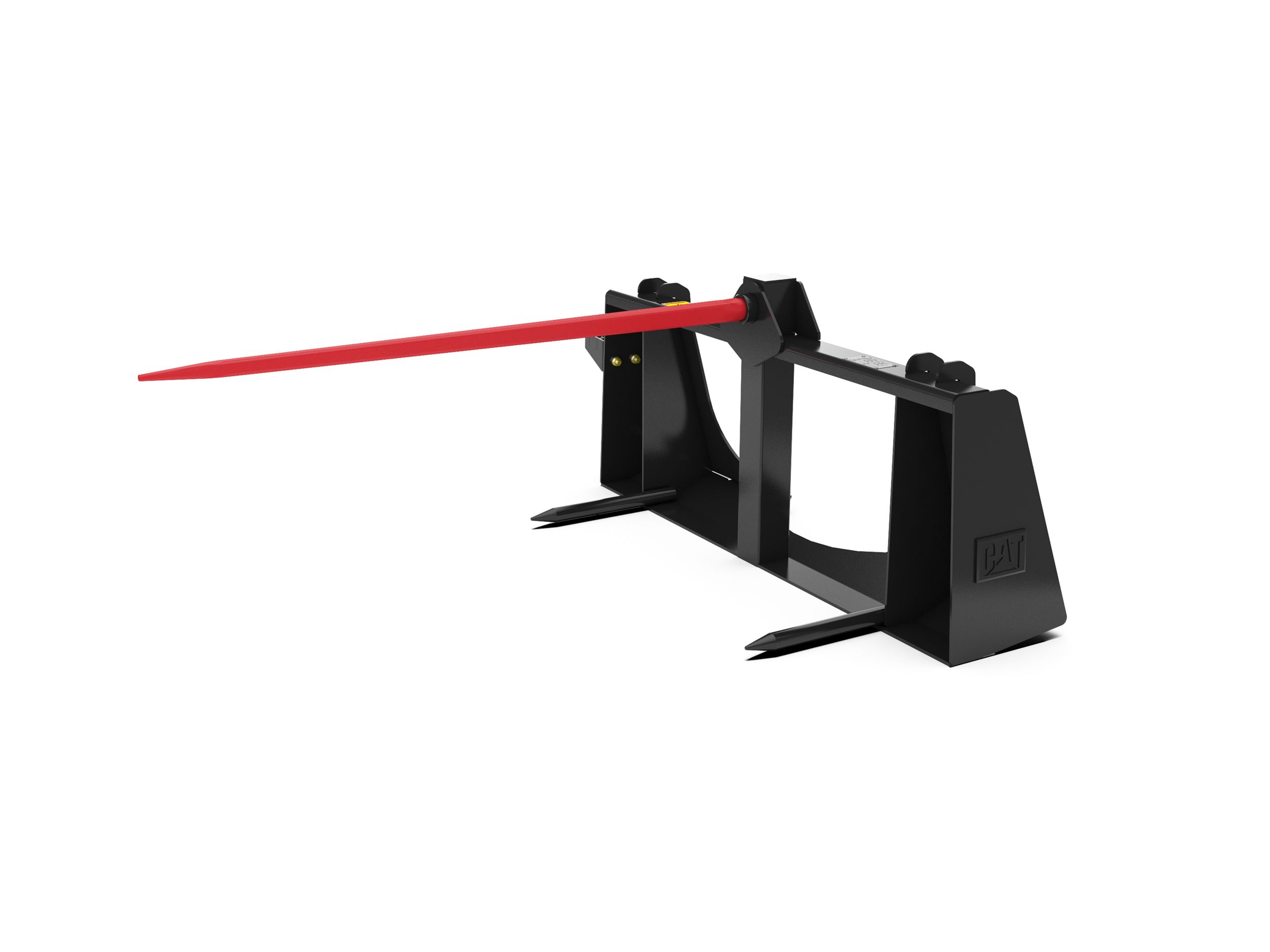

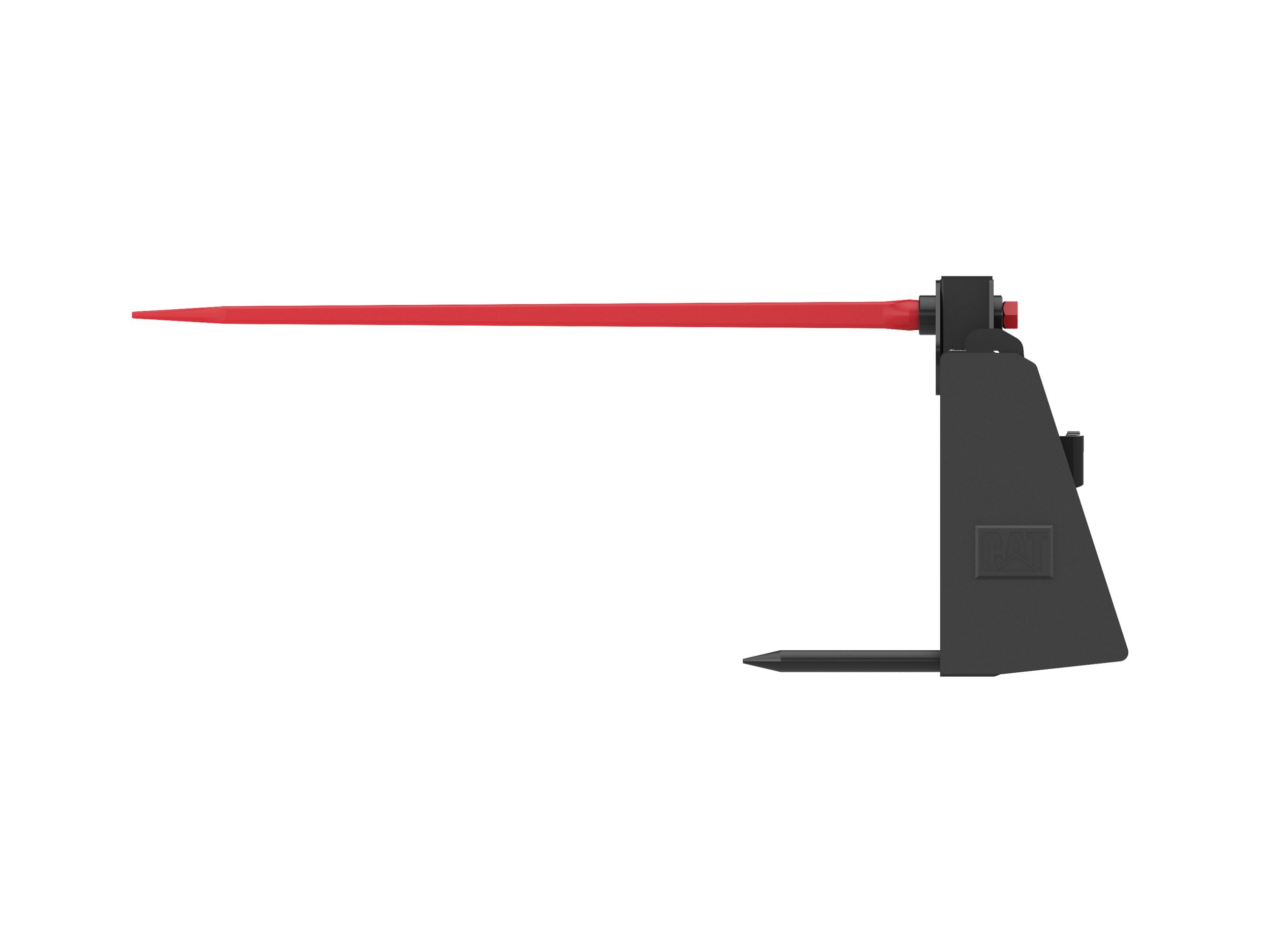

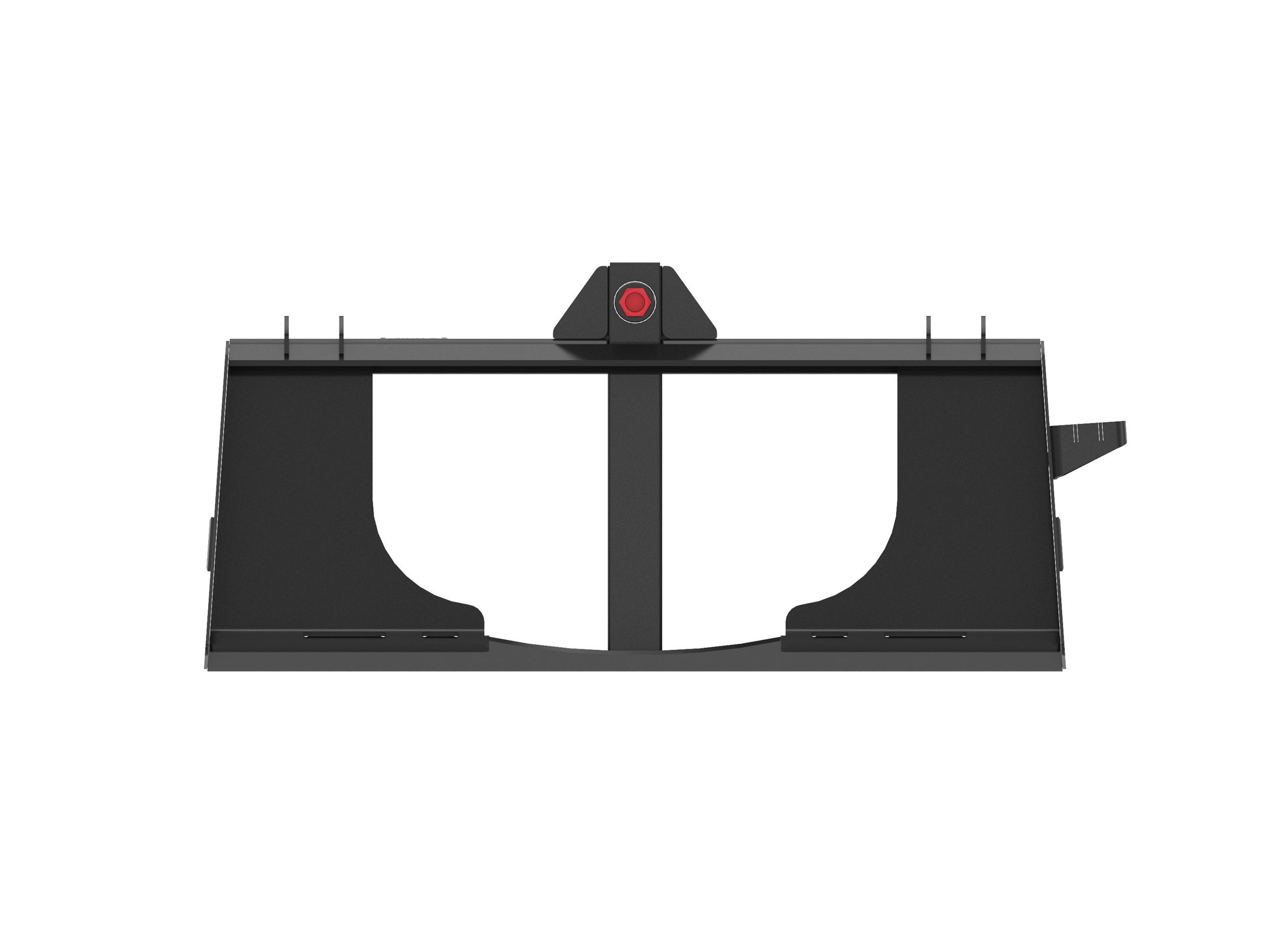

1140 mm (45 in) Single Tine Bale Spear

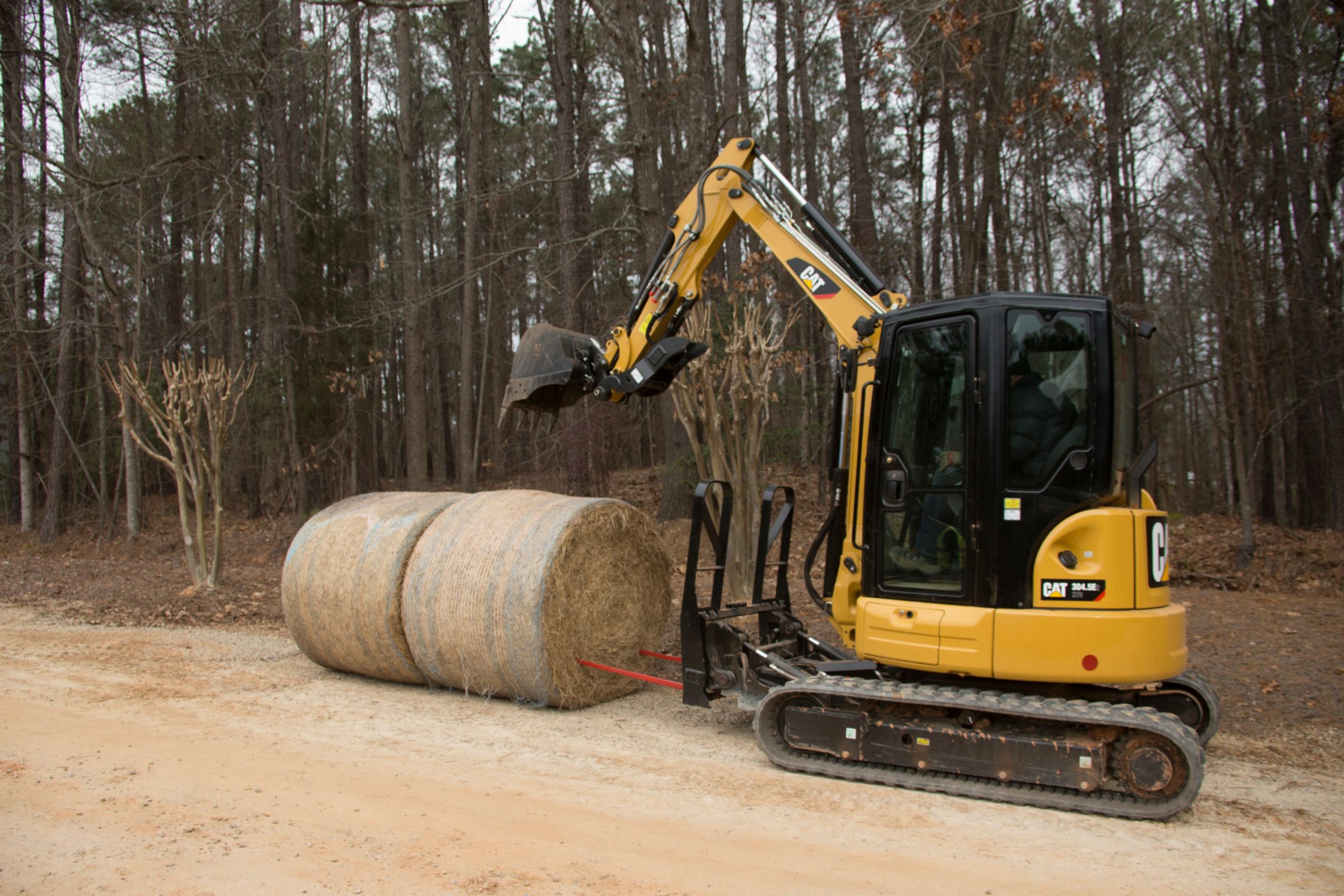

Cat® Bale Spears are designed for loading and carrying of round and square baled materials. Bales of wheat, hay and other materials can be transported for livestock feed, bedding or carrying for loading, unloading, or moving to storage. Offering optimal rigidity and capacity, the Bale Spear work tools are designed for a long working life.
Overall Width
50.60 in
1285.00 mm
Overall Height
22.40 in
570.00 mm
2004.00 lb
909.00 kg
Usable Tine Length
44.90 in
1140.00 mm
Overall Depth
56.80 in
1443.00 mm
158.70 lb
72.00 kg
Tine Spacing
31.50 in
800.00 mm
Stabilizer Tine Length
11.10 in
281.00 mm

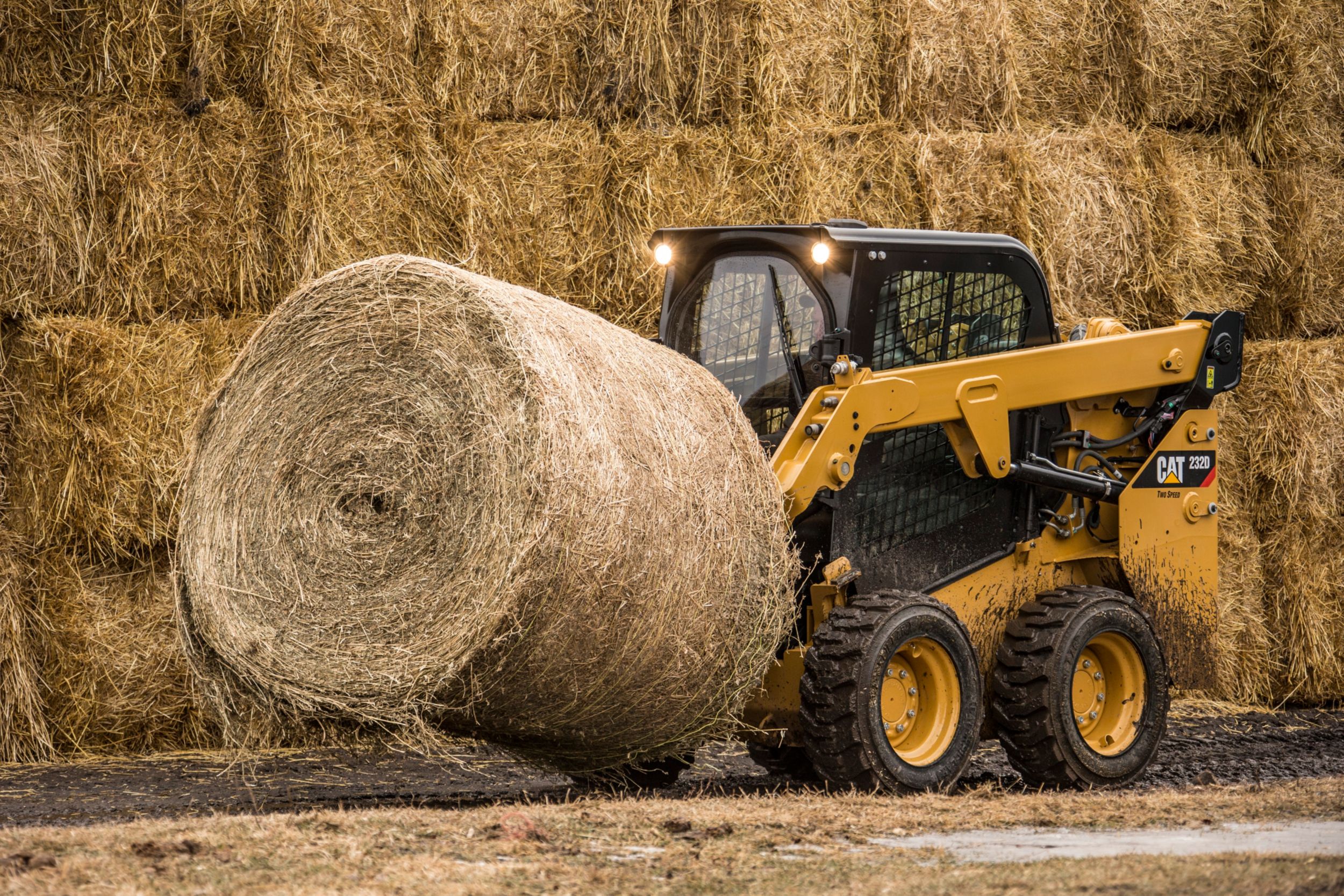

Designed for loading and carrying round and square baled materials in agriculture applications. Bales of wheat, hay and other materials can be transported for livestock feed and bedding.

Two Length Options

Two lengths available for specific material handling requirements and operator preference: 990 mm (39 in) or 1245 mm (49 in) tine lengths, single or dual tines.

Stabilizer Spears

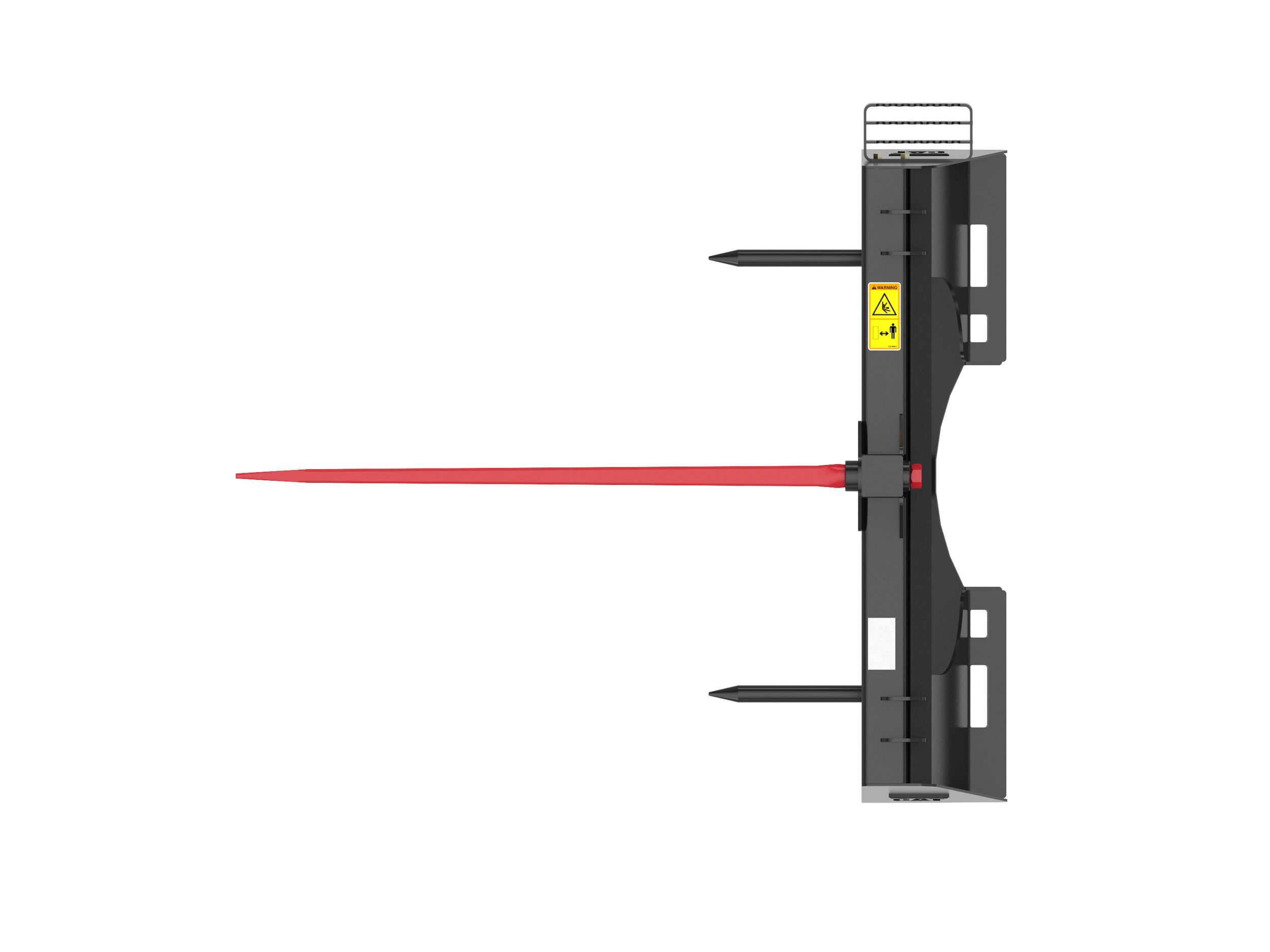

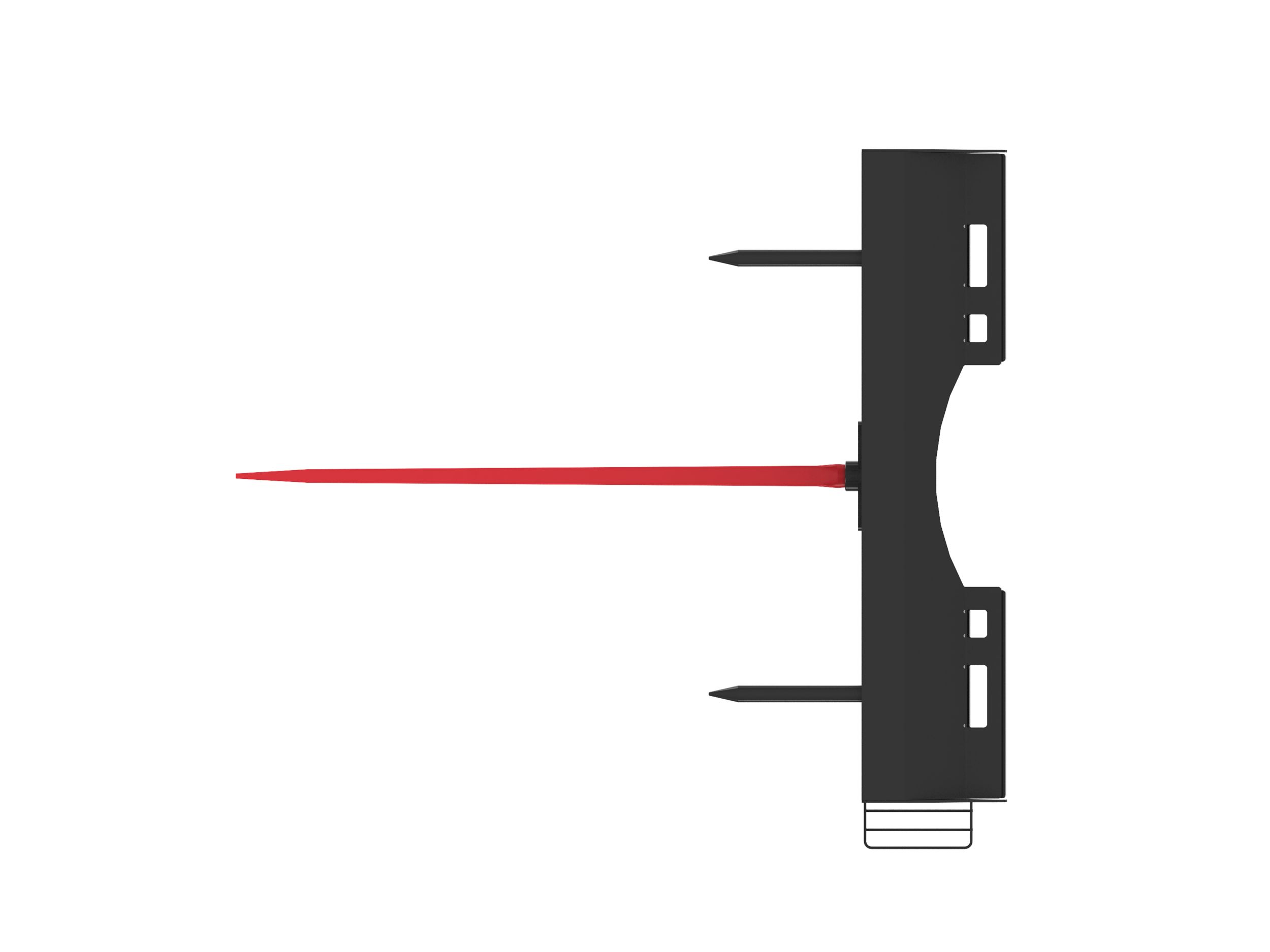

Single Bale Spear has two additional stabilizer spears located on the bottom of the frame, ensuring the security of baled material when traveling and loading.

Conical Tapered Tines

A conically tapered tine minimizes opportunity for tine to cling within baled material. Design provides superior productivity when loading and carrying material. Forged tine is heat treated and made of high tensile strength steel for superior strength and durability.
