Overview

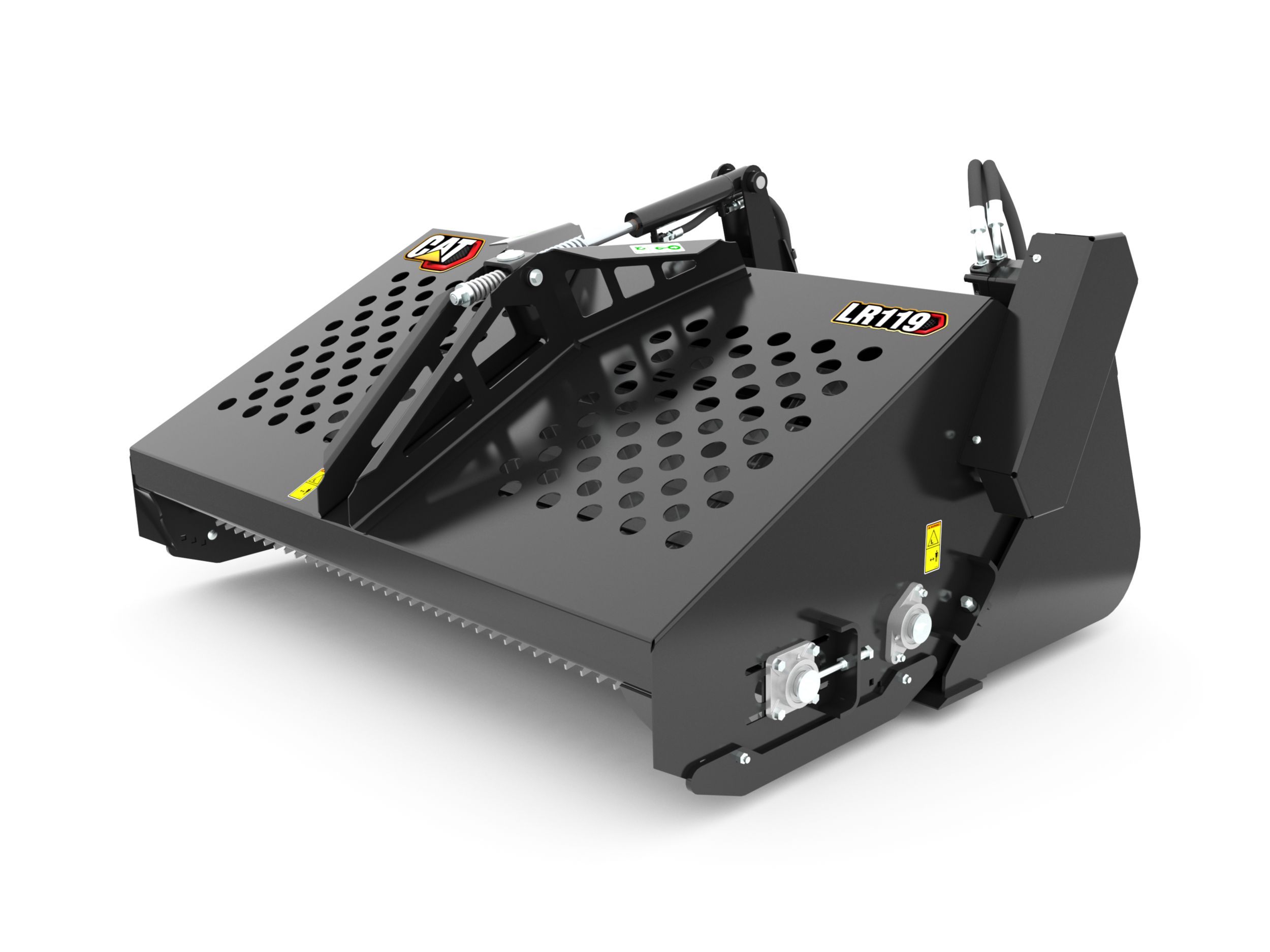

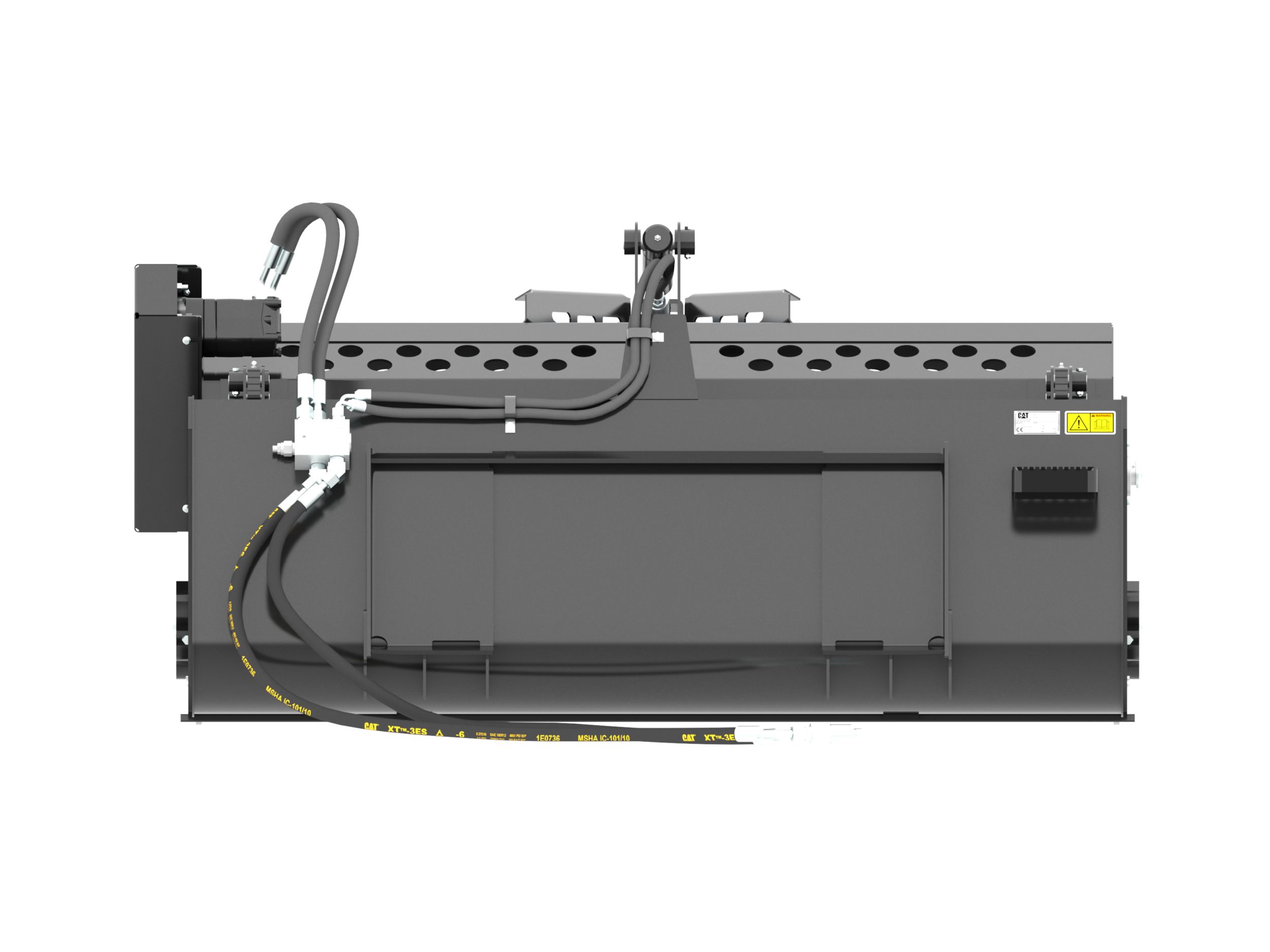

Cat® Landscape Rakes are ideal for residential, commercial, agricultural, building construction, lawn care and golf course maintenance applications. They use the scarifying action of the hardened teeth to pulverize, aerate, level and condition the soil, while collecting and depositing rock and debris in the integrated hopper bucket for quick removal. Landscape rakes are designed to operate with the loader traveling in reverse, leaving the soil finely groomed with minimal tire compaction.
Working Width
74.10 in
1883.00 mm
Bucket Capacity - Struck
0.40 yd³
0.34 m³
Weight
1439.60 lb
653.00 kg
Raking Width
65.60 in
1665.00 mm
Overall Width
78.30 in
1990.00 mm
Height
38.90 in
989.00 mm
Length
63.80 in
1620.00 mm
Optimal Hydraulic Flow
42-86 L/min (11-23 gpm)
Optimal Hydraulic Pressure
145-235 bar (2100-3400 psi)
Motor Displacement
19.20 in³/rev
315.00 cm³/rev
Driven Shaft Speed
165 rpm @ 80 L/min (21 gpm)
Number of Hard Face Tines
444
Rock Size Range
19-152 mm (0.75-6 in)
Drive Method
Chain Reduction
Drive Chain
#80H
Conveyor Chain
#2060H
Required Hydraulics
Standard Flow
Features

Application

Uses the scarifying action of the hardened teeth to pulverize, aerate, level and condition the soil, while collecting and depositing rock and debris in the integrated hopper bucket for quick removal.

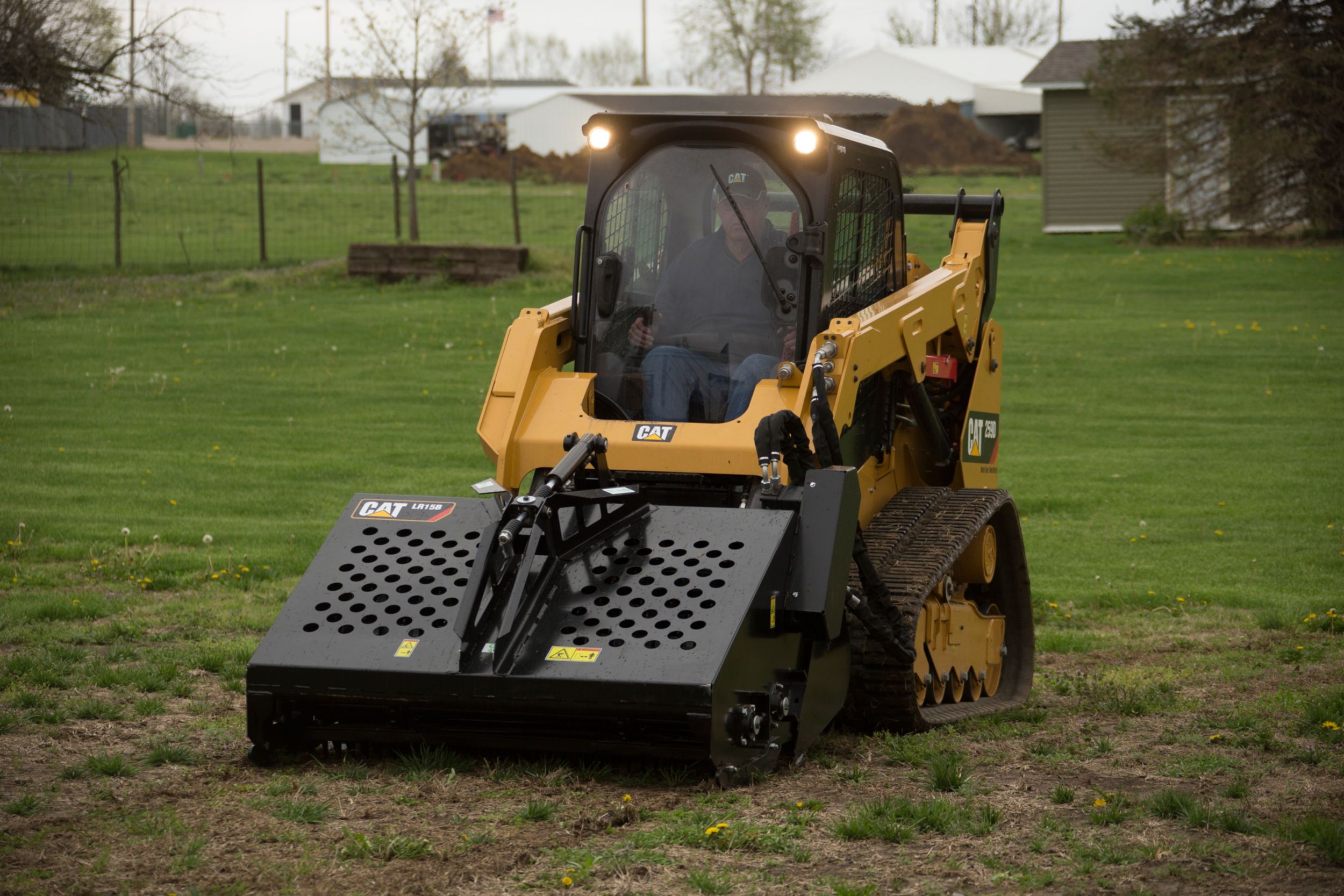

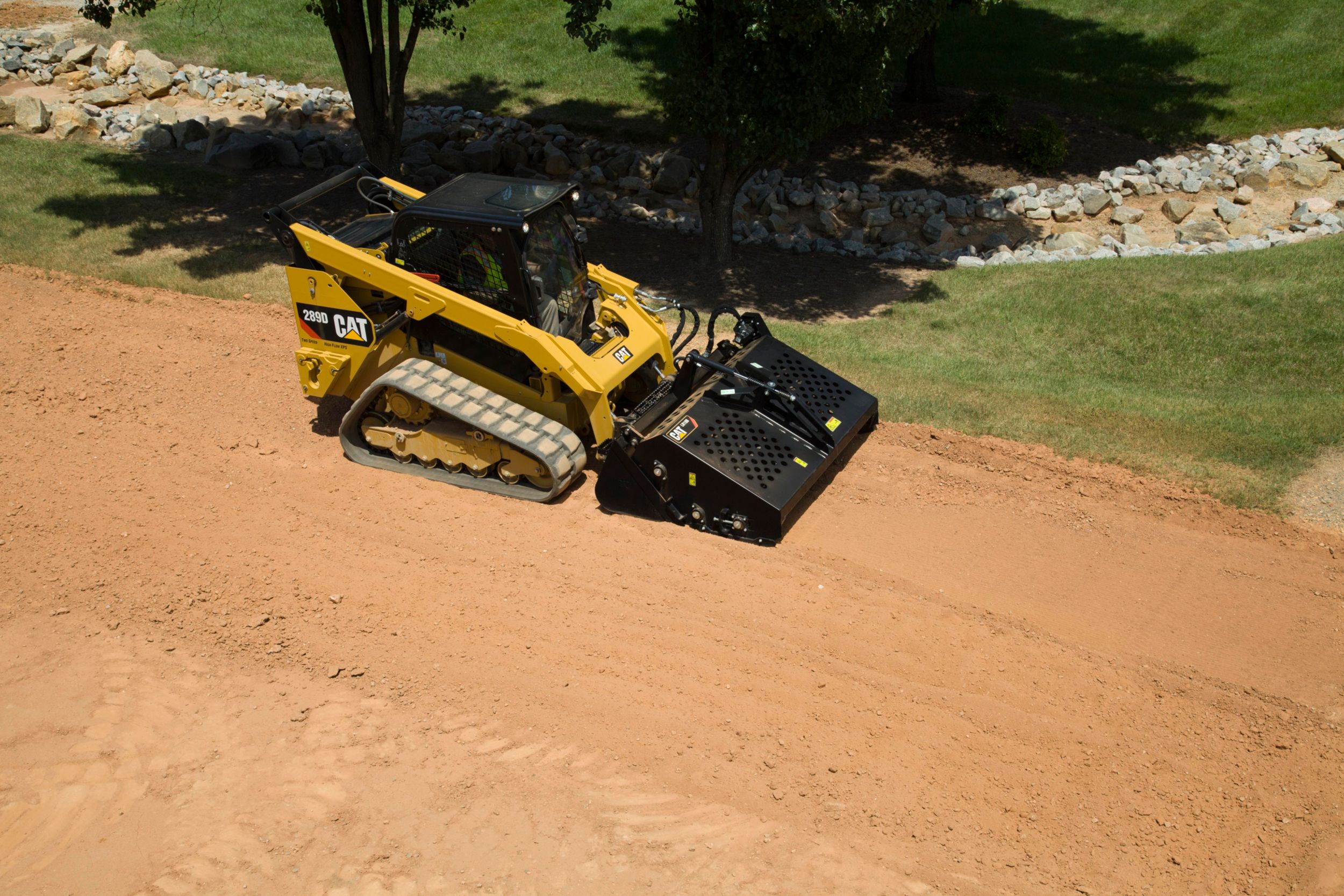

Travel Direction

Designed to operate with the loader traveling in reverse, leaving the soil finely groomed with minimal tire compaction.

Robust Design

Chain reduction drive system and steel teeth are built for maximum strength and durability in the toughest soil conditions.

Quick Dumping

Quick dumping capability is accomplished with a poppet check valve that stops flow to the hydraulic motor and directs flow to the rake head cylinder. Once the hopper bucket is full, simply reverse flow to actuate the rake head cylinder and dump the bucket.

Conveyor Tubes

Bolt-on conveyor tubes for easy replacement and serviceability.
